Mira Advance J97I User manual

1
Installation and User Guide
MIRA ADVANCE ATLP
LOW PRESSURE
9.0 kW
PUMPED ELECTRIC
SHOWER
ADJUSTABLE TEMPERATURE LIMIT THERMOSTATIC
This product is suitable for gravity cold water only.
Please leave these instructions with the user at the installation address.
For SPARES, ADVICE
or REPAIRS
Please call us on
0844 571 5000
(UK Only)

2
WARNING! This shower can deliver scalding temperatures, cause
re, electric shock or other personal injury if not operated, or
maintained in accordance with the instructions, warnings and
cautions contained in this guide and on the appliance.
Please read the important safety information and the operation section
of this guide before using the shower. Failure to follow the instructions
provided with this shower will invalidate the guarantee.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1. Children younger than 3 years should not use this shower. Children
3 years to under 8 years should only use this shower under
continuous supervision. Children aged 8 years and above and
persons with reduced physical, sensory or mental capabilities or
lack of experience or knowledge can use the shower if they are
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
2. Children shall not be allowed to play with the shower.
3. DO NOT restrict the water ow from the shower outlet, temporarily
bending the shower hose or blocking the shower head while in use
can cause a hot shot of water to be discharged.
4. Cleaning and user maintenance shall not be made by children
without supervision.
5. The outlet must not be connected to any tap or tting other than
those specied.
6. The showerhead must be descaled regularly. Any blockage of the
showerhead or hose can cause damage to the shower.
7. Warning! DO NOT switch on if there is a possibility that the water
in the heater is frozen.
8. The shower must be provided with means for local disconnection
from the supply mains having a contact separation in all poles
that provide full disconnection under overvoltage category III,
the instructions state that means for disconnection must be
incorporated in the xed wiring in accordance with the wiring rules.
Important Safety Information

3
9. Installation of the shower must be carried out in accordance with
these instructions by qualied, competent personnel. Read all
instructions before installing the shower.
10. DO NOT switch the shower on if water starts leaking from the shower
case. Isolate the electrical supply to the shower immediately.
11. DO NOT switch the shower on if the case appears to be damaged
or incorrectly tted. Isolate the electrical supply to the shower
immediately.
12. DO NOT increase the power setting or adjust the temperature
control rapidly while using the shower.
13. DO NOT switch the shower o󰀨 and back on while standing in the
water ow.
14. DO NOT change the handset model. Fit only shower heads
recommended by Mira and do no t any additional device to restrict
the water outlet ow.
15. When adjusting the handset mode, point handset away from body
and make sure that the water temperature has stabilised before
continuing to shower.
16. Use caution when altering the water temperature, always check
the temperature before continuing to shower.
17. Switch the shower o󰀨 at the electrical isolating switch when not in
use. This is recommended with all electrical appliances.
18. Installation of the shower must be carried out in accordance with
these instructions by qualied, competent personnel. Read all
instructions before installing the shower.
19. Isolate the electrical and water supplies before commencing
installation. The electricity must be isolated at the consumer unit
and the appropriate circuit fuse removed, if applicable. Mains
connections are exposed when the cover is removed.
20. DO NOT install the shower in areas with high humidity and
temperature (i.e. Steam rooms and saunas).
21. DO NOT install the shower where it may be exposed to freezing
conditions. Ensure that any pipework that could become frozen is
properly insulated.

4
22. DO NOT connect the outlet of the shower to any tap, control valve,
trigger operated handset or showerhead other than those specied
for use with this shower as the outlet acts as a vent for the tank
body. Only Kohler Mira recommended accessories should be used.
23. DO NOT perform any unspecied modications, or drill or cut holes
in the product other than instructed by this guide. When servicing
only use genuine Kohler Mira replacement parts.
24. DO NOT connect this shower to a Waste Water Heat Recovery
System as this may cause unstable or scalding temperatures to
be delivered from the shower head.
25. Always check the water temperature is safe before entering the
shower.
26. The water supplies to this product must be isolated if the product is
not to be used for a long period of time. If the product or pipework
is at risk of freezing during this period they should also be drained
of water.
27. Always disconnect the appliance from the supply before assembling,
disassembling or cleaning.
28. If the shower is dismantled during installation or servicing then,
upon completion, an inspection must be made to ensure all
electrical connections are tight and that there are no leaks.
29. This appliance is intended to be permanently connected to the
water mains and not connected by a hose set.
30. The water inlet of this appliance shall not be connected to a water
supply obtained from any other water heating system.
31. Warning! This appliance is not to be used to provide a potable
water supply.
32. Maximum Static Pressure is 100 kPa (1 bar).

5
Mira Advance Low Pressure models covered by this guide
Product Variant Adjustable
Temperature Limit
Extended Lever
Control Model No.
Standard 9.0 kW   J97I
Flex 9.0 kW   J97K
Domestic Light Commercial 
Heavy Commercial Healthcare 
Design Registration: 000738141: 0003, 0006, 0007, 0009
Patents: GB: 2269466, 2270370, 2298478, 2298479, 2298481,
2289323, 2359339.
Ireland: 80655, 83692.
For domestic installations, Mira Showers guarantee the Mira Advance ATLP against
any defect in materials or workmanship for a period of two years from the date of
purchase (shower ttings for one year).
For non-domestic installations, Mira Showers guarantee the Mira Advance ATLP
against any defect in materials or workmanship for a period of one year from the
date of purchase.
For Terms and Conditions refer to the back cover of this guide.
Shower Models
Guarantee
Recommended Usage
Patents and Design Registration

6
Tick the appropriate boxes to familiarise yourself with the part names and to conrm
that the parts are included.
Documentation
1 x Installation and User Guide
1 x Installation Template
1 x Guarantee Registration Document
1 x Mira Advance Low
Pressure Standard
1 x Compression Nut 4 x Wall Screws
1 x Cover Insert
(blank)
4 x Wall Plugs
1 x Cover Insert
(pipe)
4 x Rubber Feet
1 x Olive
Or
1 x Mira Advance Low
Pressure Flex

 









Pack Contents

7
Plumbing Supply
Supply Source Gravity fed or pumped cold water only.
Maximum Static Pressure 100 kPa (1 bar)
Minimum Static Pressure 0.8 kPa (0.008 bar) (10 kPa BEAB Care)
Maximum Inlet Temperature 30°C (20°C BEAB Care)
Minimum Inlet Temperature 2°C (5°C BEAB Care)
Inlet Connection ½" BSP male & 15 mm compression
tting.
Outlet Connection ½" BSP male fitting
Electrical Supply
Nominal Rating at 230 V 8.3 kW
Nominal Rating at 240 V 9.0 kW
Supply Fuse/Circuit Breaker 40 Amps
Residual Current Device RCD 30 mA
Supply Cable
No larger than 16 mm²
Note: Refer to current IEE regulations
and BS 7671 to determine minimum
cable size.
Isolation Switch 45 Amp Double pole, with 3 mm contact
separation.
Maximum Ambient Temperature 30°C
Minimum Ambient Temperature 2°C
Duty Cycle Continuously rated
Standards and Approvals
The Mira Advance ATLP complies with the requirements of the BEAB Care Mark
Standard and the relevant directives for CE marking.
The BEAB Care mark is invalid if the product is not installed and used in accordance
with the manufacturer's specications and instructions.
Specications

8

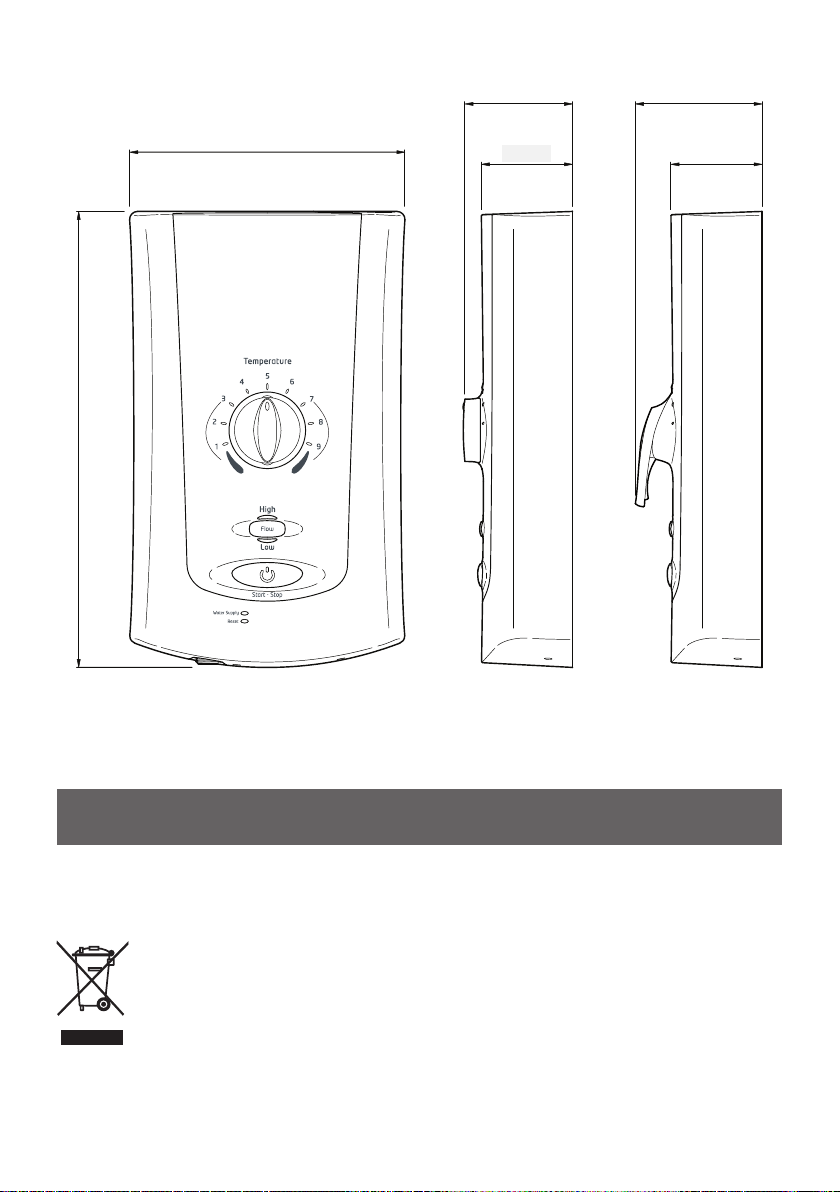

Dimensions
Advance Low Pressure
Standard
Advance
Low Pressure Flex
402 mm
243 mm
100 mm 115 mm
84 mm 84 mm
Disposal and Recycling
End of Product Life
Electrical and electronic devices contain a range of materials that can be separated
for recycling and used in new products.
This product should not be disposed of with your general household
waste. When this product has reached the end of its serviceable life,
please remove any batteries and take it to a recognised WEEE (Waste
Electrical and Electronic Equipment) collection facility such as your local
civic amenity site for recycling.
Your local authority or retailer will be able to advise you of your nearest recycling
facility.

9
General
We recommend that the product be brought into the room where it is to be installed
and left to acclimatise to room temperature, this will reduce the possibility of
condensation on electronic components. This product works best when supply
temperatures and pressures remain stable and within the product specications, refer
to section 'Specications'. If the supply conditions fall outside the specications,
the shower may go into a safe shut down condition.
If pipework and/or electrical cables enter the shower from the rear through a hole in
the wall, provision must be made to prevent water ingress back into the wall structure.
1. Plumbing
Refer to section: 'Important Safety Information' rst.
1.1 The shower is designed to operate with gravity fed water supplies providing
pressures from 0.8 kPa * (0.008 bar / 80 millimetres head) to 100 kPa (1 bar
/ 10 metres head) (i.e. the vertical distance from the base of the cold cistern
to the top of the main unit of the shower). The unit should be never be tted
to a mains supply or where the above maximum pressure may be exceeded.
Failure to comply with this may result in product damage leading to signicant
uncontrolled leakage from the unit.
* Note: In practice the minimum head required will increase with pipe length
and the guide given in the section 'Pipework' should be used to make sure
that adequate head is available for any given installation.
The shower MUST have its own separate supply from the cistern.

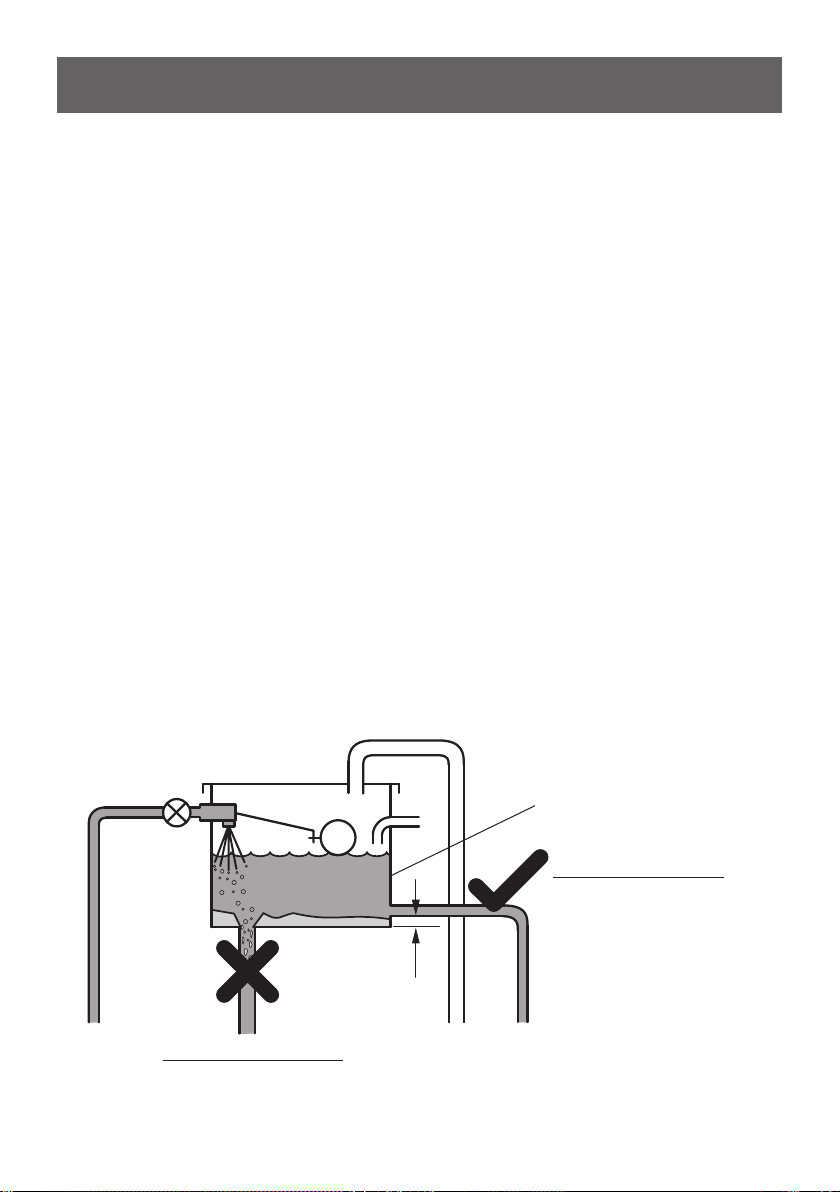

Incorrect Cistern Take O󰀨
Debris from the bottom of the cistern
and air generated when the cistern
rells will enter the shower supply.
Correct Cistern Take O󰀨
Positioned away from the ball
valve, with a 25 mm distance
up from the base of the cistern.
This connection will prevent air
and debris entering the shower
supply.
25 mm
25 Gallon/113 Litre Cistern
Installation Requirements

10
1.2 Do not use sealing compounds on any pipe ttings or joints.
1.3 To avoid damage to the case when soldered ttings are used, pre-solder the
pipework and ttings before connecting them to the inlet connector assembly.
1.4 Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
1.5 Supply pipework MUST be ushed to clear debris BEFORE connecting the
appliance. Debris will reduce the performance of the shower.
Avoid running the pipework through excessively hot or cold areas such as hot
loft spaces, airing cupboards, or in close proximity to hot water pipes. If this
cannot be avoided, we would recommend insulating the pipes.
1.6 The shower must be tted onto a tiled or sealed nished surface, i.e. on top of
the tiles. DO NOT tile up to the sides of the shower or use a sealant around the
case. Failure to do this may cause appliance failure. To ensure the case and
other components are not put under strain during installation always provide
mechanical support when making plumbing connections. Upon completion of
the installation ensure connections and back case are not under any stress
due to misaligned pipework or electrical cables.
1.7 We recommend that a non-restrictive (free owing) isolating valve is tted in
the cold water supply pipe from the cistern to the shower, to allow maintenance
of the shower.
1.8 When installed in very hard water areas (above 200 ppm temporary hardness)
your installer may advise the installation of a water treatment device, to reduce
the e󰀨ects of limescale formation. Any malfunction due to limescale is not
covered by the manufacturer's guarantee. Your local water company will be
able to advise the hardness of water in your area.
1.9 To prevent the possibility of back siphonage, the handset must be prevented
from reaching within 25 mm of the spillover level of any bath, shower tray or
washbasin. The supplied hose retaining ring should enable this to be achieved
for the majority of shower installations. However, there will be occasions when
the hose retaining ring will not provide a suitable solution. In these instances,
a double checkvalve must be tted to the outlet. Double checkvalves tted in
the shower's inlet supply can cause a pressure build-up, which could exceed
the maximum static inlet pressure for the appliance. The handset must be
prevented from reaching within 30 mm of the spillover level of any WC, bidet
or other basin that is classied higher than uid category 3.
1.10 Rear entry plumbing is accommodated without the need to recess the 15 mm
inlet compression connector. If pipe work and/or electrical cables enter the
shower from the rear through a hole in the wall provision must be made to
prevent water ingress back into the wall structure.
1.11 The shower is tted with a pump motor, and some mechanical noise can be
expected in addition to the noise generated by the spray from the handset. The
type of wall surface will a󰀨ect the perceived sound levels. Stud partition and
panel walls have a tendency to resonate, whilst solid walls provide the quietest

11
operation. The tone of the pump motor may change when the temperature
control knob is adjusted. This is quite normal.
1.12 Use a minimum of 15 mm diameter supply pipework. It should be noted,
however, that on long pipe runs this should be increased to 22 mm (refer to
section 'Pipework' for guidance). When using exible plastic pipe it is essential
that the pipe is kept at and not looped up at any point as this may lead to air
build up.
1.13 Long pipe runs and excessive use of 90° elbows will signicantly reduce the
available head to supply the shower. The pipework table should be completed
to ensure that adequate head is available for any given application.
Pipework
The dimension (x) is calculated from the table below to give you a minimum e󰀨ective
head of 80 mm which is necessary to produce a satisfactory shower in all conditions.
Example! The example below is based on the diagram above with 15 mm pipework,
A = 1.5 m, B = 0.75 m.
Plumbing Schematic Diagram
A
B
X
Size Quantity Head Loss
(mm)
15 mm Pipe (A) 1.5 + (B) 0.75 = 2.25 x 120 270
22 mm Pipe (A) + (B) = x 20
15 mm Elbow Number or Elbows 1x 55 55
22 mm Elbow Number or Elbows x 15
Minimum E󰀨ective Head 80
(x) mm 405
Free owing
isolator valve

12
2. Electrical
Refer to section: 'Important Safety Information' rst.
2.1 In a domestic installation, the rating of the electricity supplier’s fuse and the
consumer unit must be adequate for the additional demand. All Mira Advance
ATLP pumped electric showers are high power appliances, so it is essential to
contact the electrical supply company to make sure that the supply is adequate
for the appliance. Voltage drop due to local heavy demand will reduce the
shower’s performance.
2.2 The appliance must be earthed by connecting the supply-cable earth conductor
to the earth terminal.
Any supplementary bonding and supply cable size must conform to BS 7671.
2.3 As a guide only, and in accordance with BS 7671 we recommend close circuit
protection:
i.e. 9.0 kW = 40 Amp
In accordance with BS 7671,a 30 mA Residual Current Device (RCD) MUST
be included in the electrical circuit. This may be part of the consumer unit or a
separate unit.
A separate, permanently connected supply must taken from the consumer
unit to the appliance through a double-pole switch, which has at least 3 mm
contact separation. The switch can be a ceiling mounted pullcord type or a wall
mounted switch in the applicable zone area.
2.4 DO NOT exert strain on the terminal block. Make sure that the electrical
connections are tightly screwed down.
2.5 Unless otherwise stated, electrical equipment such as extractor fans, pumps
must not be connected via this product.

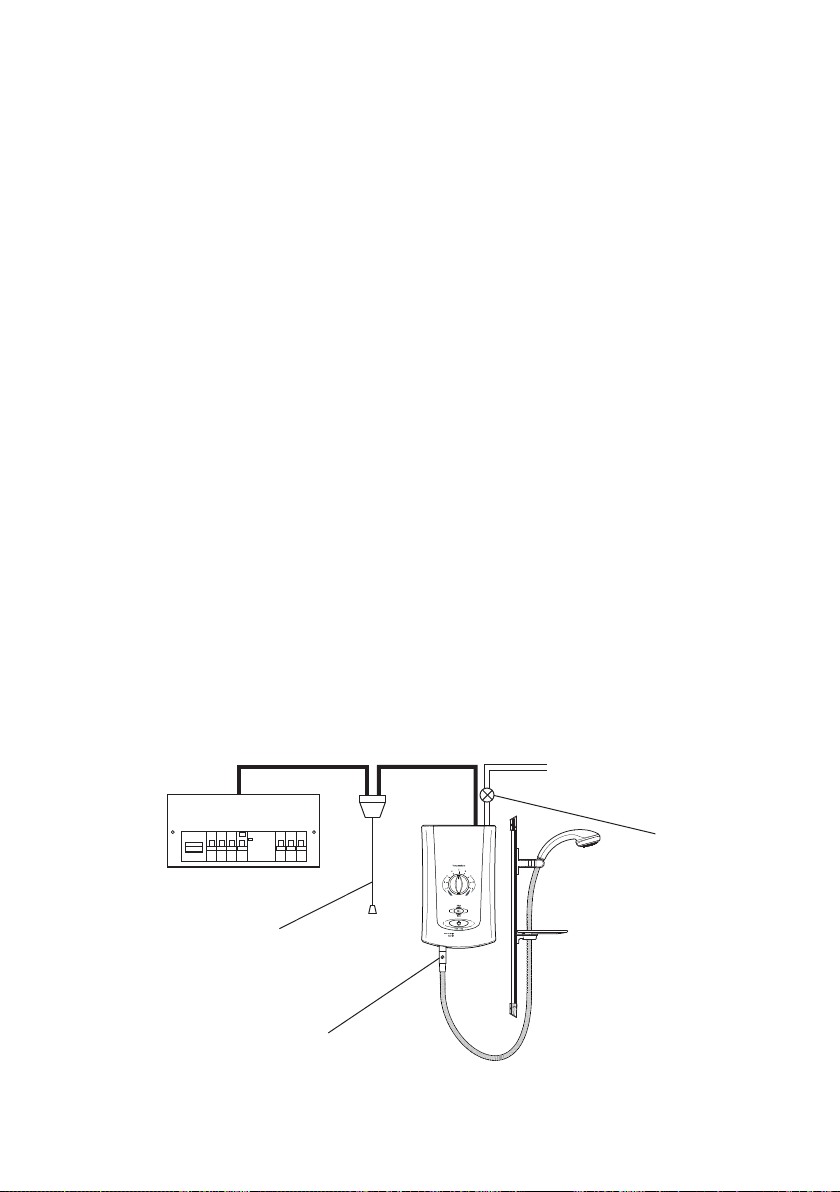

Electrical Schematic Diagram
Optional Outlet
Double Checkvalve
45 Amp Double-pole
Isolating Switch
Gravity Fed or Pumped
Cold Water Supply
Consumer Unit
Free owing
Isolating Valve
Supply cable

13
Refer to section: 'Important Safety Information' rst.

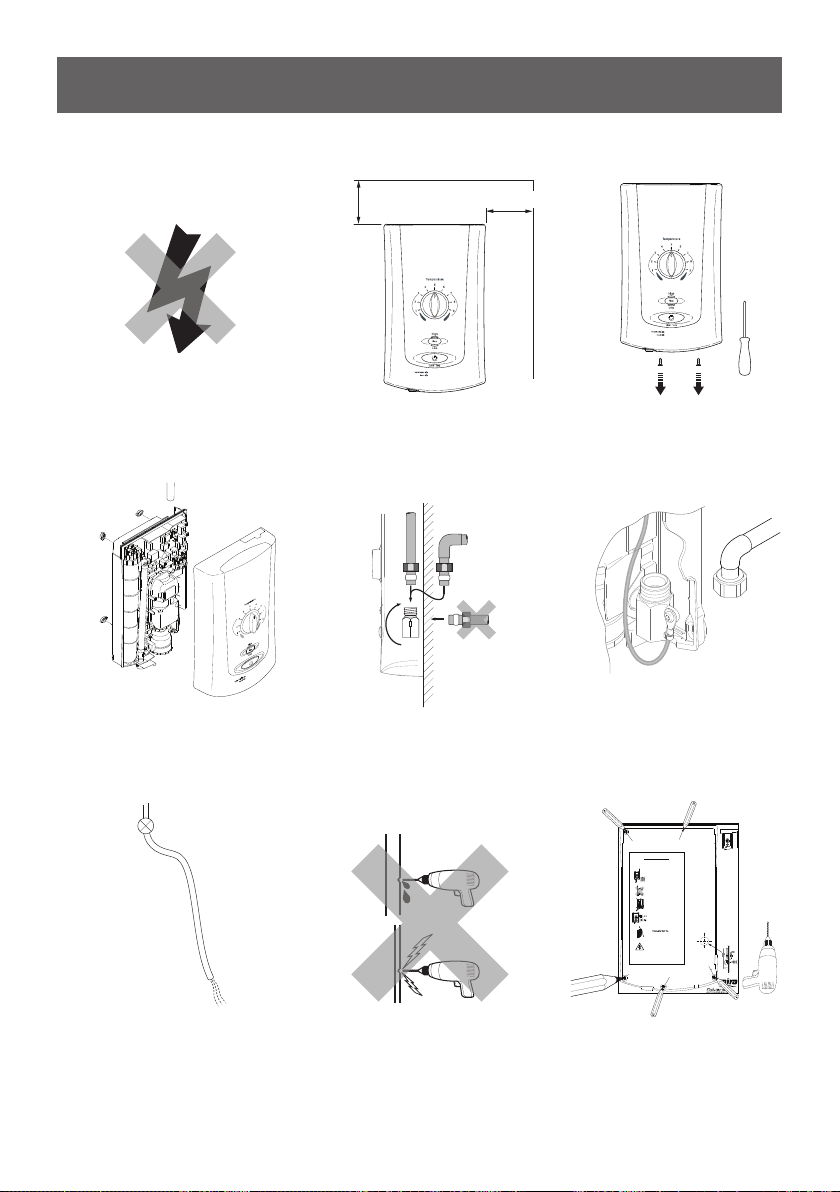

This installation covers all models of the Mira Advance ATLP Thermostatic
shower.
1. Electrical supply is
turned o󰀨 at the mains.
2. Determine the shower
position, leaving
adequate space for
maintenance.
3. Remove cover screws.
4. Remove front cover.
Determine supply pipe
position.
5. Turn inlet connector to
suit supply pipe.
Do not trap green
(earth) wires.
6. Complete any
soldering required
away from appliance.
8. Caution! Do not drill
into buried cables or
pipes.
7. Flush a minimum of
10 litres (2 gallons)
through pipework prior
to connection.
10 mm
200 mm
9. Use template provided
to mark and drill
required xing holes.
Screws and plugs are
supplied for 4 holes.
Mira Advance ATLLow Pressure
Attention Installer
IMPORTANT!The following key details should be read in
conjunctionwith the Installation and User Guides.
Required
Fixing Hole
Required
Fixing Hole
1173258-W7-A ©KohlerMira Limited, June 2011
Fortechnical support and general enquires,
spareparts and after sales service contact us on:
Telephone: [phone]
Fax: [phone]
email: [email protected]
Required
Fixing Hole
(if using 4 screws)
Required
Fixing Hole
(if using 4 screws)
Donot install the appliance where it
maybecome frozen.
Donot drill into buried cables or
pipes.
Avoiddust contamination of the
productby using this template to mark
anddrill into the wall. Drill appliance
caseseparately.
Donot use alternative screws to
securethe cover.
Donot seal any part of the appliance.
Usethe correct supply cable
size.Refer to BS 7671.
Required
Fixing Hole
(if using 3 screws)
pipeworkbefore connecting
tothe appliance.
Determinethe shower
position, leaving
adequate space for
maintenance.
10mm
100mm
Installation

14
10. Drill holes through
plastic case as
required. Fix appliance
to wall. (Make sure
rubber feet are tted
with all holes used.)
11. Connect supply pipe.
Do not overtighten.
12. Turn on water supply
and check the pipe
connections for leaks .
13. Important! This
shower does not
require bleeding.
15. Connect ribbon cable
to the inside of the
cover.
N = BLUE
E= GREEN
L = BROWN
NL
14. Feed cable into case
and strip insulation.
Firmly connect the
conductors. DO NOT
exert strain on terminal
block.

15
17. Plastic Inserts are
provided to finish
the top of the cover
as required. Can
accommodate sizes
up to 25 mm Electrical
Cable Trunking.
18. Do not seal around any
part of the appliance.
16. Ret cover using the 2
screws provided. DO
NOT use alternative
screws to secure the
cover as this can
cause damage to the
appliance.
21. Turn on electrical
supply.
20. Temperature to full
cold.
19. Connect hose and
showerhead, pointing
into bath or tray.

16
24. Allow water to flow
until all air has been
purged.
22. Power to appliance,
check Start/Stop for
blue light.
25. Push Start/Stop to
turn o󰀨 the appliance.
The pulsing light
and "beep" indicates
that the appliance
is shutting down.
Important! DO NOT
isolate the power until
the water has stopped.
26. Install the shower
fittings. Refer to
separate Installation
and User Guide.
23 Start shower to prime
pump.

17
On initial installation, the appliance needs to 'learn' about the site conditions and
does so during the commissioning cycle.
Once set, the shower constantly updates it's memory with information about the site
conditions to deliver the best performance.
DO NOT commission the appliance if water leaks from the unit.

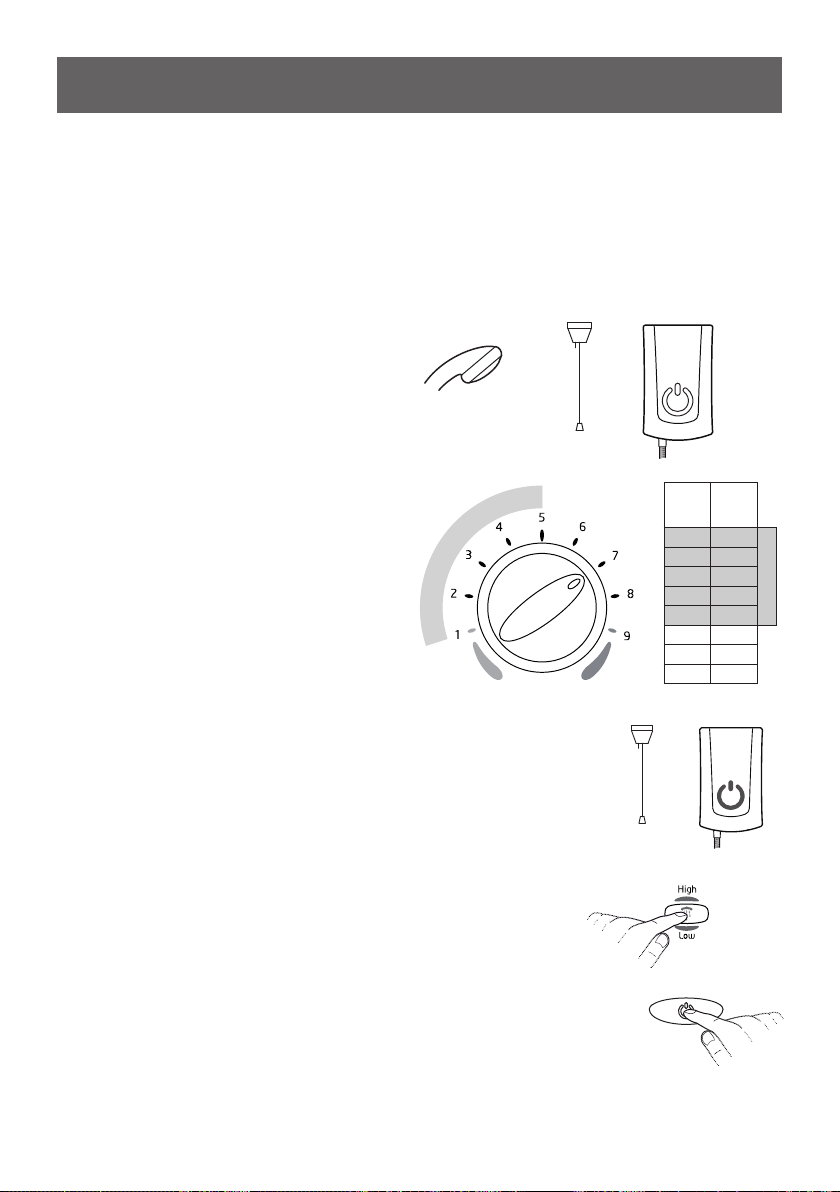

Set Maximum Temperature and Commissioning Cycle
1. Shower is OFF.
Water has STOPPED owing.
Power/Electric is OFF.
3. Turn Power/Electric ON.
Within 30 seconds push and hold HIGH/LOW &
START/STOP buttons at the same time.
OFF
ON
2. Set Maximum Temperature
Turn the dial to the desired position in the
table. This will set the maximum temperature
for showering.
When showering, the set maximum
temperature is reached when the dial is
turned to number '9'.
(See also section: "BEAB Care".)
Record the Maximum Temperature setting
on the BEAB Care In-Service Test Record
(separate form supplied) if applicable to the
installation.
B
E
A
B
C
a
r
e
R
a
n
g
e
1
-
5
No.
Max.
Temp
°C
1 37
2 38
3 39
4 40
5 41
6 42
7 45
8 48
BEAB CARE
Commissioning

18
1st Beep (LONG) - Release START/STOP.
2nd Beep (SHORT) - Release FLOW.
4.
5. HIGH FLOW LIGHT FLASHES
This indicates the shower is commissioning.
Water ows for approximately 1 minute 20 seconds.
In some cases the cycle can take up to 3 minutes.
Allow the shower to stop automatically.
IMPORTANT! DO NOT INTERRUPT THE CYCLE!
6. Push START/STOP to turn the
shower ON.
Check that the maximum
temperature is acceptable to the
user.
FLOW LIGHT doesn't ash... solution ...Restart the commissioning cycle as
step one.
7. Push START/STOP to turn the
shower OFF.
Wait until the water has stopped
owing BEFORE turning the Power/
Electric OFF.
8. Residual water may drain over a few
minutes.
OFF
_
+
BEAB Care
If the shower's maximum temperature is set to 41 °C or cooler, there is a clear triple
beep tone and single pulse of the Start/Stop light every time the double pole switch
is turned on. This is to indicate that the appliance is in a 'BEAB Care' compliant
mode. If recommissioning is required whilst in this mode, wait until beeps have
passed before starting the commissioning cycle.
When set in 'BEAB' mode, the maximum set temperature is reached when the
temperature control is turned to number '9'.
x3

19

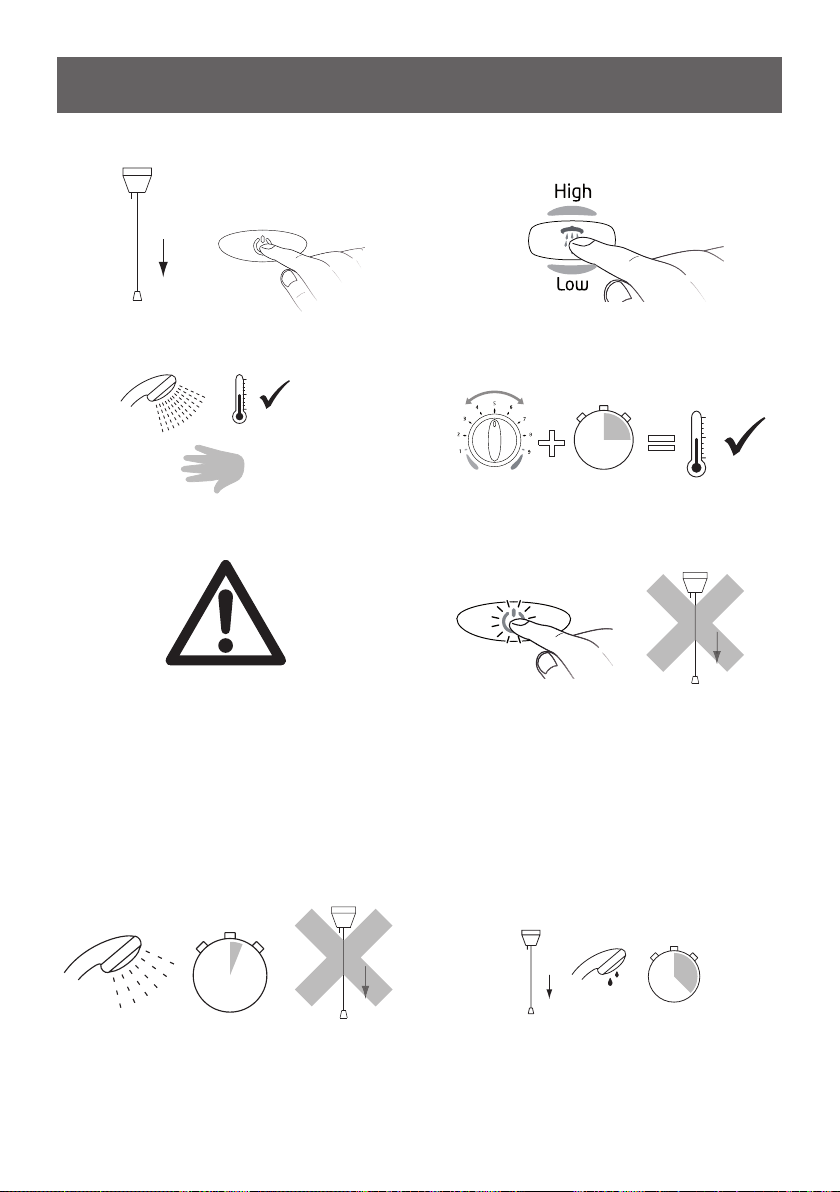

Operating the Shower
Refer to section: 'Important Safety Information' rst.
6. Push Start/Stop to turn off the
appliance. The pulsing light and
"beep" indicates that the appliance
is shutting down.
Important! DO NOT isolate the
power to the appliance.
5. Powering down the appliance:
Caution! Isolating power without
shutting down the appliance using
the Start/Stop button, and not
waiting for the flow to stop, will
result in a temporary malfunction.
Always follow the correct shut
down procedure.
8. Wait until the water has stopped
owing and turn o󰀨 the power to the
appliance, residual water may drain
over a few minutes.
7. The shower will purge water from its
tank for a few seconds.
Important! DO NOT isolate the
power to the appliance.
1. With the electrical supply turned on,
push Start/Stop.
2. Select the desired ow by pushing
either once or twice.
_
+
3. Check water temperature before
entering shower.
_
+
+
4. Allow 10-15 seconds for any
temperature adjustments to reach
the showerhead.

20
User Maintenance
Always read the IMPORTANT SAFETY INFORMATION for your shower.
In the event of a malfunction of the shower, a fault nding table is provided in
this guide detailing possible causes and remedies that may be carried out by
non-qualied personnel.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
INJURY OR PRODUCT DAMAGE:
1. There are no user serviceable parts inside the shower. Only qualied, competent
personnel should remove the front cover, mains connections are exposed when
the cover is removed.
2. Switch the shower o󰀨 at the isolator switch before performing any user maintenance
or before cleaning the shower.
It is IMPORTANT to keep the showerhead and hose clean and free
from blockage to make sure your shower performs to its optimum. The
showerhead MUST be regularly cleaned and the hose MUST be regularly
inspected to ensure there is no internal collapse or blockage that could
reduce the ow.
De-scaling the Showerhead and inspecting the hose:
Cleaning the showerhead
Many household and commercial cleaners, including hand and surface cleaning
wipes contain abrasive and chemical substances that can damage plastics, plating
and printing and should not be used. These nishes should be cleaned with a mild
washing up detergent or soap solution, and then wiped dry using a soft cloth.
Warning! Failure to keep the showerhead nozzles clear or inspect the hose
for blockage or internal/external collapse can restrict the ow rate from the
shower. This may cause damage to the shower or result in the temperature
delivered to the user rising to unsafe levels with a risk of scalding. You
MUST ALWAYS check the temperature before using the shower.
Inspect the hose.
Use your thumb or a soft cloth to wipe
any limescale from the soft nozzles
Unscrew the hose from
the showerhead and
the shower outlet.
