Mira Vision Dual Quick start guide

These instructions must be left with the user
Mira Vision
Installation Guide
11184347-W2-G

CONTENTS
Introduction................................................................................................3
Products Covered by this Guide...........................................................3
Guarantee ............................................................................................3
Patents and Design Registration..........................................................3
Safety Information .....................................................................................4
Pack Contents ...........................................................................................6
Specications ............................................................................................9
Standards and Approvals .....................................................................9
Dimensions.............................................................................................. 11
Installation ...............................................................................................12
General Information............................................................................12
Important Information Regarding Radio Controlled Devices.............. 12

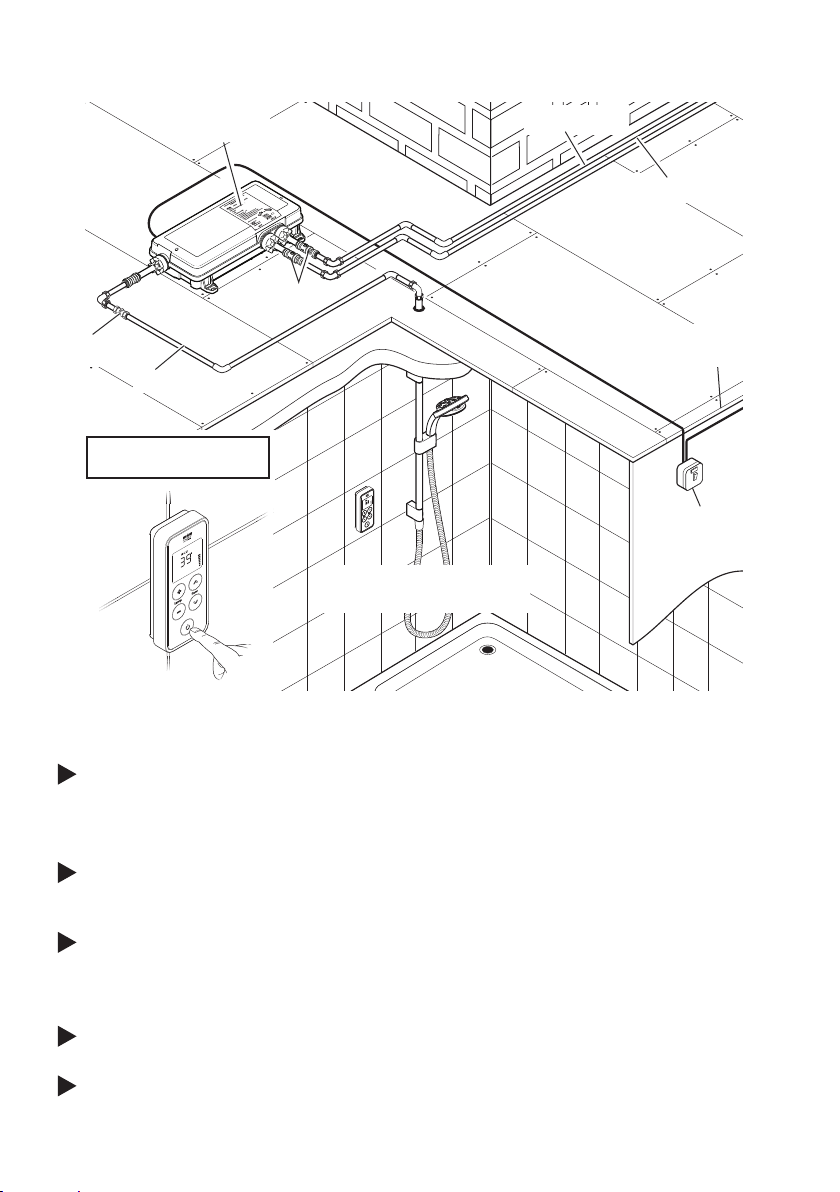

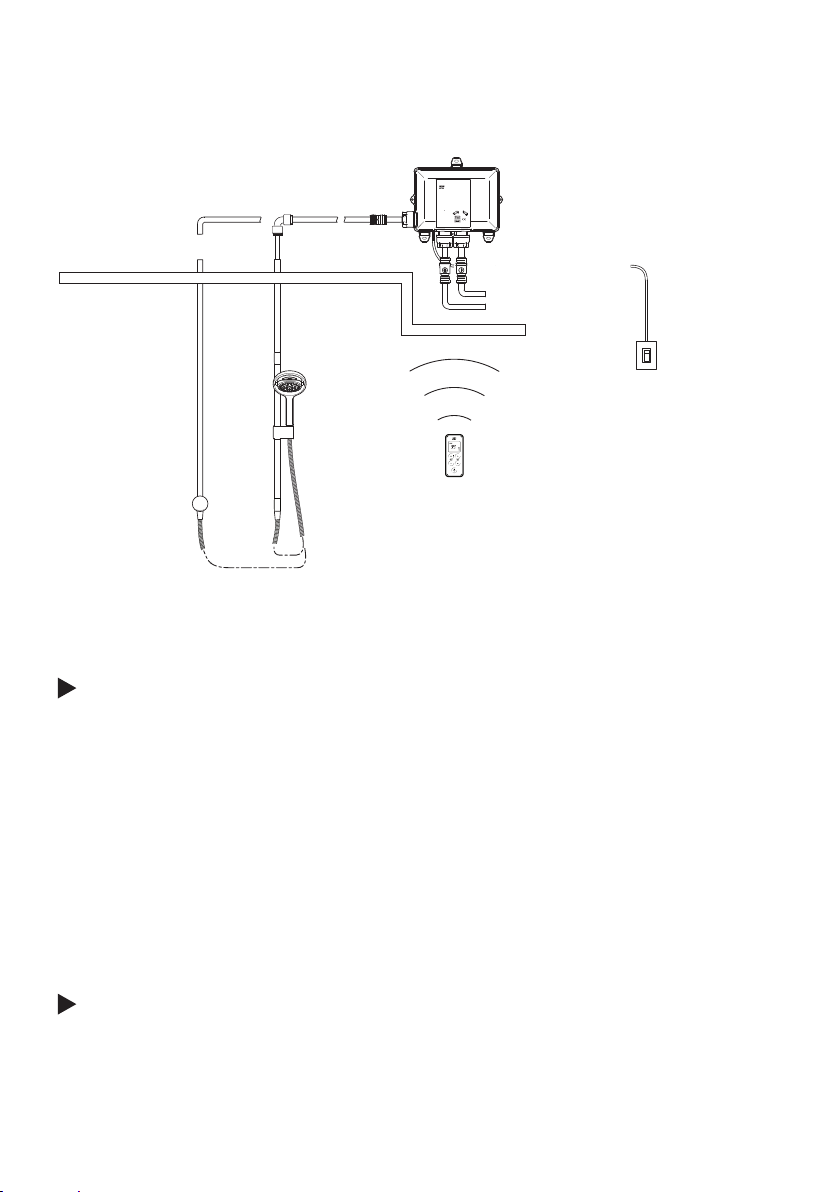

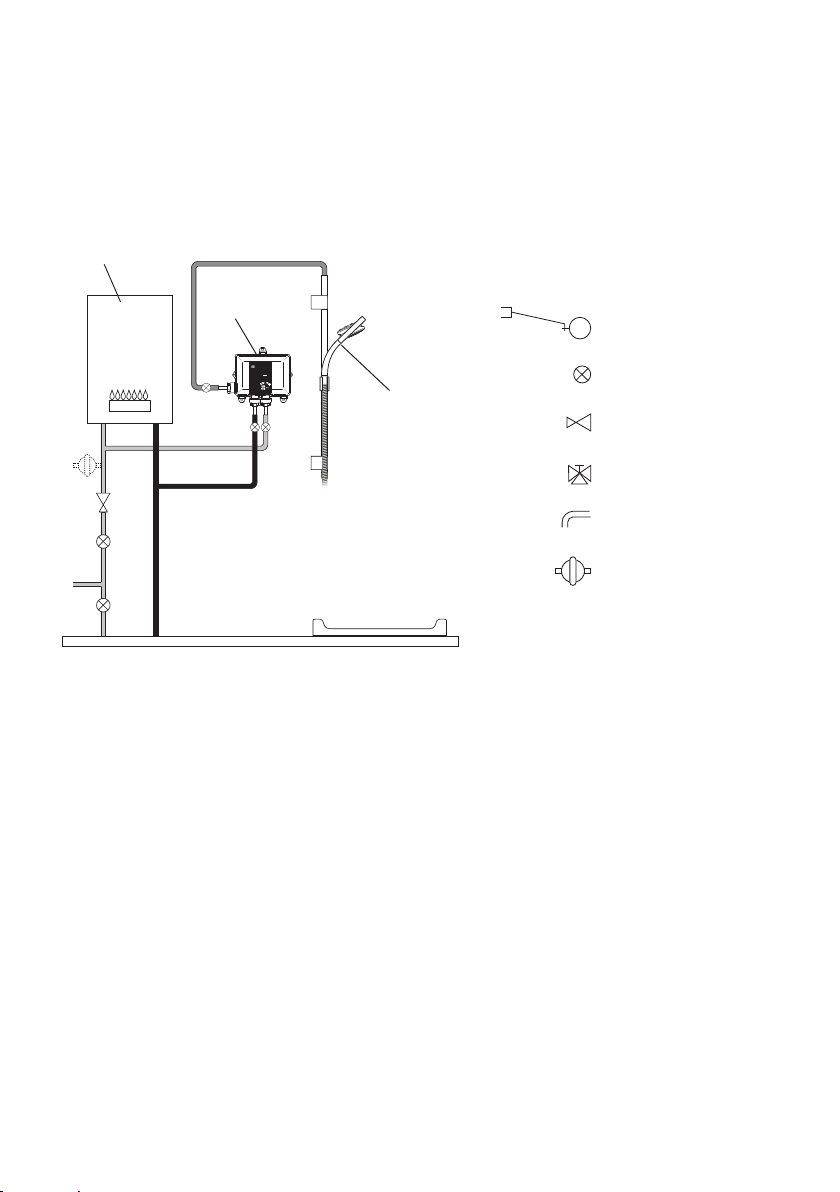

Installation Schematic ........................................................................18
Position and Signal Test .....................................................................20
Shower Fittings - Ceiling Fed .............................................................23
Shower Fittings - Rear Fed ................................................................26
Wireless Controller ............................................................................30
Commissioning........................................................................................31
Connecting a Second Wireless Controller............................................... 33
Re-Registering ........................................................................................34
Fault Diagnosis........................................................................................35
Maintenance............................................................................................43
Spare Parts .............................................................................................44
Disposal and Recycling ...........................................................................47
Customer Service..................................................................... Back Cover
If you experience any difculty with the installation or operation
of your new shower, then please refer to the Fault Diagnosis section,
before contacting Kohler Mira Ltd.
Our telephone and fax numbers can be found in the back of this guide.
2
1184347-W2-G

Thank you for purchasing a quality Mira product. To enjoy the full potential of your
new product, please take time to read this guide thoroughly. Having done so, keep
it handy for future reference.
The Mira Vision Mixer Valve is designed to be used with the Mira Vision showerhead
and ttings.
Products Covered by this Guide
Mira Vision Digital Mixer - High Pressure/Combi Valve
Mira Vision Digital Mixer - Pumped Valve.
Mira Vision Wireless Controller.
Mira 360 Fittings (Ceiling Fed or Rear Fed).
Patents and Design Registration
Design Registration 001295935
Patents GB: 2 421 297
USA: 7 669 776
Patent Applications WO: 2009/022112
EUROPE: 2 227 647
USA: US-2010 - 0282 326 - A1
CHINA: CNI01918743A
INDIA: 1306/MUMNP/2010
INTRODUCTION
Recommended Usage
Domestic 
Light Commercial 
Heavy Commercial 
Healthcare 
Guarantee
This product has been designed for domestic use only, it is not recommended for
Commercial or Healthcare use.
For domestic installations, Kohler Mira Limited, guarantee this product against any
defect in materials or workmanship for a period of ve years from the date of purchase
(shower ttings for one year).
31184347-W2-G

SAFETY INFORMATION
Products manufactured by Kohler Mira Ltd are designed to be safe, provided that
they are installed, used and maintained in good working order, in accordance
with our instructions and recommendations. Follow all warnings, cautions and
instructions contained in this guide, and on, or inside the product. Failure to follow
the instructions provided with this product will invalidate the guarantee.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1. Installation of this product must be carried out in accordance with these
instructions by qualied, competent personnel. Read all instructions before
commencing installation.
2. The electrical installation must comply with BS 7671 (commonly referred to as
the IEE Wiring Regulations) and all relevant building regulations, or any particular
regulation or practice specied by the local electricity supply company.
3. The plumbing installation must comply with all national or local water regulations
and all relevant building regulations, or any particular regulation or practice
specied by the local water supply company.
4. Isolate the electrical and water supplies before commencing installation. Mains
connections are exposed when the valve module cover is removed.
5. The valve module must be earthed, ensure supplementary bonding is provided
in accordance with the wiring regulations.
6. This product must be permanently connected to a 3A fused connection unit and
be provided with means for disconnection incorporated in the xed wiring in
accordance with the wiring regulations.
7. We strongly recommend that a 30mA RCD is included in the electrical supply
to this product.
8. DO NOT install this product, user interface or the remote on/off control in areas
with high humidity and temperature (i.e. steam rooms and saunas).
9. DO NOT install this product or ttings where they may be exposed to freezing
conditions. Ensure that any pipework that could become frozen is properly
insulated.
4
1184347-W2-G

10. DO NOT perform any unspecied modications, drill or cut holes in the product
other than instructed by this guide. When servicing only use genuine Kohler
Mira replacement parts.
11. If the product is dismantled during installation or servicing then, upon completion,
an inspection must be made to ensure all
12. DO NOT operate the product if water is leaking from inside the valve module.
Isolate electrical and water supplies to the product and refer to the fault diagnosis
section.
13. DO NOT apply power to the product if it is thought to have been exposed to
freezing conditions. Isolate electrical and water supplies to the product and
contact Kohler Mira Ltd.
14. Make sure that you fully understand how to operate the product and make sure
that it is properly maintained in accordance with the instructions given in this
manual.
15. This product can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning the use
of the product in a safe way and understand the hazards involved.
16. DO NOT allow children to play with the product.
17. DO NOT allow children to clean or perform any user maintenance without
supervision.
18. Always check the water temperature is safe before bathing or showering.
19. When installing the product to be used as a bath ller ensure the ow rate of the
bath overow tted exceeds the ow rate output from the product.
20. DO NOT remotely operate or alter any of this products shower and bathing
settings if it is already occupied and / or being used by another person.
51184347-W2-G

1 x Wall Plate
OR

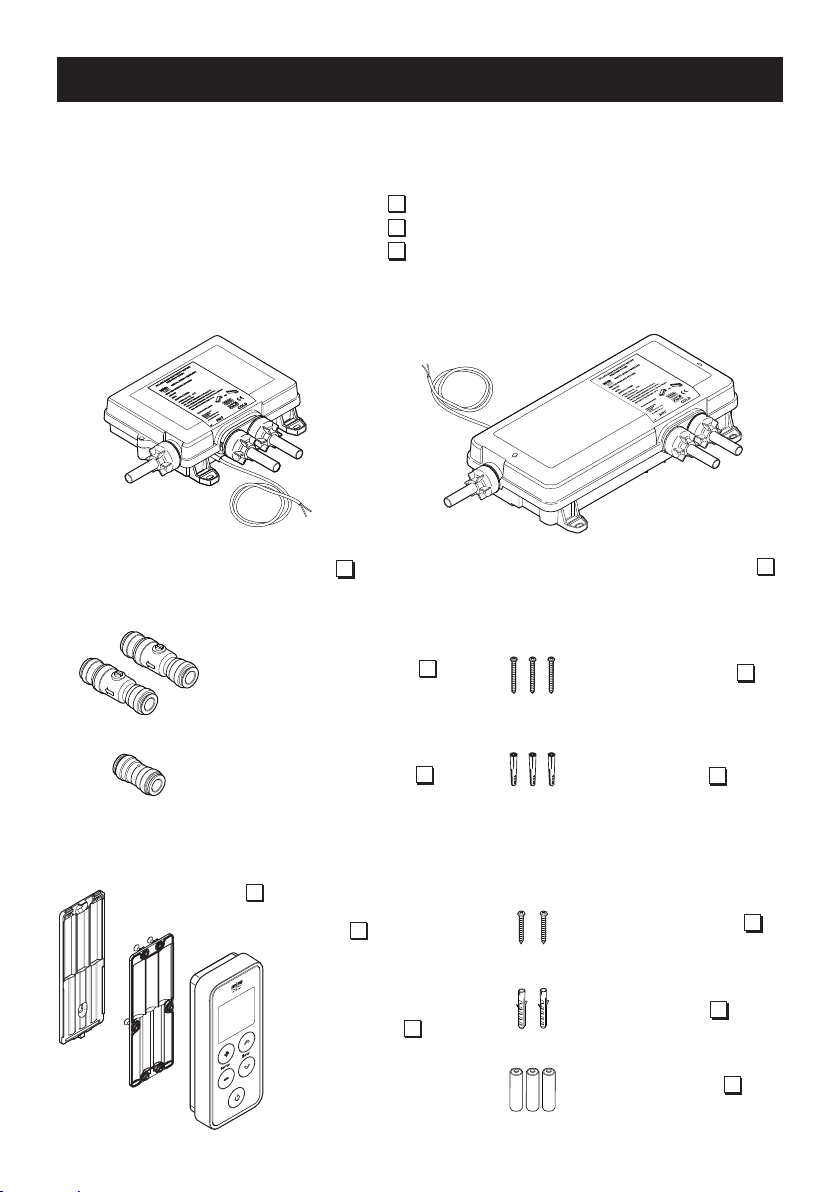

PACK CONTENTS
1 x Battery Cover
Wireless Controller
2 x Fixing Screws
2 x Wall Plugs
1 x Wireless
Controller
3 x AA Batteries
Tick the appropriate boxes to familiarise yourself with the part names and to conrm
that the parts are included.
Documentation
1 x Wireless Controller User Guide
1 x Showerhead User Guide
1 x Customer Support Brochure
Digital Mixer Valve
3 x Fixing Screws
2 x Push-Fit Isolators
3 x Wall Plugs
1 x Outlet Connector
Digital Mixer -
High Pressure/Combi Valve Digital Mixer - Pumped Valve
6
1184347-W2-G

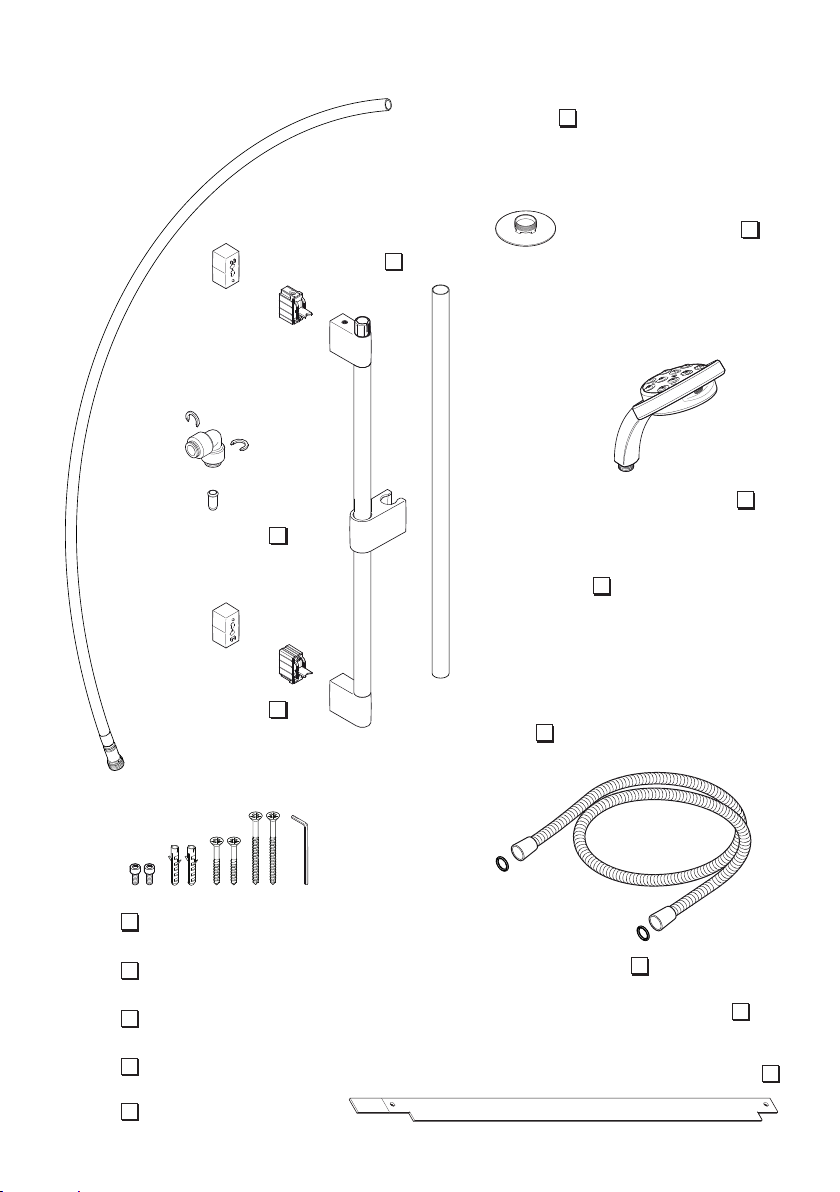

Ceiling Fed Fittings
1 x Installation Template
1 x Ceiling Plate
1 x Showerhead
1 x Extension
1 x Slide Bar
Assembly
2 x Brackets
2 x Hex Screws
2 x Wall Plugs
2 x 45mm Screws
2 x 70mm Screws
1 x Hex Key
1 x Elbow Kit
2 x Spacers
2 x Rubber Washers
1 x Hose
1 x Plastic Pipe
71184347-W2-G

2 x Hex Screws
2 x Wall Plugs
2 x 45mm Screws
1 x Hex Key
1 x Installation Template
2 x Rubber Washers
1 x Right Angle
Connector (RAC) Kit
1 x Hose
2 x Brackets
1 x Slide Bar
Assembly
2 x End Plugs
1 x Showerhead

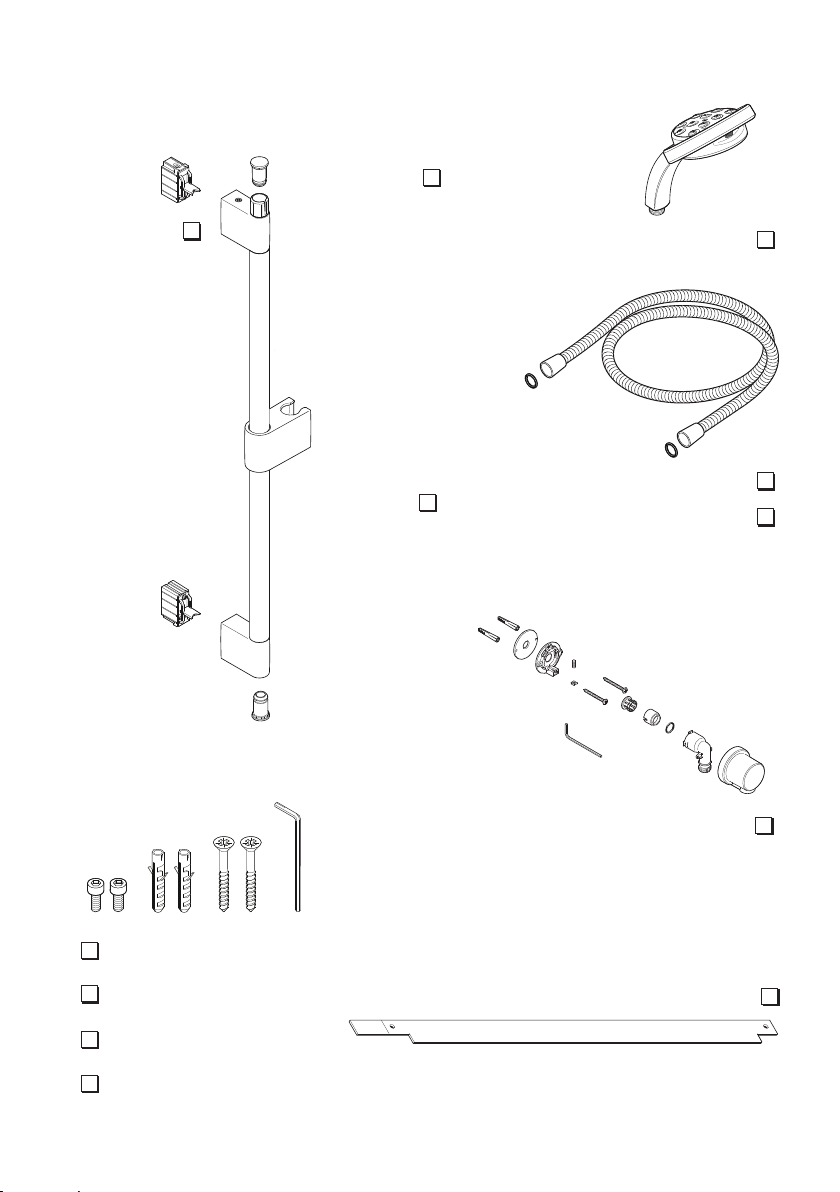

Rear Fed Fittings
8
1184347-W2-G

SPECIFICATIONS
Standards and Approvals
The Mira Vision complies with all relevant directives for CE marking. The Mira Vision
is a type 1 electronic, independently mounted control for surface mounting.
The Mira Vision is in compliance with the essential requirements of the R&TTE
directive 1999/5/EC. A copy of the declaration of conformity may be obtained by
contacting Kohler Mira Limited, U.K customer services department.
General
Pollution Degree 2
Rated Impulse Voltage 2.5 kV
Suitable for Drinking Not Suitable
Connections 15 mm Compression/Pusht
Mira Digital Mixer Valve High Pressure (Not suitable for Pumped
Gravity Systems)
Pressures
Maximum Static Pressure 1000 kPa (10 bar) = 100 m max. total head
Maximum Maintained Pressure 500 kPa (5 bar) = 50 m max. total head
Minimum Maintained Pressure 50 kPa (0.5 bar) = 5 m max. total head
Supply Pressure Differential Nominally Equal
Temperatures
Maximum Temperature (factory preset) 45 °C
Maximum Temperature (setting range) 35 °C - 48 °C
Minimum Temperature Thermostatic control down to 30 °C
Hot Water Range 55 °C - 65 °C
Cold Water Range 1 °C - 20 °C
Temperature Stability ± 1 °C at recommended supply conditions
Ambient Temperature 1 °C - 40 °C
Maximum Relative Humidity 95% non-condensing
Flow Rates and Times
Nominal Flow Rates (will vary depending
on inlet maintained pressure and spray
mode)
Max @ 1.0 bar = 16l/min
Min @ 1.0 bar = 5l/min
Electrical
Supply Voltage 230V AC 50 Hz
Maximum Load 20 W
91184347-W2-G

Mira Digital Mixer Valve Pumped
Pressures
Maximum Static Pressure 100 kPa (1 bar) = 10 m max. total head
Maximum Maintained Pressure 100 kPa (1 bar) = 10 m max. total head
Minimum Maintained Pressure 1 kPa (0.01 bar) = 0.1 m min. total head
Supply Pressure Differential Nominally Equal
Temperatures
Maximum Temperature (factory preset) 45 °C
Maximum Temperature (settable range) 35 °C - 48 °C
Minimum Temperature Thermostatic control down to 30 °C
Full Cold also selectable
Hot Water Range 50°C - 65°C
Cold Water Range 1°C - 20°C
Temperature Stability ± 1°C at recommended supply conditions
Ambient Temperature 1°C - 40°C
Maximum Relative Humidity 95% non-condensing at 30 °C
Flow Rates and Times
Flow Rates (will vary depending on inlet
maintained pressure and spray mode)
Max @ 0.01 bar = 16 l/min
Min @ 0.01 bar = 6 l/min
Electrical
Supply Voltage 230V AC 50 Hz
Maximum Load 200 W at 230V AC
10
1184347-W2-G

DIMENSIONS
FORLOW PRESSURE SYSTEMS
PARTNo. 1666.007
N85B
MANUFACTUREDDATE:
KOHLERMIRA LTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.co.uk
POWER:230V ~ 200W
PROTECTION:IP24
MIN.SUPPLY HEAD: 0.1 m (0.01 bar)
MAX.WORKING HEAD: 10 m (1 bar)
MAX.SUPPLY WATERTEMP: 65 °C

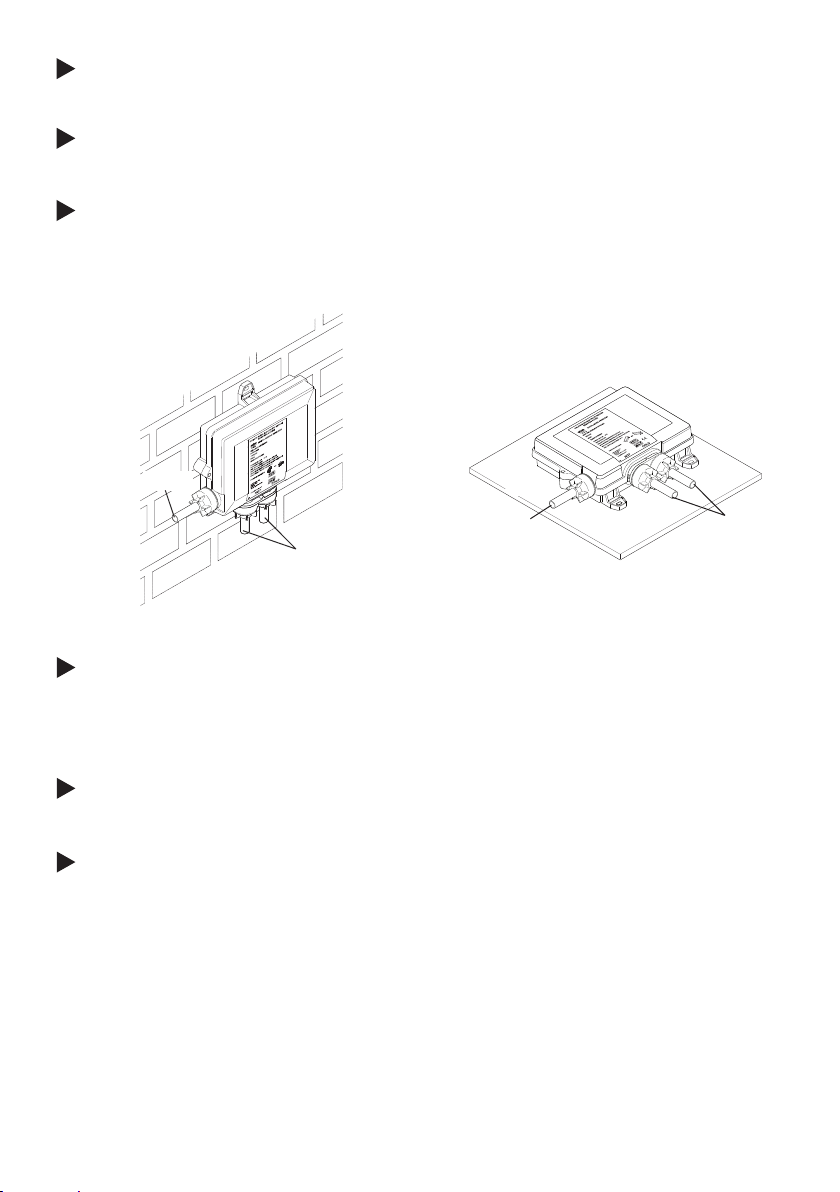

MOUNTINGPOSITION
VERTICAL HORIZONTAL
OR
ISOLATEMAINS ELECTRICITY BEFORE
REMOVINGCOVER!
F8625
PLATINUMDIGITAL MIXER
HOT COLD
FORHIGH PRESSURE / COMBINATION BOILER
PARTNo. 1666.009
N85A
MANUFACTUREDDATE:
KOHLERMIRA LTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.co.uk
HOT COLD
POWER:230V ~ 20W
PROTECTION:IP24
MIN.SUPPLY PRESSURE: 50 kPa (0.5 bar)
MAX.WORKING PRESSURE: 500 kPa (5 bar)
MAX.STATIC PRESSURE: 1000 kPa (10 bar) (WRAS)
MAX.SUPPLY WATERTEMP: 65 °C
MOUNTINGPOSITION
VERTICAL HORIZONTAL
OR
ISOLATEMAINS ELECTRICITY BEFORE
REMOVING COVER!
F8624
PLATINUMDIGITAL MIXER
68 mm 240 mm
180 mm
180 mm
185 mm
127 mm
255 mm
35 mm
217 mm
36 mm
36 mm 394 mm
315 mm
45 mm
86 mm
47 mm
47 mm
to centre of inlets/outlet
to centre of outlet
to centre of inlets
600 mm 650 mm
150 mm
62 mm
82 mm
645 mm Max. to ceiling
11 1184347-W2-G

INSTALLATION
Important Information Regarding Radio Controlled Devices
• Metal objects such as steel baths or sinks, cold water storage tanks, hot water
cylinders, foil lined plaster board walls, radiators and even thick brick walls, can
all dramatically reduce the radio operational range of any radio controlled product.
• Interference from other radio signals can dramatically reduce the ability of the
Vision Wireless Controller / digital mixer to register or communicate. This may
include; mobile phones, radio control boiler thermostats, wireless broadband
routers, radio control toys, cordless phones, remote outdoor weather stations,
wireless doorbells etc.
• If you encounter difculty registering the wireless controller and digital mixer
ensure all other radio interference is temporarily switched off.
Note! Failure to follow these guidelines can result in poor, intermittent or complete
failure to communicate with the digital mixer.
Note! Both the Wireless Controller and Digital Mixer contain internal radio
transmission aerials which are directional in operation. In order to achieve optimum
radio signal strength and therefore optimum communication distance It may be
necessary to alter the Wireless Controller and Digital Mixer relative orientation /
position to each other.
General Information
The product may be installed in a loft space, under the bath or in a convenient
cupboard space, provided there is enough room for maintenance (e.g. Removal
of the product lid). Failure to do so may result in an inability to carry out any
maintenance.
Safe and easy access to the product should be available at all times.
When installing the product in an area not regularly accessed, consideration
for potential leaks must be taken into account. While such events are unlikely,
it is advisable to periodically check the installation for traces of water on or
around the product.
If possible, site the product in a location where any leak would be contained
or routed to avoid areas sensitive to water damage.
Inlet isolating valves (supplied) must be installed.
We strongly recommend that full bore outlet isolation valves are tted as close to
the product as possible for ease of service and maintenance.
The water supplies to this product must be isolated if the product is not to be used
for a long period of time. If the product or pipework is at risk of freezing during this
period they should also be drained of water.
12
1184347-W2-G

MIRADM2WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRALTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOT COLD
POWER:230V AC 20W
PROTECTION:IP24
MIN.SUPPLYPRESSURE: 50 kPa (0.5 bar)
MAX.WORKINGPRESSURE: 500 kPa (5 bar)
MAX.STATICPRESSURE: 1000 kPa (10 bar) (WRAS)
MAX.SUPPLYWATERTEMP: 65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINSELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER2 WIRELESS
cold
warm
hot
Only install the High Pressure Digital Mixer Valve with a multipoint gas water heater
or combination boiler of a fully modulating design (i.e. where the water draw-off
rate indirectly controls the gas ow rate to the burner).
An expansion vessel must be tted (and regularly maintained) if any form of backow
prevention device is tted, e.g. Non-return valve or PRV. This will ensure that excess
expansion or pulse pressures do not damage the product or plumbing system. The
expansion vessel may already be tted within the boiler (check with the manufacturer)
and is in addition to the normally larger central heating expansion vessel.
Typical Suitable Installations:
Mira Vision
Shower Fittings
Digital Mixer
Valve (HP)
Float Valve
Key to Symbols
Isolating Valve
Tempering Valve
Overow Indicator
Mini Expansion Vessel
Pressure Reducing
Valve
COLD HOT
Combination
Boiler
1. Instantaneous Multipoint Water Heaters and Combination Boilers
Caution! Risk of product damage. Do not t the Mira Digital Mixer - PUMPED
VALVE with Instantaneous Multipoint Water Heaters or Combination Boilers.
13 1184347-W2-G

Use of Flow Regulators with Combination Boilers
The Mira Digital Mixer Valve can demand hot water quicker than some instantaneous
water heaters/combination boilers can provide, especially in winter when the mains
water is colder. A Hot inlet ow regulator may need to be used to ensure that the
Digital Mixer Valve can deliver a full range of water temperatures.
Note:
The Mira Single outlet digital mixing valves are factory tted with an 8 l/min hot
inlet ow regulator. If installing a single outlet digital mixer with a combi boiler rated
36kW or greater or to mains pressurised systems the hot inlet ow regulator should
be removed.
Note:
The Mira Dual outlet digital mixing valves do not have a factory tted hot inlet ow
regulator. These are supplied in the component pack. The table indicates which
ow regulator should be tted in the hot water inlet of the Mira Digital Mixer Valve if
installing to a combination boiler system.

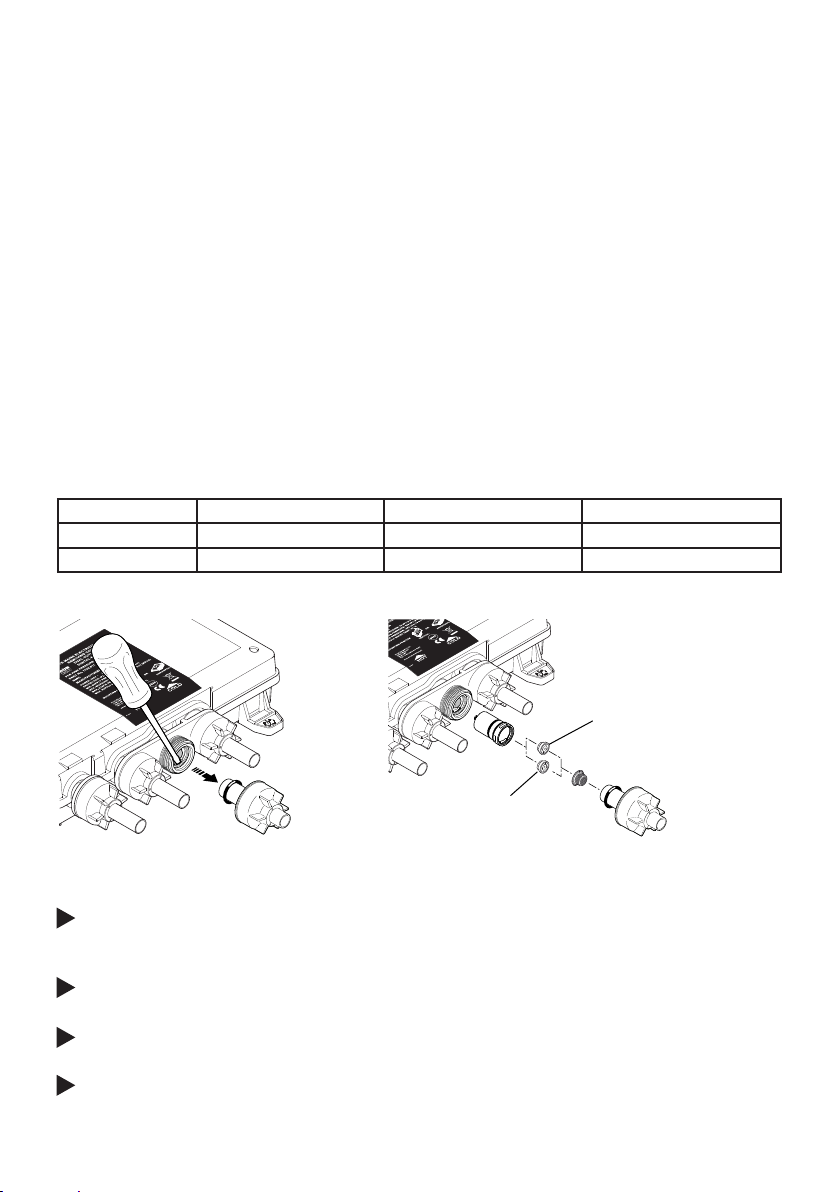

Unscrew hot inlet plastic nuts and remove pipe and seal to gain access to the
checkvalve cartridge and lter.
Use at blade screwdriver to carefully lever cartridge out.
Fit/remove the ow regulator from checkvalve cartridge behind lter as required.
Ret seal, pipe and plastic nut. Plastic nuts require hand tightening only.
Green
Orange
Dual outlet valve shown
Boiler Rating 24 kW (80,000 Btu/h) 30 kW (100,000 Btu/h) 36 kW (120,000 Btu/h)
Flow Regulator 7 litres/min 9 litres/min Not required
Colour White/Green White/Orange -
14
1184347-W2-G

MIRADM2WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRALTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOT COLD
POWER:230VAC 20W
PROTECTION:IP24
MIN.SUPPLYPRESSURE:50 kPa (0.5 bar)
MAX.WORKINGPRESSURE:500 kPa (5 bar)
MAX.STATICPRESSURE:1000 kPa (10 bar) (WRAS)
MAX.SUPPLYWATERTEMP:65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINSELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER2 WIRELESS
cold
warm
hot
Digital Mixer
Valve (HP)
COLD
HOT
Mira Vision
Shower Fittings
2. Mains Pressurised Instantaneous Hot Water Shower, Heated from
a Thermal Store
Caution! Risk of product damage. Do not t the Mira Digital Mixer - PUMPED
VALVE with Mains Pressurised Systems.
Use of Warm-up Feature with Combination Boilers
When using the warm-up feature (see User Guide) with the digital mixer valve supplied
via an instantaneous water heater/combination boiler, the user may experience a
brief temperature uctuation. This is caused by the normal operation of a standard
instantaneous water heater/combination boiler whereby the boiler will turn off when
the ow is stopped (as happens after the warm-up sequence has been completed).
Upon restart of the shower, a cold shot will be ushed through followed by a brief
hot shot until the hot water supply has stabilised.
Packages of this type, tted with a tempering valve can be used. A drop type pressure
reducing valve must be tted (and regularly maintained) if any form of backow
prevention device is tted, e.g. non-return valve, PRV, then an expansion vessel
should also be tted. This will ensure that excess expansion or pulse pressures do
not damage the product or the plumbing system. The expansion vessel may already
be tted externally or internally within the thermal store (check with thermal store
manufacturer).
15 1184347-W2-G

Mira Vision
Shower Fittings
MIRADM2WIRELESS HP/COMBI 1666.009 N85A MANUFACTURED KOHLERMIRALTD. CHELTENHAM GL525EP TEL:[phone] www.mirashowers.com
HOT COLD
POWER:230VAC 20W PROTECTION:IP24 MIN.SUPPLYPRESSURE:50 kPa (0.5 bar) MAX.WORKINGPRESSURE:500 kPa (5 bar) MAX.STATICPRESSURE:1000 kPa (10 bar) (WRAS) MAX.SUPPLYWATERTEMP:65 °C POSITIONAPPLIANCE OR
ISOLATEMAINSELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER2 WIRELESS
cold
coldcold
warm
hot
hot
MIRADM2WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRALTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOT COLD
POWER:230VAC 20W
PROTECTION:IP24
MIN.SUPPLYPRESSURE:50 kPa (0.5 bar)
MAX.WORKINGPRESSURE:500 kPa (5 bar)
MAX.STATICPRESSURE:1000 kPa (10 bar) (WRAS)
MAX.SUPPLYWATERTEMP:65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINSELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER2 WIRELESS
1.0 metre minimum
100 mm from the lowest level of
water in the tank
Cistern
Minimum 230 litres
90°
30° - 60°
Air Separation

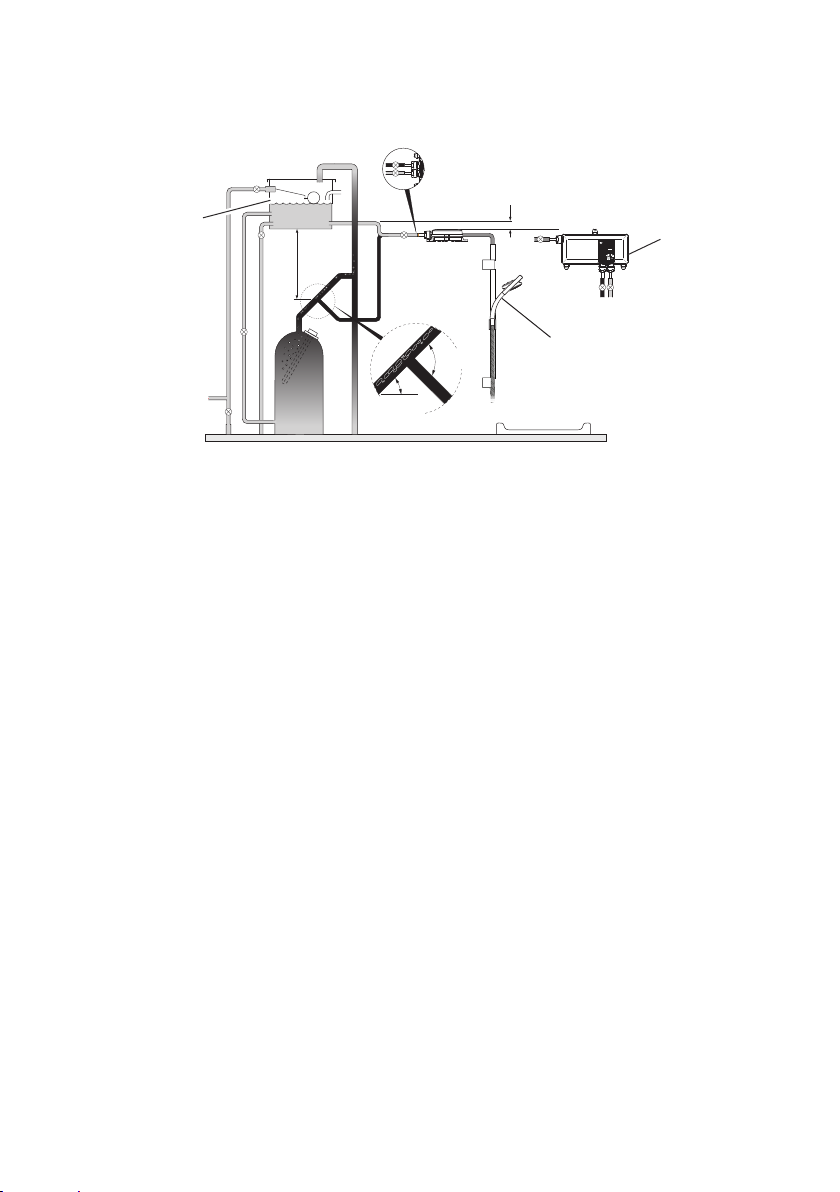

3. Gravity Fed Showers
Caution! Risk of product damage. Do not t the Mira Digital Mixer - HIGH
PRESSURE/COMBI VALVE with Gravity Fed Systems.
Digital Mixer
Valve (Pumped)
The shower control must be fed from a cold water storage cistern and a hot water
cylinder providing nominally equal pressures. Pipework layouts and connections
must be such that other draw-offs will not effect water supplies to the shower, shared
supplies may lead to airlocking or water starvation. It is therefore best practice to have
independent hot and cold supplies to the Low Pressure (pumped) Digital Mixer Valve.
16
1184347-W2-G

Typical Examples of Poor Plumbing and Installation Practices
DO NOT:
• Install the Digital Mixer Valve where it can become frozen
• Install the Digital Mixer Valve where it can be subjected to ambient tempera-
tures in excess of 40ºC
• Position the Digital Mixer Valve where maintenance access is poor or unsafe
• Install into a system where the cold water cistern holds less than 230 litres
• Install into a system where air locking could occur
• Install the wireless controller in a position where communication with the
Digital Mixer Valve is poor e.g. mixer valve installed under metal bath, in front
of metal cistern, on foil backed plasterboard, more than the recommended
distance away etc.
• Install the Digital Mixer Valve onto shared water supplies
• Install the Digital Mixer Valve less than 100 mm from the lowest level of water
in the cistern (low pressure version only)
• Fit plastic pipework unless rigidly supported
• Install a High Pressure/Combi Valve to a Pumped Gravity System
Shower Installation
Bath Installation
Affected by Metal
Bath / Poor or no
Communication
Shared
Supplies
No
Access
Steel / Cast
Bath
Less than
230 Litres
Incorrect
Cold
Take-off
Incorrect
Hot
Take-off
Air-locking
Pipework
Distance Too Far /
Poor or No
Communication
Less than
230 Litres
Incorrect
Cold
Take-off
Incorrect
Hot
Take-off
Plastic pipework
not rigidly
supported.
17 1184347-W2-G

Installation Schematic
Mira Vision Shower Fittings
& Wireless Controller
Isolator
Outlet
Metal pipework must be
earth bonded
3 amp switched
fused spur.
Easily Accessible
To Mains
Power Supply
Hot Inlet
Cold Inlet
Digital Mixer
Valve
Isolators
A separate, permanently connected supply must be taken from the ring main
to the appliance through a 3 amp double pole switched fuse spur providing a
minimum 3mm contact separation gap in each pole.
Ensure the switched fused spur is easily accessible for servicable and resetting
purposes.
The use of supply-line or zone strainers will reduce the need to remove debris
at the Digital Mixer Valve. The recommended maximum mesh aperture
dimension for such strainers is 0.5 mm.
Pipework must be rigidly supported to avoid any strain on the connections.
A 30 mA Residual Current Device (RCD) must be included in the electrical
circuit. This may be part of the consumer unit or a separate unit.
18
1184347-W2-G

Valve Installation Orientation
Mounting on a Vertical Surface
Outlet
Inlets
Outlet
Mounting on a Horizontal Surface
The Digital Mixer Valve (which contains the thermostatic mixing valve) may
only be orientated in the positions shown above when mounted on a vertical
or horizontal surface. Failure to do so will compromise the ability of the unit to
fail-safe and deliver constant blend.
If the power supply cable is damaged, it must be replaced by the manufacturer
or a service engineer.
Warning! Turn off the electrical and water supplies before proceeding with
the installation of the appliance. The electricity must be turned off at the
mains and the appropriate circuit fuse electrically isolated, if applicable.
Inlets
Long inlet pipework (dead-legs) should be kept to a minimum to avoid temperature
uctuations.
Supply pipework layout must be arranged to minimize the effect of other outlet
usage upon the dynamic pressures at the Digital Mixer Valve inlets.
To eliminate pipe debris it is essential that supply pipes are thoroughly ushed
through before connection to the Digital Mixer Valve.
19 1184347-W2-G

The Wireless Controller can be sited up to 10 m (free air) from the Digital Mixer
Valve. However, wall thicknesses and construction types may affect the remote
signal strength and thereby reduce the range. The Controller range should be
tested on site prior to installation to ensure shower’s reliability.
Refer to Section -INSTALLATION “Important Information Regarding Radio
Controlled Devices”.
Note! Both the Wireless Controller and Digital Mixer contain internal radio
transmission aerials which are directional in operation. In order to achieve
optimum radio signal strength and therefore optimum communication distance
It may be necessary to alter the Wireless Controller and Digital Mixer relative
orientation /position to each other.
The length of pipework running from the Digital Mixer Valve to the Shower Fitting
will have an effect on the showering temperature and the response time when
changing the temperature using the Wireless Controller. The shorter the length
of pipework from the Digital Mixer Valve the better the shower will respond. It
is recommended that this length does not exceed 5m from the valve outlet to
shower tting.
MIRADM2 WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRALTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOT COLD
POWER:230 V AC 20W
PROTECTION:IP24
MIN.SUPPLY PRESSURE: 50 kPa (0.5 bar)
MAX.WORKING PRESSURE: 500 kPa (5 bar)
MAX.STATICPRESSURE: 1000 kPa (10 bar) (WRAS)
MAX.SUPPLY WATERTEMP: 65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINS ELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER 2 WIRELESS
3 amp switched
fused spur.
Easily accesible
Ceiling Fed
Fitting
Rear Fed
Fitting
Cold Water Inlet
Hot Water Inlet
Valve
Outlet
Wireless
Controller
10 m
(Free air)
Important! When choosing a position for the Digital Mixer Valve in relation to the
Wireless Controller and the Shower Fittings, consider the following points:
Digital Mixer Valve
Position and Signal Test
20
1184347-W2-G
