MIRA ELEVATE
Installation and User Guide
ELECTRIC SHOWER
These instructions must be left with the user.
2
CONTENTS
Introduction .............................................................................................3
Patents and Design Registration..........................................................3
Safety : Warnings ....................................................................................4
1.Warning! ............................................................................................4
2. Caution!............................................................................................4
Dimensions ..............................................................................................5
Pack Contents ......................................................................................... 6
Specications ..........................................................................................7
1. Plumbing .......................................................................................... 7
2. Electrical...........................................................................................7
3. Standards and Approvals .................................................................7
Installation Requirements ...................................................................... 7
Plumbing .............................................................................................. 7
Electrical............................................................................................... 8
Installation .............................................................................................10

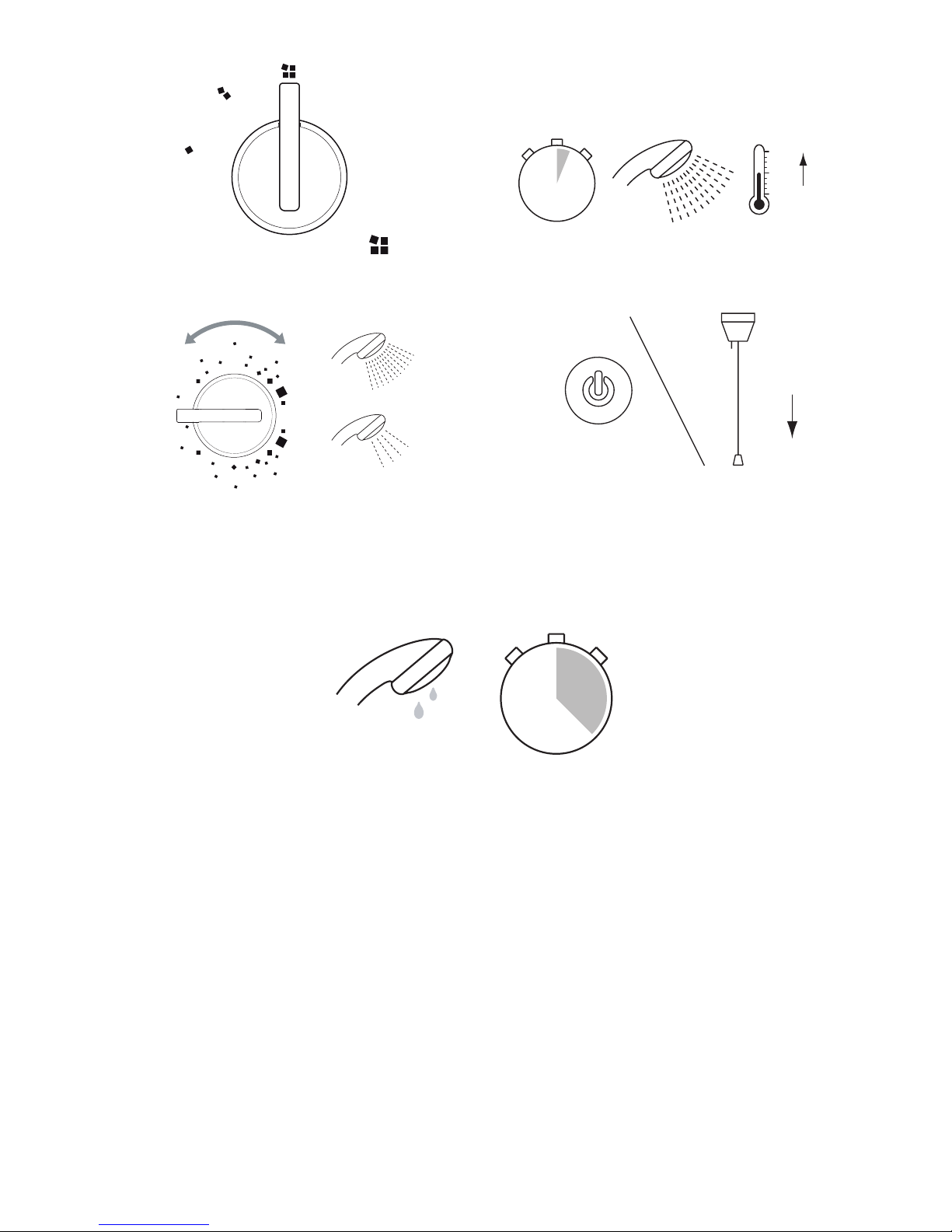

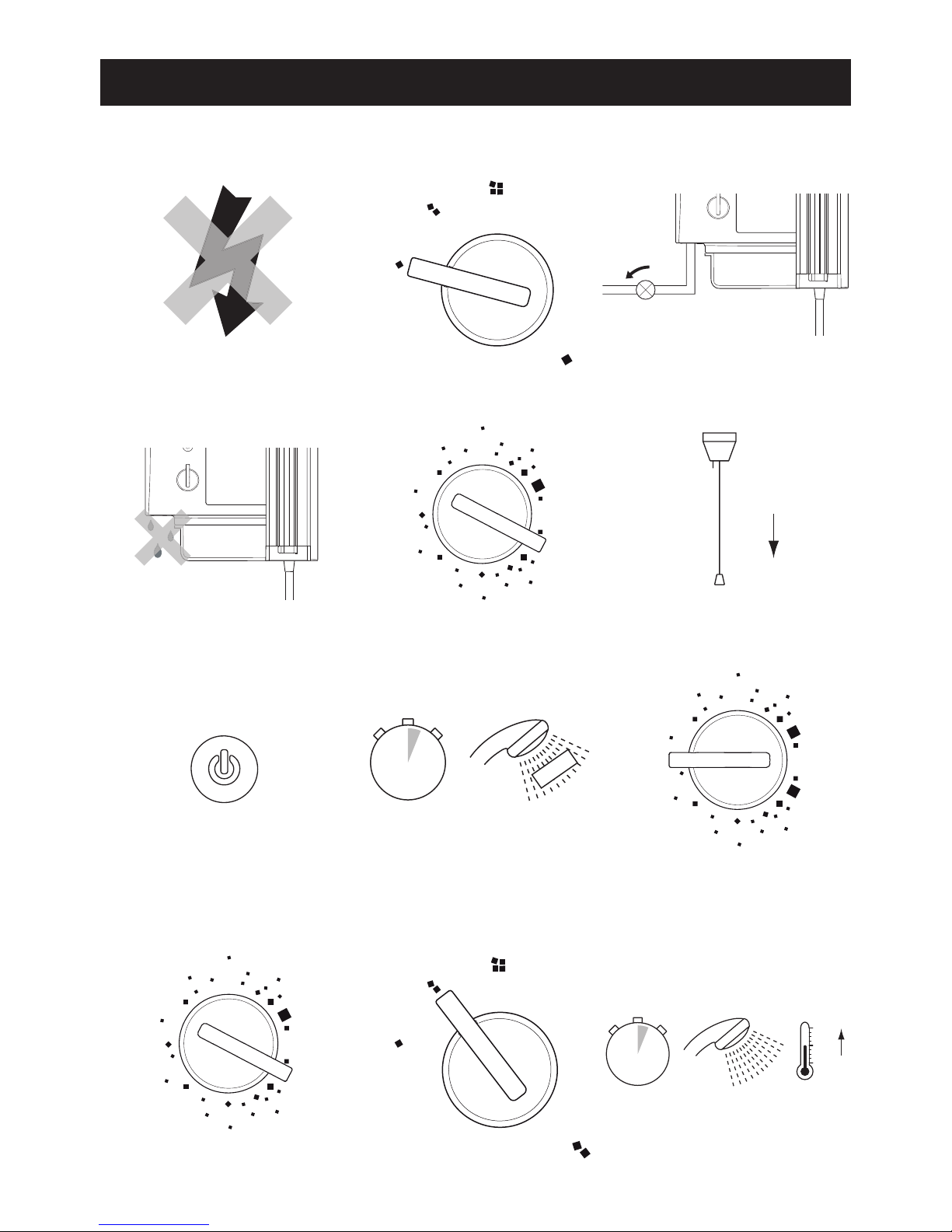

Commissioning .....................................................................................15
User Instructions...................................................................................17
1. Warning! ......................................................................................... 17
2. Caution!..........................................................................................17
How Your Electric Shower Works.......................................................18

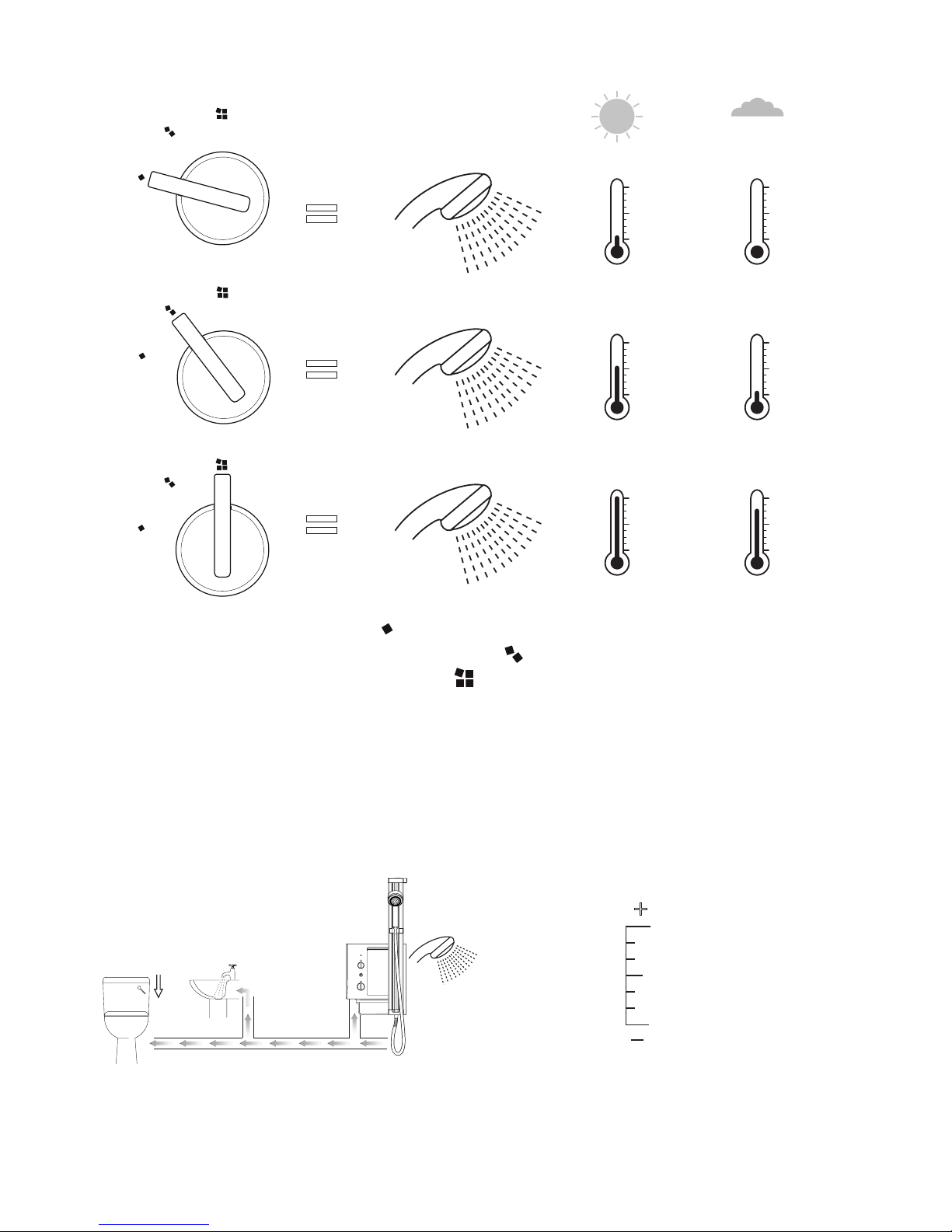

The Effect of Seasonal Changes........................................................19
The Effect of Other Water Devices.....................................................19

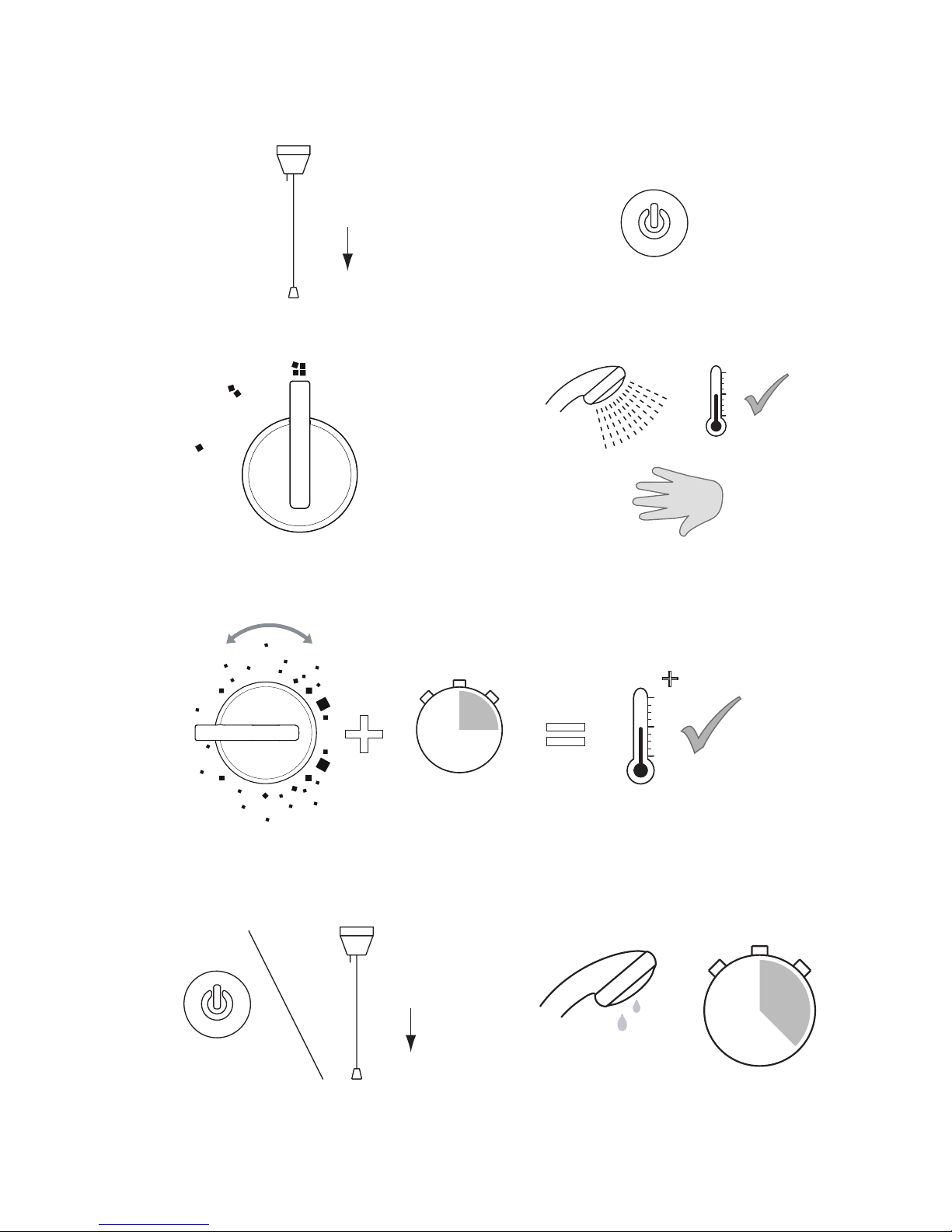

Using Your Shower.............................................................................20
Changing the Spray Setting ...............................................................21
Fault Diagnosis......................................................................................22
wiring diagram.......................................................................................25
Maintenance...........................................................................................26
Handset - Cleaning.............................................................................26
Spare Parts ............................................................................................ 26
Customer Service..................................................................................28
3
INTRODUCTION
Shower, please refer to ‘Fault Diagnosis’, before contacting Kohler Mira Ltd. Our
telephone and fax numbers can be found on the back cover of this guide.
Thank you for purchasing a quality Mira product. To enjoy the full potential of your
new product, please take time to read this guide thoroughly. Having done so, keep
it handy for future reference.
The Mira Elevate is an electric shower with separate controls for power selection and
Mira Elevate models covered by this guide:
Mira Elevate 9.5 kW- A 9.5 kW 240 V AC (8.3 kW 230 V AC) heater with integral
storage for showering products.
Supplied with an integrated slidebar, an adjustable spray handset with four different
Mira Elevate 10.8 kW- A 10.8 kW 240 V AC (9.9 kW 230 V AC) heater with integral
storage for showering products.
Supplied with an integrated slidebar, an adjustable spray handset with four different
giving adequate shower performance. This setting performs best with most gravity,
pumped and mains pressure unvented systems.
Patents and Design Registration
Design Registration: 000738141
Patents: GB2237860, Ireland 64471
4
SAFETY : WARNINGS
1.Warning!
1.1. This shower can deliver scalding temperatures if not operated, installed or
maintained in accordance with the instructions, warnings and cautions contained
in this guide and on or inside the appliance.
1.2. THIS APPLIANCE MUST BE EARTHED. MAKE SURE SUPPLEMENTARY
BONDING COMPLIES WITH THE “REQUIREMENTS FOR ELECTRICAL
INSTALLATIONS”.
system with its own dedicated supply.
1.3. DO NOT twist the individual cable cores of the live and neutral conductors, as
this will prevent them from entering the terminal block.
1.4. The shower unit must NOT
insulated.
1.5. DO NOT
1.6. If the cover is removed, the following warnings must be observed:
1.6.1. Turn off the electrical and water supplies before removing the cover.
1.6.2. Mains connections are exposed when cover is removed.
1.6.3. Refer to the wiring diagram before making any electrical
1.6.4. Ensure all electrical connections are tight, to prevent them
overheating.
2. Caution!
2.1. Follow all warnings, cautions and instructions contained in this guide, and on
or inside the appliance.
2.2.
supply company in force at the time of the installation. The installation should be
registered, or is a member of an association such as:
2.2.1.
2.2.2. The Electrical Contractors Association (ECA), England and Wales.
2.2.3. The Electrical Contractors Association of Scotland (ECAS).
5
2.3. The plumbing installation must comply with the requirements of UK Water
Regulations/Bye-laws (Scotland), Building Regulations or any particular
should be carried out by a plumber or contractor who is registered, or is a
member of, an association such as:
2.3.1. Institute of Plumbing (IOP), throughout the UK.
2.3.2.
2.3.3.

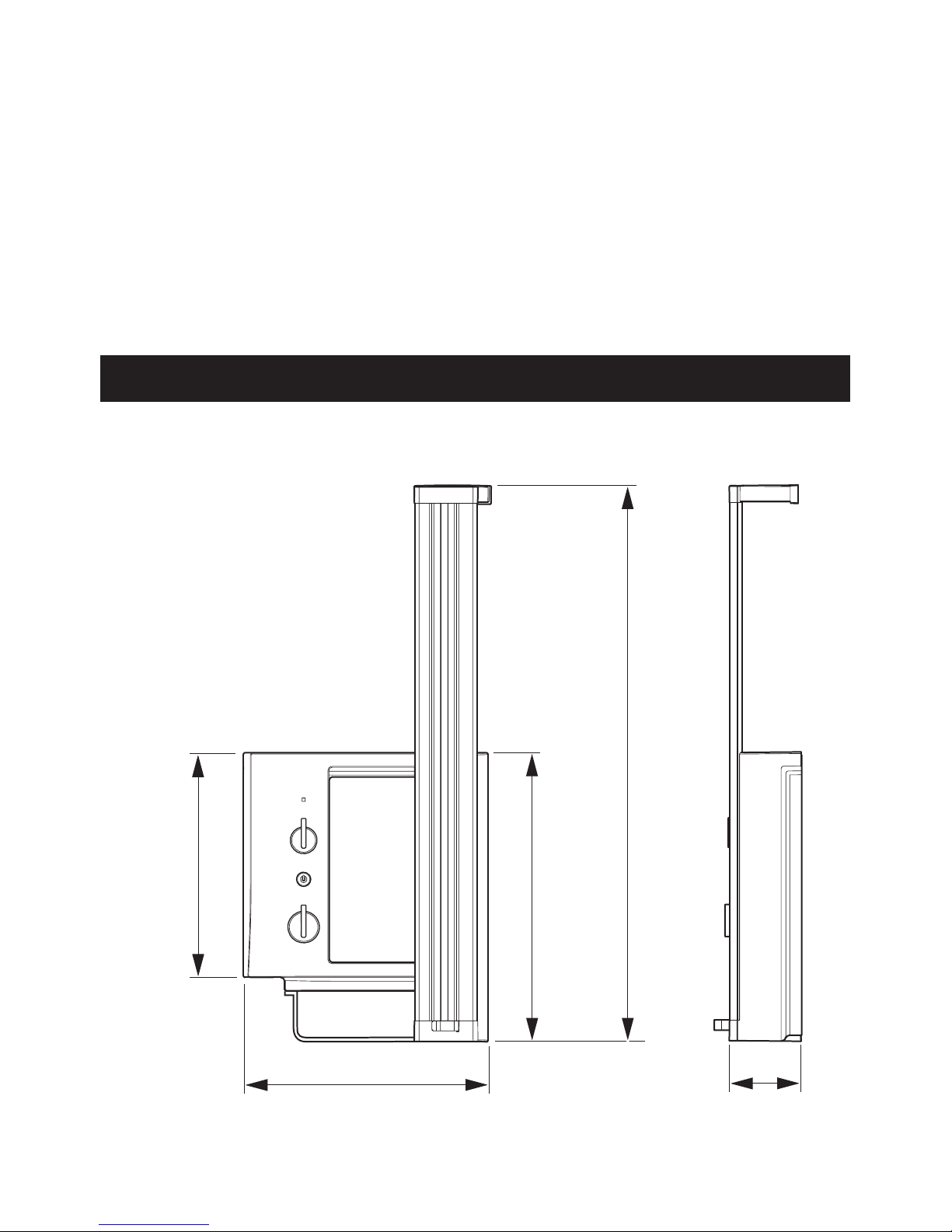

DIMENSIONS
Mira Elevate Electric Shower
307mm
285mm
363mm
699mm
111mm
6

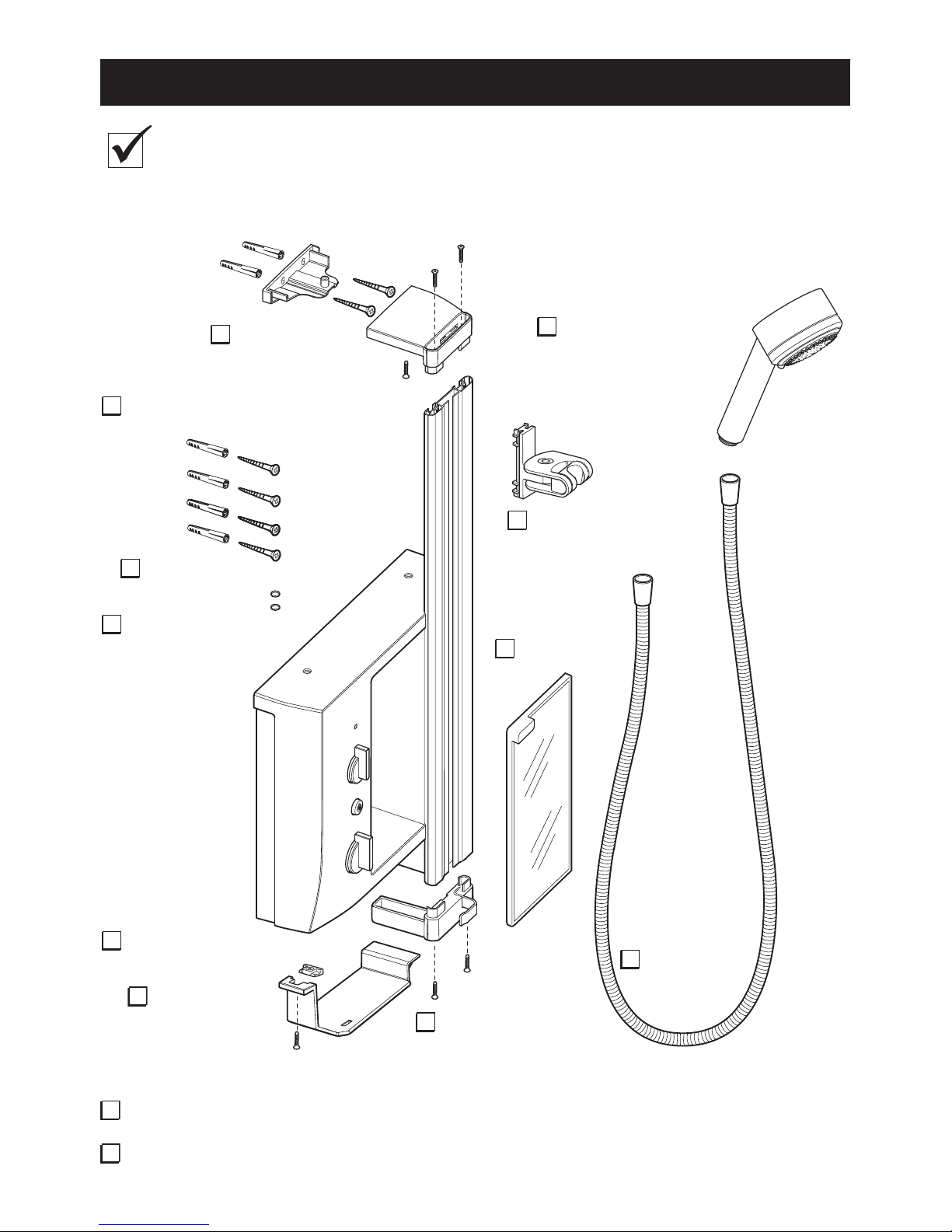

PACK CONTENTS
1 x Electric Shower
1 x Soap Dish
1 x Hose
1 x Adjustable Handset
1 x Top Bracket
Documentation
1 x Customer Support Brochure
1 x Installation Template
Mira Elevate Electric Shower
6 x Fixing Screws
6 x Wall Plugs
1 x Clamp Bracket
Assembly
1 x Bottom Bracket
1 x Mirror
2 x Concealing Caps
7
SPECIFICATIONS
1. Plumbing
1.1. Minimum maintained inlet pressure:
9.5 kW = 70 kPa (0.7 bar)
10.8 kW = 100 kPa (1 bar)
1.2. Maximum static inlet pressure of 1000 kPa (10 bar).
1.3. Minimum static inlet pressure of 50 kPa (0.5 bar) to keep the inlet valve
closed.
2. Electrical
2.1. The Mira Elevate 9.5 kW requires a 40 Amp circuit protection device.
The Mira Elevate 10.8 kW requires a 45 Amp circuit protection device.
2.2. 2.
3. Standards and Approvals
3.1. The Mira Elevate complies with all relevant directives for CE marking.
INSTALLATION REQUIREMENTS
Plumbing
1. When installed in very hard water areas (above 200 ppm temporary hardness)
your installer may advise the installation of a water treatment device, to reduce
the effects of limescale formation. Your local water company will be able to
advise the hardness of water in your area.
as part of the cold water supply pipe to allow the complete maintenance of the
appliance. Do not use a valve with a loose washer plate (jumper) as this can
lead to the build up of static pressure.
with a pressure relief device and must be positioned over a water catchment
area with the controls at a convenient height for all users.
8
Electrical
consumer unit must be adequate for the additional demand. All Mira Elevate
electric showers are high power units, therefore it is essential to contact your
electricity supplier to ensure that the supply is adequate for the product. Voltage
to the earth terminal.
Supplementary bonding: Within the bathroom or shower room, all accessible
conductive parts of electrical equipment and extraneous conductive parts
(metal parts) that are likely to introduce earth potential, must be electrically
must be a minimum of 4.0 mm2(2.5 mm2if mechanically protected). Use a
suitable earth bonding strap to connect the earth terminal to 15mm copper pipe.
3. Supply cable - see opposite.
Important! The shower circuit should be separated from other circuits by at least
twice the diameter of the cable or conduit, and it should not be run through
thermally insulating material or in locations where the ambient temperature is
likely to exceed 30 °C. If any of these conditions are unavoidable, it is necessary
overheating.
to the wall and tile up to the case. For safety requirements, an air gap must be
left behind the appliance.
5. Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
appliance.
Refrain from applying excessive force when making any connections. Always
provide mechanical support when making the plumbing connections.
in the inlet supply to the appliance, cause a pressure build-up, which could
exceed the maximum static inlet pressure and damage the appliance.
9

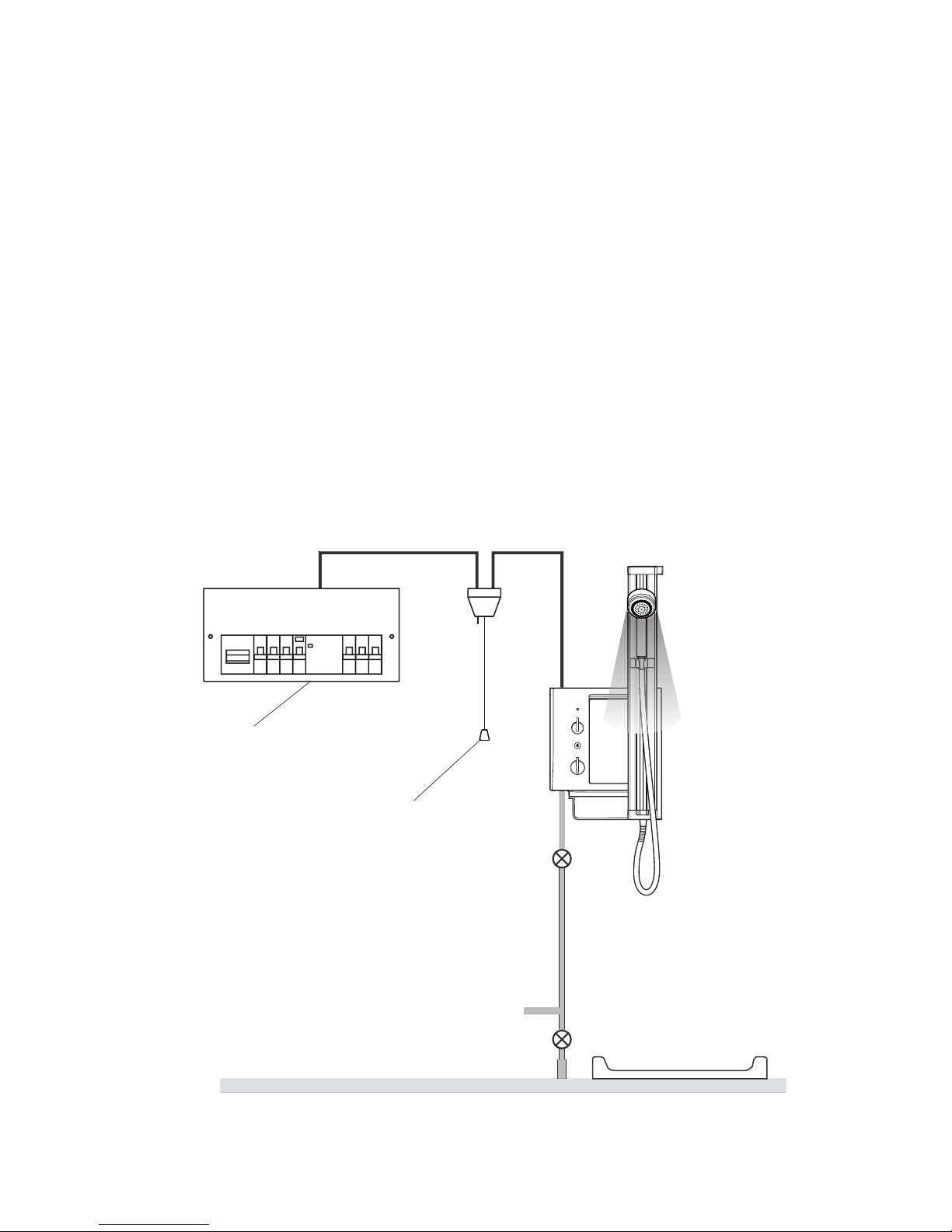

4. As a guide only, and in accordance with BS 7671 we recommend close circuit
protection:
i.e. 9.5 kW = 40 Amp, 10.8 kW = 45 Amp.
It is strongly recommended that a 30 mA Residual Current Device (RCD) is
included in the electrical circuit. This may be part of the consumer unit or a
separate unit. A separate, permanently connected supply is taken from the
consumer unit to the appliance through a double pole isolating switch, which
has at least 3 mm of contact separation. The switch can be a ceiling mounted
pullcord type within the shower room, or a wall mounted switch in an adjacent
room.
as this will prevent them from entering the terminal block.
are tightly screwed down.
Consumer Unit
Double Pole
Isolating Switch
10
INSTALLATION
Warning! Turn off the electrical and water supplies before proceeding with the
installation of the Mira Elevate. The electricity must be turned off at the mains and
the appropriate circuit fuse removed, if applicable.

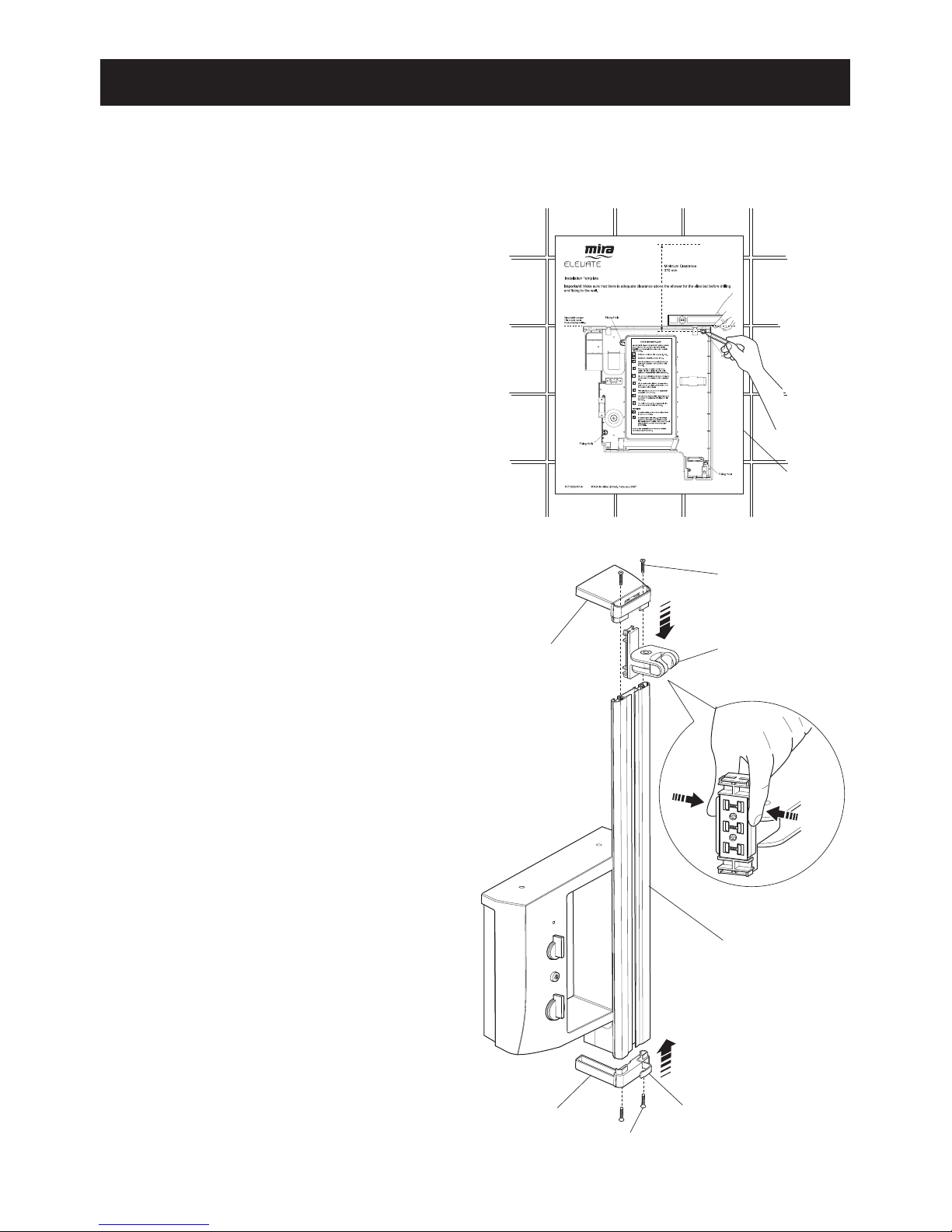

1. Hold the installation template in the
required position on the wall and
Make sure that there is adequate
clearance available for the slide
bar.
Note! Make sure that the position of
these holes do not come in line with
any buried cables or pipework. Make
cable is available for connection to
the terminal block.
drill and install the wall plugs.
3. Holding the clamp bracket assembly,
the clamp bracket into the groove in
the slide bar.
Note! It is important that you slide
the shorter edge of the clamp bracket
4. Fit the top and bottom brackets to
the ends of the slide bar and secure
Note! Make sure that the hose clip
bottom bracket in position.
Installation
Template
Fixing
Screws
Top
Bracket
Clamp Bracket
Assembly
Slide Bar
Bottom
Bracket Fixing
Screws
Hanging Hook/
Hose Clip
11

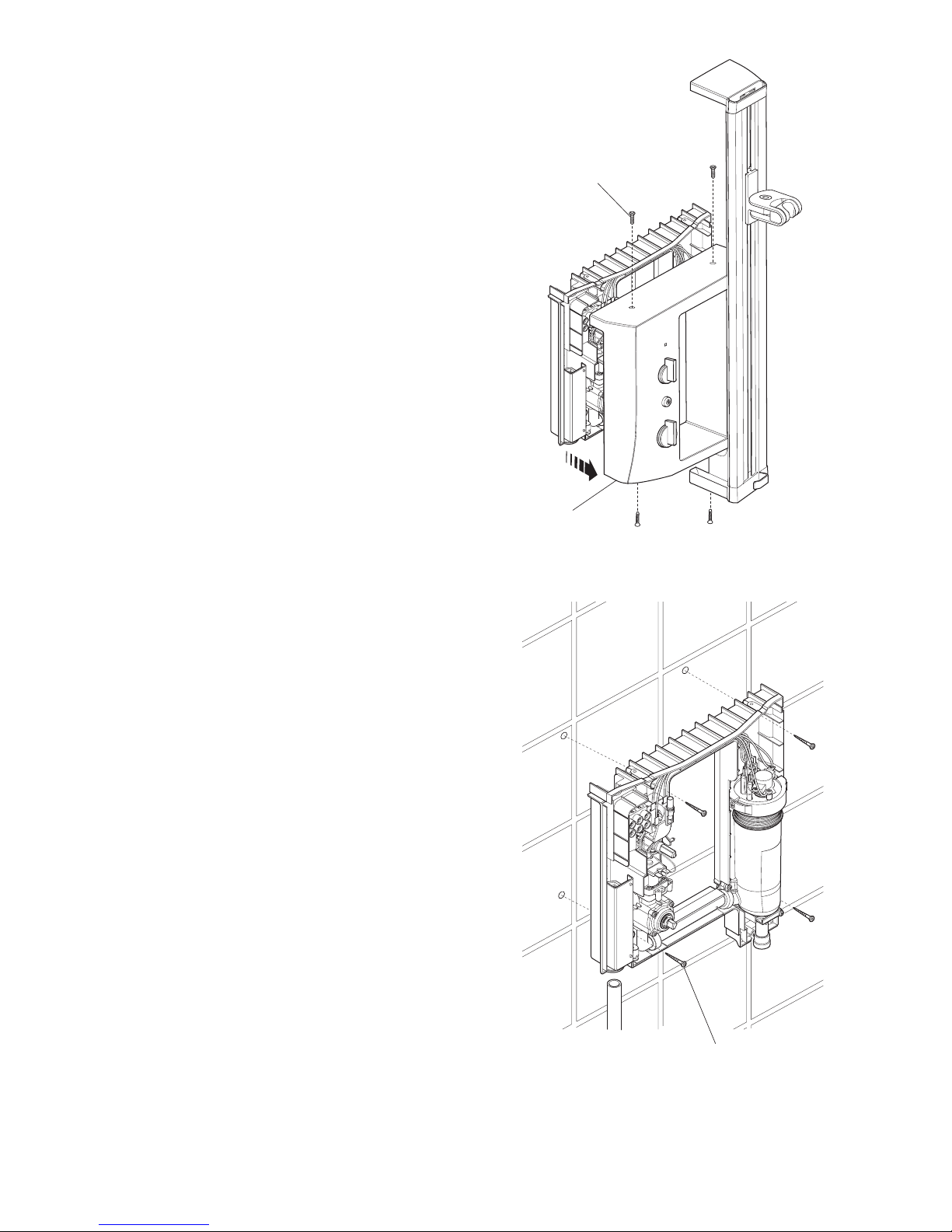

5. Remove the four screws that attach
the cover assembly.
Remove the cover assembly and
place to one side.
6. Fit the shower to the wall with the
Cover Fixing
Screws
Cover
Assembly
Fixing
Screws
12

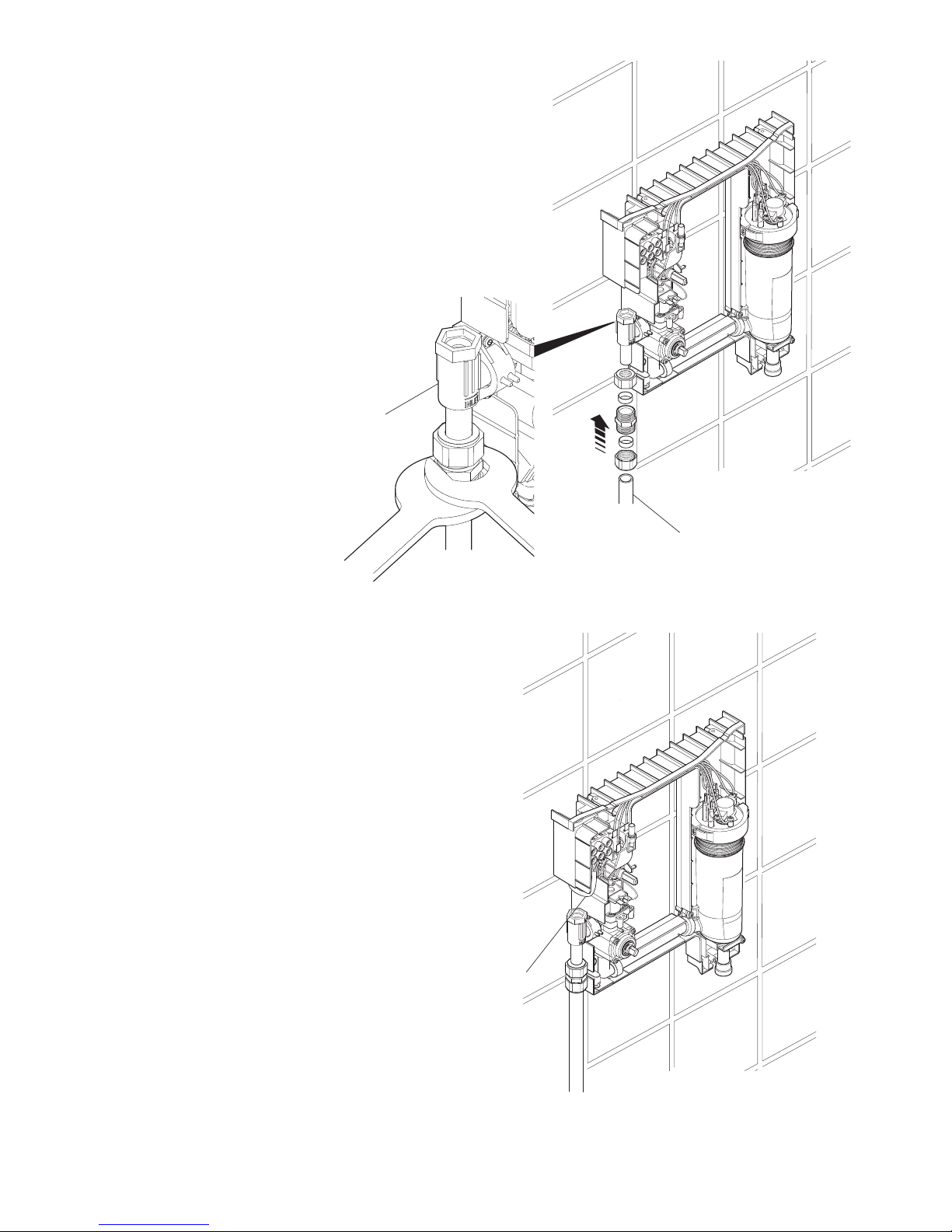

7. Remove the service tunnel.
8. Connect the water supply to the
inlet connector assembly. Do not
overtighten.
9. Feed the electrical cable into the
case. Fit earth sleeve (not supplied)
and strip insulation.
Do not twist cable cores.
10. Firmly connect the conductors. Do
not exert strain on the terminal
block.
Inlet Connector
Assembly
Water Supply
Electrical
Cable
13

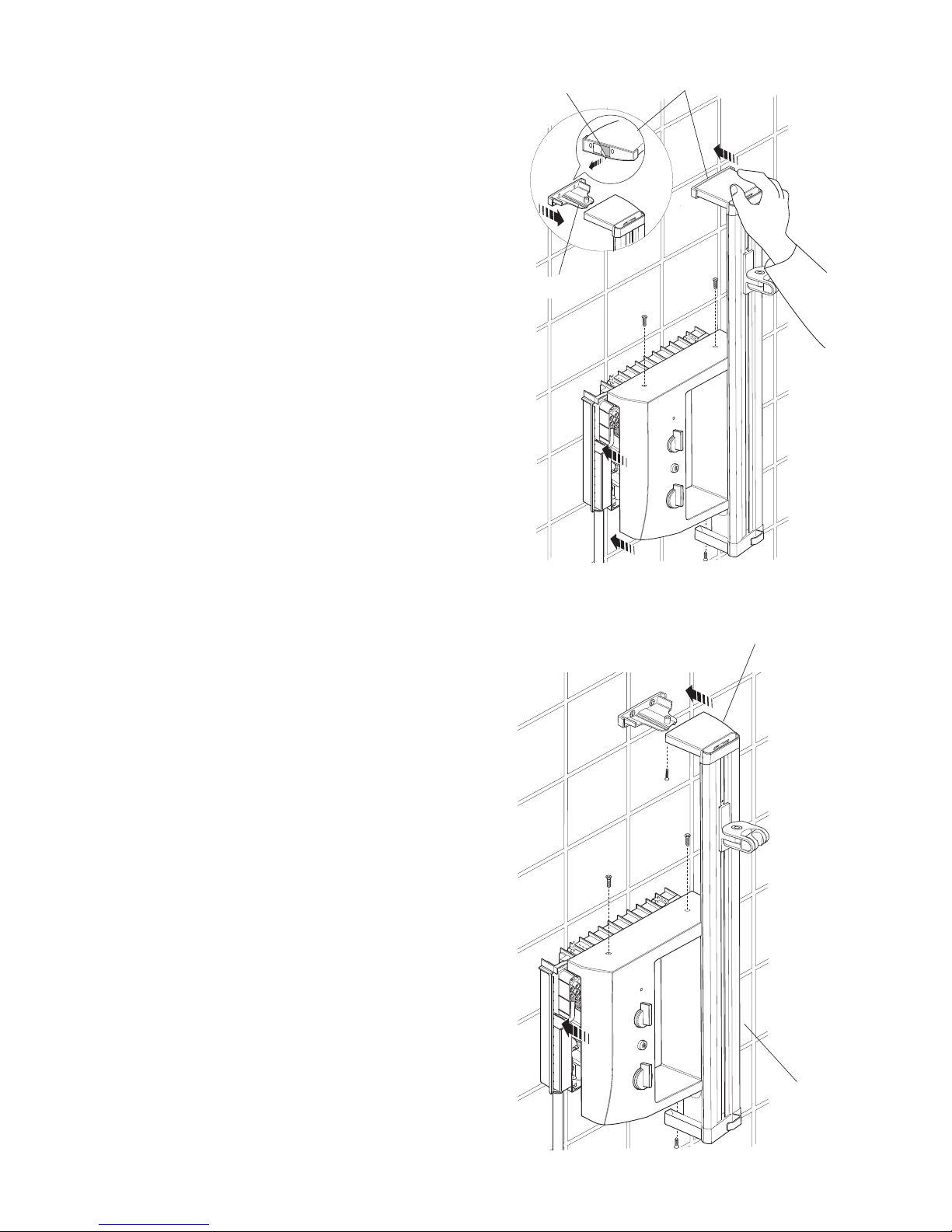

11. Fit the wall bracket into the top
bracket of the slide bar.
12. Remove the backing from the sticky
pad on the rear of the wall bracket.
13. Fit the front cover of the shower onto
the backcase.
With the front cover pushed fully
into place, apply a small amount of
pressure to the top bracket. This will
allow the sticky pad to hold the wall
bracket in position ready for marking
14. Carefully remove the front cover
making sure that the wall bracket is
in place on the wall.
and drill the fixings holes with a
suitable drill and install the wall plugs.
Secure the wall bracket to the wall
with the screws provided.
17. Refit the cover assembly. Make
screws to secure the cover assembly
in position.
Note! The fourth cover screw is used
to secure the soap dish in position
18. Fit the screw to secure the top
bracket assembly in position.
Do not use alternative screws to
secure the cover. This can cause
internal damage to the appliance.
Do not seal around the back of
appliance.
Case
Assembly
Top Bracket
Top Bracket
Wall Bracket
Sticky Pad
14
Note! The soap dish is an accessory and
screw (supplied with the soap dish clamp)
to secure the cover in position.

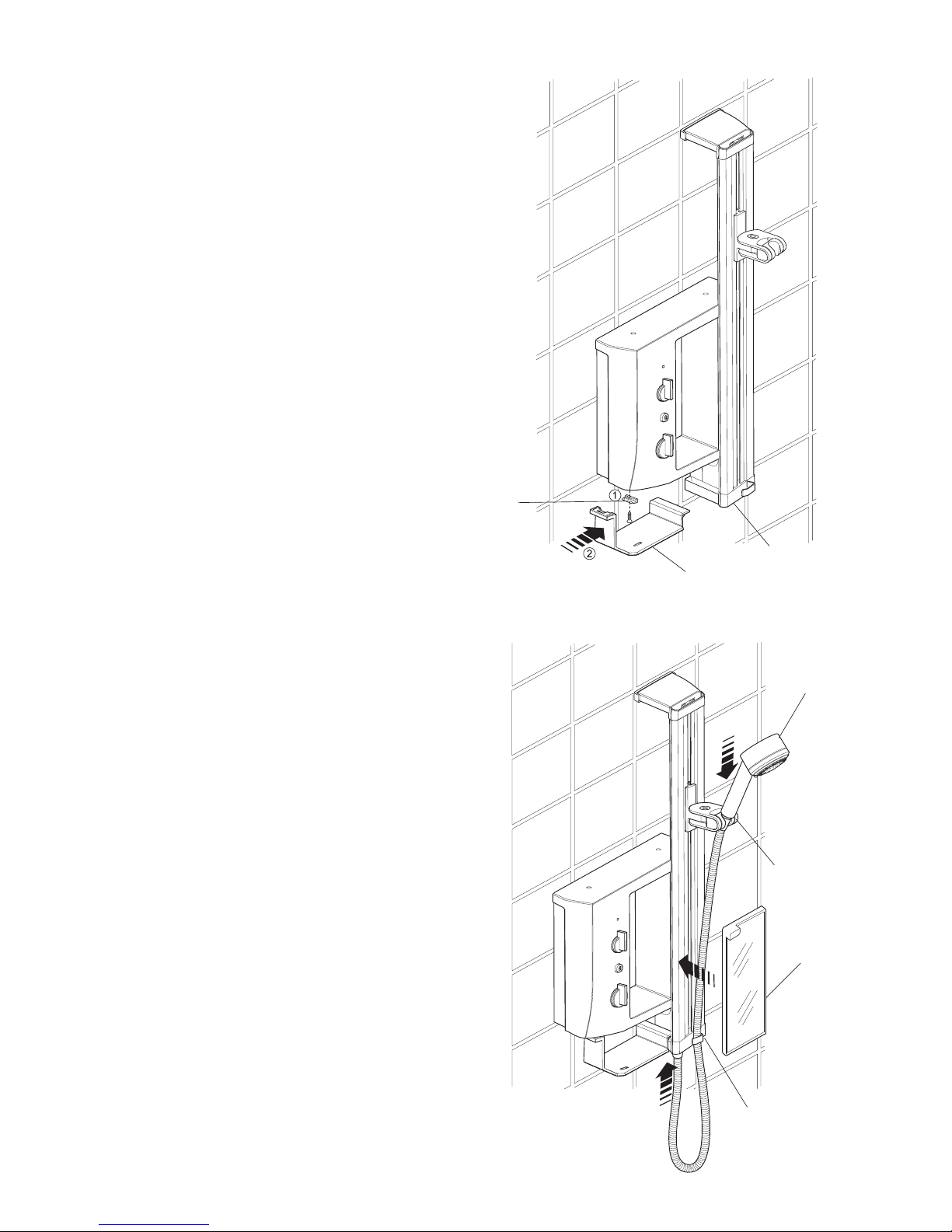

19. Screw the soap dish clamp onto the
bottom of the case.
20. Slide the soap dish over the clamp
making sure that the lip on the soap
dish locates correctly on the bottom
bracket.
21. Connect the flexible hose to the
handset making sure that the
hose washer is in position. Do not
overtighten.
22. Fit the handset into the clamp bracket
assembly.
23. Connect the other end of the hose to
the shower outlet making sure that
the hose washer is in position. Do
not overtighten.
24. Make sure that the hose is secure
behind the hanging hook/hose clip.
25. If required, clip the mirror into the
space in the cover assembly.
Soap Dish
Soap Dish Clamp
Bottom
Bracket
Handset
Clamp
Bracket
Assembly
Hanging Hook/
Hose Clip
Mirror
15
COMMISSIONING
If you are unsure how an electric shower works, please read through the section
2. 3.
Electrical supply is turned
off at the mains.
Set control to LOW . Turn water supply fully on.
1.
4. 5. 6.
Check for water leaks. Turn control to full cold. Switch on electrical
supply.
7. 8. 9.
Push START button.
cool temperature.
Turn control slowly.
Temperature remains cool
COLD
10. 11. 12.
Turn control to full cold. Set control to MEDIUM .
The temperature will rise
slightly.
0-5 secs
5-10 secs
_
+
16
Set control to HIGH .
13. 14.
15. 16.
17.
Note!
operation. High mains water pressure and high shower temperature
will affect the tone. This is quite normal in use.
The temperature will rise further.
Adjust temperatures as required. Flow
rate will adjust automatically.
Press STOP and isolate power.
Residual water may drain over a few
minutes.
_
+
17
USER INSTRUCTIONS
1. Warning!
1.1. DO NOT
to thaw and then contact your installer before using again.
1.2. DO NOT operate this appliance if water leaks from the pressure relief valve;
maintenance will be required before the appliance can be safely used.
1.3. There are no user serviceable components beneath the cover of this appliance.
Only a competent tradesperson should remove the Cover.
1.4. If any of the following conditions occur, isolate the electricity and water supplies.
guide.
1.4.1. If water is leaking from inside the product.
1.4.2. If the case is damaged.
1.4.3. If the appliance begins to make an odd noise, smell or smoke.
1.4.4. If the appliance shows signs of a distinct change in performance,
indicating a need for maintenance.
2. Caution!
2.1. Read all of these instructions and retain this guide for later use.
2.2. Pass on this guide in the event of change of ownership of the installation
site.
shower should be attended whilst showering. Particular consideration should
correct operation of the controls.
2.4. When this appliance has reached the end of its serviceable life, it should be
disposed of in a safe manner, in accordance with current local authority recycling
or waste disposal policy.
18

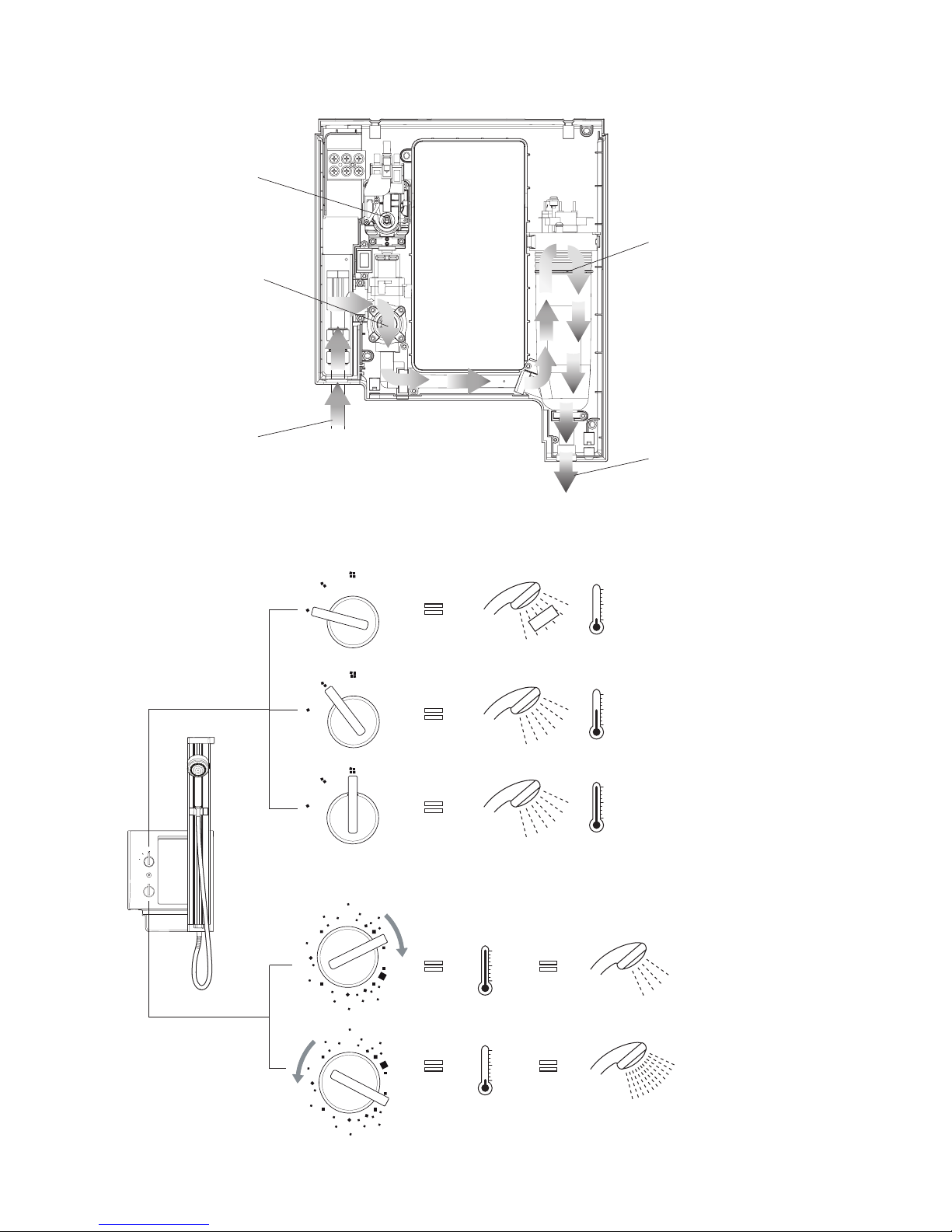

How Your Electric Shower Works
Hot water is produced by passing cold water through a heating tank.
The shower has three settings, LOW,
MEDIUM and HIGH.
rate and vice versa.
_
+
COLD
_
+
_
+
Warm Water to
Shower Outlet
Cold Mains
Water Inlet
Power Setting
Low, Med, High
Temperature Control
increase or decrease
temperature.
Heater Tank Assembly
Heating Elements within
heat cold water as it
passes over them.
19
_
+
The Effect of Seasonal Changes
For a cold shower select Low .
For a summer warm shower select Medium .
For a winter warm shower select High .
During extremes of mains water supply temperature, adjust heater setting to
obtain a better showering temperature.
The Effect of Other Water Devices
Selected
Showering
Temperature
Showering temperature
oC
band if other outlets are
opened whilst showering,
providing the minimum
pressure does not fall
below 70 kPa (0.7 bar).
cause the showering temperature to increase.
* *
*
_
+
20
Using Your Shower
Read the section “Important Safety Information”
1.
Switch on electrical supply. Press START button.
Set to desired position. Check water temperature before entering
shower.
Allow 10-15 seconds for any temperature adjustments to reach the handset.
Press STOP button. A small amount of water may continue
to drain over a few minutes.
2.
3. 4.
5.
6. 7.
_
+
_
+
Table of contents
Other Mira Plumbing Product manuals
Mira
Mira Sport Owner's manual
Mira
Mira Sprint 7.5 Owner's manual
Mira
Mira everclear User manual
Mira
Mira Advance J97I User manual
Mira
Mira Elite QT Operation manual
Mira
Mira Sport Multi-fit User manual
Mira
Mira Alero User manual
Mira
Mira FORM Operation manual
Mira
Mira Sport Operation manual
Mira
Mira Advance User manual
Mira
Mira 1559.006 User manual
Mira
Mira Mode 1.1980.001 User manual
Mira
Mira Azora User manual
Mira
Mira Vie Operating and maintenance instructions
Mira
Mira vigour User manual
Mira
Mira DISCOVERY User manual
Mira
Mira Enduro Operation manual
Mira
Mira Jump 96Va User manual
Mira
Mira Advance J97I User manual
Mira
Mira Advance User manual
Popular Plumbing Product manuals by other brands
Graff
Graff BALI 2100-LM20 installation instructions
American Standard
American Standard 8340.235.002 installation instructions
Glacier bay
Glacier bay 65416W-6004 Installation and care guide
Grohe
Grohe 06919XX2 parts list
Pfister
Pfister 015-3WDNS Quick installation guide
Kessel
Kessel Multistop 200 quick start guide
Gessi
Gessi RIVIEVO 59089 manual
American Standard
American Standard SPECTRA+ TOUCH 1698.374 installation instructions
Sanela
Sanela SLP 05N Instructions for use
Symmons
Symmons H321-V installation guide
Spectrum Brands
Spectrum Brands Pfister Bernini LF-042-BN Quick installation guide
Zoeller
Zoeller QWIK JON 200 installation instructions
