LT-6649 Rev 0 Page 1 of 2
Replacement Card Reader Window and Camera
Window for TX3-TOUCH-S15B-WR and
TX3-TOUCH-S15S-WR

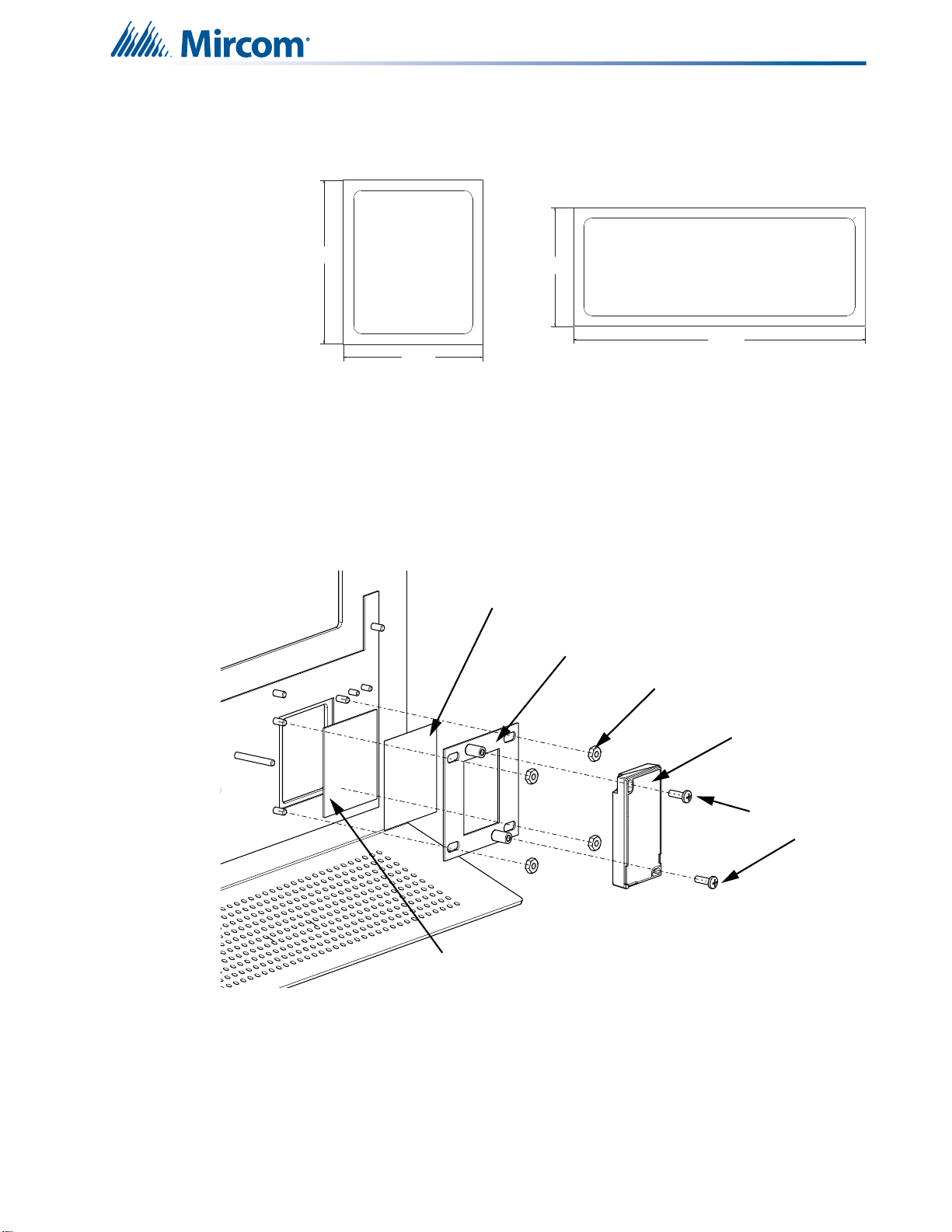

Figure 1 Card reader window and camera window dimensions
Card Reader Window Replacement
A. Disconnect the Power
B. Remove the Card Reader Assembly
Remove the card reader, the metal bracket, and the plastic plate.
Figure 2 Parts of the card reader assembly
C. Replace the Card Reader Window
D. Replace the Card Reader Assembly
Replace the plastic plate, the metal bracket, and the card reader as shown in Figure 2.
You are done! If you need more help, call us at 1-888-660-4655.
1.87”
4.6”
2.59”
2.2”
Card reader window Camera window
2 x screws
Card reader
4x nuts
Card reader metal bracket
Card reader plastic plate
Card reader window

LT-6649 Rev 0 Page 2 of 2
Camera Window Replacement
A. Disconnect the Power
B. Remove the Camera Assembly
Remove the 3 nuts and the camera assembly.
Figure 3 Parts of the card reader assembly
C. Replace the Camera Window
D. Replace the Camera Assembly
Replace the camera assembly as shown in Figure 3.
You are done! If you need more help, call us at 1-888-660-4655.
3 x nuts
Camera assembly
Camera window
