MISURA MB4 User manual

USER MANUAL
ENGLISH
MASSAGE DEVICE
MB4

ABOUT US
EN
MISURA promotes healthy lifestyles through quality products and thus advances the standard of living
of its users.
Exercise and sports activity undoubtedly contribute to our physical and mental well-being. Physical
exercise should also be followed by relaxation and athorough relaxation of strained muscles.
In today‘shectic times, there is sometimes no time for this and the result can be excessive muscle
fatigue, tension and sometimes unpleasant pain.
MISURA brings asolution in the form of the MISURA MB4 massager. It is ahandheld massage device
that applies concentrated pressure pulses deep into the muscle tissue. These pressure pulses eliminate
muscle knots, helping to relax muscles, improve circulation and rapidly increase range of motion. Proper
use of amassager can quickly reduce recovery time after exercise while reducing muscle tension
and potential pain.
MISURA – ATAILOR-MADE SOLUTION!

The MISURA massage device is designed and developed in collaboration with ateam of physiotherapists,
spinal therapists and professors of ergonomics. Professional athletes were also invited to test the product.
The unique functions and features of the product are constantly put to the test to achieve the optimal
performance of the device, providing customers with the most effective form of muscle recovery and
aprofessional massage experience.
The MISURA MB4 massage device uses pulsating vibrations to help increase overall body performance.
The handheld massager is made from high quality components providing just the right amount of vibration.
The handheld massager is suitable for all age groups. It is ideal for improving overall body performance,
accelerated recovery, increased range of motion, comfort, and thus improving overall well-being.
PRODUCT INTRODUCTION

CONTENTS
CONSTRUCTION 1
PARAMETERS 2
FUNCTION 3
ADVANTAGES 4
EASY OPERATION 8
CHARGING 9
MAINTENANCE AND CLEANING 10
SAFETY INSTRUCTIONS 11
WARNING 12
NOTICE 12
WARRANTY 13
LEGAL DISCLAIMER 14
QUESTIONS AND ANSWERS 15
EN

CONSTRUCTION
1
Bottom viewRear viewSide view
Spiral head
Suitable for deep tissue
pulses such as meridians,
joints, palms, feet.
Ball head
Suitable for large muscle
groups such as arms, waist,
hips, thighs and calves.
Flat head
Suitable for relaxation
and shaping of different parts
of the muscles.
Fork head
Suitable for massage
of the neck, spine
and Achilles tendon.

2
PARAMETERS 1. Removable, replaceable heads. Remove with astrong pull
2. High-speed brushless motor
3. On/Off button
4. Battery status indicator LED (blue)
5. Frequency level indicator LED (blue)
6. USB charging port
Model Number: MB4
misura.shop
Product name MB4 massage device
Battery Li-ion 2 000 mAh
Working time 3–4 hours
Charging time 4 hours
Speed 1,200–2,800 rpm
Levels 4 speeds
Pulses/punches 6 mm
Weight 485 g / 665 g
Dimensions 14.5 × 9 × 4.5 cm
3
EN

FUNCTION
3
Muscles may feel stiff and sore after exercise and limbs may feel heavy and weak.
The cause lies in the „fascia“ – the fascia is the soft tissue (the blanched sheath of the muscles) that encases
and connects the muscles and tendons. Intense exercise, lack of stretching and loosening of the muscles or poor
posture can cause shortening or rupture and damage to the fascia and muscles. It can also reduce joint mobility
and cause ‚delayed onset muscle soreness‘.
The MISURA MB4 product deeply relaxes the fascia, relieving the feeling of tension and pain. The MISURA
massager relaxes the deep muscles with powerful high frequency vibration stimulation, penetrates the fascia,
rapidly breaks down the lactic acid produced after exercise, relaxing tight and stiff muscle tissue. By massaging
the nodal points and muscles, muscle adhesions are prevented, fatigue and pain are relieved, and overall muscle
discomfort is alleviated.
The MISURA MB4 handheld massager is an advanced massage device. It performs deep and powerful vibration
stimulation, relaxes fascia, eliminates stiffness and tight muscles, resulting in the following benefits:
 Accelerates muscle growth.
 Strengthens muscle flexibility.
 Helps accelerate muscle recovery.
 Relaxes and reduces lactic acid in the body.
 Improves and extends range of motion.
 Reduces pain associated with soft tissue damage.
 Reduces the incidence of delayed onset muscle pain.
 Improves blood flow.

ADVANTAGES
4
Modern T–shaped design
The slim, innovative and ergonomic non-slip handle allows
acomfortable grip and easy handling.
The attractiveness of the product is underlined by the high-quality metallic
design, which is enhanced by the clean T-shaped lines.
Great power directly into the body depths
Thanks to its precise internal balancing, the MISURA MB4 has apower output
of up to 2800 rpm with very low energy consumption. This powerful energy
source hits muscle groups up to 6 mm deep. It quickly dissolves lactic acid
created by physical exertion, stretching every muscle cell, bringing relief deep
into the entire body.
EN

Four-stage frequency conversion and intelligent pressure sensor technology
The device is scientifically designed with the specific needs of its user in mind.
The variable four-stage frequency conversion and the intelligent vibration mode
of pressure sensing adapt perfectly to the individual needs of its users. Whether
it‘san everyday, soothing and relaxing massage or aprofessional‘scare that
requires adeep, intense massage, you will always find the right amplitude.
Quiet operating mode. Enjoy amoment of relaxation
The high-end brushless motor features anew generation of noise
reduction technology that regulates noise to just 35 decibels. This
guarantees quiet operation wherever you choose to use the machine.
Whether in the gym, locker room or in the quiet of the office or home,
for example. In silence, let your fatigue subside and give your body and
mind arelaxing and peaceful relaxation.
5

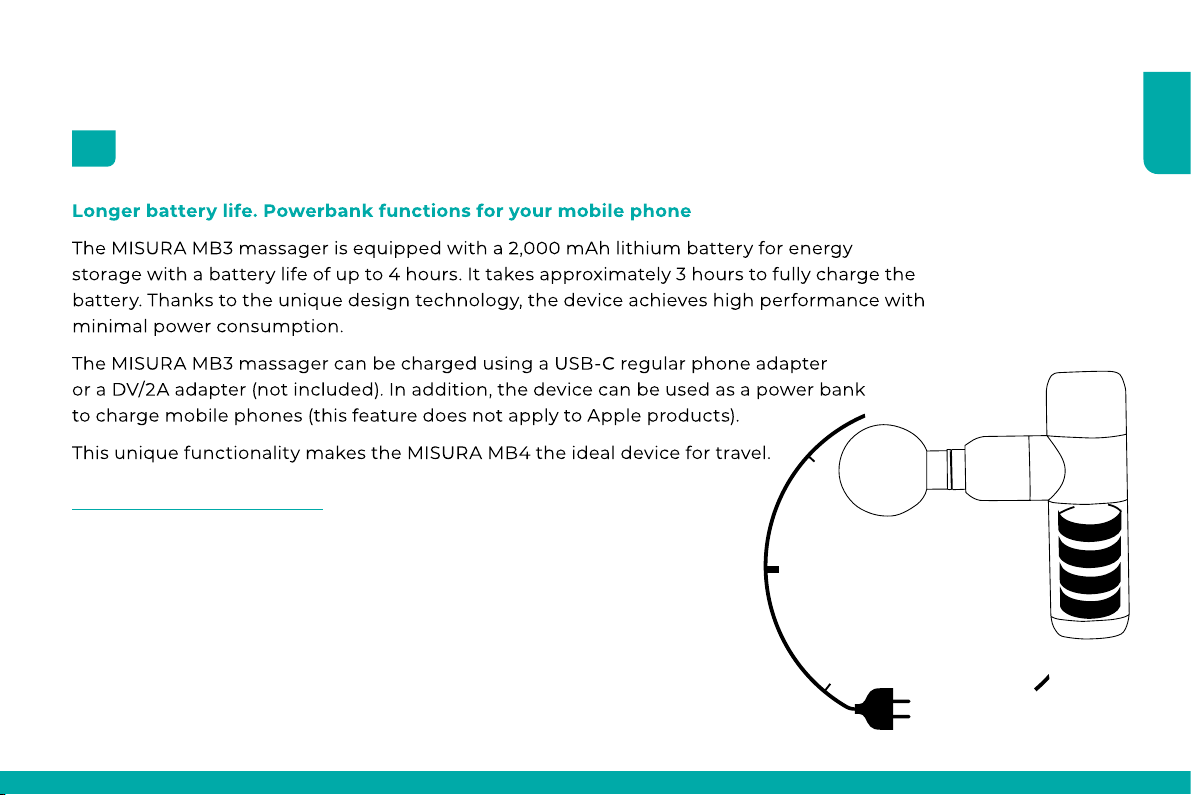

2000mAh
4 hours
Charger USB-C
Smart Shutdown function
The duration of use of the massager varies according to different parts
of the body. To prevent too much massage time on one part of the body
and possible damage to muscles and bones, the massager is equipped
with aSmart Shutdown time function. It automatically stops after
10 minutes of continuous use. This protects your body and prolong
the life of the machine.
6
EN

Suitable for everyone thanks to variable adjustment
Our MISURA MB4 is suitable for back, shoulder and neck pain caused
by prolonged sitting in the office, carrying heavy objects and travelling long
distances. It is also suitable for athletes. The MISURA MB4 device is an excellent
addition to health care, for loosening stiff muscles, relaxation and regeneration
and body shaping.
Lightweight, compact and ideal for travel
The MISURA MB4 massage machine weighs only 0.55 kg and is easily
portable yet still retains its performance. It fits easily into any luggage
and can thus be your partner on the go. So you can enjoy the massage
experience anytime, anywhere.
7

8
EASY OPERATION
SWITCHING THE SPEED LEVEL
Once the massager is turned on, the speed level can be switched by briefly pressing the On/Off button.
SMART MODE (Intelligent Pressure Sensing Technology)
1st speed level with one indicator light, start-up speed is 1,200 rpm, massage speed is 1,500 rpm.
2nd gear with two indicator lights, start-up speed is 1,200 rpm, massage speed is 2,200 rpm.
3rd gear with three indicator lights, start-up speed is 1 200 rpm, massage speed is 2 800 rpm.
4th gear with four indicator lights, start-up speed is 1,200 rpm, massage speed is regulated according to pressure
in the range of 1,500, 2,200 to 2,800 rpm. With this gear, you can enjoy the speed of 1st, 2nd and 3rd gear and no need
to switch one by one, it is very convenient.
After the cycle of 1st, 2nd, 3rd and 4th gear, shift to gear 0. Only the power function is available at this time,
there is no vibration.
Short press to toggle the switch and frequency setting
Battery indicator and four speed settings
EN

The device should be kept fully charged even when not in use. This helps to extend the battery life
of the device. The battery can last approximately 2 years on afull charge. However, we recommend
checking the battery every six months and recharging it fully if necessary.
WARM TIPS
CHARGING
9
CHARGING
 Fully charge the battery for approximately 4 hours before first use.
 Connect the DC adapter (5V/1A) to the charging port and plug the charger cable
into the wall socket.
 Once the adapter is connected, the green LED on the device
will start flashing to indicate active charging.
 A full charge is indicated when the green LED stops flashing
and begins to glow steadily.
 The battery can be recharged at any time at any charge level.
 It is not recommended to fully discharge the battery.
Fully discharging the battery significantly shortens its life.
 operation and reducing the operating time from 10 minutes to a shorter period.
 Average battery life is up to 4 hours based on speed level one. Battery life
decreases when using a higher speed grade.

 Clean the device with aslightly damp towel and then dry it with asoft cloth.
 Store in adry, well-ventilated and easily accessible place. Do not stack.
 If you are not going to use the device for along time, you should unpack, check and recharge
it every six months.
 The product is suitable for transportation by car, train, ship and air.
 The product should be stored during transportation to avoid exposure to strong vibration, collision, tipping,
dropping, and excessive moisture.
10
MAINTENANCE AND CLEANING
EN

SAFETY INSTRUCTIONS
11
 Adult use only.
 Use only on adry clean body surface or over clothing by gently pressing and moving over the body
for approximately 60 seconds in each area.
 Use the massager only on soft body tissue as needed without causing pain or discomfort.
 Do not use it on the head or on hard or bony areas of the body.
 Use the heads that give the best desired effect on the specific muscle area.
 Bruising may occur regardless of the control setting or pressure applied. Check frequently treated areas and stop
the device immediately at the first sign of pain or discomfort.
 Keep fingers, hair, or other body parts well away from the shaft and back of the applicator, as pinching may occur.
 Do not insert any objects into the ventilation holes of the massager.
 Do not immerse the device in water and do not allow water to enter the massage device vents.
 Protect the device from falling or misuse.
 Carefully check the device and battery before each use. Do not tamper with or alter the individual components
of the massager in any way.
 Never leave the massager unattended when in use or charging.
To reduce the risk of electric shock, fire or personal injury, this product must be used in accordance
with the following instructions.

 Do not immerse the device in water.
 Protect from liquids and heat sources.
 Protect the ventilation openings from dust
and small objects.
 Do not remove screws or attempt to repair the
device yourself. Any tampering with the product
design will void the warranty on this product.
 Do not use continuously for more than one hour.
 Allow the device to rest for at least 30 minutes
before using it again.
 Disconnect the charger from the device battery
after charging or before use.
 Do not injure yourself. Consult your physician
if you are uncertain about the suitability of using
the device.
 Use the product only in accordance with the
instructions for use provided in the product
manual.
12 12
WARNINGS NOTICE
Do not use massage equipment or any vibrating device
without prior approval from your doctor, if any of the
following applies to you:
Pregnancy, diabetes with complications such as
neuropathy or retinal damage, heart weakness, recent
surgery, epilepsy and migraines, herniated discs,
spondylolisthesis or spondylosis, recent joint replacements
or IUDs, metal pins or plates, or any concerns about your
physical health. Fragile individuals or children should
be accompanied by an adult when using any vibration
equipment. These contraindications do not mean that
you cannot use vibration or exercise equipment, but
consult aphysician first. Ongoing research into the effects
of vibration exercise on specific medical disorders will likely
lead to ashortening of the list of contraindications listed
above. Practical experience has shown that integrating
vibration exercises into atreatment plan is recommended
in several cases. The exercises must be carried out on the
advice and with the assistance of aphysician or other
specialist or physiotherapist.
EN

WARRANTY
13
The warranty runs from the time of purchase. If the product fails due to defects in materials
or design process within 24 months, the Company will repair or replace the defective parts or replace
new products free of charge, except for the following:
 Misuse or damage to the equipment caused by shipping.
 Unauthorized disassembly or repair of this equipment.
 Failure to follow the instructions for use.
 Product is damaged due to unusual storage or maintenance environment of the customer.
 If proof of purchase is not provided, the company reserves the right to refuse warranty.

14
LEGAL DISCLAIMER
If you suffer from any of the conditions listed in the Cautions section, always consult your physician when using
MISURA MB4.
The MISURA Store s.r.o. is not alicensed health care provider and represents that it has no expertise in diagnosing,
investigating or treating medical conditions of any kind or in determining the effect of any particular exercise
or therapy on any medical condition. There is apossibility of physical injury when participating in any exercise
or therapy. If you engage in such exercise or therapy, you agree to do so at your own risk, voluntarily participate
in these activities, and thereby assume all risk of injury to yourself. By doing so, you also agree to release any
and all claims, known or unknown, against MISURA Store s.r.o. arising out of negligence or misuse of the product.
You must be 18 years of age or older. If you experience severe pain or discomfort, stop using the device immediately.
Any exercise program, including this one, may result in injury. Consult aphysician before starting this or any
exercise or therapy program. The manufacturers, distributors, suppliers and dealers disclaim any liability for any
losses in connection with the information, exercise demonstrations or instructions contained herein.
Copyright 2021. MISURA Store s.r.o., 24 month limited warranty. Validity of Terms and Conditions.
EN

QUESTION AANSWERS
15
Q1: How does the massager work?
A: The MISURA MB4 massage device relaxes fascia and stiff and tight muscles. Thanks to the stimulation
of the deep and strong vibrations, it relaxes tight soft tissues, promotes blood circulation and quickly dissolves lactic
acid produced after exercise, which significantly reduces muscle recovery time. At the same time, it can eliminate
pain, reduce muscle adhesion, reduce tissue inflammation, accelerate wound healing and prevent sports injuries.
Q2: Can Ireplace the battery? How do Iuse the battery properly? What is the battery life?
A: The device uses high quality 18650 lithium batteries. The battery is rechargeable and therefore cannot be
replaced separately. Do not disassemble or replace the battery without the assistance of atechnician.
The operating time is up to 4 hours after afull charge. To prolong battery life, keep the following in mind:
1. Charge the battery for 4 hours before first use to fully charge the battery.
2. When the battery is 90% depleted, it must be recharged.
3. When the product is not in use, fully charge it.
If there are persistent battery problems, contact technical support at www.misura.shop.
Q3: Massagers on the market look similar. How do Icompare the forces that impact the deeper
stimulation? What is the amplitude? What is the depth of the amplitude?
A: The MISURA MB4 is an excellent deep tissue massage gun. It features apivoting dual bearing design that
delivers strong and sharp force. The high-speed 2,800rpm pulses can penetrate muscle groups up to 6mm deep
and quickly break down the lactic acid produced after exercise, giving you acomfortable experience right in the
muscle depth.
