MiTAC 8889 User manual

BY: Star Meng
Repair Technology Research Department /EDVD
Repair Technology Research Department /EDVD
Nov.2004
SERVICE MANUAL FOR
8889
88898889
8889
SERVICE MANUAL FOR
SERVICE MANUAL FOR
8889
88898889
8889
8889
88898889
8889

8889
8889 N/B Maintenance N/B Maintenance
1
1. Hardware Engineering Specification ………………………………………………………………………
1.1 Introduction ………………………………………………………………………………………………………………..
1.2 Hardware System…………………………………………………………………………………………………………..
1.3 Electrical Characteristic ………………………………………………………………………………………………….
1.4 Appendix 1 : VT8235 GPI/O Definition …………………………………………………………………………………
1.5 Appendix 2 : Keyboard Controller Pin Definition ……………………………………………………………………..
1.6 Appendix 3: Audio Performance …………………………………………………………………………………………
2. System View and Disassembly ……………………………………………………………………………..
2.1 System View ……………………………………………………………………………………………………………….
2.2 System Disassembly ……………………………………………………………………………………………………….
3. Definition & Location of Connectors / Switches …………………………………………………………..
3.1 Mother Board ……………………………………………………………………………………………………………...
4. Definition & Location of Major Components ……………………………………………………………..
4.1 Mother Board ……………………………………………………………………………………………………………...
5. Pin Description of Major Component …….……………………………………………………………….
5.1 AMD Mobile K8 CPU ……………………………………………………………………………………………………..
5.2 K8N800 North Bridge ……………………………………………………………………………………………………..
5.3 VT8235CE South Bridge ….……………………………………………………………………………………………...
Contents
4
7
35
40
48
68
71
71
45
73
73
75
68
82
42
44
45
4
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
2
6. System Block Diagram ……………………………………………………………………………………..
7. Maintenance Diagnostics …………………………………………………………………………………..
7.1 Introduction ……………………………………………………………………………………………………………….
7.2 Error Codes ……………………………………………………………………………………………………………….
7.3 Debug Tool …………………………………………………………………………………………………………………
8. Trouble Shooting ……………………………………………………………………………………………
8.1 No Power …………………………………………………………………………………………………………………..
8.2 Battery Can not Be Charged ……………………………………………………………………………………………..
8.3 No Display …………………………………………………………………………………………………………………
8.4 LCD No Display or Picture Abnormal ………………………………………………………………………………….
8.5 External Monitor No Display or Color Abnormal ………………………………………………………………………
8.6 TV Test Error …………………………………………………………………………………………………………….
8.7 Memory Test Error ……………………………………………………………………………………………………….
8.8 Keyboard (K/B) Touch-Pad (T/P) Test Error …………………………………………………………………………..
8.9 Hard Driver Test Error …………………………………………………………………………………………………..
8.10 CD-ROM Driver Test Error …………………………………………………………………………………………….
8.11 USB Port Test Error …………………………………………………………………………………………………….
8.12 PC Card Socket Test Error ……………………………………………………………………………………………..
8.13 Mini-PCI Socket Test Error …………………………………………………………………………………………..
8.14 Audio Failure …………………………………………………………………………………………………………….
Contents
92
93
99
108
115
121
94
97
111
113
93
103
105
117
119
96
123
128
126
130
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
3
133
8.15 LAN Test Error ………….………………………………………………………………………………………………
9. Spare Parts List …………………………………………………………………………………………….
10. System Exploded Views …………………………………………………………………………………..
11. Circuit Diagram …………………………………………………………………………………………..
12. Reference Material ………………………………………………………………………………………..
Contents
178
147
148
135
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
4
1.1 Introduction
1. Hardware Engineering Specification
This document describes the system hardware engineer specification for 8889 portable notebook computer system.The
8889 notebook computer is a new mainstream high performance thin and light notebook in the MiTAC notebook
family.
1.1.1 General Description
1.1.2 System Overview (1)
- Insyde - 512 KB Flash ROM
- Includes System BIOS, VGA BIOS, and Plug & Play capability
- ACPI 2.; DMI 2.3.1 compliant Boot Sequence (FDD – CDROM – HDD – LAN)
System BIOS
- Lancaster 1MB/ Odessa, Oakville 512 KB/ Dublin 256KB, on CPU die, depends on CPU
- VIA K8N800 North Bridge:with Int.Unichrome Pro VGA SouthBridge:VT8235
- AMD Mobile K8 (35W/25W) Processers
- Athlon64 35W 2700+/2800+/3000+/3200+/3400+
- Athlon64 25W 3000+/3200+
- AthlonXP-M (32bit) 25W 2500+/2700+
L2 Cache
Core logic
CPU
Table 1. Hardware Specification
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
5
- No on Board Memory
- Two 200 pin SO DIMM socket for Memory expansion
- Support PC-2100/2700/3200
Memory
- 19mm key pitch/ 3.0mm key stroke/ 307mm length
- Windows Logo Key x 2; Application Key x 1
Keyboard
- Glide pad with 2x buttonsPointing Device
- 1 Type II slot,Card Bus port supportPCMCIA
- 3 LEDs for Power/Battery charge/WLAN status (on Inverter module)
- 5 LEDs for HDD Access,ODD Access, Num lock, Cap lock and Scroll Lock
Indictor
- Support External FDD w/z USB 1/F; 3.5 Format for 720KB/1.2MB/1.44MBFDD
- 2.5” 9.5 mm height: 30/40/60/80GB
- Support ATA100/133
HDD
- Int.Unichrome ProVideo Controller
- 14.1 XGA TFT Display; Resolution:1024x768
- 15” XGA TFT Display; Resolution:1024x768
Display
- 12.7mm Height
- 24X CD ROM Drive
- 8X DVD ROM Drive
-DVDCombo
- Combo DVD-RW
ROM Drive
Continue to the previous page
1.1.2 System Overview (2)
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
6
- Build-in AC-Link Audio controller
- AC97 V2.2 Codec
- Function key volume control
- Built-in Mono Microphone
- Speakers x2 ( 1 W in system side )” with speaker box.
Audio System
- Universal AC adapter 60W (P); Input: 100-240V,50/60Hz AC (support power on charge)AC adapter
- 326x277x22~36.7mmDimensions
- Standard USB2.0 x 4
- RJ-11 modem port x 1
- RJ-45 LAN port x 1
- DC input x 1
- VGA out (PC99 Spec)
- Microphone jack x 1 (PC99 Spec)
- TV-Out (4 pin) x 1 (Resolution up to 1024 x 768)
- Line out x1 (PC99 Spec)
I/O Port
-3.0kgWeight
- Built-in 56Kbps V.90 modem
- Built-in 10/100 M based-T LAN
Communication
- 6-cell (Target: 2Hrs Battery Mark for 25WCPU) 2000/2200mAH Li-Ion Battery support (reserved for 9 Cell
Longer Battery Life)
Battery
1.1.2 System Overview (3)
Continue to the previous page
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
7
The AMD Athlon™ 64 processor is the most advanced PC processor for mobile computing, providing outstanding
performance for demanding software applications. The AMD Athlon 64 processor was also designed to enhance
mobility, incorporating AMD PowerNow!™ technology to deliver performance on demand while helping to extend
system battery life. The AMD Athlon 64 processor runs on AMD64 technology, and is the first PC processor to run
32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications.
The AMD Athlon 64 processor is designed with your current and future computing needs in mind. Notebook
computers with the AMD Athlon 64 processor are able to deliver desktop-class performance for the most
demanding software applications. With the AMD Athlon 64 processor, mobile users can enjoy outstanding
performance on PC software including productivity, entertainment, and gaming. As the first PC processor for
notebook computing to run on the AMD64 platform, the AMD Athlon 64 processor can provide superior
performance on today’s software with complete readiness for the coming wave of 64-bit computing.
1.2.1 CPU Mobile AMD K8 (Athlon64) Processor
Compatible with Existing 32-Bit Code Base
Including support for SSE,SSE2,MMX™,3DNow!™ technology and legacy x86 instructions.
Runs existing operating system and drivers
Local APIC on-chip
AMD64 Technology
AMD64 technology instruction set extensions
64-bit integer registers,48-bit virtual addresses,40-bit physical addresses
1.2 Hardware System
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
8

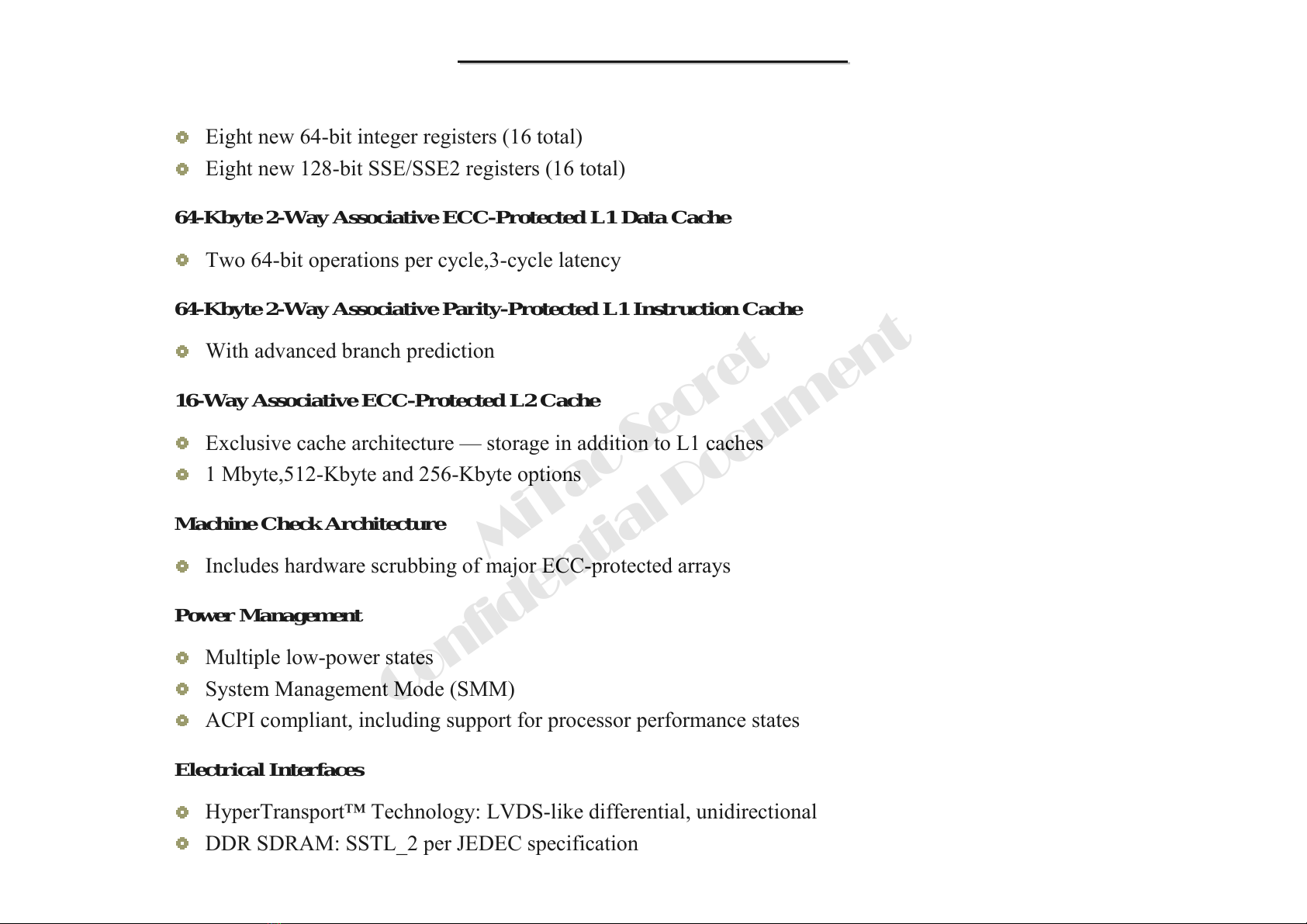

Eight new 64-bit integer registers (16 total)
Eight new 128-bit SSE/SSE2 registers (16 total)
64-Kbyte 2-Way Associative ECC-Protected L1 Data Cache
Two 64-bit operations per cycle,3-cycle latency
64-Kbyte 2-Way Associative Parity-Protected L1 Instruction Cache
With advanced branch prediction
16-Way Associative ECC-Protected L2 Cache
Exclusive cache architecture — storage in addition to L1 caches
1 Mbyte,512-Kbyte and 256-Kbyte options
Machine Check Architecture
Includes hardware scrubbing of major ECC-protected arrays
Power Management
Multiple low-power states
System Management Mode (SMM)
ACPI compliant, including support for processor performance states
Electrical Interfaces
HyperTransport™ Technology: LVDS-like differential, unidirectional
DDR SDRAM: SSTL_2 per JEDEC specification
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
9
Clock, reset, and test signals also use DDR SDRAM-like electrical specifications
754 Pin Package Specific Features
Packaging
– 754 pin lidded micro PGA
– 1.27-mm pin pitch
– 29x29 row pin array
– 40mm x 40mm organic substrate
Integrated Memory Controller
– Low-latency, high-bandwidth
– 64-bit DDR SDRAM at 100,133,166, and 200 MHz
– Supports up to three unbuffered DIMMs
– ECC checking with double-bit detect and signal-bit correct
HyperTransport™ Technology to I/O Devices
– One 16-bit link supporting speeds up to 800 MHz (1600 MT/s) or 3.2 Gigabytes/s in each direction
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
10
1.2.2 CoreLogic_VIA K8N800 + VT8235CE
1.2.2.1 VIA K8N800
Product Features :
Defines Highly Integrated Solutions for Performance PC Mobile Designs
- High performance North Bridge with HyperTransport interface to AMD™ K8 CPU plus AGP 8x external
bus to external Graphics Controller plus-speed V-Link interface to South Bridge
- Combines with VIA VT8235 V-Link South Bridge for integrated LAN, Audio, ATA133IDE and 6 USB
2.0 ports
- 578 Ball Gird Array package with 35 x35 mm body size and 1.27mm ball pitch
- 1.5V core, 0.15 u process
High Performance Host Interface
- Chipset support for AMD™ K8 / ClawHammer™ processor
- Processor interface via HyperTransport bus
- Separate “transmit” and “receive” buses for no lost “bus turnaround” cycles
- All transmit and receive signals use 2 pin low-voltage-swing differential signaling for high-reliability and
high speed
- 8 or 16-bit control / address / data transfer both directions
- 800 / 600 / 400 / 200 MHz clock rates with “Double Data Rate” –style operation for 1600 / 1200 / 800 /
400 MT/s (Mega-Transfers per second) in both directions simultaneously (total 6.4 GB/sec using 16-bit
data transfer mode)
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
11
- Default 8-bit/ 200 MHz operation on startup for high reliability with speedup to dual 16-bit, 800 MHz
operation (6.4 GB/sec total bandwidth) under software control (transmit and receive may be different
widths and / or speeds)
Full Featured Accelerated Graphics Port (AGP) Controller
- AGP v3.0 compliant 8x / 4x transfer mode with Fast Write support
- 1.5V AGP I/O interface
- Pipelined split-transaction long-burst transfers up to 2.1 GB/sec
- Supports Side Band Addressing (SBA) mode
- Supports Flush / Fence commands
- Supports DBI (Dynamic Bus Inversion)
- Pseudo-synchronous AGP and CPU interfaces with optimal skew control
- Thirty-two level read and write request queue
- One-ninety-two level (quadwords) of write data FIFO
- Sixty-four level (quadwords) of write data FIFO
- Graphics Address Relocation Table (GART)
One level TLB structure
Sixteen entry fully associative page table
LRU replacement scheme

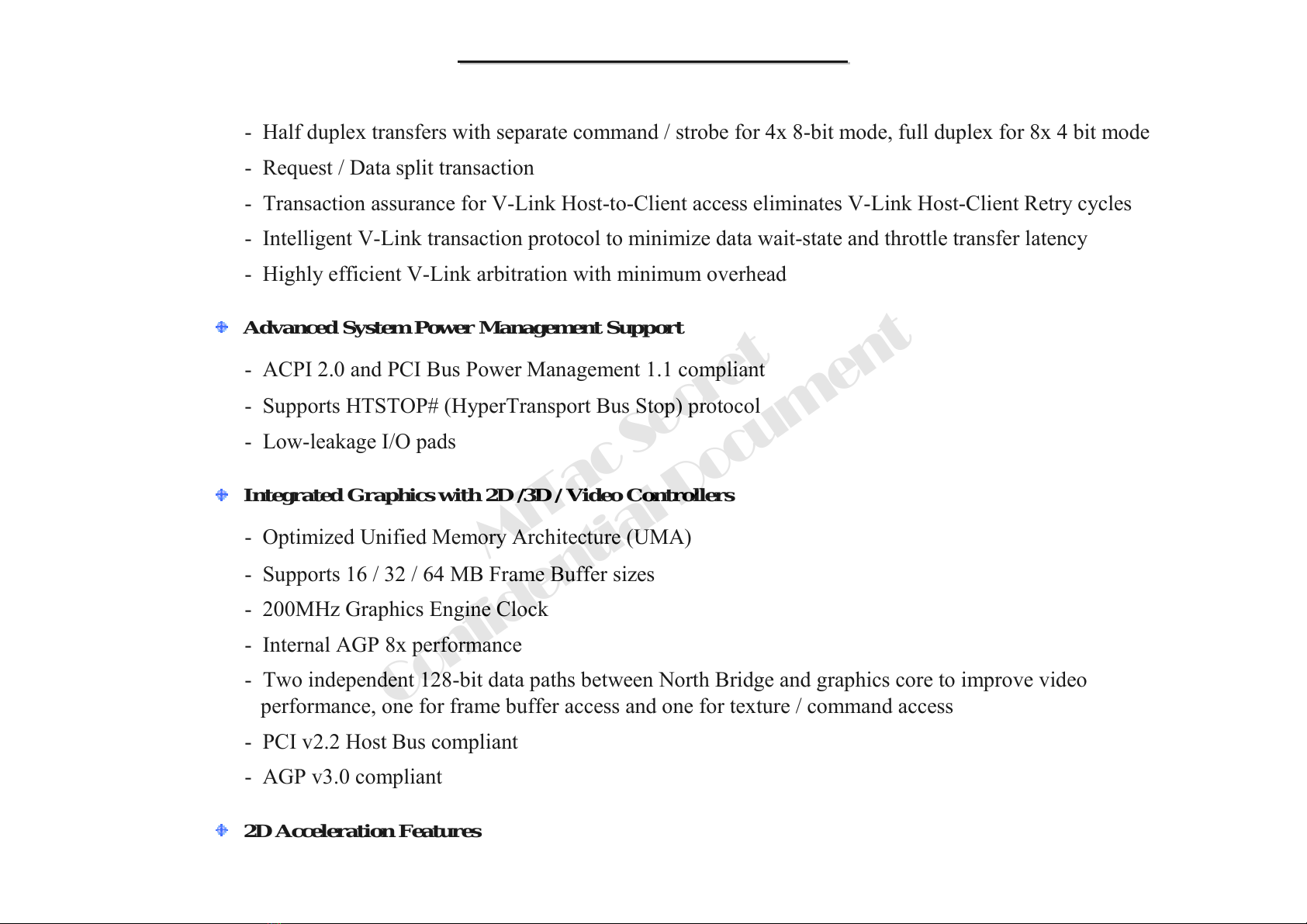

High Bandwidth 533 MB/Sec 8-Bit V-Link Host Controller
- Supports 66 MHz, 4x and 8x transfer modes, V-Link Host interface with total bandwidth of 533 MB/sec
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
12
- Half duplex transfers with separate command / strobe for 4x 8-bit mode, full duplex for 8x 4 bit mode
- Request / Data split transaction
- Transaction assurance for V-Link Host-to-Client access eliminates V-Link Host-Client Retry cycles
- Intelligent V-Link transaction protocol to minimize data wait-state and throttle transfer latency
- Highly efficient V-Link arbitration with minimum overhead
Advanced System Power Management Support
- ACPI 2.0 and PCI Bus Power Management 1.1 compliant
- Supports HTSTOP# (HyperTransport Bus Stop) protocol
- Low-leakage I/O pads
Integrated Graphics with 2D /3D / Video Controllers
- Optimized Unified Memory Architecture (UMA)
- Supports 16 / 32 / 64 MB Frame Buffer sizes
- 200MHz Graphics Engine Clock
- Internal AGP 8x performance
- Two independent 128-bit data paths between North Bridge and graphics core to improve video
performance, one for frame buffer access and one for texture / command access
- PCI v2.2 Host Bus compliant
- AGP v3.0 compliant
2D Acceleration Features
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
13
- 128-bit 2D graphics engine
- Supports ROP3,256 operations
- Supports 8bpp, 15/16 bpp and 32 bpp color depth modes
- BitBLT (Bit Block Transfer) functions including alpha BLTs
- True-color hardware cursor (64x64x32bpp)
- Color expansion, source Color Key and destination Color Key
- Bresenham line drawing / style line function
- Transparency mode
- Window clipping
- Text function
3D Acceleration Features
- 3D Graphics Processor
128-bit 3D graphics engine
Floating-point setup engine
Internal full 32-bit ARGB format for high rendering quality
8K Texture Cache
- Capability
Supports ROP2
Supports various texture format, including: 16 / 32bbp ARGB, 1 / 2 / 4 / 8bbp Luminance, 1 / 2 /4 /
8bbp Intensity, 1 / 2 / 4 / 8bbp Palletized (ARGB), YUV 422 / 420, and compressed texture (DXTC)
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
14
Texture sizes up to 2048x2048
Microsoft DirectX texture filter for Nearest, Linear, Bi-linear and Anisotropic modes
Flat and Gouraud shading
Vertex Fog and Fog Table
Z-Bias, LOD-Bias, Polygon offset, Edge Anti-aliasing and Alpha Blending
Bump mapping and cubic mapping
Hardware Back-Face culling
Specular Lighting
- Performance
Two texture per pass
Triangle rate up to 4.5 million triangles per second
Pixel rate up to 200 million pixels per second for 2 textures each
Texel bilinear fill rate up to 400million texels per second
High quality dithering
Video Acceleration Features
- High Quality Video Processor
RGB555, RGB565, RGB8888, YUV422 and YUV420 video playback formats
High quality 5-tap horizontal and 5-tap vertical (up or down) for both horizontal and vertical scaling
(linear interpolation for horizontal and p-scaling and filtering for horizontal and vertical down-
scaling)
Color and Chroma key support
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
15
Color enhancement for contrast, hue, saturation and brightness
YUV-to-RGB color space conversion
Bob and Weave de-interlacing modes
Tear-free double / triple buffer flipping
Input video vertical blanking or line interrupt
Video gamma correction
- Video Overlay
Simultaneous graphics and TV video playback overlay
Supports video window overlay
Supports both YUV and RGB format Chroma key
Supports 16 operations for Color and Chroma key
Hardware sub-picture blending
- MPEG Video Playback
MPEG-2 hardware slice layer, iDCT and motion compensation for full speed playback
High quality DVD video playback
DVD playback auto-flipping
DVD sub-picture playback overlay
DuoView+™ Capability
- WinXP, WinME and Win98 multi-monitor, extended desktop support
- Provides two independent display engines, each of which can display completely different information at
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
16
different resolutions, pixel depths and refresh rates
- Improved display flexibility with simultaneous FPD /CRT, FPD / TV, FPD / CVI and other combined
operations
Full Software Support
- Microsoft DirectX 7.0, 8.0 and 9.0 compatible
- Microsoft DirectX Texture Compression (DXTC / S3TC)
- Support OpenGL™
- Drivers for majoy operating systems and APIs: Windows® 9x / ME, Windows 2000, Windows XP,
Direct3D™, DirectDraw™, DirectShow™ and OpenGL™ ICD for Windows 89x / ME and XP
- Windows NT 4.0 Standard VGA driver
Extensive Display Support for External Video Output
- A dedicated CRT display interface
- A dedicated Digital Video Port supporting TV-Out or TMDS interface
- An AGP-multiplexed 12-bit interface to external TMDS transmitter for driving a DVI monitor
- An AGP-multiplexed 24-bit / Dual 12-bit FPD interface to LVDS transmitter
CRT Display
- CRT display interface with 24-bit true-color RAMDAC up to 300 MHz pixel rate with gamma correction
capability
- Supports CRT resolutions up to 1920x1440
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
17

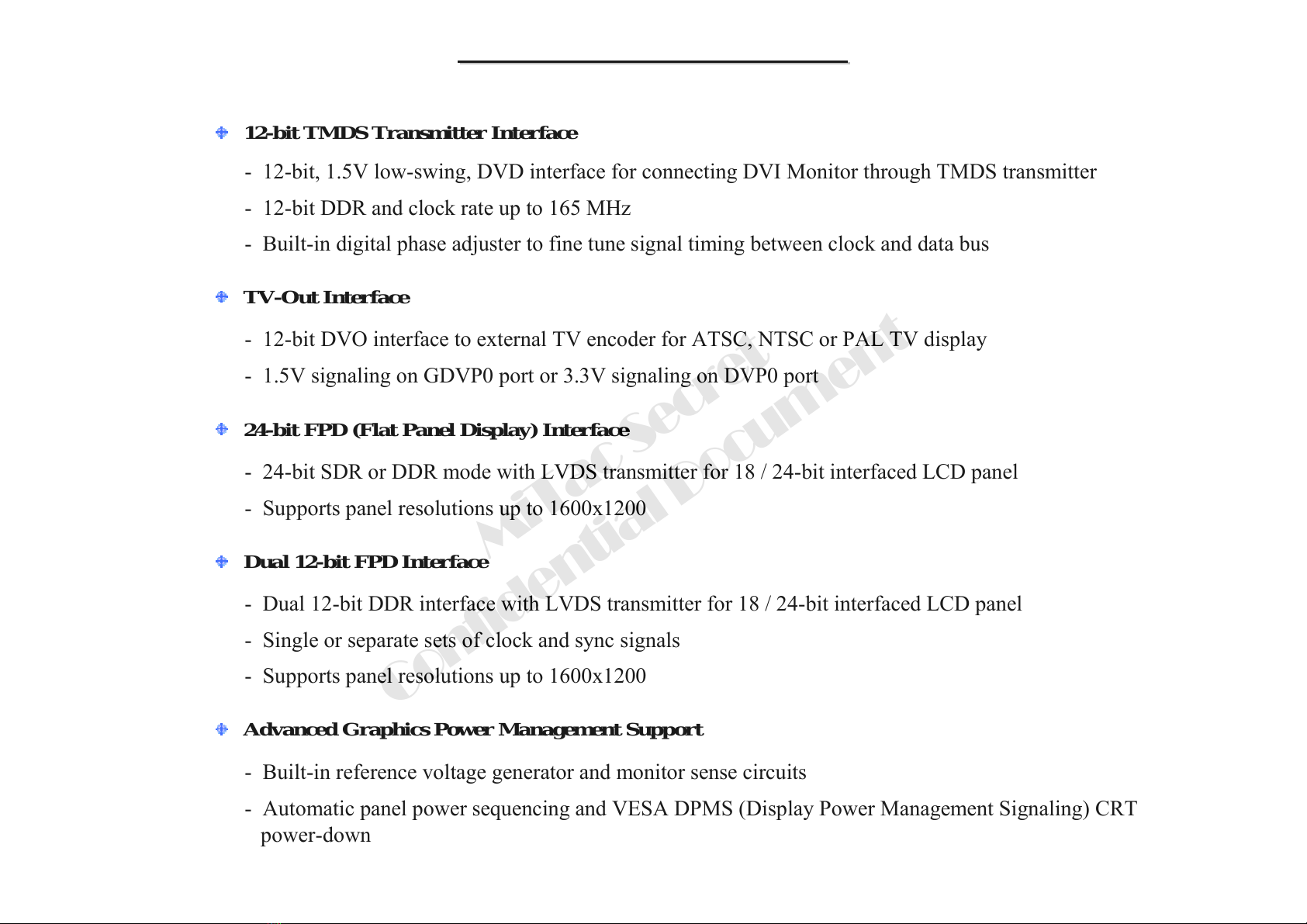

12-bit TMDS Transmitter Interface
- 12-bit, 1.5V low-swing, DVD interface for connecting DVI Monitor through TMDS transmitter
- 12-bit DDR and clock rate up to 165 MHz
- Built-in digital phase adjuster to fine tune signal timing between clock and data bus
TV-Out Interface
- 12-bit DVO interface to external TV encoder for ATSC, NTSC or PAL TV display
- 1.5V signaling on GDVP0 port or 3.3V signaling on DVP0 port
24-bit FPD (Flat Panel Display) Interface
- 24-bit SDR or DDR mode with LVDS transmitter for 18 / 24-bit interfaced LCD panel
- Supports panel resolutions up to 1600x1200
Dual 12-bit FPD Interface
- Dual 12-bit DDR interface with LVDS transmitter for 18 / 24-bit interfaced LCD panel
- Single or separate sets of clock and sync signals
- Supports panel resolutions up to 1600x1200
Advanced Graphics Power Management Support
- Built-in reference voltage generator and monitor sense circuits
- Automatic panel power sequencing and VESA DPMS (Display Power Management Signaling) CRT
power-down
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
18
- External I/O signal controls enabling of graphics controller into standby / suspend-off state
- Auto clock gating for inactive functions to achieve maximum power savings
- I²C Serial Bus and DDC / E-DDC Monitor Communications for Plug-and Play configuration
1.2.2.2 VT8235 CE
The VT8235 Version CE South Bridge is a high integration, high performance, power-efficient, and high
compatibility device that supports Intel and non-Intel based processor to V-Link bus bridge functionality to
make a complete Microsoft PC2001-compliant PCI/LPC system. The VT8235 Version CE includes standard
intelligent peripheral controllers:
a) IEEE 802.3 compliant 10 / 100 Mbps PCI bus master Ethernet MAC with standard MII interface to
external PHYceiver
b) Master mode enhanced IDE controller with dual channel DMA engine and interlaced dual channel
commands. Dedicated FIFO coupled with scatter and gather master mode operation allows high
performance transfers between PCI and IDE devices. In addition to standard PIO and DMA mode
operation, the VT8235 Version CE also supports the UltraDMA-133, 100, 66, and 33 standards to allow
reliable data transfer at rates up to 133 MB/sec. The IDE controller is SFF-8038i v1.0 and Microsoft
Windows-family compliant.
c) Universal Serial Bus controller that is USB v2.0 / 1.1 and Universal HCI v2.0 / 1.1 compliant. The
VT8235 Version CE includes three root hubs with six function ports with integrated physical layer
transceivers. The USB controller allows hot plug and play and isochronous peripherals to be inserted
into the system with universal driver support. The controller also implements legacy keyboard and
mouse support so that legacy software can run transparently in a non-USB-aware operating system
environment.
d) Keyboard controller with PS2 mouse support.
MiTac Secret
Confidential Document

8889
8889 N/B Maintenance N/B Maintenance
19
e) Real Time Clock with 256 byte extended CMOS. In addition to the standard ISA RTC functionality, the
integrated RTC also includes the date alarm, century field, and other enhancements for compatibility
with the ACPI standard.
f) Notebook-class power management functionality compliant with ACPI and legacy APM requirements.
Multiple sleep states (power-on suspend, suspend-to-DRAM, and suspend-to-Disk) are supported with
hardware automatic wake-up. Additional functionality includes event monitoring, CPU clock throttling
and stop (Intel processor protocol), PCI bus clock stop control, modular power, clock and leakage
control, hardware-based and software-based event handling, general purpose I/O, chip select and
external SMI.
g) Full System Management Bus (SMBus) interface.
h) Integrated bus-mastering dual full-duplex direct-sound AC97-link-compatible sound system.
i) Plug and Play controller that allows complete steerability of all PCI interrupts and internal interrupts /
DMA channels to any interrupt channel. One additional steerable interrupt channel is provided to allow
plug and play and reconfigurability of on-board peripherals for Windows family compliance.
The VT8235 Version CE also enhances the functionality of the standard ISA peripherals. The integrated
interrupt controller supports both edge and level triggered interrupts channel by channel. The integrated DMA
controller supports type F DMA in addition to standard ISA DMA modes. Compliant with the PCI-2.2
specification, the VT8235 Version CE supports delayed transactions and remote power management so that
slower ISA peripherals do not block the traffic of the PCI bus. Special circuitry is built in to allow
concurrent operation without causing dead lock even in a PCI-to-PCI bridge environment. The chip also
includes eight levels (double words) of line buffers from the PCI bus to the ISA bus to further enhance
overall system performance.
MiTac Secret
Confidential Document
