How does red light therapy work ............................................................... 04
Usage guidance for all devices .................................................................... 05
Advanced therapy belt Instructions ......................................................... 06
Quad belt instructions ............................................................................................ 11
Full body mat instructions .................................................................................. 15
Cautions and disclaimer ..................................................................................... 19
Specifications ............................................................................................................. 22
About us .......................................................................................................................... 23
Contact ............................................................................................................................ 24
Contents
3

How does red light therapy work?
The specific photons found in red and near infrared light interact with a
photoreceptor within our cells called cytochrome c oxidase. This
interacts on mutates the mitochondria in our cells to use oxygen more
efficiently, which allows the mitochondria to produce more ATP
(adenosine triphosphate). Adenosine triphosphate is a complex
organic chemical that provides energy to drive many processes in
living cells, e.g. muscle contract on, nerve impulse propagate on, and
chemical synthesis. Found in all forms of life, ATP is even referred to as
the "molecular unit of currency" of intracellular energy transfer. When
our cells have more energy, they simply perform better and the body
follows suit!

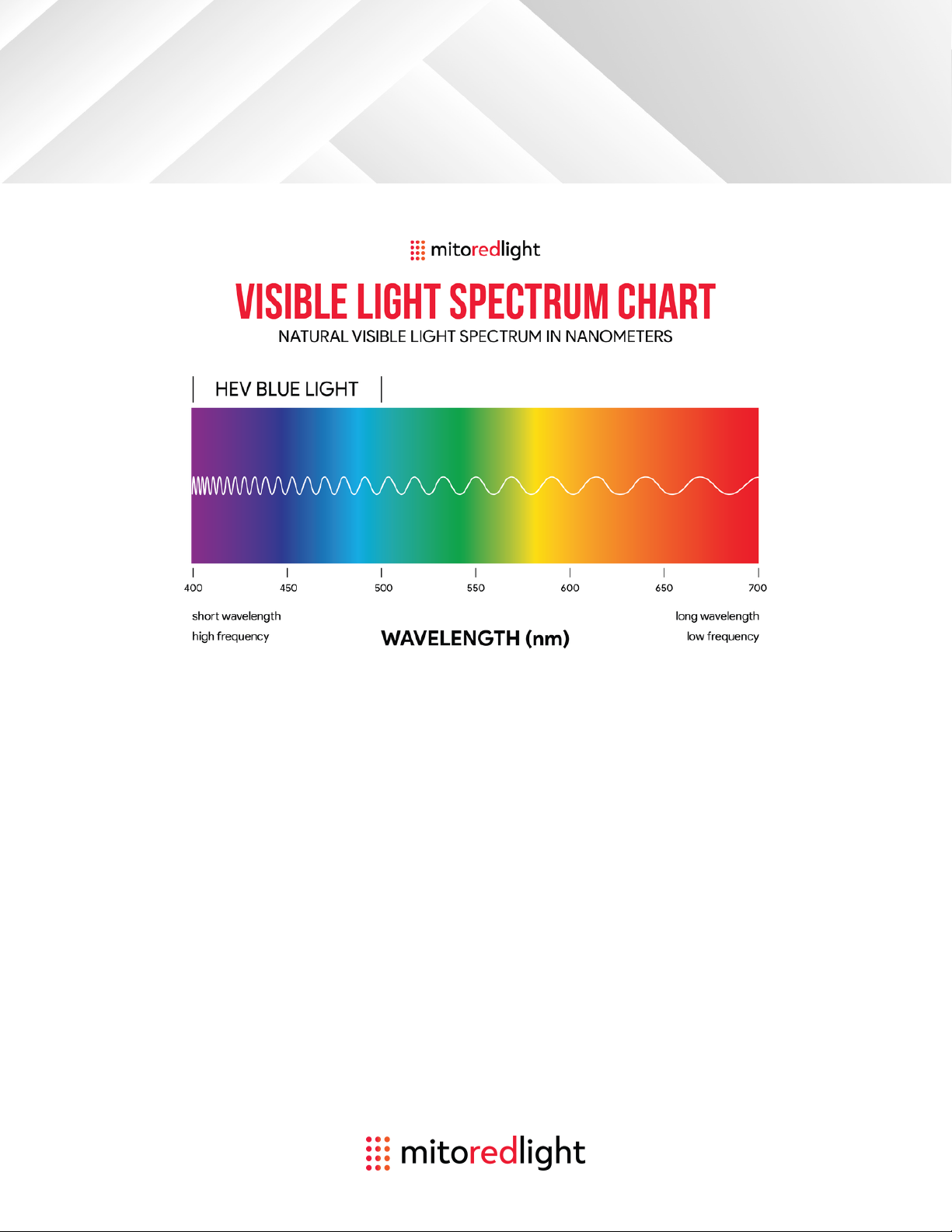

Red and near-infrared light are part of the electromagnetic spectrum,
and more specifically, part of the spectrum of light emitted by the sun.
These wavelengths of light are “bioactive” in humans.
4

Indications for Use
Mito Red Lights are general wellness devices and are not intended to
cure or diagnose any medical conditions. Use of this device is
designed to help promote overall health and wellness by supporting
cellular function. Mito Red Lights should only be operated based on
the user guidelines, as outlined in this user manual.
First Time Users
For first time users, we recommend starting out with 4-5 minute
treatments per area, and slowly working up to a 10-15 minute session
over the course of 2-3 weeks as your body acclimates to the therapy.
Standard Use
We recommend 10 to 15 minute treatments. per area. Additional 10-
minute sessions for specific areas may be beneficial but beyond a
certain point, the scientific evidence points to diminishing returns.
More is not always better.
For this reason, we recommend you allow at least 6 hours between
treatments of the same area. We recommend no more than 30
minutes in any one session. We recommend using the device 4-10
times per week. We recommend taking at least one day off per week.
User guidance for all devices
5

A D V A N C E D T H E R A P Y B E L T

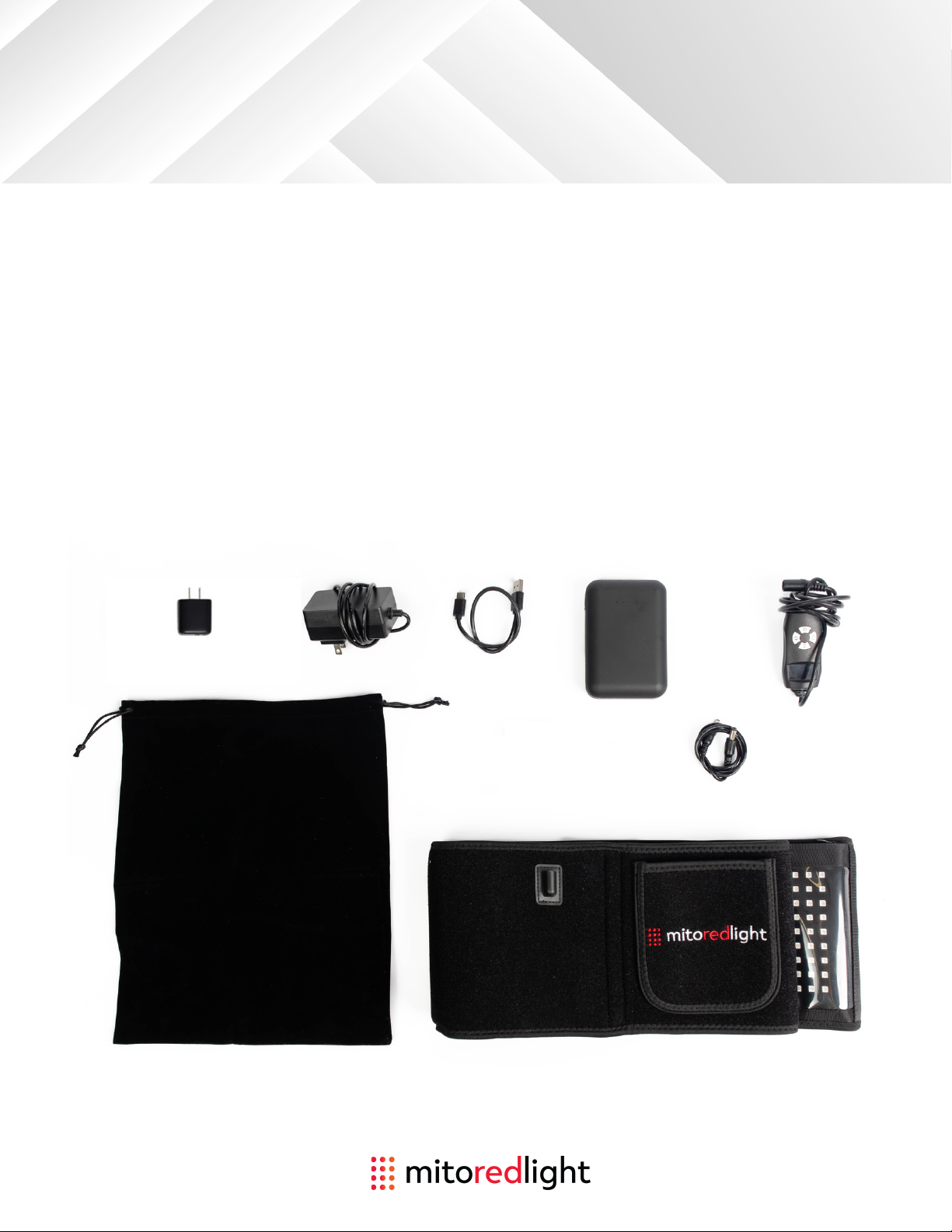

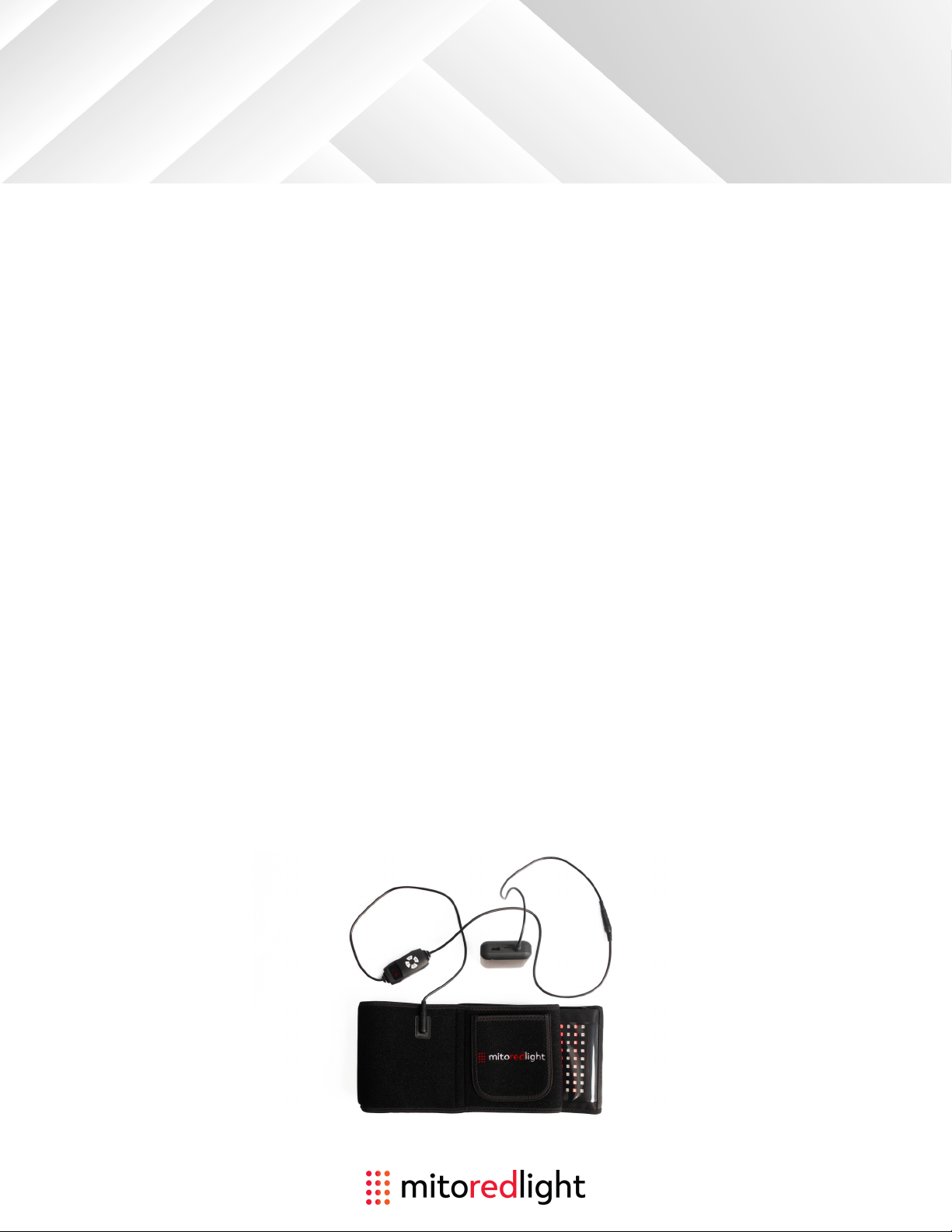

Advanced Belt | Package contents
1 Advanced therapy belt
1 Battery pack
1 Battery charger
1 USB adapter
1 Controller
1 Jumper cable
1 Carrier pouch
1 User manual
This package includes
7

Advanced Belt | User Instructions

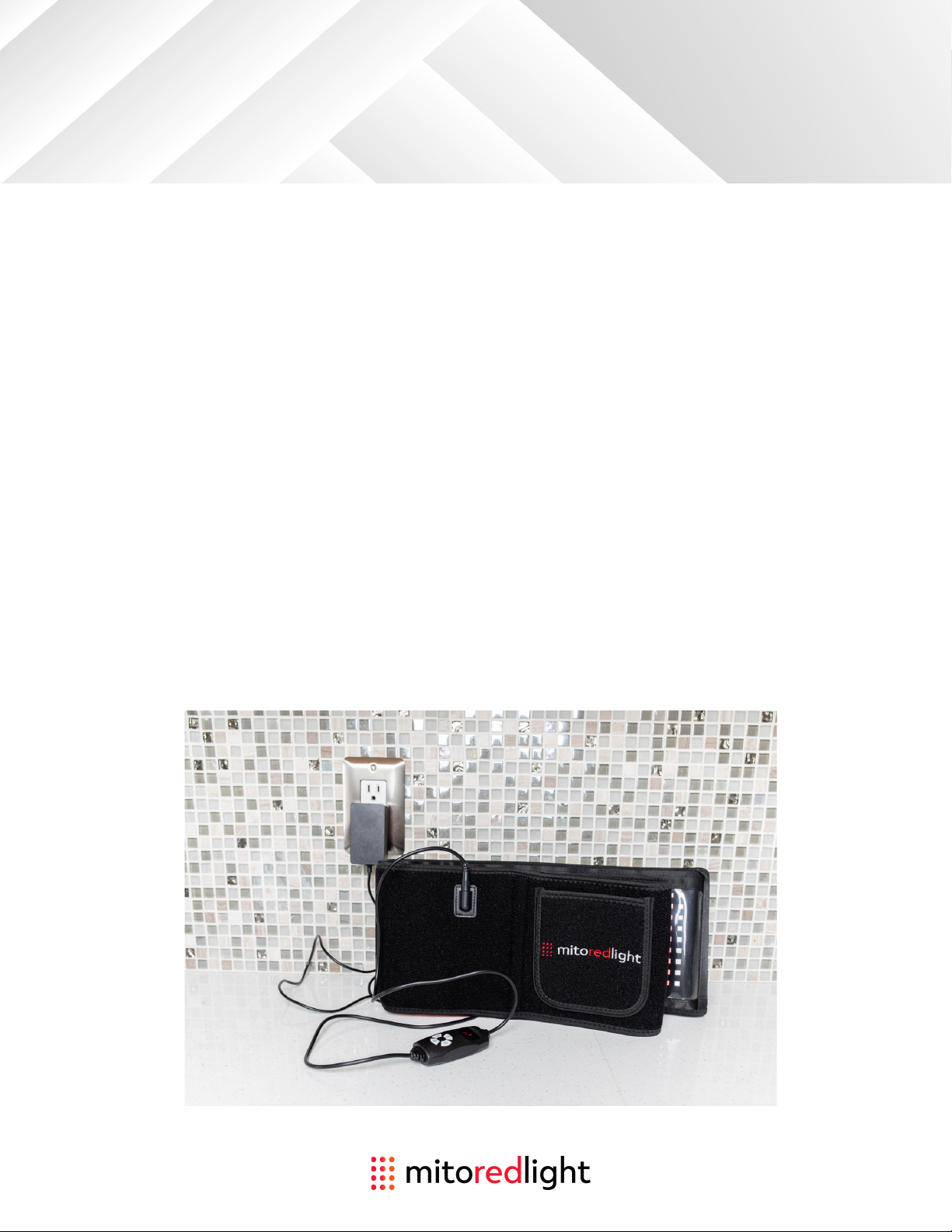

Powering The Light Therapy Belt With The Wall Adapter
1. Connect the male end of the remote control cable to the DC power
port attached to the light therapy belt.
2. Connect the wall power adapter to the female end of the remote
control cable.
3. Plug the power adapter into a standard wall outlet.
4. Use the remote control to power the belt on and off by holding the
button down for 3 seconds.
5. Once the session is finished, remove power adapter out of the wall
outlet.
8

Advanced Belt | User Instructions
Powering The Light Therapy Belt With the External Battery
The light therapy belt comes with a 5V external power bank. This option
will allow you to power the light therapy belt with the external battery.
The battery can be charged using the USB cable:
1. Connect the male end of the remote control cable to the DC power port
attached to the light therapy belt.
2. Connect the skinny male plug from the jumper cable into the port on
the battery pack, then connect the other larger male end into the
remotes female port.
3. To power on the belt, press the power button on the side of the power
bank once and hold down the power button down on the remote control
for 3 seconds to turn on the belt.
4. Place the battery in the pocket at the front of the belt during use.
5. To power off the belt hold the power button on the remote for 3
seconds and then hold the power button on the battery pack for 3
seconds to power off the power bank.
9

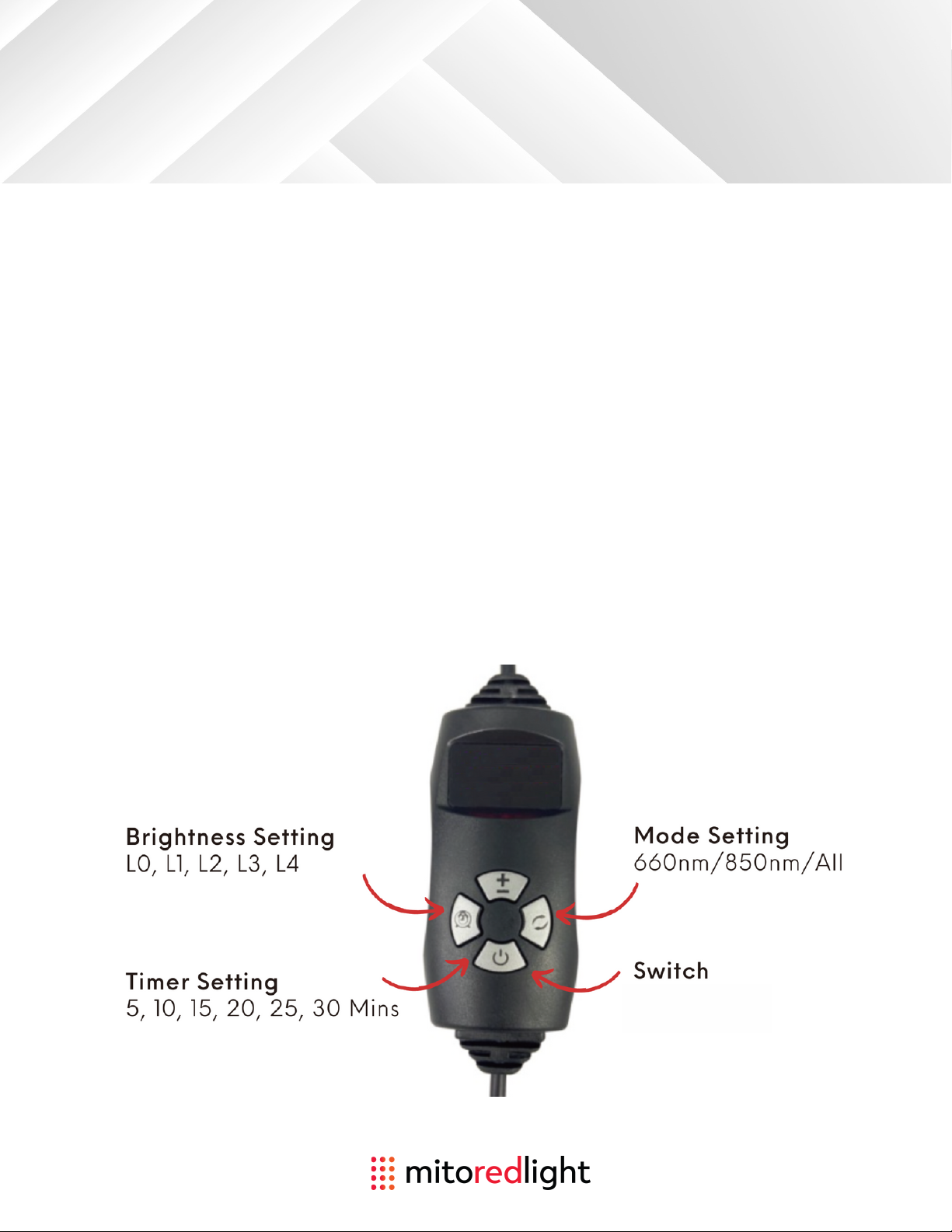

Advanced Belt | Remote Instructions
Using The Control Panel
Intensity Options
There are five different intensity settings. We recommend starting with
a lower setting, and work your way up to the intensity level that is
comfortable for you.
Timer Options
Start at 5 minutes as the controller goes in 5 minute increments.
On / Off
10

Q U A D B E L T

Quad Belt | Package contents
1 Quad belt
1 Battery pack
1 Battery charger
1 USB adapter
1 Controller
1 Jumper cable
1 Carrier pouch
1 User manual
This package includes
12

Quad Belt | User Instructions
Powering The Light Therapy Belt With the External Battery
The light therapy belt comes with a 5V external power bank. This option
will allow you to power the light therapy belt with the external battery.
The battery can be charged using the USB cable:
1. Connect the male end of the remote control cable to the DC power port
attached to the light therapy belt.
2. Connect the skinny male plug from the jumper cable into the port on
the battery pack, then connect the other larger male end into the
remotes female port.
3. To power on the belt, press the power button on the side of the power
bank once and hold down the power button down on the remote control
for 3 seconds to turn on the belt.
4. Place the battery in the pocket at the front of the belt during use.
5. To power off the belt hold the power button on the remote for 3
seconds and then hold the power button on the battery pack for 3
seconds to power off the power bank.
13

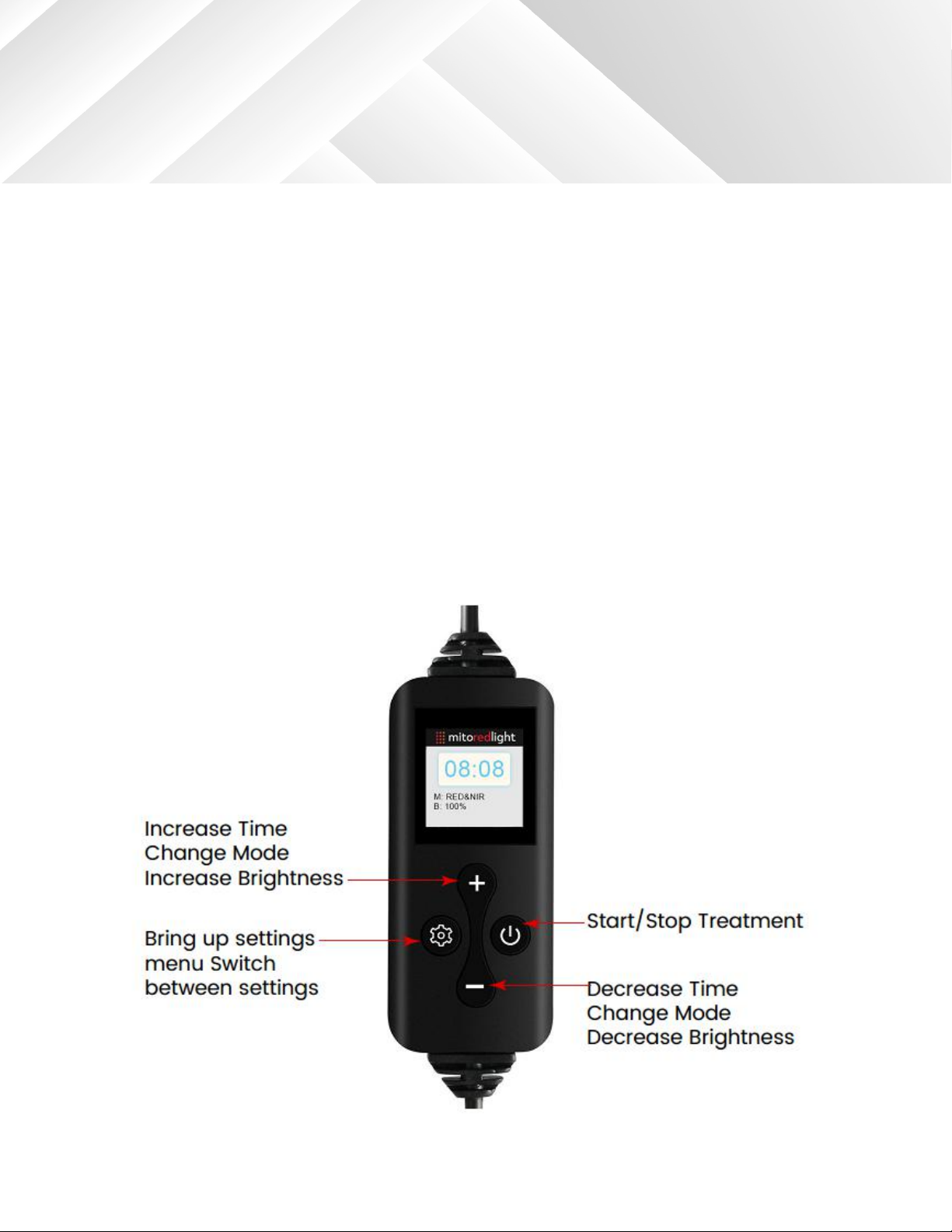

Using The Remote Control
Brightness Option
The Brightness setting allows you to control brightness from 1 -100 % We
recommend starting with a lower brightness, and work your way up to
the intensity level that is comfortable for you.
Timer Options
Control your session time from 1 - 30 minutes. Controller goes in 1
minute increments.
Quad Belt | Remote instructions
14

F U L L B O D Y M A T

Full Body Mat | Package contents
1 Full body mat
1 Controller
1 Power supply brick
1 Power cord
1 Carrier pouch
1 User manual
This package includes
16

Powering The Full Body Mat
1. Connect the male end of the remote cord into the cord that is
attached to the Red light Mat. Be sure to line up the slot of both sides.
Once attached press firmly and tighten middle wheel.
2. Connect the female end of the remote cord into power adapter cord.
Be sure to line up the slot of both sides. Once attached press firmly and
tighten middle wheel.
3. Plug the power adapter into a standard wall outlet.
Full Body Mat | User instructions
17

Using The Remote Control
Brightness Option
The Brightness setting allows you to control brightness from 1 -100 % We
recommend starting with a lower brightness, and work your way up to
the intensity level that is comfortable for you.
Timer Options
Control your session time from 1 - 30 minutes. Controller goes in 1
minute increments.
Full body mat | Remote instructions
18

Cautions & Disclaimer
Mito Red Light recommends consulting with your healthcare provider
prior to use if you believe that you are sensitive to light. Some cold and
allergy medications, pain medications, and medications used to treat
infection may cause light sensitivity.
We also recommend consulting with your healthcare provider prior to
using the light if you are pregnant, have any suspicious or cancerous
lesions, or have recently had a steroid injection or use topical steroids.
If you experience discomfort or have a concern about the light, stop use
immediately and contact your healthcare provider.
Unplug from outlet when not in use to avoid tripping hazards.
Disclaimer
The statements in this manual have not been evaluated by the Food
and Drug Administration (FDA). The information provided is not
intended to diagnose, treat, cure, or prevent any disease and should not
be construed as medical advice. Our products are low-risk, general
wellness / fitness products that do not require FDA clearance, in
accordance with the “General Wellness: Policy on Low Risk Devices” draft
released January 20, 2015.
Mito Red Light makes no claims or representations or otherwise
warranties regarding the ability of this product to cure any physical or
mental conditions. A qualified health professional should always be
consulted prior to using this product in regards to any condition that
may requires medical attention.
19

Cautions & Disclaimer
To preserve the life and functionality of the light, always store in a cool,
dry place when possible. For proper use and safety, please be sure to
read this manual and follow all instructions and do not do any of the
following:
DO NOT let children use the device without adult supervision.
DO NOT use this on infants.
DO NOT let sleeping, disabled, or unconscious persons use the device.
DO NOT exceed 20 minutes of use in one therapy session.
DO NOT use on open, fresh wounds.
DO NOT use in combination with liniments, salves, ointments, or balms that
contain
heat producing ingredients. A skin burn could be the result of doing so.
DO NOT modify or attempt to repair this equipment. There are no parts that
are serviceable by the user. The Mito Red Light is an electrical device. To avoid
electric shock and other electricity-relate
dangers, adhere to the following instructions:
DO NOT wash electrical parts with water or other liquids.
DO NO drop your device or other components, such as the battery, in water or
other liquids or place it where it may fall into water or other liquids.
