1. Introduction
Mitsubishi Electric Corporation’s Centralized Controller EB-50GU-A/EB-50GU-J features functions to allow users
to monitor and operate the air conditioning units from a PC over the LAN.
This Instruction Book explains how to monitor and operate the units connected to the EB-50GU-A/EB-50GU-J
using a Web browser.
For initial settings and function settings, refer to the Instruction Book (Web Browser for Initial Settings).
1-1. Terms Used in This Manual
- "Centralized Controller EB-50GU-A/EB-50GU-J" is referred to as "EB-50."
- "Booster unit" and "Water HEX unit" are referred to as "Air To Water (PWFY) unit."
- "Advanced HVAC CONTROLLER" is referred to as "AHC."
- Screen images used in this manual are from Windows 7®and Internet Explorer 9.0.
Note: Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
1-2. PC Requirements Table1-1 PC Requirements
Item Requirement
CPU 1 GHz or faster
Memory 512 MB or more
Screen resolution 1024 x 768 or higher recommended
Browser
Microsoft®Internet Explorer 8.0
Microsoft®Internet Explorer 9.0
* Java execution environment is required.
(Oracle®Java Plug-in Ver. 1.7.0_11)
* Install Oracle®Java Plug-in that is appropriate for your operating system. When
using a 64-bit Internet Explorer, install a 64-bit Java Plug-in.
* The version of the Oracle®Java Plug-in can be verified by clicking [Java] in the
Control Panel.
On-board LAN port or LAN card 100 BASE-TX
Pointing device e.g., mouse
Note: Microsoft is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Oracle and Java are trademarks or registered trademarks of Oracle Inc. in the United States and/or other countries.

3
2. Setting the Operating Environment
This chapter explains how to make PC settings and Web browser settings to monitor and operate the air
conditioning units.
2-1. Setting the IP Address of the PC
Follow the instructions below to set the PC's IP address for the Web browser to recognize the EB-50 unit.
The PC's IP address must have the same network address as the EB-50's IP address.
(i.e., EB-50's IP address: [192.168.1.1], PC's IP address: [192.168.1.101])
When connecting an EB-50 to an existing LAN, consult the system administrator to decide the IP address of the
PC. Note: When using an EB-50-dedicated LAN, it is recommended that the main EB-50 unit be assigned an IP address
between the range [192.168.1.1] and [192.168.1.40] and that the PC connected to the EB-50 be assigned an IP
address between the range [192.168.1.101] and [192.168.1.150].

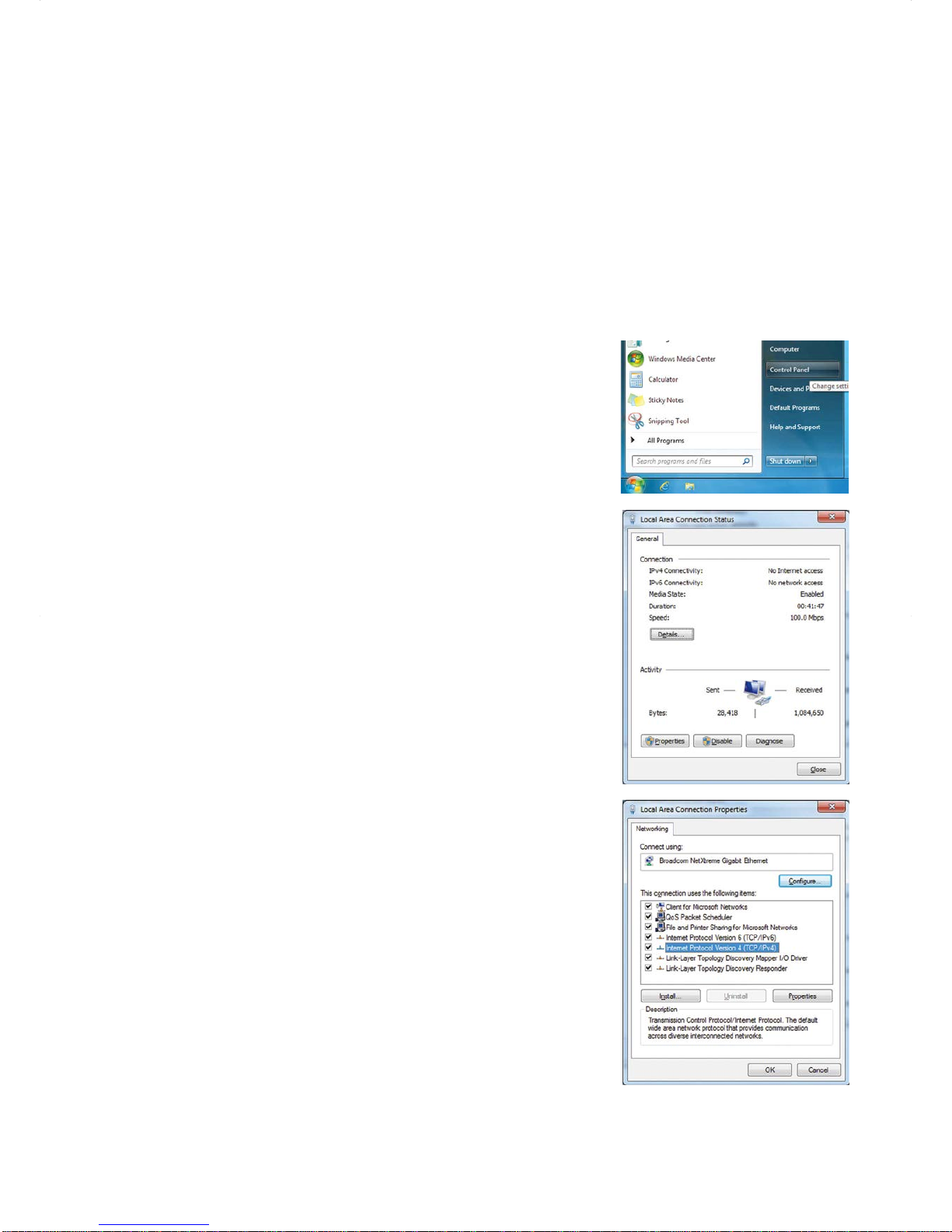

(1) Click [Control Panel] in the Start menu.
(2) Click [Network and Sharing Center]>[Local Area Setting].
In the [Local Area Connection Status] window, click [Properties].
(3) Click [Internet Protocol Version 4 (TCP/IPv4)] to select it, and click
[Properties].

4

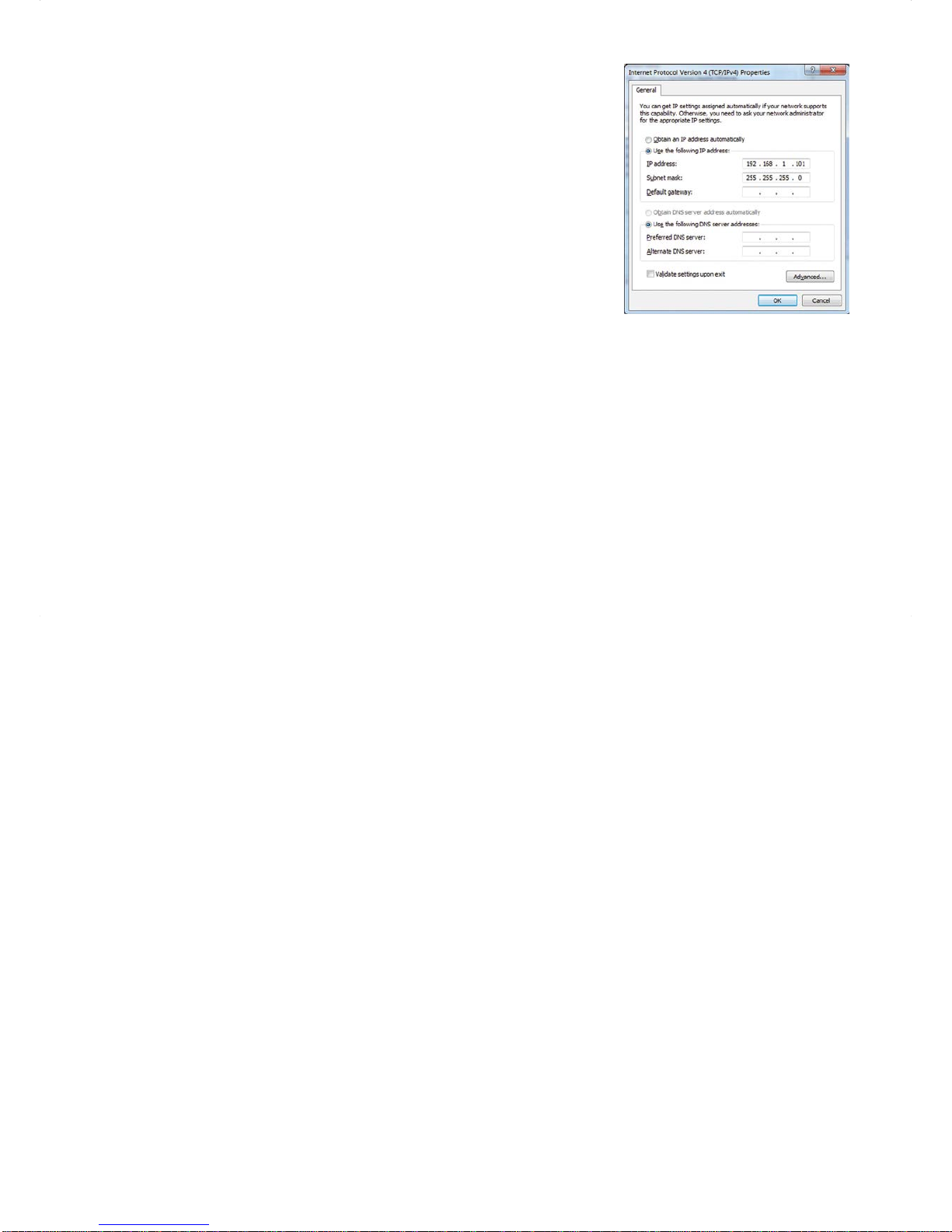

(4) In the [Internet Protocol Version 4 (TCP/IPv4) Properties] window,
check the radio button next to [Use the following IP address].
Enter the PC’s IP address (e.g., [192.168.1.101]) in the [IP address]
field, and enter the subnet mask [255.255.255.0] (unless otherwise
specified) in the [Subnet mask] field.
In the [Default gateway] field, enter the gateway address as
necessary.
Note: Consult the system administrator to decide the IP, subnet
mask, and gateway addresses.
(5) Keep clicking [OK] or [Close] to close all windows.

5
2-2. Setting the Web Browser
Web browser setting varies with the Internet connection type. See the sections below for how to make Web
browser settings for different types of Internet connection.
To prevent unauthorized access, always use a security device such as a VPN router when
connecting the EB-50 to the Internet.
2-2-1. No Internet connection
To monitor and operate the air conditioning units from a PC with no Internet connection, follow the instructions
below to set the environment for the Web browser.

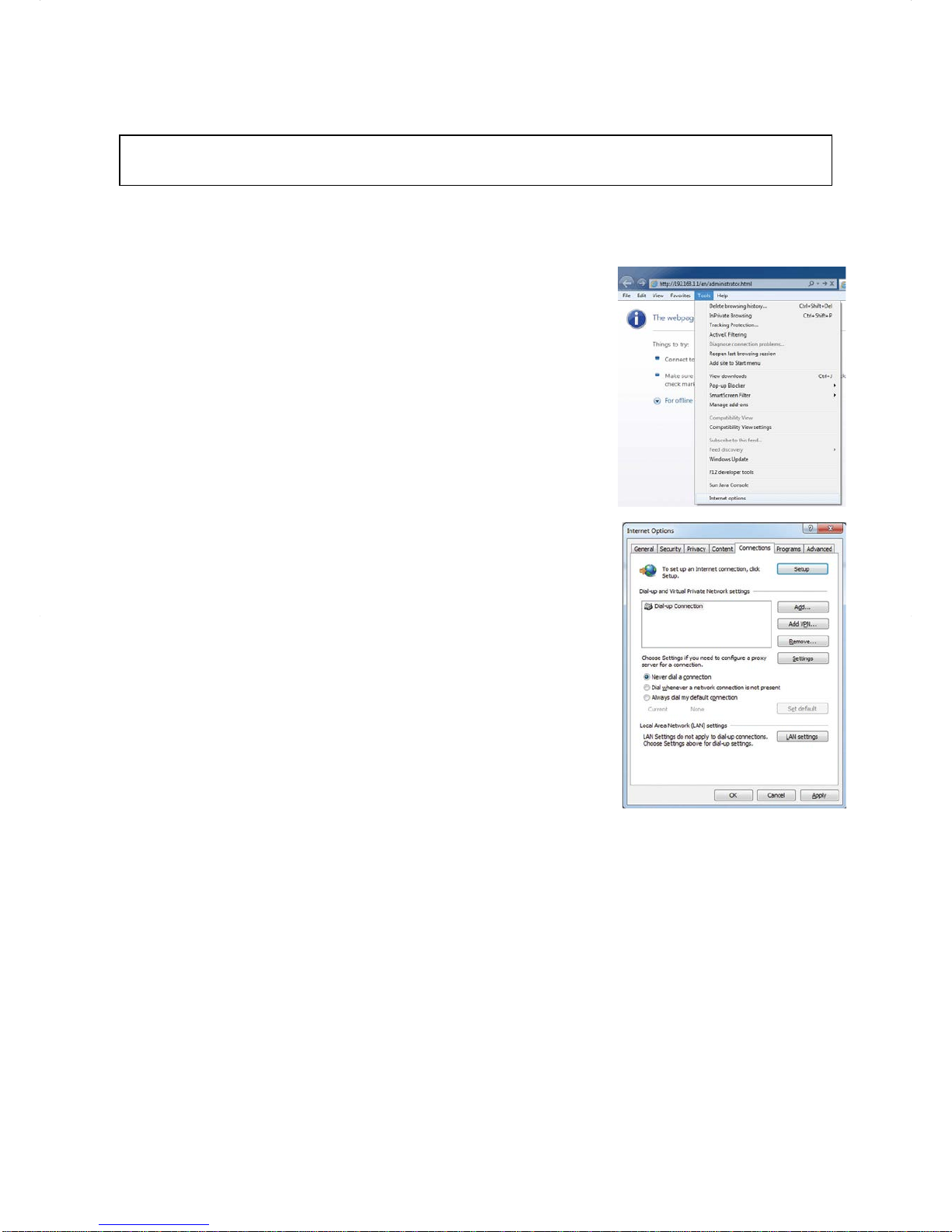

(1) Click [Tools] in the menu bar, then click [Internet options].
(2) In the [Internet Options] window, click the [Connections] tab.
(3) Check the radio button next to [Never dial a connection] in the middle
of the window, and click [OK] to close the window.

6

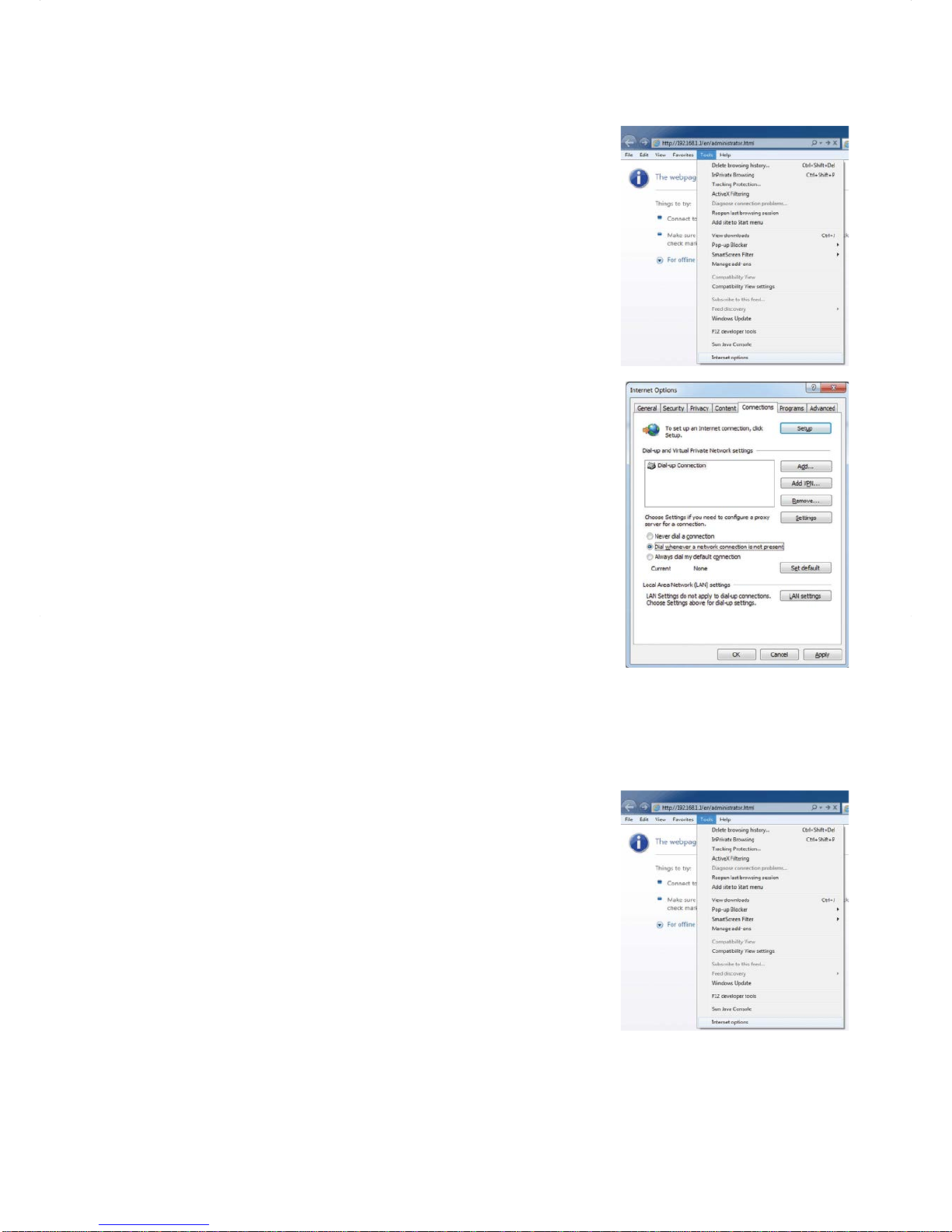

2-2-2. Dial-up Internet connection
To monitor and operate the air conditioning units from a PC that connects to the Internet through a dial-up
connection, follow the instructions below to set the environment for the Web browser.
(1) Click [Tools] in the menu bar, then click [Internet options].
(2) In the [Internet Options] window, click the [Connections] tab.
(3) Check the radio button next to [Dial whenever a network connection
is not present] in the middle of the window, and click [OK] to close the
window.
By making these settings, a message will appear asking whether
or not to use a dial-up connection when an Internet connection is
necessary. Follow the message to connect to the Internet.
2-2-3. Connecting to the Internet via proxy server using an existing LAN
To monitor and operate the air conditioning units from a PC that connects to the Internet through a proxy server
by connecting to an existing LAN, such as a LAN within your company, follow the instructions below to set the
environment for the Web browser.
(1) Click [Tools] in the menu bar, then click [Internet options].

7
(2) In the [Internet Options] window, click the [Connections] tab.
(3) Check the radio button next to [Never dial a connection] in the middle
of the window.
(4) Click [LAN settings] under [Local Area Network (LAN) settings].

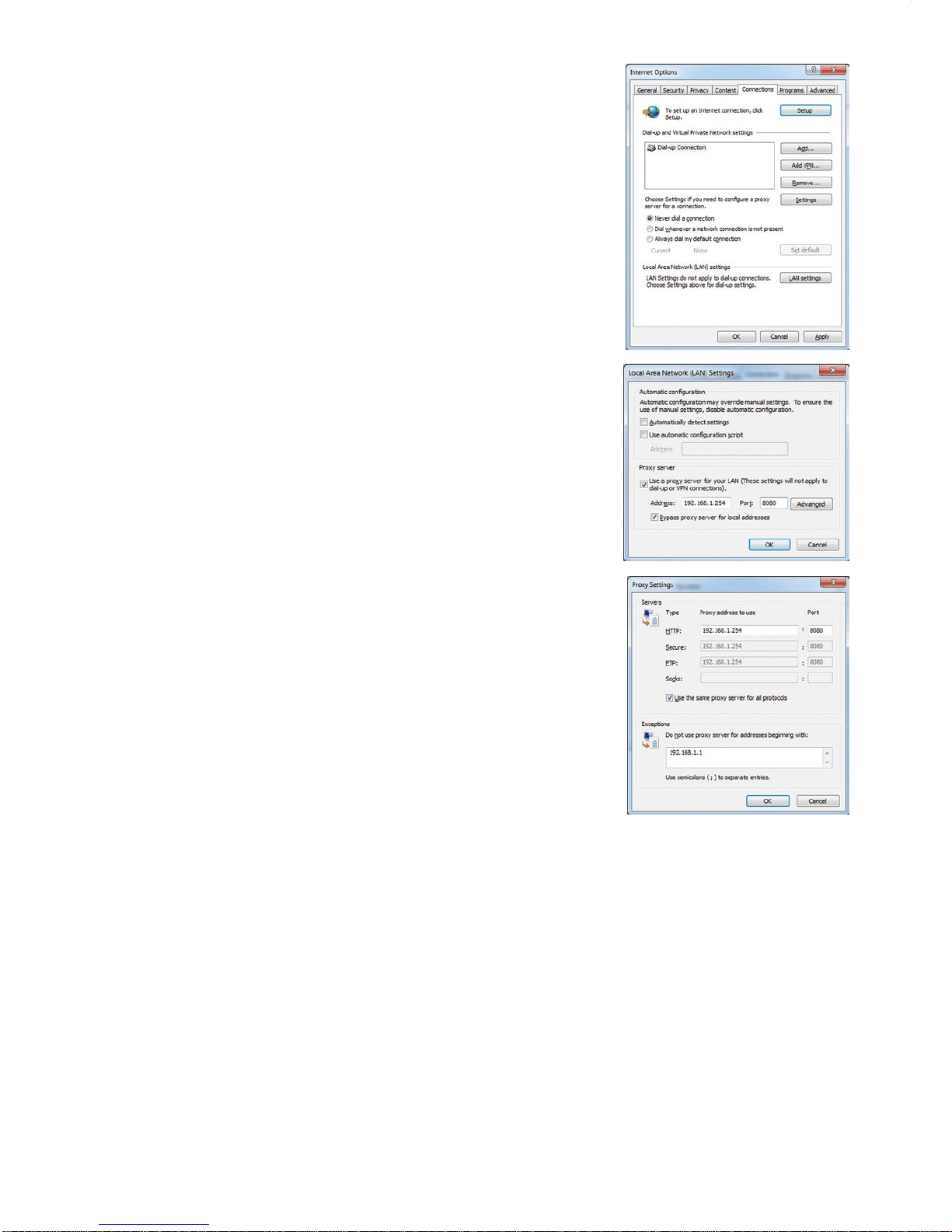

(5) In the [Local Area Network (LAN) Settings] window, check [Bypass
proxy server for local addresses], and click [Advanced].
(6) In the [Proxy Settings] window, enter the EB-50’s IP address (e.g.,
192.168.1.1) in the [Exceptions] field. Then, keep clicking [OK] or
[Close] to close all windows.
If connecting multiple EB-50 units, enter the addresses of all EB-50
units (e.g., [192.168.1.1; 192.168.1.2]). It is also possible to use an
asterisk as a wildcard (e.g., [192.168.1.*]).

8
3. Logging in to the Web Browser for System
Maintenance Engineer

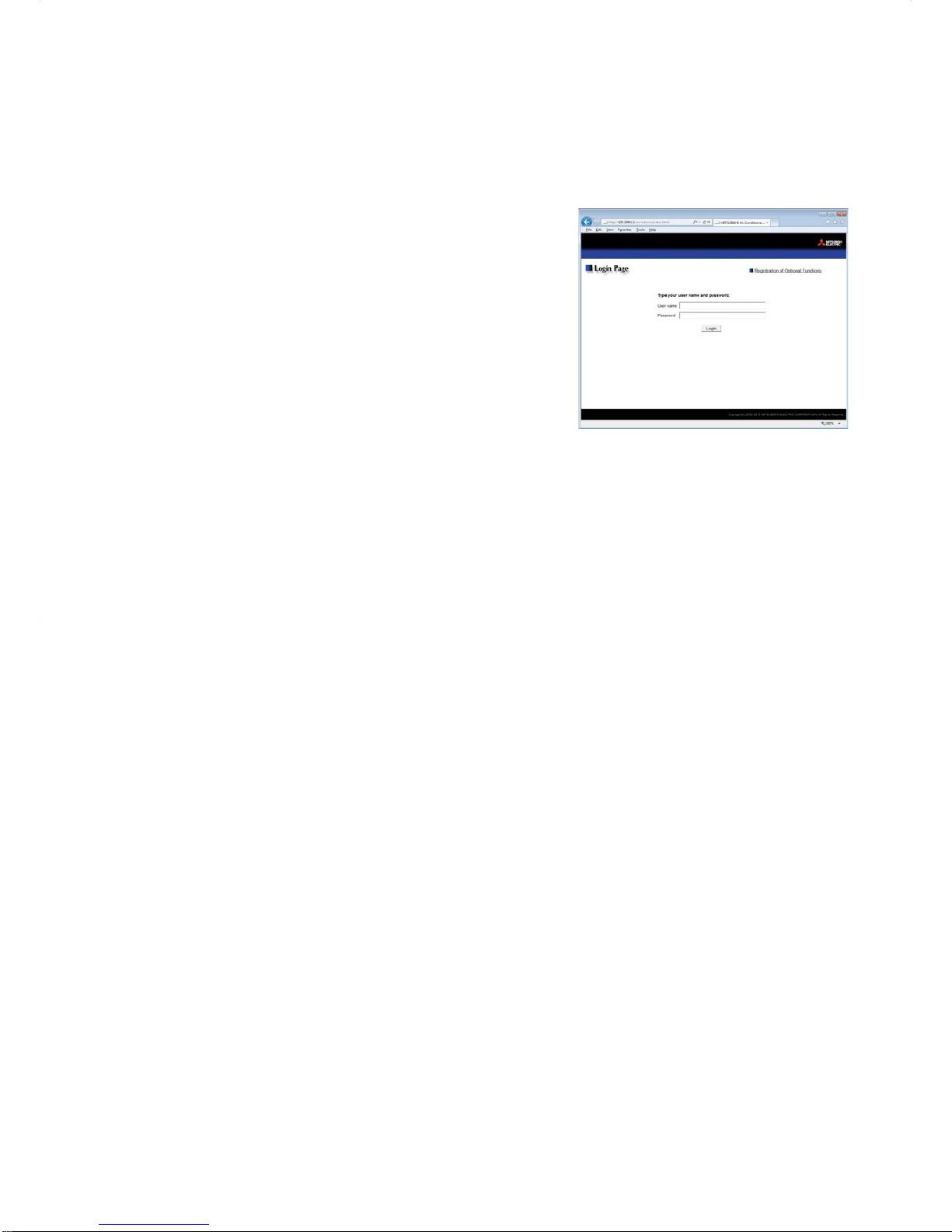

(1) Enter the web page address in the address field of the Web browser as follows:
http ://[IP address of the EB-50]/administrator.html
Press the [Enter] key. A login screen will appear.
Note: If the IP address of the EB-50 is [192.168.1.1], the web page
address is [http ://192.168.1.1/administrator.html].
Note: Default IP address of EB-50 is [192.168.1.1].
Note: If the login screen does not appear then take the steps below
to delete the temporary files.
<Internet Explorer>
1. Click [Tools] in the menu bar, then click [Internet options].
2. On the [General] tab, click [Delete] in the middle of the
window.
3. In the [Delete Browsing History] window, click [Delete].
<Java>
1. Click [Control Panel] from the Start menu.
2. Click the [Java] icon to launch the Java Control Panel.
3. On the [General] tab, click [Settings] in the [Temporary
Internet Files] section.
4. Click [Delete Files].
5. In the [Delete Files and Applications] window, click [OK].
Note: The web page will be displayed in the same language as the operating system on the PC.
The web page can be displayed in other languages by entering the web page address as follows:
Chinese http ://[IP address of the EB-50]/zh/administrator.html
English http ://[IP address of the EB-50]/en/administrator.html
French
German
Italian
Japanese
http ://[IP address of the EB-50]/fr/administrator.html
http ://[IP address of the EB-50]/de/administrator.html
http ://[IP address of the EB-50]/it/administrator.html
http ://[IP address of the EB-50]/ja/administrator.html
Portuguese http ://[IP address of the EB-50]/pt/administrator.html
Russian http ://[IP address of the EB-50]/ru/administrator.html
Spanish http ://[IP address of the EB-50]/es/administrator.html
Note: You can add the web page address to your Favorites for easy access in the future.

9
(2) Enter the user name and the password in the login screen, and click [Login]. A screen for monitoring the
operation conditions will appear.
The table below shows the web page addresses for building managers and general users, their respective
default user names and passwords, and their accessible functions.
User Web page address Default
user name Default password Available functions
Building
manager
http ://[IP address
of the EB-50]/
administrator.html administrator admin
Monitor/
Operation
Condition List
Measurement List
Malfunction List
Filter Sign List
AHC List
Energy
Management
Energy Use Status
Ranking
Target Value Setting
Peakcut Control Status
Schedule
Settings
Today's Schedule
Weekly Schedule 1
Weekly Schedule 2
Weekly Schedule 3
Weekly Schedule 4
Weekly Schedule 5
Annual Schedule
Malfunction
Log Unit Error Communication Error
System
Settings Date/Time Settings User Registration
Maintenance
Send Mail Log
Gas Amount Check
Outdoor unit status
Free Contact List
CSV output
General
user http ://[IP address of
the EB-50]/index.html guest guest Monitor/
Operation Condition List
Note: The license "Personal Web" is required to register up to 50 general users and to specify the accessible unit groups for each
general user. Refer to section 8-2 "User Registration" for details.
Note: It is recommended to change the default user name and password so that the users other than the building managers and
general users will not be able to change the settings.

10

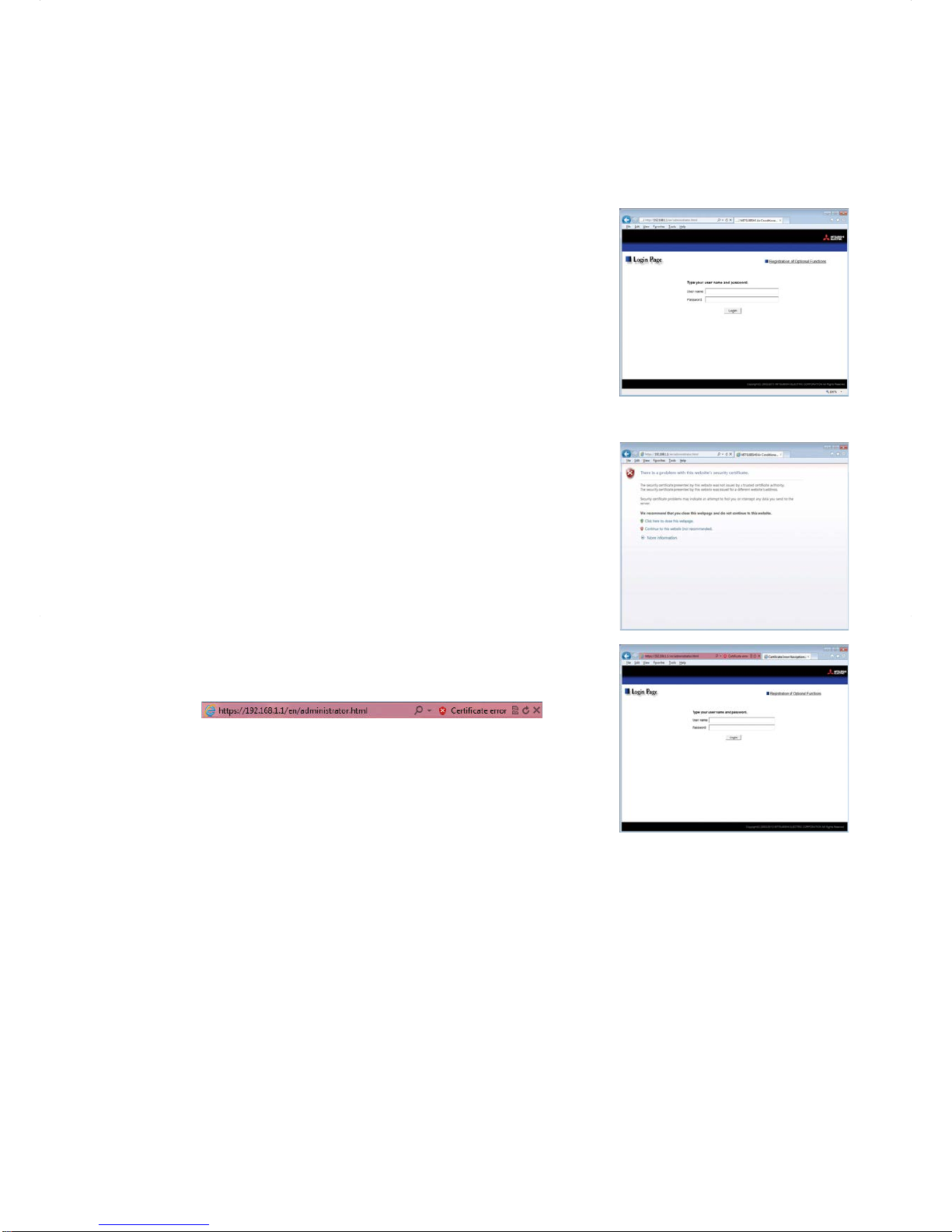

Encrypting the communication data and logging in to the Web browser
(HTTPS connection)
EB-50 can encrypt communication data using HTTPS (SSL).
When connecting the EB-50 to the LAN that is accessible to the general public, it is recommended that the
following settings be made so that the units are monitored and controlled on the encrypted web page.
Note: Depending on the operating system or the Java version, HTTPS encrypted communication may not be enabled
properly. If this happens, use an HTTP connection as explained in the previous page.
(1) Prefix the web address with [https], enter the rest of the address, and
press the [Enter] key.
https ://[IP Address of the EB-50]/administrator.html
Note: If the IP address of the EB-50 is [192.168.1.1], the web page address is
[https ://192.168.1.1/administrator.html].
The encrypted data communication will begin, and the Login screen
will appear.
If a security certificate error page appears instead of the Login
screen, go to step (2) below.
(2) If the security certificate is invalid, a security certificate error page (as
shown at right) will appear.
Click [Continue to this website (not recommended)].
(3) If the connection is successfully made, the Login screen will appear.
Note: Although the address bar will turn red and a message "Certificate
error" will appear, you can still access the Web browser.

11
4. Monitor/Operation
This chapter explains how to monitor and operate the connected unit groups and to check the measurement
data, malfunctioning units, units whose filter sign is triggered, and AHC status.
4-1. Condition List
This section explains how to monitor the operation conditions of all groups collectively (see section 4-1-1) or
groups per block (see section 4-1-2) and also explains how to operate each group (see section 4-1-3), groups
per block (see section 4-1-4), or all groups collectively (see section 4-1-5).
After login, the Overview display of the Condition List screen will appear, which shows the operation conditions
of all air conditioning unit groups, LOSSNAY unit (ventilator) groups, general equipment groups, andAir To Water
(PWFY) unit groups.
To access the Condition List screen from the other screen, click [Monitor/Operation] in the menu bar, and then
click [Condition List].
4-1-1. Checking the operation conditions of all groups
On the Overview display of the Condition List screen, the operation conditions of all groups can be monitored.
The operator can also check the unit malfunctions on this screen and prevent the units from being left on
unintentionally.

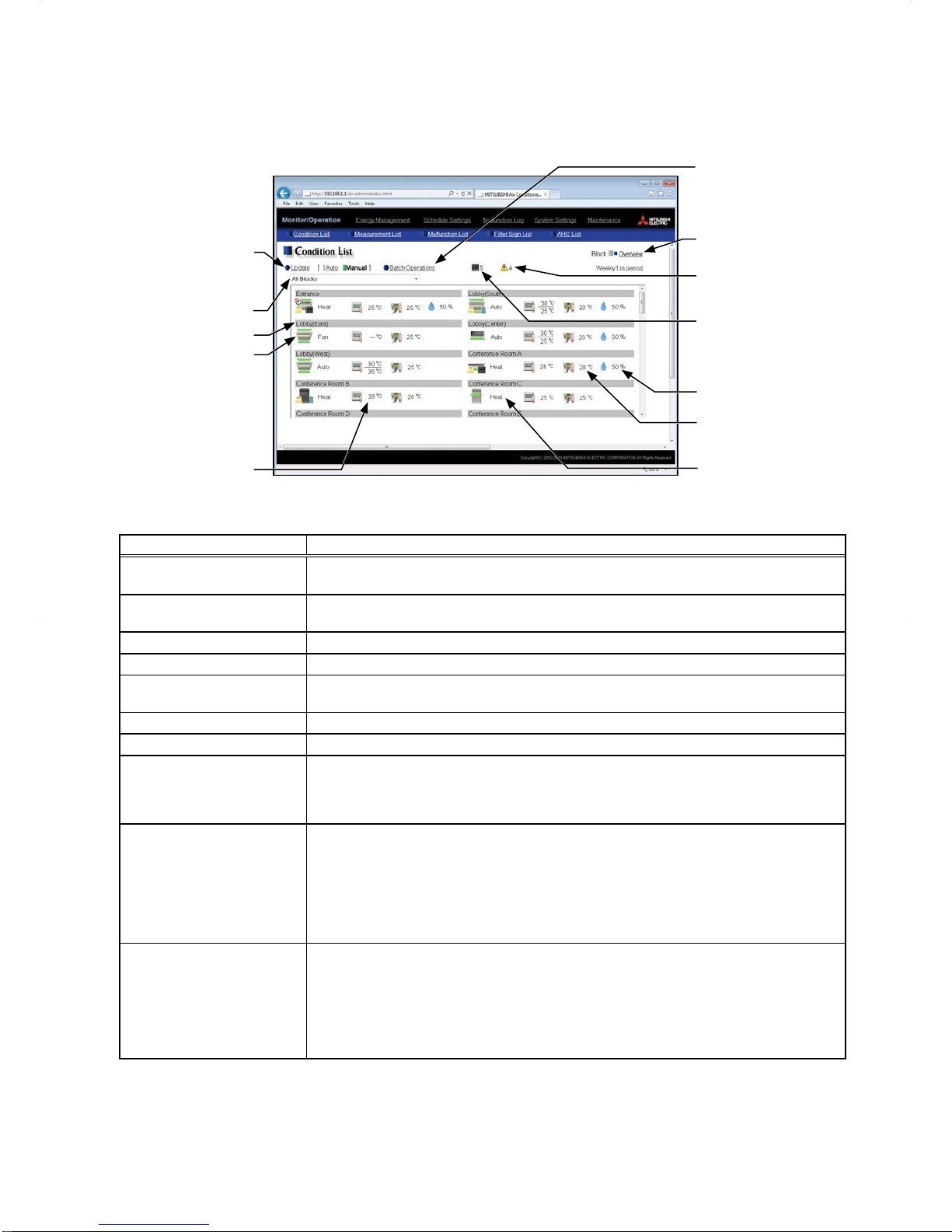

Block/Overview
Number of units whose
filter sign is turned on
Number of units in error
Weekly schedule number
Indicates the weekly
schedule that is currently
effective.
Group icons
The icons indicate the
operation conditions of
groups.
Click the icon to switch to
the operation screen.
Update
Click to show the most
recent operation conditions.
Batch Operations
Click to operate the units in
all groups at once.
Item Description
Block/Overview Click [Block] to display the operation conditions of groups per block, and click [Overview]
to display the operation conditions of all groups.
Update Click to show the most recent operation conditions.
When [Auto] is selected, the operation conditions are updated automatically every minute.
Batch Operations Click to operate the units in all groups at once. (See section 4-1-5.)
Number of units whose filter
sign is turned on *1
The number of units under the control of EB-50 whose filter sign is currently turned on will
appear. Clicking " " will bring up the Filter Sign List screen. (See section 4-4.)
Note: This item will not appear if the [Filter Sign Display] is set to [OFF] on the Basic System
settings screen, accessible via the Web Browser for Initial Settings.
Number of units in error *1 The number of units under the control of EB-50 that are currently in error will appear.
Clicking " " will bring up the Malfunction List screen. (See section 4-3.)
*1 The item will not appear if the number of units is "0."

12
Item Description
Group icons
Each group icon indicates the operation condition of the group. Move the cursor to the
icon to display its group name. Clicking the icon will bring up the operation screen.

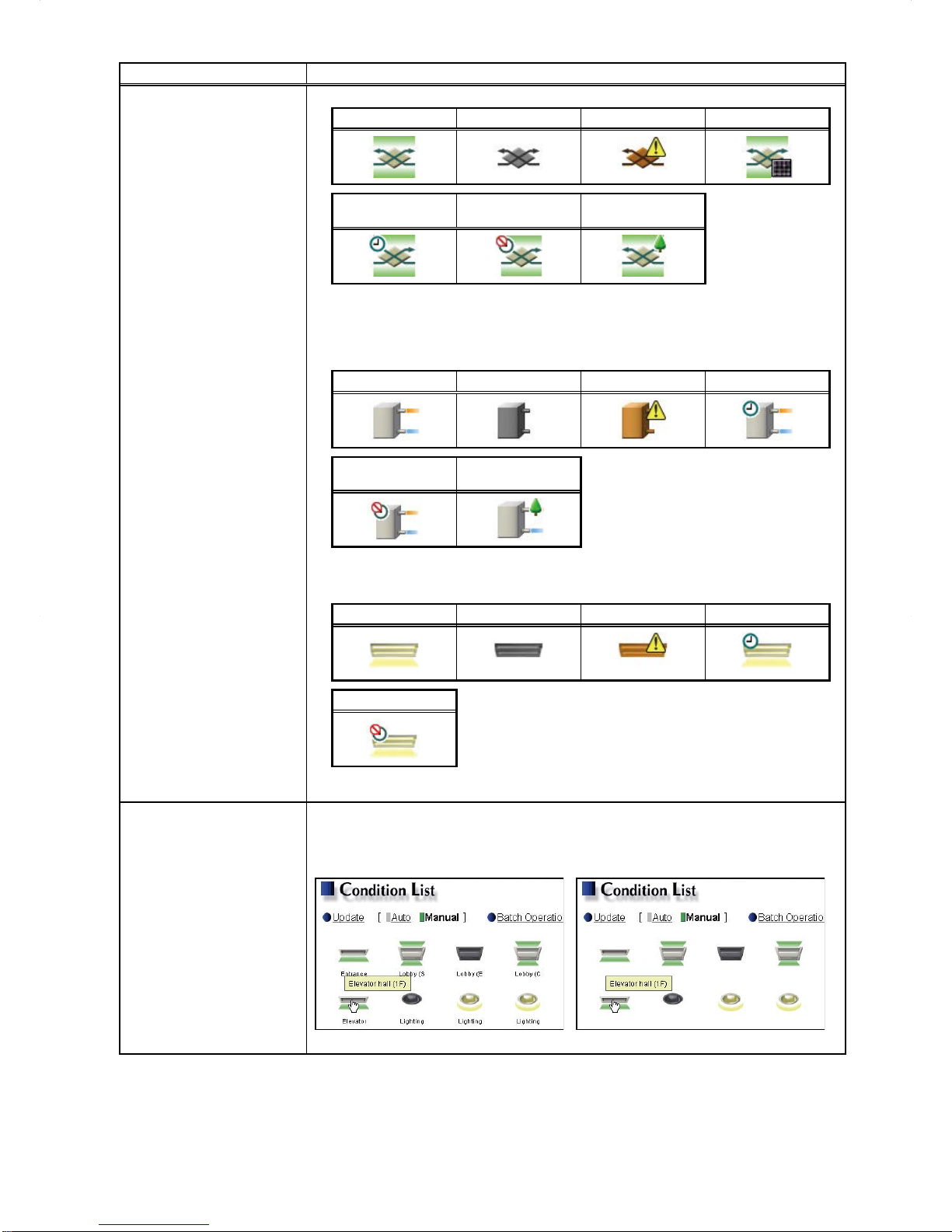

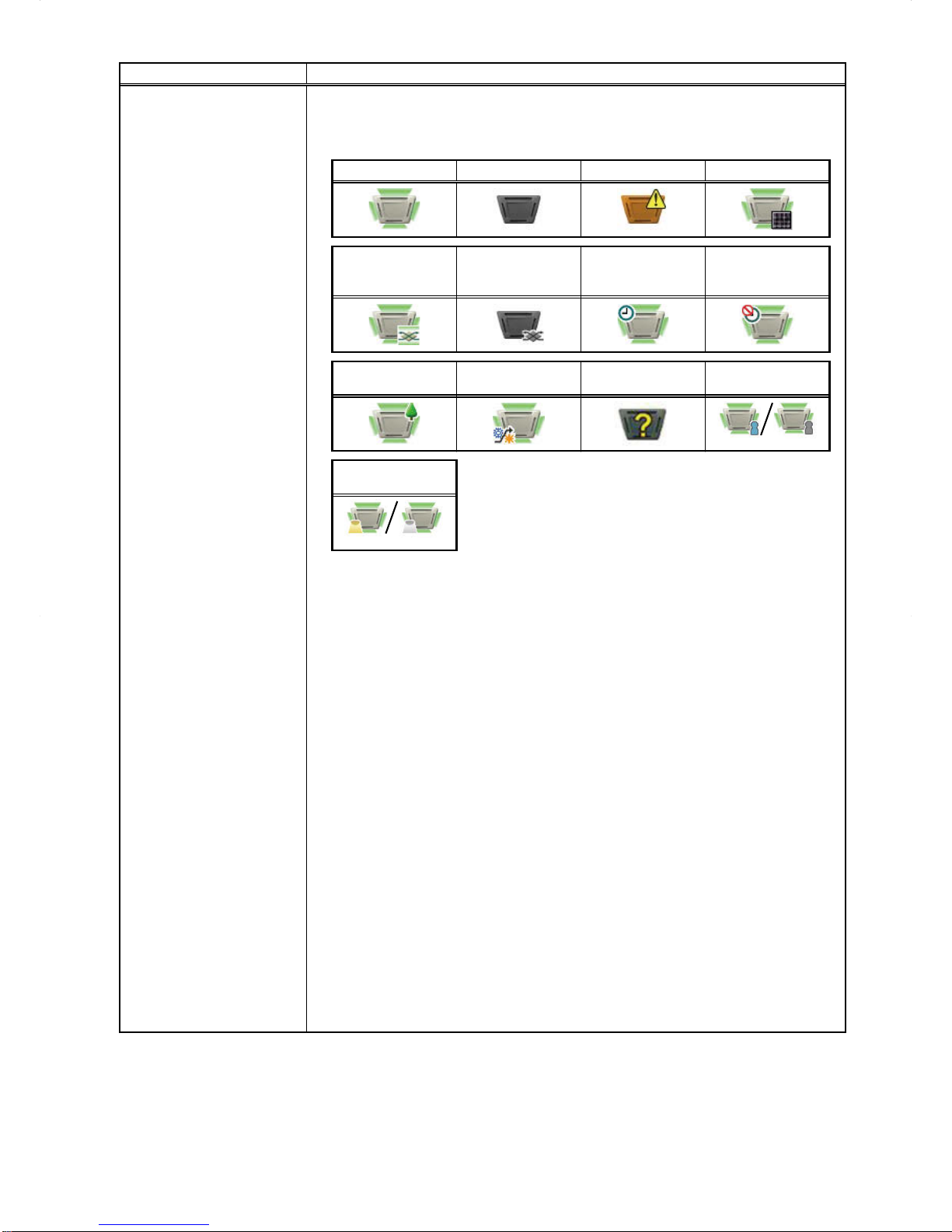

The icons to indicate the operation conditions are shown below.
(1) Air conditioning unit group
ON OFF Error Filter sign ON *1
Interlocked
LOSSNAY ON
*2 *8
Interlocked
LOSSNAY OFF
*3 *8 Schedule set *4 HOLD ON
Energy-saving ON
*5 Setback ON *11 Starting up Occupied/Vacant *6*7*8
(Blue) (Gray)
Bright/Dark
*9*10*11
(Yellow) (Gray)
Note: Besides the 4-way airflow unit icons, 2-way airflow or ceiling-suspended unit icons are
also available. Icons can be selected on the group settings screen, accessible via the Web
Browser for Initial Settings.
*1 Whether or not to display the filter sign can be set on the Basic System settings screen,
accessible via the Web Browser for Initial Settings.
*2 If the LOSSNAY unit is interlocked with the operation of Mr. Slim units, "Interlocked LOSSNAY
ON" icon will appear, even when the LOSSNAY unit is operated individually.
(Applicable M-NET adapter model: PAC-SF48/50/60/70/80/81MA-E)
*3 If a LOSSNAY unit is interlocked with the operation of indoor units in multiple groups, the
LOSSNAY unit may be in operation, even when the "Interlocked LOSSNAY OFF" icon is
displayed.
*4 If any schedule setting is applied to a DIDO controller whose prohibition setting is enabled
([Allow operations] is set to [No operations] on the group settings screen, accessible via
the Web Browser for Initial Settings), the "Schedule set" icon will appear, but the scheduled
operations will not be performed.
*5 The "Energy-saving ON" icon will appear while the Peak Cut control is performed on the group
or on the outdoor unit that is connected to the group.
*6 The Occupancy/Vacancy status icon will appear only when [Show occupancy icon], [Show
vacancy icon], or [Show both icons] is selected in the [Occupancy sensor display] section
under the [Display Format] section of the Basic System settings screen, accessible via the
Web Browser for Initial Settings.
*7 The Occupancy/Vacancy status icon will not appear if the remote controller in the group does
not have an occupancy sensor.
*8 The Occupancy/Vacancy status icon takes priority over the "Interlocked LOSSNAY ON" or
"Interlocked LOSSNAY OFF" icon.
*9 The Brightness/Darkness status icon will appear only when [Show bright symbol], [Show dark
symbol], or [Show both symbols] is selected in the [Brightness sensor display] section under
the [Display Format] section of the Basic System settings screen, accessible via the Web
Browser for Initial Settings.
*10 The Brightness/Darkness status icon will not appear if the remote controller in the group
does not have a brightness sensor.
*11 The "Setback ON" icon takes priority over the Brightness/Darkness status icon.

13
Item Description
Group icons
(2) LOSSNAY unit (ventilator) group
ON OFF Error Filter sign ON *1
Schedule set HOLD ON Energy-saving ON
*2
*1 Whether or not to display the filter sign can be set on the Basic System settings screen,
accessible via the Web Browser for Initial Settings.
*2 The "Energy-saving ON" icon will appear while the Peak Cut control is performed on the
LOSSNAY unit group.
(3) Air To Water (PWFY) unit group
ON OFF Error Schedule set
HOLD ON Energy-saving ON
*1
*1 The "Energy-saving ON" icon will appear while the Peak Cut control is performed on theAir To
Water (PWFY) unit group.
(4) General equipment group
ON OFF Error Schedule set
HOLD ON
Note: Besides the lighting icons, pump or card key icons are also available. The icon can be
selected on the group settings screen, accessible via the Web Browser for Initial Settings.
Group name
Only the first 8 characters will be visible under the icons. To display all characters, move
the cursor to the icon.
Note: Whether or not to display the group names can be set on the Basic System settings
screen, accessible via the Web Browser for Initial Settings.
Icons with group names Icons without group names

14
4-1-2. Checking the operation conditions of the groups in a given block
In the Block display of the Condition List screen, select a block to display the operation conditions (such as
operation mode, set temperature, and room temperature) of the air conditioning unit groups, LOSSNAY unit
(ventilator) groups, Air To Water (PWFY) unit groups, and general equipment groups in the block.
Block/Overview
Number of units in error
Number of units whose
filter sign is turned on
Group icons
The icons indicate the
operation conditions of
groups.
Click the icon to switch to
the operation screen.
Update
Click to show the most
recent operation conditions.
Batch Operations
Click to operate the units in
all groups in a given block at
once.
Set temperature
Room temperature
Room humidity
Block selection
Operation mode
Group name
Item Description
Block/Overview Click [Block] to display the operation conditions of groups per block, and click [Overview]
to display the operation conditions of all groups.
Update Click to show the most recent operation conditions.
When [Auto] is selected, the operation conditions are updated automatically every minute.
Batch Operations Click to operate the units in all groups in a given block at once. (See section 4-1-4.)
Block selection Select a block you want to monitor.
Group icons Each group icon indicates the operation condition of the group. Clicking the icon will bring
up the operation screen.
Group name The name of the group will appear.
Operation mode The operation mode of the group will appear.
Set temperature
The set temperature of the group will appear.
Note: For Air To Water (PWFY) unit groups, the set water temperature will appear.
Note: The temperature unit (°C or °F) can be selected on the Basic System settings screen,
accessible via the Web Browser for Initial Settings.
Room temperature
Indoor unit return air temperature will appear.
Note: The temperature shown may be different from the actual room temperature.
Note: Whether to show or hide the room temperature can be set on the Basic System settings
screen, accessible via the Web Browser for Initial Settings.
Note: For Air To Water (PWFY) unit groups, the current water temperature will appear.
Note: The temperature unit (°C or °F) can be selected on the Basic System settings screen,
accessible via the Web Browser for Initial Settings.
Room humidity
The reading of the indoor unit return air humidity or the humidity sensor on the ME remote
controller (Smart ME controller) will appear.
Note: The value will not appear if the indoor unit does not have a humidity measurement function.
Note: If a ME remote controller (Smart ME controller) is connected to the group and the built-in
humidity sensor is enabled, the reading of the sensor will appear.
Note: The indoor unit return air humidity has priority to be displayed over the reading of the
humidity sensor on the ME remote controller (Smart ME controller).

15
Item Description
Number of units whose filter
sign is turned on *1
The number of units under the control of EB-50 whose filter sign is currently turned on will
appear. Clicking " " will bring up the Filter Sign List screen. (See section 4-4.)
Note: This item will not appear if the [Filter Sign Display] is set to [OFF] on the Basic System
settings screen, accessible via the Web Browser for Initial Settings.
Number of units in error *1 The number of units under the control of EB-50 that are currently in error will appear.
Clicking " " will bring up the Malfunction List screen. (See section 4-3.)
*1 The item will not appear if the number of units is "0."

16
4-1-3. Operating the units in a given group
In the Overview display of the Condition List screen, click one of the group icons to display its operation settings
screen, which shows the current operation conditions. Change the desired settings and click [OK] to reflect the
changes. Click [Cancel] to return to the previous screen without making any changes.
Note: Only the ON/OFF operation is possible for general equipment groups. The general equipment whose prohibition
setting is enabled ([Allow operations] is set to [No operations] on the group settings screen, accessible via the
Web Browser for Initial Settings) cannot be operated.

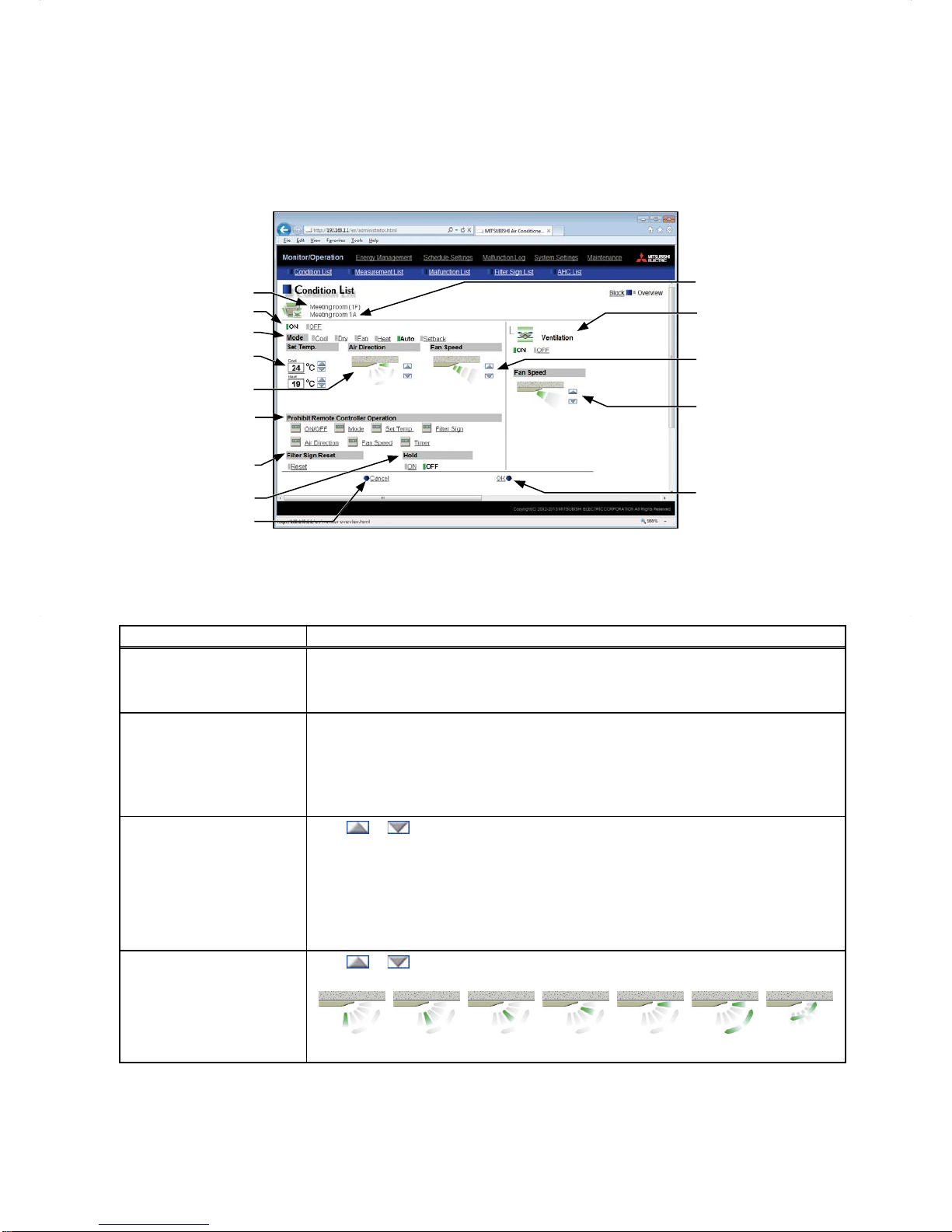

Group name
Set temperature
ON/OFF
Block name
Interlocked LOSSNAY
ON/OFF
Fan speed of interlocked
LOSSNAY
Operation mode
Prohibit Remote Controller
Operation
Air direction
Filter Sign Reset
Hold
Cancel
Click to return to the
previous screen without
making any changes.
Fan speed
OK
Click to reflect the changes
made.

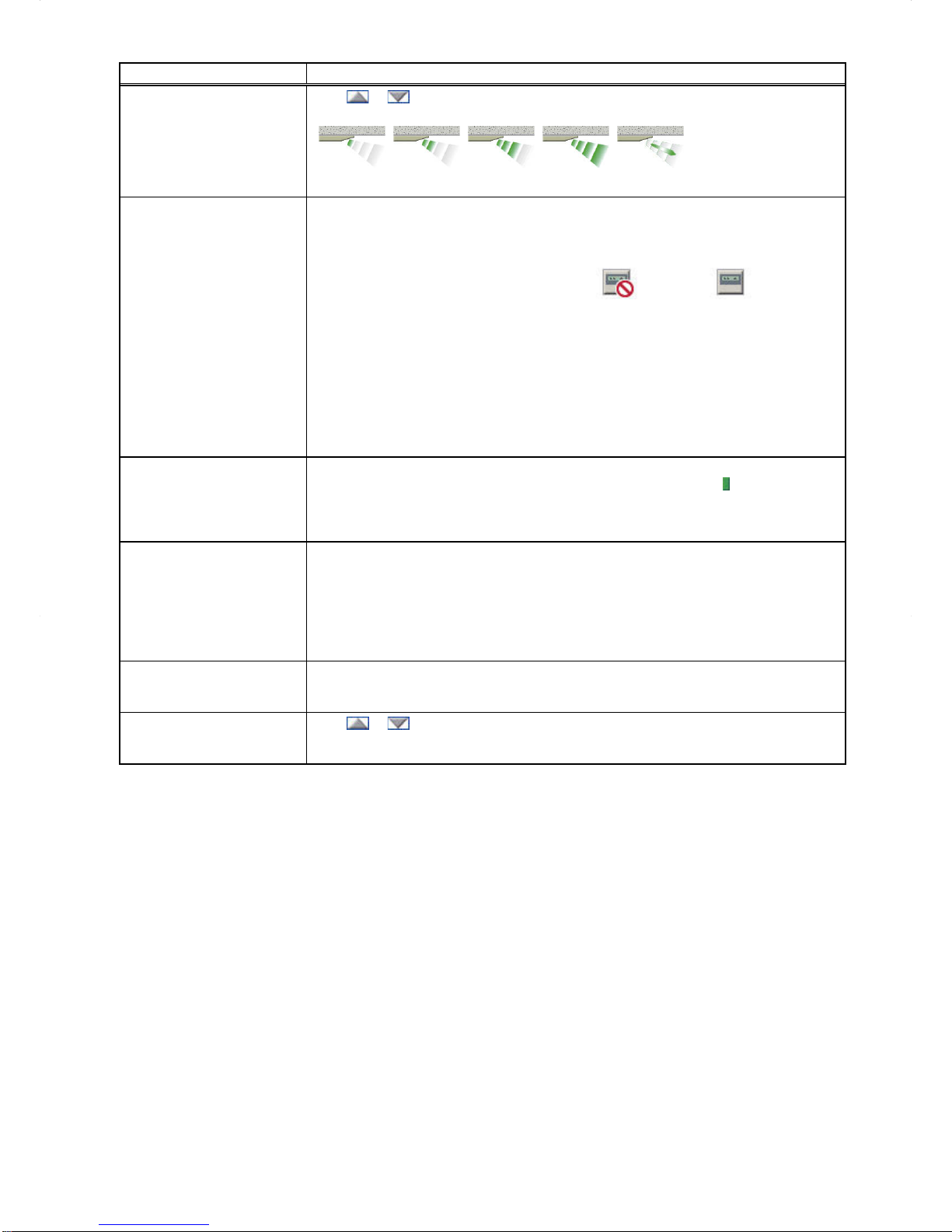

Item Description
ON/OFF Click [ON] or [OFF] to turn on or off the units in a given group.
Note: Switching this switch will turn on or off the LOSSNAY unit as well that is interlocked with
the operation of indoor units in the group. To turn on or off the LOSSNAY unit only, use the
"Interlocked LOSSNAY ON/OFF" switch.
Operation mode *1
Click the desired operation mode.
Air conditioning unit: Cool, Dry, Fan, Heat, Auto, Setback
LOSSNAY unit: Heat Recovery, Bypass, Auto
Air To Water (PWFY) unit: Heating, Heating ECO, Hot Water, Anti-freeze, Cooling
Note: Only the operation modes available for the unit model will appear.
Note: The Setback mode can be selected on the EB-50GU-A, but not on the EB-50GU-J.
Set temperature *1
Click or to adjust the set temperature of the air conditioning unit or the Air To
Water (PWFY) unit.
Note: The settable temperature ranges depend on the unit model.
Note: If the indoor unit supports the dual set point function in the AUTO mode and when the
operation mode above is set to Auto or Setback, two set temperatures for Cool mode and
Heat mode can be set.
Note: The temperature unit (°C or °F) can be selected on the Basic System settings screen,
accessible via the Web Browser for Initial Settings.
Air Direction *1
Click or to adjust the air direction.
(Mid 3) (Mid 2) (Mid 1) (Mid 0) (Horizontal) (Swing) (Auto)
Note: Available air directions depend on the unit model.

17
Item Description
Fan Speed *1
Click or to adjust the fan speed.
(Low) (Mid 2) (Mid 1) (High) (Auto)
Note: Available fan speeds depend on the unit model.
Prohibit Remote Controller
Operation
The following operations or setting change from the local remote controllers and the Web
Browser for User can be prohibited: ON/OFF, Operation mode, Set temperature, and
Filter sign reset.
Click the operation item [ON/OFF], [Mode], [Set Temp.], [Filter Sign], [Air Direction], [Fan
Speed], or [Timer] to switch the setting between (Prohibit) or (Permit).
Note: For LOSSNAY unit (ventilator) groups, the item [Mode] or [Set Temp.] will not appear.
Note: [Air Direction], [Fan Speed], and [Timer] may not be displayed, depending on the unit
model.
Note: When the [ON/OFF] operation is prohibited and the "Automatic recovery after power failure"
switch on the indoor unit is set to "Turn off the power, or restore operation regardless of the
operation status immediately before power failure," the operation of the indoor unit will not
be restored, even when turned on after power restoration.
When the switch is set to "Turn off the power, or restore operation if the unit was in
operation immediately before power failure," the operation of the indoor unit will be
restored regardless of whether the [ON/OFF] operation is prohibited or not.
Refer to the indoor unit Installation Manual for details about switch settings.
Filter Sign Reset
Click [Reset] to switch between resetting and not resetting the filter sign. The rectangular
icon next to Reset will appear in yellow-green when it is set to Reset ( ).
Note: If a filter sign in the group has not been triggered, then the item [Filter Sign Reset] will not
appear.
Note: Filter sign of LOSSNAY units will not be reset.
Hold
Click [ON] or [OFF] to enable/disable the Hold function. When the Hold function is
enabled, the scheduled operations are disabled.
Note: The operations that have been scheduled from the remote controller will also be disabled.
Note: [Hold type] can be specified on the Basic System settings screen, accessible via the Web
Browser for Initial Settings.
Note: The Hold function cannot be enabled on general equipments.
Note: The Hold function can be used on the EB-50GU-A, but not on the EB-50GU-J.
Interlocked LOSSNAY
ON/OFF
Click [ON] or [OFF] to turn on or off the interlocked LOSSNAY unit.
Note: For a group that is not connected to an interlocked LOSSNAY unit (ventilator), the item
[Interlocked ventilator ON/OFF] will not appear.
Fan speed of interlocked
LOSSNAY
Click or to adjust the fan speed of the interlocked LOSSNAY unit (ventilator).
Note: For a group that is not connected to an interlocked LOSSNAY unit, the item [Fan speed of
interlocked LOSSNAY] will not appear.
*1 The item may not be displayed, depending on the unit model.

18
4-1-4. Operating the units in a given block

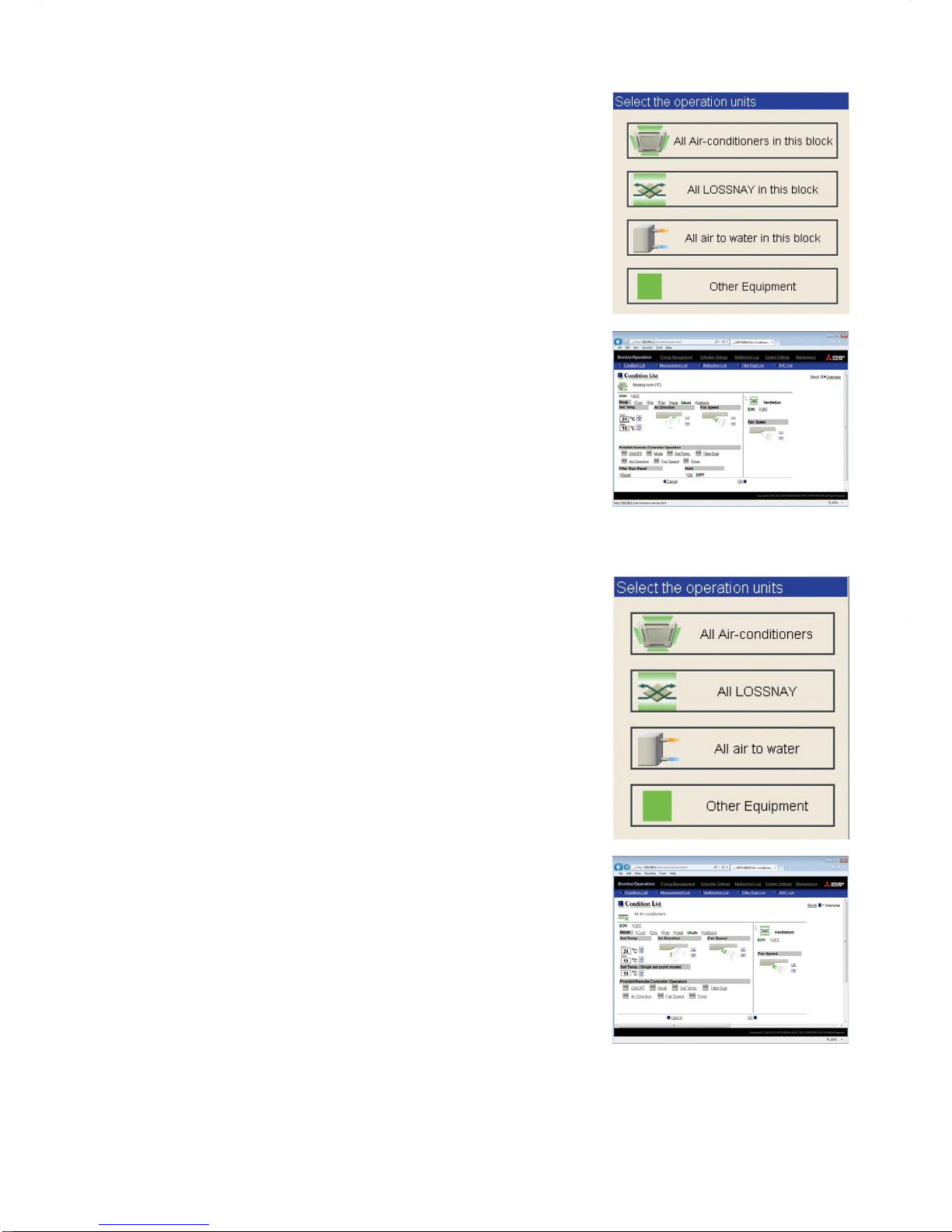

(1) In the Block display of the Condition List screen, select a block to
operate, and click [Batch Operations].
If air conditioner group, LOSSNAY unit (ventilator) group, Air To Water
(PWFY) unit group, and general equipment group exist together in
the same block, a screen to select a group type will appear.
Click one of the group types to change its settings.
(2) On the operation settings screen, change the desired settings and
click [OK] to reflect the changes.
Click [Cancel] to return to the previous screen without making any
changes.
Note: When the filter sign is reset on this screen, the cumulative operation
time of all units will be reset, irrespective of whether or not the filter
sign was triggered. Reset the filter sign on this screen when the
filters of all units were cleaned at once.
4-1-5. Operating the units in all groups
(1) In the Overview display of the Condition List screen, click [Batch
Operations]. If air conditioner group, LOSSNAY unit (ventilator)
group, Air To Water (PWFY) unit group, and general equipment group
exist together in the same system, a screen to select a group type
will appear.
Click one of the group types to change its settings.
(2) On the operation settings screen, change the desired settings and
click [OK] to reflect the changes.
Click [Cancel] to return to the previous screen without making any
changes.
Note: When the filter sign is reset on this screen, the cumulative operation
time of all units will be reset, irrespective of whether or not the filter
sign was triggered. Reset the filter sign on this screen when the
filters of all units were cleaned at once.

19
4-2. Measurement List
This section explains how to check the measurement data of the temperature sensors, humidity sensors, and
metering devices.
Click [Monitor/Operation] in the menu bar, and then click [Measurement List] to access the Measurement List
screen.
Note: AnAI controller (PAC-YG63MCA), a commercially available temperature sensor, and a humidity sensor are
required to measure the temperature and humidity.
Note: API controller (PAC-YG60MCA) and a commercially available metering devices are required to measure the
electric, water, heat, and gas consumptions.
Measurement item
Update
Click to show the most
recent measurement data.
Measurement value
Number of units whose
filter sign is turned on
Number of units in error
Item Description
Update Click to show the most recent measurement data.
When [Auto] is selected, the measurement data is updated automatically every minute.
Measurement value
The current measurement values will appear.
Note: The following icons are used to indicate the measuring devices. Icons will appear in orange
when the measurement value reaches the upper or lower alarm threshold value that has
been set on the Measurement screen, accessible via the Web Browser for Initial Settings.
Normal Upper/lower alarm threshold value is
reached. Communication
error
Temperature sensor *1
Humidity sensor *1
Metering device *2
*1 When there is a communication error, the measurement value of the temperature or humidity
sensor will be "--."
*2 When there is a communication error, the measurement value of the metering device will be
the measured value immediately before the error detection.
Number of units whose filter
sign is turned on *1
The number of units under the control of EB-50 whose filter sign is currently turned on will
appear. Clicking " " will bring up the Filter Sign List screen. (See section 4-4.)
Note: This item will not appear if the [Filter Sign Display] is set to [OFF] on the Basic System
settings screen, accessible via the Web Browser for Initial Settings.
Number of units in error *1 The number of units under the control of EB-50 that are currently in error will appear.
Clicking " " will bring up the Malfunction List screen. (See section 4-3.)
*1 The item will not appear if the number of units is "0."

20
4-3. Malfunction List

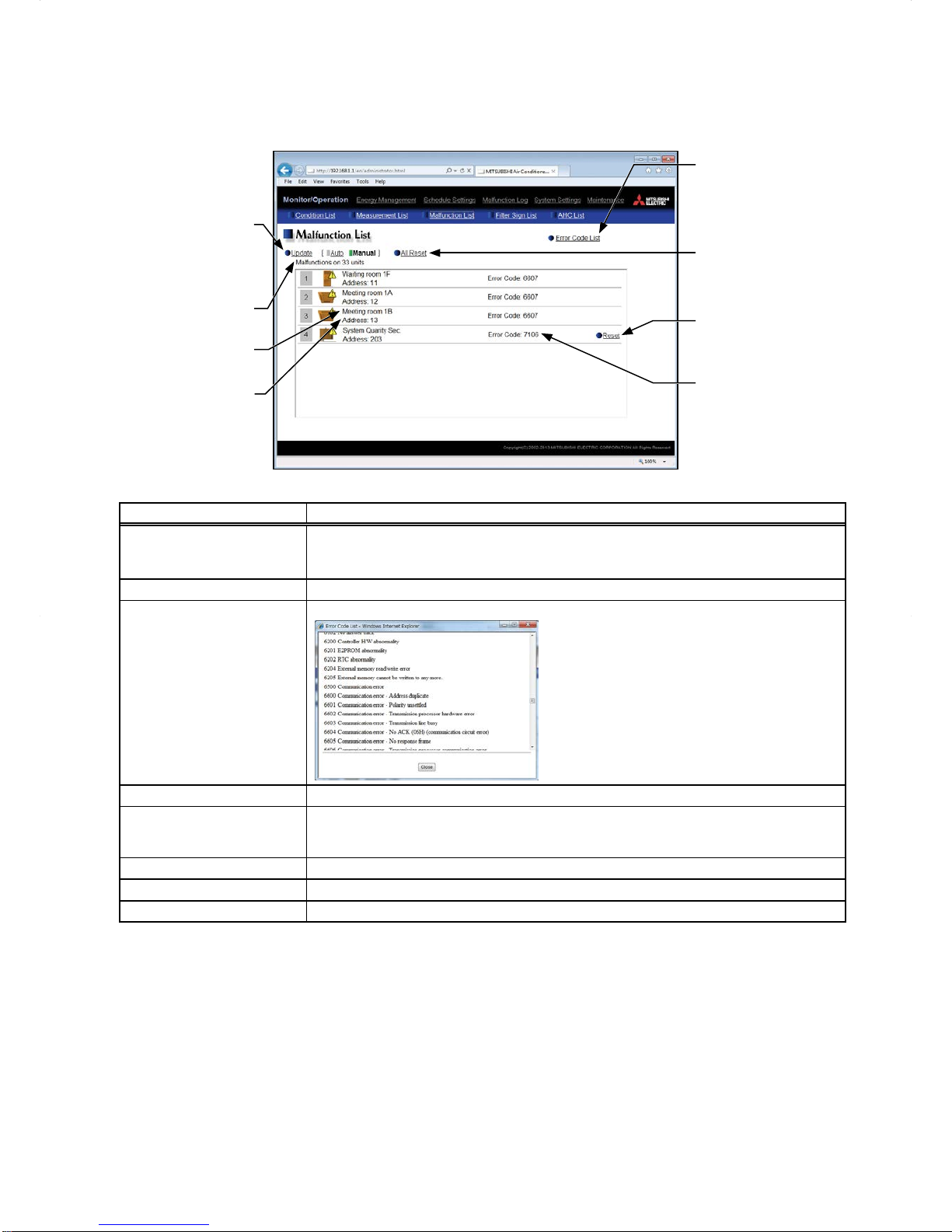

Click [Monitor/Operation] in the menu bar, and then click [Malfunction List] to access the Malfunction List screen.
A list of units that are currently malfunctioning will appear.
Number of units in error
Update
Click to show the most
recent malfunction
conditions. All Reset
Click to reset all errors at
once.
Group name
Unit address Error code
Reset
Click to reset each AHC
error.
Error Code List
Click to display the list
of error codes and their
definitions.
Item Description
Update Click to show the most recent malfunction conditions. When [Auto] is selected, the malfunction conditions are updated automatically every
minute.
All Reset Click to reset all errors at once.
Error Code List
Click to display the list of error codes and their definitions.
Number of units in error The number of malfunctioning units will appear.
Group name The name of the group that the unit in error belongs to will appear.
Note: The group name will be blank if the unit in error is a unit that does not belong to any group,
such as an outdoor unit or a system controller.
Unit address The address of the unit in error will appear.
Error code The error code that corresponds to the error will appear.
Reset Click to reset each AHC error.
