Thank you for choosing the Mitsubishi transistorized inverter option unit.
This instruction manual gives handling information and precautions for use of
this equipment. Incorrect handling might cause an unexpected fault. Before using
the equipment, please read this manual carefully to use the equipment to its
optimum.
1. Electric Shock Prevention
This section is specifically about safety matters
Do not attempt to install, operate, maintain or inspect this product until you
have read through this instruction manual and appended documents carefully
and can use the equipment correctly. Do not use this product until you have a
full knowledge of the equipment, safety information and instructions.
In this instruction manual, the safety instruction levels are classified into
"WARNING" and "CAUTION".
Assumes that incorrect handling may cause
hazardous conditions, resulting in death or
severe injury.
Assumes that incorrect handling may cause
hazardous conditions, resulting in medium or
slight injury, or may cause physical damage only.
Note that the CAUTION level may lead to a serious consequence according to
conditions. Please follow the instructions of both levels because they are
important to personnel safety.
SAFETY INSTRUCTIONS
•
••
•While power is on or when the inverter is running, do not open the front
cover. You may get an electric shock.
•
••
•Do not run the inverter with the front cover removed. Otherwise, you may
access the exposed high-voltage terminals and charging part and get an
electric shock.
•
••
•If power is off, do not remove the front cover except for wiring or periodic
inspection. You may access the charged inverter circuits and get an electric
shock.
•
••
•Before starting wiring or inspection, switch power off, wait for more than 10
minutes, and check for no residual voltage with a tester or the like.
•
••
•Any person who is involved in the wiring or inspection of this equipment
should be fully competent to do the work.
•
••
•Always install the option unit before wiring. Otherwise, you may get an
electric shock or be injured.
•
••
•Handle this option unit with dry hands to prevent an electric shock.
•
••
•Do not subject the cables to scratches, excessive stress, heavy loads or
pinching. Otherwise, you may get an electric shock.
•
••
•While power is on, do not move the station number and baud rate setting
switches. Doing so can cause an electric shock.
WARNING
CAUTION
WARNING
WARNING
Downloaded from ManualsNet.com search engine

A-2
2. Injury Prevention
3. Additional instructions
Also note the following points to prevent an accidental failure, injury, electric
shock, etc.:
(1) Transportation and mounting
(2) Test operation and adjustment
(3) Usage
(4) Maintenance, inspection and parts replacement
(5) Disposal
(6) General instruction
•
••
•Apply only the voltage specified in the instruction manual to each terminal to
prevent burst, damage, etc.
•
••
•Ensure that the cables are connected to the correct terminals. Otherwise,
burst, damage, etc. may occur.
•
••
•Always make sure that polarity is correct to prevent burst, damage, etc.
•
••
•While power is on or for some time after power-off, do not touch the inverter
as it is hot and you may get burnt.
•
••
•Do not install or operate the option unit if it is damaged or has parts missing.
•
••
•Do not stand or rest heavy objects on the product.
•
••
•Check that the mounting orientation is correct.
•
••
•Prevent screws, metal fragments or other conductive bodies or oil or other
flammable substance from entering the inverter.
•
••
•Before starting operation, confirm and adjust the parameters. A failure to do
so may cause some machines to make unexpected motions.
•
••
•Do not modify the equipment.
•
••
•When parameter clear or all parameter clear is performed, each parameter
returns to the factory setting. Re-set the required parameters before starting
operation.
•
••
•For prevention of damage due to static electricity, touch nearby metal before
touching this product to eliminate static electricity from your body.
•
••
•Do not test the equipment with a megger (measure insulation resistance).
•
••
•Treat as industrial waste.
All illustrations given in this manual may have been drawn with covers or safety
guards removed to provide in-depth description. Before starting operation of
the product, always return the covers and guards into original positions as
specified and operate the equipment in accordance with the manual.
C
AUTI
O
N
C
AUTI
O
N
C
AUTI
O
N
WARNING
C
AUTI
O
N
C
AUTI
O
N
C
AUTI
O
N
Downloaded from ManualsNet.com search engine

CONTENTS
1. INTRODUCTION 1
2. INSTALLATION 3
2.1 Pre-installation Checks.....................................................................3
2.2 Mounting Procedure .........................................................................3
2.3 Connecting To The Network.............................................................9
2.4 LED Status Indicator.........................................................................9
2.5 Installing MEAU0865.GSD ...............................................................9
3. OPERATION 10
3.1 Operating Modes............................................................................10
3.2 Selecting the Operating Mode........................................................10
3.3 Functions Available in the Operating Modes..................................11
3.4 Input From PROFIBUS to Inverter..................................................11
3.5 Output From Inverter to PROFIBUS...............................................12
3.6 Operation When an Alarm Occurs..................................................13
4. PROFIBUS DEVICE DATA 14
5. INVERTER PROFIBUS DATA WORD DEFINITION 16
5.1 Word 1 (PKE)..................................................................................18
5.2 Word 2 (IND)...................................................................................19
5.3 Word 3 (PWE1)...............................................................................19
5.4 Word 4 (PWE2)...............................................................................19
5.5 Word 5 (ZSW1)...............................................................................20
5.6 Word 6 (HIW)..................................................................................20
6. PARAMETER DEFINITIONS 21
6.1 IND = 0000h, Real-Time Monitor Area ...........................................21
6.2 IND = 01pph, System Environment Variable Area..........................22
6.2.1 IND = 0100h, pp = 00, SEV_I, Block I, SEV Interface.............22
6.2.2 IND = 0101h, pp = 01, SEV_II, Block II, Alarm History............23
6.3 IND = 0200h, Normal Parameter Area............................................24
6.4 IND = 0300h, 900f Parameter Area................................................31
6.5 IND = 0400h, 900% Parameter Area..............................................31
6.6 Time/Program Settings: Frequency (f)
Components (IND = 0600h)............................................................32
6.7 Time/Program Settings: Motor Run Direction (D)
Components (IND = 0700h)............................................................33
6.8 Time/Prog Settings Time (t) Components (IND = 0800h)...............34
Downloaded from ManualsNet.com search engine

7. TROUBLESHOOTING 35
7.1 Inspecting Display On Parameter Unit And Status LED On A5NP.35
8. SPECIFICATIONS 36
Appendix 37
Appendix. A Instruction For MEAU0865.GSD ........................................37
Appendix. B Commonly used PROFIBUS-DP commands .....................38
Appendix. C Network Communication Coordination using
the FR-A5NP PROFIBUS-DP Option Module....................51
Appendix. D Other Option Specific Parameters......................................53
Downloaded from ManualsNet.com search engine

1
1. INTRODUCTION
GENERAL
The purpose of this manual is to provide general information, installation,
and operation procedures for the FR-A5NP PROFIBUS-DP option, used
with the FR-A500(L)/F500(L) inverter, herein after referred to as the
inverter. Read this manual completely before installing, operating or
servicing the option unit.
This manual is intended for use by qualified personnel. Installation should
only be performed by qualified personnel. You must be able to operate and
program serial devices to use the equipment.
This option unit lets you connect an FR-A500(L)/F500(L) series inverter to
a network adhering to the PROFIBUS-DP communications protocol.
PROFIBUS-DP is the performance-optimized version of PROFIBUS for
time-critical operations.
Illustrations provided in this manual may have covers or safety guards
removed to provide a clear view. Before starting operation of the product
be sure to install covers and guards into the original position.
The following is a list of important features for the option unit
•PROFIBUS
®is a trademark of PROFIBUS User Organization.
• Other company and product names herein are the trademarks and
registered trademarks of their respective owners.
DESCRIPTION
The FR-A5NP option unit consists of two circuit boards. The option unit is
mounted in option port #3 on the inverter unit. The inverter top cover must
be removed to install the option unit. After installation, the top cover is
reinstalled and connection to the PROFIBUS-DP bus is completed through
a connector accessible through the top cover. Two station switches,
mounted on the top printed circuit board, allow the assigning of station
numbers from 0 to 126. A LED status light mounted next to the connector
provides status information on the communication link.
• Data Rates to 12,000,000 bps.
• Up to 126 stations supported on a single network
• Network access to all inverter parameters.
• Certified by PROFIBUS Nutzer Organization in July 1998
Downloaded from ManualsNet.com search engine

INTRODUCTION
2
FR-A5NP
Front view
Option fixing hole
Mounting
hole
Rear view
connector
Node address switch Operating status
indicator LED
Mounting
hole
Profibus connector
(DB9 pin connector)
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
SW2
SW1
Mounting
hole
Option fixing hole
Mounting
hole
Downloaded from ManualsNet.com search engine

3
2. INSTALLATION
Remove the drive cover following the inverter instruction manual and
install the option unit using the following procedure:
2.1 Pre-installation Checks
(1) Check the inverter type.
Use the option unit only with an FR-A500(L)/F500(L) series inverter.
Do not use it with any other series (e.g. A200E, A200, A100, Z and F
series). These other series inverters have a different option connector
to prevent installation.If you force the connector, youmay damage the
inverter as well as the option unit.
(2) Make sure the inverter input power is off. The option unit can be
damaged if installed with the input power on.
(3) Make sure the PLC master (or PROFIBUS-DP master) is properly
grounded before continuing.
2.2 Mounting Procedure
(1) Insert this option unit only into the OPTION PORT# 3 of the inverter.
(2) Carefully insert the connector of the option unit into the connector of
the inverter as shown in Figure 2-1. Use the two mounting holes and
the guide hole to align the bottom board with the matching machine
screw inserts and the plastic guide pin on the inverter. Also be sure to
fit the unit into the option fixing hook (It is available in Aug., 2000).
Make sure that the inverter option is firmly seated in the inverter and
the connector is fully plugged in.
(3) Secure the option unit to the inverter with two mounting screws. If the
screw holes in the option unit do not line up with the inverter mounting
holes, check that the connectors have been fitted correctly.
Hazardous voltage present.
Always isolate power from the inverter and wait 10 minutes until
the bus charge light is off to ensure the charge lamp has gone
out before inserting or removing this option unit or touching the
terminals.
WARNING
Downloaded from ManualsNet.com search engine

INSTALLATION
4
Figure 2-1. Option Unit Aligned with Option Port #3
(4) Option unit is now mechanically installed as shown is Figure 2-2.
Figure 2-2. Option Unit Installed In Inverter
VSP896M205
3 x 8 mm MACHINE SCREWS WITH
FLAT AND LOCK WASHER
FR-A5NP PLUG IN OPTION
OPTION TO VFD
CONNECTOR
INVERTER
INVERTRE OPTION
PORT #3
MACHINE SCREW INSERTS
TERMINAL
BLOCK
INSTALLED PROFIBUS
OPTION IN PORT #3
CONNECTOR
TO PROFIBUS
INVERTER OPTION
PORT #2
INVERTER OPTION
PORT #1
PARAMETER
UNIT PORT
POWER LAMP
ALARM LAMP
Downloaded from ManualsNet.com search engine

INSTALLATION
5
(5) Construct a short cable to connect the network to the inverter. On one
end of the cable, install a connector compatible with the network. On
the other end, install a DB9-style male connector. Make sure the cable
can support 12.0 Mbps communications (as specified in the EEIA-RS-
485 standard). This cables connections are shown in Figure 2-3.
Figure 2-3. Connection Cable
REMARKS
Option unit Pins 6 and 5 supply +5Vdc (rated at 100 mA). Connection of Pins 6
and 5 is optional. Pin 4 may not be required for your master. Connection of Pin 4
is also optional. Refer to the user’s manual of your PROFIBUS-DP master.
CONNECTOR SCREWS
PROFIBUS CONNECTOR
(MALE DB-9 NETWORK DEVICE)
PROFIBUS NETWORK CABLE
(TO NEXT NETWORK DEVICE)
PROFIBUS NETWORK CABLE
(FROM NETWORK)
Downloaded from ManualsNet.com search engine

INSTALLATION
6
NC — No Connection
(6) To terminate the network at theoption unit, install termination resistors
attheterminalblockas shownin Figure2-5.Each PROFIBUSnetwork
has two ends. Units at both of those ends must be properly terminated.
REMARKS
The DB9 pinout described in the table below is defined by the PROFIBUS
Standard DIN-19-245 Part 1.The two data signals are named RXD/TXD+ and
RXD/TXD-. However, manufacturers of RS-485 driver ICs typically refer to
these signals as A and B’. The PROFIBUS signal RXD/TXD+ is typically
assigned to the RS-485 signal A and the RXD/TXD- to B’. Some PROFIBUS-DP
implementations confuse these two signals. If you are having trouble
establishing communications from the FR-A5NP to your PROFIBUS-DP master,
verify that the proper data signal assignments are made. It may be necessary to
swap these two signal lines.
DB-9
Pin A5NP Internal Signal Name PROFIBUS-DP Signal Name Comments
1 NC No Connection
2 NC RP Reserved for Module Power
3 A RxD/TxD+ Receive/Transmit-Data+
4 RTS CNTR+ Control+ (Request to Send)
5 Isolated GND DGND (V-) Data Ground
6Isolated +5Vdc
Supply V+ (+5Vdc) Voltage+
7 NC No Connection
8 B' RxD/TxD- Receive/Transmit-Data-
9 NC RP Reserved for Module Power
Downloaded from ManualsNet.com search engine

INSTALLATION
7

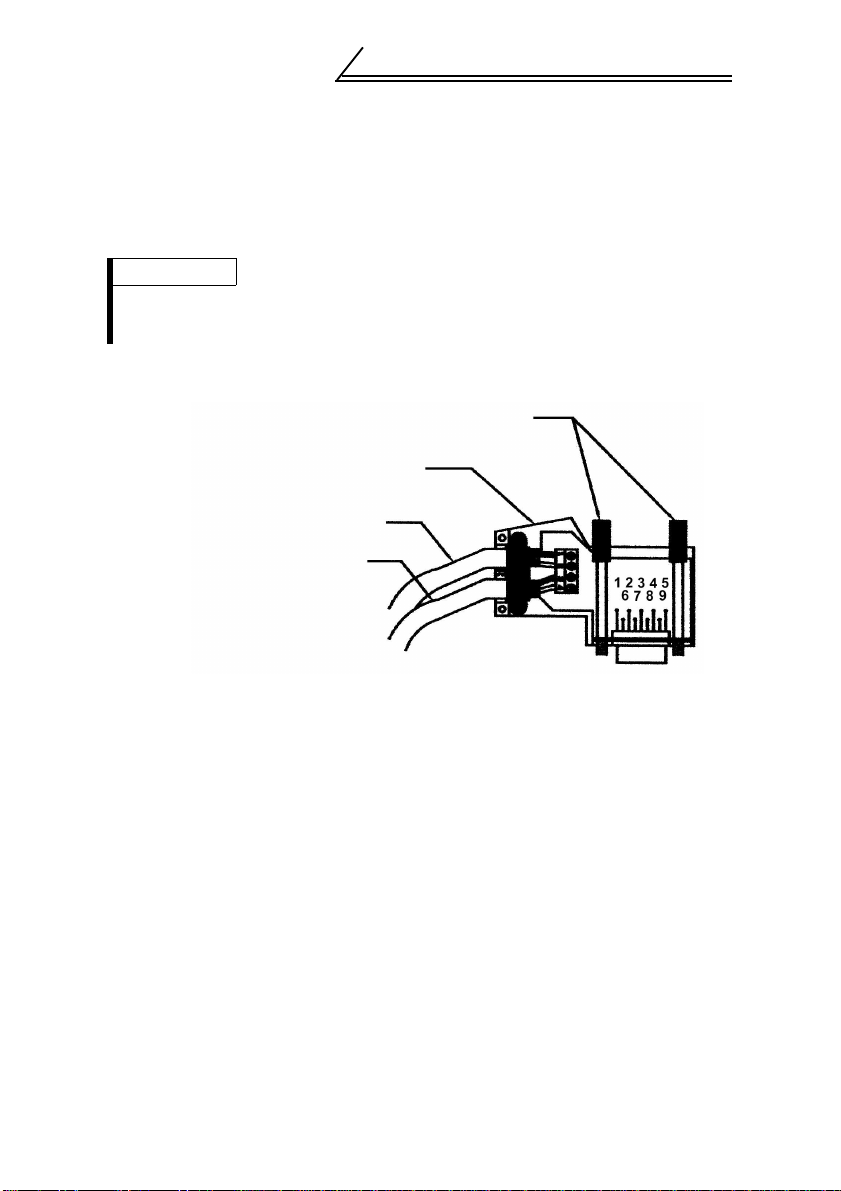

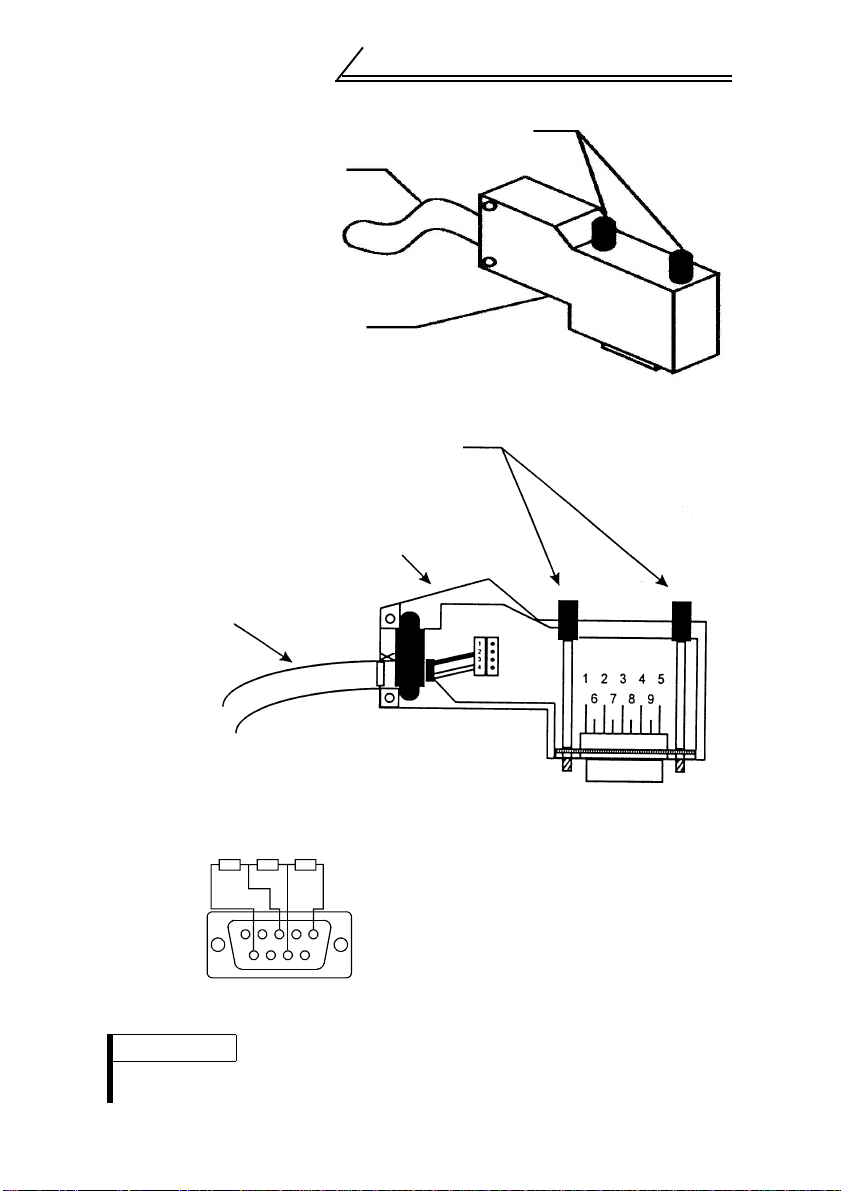

Figure 2-5. Connector with Termination Resistors
Figure 2-6. Connectors with Cover Removed
Figure 2-7. Termination Resistor Connections
R1=390Ω±2% 1/4W
R2=220Ω±2% 1/4W
R3=390Ω±2% 1/4W
REMARKS
The option unit may be connected to a DB-9 connector that has these
termination resistors built in.
CONNECTOR SCREWS
PROFIBUS NETWORK CABLE
(FROM NETWORK)
PROFIBUS CONNECTOR
(MALE DB-9 WITH TERMINATION)
CONNECTOR SCREWS
PROFIBUS CONNECTOR
(MALE DB-9 WITH TERMINATION)
PROFIBUS NETWORK CABLE
(FROM NETWORK (INPUT))
12345
6789
R1 R2 R3
Downloaded from ManualsNet.com search engine

INSTALLATION
8
(7) Remove the option data port insert from the inverter cover.
(8) Set the node address using the two rotary switches on the option unit.
The valid addresses can range from 03 through 7B hex (123 decimal).
The node address mustbe set to the value asconfigured when setting
up your PROFIBUS master. The master must be aware of the node
addresses assigned to the FR-A5NP or communications will not be
established. Refer to user documentation for master details.
SW1 is nearest to the LED and sets the most significant digit. For
example, to set the node address to 7B hex (123 decimal), set SW1 to
7 and SW2 to B.
(9) Replace the inverter cover, while making sure that the PROFIBUS
connector is aligned with the option data port window.
(10) Connect the PROFIBUS cable to the inverter by plugging the DB9-
style male connector into DB9-style female connector of the option
unit, which should be visible in the option port window.
Do NOT set the address from 7C to FF. If you do, the option unit
and inverter will not operate correctly.
CAUTION
Do NOT set more than one station to the same address on a single
PROFIBUS-DP network.
WARNING
Downloaded from ManualsNet.com search engine

INSTALLATION
9
2.3 Connecting To The Network
(1) Make sure the inverter is at rest with power off and the option unit is
mounted in the inverter. Connect the PROFIBUS cable created in
section 2.2 to the network.
(2) It is now safe to apply power to the inverter and run it in PU, external,
or net mode, provided that any external inverter control cables in
addition to the PROFIBUS network cable are installed correctly.
2.4 LED Status Indicator
After connecting the option unit to an active network, note the condition of
the Operating Status Indicator LED. After power-up or reset, the LED can
assume the following states:
2.5 Installing MEAU0865.GSD
All setup, management, or configuration software programs for PROFIBUS-
DP require the use of a Device Data Base (GSD) file MEAU0865.GSD,
please install MEAU0865.GSD properly before using any of the setup,
management, or configuration software programs.
Refer to page 37 for more details.
Green State Of System
Off Module Is Not Powered Or Module Has Not Completed Power- up Sequence Or Module Is NOT In Data Exchange Mode Or
Network Connectivity Is Time-out.
On Module Is Operating Normally, Ready In Data Exchange Mode.
Downloaded from ManualsNet.com search engine

10
3. OPERATION
The operation of the inverter changes slightly when this option unit is
installed. These changes are described in the following paragraphs.
3.1 Operating Modes
In the PU operating mode, the inverter is controlled by a Parameter Unit
(FR-PU04) or operation panel.
In the External operating mode, the inverter is controlled by external
signals connected to the inverters terminal block.
In the Network (computer link) operating mode, the inverter is controlled by
commands from a PROFIBUS master.
3.2 Selecting the Operating Mode
The following table describes the actions required to change the operating
mode. The FR-A5NP option may be used to monitor all data in the inverter
in any operating mode. The inverter must, however, be in "Net Operation"
mode for network control to be enabled. Net Operation mode is active
when Pr.79=0 (factory default “normal mode”) or when Pr.79=6
(“switchover mode”). (For details of Pr. 79, refer to the inverter manual.)
The following conditions must also be met before you can change the
operating mode:
• the inverter is stopped
• the forward and reverse commands are off
PNU 128h (IND=2) allows you to select the Network operating mode on
power-up and after a drive reset.
Once the Network operating mode is started, there must be PROFIBUS
activity at least once every 5s. If the option unit does not sense valid
PROFIBUS activity for 5s or more, it performs an option module alarm
stop, the inverter display unit shows “E.OP3”, and you must reset the
inverter to clear this fault.
Mode Change Action Required
Ext Operation !PU Operation Select the PU operation mode from the operation
panel or press PU key on the parameter unit.
PU Operation !Ext Operation Select the EXT operation mode from the operation
panel or press EXT key on the parameter unit.
Ext Operation !Net Operation PROFIBUS master writes 0014h to PNU 00Bh
(IND=0100h).
Net Operation !Ext Operation PROFIBUS master writes 0010h to PNU 00Bh
(IND=0100h)
Net Operation !PU Operation PROFIBUS master writes 0011h to PNU 00Bh
(IND=0100h)
Downloaded from ManualsNet.com search engine

OPERATION
11
One way to ensure activity is to configure the PROFIBUS master to enable
response monitoring. Alternatively, you can have the PROFIBUS master
issue a null command (Command Word 1 = 0) or any other command.
Refer to Section 5.
3.3 Functions Available in the Operating Modes
The functions available to the drive depend on the operating mode. The
following table indicates the command types available according to the
operating mode:
*1 Depends on value of PNU 126h and 127h.
*2 Inverter cant be reset if a PROFIBUS comm. error occurred.
*3 As set in PNU 4Dh.
*4 While stopped.
3.4 Input From PROFIBUS to Inverter
This option unit supports all Control Input Commands.
The output frequency setting may range from 0 to 400 Hz in increments of
0.01 Hz.
You can reset the inverter by having the PROFIBUS master write a 0000h
to PNU 001h (IND=0100h).
For parameter writing, all standard and special parameters are supported.
Control Type Command Type Net Ext PU
PROFIBUS
Operating Command
Output Freq. Set.
Monitor
Parameter Write
Parameter Read
Inverter Reset
Yes(*1)
Yes(*1)
Yes
Yes(*3)(*4)
Yes
Yes(*2)
No
No
Yes
No(*3)
Yes
No
No
No
Yes
No(*3)
Yes
No
External Terminals Operating Command Output Freq. Set.
Inverter Reset
Yes(*1)
Yes(*1)
Yes
Yes
Yes
Yes
No
No
Yes
Downloaded from ManualsNet.com search engine

OPERATION
12
3.5 Output From Inverter to PROFIBUS
You can monitor the following items:
Availability of monitor depends on the inverter. Refer to the inverter
manual for details.
•Output Frequency
•Output Current
•Output Voltage
•Frequency Setting
•Running Speed (r/min)
•Motor Torque
•Converter Output Voltage
•Regenerative Brake Duty
•Electronic Overcurrent Protection Load Factor
•Output current peak value
•Peak Voltage
•Input Power
•Output Power
•Input Terminal
•Output Terminal
•Load Meter
•Motor Excite Current
•Position Pulse
•Cumulative Energy Time
•Orientation Status
•Actual Operation Time
•Motor Load Factor
•Cumulative Power
Refer to page 21 for more details.
For parameter reading, all standard and special parameters are
supported.
All available parameters are readable all the time, regardless of special
settings that may be needed to read parameters using the PU or other
communications option cards (e.g., PNU 3Dh to 40h and C9h to E6h).
Downloaded from ManualsNet.com search engine

OPERATION
13
3.6 Operation When an Alarm Occurs.
The following table shows the behavior of the inverter and network when
an alarm occurs:
*1 Depends on the type of communication fault.
*2 For examples, E.OP3, E.OC1.
Fault Type Item Net Ext PU
Inverter (*2) Inverter Operation Stop Stop Stop
Network Comm. Continue Continue Continue
PROFIBUS
Comm. Inverter Operation Stop Continue Continue
Network Comm. Continue (*1) Continue (*1) Continue (*1)
PROFIBUS-DP communication routines should check the "
acknowledge bits ( PKE-AK) returned by slave device to verify
successful transmission of the command and acceptance by
slave device. See page 51 for details.
For your safety, the output frequency of the inverter should
always be monitored via Profibus. The actual frequency of the
inverter should match the frequency setting issued by the
master. If the output frequency of the inverter is less than the
frequency (RFR) set by the master, a STOP command has been
issued.
CAUTION
Downloaded from ManualsNet.com search engine

14
4. PROFIBUS DEVICE DATA
The network master’s configuration software uses a device data file to
identify features and functionality of a PROFIBUS-DP device. The file
(named MEAU0865.GSD) is an ASCII file that can be downloaded from
the PROFIBUS International web site or obtained from your sales
representative. (Refer to page 37.) Comments are not included in the
ASCII file itself.
Parameter Value Comments
#Profibus_DP File Header
Vendor_Name = “Mitsubishi Electric
Automation, Inc.” (*3)
Model_Name = “FR-A5NP” Inverter Option FR-A5NP
Ident_Number = 0x0865 = 2149 Decimal
Revision = “Revision #.##” See HW & SW Release
Protocol_Ident = 0 PROFIBUS-DP
Station_Type = 0
FMS_Supp = 0
Hardware_Release = “Series **”
Software Release = “Revision #.##”
9.6_supp = 1 9600 bps supported
19.2_supp = 1 19.2K bps supported
93.75_supp = 1 93.75K bps supported
187.5_supp = 1 187.5K bps supported
500_supp = 1 500K bps supported
1.5M_supp = 1 1.5M bps supported
3M_supp = 1 3M bps supported
6M_supp = 1 6M bps supported
12M_supp = 1 12M bps supported
MaxTsdr_9.6 = 60 60 bit times
MaxTsdr_19.2 = 60 60 bit times
MaxTsdr_93.75 = 60 60 bit times
MaxTsdr_187.5 = 60 60 bit times
MaxTsdr_500 = 100 100 bit times
MaxTsdr_1.5M = 150 150 bit times
MaxTsdr_3M = 250 250 bit times
MaxTsdr_6M = 450 450 bit times
MaxTsdr_12M = 800 800 bit times
Redundancy = 0 No redundancy
Repeater_Ctrl_Sig = 2 Ctrl-P is TTL-Level
24V_Pins = 0 Net 24VDC not connected
Freeze_Mode_supp = 1 Freeze supported
Sync_Mode_supp = 1 Sync mode supported
Downloaded from ManualsNet.com search engine

PROFIBUS DEVICE DATA
15
*1 Some master PLC’s require that Modular_Station=1 &/Min_Slave_Intervall=20.
*2 0x75 = 117: code automatically generated for I/O’s = 6W by COM ET 200.
*3 Some master devices require that vendor_name is at most 10 characters long,
please use “Mitsubishi” in that case.
Auto_Baud_supp = 1 Auto Baud Detect supported
Set_Slave_Add_supp = 0 Set Slave Address not supported
User_Prm_Data_Len = 0 No user parameter data
Min_Slave_Interval = 1
Modular_Station = 0 No Modular unit (*1)
Max_Module = 1 1 ID Byte
Max_Input_Len = 12 12 Input bytes
Max_Output_Len = 12 12 Output bytes
Max_Data_Len = 24 12+12 = 24
Module =“6WordInput/6Word
Output” 0x75 Code=117=0x75 for 6w I/O’s (*2)
EndModule
Parameter Value Comments
Downloaded from ManualsNet.com search engine
