Mitsubishi Electric Q64DAN User manual

Di
g
ital-Analo
g
Converter Module
Mitsubishi
General-Purpose PROGRAMMABLE LOGIC CONTROLLER
User’s Manual
(
Hardware
)
Q62DAN
Q64DAN
Q68DAVN
Q68DAIN
Thank you for purchasing the Mitsubishi general-purpose
programmable logic controller MELSEC-Q Series
Prior to use, please read this manual thoroughly and
familiarize yourself with the product.
MODEL Q-D/A-N-U-H/W
MODEL
CODE 13JP80
IB(NA)-0800321-A(0508)MEE
Mitsubishi Programmable
Logic Controller
2005 MITSUBISHI ELECTRIC CORPORATION

A-1
DANGER
CAUTION
zSAFETY PRECAUTIONS z
(Read these precautions before using.)
When using Mitsubishi equipment, thoroughly read this manual and the
associated manuals introduced in the manual. Also pay careful attention to
safety and handle the module properly.
These precautions apply only to Mitsubishi equipment. Refer to the user’s
manual of the CPU module to use for a description of the PLC system safety
precautions.
These "SAFETY PRECAUTIONS" classify the safety precautions into two
categories: "DANGER" and "CAUTION".
Procedures which may lead to a dangerous condition and
cause death or serious injury, if not carried out properly.
Procedures which may lead to a dangerous condition and
cause superficial to medium injury, or physical damage
only, if not carried out properly.
Depending on circumstances, procedures indicated by CAUTION may also
be linked to serious results.
In any case, it is important to follow the directions for usage.
Store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
[DESIGN PRECAUTIONS]
CAUTION
zDo not bunch the control wires or communication cables with the main
circuit or power wires, or install them close to each other.
They should be installed 100 mm (3.94 inch) or more from each other.
Not doing so could result in noise that may cause malfunction.
zAt power ON/OFF, voltage or current may instantaneously be output from
the output terminal of this module. In such case, wait until the analog
output becomes stable to start controlling the external device.

A-2
[INSTALLATION PRECAUTIONS]
CAUTION
zUse the PLC in an environment that meets the general specifications given
in the User's Manual of the CPU module being used.
Using this PLC in an environment outside the range of the general
specifications may cause electric shock, fire, malfunction, and damage to
or deterioration of the product.
zWhen installing the module, securely insert the module fixing tabs into the
mounting holes of the base unit while pressing the installation lever located
a t the bottom of the module downward.
Improper installation may result in malfunction , breakdown or the module
coming loose and dropping.
Securely fix the module with screws if it is subject to vibration during use.
zTighten the screws within the range of specified torque.
If the screws are loose, it may cause the module to fallout, short circuits, or
malfunction.
If the screws are tightened too much, it may cause damage to the screw
and/or the module, resulting in fallout, short circuits or malfunction.
zBe sure to shut off all phases of the external power supply used by the
system before mounting or removing the module.
Not doing so may cause damage to the module.
zDo not directly touch the conductive area or electronic components of the
module.
Doing so may cause malfunction or failure in the module.
[WIRING PRECAUTIONS]
CAUTION
zAlways ground the FG terminal for the PLC.
There is a risk of electric shock or malfunction.
zWhen turning on the power and operating the module after wiring is
completed, always attach the terminal cover that comes with the product.
There is a risk of electric shock if the terminal cover is not attached.
zTighten the terminal screws within the range of specified torque.
If the terminal screws are loose, it may result in short circuits or
malfunction.
If the terminal screws are tightened too much, it may cause damage to the
screw and/or the module, resulting in short circuits or malfunction.
zBe careful not to let foreign matters such as sawdust or wire chips get
inside the module.
These may cause fires, failure or malfunction.
zThe top surface of the module is covered with protective film to prevent
foreign objects such as cable offcuts from entering the module when wiring.
Do not remove this film until the wiring is complete.
Before operating the system, be sure to remove the film to provide
adequate heat ventilation.

A-3
REVISIONS The manual number is given on the bottom right of the top cover.
Print Date *Manual Number Revision
Aug.,2005 IB(NA)-0800321-A First edition
This manual confers no industrial property rights or any rights of any other kind, nor dose
it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible
for any problems involving industrial property rights which may occur as a result of using
the contents noted in this manual.
2005 MITSUBISHI ELECTRIC CORPORATION

A-4
CONTENTS
SAFETY PRECAUTIONS ..............................................................................A-1
REVISIONS ...................................................................................................A-3
CONTENTS...................................................................................................A-4
About the Manuals.........................................................................................A-4
Conformance to the EMC Directive/Low Voltage Directive.............................A-4
1. OVERVIEW....................................................................................................1
2. SPECIFICATIONS.........................................................................................2
3. PART NAMES................................................................................................4
4. HANDLING PRECAUTIONS..........................................................................6
5. WIRING..........................................................................................................6
5.1 Wiring Precautions....................................................................................6
5.2 External Wiring.........................................................................................7
5.3 Switch setting for intelligent functional module..........................................9
6. EXTERNAL DIMENSIONS...........................................................................11
About the Manuals
The following manuals are related to this product.
Referring to this list, please request the necessary manuals.
Detailed Manual
Manual Name Manual Number
(Model Code)
Digital-Analog Converter Module User's Manual
Q62DAN/Q64DAN/Q68DAVN/Q68DAIN/Q62DA/
Q64DA/Q68DAV/Q68DAI/GX Configurator-DA
(SW2D5C-QDAU-E)
SH-080054
(13JR02)
Conformance to the EMC Directive/Low Voltage Directive
When incorporating the Mitsubishi PLC into other machinery or equipment and
keeping compliance with the EMC and low voltage directives, refer to Chapter
3, "EMC Directives and Low Voltage Directives" of the User's Manual
(Hardware) included with the CPU module or base unit used.
The CE logo is printed on the rating plate on the main body of the PLC that
conforms to the EMC directive and low voltage instruction.
By making this product conform to the EMC directive and low voltage
instruction, it is not necessary to make those steps individually.

1
1. Overview
This manual explains specifications and the names of the components for the
following modules which are used in combination with the MELSEC-Q Series
CPU module.
•the Q62DAN type D/A converter module (hereafter Q62DAN)
•the Q64DAN type D/A converter module (hereafter Q64DAN)
•the Q68DAVN type D/A converter module (hereafter Q68DAVN)
•the Q68DAIN type D/A converter module (hereafter Q68DAIN)
In this manual, the Q62DAN, Q64DAN, Q68DAVN and Q68DAIN are referred to
as D/A converter modules.
After unpacking, confirm that the following products are enclosed.
Model code Product name Quantity
Q62DAN Q62DAN Model Digital-Analog Converter module 1
Q64DAN Q64DAN Model Digital-Analog Converter module 1
Q68DAVN Model Digital-Analog Converter module 1
Q68DAVN FG terminal L-Shaped metal fitting 1
Q68DAIN Model Digital-Analog Converter module 1
Q68DAIN FG terminal L-Shaped metal fitting 1

2
2. Specifications
The specifications for the D/A converter module are shown in the following table.
For general specifications, refer to the operation manual for the CPU module
being used.
Model name
Item Q62DAN Q64DAN Q68DAVN Q68DAIN
Number of analog output
points 2 points (2 channels) 4 points (4 channels) 8 points (8 channels)
Digital input 16-bit signed binary (normal resolution mode: -4096 to 4095,
high resolution mode: -12288 to 12287, -16384 to 16383)
Voltage –10 to 10 V DC (External load resistance
value: 1 k to 1M )—
Analog output Current 0 to 20 mA DC
(External load resistance
value: 0 to 600 )—
0 to 20 mA DC
(External load
resistance value:
0to 600 )
Normal resolution
mode High resolution mode
Analog output
range Digital
input
value
Maximum
resolution
Digital
input
value
Maximum
resolution
0 to 5V 1.25 mV 0.416
mV
1 to 5V
0 to
4000 1.0 mV
0 to
12000 0.333
mV
-10 to
10V 2.5 mV -16000
to
16000
0.625
mV
Voltage
User
range
setting
-4000
to
4000 0.75 mV -12000
to
12000
0.333
mV
0 to
20 mA 5 A 1.66 A
4 to
20 mA
0 to
4000 4 A
0 to
12000 1.33 A
Current User
range
setting
-4000
to
4000 1.5 A-12000
to
12000 0.83 A
I/O characteristics,
Maximum resolution
Ambient
temperature
25 ± 5 °C Within ± 0.1 % (Voltage: ±10 mV, Current: ± 20 A)
Accuracy
(Accuracy in
respect to
maximum
analog
output value)
Ambient
temperature
0 to 55 °C Within ± 0.3 % (Voltage: ± 30 mV, Current: ± 60 A)
Conversion speed 80 s/channel
Voltage ± 12 V —
Absolute
maximum output Current 21 mA — 21 mA
E2PROM write count Max. 100 thousand times
Output short circuit
protection Available

3
Model name
Item Q62DAN Q64DAN Q68DAVN Q68DAIN
Insulation method Between the I/O terminal and PLC power supply :
Between output channels :
Between external supply power and analog output :
Photocoupler isolation
No isolation
Transformer isolation
Dielectric withstand
voltage Between the I/O terminal and PLC power supply : Between external supply power and analog output :500VAC for 1 minute 500VAC for 1 minute
Insulation resistance Between the I/O terminal and PLC power supply :
Between external supply power and analog output :500VDC 20M or more
500VDC 20M or more
I/O occupied points 16 points (I/O assignment: Intelligent 16 points)
Connected terminals 18-points terminal block
Applicable wire size 0.3 to 0.75 mm2
Applicable solderless
terminal
R1.25-3
(A solderless terminal with sleeve
cannot be used)
FG terminal:
R1.25-3, 1.25-YS3, RAV1.25-3,
V1.25-YS3A
Other terminals than FG:
R1.25-3 (A solderless terminal
with sleeve cannot be used)
24 V DC + 20 %, – 15 %
Ripple, spike 500 mV P-P or less
Inrush current:
2.5 A,
within 250 s
Inrush current:
2.5 A,
within 260 s
Inrush current:
2.5 A,
within 230 s
Inrush current:
2.5 A,
within 230 s
External supply power
0.15 A 0.24 A 0.20 A 0.27 A
Internal current
consumption (5 V DC) 0.33 A 0.34 A 0.38 A 0.38 A
Weight 0.19 kg 0.20 kg 0.20 kg 0.20 kg

4

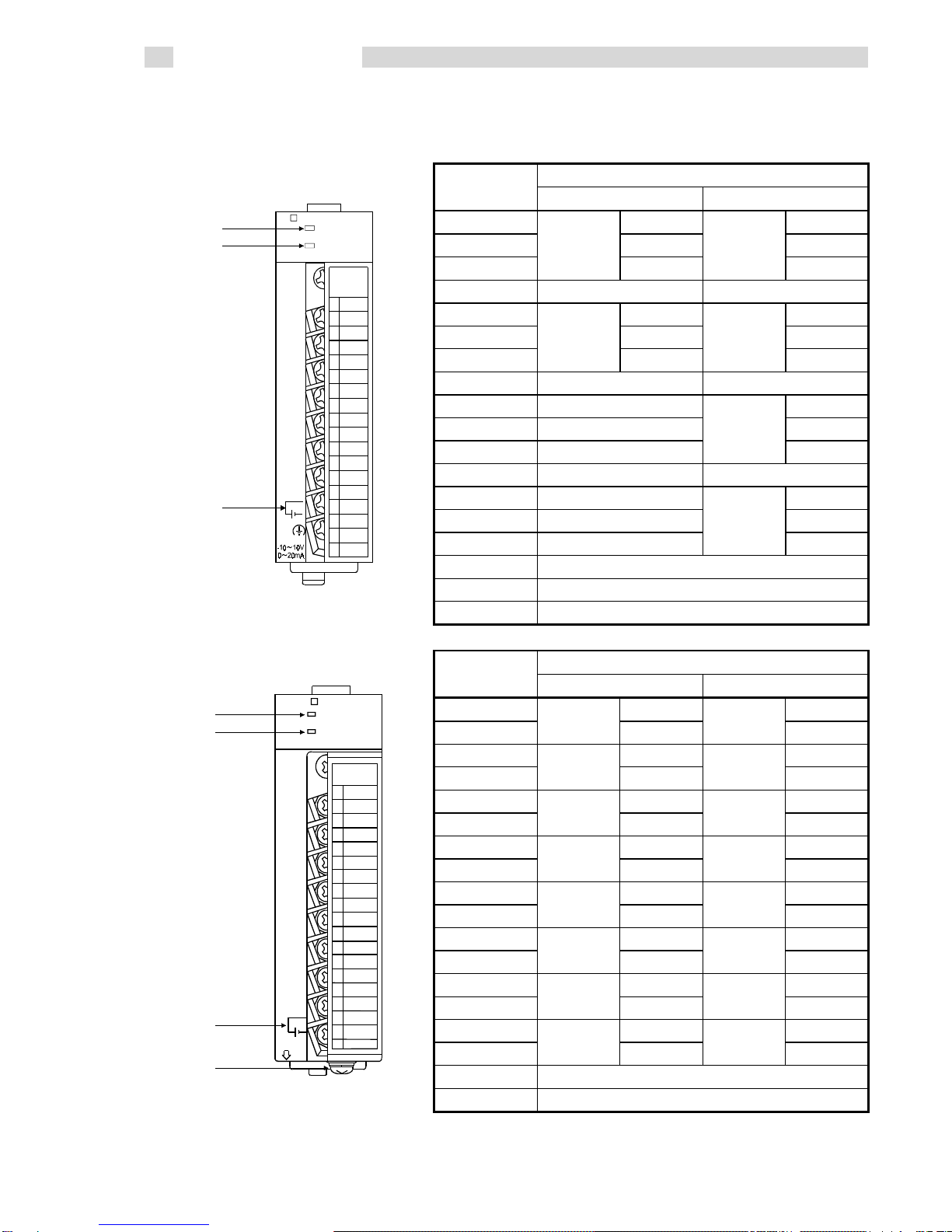

3. Part Names
This section explains the names of the components for the D/A conversion
module.
Signal name
Terminal
number Q62DAN Q64DAN
1V+V+
2COMCOM
3CH1 I+ CH1 I+
4 Vacant Vacant
5V+V+
6COMCOM
7CH2 I+ CH2 I+
8 Vacant Vacant
9 Vacant V+
10 Vacant COM
11 Vacant CH3 I+
12 Vacant Vacant
13 Vacant V+
14 Vacant COM
15 Vacant CH4 I+
16 24 V
17 24 G
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
IN 24VDC
(FG)
D/A
16
17
1) RUN
ERROR
Q6 DAN
2)
3)
18 FG
Signal name
Terminal
number Q68DAVN Q68DAIN
1V+I+
2CH1 COM CH1 COM
3V+I+
4CH2 COM CH2 COM
5V+I+
6CH3 COM CH3 COM
7V+I+
8CH4 COM CH4 COM
9V+I+
10 CH5 COM CH5 COM
11 V+ I+
12 CH6 COM CH6 COM
13 V+ I+
14 CH7 COM CH7 COM
15 V+ I+
16 CH8 COM CH8 COM
17 24 V
1)
2)
3)
Q68DA RUN
ERROR
IN 24VDC
FG
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
4)
N
18 24 G

5
Number Name Description
1) RUN LED Displays the operating status of the D/A
converter module.
On : Normal operation
Flashing: During offset/gain setting mode
Off : 5V power supply interrupted or
watch dog timer error
2) ERROR LED Displays the error status of the D/A converter
module.
On : Error
Off : Normal operation
Flashing: Error in switch settings
Switch No. 5 of the intelligent
function module has been set to a
value other than "0".
3) External power
supply terminal This is the terminal for connecting the 24 V DC external power supply.
4) FG terminal Terminal for frame ground

6
4. Handling Precautions
(1) Do not drop the module or cause it to receive strong impact.
(2) Tighten the terminal screws for the module to the specified torque shown
below.
Insufficient tightening torque could result in shorts, failures or malfunction.
Screw location Tightening torque
Module mounting screw (M3 screw) 0.36 to 0.48 N·m
Terminal block terminal screw (M3 screw) 0.42 to 0.58 N·m
Terminal block mounting screw (M3.5 screw) 0.66 to 0.89 N·m
FG terminal screw (M3 screw) * 0.42 to 0.58 N·m
* Q68DAVN, Q68DAIN only
5. Wiring
5.1 Wiring precautions
In order to optimize the functions of the D/A converter module and ensure
system reliability, external wiring that is protected from noise is required.
Please observe the following precautions for external wiring:
(1) Use separate cables for the AC control circuit and the external input
signals of the D/A converter module to avoid the influence of the AC side
surges and inductions.
(2) Do not mount the cables close to or bundle them with the main circuit line,
a high-voltage cable or a load cable from other than the PLC. This may
increase the effects of noise, surges and induction.
(3) Perform a one-point grounding for shielded lines and the shields of sealed
cables.
(4) A solderless terminal with insulating sleeve cannot be used for the
terminal block. Covering the cable- connection portion of the solderless
terminal with a marked tube or an insulation tube is recommended.
Point
When using Q68DAVN or Q68DAIN, If it is difficult to wire FG terminals due
to the limited installation space, use FG terminal L-shaped metal fitting.

7
5.2 External wiring
(1) For Q62DAN and Q64DAN
(a) For voltage output
1 kΩ
1 MΩ
D/A
conversion V+
COM
*1 *2 Motor drive module, etc.
GND
+24 V
A.G
+15 V
--15V
A.G
DC/DC
converter
24V
24G
FG
24 V DC
Filter
to
(b) For current output
0Ω
600Ω
D/A
conversion I+
COM
*1 *2 Motor drive module, etc.
GND
+24V
A.G
+15V
–15V
A.G
DC/DC
converter
24V
24G
FG
24 V DC
Filter
to
*1 Use a twisted two core shielded wire for the power wire.
*2 If there is noise or ripples in the external wiring, connect a 0.1 to
0.47 F25V condenser between the V+/I+ terminal and COM.

8
(2) For Q68DAVN
1 kΩ
1 MΩ
D/A
conversion V+
COM
*1 *2 Motor drive module, etc.
GND
+24 V
A.G
+15 V
--15 V
A.G
DC/DC
converter
24V
24G
FG
24 V DC
Filter
to
(3) For Q68DAIN
0Ω
600Ω
D/A
conversion I+
COM
*1 *2 Motor drive module, etc.
GND
+24V
A.G
+15V
–15V
A.G
DC/DC
converter
24V
24G
FG
24 V DC
Filter
to
*1 Use a twisted two core shielded wire for the power wire.
*2 If there is noise or ripples in the external wiring, connect a 0.1 to
0.47 F25V condenser between the V+/I+ terminal and COM.

9
5.3 Switch setting for intelligent functional module
The settings for the intelligent function module are performed using the I/O
allocation settings for the GX Developer. When the intelligent function module
switches are not set, the default value for switches 1 to 5 is 0.
Setting item
Analog output range Output range
setting value
4 to 20 mA 0H*1
Switch 1
Output range setting
(CH1 to CH4)
H
CH4CH3CH2CH1 0 to 20 mA 1H
1 to 5 V 2H
0 to 5 V 3H
– 10 to 10 V 4H
User range setting FH
Switch 2
Output range setting
(CH5 to CH8)
H
CH8CH7CH6CH5
For Q62DAN and Q64DAN
H
CH4CH3CH2CH1
HOLD/CLEAR function setting
0H: CLEAR
1 to FH
(numeric value other than 0H)*
: HOLD
Switch 3 For Q68DAVN and Q68DAIN
CH8CH7CH6CH5CH4CH3CH2CH1
b7 b6 b5 b4 b3 b2 b1 b0b8
0
b15
0to
HOLD/CLEAR function setting
0 : CLEAR
1 : HOLD
Switch 4
H
00H
01 to FFH(numeric
value other than 00H)*
: Normal mode (non-synchronized)
: Synchronized output mode
0H
1 to FH(numeric
value other than 0H)*
: Normal mode (D/A conversion processing)
: Offset/gain setting mode
0H
1 to FH(numeric
value other than 0H)*
: Normal resolution mode
: High resolution mode
Switch 5 0 : Fixed
* Setting any value within the setting range will provide the same operation.
When the setting range is 1 to FH, set 1 for example.

10
Point
(1) Depending on the type of module used, the settings for D/A module
output range are shown below.
• Q62DAN, Q64DAN .... 0Hto 4H, FH
• Q68DAVN.................. 0H, 2Hto 4H, FH
1:When the setting is 0H, the output operating
range swill be 1 to 5 V.
• Q68DAIN.................... 0H, 1H, FH
(2) For Q62DAN and Q64DAN, leave the switch2 vacant.
(3) For Q68DAVN and Q68DAIN, the switch 3 will set in binary.
Setting will be easy if the input format is changed to binary number.
Example) For setting CH3, CH5 and CH8 to HOLD.
Input format Binary Hexadecimal
Setting value 10010100 94 H
(4) If the offset/gain setting mode is set using intelligent function module
switch 4, other settings by switch 4 (settings for resolution mode and
synchronous output mode) will be ignored.
(5) Perform the offset/gain settings after checking the RUN LED flashes in
offset/gain setting mode. If the RUN LED does not flash, check to see if
the switch 4 setting is correct.
(6) Since the analog output value will differ considerably, depending on the
resolution mode setting, thoroughly check the settings for the intelligent
function module switches before performing the analog output
processing.
Example) Analog output value when the setting range is -10 to 10V and
the digital input value is set to 4000.
High resolution
mode Normal resolution mode
Analog output value About 2.5 V About 10.0 V

11
6. External Dimensions
(1) Q62DAN
90 (3.54)
98 (3.86)
ERROR
RUN
Q62DAN
27.4 (1.08)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
112 (4.41)
Unit: mm (in.)
(2) Q64DAN
90 (3.54)
98 (3.86)
ERROR
RUN
Q64DAN
27.4 (1.08)112 (4.41)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Unit: mm (in.)

12
(3) Q68DAVN
ERROR
RUN
Q68DAVN
90 (3.54)
98 (3.86)
63 (2.48)
9.5
112 (4.41)
71.5 (2.81)
27.4 (1.08)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
M3 screw (accessory) M3 screw (accessory)
FG terminal L-Shaped metal fitting
(accessory)
(0.37)
Unit: mm (in.)
(4) Q68DAIN
90 (3.54)
98 (3.86)
9.5
112 (4.41) 27.4 (1.08)
FG
ERROR
RUN
Q68DAIN
C
H
8
C
H
7
C
H
6
C
H
5
C
H
4
C
H
3
C
H
2
I+
COM
I+
COM
I+
COM
I+
COM
I+
I+
COM
COM
C
H
1
COM
I+
I+
COM
IN 24VDC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
M3 screw (accessory) M3 screw (accessory)
63 (2.48)
71.5 (2.81)
FG terminal L-Shaped metal fitting
(accessory)
(0.37)
Unit: mm (in.)

Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be the cause of
Mitsubishi; machine damage or lost profits caused by faults in the Mitsubishi products;
damage, secondary damage, accident compensation caused by special factors
unpredictable by Mitsubishi; damages to products other than Mitsubishi products; and to
other duties.
For safe use
yThis product has been manufactured as a general-purpose part for general industries, and
has not been designed or manufactured to be incorporated in a device or system used in
purposes related to human life.
yBefore using the product for special purposes such as nuclear power, electric power,
aerospace, medicine or passenger movement vehicles, consult with Mitsubishi.
yThis product has been manufactured under strict quality control. However, when installing
the product where major accidents or losses could occur if the product fails, install
appropriate backup or failsafe functions in the system.
U.S.A Mitsubishi Electric Automation Inc.
500 Corporate Woods Parkway Vernon
Hills, IL 60061
Tel : [phone]
Brazil MELCO-TEC Rep. Com.e Assessoria
Tecnica Ltda.
Rua Correia Dias, 184,
Edificio Paraiso Trade Center-8 andar
Paraiso, Sao Paulo, SP Brazil
Tel : [phone]
Germany Mitsubishi Electric Europe B.V. German
Branch
Gothaer Strasse 8 D-40880 Ratingen,
GERMANY
Tel : [phone]
U.K Mitsubishi Electric Europe B.V. UK
Branch
Travellers Lane, Hatfield, Herts., AL10
8XB,UK
Tel : [phone]
Italy Mitsubishi Electric Europe B.V. Italian
Branch
Centro Dir. Colleoni, Pal. Perseo-Ingr.2
Via Paracelso 12, 20041 Agrate B.,
Milano, Italy
Tel : [phone]
Spain Mitsubishi Electric Europe B.V. Spanish
Branch
Carretera de Rubi 76-80
08190 Sant Cugat del Valles,
Barcelona, Spain
Tel : [phone]
France Mitsubishi Electric Europe B.V. French
Branch
25 Boulevard des Bouvets, F-92741
Nanterre Cedex, France
TEL: [phone]
South Africa Circuit Breaker Industries LTD.
Tripswitch Drive, Elandsfontein Gauteng,
South Africa
Tel : [phone]
Hong Kong Ryoden Automation Ltd.
10th Floor, Manulife Tower, 169 Electric
Road, North Point, HongKong
Tel : [phone]
China Ryoden Automation Shanghai Ltd.
3F Block5 Building Automation
Instrumentation Plaza 103 Cao Bao Rd.
Shanghai 200233 China
Tel : [phone]
Taiwan Setsuyo Enterprise Co., Ltd.
6F., No.105 Wu-Kung 3rd.RD, Wu-Ku
Hsiang, Taipei Hsine, Taiwan
Tel : [phone]
Korea HAN NEUNG TECHNO CO.,LTD.
1F Dong Seo Game Channel Bldg.,
660-11, Deungchon-dong Kangsec-ku,
Seoul, Korea
Tel : [phone]
Singapore Mitsubishi Electric Asia Pte, Ltd.
307 Alexandra Road #05-01/02,
Mitsubishi Electric Building
Singapore 159943
Tel : [phone]
Thailand F. A. Tech Co.,Ltd.
898/28,29,30 S.V.City Building,Office
Tower 2,Floor 17-18 Rama 3 Road,
Bangkpongpang, Yannawa,
Bangkok 10120
Tel : [phone]
Indonesia P.T. Autoteknindo SUMBER MAKMUR
Jl. Muara Karang Selatan Block a Utara
No.1 Kav. No.11 Kawasan Industri/
Pergudangan Jakarta - Utara 14440
Tel : [phone]
India Messung Systems Put,Ltd.
Electronic Sadan NO:111 Unit No15,
M.I.D.C BHOSARI,PUNE-411026, India
Tel : [phone]
Australia Mitsubishi Electric Australia Pty. Ltd.
348 Victoria Road, PostalBag, No 2,
Rydalmere, N.S.W 2116, Australia
Tel : [phone]
Country/Region Sales office/Tel
When exported from Japan, this manual does not require application to the Ministry
of Economy, Trade and Industry for service transaction permission.
Specifications subject to change without notice.
Printed in Ja
p
an on rec
y
cled
p
a
p
er.
HEAD OFFICE : 1-8-12, OFFICE TOWER Z 14F HARUMI CHUO-KU 104-6212, JAPAN
NAGOYA WORKS : 1-14, YADA-MINAMI 5-CHOME, HIGASHI-KU, NAGOYA, JAPAN
Country/Region Sales office/Tel
