Mitsubishi Electric MELSEC AJ65SBT-64AD User manual

Analog-Digital
Converter Module
User’s Manual
(Hardware)
AJ65SBT-64AD
Thank you for buying the programmable controller MELSEC Series
Prior to use, please read both this manual and detailed manual
thoroughly and familiarize yourself with the product.
MODEL AJ65S-64AD-U-H-JE
MODEL
CODE 13JT09
IB(NA)-0800138-K(2102)MEE
2000 MITSUBISHI ELECTRIC CORPORATION

A
-1
SAFETY PRECAUTIONS 
(Read these precautions before using this product.)
Before using this product, please read this manual and the relevant manuals
carefully and pay full attention to safety to handle the product correctly.
These precautions apply only to this equipment.
Refer to the user’s manual of the CPU module to use for a description of the
programmable controller system safety precautions.
In this manual, the safety precautions are classified into two levels:
" WARNING" and " CAUTION".
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in minor or moderate injury or
property damage.
Under some circumstances, failure to observe the precautions given under "
CAUTION" may lead to serious consequences.
Observe the precautions of both levels because they are important for personal
and system safety.
Make sure that the end users read this manual and then keep the manual in a
safe place for future reference.
[Design Precautions]
WARNING
In the case of a communication failure in the network, data in the master
module are held.
Check the communication status information (SB, SW) and configure an
interlock circuit in the sequence program to ensure that the entire system will
operate safely.
CAUTION
Do not install the control lines or communication cables together with the
main circuit lines or power cables.
Keep a distance of 100mm or more between them.
Failure to do so may result in malfunction due to noise.
WARNING
CAUTION

A
-2
[Installation Precautions]
CAUTION
Use the programmable controller in an environment that meets the general
specifications in this manual.
Failure to do so may result in electric shock, fire, malfunction, or damage to
or deterioration of the product.
For protection of the switches, do not remove the cushioning material before
installation.
Securely fix the module with a DIN rail or mounting screws.
Tighten the screws within the specified torque range.
Undertightening can cause drop of the screw, short circuit or malfunction.
Overtightening can damage the screw and/or module, resulting in drop, short
circuit, or malfunction.
Do not directly touch any conductive part of the module.
Doing so can cause malfunction or failure of the module.
[Wiring Precautions]
CAUTION
Shut off the external power supply for the system in all phases before wiring.
Failure to do so may result in damage to the product.
Ground the FG and FG1 terminals to the protective ground conductor
dedicated to the programmable controller.
Failure to do so may result in malfunction.
Tighten any unused terminal screws within the specified torque range (0.42
to 0.50Nm).
Failure to do so may cause a short circuit due to contact with a solderless
terminal.
Use applicable solderless terminals and tighten them within the specified
torque range.
If any spade solderless terminal is used, it may be disconnected when the
terminal screw comes loose, resulting in failure.
Check the rated voltage and terminal layout before wiring to the module, and
connect the cables correctly.
Connecting a power supply with a different voltage rating or incorrect wiring
may cause a fire or failure.
Tighten the terminal screw within the specified torque range.
Undertightening can cause short circuit or malfunction.
Overtightening can damage the screw and/or module, resulting in drop, short
circuit, or malfunction.
Prevent foreign matter such as dust or wire chips from entering the module.
Such foreign matter can cause a fire, failure, or malfunction.

A
-3
[Wiring Precautions]
CAUTION
Place the cables in a duct or clamp them.
If not, dangling cable may swing or inadvertently be pulled, resulting in
damage to the module or cables or malfunction due to poor contact.
Do not install the control lines or communication cables together with the
main circuit lines or power cables. Failure to do so may result in malfunction
due to noise.
When disconnecting the cable from the module, do not pull the cable by the
cable part. Loosen the screws of connector before disconnecting the cable.
Failure to do so may result in damage to the module or cable or malfunction
due to poor contact.
[Startup and Maintenance Precautions]
CAUTION
Do not touch any terminal while power is on. Doing so may cause
malfunction.
Shut off the external power supply for the system in all phases before
cleaning the module or retightening the terminal screws.
Failure to do so may cause the module to fail or malfunction.
Undertightening the terminal screws can cause short circuit or malfunction.
Overtightening can damage the screw and/or module, resulting in drop, short
circuit, or malfunction.
Do not disassemble or modify the modules.
Doing so may cause failure, malfunction, injury, or a fire.
Do not drop or apply strong shock to the module.
Doing so may damage the module.
Shut off the external power supply for the system in all phases before
mounting or removing the module to or from the panel.
Failure to do so may cause the module to fail or malfunction.
After the first use of the product, do not mount/remove the terminal block
to/from the module more than 50 times. (IEC 61131-2 compliant)
Before handling the module, touch a grounded metal object to discharge the
static electricity from the human body.
Failure to do so may cause the module to fail or malfunction.
[Disposal Precautions]
CAUTION
When disposing of this product, treat it as industrial waste.

A
-4
PRÉCAUTIONS DE SÉCURITÉ 
(Lire ces précautions avant toute utilisation du produit.)
Avant d'utiliser ce produit, lire attentivement ce manuel ainsi que les manuels
auxquels il renvoie, et toujours considérer la sécurité comme de la plus haute
importance en manipulant le produit correctement.
Ces précautions ne concernent que cet équipement.
Dans le manuel de l'utilisateur du module CPU correspondant, voir l'exposé des
précautions de sécurité concernant le système de l'automate programmable.
Dans ce manuel, les instructions de sécurité sont classées
" AVERTISSEMENT" ou " ATTENTION".
Attire l'attention sur le fait qu'une négligence
peut créer une situation de danger avec risque
de mort ou de blessures graves.
Attire l'attention sur le fait qu'une négligence
peut créer une situation de danger avec risque
de blessures légères ou de gravité moyennes ou
risque de dégâts matériels.
Dans certaines circonstances, le non-respect d'une précaution de sécurité
introduite sous le titre " ATTENTION"peut avoir des conséquences graves.
Les précautions de ces deux niveaux doivent être observées dans leur intégralité
car elles ont trait à la sécurité des personnes et aussi du système.
Veiller à ce que les utilisateurs finaux lisent ce manuel qui doit être conservé
soigneusement à portée de main pour s'y référer autant que de besoin.
[Précautions lors de la conception]
AVERTISSEMENT
En cas de problème de communication dans le réseau, les données sont
gardées en mémoire du module maître.
Vérifier les infos d'état de communication (SB, SW) et constituer un circuit
de verrouillage dans le programme séquentiel pour garantir la sécurité de
fonctionnement de l'ensemble du système.
ATTENTION
Ne pas entremêler les lignes de commandes ou câbles de communication
avec les lignes des circuits principaux ou les câbles d'alimentation.
Les installer en maintenant entre eux une distance minimum de 100mm
(3,94 pouces).
Faute de quoi, il y a risque de dysfonctionnement par un bruit.
AVERTISSEMENT
ATTENTION

A
-5
[Précautions d'installation]
ATTENTION
Utiliser l'automate programmable dans un environnement en conformité
avec les spécifications générales que présente ce manuel.
Faute de quoi, il a risque d'électrocution, de départ de feu, de
dysfonctionnement, d'endommagement ou de détérioration du produit.
Pour la protection des commutateurs, ne pas enlever le matériau de
rembourrage avant l'installation.
Fixer fermement le module avec un rail DIN ou avec des vis.
Serrer les vis dans les limites du couple de serrage prescrit.
Si les vis sont insuffisamment serrées, le module risque de tomber et il peut
y avoir des court-circuits ou des dysfonctionnements.
Un serrage excessif risque d'endommager la vis et/ou le module et peut être
à l'origine d'une chute, d'un court-circuit ou d'un dysfonctionnement.
Éviter tout contact direct avec les parties conductrices du module.
Une manipulation incorrecte peut être à l'origine de dysfonctionnements ou
de pannes du module.
[Pécautions de câblage]
ATTENTION
Couper l'alimentation externe du système sur toutes les phases avant de
commencer à câbler.
Faute quoi, le produit risquerait d'être endommagé.
Toujours mettre à la masse la borne FG sur le conducteur de protection de
terre.
Faute de quoi, cela peut entraîner un dysfonctionnement.
Serrer les vis des bornes inutilisées dans les limites du couple de serrage
prescrit (0,42 à 0,50N•m).
Faute de quoi, il y a risque de court-circuit par contact avec une borne sans
soudure.
Utiliser des bornes sans soudure de type approprié et serrer au couple de
serrage prescrit.
Si on utilise des bornes sans soudure de type embrochable, il y a risque de
déconnexion et de panne au cas où une vis de borne se desserrerait.
Vérifier la tension nominale et l'affectation des bornes avant le câblage du
module et raccorder les câbles correctement.
Le raccordement d'une alimentation d'une tension autre que la tension
nominale ou une erreur de câblage peut être à l'origine d'un départ de feu
ou d'une panne.

A
-6
[Pécautions de câblage]
ATTENTION
Serrer les vis de borne dans les limites du couple de serrage prescrit.
Un serrage insuffisant peut être à l'origine d'un court-circuit ou de
disfonctionnements.
Un serrage excessif risque d'endommager la vis et/ou le module et peut être
à l'origine d'une chute, d'un court-circuit ou d'un dysfonctionnement.
Veiller à ne pas laisser la poussière, les copeaux métalliques ou d'autres
corps étrangers pénétrer dans le module.
De telles corps étrangers peuvent être à l'origine d'un départ de feu, d'une
panne ou d'un dysfonctionnement.
Les câbles doivent être placés dans un conduit de câbles ou doivent être
attachés.
Faute de quoi, le ballottement ou le déplacement des câbles pourrait
endommager le module ou les câbles et être à l'origine de
dysfonctionnements par mauvais contact.
Ne pas entremêler les lignes de commandes ou câbles de communication
avec les lignes des circuits principaux ou les câbles d'alimentation. Faute
de quoi, il y a risque de dysfonctionnement par un bruit.
Pour débrancher le câble du module, ne tirer directement sur le câble
proprement dit. Desserrer les vis du connecteur avant de débrancher le
câble.
Faute de quoi, il y a risque d'endommagement du module ou du câble ou
un mauvais contact pourrait être à l'origine de dysfonctionnements.

A
-7
[PRÉCAUTIONS DE MISE EN SERVICE ET DE MAINTENANCE]
ATTENTION
Ne toucher à aucun des bornes quand le système est sous tension. Cela
pourrait être à l'origine de dysfonctionnements.

A
vant de nettoyer le module ou de resserrer les vis de borne, couper
l'alimentation externe du système sur toutes les phases.
Le non-respect de cette précaution peut être à l'origine de pannes ou de
dysfonctionnements du module.
Un serrage insuffisant des vis de bornes peut être à l'origine d'un court-circuit
ou de dysfonctionnement.
Un serrage excessif peut endommager les vis et/ou le module, avec aussi
un risque de chute, de court-circuits et de dysfonctionnements.
Ne pas démonter ni modifier les modules.
Cela pourrait entraîner des pannes ou dysfonctionnements et être à l'origine
de blessures ou de départs de feu.
Ne pas faire tomber le module et ne pas le soumettre à des chocs.
Cela risquerait d'endommager le module.

A
vant d'installer ou retirer le module du tableau, couper l'alimentation externe
du système sur toutes les phases.
Le non-respect de cette précaution peut être à l'origine de pannes ou de
dysfonctionnements du module.

A
près la première utilisation du produit, le nombre maximum admissible
d'opérations de pose/retrait du bornier sur le module est de 50. (selon IEC
61131-2)

A
vant de manipuler un module, se débarrasser de la charge électrostatique
qu'accumule le corps humain en touchant un objet métallique raccordé à la
terre.
Le non-respect de cette précaution peut être à l'origine de pannes ou de
dysfonctionnements du module.
[PRÉCAUTIONS DE MISE AU REBUT]
ATTENTION
Lors de sa mise au rebut, ce produit doit être traité comme un déchet
industriel.

A
-8
CONDITIONS OF USE FOR THE PRODUCT 
(1) Mitsubishi programmable controller ("the PRODUCT") shall be used in
conditions;
i) where any problem, fault or failure occurring in the PRODUCT, if any, shall
not lead to any major or serious accident; and
ii) where the backup and fail-safe function are systematically or automatically
provided outside of the PRODUCT for the case of any problem, fault or failure
occurring in the PRODUCT.
(2) The PRODUCT has been designed and manufactured for the purpose of
being used in general industries.
MITSUBISHI SHALL HAVE NO RESPONSIBILITY OR LIABILITY
(INCLUDING, BUT NOT LIMITED TO ANY AND ALL RESPONSIBILITY OR
LIABILITY BASED ON CONTRACT, WARRANTY, TORT, PRODUCT
LIABILITY) FOR ANY INJURY OR DEATH TO PERSONS OR LOSS OR
DAMAGE TO PROPERTY CAUSED BY the PRODUCT THAT ARE
OPERATED OR USED IN APPLICATION NOT INTENDED OR EXCLUDED
BY INSTRUCTIONS, PRECAUTIONS, OR WARNING CONTAINED IN
MITSUBISHI'S USER, INSTRUCTION AND/OR SAFETY MANUALS,
TECHNICAL BULLETINS AND GUIDELINES FOR the PRODUCT.
("Prohibited Application")
Prohibited Applications include, but not limited to, the use of the PRODUCT
in;
Nuclear Power Plants and any other power plants operated by Power
companies, and/or any other cases in which the public could be affected
if any problem or fault occurs in the PRODUCT.
Railway companies or Public service purposes, and/or any other cases in
which establishment of a special quality assurance system is required by
the Purchaser or End User.
Aircraft or Aerospace, Medical applications, Train equipment, transport
equipment such as Elevator and Escalator, Incineration and Fuel devices,
Vehicles, Manned transportation, Equipment for Recreation and
Amusement, and Safety devices, handling of Nuclear or Hazardous
Materials or Chemicals, Mining and Drilling, and/or other applications
where there is a significant risk of injury to the public or property.
Notwithstanding the above, restrictions Mitsubishi may in its sole discretion,
authorize use of the PRODUCT in one or more of the Prohibited Applications,
provided that the usage of the PRODUCT is limited only for the specific
applications agreed to by Mitsubishi and provided further that no special quality
assurance or fail-safe, redundant or other safety features which exceed the
general specifications of the PRODUCTs are required. For details, please contact
the Mitsubishi representative in your region.

A
-9
REVISIONS
*The manual number is given on the bottom right of the cover.
Print Date *Manual Numbe
r
Revision
Sep., 2000 IB(NA)-0800138-
A
First printing
July, 2002 IB(NA)-0800138-B
Partial correction
Contact address (Back cover)
Mar., 2005 IB(NA)-0800138-C
Addition
Section 2.3
Correction
SAFETY PRECAUTIONS, Conformation
to the EMC Directive and Low Voltage
Instruction, Chapter 1, Section 2.1, 2.2,
5.2, Chapter 7
Mar., 2006 IB(NA)-0800138-D
Partial correction
Section 2.3
Sep., 2006 IB(NA)-0800138-E
Partial correction
SAFETY PRECAUTIONS, Chapter 3,
Chapter 7
Dec., 2006 IB(NA)-0800138-F
Partial correction
Chapter 6
Oct., 2008 IB(NA)-0800138-G
Partial correction
SAFETY PRECAUTIONS, Compliance
with the EMC and Low Voltage Directives
Section 2.1, 2.2, 4.1, 6.1
Deletion
Section 5.1
Sep., 2010 IB(NA)-0800138-H
Addition
CONDITIONS OF USE FOR THE
PRODUCT
Partial correction
SAFETY PRECAUTIONS, Section 2.1,
2.2, 2.3, 4.1, 5.1, 6.2, Back cove
r

A
-10
Print Date *Manual Numbe
r
Revision
Dec., 2011 IB(NA)-0800138-I
Addition
SAFETY PRECAUTIONS(Chinese)
Partial correction
COMPLIANCE WITH EMC AND LOW
VOLTAGE DIRECTIVES, Section 2.1,
2.2
Dec., 2016 IB(NA)-0800138-J
Addition
SAFETY PRECAUTIONS(French)
Correction
Chapter 2, Section 2.2, 4.1, 5.1, 6.2
Chapter 3, 7
Feb., 2021 IB(NA)-0800138-K
Correction
Section 2.2
This manual confers no industrial property rights or any rights of any other kind, nor does
it confer any patent licenses. Mitsubishi electric Corporation cannot be held responsible for
any problems involving industrial property rights which may occur as a result of using the
contents noted in this manual.
2000 MITSUBISHI ELECTRIC CORPORATION

A
-11
CONTENTS
1. OVERVIEW .................................................................................................. 1
2. SPECIFICATION .......................................................................................... 1
2.1 General specifications .............................................................................. 1
2.2 Performance specifications....................................................................... 3

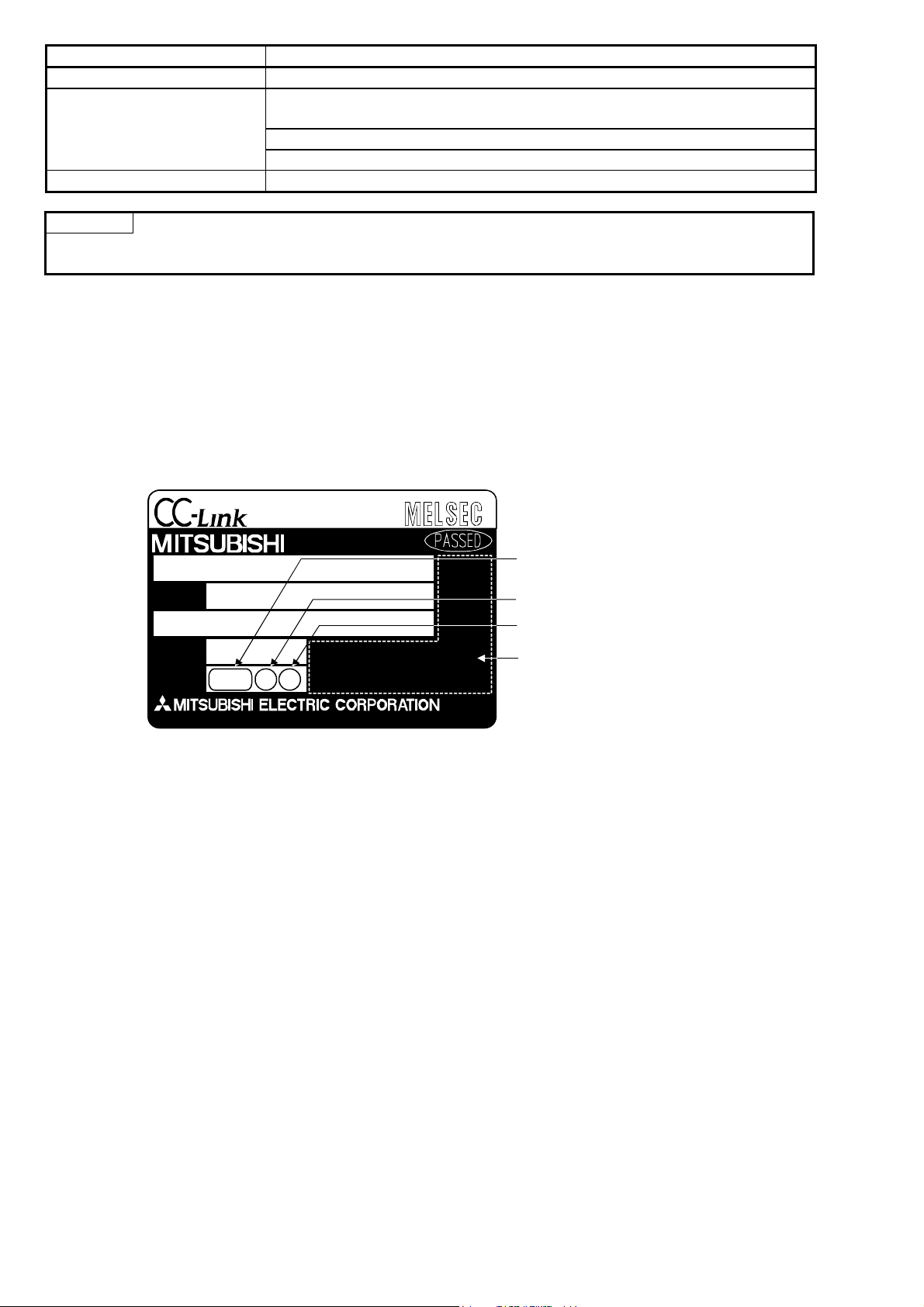

2.3 Checking hardware versions .................................................................... 4
3. NAME OF EACH PART ................................................................................. 5
4. LOADING AND INSTALLATION .................................................................. 7
4.1 Precautions when handling....................................................................... 7
4.2 Installation environment............................................................................ 7
5. DATA LINK CABLE WIRING ........................................................................8
5.1 Connection of the CC-Link dedicated cables ............................................ 8
6. WIRING ........................................................................................................ 9
6.1 Wiring precautions.................................................................................... 9
6.2 Module connection example..................................................................... 9
7. EXTERNAL DIMENSIONS .......................................................................... 11
ABOUT MANUALS
The following manuals are also related to this product.
In necessary, order them by quoting the details in the tables below.
Related Manual
Manual name Manual No.
(Model code)
Analog-Digital Converter Module Type AJ65SBT-64AD
User’s Manual
SH-080106
(13JR18)
COMPLIANCE WITH EMC AND LOW VOLTAGE DIRECTIVES
(1) Method of ensuring compliance
To ensure that Mitsubishi programmable controllers maintain EMC and Low
Voltage Directives when incorporated into other machinery or equipment,
certain measures may be necessary. Please refer to one of the following
manuals.
• User's manual for the CPU module or head module used
• Safety Guidelines
(This manual is included with the CPU module, base unit, or head module)
The CE mark on the side of the programmable controller indicates
compliance with EMC and Low Voltage Directives.
(2) Additional measures
To ensure that this product maintains EMC and Low Voltage Directives,
please refer to one of the manuals listed under (1).

1
1. OVERVIEW
This user's manual explains the specifications, names and setting of parts, wiring
and others of Type AJ65SBT-64AD analog-digital converter module (hereafter
abbreviated to the “AJ65SBT-64AD”) which is used as a remote device station of
a CC-Link system.
2. SPECIFICATION
2.1 General specifications
The general specifications of the AJ65SBT-64AD are shown below.
Item Specification
Operating ambient
temperature
Température
ambiante de
fonctionnement
0 to 55°C
0 à 55 °C
Storage ambient
temperature -20 to 75°C
Operating ambient
humidity 10 to 90%RH, non-condensing
Storage ambient
humidit
y
Vibration
resistance
Compliant
with JIS B
3502 and
IEC
61131-2
Frequency
Constant
acceleration
Half
amplitude
Sweep
count
Under
Intermittent
vibration
5 to 8.4Hz — 3.5mm 10 times
each in X,
Y, Z
directions
8.4 to
150Hz 9.8m/s2—
Under
continuous
vibration
5 to 8.4Hz — 1.75mm
—
8.4 to
150Hz 4.9m/s2—
Shock resistance Compliant with JIS B 3502 and IEC 61131-2
(147 m/s2, 3 times each in 3 directions X, Y, Z)
Operating
atmosphere No corrosive gases
Operating
altitude*30 to 2000m
Installation
location Inside a control panel
Overvoltage
category*1II or less
Pollution degree*22 or less
*1 This indicates the section of the power supply to which the equipment is assumed to be
connected between the public electrical power distribution network and the machinery
within premises.
Category II applies to equipment for which electrical power is supplied from fixed facilities.
The surge voltage withstand level for up to the rated voltage of 300V is 2500V.
*2 This index indicates the degree to which conductive material is generated in terms of the
environment in which the equipment is used.
Pollution level 2 is when only non-conductive pollution occurs. A temporary conductivity
caused by condensing must be expected occasionally.

2
*3 Do not use or store the programmable controller under pressure higher than the atmospheric
pressure of altitude 0m. Doing so may cause malfunction. When using the programmable
controller under pressure, please consult your local Mitsubishi Electric representative.

3

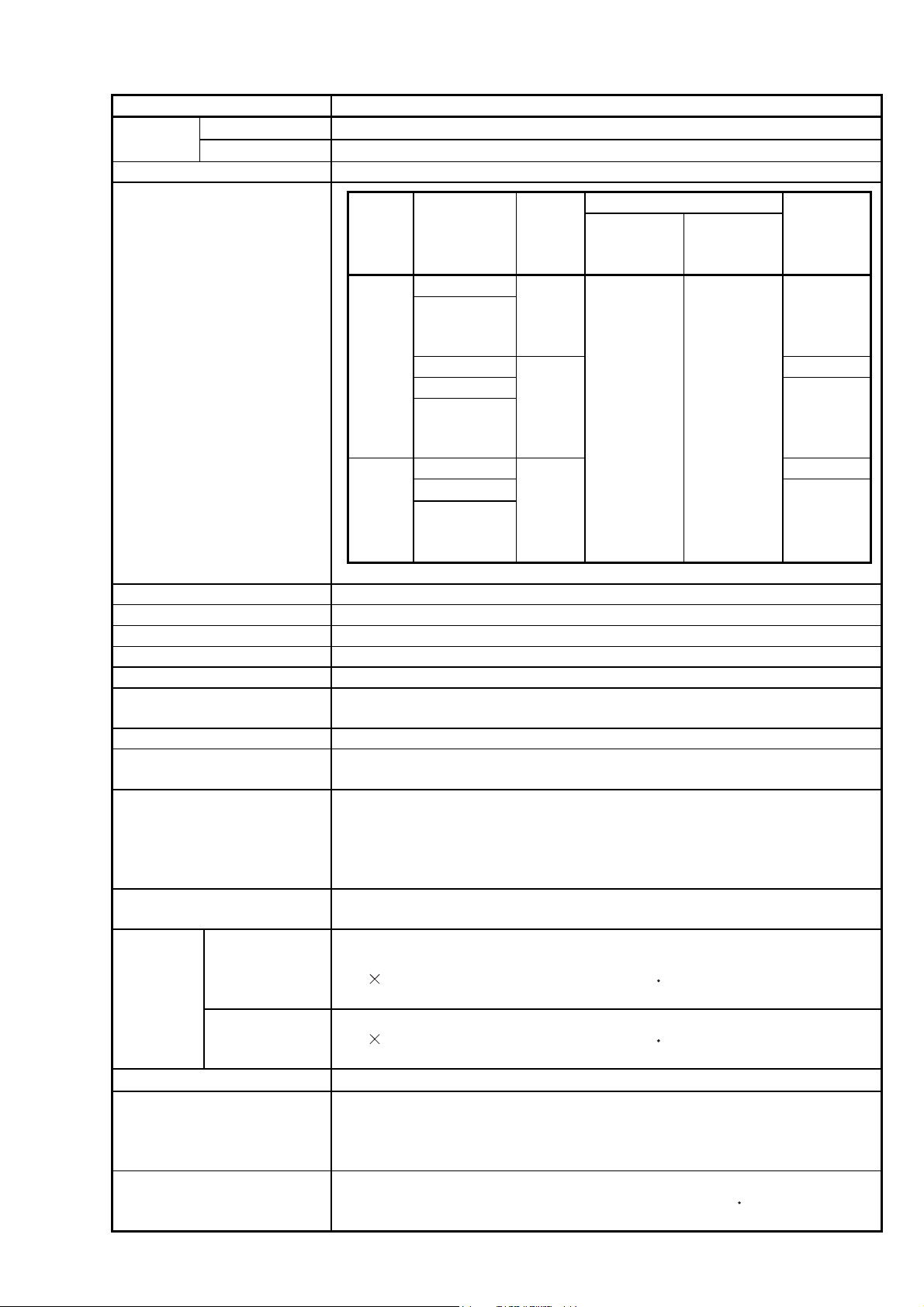

2.2 Performance specifications
The performance specifications of the AJ65SBT-64AD are shown below.
Item Specification
Analog
input
Voltage -10 to 10V DC (input resistance 1M)
Current 0 to 20mA DC (input resistance 250)
Di
g
ital output 16-bit si
g
ned binar
y
(
-4096 to +4095
)
I/O characteristics,
maximum resolution,
accuracy (accuracy relative
to maximum value of digital
output value)
Analog input
range
Digital
output
Accurac
y
Max.
Resolution
Ambient
temperature
0 to 55°C
Ambient
temperature
25±5°C
Voltage
-10 to 10V
-4000 to
4000
±0.4%
(±16 digit*1)
±0.2%
(±8 digit*1)
2.5mV
User range
setting 1
(
-10 to 10V
)
0 to 5V
0 to
4000
1.25mV
1 to 5V
1.0mV
User range
setting 2
(
0 to 5V
)
Current
0 to 20mA
0 to
4000
5µA
4 to 20mA
4µA
User range
setting 3
(
0 to 20mA
)
Factor
y
settin
g
is -10 to 10V.
Maximum conversion speed 1ms/channel
Absolute maximum input Voltage ±15 V, current ±30mA*2
Analo
g
input points 4 channels/module
CC-Link station t
y
pe Remote device station
Communication method Broadcast polling method
Number of occupied
stations 1 station
Communication cable CC-Link dedicated cable
Dielectric withstand voltage Between power supply/communication system batch and analog input
batch: 500VAC, 1 minute
Isolation system
Between communication system terminals and all analog input terminals:
Digital isolator
Between power supply system terminals and all analog input terminals:
Photocoupler
Between channels: Non-isolation
Noise immunity By noise simulator of 500Vp-p noise voltage, 1µs noise width and 25 to
60Hz noise frequency
External
connection
Communication
area, module
power supply
7-point 2-piece terminal block
[transmission circuit, module power supply, FG]
M3 5.2 Tightening torque: 0.59 to 0.88N m
Applicable solderless terminals: 2 max.
I/O area
Direct-coupled, 18-point terminal block [analog output area]
M3 5.2 Tightening torque: 0.59 to 0.88N m
Applicable solderless terminals: 2 max.
Applicable wire size 0.3 to 0.75mm2
Applicable solderless
terminals
RAV1.25-3 (conforming to JIS C 2805)
[Applicable wire size: 0.3 to 1.25mm2]
V2-MS3, RAP2-3SL, TGV2-3N
[Applicable wire size: 1.25 to 2.0mm2]
Module mounting screw
M4 screw × 0.7mm × 16mm or more
(tightening torque range: 0.78 to 1.08N m)
Can also be mounted to DIN rail

4
Item Specification
Supported DIN rail TH35-7.5Fe, TH35-7.5Al
(
conformin
g
to IEC 60715
)
External supply power
24V DC (ripple ratio: within 5%)
(
allowable volta
g
e ran
g
e 20.4 to 26.4V DC
)
Inrush current: 8.5A, within 2.3ms
Current consumption: 0.090A
(
at 24VDC
)
Wei
g
ht 0.20k
g
Point
A/D conversion values are fluctuated by self-heating within approx. 30 minutes after power is turned
ON.
*1 Digit indicates digital value
*2 Current value indicates value of instant input current that does not break module inner
electrical resistance.
2.3 Checking hardware versions
The hardware versions of the AJ65SBT-64AD can be checked on the DATE
section on the rating plate, which is situated on the side of the module.
MODEL
POWER
DATE
MADE IN JAPAN BD992C154H06
Year and month of
manufacture
Software version
Conformed standard
Hardware version
yymm A B

5
3. NAME OF EACH PART
The name of each part in the AJ65SBT-64AD is shown.
Number Name and
appearance Description
1)
Operation
status
display LED
PW LED ON : Power supply on
OFF : Power supply off
RUN LED
Normal
mode
On : Normal operation
Flashing : 0.1s intervals indicate an input range error.
Off : 24VDC power supply shutoff or watchdog timer
error occurred.
Test
mode
On : Indicates that the SELECT/SET switch is in the
SET position.
Flashing : 0.1s intervals indicate that the input range
setting is not any of "user range settings 1 to 3".
0.5s intervals indicate that you attempted to
make offset/gain setting outside the setting
range.
Off : Indicates that the SELECT/SET switch is in the
SELECT or center position.
L RUN
LED
On : Normal communication
Off : Communication cutoff
(
time expiration error
)
L ERR.
LED
On : Indicates that transmission speed setting or station number
setting is outside the range.
Flicker at fixed intervals : Indicates that transmission speed
setting or station number setting was
changed from that at power-on.
Flicker at unfixed intervals : Indicates that you forgot fitting the
termination resistor or the module or
CC-Link dedicated cable is affected
by noise.
Off : Indicates normal communications.

6
Number Name and
appearance Description
2) Offset/gain
adjusting LEDs
CH
OFFSET
GAIN
Normal
mode
Normally OFF.
Test
mode
The LEDs lit change every time the SELECT/SET
switch is moved to SELECT.
3) SELECT/SET
switch Used to make offset/gain setting in the test mode.
4)
Station number
setting
switches
Use the switches in STATION NO. "10", "20" and "40" to set the tens of the
station number.
Use the switches in STATION NO. "1", "2", "4" and "8" to set the units of
the station number.
The switches are all factory-set to OFF.
Always set the station number within the range 1 to 64.
Setting any other number than 1 to 64 will result in an error, flickering the
"L ERR." LED.
You cannot set the same station number to two or more stations.
Station
number
Tens Units
40 20 10 8 4 2 1
1 OFF OFF OFF OFF OFF OFF ON
2 OFF OFF OFF OFF OFF ON OFF
3 OFF OFF OFF OFF OFF ON ON
4 OFF OFF OFF OFF ON OFF OFF
10 OFF OFF ON OFF OFF OFF OFF
11 OFF OFF ON OFF OFF OFF ON
64 ON ON OFF OFF ON OFF OFF
(Example) To set the station number to "32", set the switches as
indicated below.
Station
number
Tens Units
40 20 10 8 4 2 1
32 OFF ON ON OFF OFF ON OFF
5)
Transmission
speed setting
switches
Set value Setting switches Transmission
speed
4 2 1
0 OFF OFF OFF 156kbps
1 OFF OFF ON 625kbps
2 OFF ON OFF 2.5Mbps
3 OFF ON ON 5.0Mbps
4 ON OFF OFF 10Mbps
Always set the transmission speed within the above range.
The switches are all factory-set to OFF.
Making any other setting than the above will result in an error flickering
the "L ERR." LED.
6) Terminal block Used to connect the module power supply, transmission and I/O signals.
7
)
DIN rail hook Used to mount the module to the DIN rail.
STATION NO.
40 20 10 8 4 2 1
B RATE
4 2 1

7
4. LOADING AND INSTALLATION
4.1 Precautions when handling
The following is an explanation of handling precautions of the module.
(1) Do not drop or apply any strong impact to the module.
(2) Tighten the mounting screws of the module within the following ranges.
Screw location Tightening torque range
Module mounting screw (M4 screw) 0.78 to 1.08Nm
Terminal block terminal screw (M3 screw)
Vis de borne du bornier FG (vis M3)
0.59 to 0.88Nm
0,59 à 0,88N•m
Terminal block mounting screw (M3.5 screw) 0.68 to 0.98Nm
4.2 Installation environment
Never install the A series programmable controller in the following environments:
(1) Locations where the ambient temperature is outside the range of 0 to 55C.
(2) Locations where the ambient humidity is outside the range of 10 to 90%RH.
(3) Locations where dew condensation takes place due to sudden temperature
changes.
(4) Locations where there are corrosive and/or combustible gasses.
(5) Locations where there is a high level of conductive power (such as dust and
iron filings, oil mist, salt, and organic solvents).
(6) Locations exposed to the direct rays of the sun.
(7) Locations where strong power and magnetic fields are generated.
(8) Locations where vibration and shock are directly transmitted to the main
module.

8

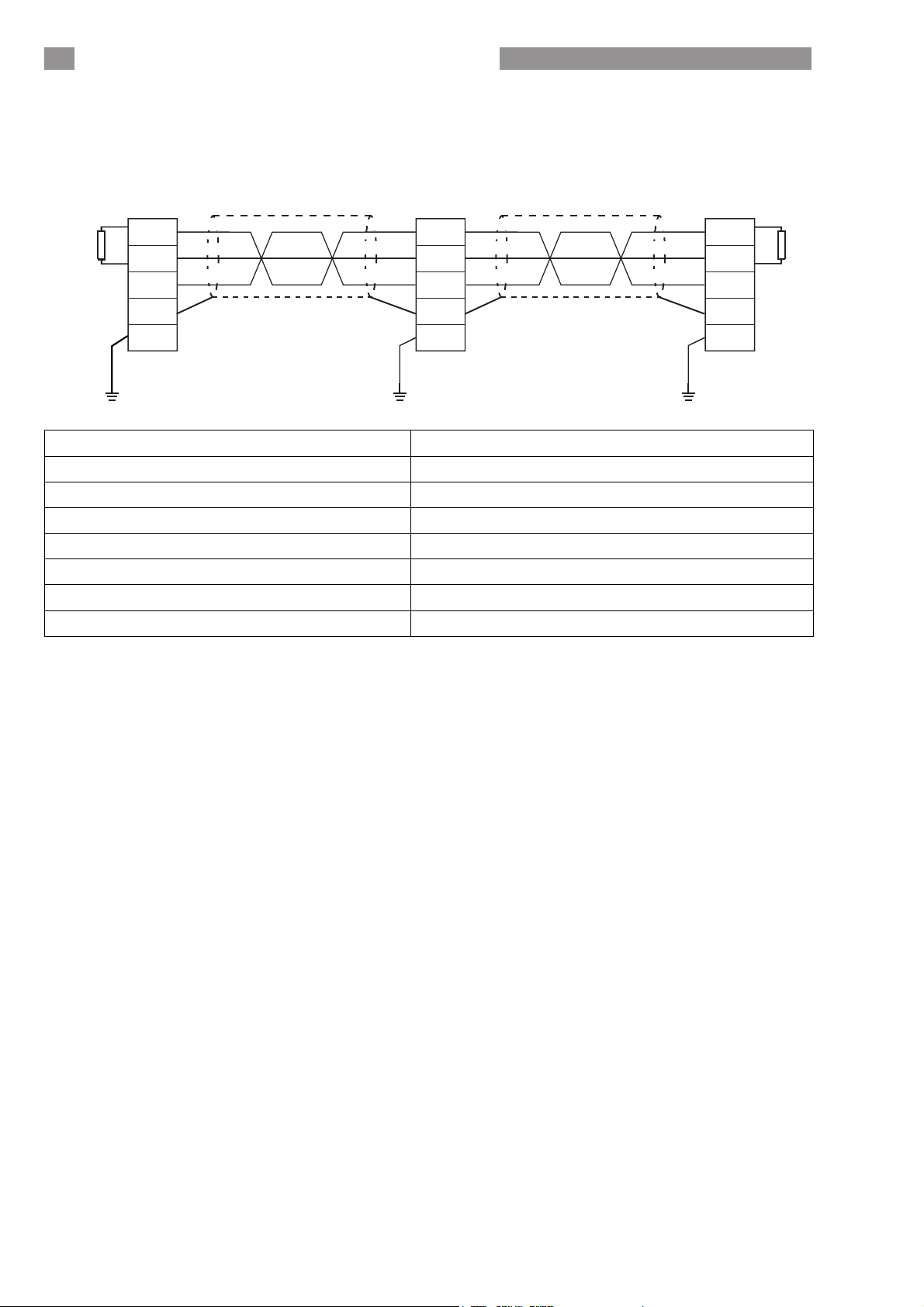

5. DATA LINK CABLE WIRING
5.1 Connection of the CC-Link dedicated cables
Connect the CC-Link dedicated cable between the AJ65SBT-64AD and master
module as shown below.
English French
Maste
r
module Module maître
I/O module, etc. Côté module d'entrée/sortie
Terminating resisto
r
Résistance d'extrémité
CC-Link dedicated cable Câble dédié pour CC-Link
Blue Bleu
White Blanc
Yellow jaune
DA
DB
DG
SLD
FG
DA
DB
DG
SLD
FG
DA
DB
DG
SLD
FG
Terminal
resistor
Terminal
resistor
Master module AJ65SBT-64AD I/O module, etc.
CC-Link
dedicated cable
CC-Link
dedicated cable
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(Yellow)
(White)
