Mitsubishi Electric WD8700U User manual

1
DLP™ Projector
WD8700U
Controlling the projector via RS-232C connection
Contents
1. Introduction ............................................................................................................ 2
1.1 Connection............................................................................................................................... 2
1.2 Interface ................................................................................................................................... 3
1.2.1 Pin assignment of SERIAL terminal (D-SUB 9-pin).............................................................................. 3
1.2.2 Communications format ...................................................................................................................... 3
2. Control command configuration ............................................................................ 4
3. Control sequence ................................................................................................... 4
4. Execution procedure of RS-232C commands via LAN.......................................... 7
5. Command list ......................................................................................................... 8
5.1 General control commands...................................................................................................... 8
5.2 Reading commands................................................................................................................. 8
5.2.1 Status read commands........................................................................................................................ 8
5.2.2 Read commands for items in INFORMATION menu............................................................................ 9
5.2.3 Read commands for other information................................................................................................ 9
5.3 Remote control key commands............................................................................................. 10
5.4 Direct commands................................................................................................................... 11
5.5 Function commands .............................................................................................................. 12
5.6 Menu setting commands ....................................................................................................... 12
5.6.1 IMAGE menu...................................................................................................................................... 12
5.6.2 INSTALLATION 1 menu...................................................................................................................... 13
5.6.3 INSTALLATION 2 menu...................................................................................................................... 13
5.6.4 MULTI-SCREEN menu....................................................................................................................... 14
5.6.5 FEATURE menu.................................................................................................................................. 15
5.6.6 SIGNAL menu .................................................................................................................................... 16
5.6.7 NETWORK menu ............................................................................................................................... 16
5.7 Password lock commands..................................................................................................... 19

2
1. Introduction
This projector can be controlled by connecting a personal computer with RS-232C terminal.
In addition, by connecting multiple projectors to each other in a daisy chain configuration, you can control each
projector from one personal computer.
PC-controllable functions:
• Turning the power ON or OFF
• Changing input signals
• Inputting commands by pressing the buttons on the control panel and remote control
• Menu setting
[Compatibility with the former models]
To use the RS-232C commands designed for the former models of Mitsubishi projector, by inputting
“00COMMAND0”, the projector responds in the same way as the former models. (No NAK is returned. For NAK
response, see page 4. ID code cannot be designated at command sending.)
(For the recommended procedure to use the former command systems, see “Controlling the projector using a
personal computer” for FL7000U.)
ITEM Function Data
Character ASCII code
Changing the RS-232C
command system
COMMAND 43h 4Fh 4Dh 4Dh 41h 4Eh 44h 0 (Former command system),
1 (New command system)
1.1 Connection
Important:
• Make sure that your computer and projector are turned off before connection.
• Boot up the computer rst, and then plug the power cord of the projector.
(If you do not follow this instruction, the COM port may not function.)
• To use a daisy chain conguration, make sure to use Mitsubishi projectors supporting RS-232C communication. If
the projectors or other devices made by other manufacturers are connected, operation is not guaranteed.
To connect with one projector:
RS-232C crossover cable
D-SUB 9-pin
To SERIAL IN
terminal
To RS-232C terminal
D-SUB 9-pin
To connect with multiple projectors (in a daisy chain configuration):
RS-232C crossover cable
D-SUB 9-pin
To SERIAL IN
terminal
To RS-232C terminal To SERIAL IN
terminal
To SERIAL OUT
terminal
To SERIAL OUT
terminal
D-SUB 9-pin
RS-232C crossover cable
D-SUB 9-pinD-SUB 9-pin

3

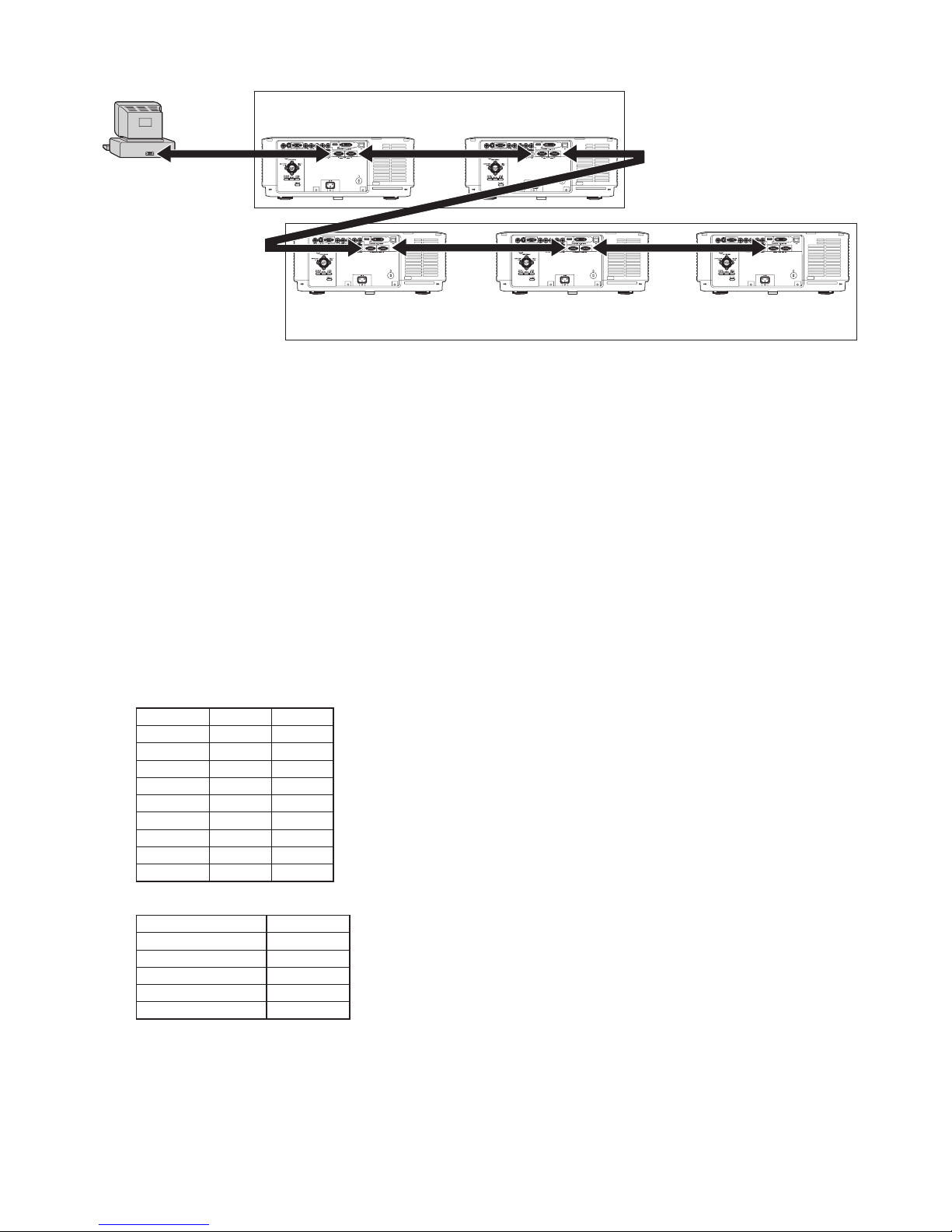

• Example of ID setting (When Group A, which performs multi-projection with two projectors, and Group B, which
performs multi-projection with three projectors, are connected.)
Projector 1
PROJECTOR ID : 01
GROUP ID : A
Multi-projection Group A
Projector 2
PROJECTOR ID : 02
GROUP ID : A
Projector 3
PROJECTOR ID : 03
GROUP ID : B
Multi-projection Group B
Projector 4
PROJECTOR ID : 04
GROUP ID : B
Projector 5
PROJECTOR ID : 05
GROUP ID : B
You can assign the ID code to the control command.
• When the command having the PROJECTOR ID is sent, only the projector having the corresponding ID returns the
response.
(When the PROJECTOR ID is set to ALL on the projector, the projector responds to all the PROJECTOR ID
numbers assigned to the commands.)
• When the command having the GROUP ID is sent, all the projectors having the corresponding ID return the
response.
• When the command having no ID code is sent, all the projectors return response.
When the projectors are connected in a daisy chain conguration, you are recommended to set the PROJECTOR ID
to other than “ALL” and assign the PROJECTOR ID differently for each projector to communicate with each projector
individually. Refer to the operation manual of the projector for setting the PROJECTOR ID.
When you use a daisy chain configuration, set the STANDBY MODE to “STANDARD.” Refer to the operation manual
of the projector for setting the STANDBY MODE.
Important:
• Adapters may be necessary depending on the PC connected to this projector. Contact your dealer for details.
1.2 Interface
1.2.1 Pin assignment of SERIAL IN and SERIAL OUT terminals (D-SUB 9-pin)
Pin No. Name I/O
1 OPEN
2 RXD IN
3 TXD OUT
4 OPEN
5 GND
6 OPEN
7 OPEN
8 OPEN
9 OPEN
1.2.2 Communications format
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY BIT NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
This projector uses RXD, TXD and GND lines for RS-232C control.
For RS-232C cable, the supplied cable (crossover cable) should be used.

4
2. Control command configuration
The command consists of the address code, ID code, function code, data code, ACK/NAK, and end code. The length
of the command varies among the functions.
Address code ID code Function code Data code ACK/NAK End code
ASCII code ‘30h’ ‘30h’ ‘3Bh’ ID ‘3Bh’ Function Data ‘3Ah’ ‘4Eh’ ‘0Dh’
Character 00 ;ID; Function Data :N
[Address code] Fixed to 00. (‘30h’ ‘30h’ in the ASCII code)
[ID code] Code specifying the projector to be controlled (For ID, specify either the PROJETOR ID (00 to
63) or GROUP ID (0A to 0Z). When the code is not specified, all the connected projectors are
controlled.)
[Function code] Code unique to each control operation.
[Data code] Data (value) unique to each control operation (Not always indicated.)
[ACK/NAK] Code indicating the NAK return as described below
Fixed to :N (‘3Ah’ ‘4Eh’ in the ASCII code. Not added to ACK.)
[End code] Fixed to . (‘0Dh’ in the ASCII cade)

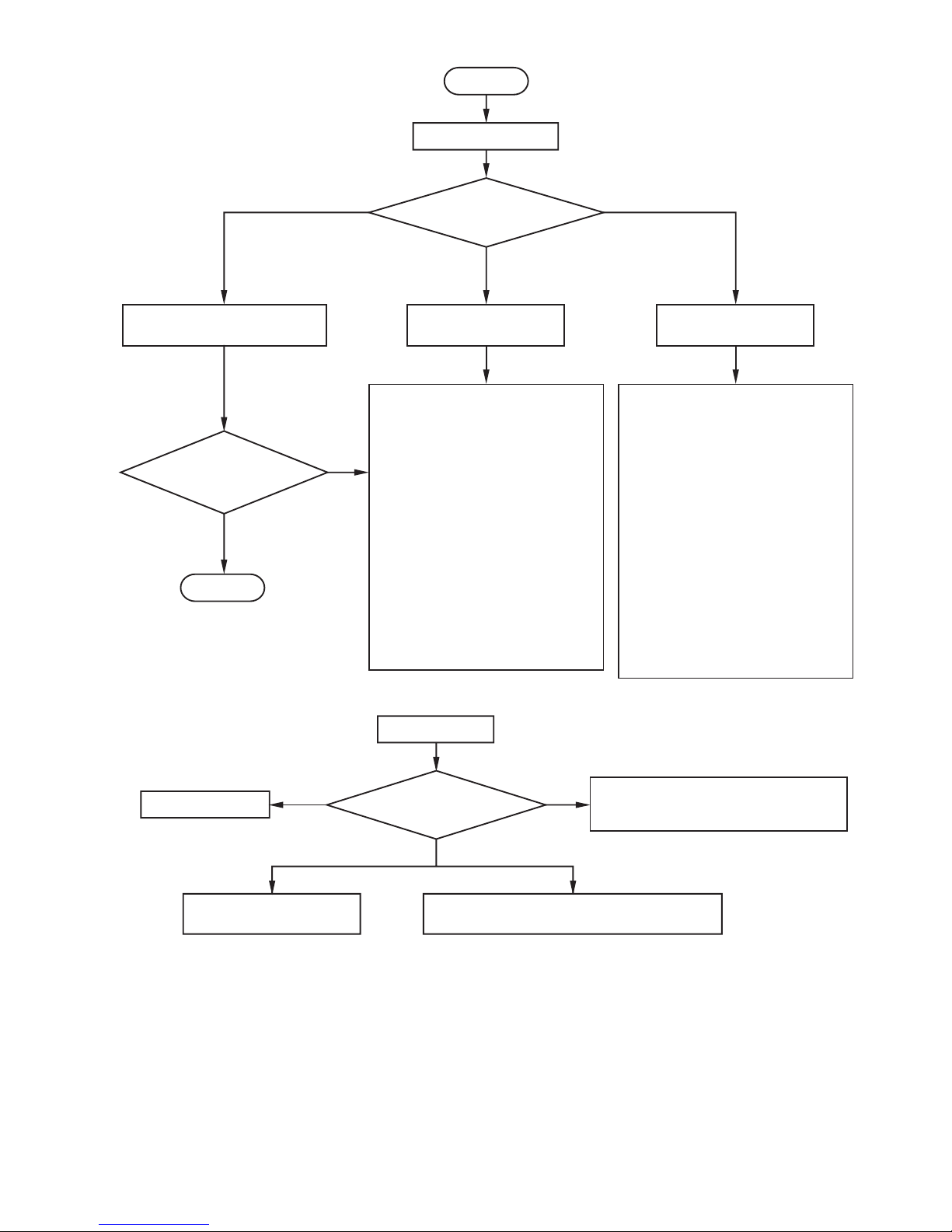

3. Control sequence
[Example] When the personal computer and two projectors are daisy-chained:
Computer
Projector 1
1
3
Projector 2
2
3
4
5
65
6
6
Sequence Note
1Send the command from the
personal computer to the projector.
2
The command input from the
SERIAL IN terminal is sent to the
projector connected to the SERIAL
OUT terminal.
3
After receiving the end code, the
projector sends the return command
to the device connected to the
SERIAL IN terminal.
If the projector does not receive commands
normally, that is, if the projector is not connected
physically or unable to receive commands, it does
not send out a return command.
In addition, when the ID code of the command is not
corresponded to that of the projector, the projector
doesn’t send a return command.
The projector sends out a return command within
one second at the latest.
When the received command cannot be executed,
NAK is returned (as described below).
4
The return command input from the
SERIAL OUT terminal is sent to the
device connected to the SERIAL IN
terminal.
The personal computer receives the commands as
many as the number of the projectors that send the
returned commands. However, the receiving order
of the returned commands may vary depending
on the projector status.
5The personal computer checks the command and confirms if the sent
command has been received or not.
6
Use the check command to see
if the projector has executed the
command.
This projector sends various codes other than the
return code. When having a control sequence by
RS-232C, reject other codes from the personal
computer.
• NAK return
In the following cases, the projector returns the command with “:N” added.
(1) Though the command sent from the computer is received by the projector successfully, it cannot be
executed because the projector is in the operation prohibition state.
(2) The data length of the sent command is incorrect or the command is invalid.
(3) The ID assigned to the command is out of the valid range (other than 00 to 63 or 0A to 0Z).
(4) The signal length of the command is 48 bytes or longer.
• When a command is sent out during the following operations, it may not be executed.
(1) During signal switching
(2) In the process of the auto position
(3) After the power is turned on.
After the power is turned on, no command is received until the image is displayed. (Usually, it takes about
20 seconds. However, when the lamp illumination takes time, more time will be required accordingly.) In
this case, the projector returns the received command with NAK added.
• The return command is sent out within 1 second at the latest.
• When sending commands successively, wait to receive the return command of the current command
before sending a next command.

5
• The projector may not receive a command when the splash screen is being displayed immediately after
turning on the power. Use command “00r10” to cancel the splash screen.
• While using the LAN terminals, the LAN functions take precedence.
• For the LAN terminals, the same commands as those for connecting with the TCP/IP (port number 63007) are
available. Note, however, that the response becomes slightly slower than when using the RS-232C terminals.
For the use of LAN terminals, refer to “4. Execution procedure of RS-232C commands via LAN”.
• When the NAK isn’t returned, check the RS-232C command system (00COMMAND).
[Example 1] Turning ON the power. (Values enclosed in quotation marks are ASCII codes.):
• When ID is not specied:
Command sent from the PC Status code returned
from the projector Description
‘30’ ‘30’ ‘21’ ‘0D’
00!
Command for POWER ON
(ID command is omitted.)
‘30’ ‘30’ ‘21’ ‘0D’
00!
Command receipt confirmation
(The statuses are echoed back as
many as the number of the connected
projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘21’ ‘0D’
00;01;!
Command for POWER ON is sent to
the projector with the ID of “01” or
“ALL.”
‘30’ ‘ 30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘21’ ‘0D’
00;01;!
The projector with the ID of “01”
or “ALL” receives the command.
(The status is echoed back from the
projector with the ID of “01” or “ALL.”)
[Example 2] Selecting VIDEO as the input signal during auto positioning (Values enclosed in quotation marks are
ASCII codes.):
• When ID is not specied:
Command sent from the PC Status code returned
from the projector Description
30’ ‘30’ ‘5F’ ‘76’ ‘31’ ‘0D’
00_v1
(During auto positioning)
Command for selecting VIDEO as the
input signal is sent out.
‘30’ ‘30’ ‘5F’ ‘76’ ‘31’ ‘3A ’‘4E’ ‘0D’
00_v1:N
The command is received by the
projector but cannot be executed.
(NAK return)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘5F’ ‘76’ ‘31’
‘0D’
00;01;_v1
(During auto positioning)
Command for selecting VIDEO as the
input signal is sent to the projector
with the ID of “01” or “ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘5F’ ‘76’ ‘31’
‘3A’ ‘4E’ ‘0D’
00;01;_v1:N
The projector with the ID of “01” or
“ALL” receives the command, but
cannot execute it.
(NAK return)
• The owchart on the next page shows the recommended operating sequence for your reference to create a
program.

6
Projector error
Send out “00vER” to check error details.
Recover from error state.
0–3
To normal operation 4
Enter password.
Send out “00PASS****.”
Projector is functioning.
Use “00FNCOFF” to cancel the current function.
65
Sending “00vST”
Checking response to “00vST”
[Method of checking state of projector]
Sending out command
Awaiting response
from projector
Checking execution of
command (sending out
check command)
OK
NG
No response for
1 second or longer
END
NAK returned
Command is sent successfully.
Command execution fails.
Command is sent successfully.
Command is executed successfully.
Command sending fails.
No NAK returned
[RS-232C control flowchart]
START
Check the following.
•
The ID code is out of the valid range.
•Check that the function code is
correct.
•Check that the data code is correct.
•Check that the projector is able to
issue the return command.
→Check the projector’s operation
using the 00vST command.
Note: In the following cases, NAK is
returned even when the
projector is in normal condition.
• Immediately after the power is
turned on
(For status read commands)
approximately for 10 seconds
(For other commands) approxi-
mately for 1 minute
• During input switching
• During auto positioning
• During password lock
Check the following.
• Check that the command begins
with “00”.
• The projector is not supplied with
AC power.
→Check that AC power cord is
connected.
→Turn on the power. (Turn on the
circuit breaker or main switch.)
• Not connected with the projector.
→Check that the RS-232C cable is
connected.
→Check the RS-232C cable for
electrical discontinuity.
• There is no projector with the
specified ID in the daisy chain
configuration.
→Check that the ID is correct.
→Check whether that there is a
projector of which power (AC) is
turned off in the daisy chain
configuration.

7

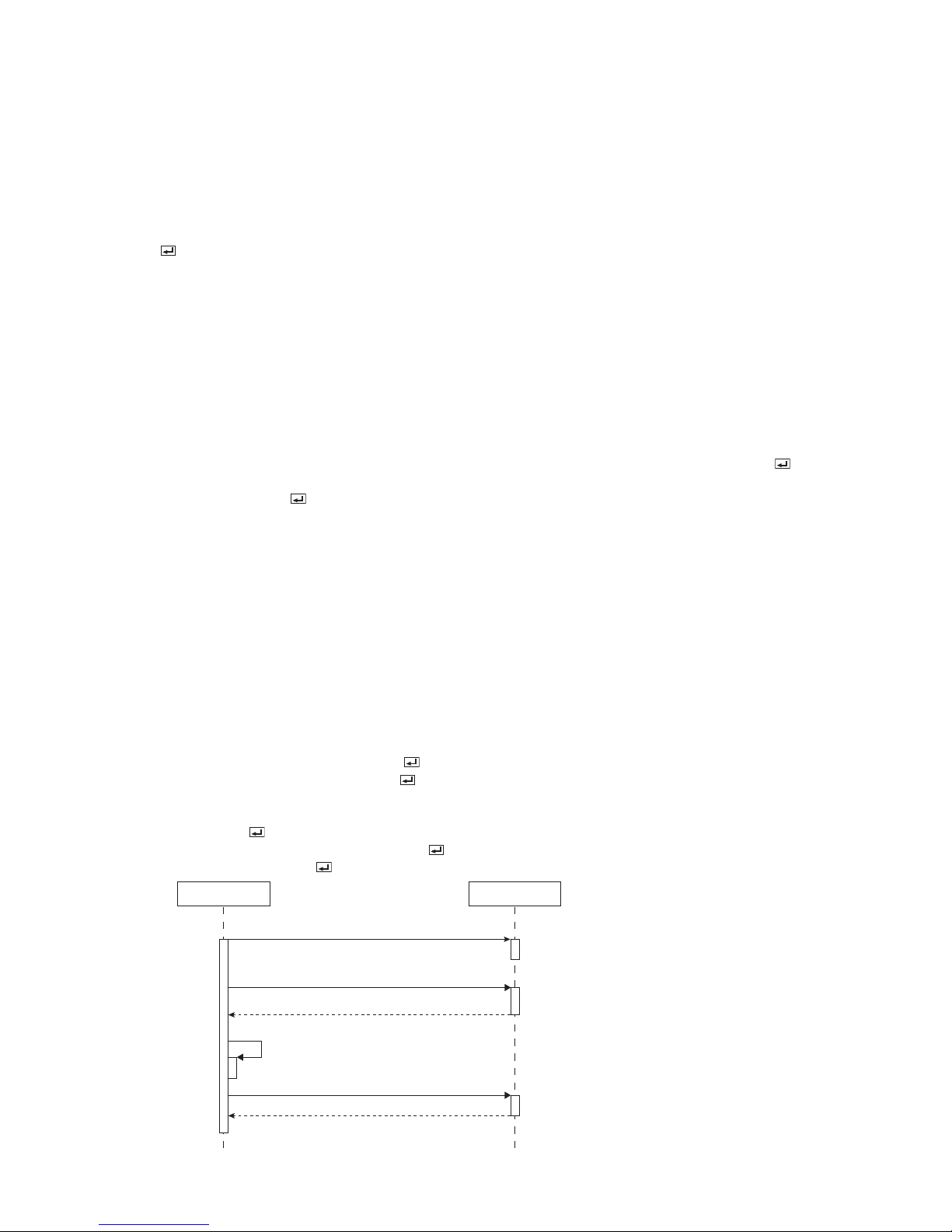

4. Execution procedure of RS-232C commands via LAN
• When you use the LAN function, set the STANDBY MODE to STANDARD or LAN.
• When you execute RS-232C commands via LAN, check that the CONTROL SYSTEM in the NETWORK menu is
set to STANDARD.
• You can change the certification password using the NETWORK PASSWORD in the NETWORK menu. The default
password is “admin.”
• You can skip the certication process by setting the NETWORK CERTIFICATION in the NETWORK menu to OFF.
When you skip the certification process, Steps 2 to 4 described below can be skipped and you can send RS-232C
commands without adding a certification data.
Example:
Sending the PON command (00!) while the NETWORK CERTIFICATION is set to OFF
00!
For the procedure to set the menu, refer to the User Manual supplied with the projector.
To execute the RS-232C command via LAN while the NETWORK CERTIFICATION is set to ON, a 32-byte connection
certification data must be added before the RS-232C command.
To create a 32-byte certification data, following information and procedure are required.
• Random character string for creating the certication data that is acquired from the projector (8 characters)
• Network password of the projector (1 to 32 characters)
• MD5 hash calculation
• Based on the above, the execution procedures to connect to the projector and send the RS-232C commands
while the NETWORK CERTIFICATION is set to ON are described below.
1. Connect to Port 63007 of the projector from the PC as a TCP/IP client.
2. After completing the connection, send the acquisition request for the certification data (“
$AK
”) (ASCII
code: 24 41 4B 0D) from the PC to the projector.
3. Acquire “
$AK********
” on the PC as the response of the request sent in Step 2. (********: Random character
string for creating the certification data)
4. Create the certification data on the PC.
• Create the key of the certication data by linking the data acquired in Step 3 with the network charac-
ter string.
For example, when the random character string is 12345678 and the password is ABCD, the key of the
certification data is 12345678ABCD (character string in ASCII code).
• Run MD5 hash on the key of the certication data.
• Create the certication data by converting the hash-calculated 16-byte data into the ASCII code char-
acter string.
Example:
Calculation result: [4f][3c][5d][a1][7b][4f][b5][ed][2c][99][4e][bb][f6][57][67][54] (hexadecimal numeral)
Certification data: 4f 3c 5d a1 7b 4f b5 ed 2c 99 4e bb f6 57 67 54 (character string in ASCII code)
5. Send the RS-232C command with the certification data from the PC to the projector.
Example:
To send the PON command (00! ) using the certification data created in Step 4:
4f3c5da17b4fb5ed2c994ebbf657675400!
6. Receive the response from the projector on the PC.
Response data has the following patterns.
Normal:
00!
(Parameter is added depending on the command.)
Error in the certification data:
PRV=ERRA
Command error:
00!:N
PC Projector
1. Connection
2. Acquisition request of the certification data
3. Receiving of the certification data
4. Creation of the certification data
5. Sending of the RS-232C command
6. Receiving of the response data

8
5. Command list
5.1 General control commands
The general control commands are used for the basic operation setting of this projector. They may not be exe-
cuted while the signals are changed. The general control commands have no data codes. (When the commands
for input select are sent while the splash screen is being displayed, the splash screen is only canceled.)
ITEM Function Note
Character ASCII code
POWER ON ! 21h This command is invalid for 2 minutes after the power is turned off.
POWER OFF " 22h This command is invalid for 1 minute after the power is turned on.
INPUT COMPUTER 1 _r1 5Fh 72h 31h This command is not received during stand-by, BLANK, and input switch control with
the contact control.
INPUT COMPUTER 2 _r2 5Fh 72h 32h This command is not received during stand-by, BLANK, and input switch control with
the contact control.
INPUT HDMI _d1 5Fh 64h 31h This command is not received during stand-by, BLANK, and input switch control with
the contact control.
INPUT DVI _d2 5Fh 64h 32h This command is not received during stand-by, BLANK, and input switch control with
the contact control.
INPUT VIDEO _v1 5Fh 76h 31h This command is not received during stand-by, BLANK, and input switch control with
the contact control.
INPUT S-VIDEO _v2 5Fh 76h 32h This command is not received during stand-by, BLANK, and input switch control with
the contact control.
[Example] When setting the input signal to COMPUTER 1. (Values enclosed in quotation marks are ASCII
codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘5F’ ‘72’ ‘31’ ‘0D’
00_r1
Command for setting the input signal
to COMPUTER 1 (ID command is
omitted.)
‘30’ ‘30’ ‘5F’ ‘72’ ‘31’ ‘0D’
00_r1
Command receipt confirmation
(The statuses are echoed back as
many as the number of the connected
projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘5F’ ‘72’
‘31’ ‘0D’ 00;01;_r1
Command for setting the input
signal to COMPUTER 1 is sent to the
projector with the ID of “01” or “ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘5F’ ‘72’
‘31’ ‘0D’
00;01;_r1
The projector with the ID of “01”
or “ALL” receives the command.
(The status is echoed back from the
projector with the ID of “01” or “ALL.”)
5.2 Reading commands
5.2.1 Status read commands
The projectors operating status, such as POWER-ON/OFF and the currently selected input terminal, etc. can be monitored.
ITEM Function Data (Receive) Status
Character ASCII Character ASCII
POWER vP 76h 50h 1 31h POWER ON
0 30h POWER OFF
INPUT vI 76h 49h r1 72h 31h INPUT COMPUTER 1
r2 72h 32h INPUT COMPUTER 2
d1 64h 31h INPUT HDMI
d2 64h 32h INPUT DVI
v1 76h 31h INPUT VIDEO
v2 76h 32h INPUT S-VIDEO
P-ON/OFF ENABLED/
DISABLED
vPK 76h 50h 4Bh 0 30h POWER ON/OFF DISABLED
1 31h POWER ON/OFF ENABLED
SIGNAL INPUT vSM 76h 53h 4Dh 0 30h NO SIGNAL SUPPLIED
1 31h SIGNAL SUPPLIED

9
5.2.2 Read commands for items in INFORMATION menu
Use the following commands to obtain the values of the items in the INFORMATION menu.
ITEM Function Data (Receive)
Character ASCII code
LAMP 1 TIME (LOW) vLE1L 76h 4Ch 45h 31h 4Ch hhhhmm
LAMP 2 TIME (LOW) vLE2L 76h 4Ch 45h 32h 4Ch hhhhmm
LAMP illuminating status
(an icon displayed at
the right of the lamp
operating time)
vLST 76h 4C 53h 54h ab
The following value is entered in a and b.
0 (Off), 1 (On), 2 (Error)
NEXT LAMP RELAY vNLR 76h 4Eh 4Ch 52h dhh
FILTER TIME vFLTT 76h 46h 4Ch 54h 54h hhhhh
SERIAL NUMBER vS/N 76h 53h 2Fh 4Eh *******(within 7 characters)
RESOLUTION vRESO 76h 52h 45h 53h 4Fh HHHHxVVVV
VERTICAL FREQUENCY vVFREQ 76h 56h 46h 52h 45h 51h ***.**
HORIZONTAL FREQUENCY vHFREQ 76h 48h 46h 52h 45h 51h ***.**
SYNC. TYPE vSYNCT 76h 53h 59h 4Eh 43h 54h 0 (NO SIGNAL), 1 (Invalid), 3 (3wire),
4 (4wire), 5 (5wire), 6 (SCART)
“hhhh” and “mm” represent hours and minutes respectively.
“d” and “hh” represent days and hours respectively.
“a” and “b” represent the lamp illuminating status of the LAMP 1 and LAMP 2 respectively.
“hhhh” represents the operating time.
“HHHH” and “VVVV” represent the horizontal and vertical resolutions respectively.
“***.**” represents the vertical frequency (in Hz) or the horizontal frequency (in kHz).
5.2.3 Read commands for other information
Use the following commands to obtain other information.
ITEM Function Data (Receive)
Character ASCII code
Model name vMDL 76h 4Dh 44h 4Ch ****************(within 16 characters)
Contact control vRMT 76h 52h 4Dh 54h 0 (Normal operation)
1 (Contact control)
Input source vSOUCE 76h 53h 4Fh 55h 43h 45h r1 r2 v1 v2 d1 d2
Projector status vST 76h 53h 54h 0 (Stand-by mode),
1 (Within 1 minute after POWER-ON (warm-up mode)),
2 (POWER-ON mode (including state of warning)),
3 (Cooling mode),
4 (Abnormal state (including shutdown due to an error)),
5 (State of functioning (menu display, dialog display,
BLANK, SPLIT, MAGNIFY, FREEZE, etc.)),
6 (Awaiting password entry)
Error status vER 76h 45h 52h Reading of the error status data (3 digits,
hexadecimal numbers, total 9 bits)
(MSB) xb1, xb2... xb8, xb9, 0, 0, 0 (LSB)
xb1(800): Fan error
xb2(400): Lamp error (The lamp goes out or does not
light.)
xb3(200): Lamp warning 1 (The lamp life has
expired.)
xb4(100): Lamp warning 2 (The lamp life is expiring.)
xb5(080): Temperature error
xb6(040): The temperature warning is being
indicated.
xb7(020): Lamp cover open error
xb8(010): Filter/filter cover open error
xb9(008): States of other component abnormality
When only one error occurs, value shown in
parentheses is returned.
When multiple errors occur at the same time, the
bits of all the occurred error are set.
Example)
C00: When fan error and lamp error occur at the
same time
180: When lamp warning 2 and temperature error
occur at the same time
The PC sends the command without attaching the data code to it. On the other hand, the projector attaches to
the received command its current operating status as the data code and send it back to the PC.

10
[Example] When checking the currently selected input terminal (when the INPUT VIDEO is being selected).
(Values enclosed in quotation marks are ASCII codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘76’ ‘49’ ‘0D’
00vl
Command for checking the input
terminal (ID command is omitted.)
‘30’ ‘30’ ‘76’ ‘49’ ‘76’ ‘31’ ‘0D’
00vlv1
Check result (VIDEO)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘76’ ‘49’ ‘0D’
00;01;vI
Command for checking the input
terminal is sent to the projector with
the ID of “01” or “ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘76’ ‘49’
‘76’ ‘31’ ‘0D’
00;01;vIv1
Check result (VIDEO)
(The status is echoed back from the
projector with the ID of “01” or “ALL.”)
5.3 Remote control key commands (Not executable in stand-by mode. When the remote control key
commands are sent while the splash screen is being displayed, the splash screen is only canceled.)
The remote control key commands allow the computer to control the projector in the same way as by the remote
control. (The CONTROLLER ID cannot be set. And some operations cannot be controlled.) The remote control
key commands have no data codes.
Button’s name on remote
control
Function
Character ASCII code
+ r06 72h 30h 36h
- r07 72h 30h 37h
ZOOM/FOCUS r0f 72h 30h 66h
LENS SHIFT r47 72h 34h 37h
GEOMETRY r43 72h 34h 33h
MAGNIFY r02 72h 30h 32h
PinP/SPLIT (SPLIT only) r04 72h 30h 34h
BLANK ra6 72h 61h 36h
r53 72h 35h 33h
r2b 72h 32h 62h
r4f 72h 34h 66h
r59 72h 35h 39h
MENU r54 72h 35h 34h
ENTER r10 72h 31h 30h
AUTO POSITION r09 72h 30h 39h
FREEZE ra4 72h 61h 34h
ASPECT re2 72h 65h 32h
CE re7 72h 65h 37h
TEST PATTERN r50 72h 35h 30h
SUPER RESOLUTION r96 72h 39h 36h
1 (numeric keypad) r49 72h 34h 39h
2 (numeric keypad) r4a 72h 34h 61h
3 (numeric keypad) r4b 72h 34h 62h
4 (numeric keypad) r4c 72h 34h 63h
5 (numeric keypad) r4d 72h 34h 64h
6 (numeric keypad) r4e 72h 34h 65h
7 (numeric keypad) r88 72h 38h 38h
8 (numeric keypad) r58 72h 35h 38h
9 (numeric keypad) r89 72h 38h 39h
0 (numeric keypad) r48 72h 34h 38h
ALL r5a 72h 35h 61h

11
[Example] When displaying the MENU selection bar. (Values enclosed in quotation marks are ASCII codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘72’ ‘35’ ‘34’ ‘0D’
00r54
Command operating the same as
the MENU button (ID command is
omitted.)
‘30’ ‘30’ ‘72’ ‘35’ ‘34’ ‘0D’
00r54
Command receipt confirmation (The
statuses are echoed back as many
as the number of the connected
projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘72’ ‘35’ ‘34’ ‘0D’
00;01;r54
Command operating the same as the
MENU button is sent to the projector
with the ID of “01” or “ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘72’ ‘35’ ‘34’ ‘0D’
00;01;r54
Command receipt confirmation
(The status is echoed back from the
projector with the ID of “01” or “ALL.”)
5.4 Direct commands (Not executable in stand-by mode. Possible only to read during BLANK.)
The direct commands are used to numerically adjust the geometrical correction and bright uniformity correction.
When the computer sends the command without adding the setting value, the projector returns the received
command with the current setting value added as a data code.
ITEM Function Data
Character ASCII code
KEYSTONE (vertical) KS 4Bh 53h ±40
With CURVED-adjustment : ±10
KEYSTONE (horizontal) KSH 4Bh 53h 48h ±25
With CURVED-adjustment : ±10
KEYSTONE reset KSRST 4Bh 53h 52h 53h 54h
CORNERSTONE LOWER RIGHT (vertical) CNLRV 43h 4Eh 4Ch 52h 56h ±60
CORNERSTONE LOWER RIGHT (horizontal) CNLRH 43h 4Eh 4Ch 52h 48h ±60
CORNERSTONE LOWER LEFT (vertical) CNLLV 43h 4Eh 4Ch 52h 56h ±60
CORNERSTONE LOWER LEFT (horizontal) CNLLH 43h 4Eh 4Ch 52h 48h ±60
CORNERSTONE UPPER RIGHT (vertical) CNURV 43h 4Eh 55h 52h 56h ±60
CORNERSTONE UPPER RIGHT (horizontal) CNURH 43h 4Eh 55h 52h 48h ±60
CORNERSTONE UPPER LEFT (vertical) CNULV 43h 4Eh 55h 52h 56h ±60
CORNERSTONE UPPER LEFT (horizontal) CNULH 43h 4Eh 55h 52h 48h ±60
CORNERSTONE reset CKSRST 43h 4Bh 53h 52h 53h 54h
HORIZ. CURVED ARC CVAH 43h 56h 41h 48h ±99
With KEYSTONE- or
CORNERSTONE-adjustment
: ±30
VERT. CURVED ARC CVAV 43h 56h 41h 56h ±99
With KEYSTONE- or
CORNERSTONE-adjustment
: ±30
HORIZ. CURVED ORIGIN (vertical) CVHOV 43h 56h 48h 4Fh 56h ±10
HORIZ. CURVED ORIGIN (horizontal) CVHOH 43h 56h 48h 4Fh 48h ±10
VERT. CURVED ORIGIN (vertical) CVVOV 43h 56h 56h 4Fh 56h ±10
VERT. CURVED ORIGIN (horizontal) CVVOH 43h 56h 56h 4Fh 48h ±10
CURVED reset CVRST 43h 56h 52h 53h 54h
BRIGHT UNIFORMITY CORRECTION (level) BUCL 42h 55h 43h 4Ch 050 to 100
(Changeable in five increments)
BRIGHT UNIFORMITY CORRECTION
(correcting position) (vertical)
BUCV 42h 55h 43h 56h 1 to 7
BRIGHT UNIFORMITY CORRECTION
(correcting position) (horizontal)
BUCH 42h 55h 43h 48h 1 to 7
How to set the value
Use the character or ASCII code as shown below to set the value.
Character + - 0 1 2 3 4 5 6 7 8 9
ASCII code ‘2Bh’ ‘2Dh’ ‘30h’ ‘31h’ ‘32h’ ‘33h’ ‘34h’ ‘35h’ ‘36h’ ‘37h’ ‘38h’ ‘39h’

12
5.5 Function commands (Not executable in stand-by mode. When the mute commands are sent while the splash
screen is being displayed, the splash screen is only canceled.)
ITEM Function Data
Character ASCII code
BLANK MUTE 4Dh 55h 54h 45h 0 (OFF), 1 (ON)
SPLIT SPLT 53h 50h 4Ch 54h 0 (OFF), 1 (ON)
MAGNIFY MGNFY 4Dh 47h 4Eh 46h 59h 0 (OFF), 1 (ON)
FREEZE FRZ 46h 52h 5Ah 0 (OFF), 1 (ON)
Function canceling FNCOFF 46h 4Eh 43h 4Fh 46h 46h
TEST PATTERN TP 54h 50h 0 (OFF), 1 (CROSS HATCH R),
2 (CROSS HATCH G), 3 (CROSS HATCH B),
4 (WHITE), 5 (BLACK), 6 (H. COLOR BARS),
7 (V. COLOR BARS)
Change of the initial value of
ASPECT
SCDEF 53h 43h 44h 45h 46h 0:NORMAL, 1:FULL
5.6 Menu setting commands (Not executable in stand-by mode except some commands. Possible only to read
during BLANK except some commands.)
The menu setting commands are used for the menu setting of this projector. If the personal computer sends the
command without attaching the data code, the projector attaches to the received command its current setting
value as the data code and send it back to the PC.
5.6.1 IMAGE menu
ITEM Function Data
Character ASCII code
COLOR ENHANCER CE 43h 45h 0 (AUTO), 1 (PRESENTATION), 2 (STANDARD),
3 (THEATER), 4 (sRGB), 5 (CLEAR BASE),
6 (BLUE BASE), 7 (USER), 8 (MULTI-SCREEN)
COLOR ENHANCER-
USER-GAMMA MODE
CEU1GS
43h 45h 55h 31h 47h 53h 0 (DYNAMIC), 1 (NATURAL), 2 (DETAIL)
COLOR ENHANCER-
USER-BrilliantColor™
CEU1B 43h 45h 55h 31h 42h 00–10
COLOR ENHANCER-
USER-DYNAMIC
CONTRAST
CEU1DC 43h 45h 55h 31h 44h 43h 0 (OFF), 1 (1), 2 (2), 3 (3)
COLOR ENHANCER-
MULTI-SCREEN-
GAMMA MODE
CEU2GS 43h 45h 55h 32h 47h 53h 0 (1.8), 1 (2.0), 2 (2.2)
COLOR ENHANCER-
MULTI-SCREEN-
BrilliantColor™
CEU2B 43h 45h 55h 32h 42h 00 to 10
SUPER RESOLUTION DHD 44h 48h 44h 0 (OFF), 1 (ON)
SUPER RESOLUTION-
LEVEL
DHDLV 44h 48h 44h 4Ch 56h 1 to 5
CONTRAST PP 50h 50h ±30
BRIGHTNESS QQ 51h 51h ±30
COLOR MATRIX CMT 43h 4Dh 54h 1 (COMPUTER), 2 (VIDEO), 3 (FLAT), 4 (USER)
COLOR MATRIX -USER-
BASE
CMTBASE 43h 4Dh 54h 42h 41h 53h
45h
1 (COMPUTER), 2 (VIDEO), 3 (FLAT)
COLOR MATRIX -USER-
R/G/B
MRGB 4Dh 52h 47h 42h ± 30 ± 30 ± 30 (R+G+B)
COLOR MATRIX -USER-
Y/C/M
MYCM 4Dh 59h 43h 4Dh ± 30 ± 30 ± 30 (Y+C+M)
COLOR MATRIX -USER-
SATURATION
MSAT 4Dh 53h 41h 54h ± 05
COLOR MATRIX -USER-
RGB-TINT
MT 4Dh 54h ± 15
COLOR TEMP. A 41h 1 (STANDARD), 2 (HIGH), 3 (LOW), 4 (USER)
COLOR TEMP.-USER-
CONTRAST
P 50h ±30 ±30 ±30 (R, G, B)
COLOR TEMP.-USER-
BRIGHTNESS
Q 51h ±30 ±30 ±30 (R, G, B)
COLOR T 54h ±10
TINT S 53h ±10
SHARPNESS R 52h ±05

13
ITEM Function Data
Character ASCII code
NOISE REDUCTION NR 4Eh 52h 0 (OFF), 1 (ON)
CTI CTI 43h 54h 49h 0 (OFF), 1 (ON)
INPUT LEVEL IPL 49h 50h 4Ch ±5,
For DVI input: +0 (NORMAL), +1 (ENHANCED)
For HDMI input: +0 (AUTO), +1 (NORMAL),
+2 (ENHANCED)
CLOSED CAPTION CC 43h 43h 0 (OFF), 1 (CC1), 2 (CC2)
DEMO MODE DM 44h 4Dh 0 (OFF), 1 (ALL), 2 (DYNAMIC CONTRAST),
3 (SUPER RESOLUTION), 4 (COLOR MATRIX)
5.6.2 INSTALLATION 1 menu
ITEM Function Data
Character ASCII code
LAMP MODE LM 4Ch 4Dh 0 (STANDARD), 1 (LOW)
LAMP SELECT LS 4Ch 53h 0 (DUAL), 1 (SINGLE), 2 (LAMP 1), 3 (LAMP 2)
LAMP RELAY LR 4Ch 52h xdhh
x: Lamp relay interval
When DUAL is selected:
0 (OFF), 1 (1H/24H), 2 (2H/1W)
When SINGLE is selected:
0 (OFF), 1 (24H), 2 (1WEEK)
dhh: Next lamp relay time
(d: days, hh: hours)
DUAL-OFF: Fixed to 0 days 00 hours
DUAL-1H/24H: Max. 0 days and 23 hours
DUAL-2H/1W: Max. 6 days and 22 hours
SINGLE-OFF: Fixed to 0 days 00 hours
SINGLE-1H/24H: Max. 0 days and 24 hours
SINGLE-1 WEEK: Max. 7 days and 00 hours
STANDBY MODE STBY 53h 54h 42h 59h 0 (STANDARD), 1 (LOW)
IMAGE REVERSE IR 49h 52h 0 (OFF), 1 (MIRROR), 2 (INVERT),
3 (MIRROR INVERT)
HIGH ALTITUDE MODE ALTI 41h 4Ch 54h 49h 0 (STANDARD), 1 (HIGH ALTITUDE)
ZOOM/FOCUS LOCK FZL 46h 5Ah 4Ch 0 (OFF), 1 (ON)
LENS SHIFT LOCK LSL 4Ch 53h 4Ch 0 (OFF), 1 (ON)
LENS SHIFT RESET LSRST 4Ch 53h 52h 53h 54h
5.6.3 INSTALLATION 2 menu
ITEM Function Data
Character ASCII code
AUTO POWER ON APON 41h 50h 4Fh 4Eh 0 (OFF), 1 (ON)
AUTO POWER OFF APOF 41h 50h 4Fh 46h 0 (OFF), 1 (5min), 2 (10min), 3 (15min), 4 (30min),
5 (60min), 6 (4hour), 7 (8hour)
SCREEN SCR 53h 43h 52h 0 (16:10), 1 (16:9), 2 (4:3)
SPLASH SCREEN SS 53h 53h 0 (OFF), 1 (ON)
BACK COLOR BB 42h 42h 0 (BLACK), 1 (BLUE), 2 (IMAGE)
DVI LONG CABLE
(MODE)
DVIC 44h 56h 49h 43h 0 (AUTO), 1 (MANUAL)
DVI LONG CABLE
(LEVEL)
DVICLV 44h 56h 49h 43h 4Ch 56h 00 to 21
REMOTE 1 MODE
(PIN 2)
R1M2P 52h 31h 4Dh 32h 50h 0 (NONE), 1 (POWER)
REMOTE 1 MODE
(PIN 3)
R1M3P 52h 31h 4Dh 33h 50h 0 (NONE), 1 (COMPUTER 1), 2 (COMPUTER 2),
3 (VIDEO), 4 (S-VIDEO), 5 (DVI), 6 (HDMI)
REMOTE 1 MODE
(PIN 4)
R1M4P 52h 31h 4Dh 34h 50h 0 (NONE), 1 (COMPUTER 1), 2 (COMPUTER 2),
3 (VIDEO), 4 (S-VIDEO), 5 (DVI), 6 (HDMI)
REMOTE 1 MODE
(PIN 5)
R1M5P 52h 31h 4Dh 35h 50h 0 (NONE), 1 (COMPUTER 1), 2 (COMPUTER 2),
3 (VIDEO), 4 (S-VIDEO), 5 (DVI), 6 (HDMI)
REMOTE 1 MODE
(PIN 6)
R1M6P 52h 31h 4Dh 36h 50h 0 (NONE), 1 (COMPUTER 1), 2 (COMPUTER 2),
3 (VIDEO), 4 (S-VIDEO), 5 (DVI), 6 (HDMI)
REMOTE 1 MODE
(PIN 7)
R1M7P 52h 31h 4Dh 37h 50h 0 (NONE), 1 (COMPUTER 1), 2 (COMPUTER 2),
3 (VIDEO), 4 (S-VIDEO), 5 (DVI), 6 (HDMI)
REMOTE 1 MODE
(PIN 8)
R1M8P 52h 31h 4Dh 38h 50h 0 (NONE), 1 (BLANK)

14
ITEM Function Data
Character ASCII code
REMOTE 1 MODE
(RESET)
R1MRST 52h 31h 4Dh 52h 53h 54h
FILTER MENU
(CLEANUP PERIOD)
FLCP 46h 4Ch 43h 50h xdhh
x: Cleanup interval
0 (OFF), 1 (24H), 2 (1WEEK)
dhh: Next cleanup time
(d: days, hh: hours)
OFF: Fixed to 0 days and 00 hours
24H: Max. 0 days and 24 hours
1 WEEK: Max. 7 days and 00 hours
FILTER MENU
(MANUAL CLEANUP)
FLMC 46h 4Ch 4Dh 43h
5.6.4 MULTI-SCREEN menu
ITEM Function Data
Character ASCII code
EDGE BLENDING EB 45h 42h 0 (OFF), 1 (ON)
EDGE ADJUST (UP) EBU 45h 42h 55h 0 (OFF), 1 (ON)
EDGE ADJUST (LOW) EBD 45h 42h 44h 0 (OFF), 1 (ON)
EDGE ADJUST (LEFT) EBLS 45h 42h 4Ch 53h 0 (OFF), 1 (ON)
EDGE ADJUST (RIGHT) EBRS 45h 42h 52h 53h 0 (OFF), 1 (ON)
START POSITION (UP) BSU 42h 53h 55h 000 to 192
START POSITION (LOW) BSD 42h 53h 44h 000 to 192
START POSITION (LEFT) BSLS 42h 53h 4Ch 53h 000 to 256
START POSITION (RIGHT) BSRS 42h 53h 52h 53h 000 to 256
WIDTH (UP) BWU 42h 57h 55h 004 to 368
WIDTH (LOW) BWD 42h 57h 44h 004 to 368
WIDTH (LEFT) BWLS 42h 57h 4Ch 53h 004 to 496
WIDTH (RIGHT) BWRS 42h 57h 52h 53h 004 to 496
MARKER (UP) MKRU 4Dh 4Bh 52h 55h 0 (OFF), 1 (ON)
MARKER (LOW) MKRD 4Dh 4Bh 52h 44h 0 (OFF), 1 (ON)
MARKER (LEFT) MKRLS 4Dh 4Bh 52h 4Ch 53h 0 (OFF), 1 (ON)
MARKER (RIGHT) MKRRS 4Dh 4Bh 52h 52h 53h 0 (OFF), 1 (ON)
BLACK LEVEL
(INTERLOCKED)
ILK 49h 4Ch 4Bh 0 (OFF), 1 (ON)
BLACK LEVEL (RED) BKLVR 42h 4Bh 4Ch 56h 52h 000 to 255
BLACK LEVEL (GREEN) BKLVG 42h 4Bh 4Ch 56h 47h 000 to 255
BLACK LEVEL (BLUE) BKLVB 42h 4Bh 4Ch 56h 42h 000 to 255
EDGE BLENDING
(RESET)
EBRST 45h 42h 52h 53h 54h
COLOR MATCHING CMC 43h 4Dh 43h 0 (OFF), 1 (MANUAL), 2 (MEASURE)
COLOR MATCHING-
MANUAL
(GAIN)
MNTG 4Dh 4Eh 54h 47h x010 to 100
x: Color selection
R (RED), Y (YELLOW), G (GREEN),C (CYAN),
B (BLUE), M (MAGENTA)
COLOR MATCHING-
MANUAL
(SATURATION)
MNTS 4Dh 4Eh 54h 53h x±30
x: Color selection
R (RED), Y (YELLOW), G (GREEN),C (CYAN)
B (BLUE), M (MAGENTA)
COLOR MATCHING-
MANUAL
(HUE)
MNTH 4Dh 4Eh 54h 48h x±30
x: Color selection
R (RED), Y (YELLOW), G (GREEN), C (CYAN)
B (BLUE), M (MAGENTA)
COLOR MATCHING-
MANUAL
(WHITE R)
MNTWR 4Dh 4Eh 54h 57h 52h 010 to 100
COLOR MATCHING-
MANUAL
(WHITE G)
MNTWG 4Dh 4Eh 54h 57h 47h 010 to 100
COLOR MATCHING-
MANUAL
(WHITE B)
MNTWB 4Dh 4Eh 54h 57h 42h 010 to 100

15
ITEM Function Data
Character ASCII code
COLOR MATCHING-
MANUAL (RESET)
MNRST 4Dh 4Eh 52h 53h 54h
COLOR MATCHING-
-MEASURE-MEASURED
DATA (Y(Relative value))
MSML 4Dh 53h 4Dh 4Ch x00050 to 20000
x: Color selection
R (RED), G (GREEN), B (BLUE), W (WHITE)
COLOR MATCHING-
-MEASURE-MEASURED
DATA (x)
MSMX 4Dh 53h 4Dh 58h x*.*** to *.***
x: Color selection
R (RED), G (GREEN), B (BLUE), W (WHITE)
*.***: The range varies depending on x.
COLOR MATCHING-
-MEASURE-MEASURED
DATA (y)
MSMY 4Dh 53h 4Dh 59h x*.*** to *.***
x: Color selection
R (RED), G (GREEN), B (BLUE), W (WHITE)
*.***: The range varies depending on x.
COLOR MATCHING-
-MEASURE -TARGET
DATA (GAIN)
MSTG 4Dh 53h 54h 47h x010 to 100
x: Color selection
R (RED), Y (YELLOW), G (GREEN), C (CYAN)
B (BLUE), M (MAGENTA), W (WHITE)
COLOR MATCHING-
-MEASURE -TARGET
DATA (x)
MSTX 4Dh 53h 54h 58h x*.*** to *.***
x: Color selection
R (RED), Y (YELLOW), G (GREEN),C (CYAN)
B (BLUE), M (MAGENTA), W (WHITE)
*.***: The range varies depending on x.
COLOR MATCHING-
-MEASURE -TARGET
DATA (y)
MSTY 4Dh 53h 54h 59h x*.*** to *.***
x: Color selection
R (RED), Y (YELLOW), G (GREEN),C (CYAN)
B (BLUE), M (MAGENTA), W(WHITE)
*.***: The range varies depending on x.
COLOR MATCHING-
-MEASURE (RESET)
MSRST 4Dh 53h 52h 53h 54h
5.6.5 FEATURE menu
ITEM Function Data
Character ASCII code
PROJECTOR ID PID 50h 49h 44h 00 (ALL), 01 to 63
GROUP ID GID 47h 49h 44h A to Z
PASSWORD FUNCTION PSLOCK 50h 53h 4Ch 4Fh 43h
4Bh
0**** (UNLOCK), 1**** (DISPLAY INPUT),
2**** (MENU ACCESS), 3**** (SPLASH ID
SCREEN)
**** is a 4 to 8-digit password comprised of any figures 1
to 4.
MENU POSITION MP 4Dh 50h 0 (Upper left), 1 (Lower right), 4 (Center)
CINEMA MODE CINE 43h 49h 4Eh 45h 0 (VIDEO), 1 (AUTO), 2 (FILM)
LANGUAGE LG 4Ch 47h 00 ( ), 01 (English), 02 (Español),
03 (Deutsch), 04 (Français), 05 (Italiano), 06 ( ),
07 ( ), 08 ( ), 09 (PORTUGUÊS),
11 (SVENSKA), 12 (POLSKI), 16 (Nederlands),
17 (Norsk), 18 ( ), 19 (Türkçe),
20 (
ภาษาไทย
), 21 (Bahasa Indonesia), 22 (Melayu),
23 ( )
VIDEO SIGNAL
(VIDEO only)
VS 56h 53h 0 (AUTO), 1 (NTSC), 2 (PAL), 3 (SECAM),
4 (4.43NTSC), 5 (PAL-M), 6 (PAL-N), 7 (PAL-60)
SET UP STU 53h 54h 55h 0 (AUTO), 1 (OFF), 2 (3.75%), 3 (7.5%)
SCART INPUT SRT 53h 52h 54h 0 (OFF), 1 (ON)
LAMP WARNING LW 4Ch 57h 0 (STANDARD), 1 (SHORT TERM)
HIDE OSD HOSD 48h 4Fh 53h 44h 0 (OFF), 1 (ON)
LAMP 1 TIME RESET TRST1L 54h 52h 53h 54h 31h 4Ch
LAMP 2 TIME RESET TRST2L 54h 52h 53h 54h 32h 4Ch
FILTER TIME RESET TRSTFL 54h 52h 53h 54h 46h 4Ch
RESET ALL RSTALL 52h 53h 54h 41h 4Ch 4Ch

16
5.6.6 SIGNAL menu
ITEM Function Data
Character ASCII code
MEMORY CALL MMC 4Dh 4Dh 43h 0 (AUTO), 1 to 8 (MEMORY 1 to 8)
HORIZ.POSITION HP 48h 50h + (increment), - (decrement)*1
VERT. POSITION VP 56h 50h + (increment), - (decrement)*1
FINE SYNC. FN 46h 4Eh 00–31
TRACKING TRK 54h 52h 4Bh + (increment), - (decrement)*1
COMPUTER INPUT CIN 43h 49h 4Eh 0 (RGB), 1 (YCBCR/YPBPR), 2 (AUTO)
OVER SCAN VOS 56h 4Fh 53h 00 (90%) – 10 (100%)
HOLD HLD 48h 4Ch 44h 0 (OFF), 1 (ON)
HOLD BEGIN HLB 48h 4Ch 42h 00–99
HOLD END HLE 48h 4Ch 45h 00–99
ASPECT SC 53h 43h 0 (NORMAL, 1 (16:9), 2 (NATIVE), 3 (FULL),
4 (USER)
ASPECT-USER-
ZOOM(H)
ZMH 5Ah 4Dh 48h 050 to 500
NAK is returned when the ASPECT setting is other
than USER.
ASPECT-USER-ZOOM(V) ZMV 5Ah 4Dh 56h 050 to 500
NAK is returned when the ASPECT setting is other
than USER.
ASPECT-USER-HORIZ.
POSITION
AHP* 41h 48h 50h *:+, -
+:incriment -:decriment
NAK is returned when the ASPECT setting is other
than USER.
ASPECT-USER-VERT.
POSITION
AVP* 41h 56h 50h *:+, -
+:incriment -:decriment
NAK is returned when the ASPECT setting is other
than USER.
ASPECT-USER-RASTER
POSITION(H)
RPH* 52h 50h 48h *:+, -
+:incriment -:decriment
NAK is returned when the ASPECT setting is other
than USER.
ASPECT-USER-RASTER
POSITION(V)
RPV* 52h 50h 56h *:+, -
+:incriment -:decriment
NAK is returned when the ASPECT setting is other
than USER.
ASPECT-USER-RESET ASRST 41h 53h 52h 53h 54h The setting contents of ASPECT USER are reset.
NAK is returned when the ASPECT setting is other
than USER.
CLAMP POSITION CLP 43h 4Ch 50h 001 to 255
CLAMP WIDTH CLW 43h 4Ch 57h 01 to 63
VERT. SYNC. VSC 56h 53h 43h 0 (AUTO), 1 (OFF)
LPF LPF 4Ch 50h 46h 0 (OFF), 1 (ON)
SHUTTER(U) SHU 53h 48h 55h 000 to 142
SHUTTER(L) SHL 53h 48h 4Ch 000 to 142
SHUTTER(LS) SHLS 53h 48h 4Ch 53h 000 to 192
SHUTTER(RS) SHRS 53h 48h 52h 53h 000 to 192
*1) Setting range differs depending on the input signals.
5.6.7 NETWORK menu
ITEM Function Data
Character ASCII code
PROJECTOR NAME NAME 4Eh 41h 4Dh 45h Up to 15 single-byte alphanumeric characters
Effective only during P-ON.
NETWORK RESTART NRCN 4Eh 52h 43h 4Eh LAN microcomputer is reset and restarted.
• Some commands are not executed depending on the input signal. The operational restrictions same as those
on the menu setting are applied. Refer to “Menu operation” in the User Manual for more details.

17
How to set the value
Use the character or ASCII code as shown below to set the value.
Character + - 0 1 2 3 4 5 6 7 8 9
ASCII code ‘2Bh’ ‘2Dh’ ‘30h’ ‘31h’ ‘32h’ ‘33h’ ‘34h’ ‘35h’ ‘36h’ ‘37h’ ‘38h’ ‘39h’
[Example 1] When setting the AUTO POWER ON to ON. (Values enclosed in quotation marks are ASCII codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘41’ ‘50’ ‘4F’ ‘4E’ ‘31’ ‘0D’
00APON1
Command for setting the
AUTO POWER ON to ON (ID
command is omitted.)
‘30’ ‘30’ ‘41’ ‘50’ ‘4F’ ‘4E’ ‘31’ ‘0D’
00APON1
Command receipt confirmation
(The statuses are echoed back
as many as the number of the
connected projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘41’ ‘50’ ‘4F’ ‘4E’
‘31’ ‘0D’
00;01;APON1
Command for setting the
AUTO POWER ON is sent to
the projector with the ID of “01”
or “ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘41’ ‘50’ ‘4F’ ‘4E’
‘31’ ‘0D’
00;01;APON1
Command receipt confirmation
(The status is echoed back
from the projector with the ID
of “01” or “ALL.”)
[Example 2] When setting the CONTRAST R of the COLOR TEMP.-USER to +10, the CONTRAST G to 0, and the
CONTRAST B to -5. (Values enclosed in quotation marks are ASCII codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘50’ ‘2B’ ‘31’ ‘30’ ‘2B’ ‘30’ ‘30’ ‘2D’ ‘30’ ‘35’ ‘0D’
00P+10+00-05
Command for setting the
picture control (ID command is
omitted.)
‘30’ ‘30’ ‘50’ ‘2B’ ‘31’ ‘30’ ‘2B’ ‘30’ ‘30’ ‘2D’ ‘30’ ‘35’ ‘0D’
00P+10+00-05
Command receipt confirmation
(The statuses are echoed back
as many as the number of the
connected projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘50’ ‘2B’ ‘31’ ‘30’
‘2B’ ‘30’ ‘30’ ‘2D’ ‘30’ ‘35’ ‘0D’
00;01;P+10+00-05
Command for setting the
CONTRAST is sent to the
projector with the ID of “01” or
“ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘50’ ‘2B’ ‘31’ ‘30’
‘2B’ ‘30’ ‘30’ ‘2D’ ‘30’ ‘35’ ‘0D’
00;01;P+10+00-05
Command receipt confirmation
(The status is echoed back
from the projector with the ID
of “01” or “ALL.”)

18
[Example 3] When checking the TINT setting (when the TINT is set to +10). (Values enclosed in quotation marks
are ASCII codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘53’ ‘0D’
00S
Command for checking the
TINT setting (ID command is
omitted.)
‘30’ ‘30’ ‘53’ ‘2B’ ‘31’ ‘30’ ‘0D’
00S+10
Check result (+10)
(The statuses are echoed back
as many as the number of the
connected projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘53’ ‘0D’
00;01;S
Command for checking the
TINT setting is sent to the
projector with the ID of “01” or
“ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘53’ ‘2B’ ‘31’ ‘30’ ‘0D’
00;01;S+10
Check result (+10)
(The status is echoed back
from the projector with the ID
of “01” or “ALL.”)
[Example 4] When setting the GAMMA MODE of the COLOR ENHANCER-USER to DETAIL. (Values enclosed in
quotation marks are ASCII codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘43’ ‘45’ ‘55’ ‘31’ ‘47’ ‘53’ ‘32’ ‘0D’
00CEU1GS2
Command for setting the
picture control (ID command is
omitted.)
‘30’ ‘30’ ‘43’ ‘45’ ‘55’ ‘31’ ‘47’ ‘53’ ‘32’ ‘0D’
00CEU1GS2
Command receipt confirmation
(The statuses are echoed back
as many as the number of the
connected projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘43’ ‘45’ ‘55’
‘31’ ‘47’ ‘53’ ‘32’ ‘OD’
00;01;CEU1GS2
Command for setting the
GAMMA MODE of the COLOR
ENHANCER-USER is sent to
the projector with the ID of “01”
or “ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘43’ ‘45’ ‘55’
‘31’ ‘47’ ‘53’ ‘32’ ‘OD’
00;01;CEU1GS2
Command receipt confirmation
(The status is echoed back
from the projector with the ID
of “01” or “ALL.”)

19
5.7 Password lock commands
The password lock commands control the password lock. The password lock enabling or disabling command is
sent with a 4 to 8-digit password comprised of any figures 1 to 4 added to the end of the data code. When the
password lock is enabled or disabled successfully, the projector sends a return command comprising the data
code, password, and “1” at the end. When enabling or disabling the password lock fails, it sends a return com-
mand with “0” at the end. There is no reconfirmation of the password. The password input command is for en-
abling projection of image when password lock has been set to DISPLAY INPUT. The password input command
is sent with a 4 to 8-digit password comprised of any figures 1 to 4 at the end.
ITEM Function Data
Character ASCII code
Password lock enabling/
disabling
PSLOCK 50h 53h 4Ch 4Fh 43h 4Bh 0**** (Disabling), 1**** (DISPLAY INPUT),
2**** (MENU ACCESS), 3**** (SPLASH ID SCREEN)
Password input PASS 50h 41h 53h 53h ****
**** is a 4 to 8-digit password comprised of any figures 1 to 4.
[Example] When enabling the password lock of DISPLAY INPUT (in the case that the password is 123412).
(Values enclosed in quotation marks are ASCII codes.):
• When ID is not specied:
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘50’ ‘53’ ‘4C’ ‘4F’ ‘43’ ‘4B’ ‘31’ ‘31’ ‘32’ ‘33’ ‘34’ ‘31’ ‘32’ ‘0D’
00PSLOCK1123412
Command for enabling the
password lock of DISPLAY INPUT
(ID command is omitted.)
‘30’ ‘30’ ‘50’ ‘53’ ‘4C’ ‘4F’ ‘43’ ‘4B’ ‘31’ ‘31’ ‘32’ ‘33’ ‘34’ ‘31’ ‘32’ ‘31’ ‘0D’
00PSLOCK11234121
Response informing that the
projector succeeded in enabling the
password lock of DISPLAY INPUT
(The statuses are echoed back
as many as the number of the
connected projectors.)
• When ID is specied (when the command is sent to the projector with the ID of “01” or “ALL”):
Command sent from the PC, etc. Status code returned
from the projector Description
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘50’ ‘53’ ‘4C’ ‘4F’ ‘43’ ‘4B’ ‘31’
‘31’ ‘32’ ‘33’ ‘34’ ‘31’ ‘32’ ‘ 0D’
00;01;PSLOCK1123412
Command for turning on the
password lock of DISPLAY INPUT
is sent to the projector with the ID
of “01” or “ALL.”
‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘50’ ‘53’ ‘4C’ ‘4F’ ‘43’ ‘4B’ ‘31’
‘31’ ‘32’ ‘33’ ‘34’ ‘31’ ‘32’ ‘31’ ‘0D’
00;01;PSLOCK11234121
Response informing that the
projector succeeded in enabling the
password lock of DISPLAY INPUT
(The status is echoed back from
the projector with the ID of “01”
or “ALL.”)
