Mitsubishi Heavy Industries SRK63ZM-S User manual

USER’S MANUAL
AIR-CONDITIONER
RKW012A412D
SRK63ZM-S
SRK71ZM-S
SRK80ZM-S
AIR-CONDITIONING & REFRIGERATION DIVISION
3-1, Asahi, Nishibiwajima-cho, Kiyosu, Aichi, 452-8561, Japan
http://www.mhi.co.jp
MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONING EUROPE, LTD.
7 Roundwood Avenue, Stockley Park, Uxbridge, Middlesex, UB11 1AX, United Kingdom
Tel:[phone]
Fax: [phone]
http://www.mhiae.com
MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONERS AUSTRALIA, PTY. LTD.
9C Commercial Road Kingsgrove NSW 2208 PO BOX 318 Kingsgrove NSW 1480
Tel:[phone]
Fax: [phone]
http://www.mhiaa.com.au
ORIGINAL INSTRUCTIONS
MANUEL DE L’UTILISATEUR
CLIMATISEUR
ANWENDERHANDBUCH
KLIMAGERA
¨T
ISTRUZIONI PER L’USO
CONDIZIONATORE D’ARIA
MANUAL DEL PROPIETARIO
ACONDICIONADOR DE AIRE
GEBRUIKERSHANDLEIDING
AIRCONDITIONING
MANUAL DO UTILIZADOR
APARELHO DE AR CONDICIONADO
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
КОНДИЦИОНЕР ВОЗДУХА
KULLANIM KILAVUZU
ENGLISH
DEUTSCH
ITALIANO
ESPAN
˜OL
NEDERLANDS
PORTUGUÊS
РУССКИЙ
TÜRKÇE
FRANÇAIS
ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ
ΚΛΙΜΑΤΙΣΤΙΚΟ
ΕΛΛΗΝΙΚΑ
This air conditioner complies with EMC Directive 2004/108/EC,
LV Directive 2006/95/EC.
Ce climatiseur est conforme à la Directive EMC: 2004/108/EC, LV
Directive 2006/95/EC.
Dieses Kimagerät erfüllt die EMC Direktiven 2004/108/EC, LV
Direktiven 2006/95/EC.
Questo condizionatore d’aria è conforme alla Direttiva EMC: 2004/
108/EC, LV Direttiva 2006/95/EC.
Deze airconditioner voldoet aan EMC Directive 2004/108/EC, LV
Directive 2006/95/EC.
Este acondicionador de aire cumple con la directiva EMC: 2004/
108/EC, LV Directiva 2006/95/EC.
Este aparelho de ar condicionado está em conformidade com a
Directiva EMC 2004/108/EC e a Directiva LV 2006/95/EC.
∞˘Ùfi ÙÔ ÎÏÈÌ·ÙÈÛÙÈÎfi Â›Ó·È Û‡ÌʈÓÔ Ì ÙȘ ÚԉȷÁڷʤ˜ Ù˘
√‰ËÁ›·˜ EMC 2004/108/EK Î·È Ù˘ √‰ËÁ›·˜ LV 2006/95/EK.
RKW012A412D_Cover1,4 4/18/14, 11:001

–1–
Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To
get the best long-lasting performance, please read and follow this User’s Manual carefully
before using your air-conditioner. After reading, please store the Manual in a safe place
and refer to it for operational questions or in the event of any irregularities.
This air-conditioner is intended for domestic use.
Do not vent R410A into the atmosphere: R410A is a fluorinated greenhouse gas,
covered by the Kyoto Protocol with a Global Warming Potential (GWP) = 1975.
contents
ENGLISH
Your Air Conditioning product may be marked with this symbol. It means
that waste electrical and electronic equipment (WEEE as in directive 2012/
19/EU) should not be mixed with general household waste. Air conditioners
should be treated at an authorized treatment facility for re-use, recycling
and recovery and not be disposed of in the municipal waste stream. Please
contact the installer or local authority for more information.
This symbol printed in the batteries attached to your Air Conditioning
product is information for end-users according to the EU directive 2013/56/
EU article 20 annex II.
Batteries, at their end-of-life, should be disposed of separately from general
household waste. If a chemical symbol is printed beneath the symbol
shown above, this chemical symbol means that the batteries contain a
heavy metal at a certain concentration. This will be indicated as follows:
Hg:mercury(0.0005%) , Cd:cadmium(0.002%) , Pb:lead(0.004%)
Please, dispose of batteries correctly at your local community waste
collection or the recycling center.
Safety precautions ........................................ 2
Name of each part and its function ............... 6
Remote control handling ............................... 8
Operation failure with the remote control ...... 8
Temporary run operation .............................. 8
Installing two air conditioners in the same
room .............................................................. 9
Child Lock ..................................................... 9
Operation and display section for
remote control ............................................. 10
Current time setting..................................... 11
AUTO mode operation ................................ 11
Temperature adjustment during AUTO....... 12
FAN SPEED ................................................ 12
COOL/HEAT/DRY/FAN mode operation .... 13
Air-conditioner operable
temperature setting ..................................... 13
Characteristics of HEAT mode operation ... 13
Airflow direction adjustment ........................ 14
3D AUTO operation .................................... 14
SLEEP TIMER operation ............................ 15
The emission sound pressure level from each Indoor and Outdoor unit is under 70 dB(A).
OFF-TIMER operation ................................ 15
ON-TIMER operation .................................. 16
SLEEP TIMER + ON-TIMER operation ...... 16
ON-TIMER + OFF-TIMER operation .......... 17
ALLERGEN CLEAR operation .................... 17
WEEKLY TIMER operation ......................... 18
HIGH POWER/ECONOMY operation ......... 22
NIGHT SETBACK operation ....................... 23
SILENT operation ....................................... 23
SELF CLEAN operation .............................. 24
Auto restart function .................................... 24
Tips for effective operation ......................... 24
Installation location setting .......................... 25
Maintenance ............................................... 26
Proper installation ....................................... 28
Troubleshooting .......................................... 28
Notice .......................................................... 29
Contact your dealer..................................... 30
About the Multiple Air-conditioner ............... 30
Self diagnosis function ................................ 31
RKW012A412D_EN_001-032 7/22/14, 10:201

–2–
Safety precautions
• Before starting to use the system, please read these “Safety precautions” carefully to ensure
proper operation of the system.
• When you have read this instruction manual, please keep it without missing. If someone else
takes over as operator, make certain that the manual is also passed on to the new operator.
❚INSTALLATION PRECAUTIONS
•
The system is for domestic, residential etc. use.
If used in severer environments, such as an engineering workplace, the equipment
may function poorly.
WARNING
Please observe these precautions with great care, since they are essential to your safety.
• Symbols which appear frequently in the text have the following meaning:
WARNING
CAUTION
Improper handling could lead to drastic result like death, se-
rious injury, etc.
Might pose a serious problem, depending on the circum-
stances.
Strictly prohibited Provide proper earth-
ing
Observe instructions
with great care
• The system must be installed by your dealer or a qualified professional.
It is not advisable to install the system by yourself, as faulty handling may cause leak-
age of water, electric shock or fire.
• Do not install it where flammable gas may leak.
Gas leaks may cause fire.
• Depending on the place of installa-
tion, an earth leakage breaker may be
necessary.
If you do not install an earth leakage
breaker, you may get an electric shock.
• Make sure to install the drain hose
properly so that all the water is
drained out.
Improper installation may lead to water
drop in the room resulting in wet furni-
ture.
• Make sure that the system has been properly earthed.
Earth cables should never be connected to a gas pipe, water pipe, lightning conductor
or telephone earth cable. Incorrect installation of the earth cable may produce an elec-
tric shock.
CAUTION
RKW012A412D_EN_001-032 4/15/14, 13:552

–3–
❚OPERATION PRECAUTIONS
WARNING
CAUTION
• Cleaning and user maintenance shall
not be made by children without su-
pervision.
• Do not insert anything into the air in-
let.
This may cause injury, as the internal fan
rotates at high speed.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
• Store the remote control out of reach of infants.
Failure to observe this may result in the batteries being swallowed or other accidents.
• Only use approved fuses.
Use of steel or copper wire instead of an
approved fuse is strictly prohibited, as it
may cause a breakdown or fire.
• Do not handle the switches with wet
hands.
This may cause an electric shock.
• Do not swing from the indoor unit.
If the indoor unit falls down,you may get
injured.
• Do not place a flammable insecticide
or paint spray near the blower, nor
spray it directly on the system.
This may result in a fire.
• You should not expose any combus-
tion appliance directly to the air
stream of the air-conditioner.
The appliance may then work inad-
equately.
• Do not wash the air-conditioner with
water.
This could cause an electric shock.
• Children shall not play with the appli-
ance.
• Do not expose yourself to the cooling
air for a long period.
This could affect your physical condition
and cause health problems.
❚Safety precautions
• The system should only be used for
its original purpose and not for any-
thing else like, for instance, preserva-
tion of food, plants or animals, preci-
sion devices or works of art.
The system is only intended for use in
ordinary domestic rooms. Any other use
of the system may damage the quality
of food, etc.
• Do not place anything containing wa-
ter, like vases, on top of the unit.
Water entering the unit could damage
the insulation and therefore cause an
electric shock.
• Do not install the system where the
airflow direction is aimed directly at
plants or animals.
This will damage their health.
• Do not sit on the outdoor unit nor put
anything on it.
If the unit falls down or things drop off it,
people could get hurt.
• After a long period of use, check the
unit's support structure from time to
time.
If you do not repair any damage right
away, the unit may fall down and cause
personal injury.
RKW012A412D_EN_001-032 4/15/14, 13:553

–4–
❚Safety precautions
CAUTION
• Do not touch the aluminum fins on the
air heat exchanger.
It may result in injury.
• Do not place household electrical
appliances or household items under
neath the indoor or outdoor units.
Condensation falling from the unit may
stain objects and cause accidents or
electrical shock.
• Do not operate the system without
the air filter.
It can cause malfunction of the system
due to clogging of the heat exchanger.
• Do not shut off the power supply im-
mediately after stopping the opera-
tion.
Wait at least 5 minutes, otherwise there
is a risk of water leakage or breakdown.
• Do not control the system with main
power switch.
It can cause fire or water leakage. In
addition, the fan can start unexpectedly,
which can cause personal injury.
• Do not pour liquid into this unit and do
not put water container on this unit.
Water entering the unit could damage
the insulation and therefore cause an
electric shock.
• If you operate the system together
with a combustion appliance, you
must regularly ventilate the indoor
air.
Insufficient ventilation may cause acci-
dents due to oxygen deficiency.
• Stand firmly on a stepladder or other
stable object when removing the inlet
panel and filters.
Failure to observe this may result in
injury through insecure objects toppling
over.
• When you clean the system, stop the
unit and turn off the power supply.
Never open the panel while the internal
fan is rotating.
• Do not place objects near the out-
door unit or allow leaves to gather
around the unit.
If there are objects or leaves around the
outdoor unit, small animals may enter
unit and contact electrical parts and
may cause a break-down, smoke or fire.
• Contact your dealer to clean inside
the indoor unit, do not attempt to do
by yourself.
The use of a non-approved detergent or
improper washing method may damage
the unit’s plastic components and cause
leaks. Damage, smoke, or fire may also
happen if the detergent comes in con-
tact with electrical parts or the unit’s
motor.
• Stop the unit and turn off the power if
you hear thunder or there is a danger
of lightning.
It may damage the unit.
• Do not let the foreign matters enter
the indoor unit through the air out-
lets.
This may cause the dumper inoperable.
• If the power cord becomes damaged,
contact your dealer or a qualified en-
gineer.
If it is not replaced, it may cause a
breakdown or fire.
RKW012A412D_EN_001-032 4/15/14, 13:554

–5–
❚PRECAUTIONS FOR RELOCATION OR REPAIRS
WARNING
• Do not perform any repairs or modifications by yourself. Consult the dealer if
the unit requires repair.
If you repair or modify the unit, it can cause water leaks, electric shocks or fire.
• Consult your dealer for repairs.
Wrong repairs could cause an electric
shock, fire, etc.
• In case the air-conditioner is relo-
cated elsewhere, contact your dealer
or a professional fitter.
Faulty installation may cause water
leakage, electric shock, fire, etc.
• If you notice anything abnormal
(smell of burning, etc.), stop the
system, turn off the power supply
and consult your dealer.
Continued use of the system in abnor-
mal circumstances may result in mal-
functioning, electric shock, fire, etc.
• If the air-conditioner fails to cool or
warm the room, it may have a refrig-
erant leakage. Contact your dealer.
If refrigerant needs to be added,
check with your dealer for proper
instructions.
If the refrigerant comes in contact with
the bare skin, it may cause cold injury.
If the refrigerant gas is inhaled exces-
sively, it may cause deterioration of nerve
function like dizziness and headache, or
deterioration of heart function like irregu-
lar heartbeat and heart palpitation tempo-
rarily. If refrigerant unexpectedly leaks
from the unit onto a fan heater, stove,
hotplate or other heat source, harmful
gases could be generated.
❚Safety precautions
RKW012A412D_EN_001-032 4/15/14, 13:555

–6–
Name of each part and its function
INDOOR UNIT
OUTDOOR UNIT
Air outlet
Air inlet
(On side & rear surface)
Outdoor unit fan
Heat exchanger
Air inlet panel
Draws in the indoor air. Page 26
Indoor unit fan
Air filter
Removes dust or dirt from the inlet air. Page 26
Wireless remote control
Drain hose
Drains water from the indoor unit.
Left/right air flow direction adjustment louver
Page 14
Up/down air flow direction adjustment flap
Page 14
Air outlet
Air blows out of here.
Unit operation switch
Room temperature sensor
Air-cleaning filter
Refrigerant piping connection and electric wire
Unit display section
Page 7
Heat exchanger
RKW012A412D_EN_001-032 4/15/14, 13:556

–7–
RUN TIMER ECONO
ON
/ OFF
HI
POWER
Unit display section
ECONO light (orange)
Illuminates during ECONOMY operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
Blinks during heating preparation.
TIMER light (yellow)
Illuminates during TIMER operation.
This button can be used for turning on/off the unit when
remote control is not available.
Page 8
Remote control signal receiver
Unit ON/OFF button
Name of each part and its function
RUN (HOT KEEP) light (green)
•Illuminates during operation.
•
Blinks when airflow stops due to the ‘HOT
KEEP’
, ‘ CLEAN operation ’and ‘ operation
mode invalid
’.
Page 24
•Buzzer sound for remote control
When preset temperature 24°C, automatic operation and automatic airflow are selected, the buzzer sound (PiPi) is produced.
When turning off the air conditioner by pressing ON/OFF button (except CLEAN mode), the buzzer sound (Pi) is produced.
This function is useful for operating the air conditioner in the darkness.
NOTE
Preset temperature
Air flow setting
ON
OFF
1.5 sec.
0.5 sec.
HOT KEEP
3 sec.
1 sec.
ON
OFF
CLEAN operation
Operation mode
invalid
ON
OFF
0.5 sec.
0.5 sec.
Page 30
Wireless remote control Wireless remote
control holder
Allergen clear filter
(Light orange)
Photocatalytic washable
deodorizing filter (Orange)
Battery
(R03 (AAA, Micro) ×2)
Wood screw (Quantity:2)
(for remote control holder mounting)
Accessories
1.5 sec.
ON
OFF
0.5 sec.
RKW012A412D_EN_001-032 4/15/14, 13:557

–8–
Remote control handling
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Display fades away.
NOTE
•Do not use old and new batteries together.
•Remove the batteries when the remote control is not used for a long
period.
•The recommended effective period of a battery conforming to JIS or IEC
should be 6 to 12 months with normal use. If used longer, or when an
unspecified battery is used, liquid may leak from the battery, causing the
remote control to malfunction.
•The recommendable effective period is printed on the battery. This may be
shorter due to manufacturering time to the unit. However, the battery may
still be in working order after expiry of its nominal life.
Pull out the cover and take
out old batteries.
Insert new batteries. R03
(AAA, Micro) x2
Close the cover.
■When the display shows any abnormal condition, Press the ACL switch with
the tip of a ballpoint pen.
1
2
3
Pay attention to
the ªand ·
marks
Press the ACL switch with
the tip of a ballpoint pen.
4
Using the remote control holder
The remote control can be attached to a wall or pillar
by using a remote control holder. Before installing the
remote control, check that the air-conditioner receives
the signals properly.
For installing or removing the remote control, move it
up or down in the holder.
•Are the batteries running down?
“Replacing the batteries” above.
Replace the batteries with new ones and retry
the operation.
Warning note for remote control handling
Operation failure with the remote control
•If the operation fails, operate the unit
with temporary operation function.
Contact your dealer to have the remote con-
trol checked.
Below
Strictly prohibited
•Do not drop the remote control.
Handle with care.
•Do not go near high temperature
places, such as an electric carpet
or stove.
•Do not place heavy objects on the
remote control, or step on it.
•Do not put any obstructing obsta-
cles between the remote control
and the unit.
•Do not spill any liquid on the
remote control.
•Do not leave the remote control ex-
posed to direct sunlight or other
strong lighting.
Temporary run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button; it stops if you press
the button again.
•Do not hold the Unit ON/OFF button down for more than 5 seconds.
(Holding it down longer than 5 seconds sets the automatic cooling used during servicing or when relocating the air-conditioner.)
NOTE
Unit ON/OFF button
Page 11
RKW012A412D_EN_001-032 4/15/14, 13:558

–9–
Installing two air conditioners in the same room
■When two air conditioners are installed in the same room, use this setting when the two air conditioners are not operated with one
remote control. Set the remote control and indoor unit.
Pull out the cover and take out batter-
ies.
Disconnect the switching line next to
the battery with wire cutters.
1
2
Disconnect
Insert batteries.
Close the cover.
3
Setting the remote control
Turn off the power supply, and turn it on after 1 minute.
Point the remote control that was set according to the
procedure described on the left side at the indoor unit
and send a signal by pressing the ACL switch on the
remote control.
Check that the reception buzzer sound "pip" is emitted
from the indoor unit.
At completion of the setting, the indoor unit emits a buzzer sound
"pip". (If no reception tone is emitted, start the setting from the be-
ginning again.)
1
2
3
Setting an indoor unit
Since the signal is sent in
about 6 seconds after the
ACL switch is pressed,
point the remote control
at the indoor unit for
some time.
Child Lock
■This function locks the remote control operation to prevent an operation error.
1
Point the remote control toward the air-conditioner, and
Press the SET button for 3 seconds or longer.
is displayed. While Child Lock is set, only the ON/OFF button can be
operated.
Releasing procedure
Turn off the light by pressing the SET button for 3 seconds or longer.
•While Child Lock is set, the settings of temperature, fan speed and airflow
direction cannot be changed. To change the settings, reset Child Lock.
•Child lock will not function during ALLERGEN CLEAR operation.
NOTE
Reception
pip
RKW012A412D_EN_001-032 4/15/14, 13:559

–10–
Transmission procedure
When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit, a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
OPERATION MODE select button
Each time the button is pressed, the
mode changes.
Page 11,13
•The above illustration shows all controls, but in
practice only the relevant parts are shown.
ALLERGEN CLEAR button
This button selects ALLERGEN CLEAR
operation.
Page 17
ON/OFF (luminous) button
Press to start operation, press again to
stop.
TEMPERATURE button
This button sets the room temperature.
AIR FLOW (UP/DOWN) button
This button changes the air flow (up/
down) direction.
Page 14
TIME SET UP switch
This switch is for setting the time.
Page 11
SLEEP button
This button selects SLEEP operation.
Page 15
CLEAN switch
This switch selects the CLEAN
operation.
Page 24
ON TIMER button
This button selects ON TIMER operation.
Page 16
TIMER button
This buttions is used for setting the cur-
rent time and timer function.
ACL switch
Switch for resetting microcomputer.
Page 8
PROGRAM button
This button sets WEEKLY TIMER.
Page 18
Operation and display section for remote control
Operation section
HI/ECO button
This button changes the HIGH POWER/
ECONOMY operation.
Page 22
AIR FLOW (LEFT/RIGHT) button
This button changes the air flow (left/
right) direction.
Page 14
SILENT button
This buttion changes the SILENT
operation.
Page 23
OFF TIMER button
This button selects OFF TIMER
operation.
Page 15
WEEKLY button
This button switches the WEEKLY
TIMER to ON/OFF.
Page 18
FAN SPEED button
Each time the button is pressed, the fan
speed changes.
Page 12
3D AUTO button
This button sets 3D AUTO operation.
Page 14
NIGHT SETBACK button
This button sets NIGHT SETBACK
operation.
Page 23
SET/Child Lock button
Use this button to set the timer and
Child Lock.
Page 9
CANCEL button
This button cancels the ON timer, OFF
timer, and SLEEP operation.
Transmission section
RKW012A412D_EN_001-032 4/15/14, 13:5510

–11–
AUTO mode operation
■ Automatically selects the operation mode (COOL, HEAT, DRY) depending on the room temperature when switched on.
•If you do not want the AUTO mode program, change
to COOL, HEAT, DRY or FAN instead of AUTO.
Page 13
•Airflow direction adjustment procedure.
Page 14
AUTO mode can be
operated by simply
pressing the ON/
OFF button.
To stop: Press the ON/OFF button.
When the unit is not in AUTO mode:
Press MODE button.
The mode changes whenever the button is pressed.
Set to .
Point the remote control toward the air-conditioner, and
Press the ON/OFF button.
1
2
NOTE
Display in OFF status
•The current time, day of the week,
and present OPERATING MODE
are displayed while the air condi-
tioner is turned off.
•In case air is not blowing out
during the operation.
Page 29
•When the included clean filter is
installed the air conditioner will
clean the air during automatic
operation.

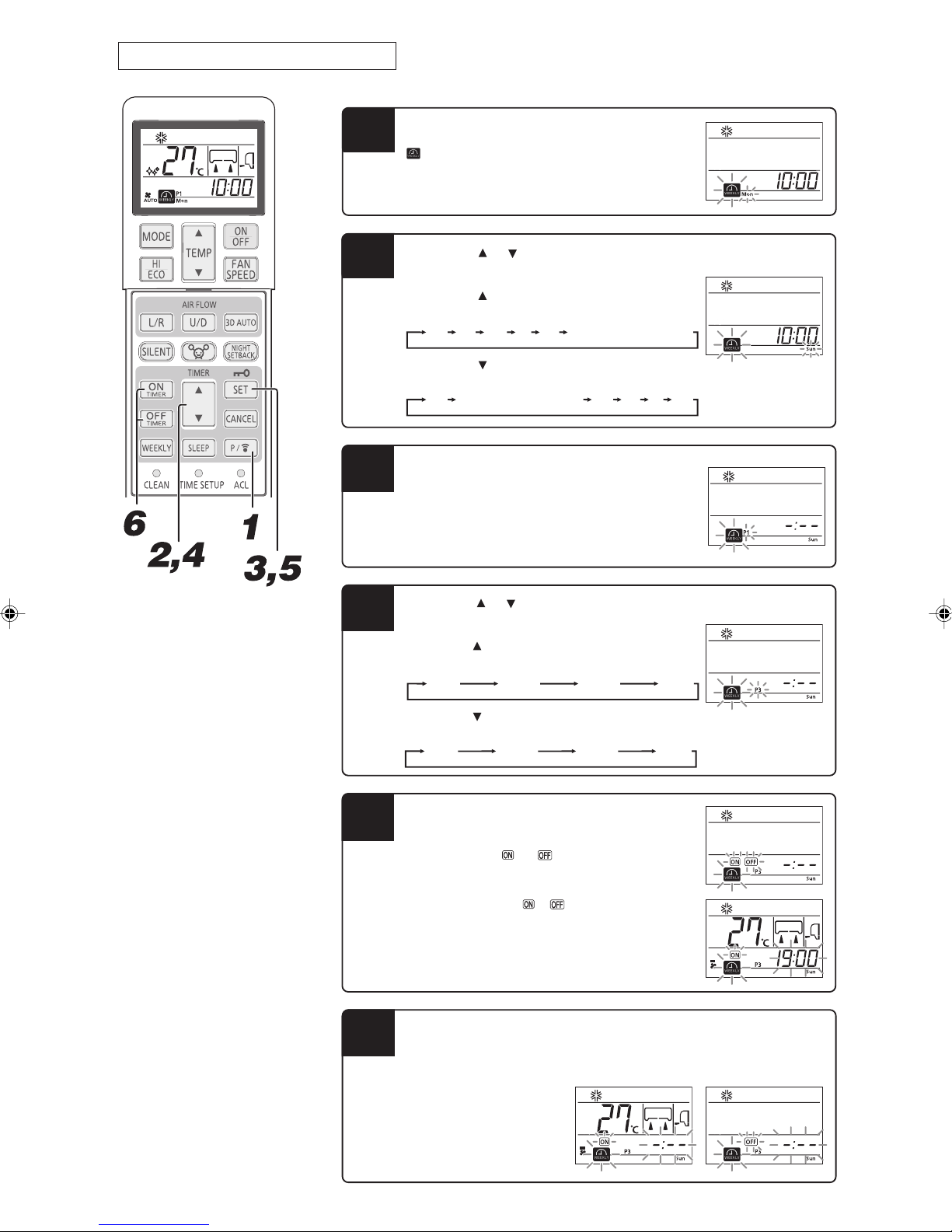

Current time setting
■When inserting the batteries, the current time is automatically set to time setting mode. Mon and 13:00 are displayed as the current
time. Set a correct day of the week and a time.
NOTE
2
Example: Set to Sat 10:30.
Press the TIME SET UP switch.
Press with the tip of a ballpoint pen, etc.
The day of the week display blinks, enabling the setting of a day of the
week.
Press the “ or (TIMER)” button.
(Set to Sat)
Press the SET button.
The day of the week display changes from blinking to steady lighting,
completing the setting of a day of the week, and the time display blinks.
Make sure to press the button within 60 seconds from the last operation in
step 2, otherwise the day of the week is not set.
Press the “ or (TIMER)” button.
(Set to 10:30)
Press the SET button.
The time display changes from blinking to steady lighting and the setting
is complete.
Make sure to press the button within 60 seconds from the last operation in
step 4, otherwise the time is not set.
•The timer operation works based on the time clock, so please
set it correctly.
•The remote control data is reset when the present time is set.
1
3
4
5
•When the battery of the remote control is replaced or the ACL
switch is pressed, the remote control is set to the initial state.
Since the WEEKLY TIMER program is not set in the initial
state, set the program according to the setting procedure.
RKW012A412D_EN_001-032 4/15/14, 13:5511

–12–
AUTO HIMEDLOULO

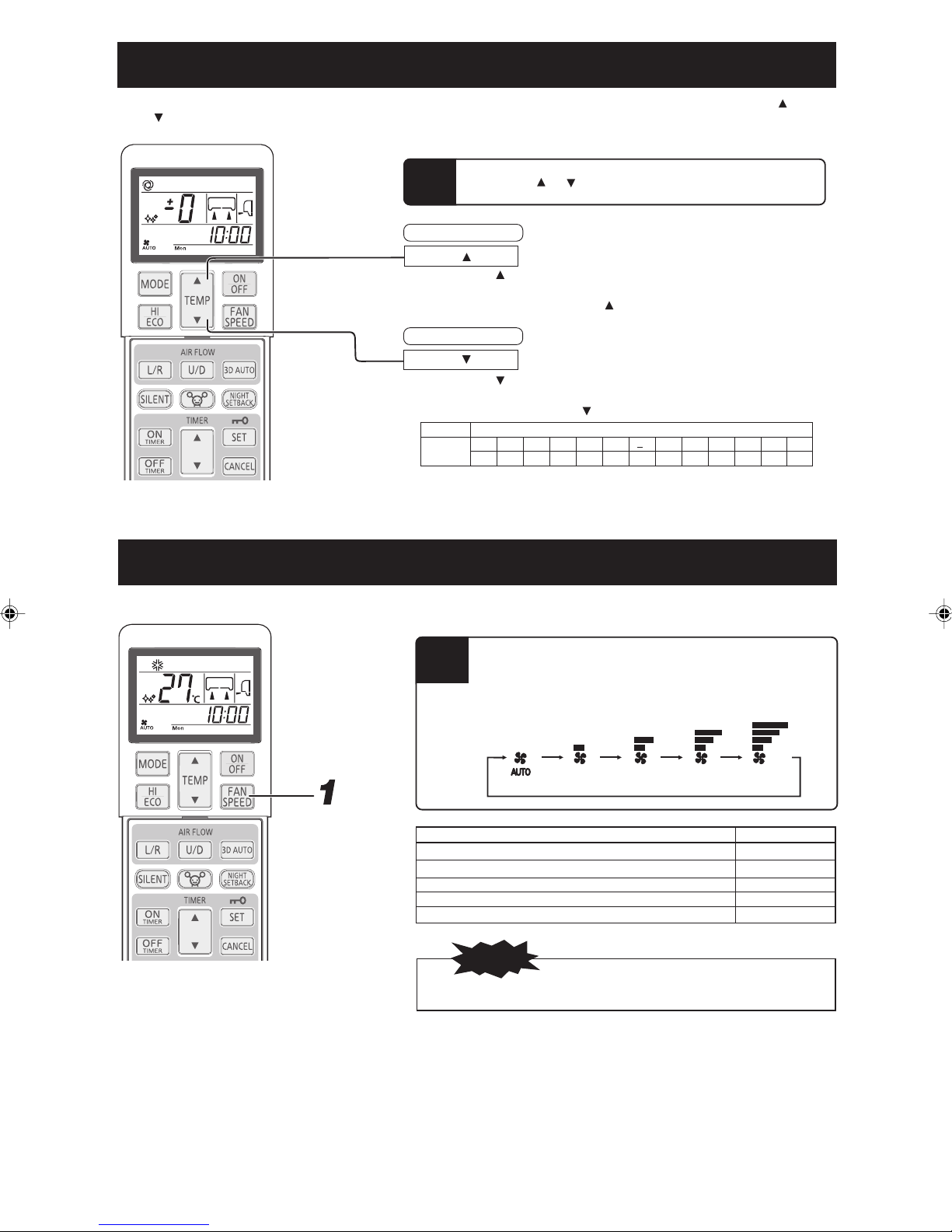

Temperature adjustment during AUTO
■Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or
the button.During automatic operation, 24°C is preset both for heating and cooling.
1
When a change in temperature is required.
Press the“ or (TEMP)” button.
■Each time the button is pressed, the switch over occurs in the following order
–6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not
change.
■Each time the button is pressed, the switch over occurs in the following order
+6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
When it is a little cold
Press the button.
When it is a little hot
Press the button.
FAN SPEED
■You can choose the capacity of your air-conditioner when heating mode, cooling mode or fan mode.
Remote Control display
-6 -5 -4 -3 -2 -1 +0+1 +2+3 +4+5+6
18 19 20 21 22 23 24 25 26 27 28 29 30
Setting
temp.(°
C )
Point the remote control toward the air-conditioner, and
Press the FAN SPEED button.
Each time the button is pressed, the fan speed changes.
1
•When FANSPEED is changed from HI to LO or ULO, the sound of re-
frigerant flowing may be heard.
NOTE
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Silent operation ULO
Energy-saving operation LO
Standard operation MED
Powerful operation with high capacity HI
RKW012A412D_EN_001-032 4/15/14, 13:5512

–13–

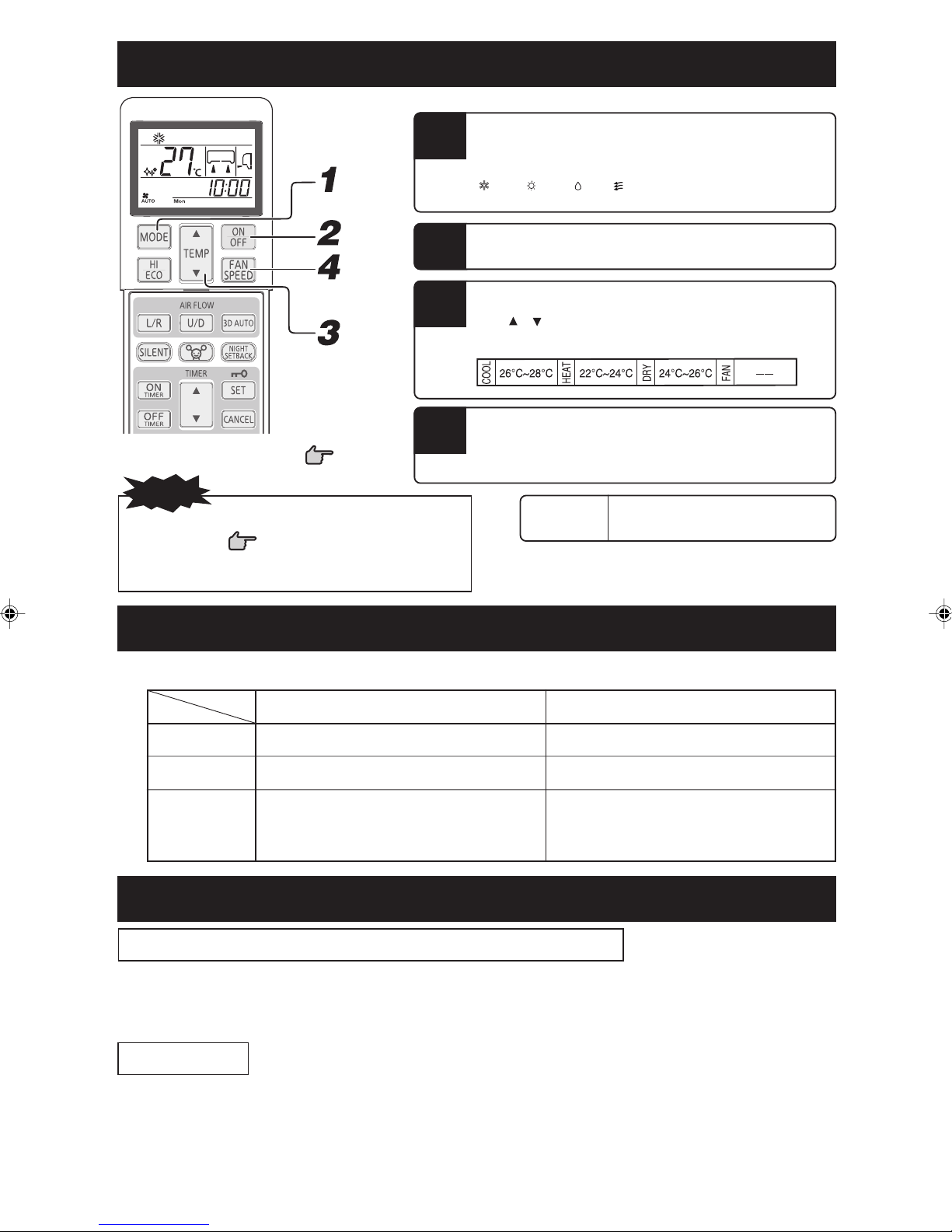

COOL/HEAT/DRY/FAN mode operation
Airflow direction adjustment procedure. Page 14
Point the remote control toward the air-conditioner, and
Press the MODE select button.
Set to a required mode.
(Cool), (Heat), (Dry), (Fan)
Press the ON/OFF button.
Press the TEMP button.
Press or button for the preferred temperature.
Recommendation
4
3
To stop: Press the ON/OFF button.
•In case air is not blown out, when starting the heating op-
eration.
•The operation mode can also be set or changed when the
air-conditioner is not in operation.
NOTE
2
1
Air-conditioner operable temperature setting
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated,
preventing the unit from working.
Cooling operation Heating operation
Outside temperature Approximately -15 to 46 °C Approximately -15 to 24 °C
Inside temperature Approximately 18 to 32 °C Approximately 10 to 30 °C
Below approximately 80%
The long-term use of the unit with a humidity level
Inside humidity
exceeding 80% may result in condensation forming
on the surface of the indoor unit, leading to
water drips.
Characteristics of HEAT mode operation
Mechanism and capacity of HEAT mode operation
■Mechanism
•The unit draws heat from the cold outside air, transfers it to indoors and heats the room. As a characteristic of heat pump system, the
heating capacity reduces when the outside air temperature gets colder.
•It may take some time to supply hot air after turning on the air-conditioner.
•If the outside temperature becomes extremely low, it would be better to use an additional source of heating.
Defrosting
If the outside temperature becomes low and humidity is high, the heat exchanger in the outdoor unit may frost over, which prevents
efficient heating.
If this happens, the automatic defrost function is activated and during defrosting the heating operation stops for 5 to 15 minutes
during defrosting.
•Both indoor and outdoor fans stop and the RUN light blinks slowly (1.5 sec. ON, 0.5 sec. OFF) during defrosting.
•The outdoor unit may give off some steam during defrosting. This is to help the defrosting process and is not a defect.
•The HEAT operation resumes as soon as defrosting has been completed.
Press the FAN SPEED button
Set the fan speed as preferred.
A fan speed cannot be set under Dry operation.
Page 29
RKW012A412D_EN_001-032 4/15/14, 13:5513

–14–

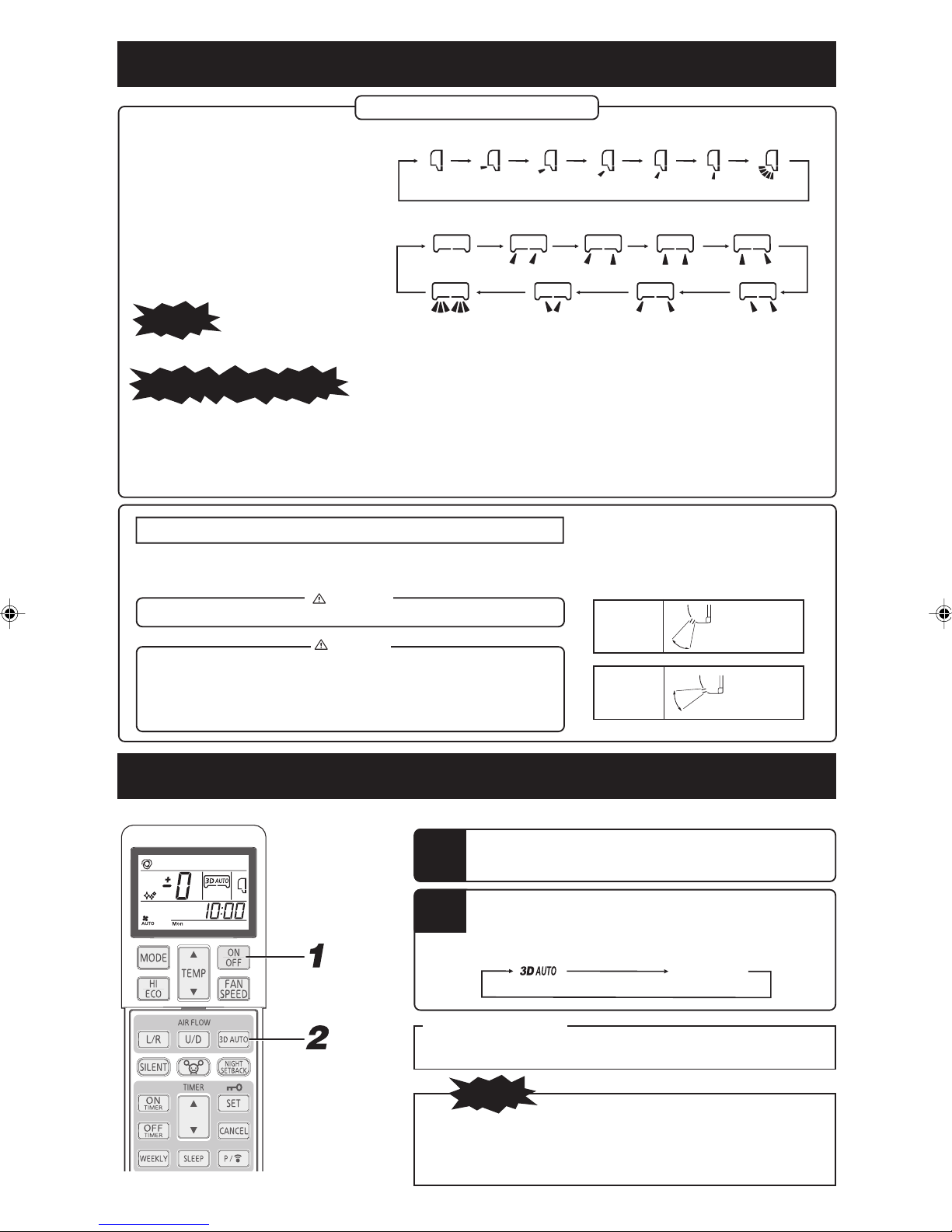

Airflow direction adjustment
Adjusting airflow direction
■Up/down direction can be adjusted with the AIRFLOW U/D (UP/DOWN) button on the remote control. Every time you press this
button the mode changes as follows:
Change on AIRFLOW (UP/DOWN) mode.
■Left/right direction can be adjusted with the AIRFLOW L/R (LEFT/RIGHT) button on the remote control. Every time you press this
button the mode changes as follows:
Change on AIRFLOW (LEFT/RIGHT) mode.
MEMORY FLAP (FLAP OR LOUVER STOPPED)
When you press the AIRFLOW (U/D or L/R) button once while the flap or louver is operating,
it stops swinging at the position. Since this angle is memorized in the microcomputer, the flap
or louver will automatically be set at this angle when the next operation is started.
WARNING
•Do not expose directly to airflow from the air-conditioner for a long time.
CAUTION
•When in COOL or DRY operation, do not operate for a long period with the
airflow blowing straight down. Otherwise, condensation may appear on
the outlet grill and drip down.
•Do not try to adjust the flaps and louvers by hand, as the control angle may
change or the flap or louver may not be closed completely.
HEAT
(Horizontal
blowing)
(Slant forward
blowing)
COOL, DRY
•Recommended angle of the flap when
stopping
•When operation starts, the flap and louver direction is fixed at the horizontal / center position in order to avoid cold draft, and return
to the set the position that was set after the warm air supply is starting.
•The flap and louver direction will be controlled to the horizontal/center position when the room temperature reaches the set tem-
perature and compressor stops or when defrosting is in operation.
•The airflow direction cannot be set during the period mentioned above. Change the airflow direction settings after the warm air is
supplied and the flap/louver goes to the set position.
(Swing)
(Flap stopped)
(Louver stopped)
(Swing)
NOTE FOR HEATING OPERATION
•The actual position of the flap and louver may differ from the display shown.
NOTE
3D AUTO operation
■ Fan speed and air flow direction are automatically controlled, allowing the entire room to be efficiently conditioned.
Press the ON/OFF button.
Press the 3D AUTO button.
Each time the 3D AUTO button is pressed, the display is switched in the
order of:
1
2
(Normal operation)
(3D AUTO)
No display
•3D AUTO operation is cancelled when you switch the operation mode.
•If 3D AUTO operation is cancelled then the air flow direction changes to
that used before 3D AUTO was set.
•3D AUTO operation can be set in AUTO, COOL, or HEAT operation
mode only.
NOTE
Releasing procedure
Press the 3D AUTO button to turn off the 3D AUTO display.
RKW012A412D_EN_001-032 4/15/14, 13:5514

–15–
■If it is pressed while the unit is off
SLEEP TIMER operation starts with the previous operation settings, and the air
conditioning is turned off after the set time elapses.
■If it is pressed while the unit is running
The air conditioner is turned off after the set time elapses.
Every time the button is pressed, the display changes as follows:
Example: You prefer it to stop after 7 hours.
Set to
The timer light (yellow) is on.
h
•The unit stops after the set time lapses.

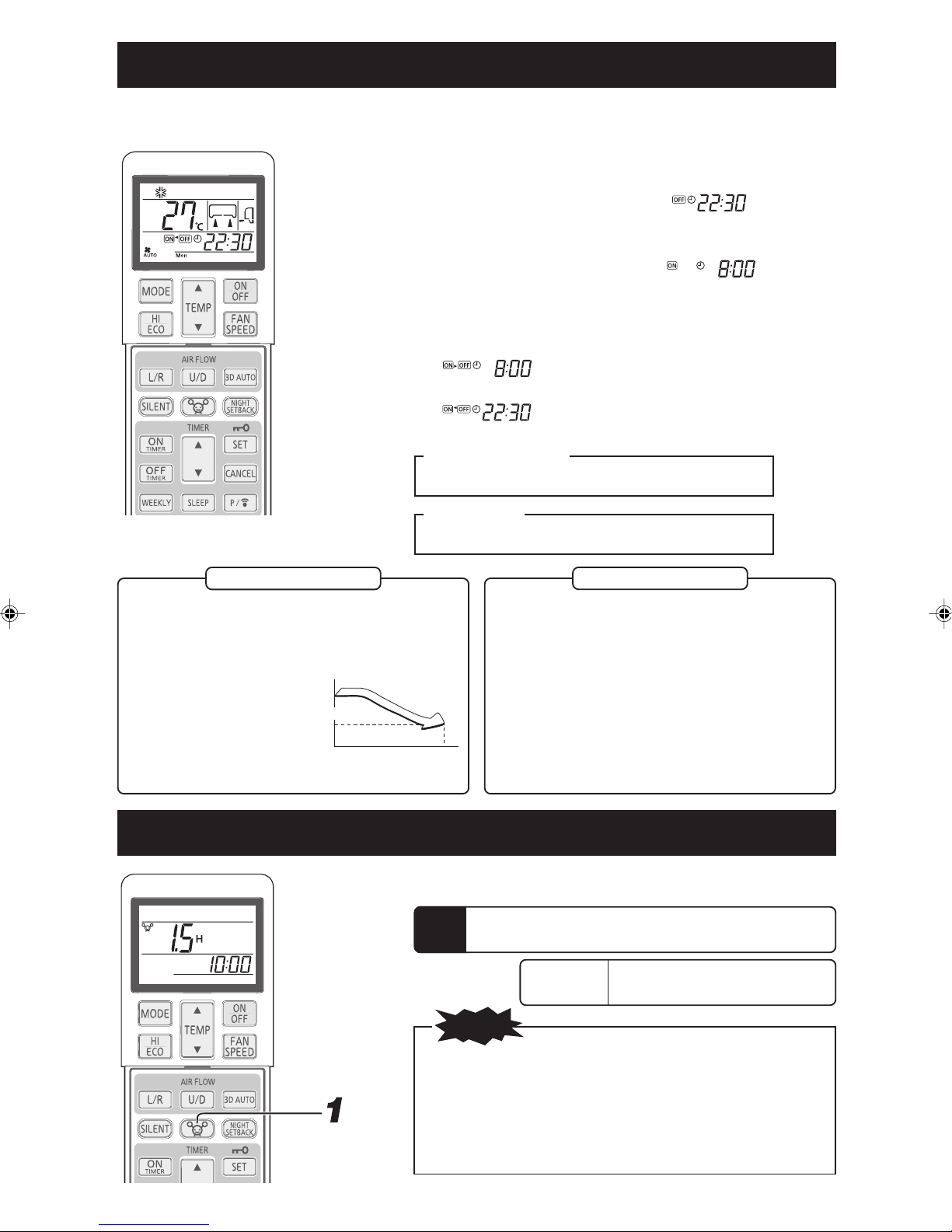

SLEEP TIMER operation
■The unit stops automatically after the set time lapses.
The set temperature is automatically adjusted according to the elapsed time in order to avoid too much cooling or heating. Page 17
Press the SLEEP button.
1
How to cancel
Press the CANCEL button to turn off the SLEEP
display.
Changing of set time
Set a new time by pressing SLEEP button.
•SLEEP operation will not function during ALLERGEN CLEAR operation.
•Cannot be set at the same time with OFF-TIMER.
NOTE

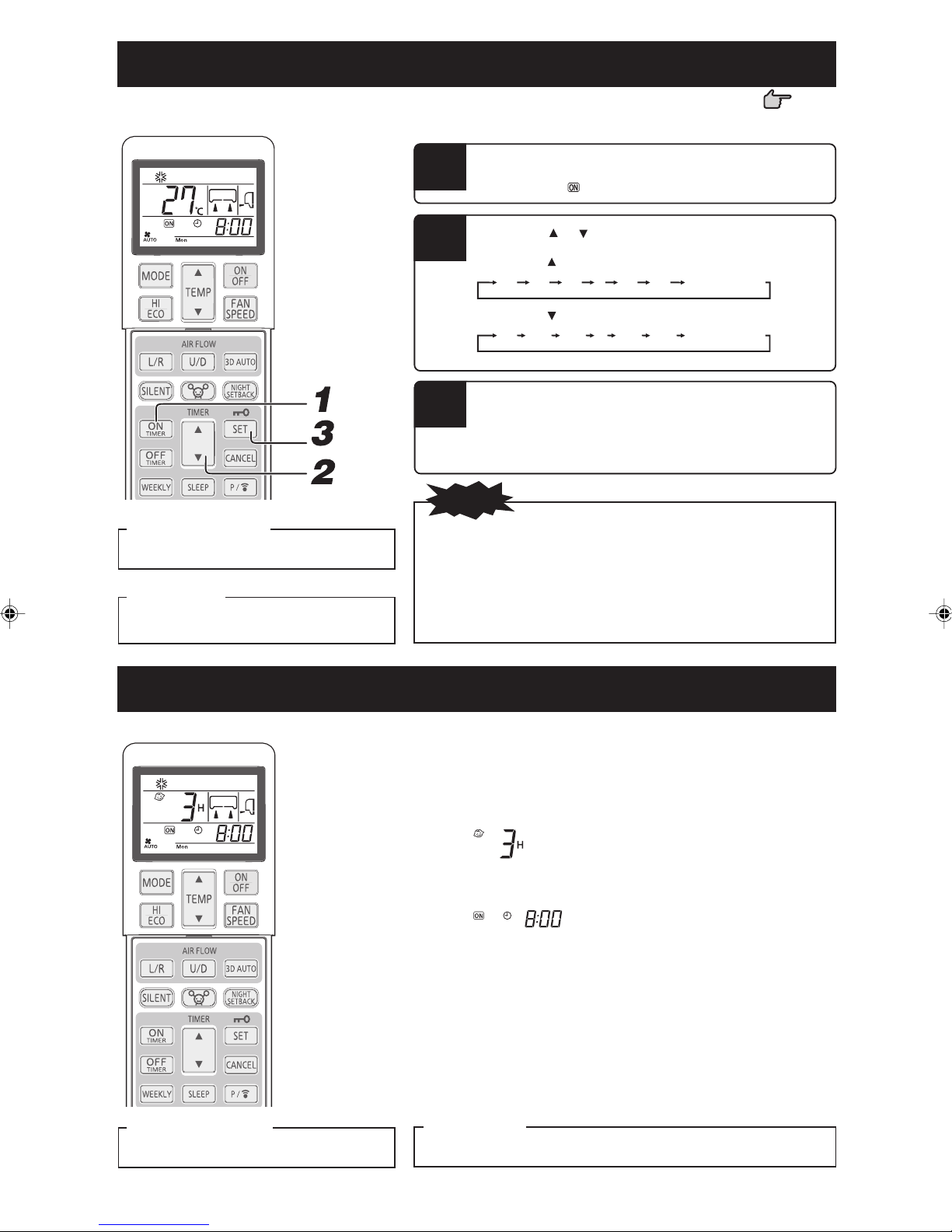

OFF-TIMER operation
■The unit stops automatically when the set time comes.
With the air conditioner turned off, start the operation from Step 1. With the air conditioner running, start from Step 2.
Example: You prefer it to stop 22:30.
Press the ON/OFF button.
Press the OFF-TIMER button.
OFF TIMER display is blinking.
Press the “ or (TIMER)” button.
Every time the button is pressed, the display is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Every time the button is pressed, the display is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 22:30.
3
1
4Press the SET button.
The display changes from blinking to steady lighting and the setting is
complete.
The timer light (yellow) is on.
2
How to cancel
Press the CANCEL button to turn off the timer
display.
•The unit stops at the end of the set period of time.
•Make sure to press the button within 60 seconds from the last operation
in step 3, otherwise the setting is not completed.
•The current time is not displayed during OFF-TIMER operation.
•OFF-TIMER operation will not function during ALLERGEN CLEAR op-
eration.
•Different from SLEEP TIMER operation, automatic set temperature ad-
justment is not done during OFF-TIMER operation.
Changing of set time
Set a new time by using the OFF-TIMER button.
NOTE
No display
(canceled)
... (Units of one hour)
RKW012A412D_EN_001-032 4/15/14, 13:5515

–16–
1
2
How to cancel
Press the CANCEL button to turn off the timer
display.
Example: In the case the preferred room temperature is required at 8:00.
Press the ON-TIMER button.
ON-TIMER display is blinking.
3
■ Operation starts 5 to 60 minutes before the set time so that the room temperature reaches the optimum temperature at the set time. Page 17
ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.
SLEEP TIMER + ON-TIMER operation
■Combined timer operation of SLEEP TIMER and ON-TIMER.
Example: When it is required to stop after 3 hours and then start operation at 8:00, near the
set temperature.
■SLEEP TIMER setting
Set by the procedures on page 15.
Set to
■ON-TIMER operation setting
Set by the above procedure mentioned in ON-TIMER.
Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
h
•After the SLEEP TIMER set time has elapsed, the operation stops, and it starts
from 5 to 60 minutes before the ON-TIMER’s set time.
•The timer light is turned off when ON-TIMER set time comes.
Changing of set time
Set a new time by using the SLEEP or ON-TIMER
button.
How to cancel
Press the CANCEL button to turn off the timer display.
Press the “ or (TIMER)” button.
Every time the button is pressed, the display is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Every time the button is pressed, the display is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 8:00.
Press the SET button.
The display changes from blinking to steady lighting and the setting is
complete.
The timer light (yellow) is on.
The operation stops if it is set during operation.
Changing of set time
Set a new time by using the ON-TIMER button.
ON-TIMER operation
•Operation starts 5 to 60 minutes before the set time.
•The timer light (yellow) goes out at the set time.
•Make sure to press the button within 60 seconds from the last opera-
tion in step 2, otherwise the setting is not completed.
•The current time is not displayed during ON-TIMER operation.
•ON-TIMER operation will not function during ALLERGEN CLEAR
operation.
NOTE
RKW012A412D_EN_001-032 4/15/14, 13:5516

–17–
ALLERGEN CLEAR operation
Aim the remote control at the air-conditioner.
Press the ALLERGEN CLEAR button.
1
■The power of enzymes is used to eliminate allergy-causing allergens that accu-
mulate on the allergen clear filter.
To stop: Press the ON/OFF or
ALLERGEN CLEAR button.
•Since the room temperature may change quite a bit, it is recommended
that this be used when no one is in the room. (It completes automati-
cally in approximately 90 min.)
•During ALLERGEN CLEAR operation temperature, fan speed, airflow
direction and timer operations settings cannot be made.
•In case of SCM multi system, ALLERGEN CLEAR control function is
invalid.
•In case of SCM multi system, if ALLERGEN button is pressed by mistake,
the indoor unit which received such command stops.
NOTE
ON-TIMER + OFF-TIMER operation
■The timer operations of the combination of ON and OFF-TIMER.
Example: When it is prefered to stop at 22:30, and then start operation at 8:00, near the set
temperature.
■OFF-TIMER operation setting
Set by the procedures on page 15. Set to
■ON-TIMER operation setting
Set by the procedures on page 16. Set to
Timer light (yellow) on the unit will light when the setting is completed.
The set time will be displayed on the remote control. The display will change de-
pending on the operational status.
Comfort Start-up
In ON-TIMER operation, the unit starts the operation a little earlier, so
that the room can approach optimum temperature at ON time. This is
so called “Comfort start-up”.
•Mechanism
The room temperature is
checked 60 minutes before
the ON time. Depending on
the temperature at that time,
the operation starts 5 to 60
minutes before the timer is at
ON.
•The function is available for
both COOL and HEAT opera-
tion mode (including AUTO).
It does not work for DRY
mode.
SLEEP TIMER
In COOL operation
(Stop) Operation starts
▼
Check the room
temp. 60 mins.
before.
Set time
▼
When SLEEP TIMER is selected, the set temperature is automatically
adjusted after a while, ensuring that the room is not too cold during
cooling or too warm during heating.
•During cooling : The preset temperature is lowered by 1°C at the
start of SLEEP operation (when the timer is set). After that, the tem-
perature goes up by 1°C every an hour to become 1°C higher than
the present temperature.
•During heating: The preset temperature is lowered by 1°C at the
start of SLEEP operation (when the timer is set). After that the tem-
perature becomes 3°C lower in an hour and 6°C lower in two hours
than the present temperature.
(Operation)
Set temperature
With ON-TIMER, the air conditioner starts running. Then,
with OFF-TIMER, the air conditioner stops running.
(Example Present time : 5:00 The air conditioner stopping.)
With OFF-TIMER, the air conditioner stops running. Then,
with ON-TIMER, the air conditioner starts running.
(Example Present time : 20:00 The air conditioner running.)
How to cancel
Press the CANCEL button to turn off the timer display.
Changing of set time
Set a new time by using the OFF-TIMER or ON-TIMER button.
RKW012A412D_EN_001-032 4/15/14, 13:5517

–18–

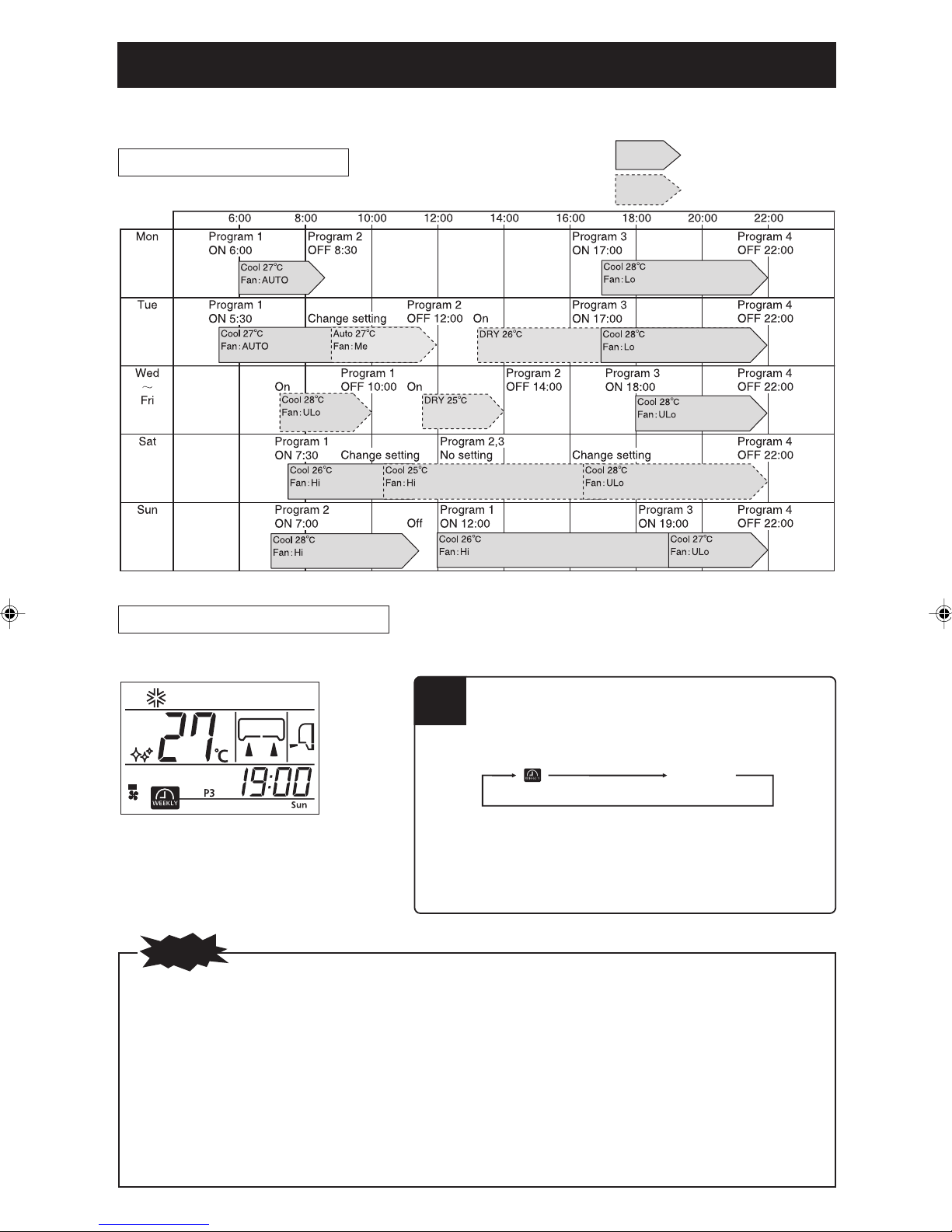

WEEKLY TIMER operation
■Up to 4 programs with timer operation (ON-TIMER / OFF-TIMER) are available for each day of the week. Max 28 programs per week
are available. Once this has been set, the timer operation will be repeated at the same programs every week unless the WEEKLY
TIMER is canceled.
Sample (At cooling season)
WEEKLY TIMER ON/OFF setting
■Switch the WEEKLY TIMER to ON/OFF by using the WEEKLY button.
1Press the WEEKLY button.
The WEEKLY TIMER becomes effective.
Every time the WEEKLY button is pressed, the display is switched in the
order of:
No display
(WEEKLY TIMER on) (WEEKLY TIMER off)
When the WEEKLY TIMER is set to ON, the timer light (yellow) of the air
conditioner is on.
When the battery of the remote control is replaced or the ACL switch is
pressed, the remote control is set to the initial state. Since the WEEKLY
TIMER program is not set in the initial state, set the program according to
the setting procedure.
•The WEEKLY TIMER is switched to ON/OFF regardless of
whether the air conditioner is running or not.
•The ON-TIMER operation of the WEEKLY TIMER is effective
regardless of whether the air conditioner is running or not.
When the ON-TIMER setting time is reached, the remote
control operates according to the contents that are set. The
remote control display is also switched to the operation con-
tents that are set. The setting can be changed from the re-
mote control after ON-TIMER operation of the WEEKLY
TIMER.
The following contents can be set by the ON-TIMER.
Operation mode, fan speed, temperature, airflow direction,
ECONOMY, 3D AUTO, NIGHT SETBACK, SILENT
Comfort start-up is not performed for WEEKLY TIMER ON-
TIMER operation.
NOTE
•OFF-TIMER operation of the WEEKLY TIMER is effective
only when the air conditioner is running. When the time set
by the OFF-TIMER is reached, the air conditioner stops.
•When multiple program numbers are set for the current day
(day of the week), the operation is performed from the earli-
est time that is set.
•When various timers (ON-TIMER, OFF-TIMER, and SLEEP
TIMER) are operating, the WEEKLY TIMER does not oper-
ate even if the time set in the ON-TIMER or OFF-TIMER is
reached. The WEEKLY TIMER becomes effective after vari-
ous timers are terminated.
•The ON-TIMER or OFF-TIMER of the same time in the same
day of the week cannot be set.
: WEEKLY TIMER setting
: MANUAL setting
RKW012A412D_EN_001-032 4/15/14, 13:5518

–19–
Setting mode <Individual setting>
6Press the ON-TIMER or OFF-TIMER button.
ON-TIMER or OFF-TIMER is determined and time display blinks.
ON-TIMER is selected OFF-TIMER is selected
Press the SET button.
When no set contents (ON-TIMER or OFF-TIMER) are
available, both the and timers blink.
When set contents (ON-TIMER or OFF-TIMER) are
available, either one of or is lit.
5
4Press the “ or (TIMER)” button.
Select a program number.
Every time the button is pressed, the display is switched in the
order of:
Every time the button is pressed, the display is switched in the
order of:
3Press the SET button.
The day of the week is determined and the program number
blinks.
Press the PROGRAM button.
and current day of the week blink.
Press the “ or (TIMER)” button.
Select a day of the week to be reserved.
Every time the button is pressed, the display is switched in
the order of:
Mon Tue Wed
...
Sun Display of all of the days of
the week
Every time the button is pressed, the display is switched in
the order of:
Mon Sun
...
Sat
Display of all of the days of
the week
Tue
1
Set after setting the current day of the week and the time.
2
P1 P2 P3 P4
P1 P4 P3 P2
RKW012A412D_EN_001-032 4/15/14, 13:5519
