Foreword
Thank you for selecting an ECLIPSE CROSS as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later
amendment of the laws and regulations.
Please leave this owner’s manual in the vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear. These serve as reminders to be especially careful. Failure to follow
instructions could result in personal injury or damage to your vehicle.
WARNING
Indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
Means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE
Gives helpful information.
*: Indicates optional equipment.
It may differ according to the sales classification; refer to the sales cata-
logue.
Abbreviations used in this owner’s manual:
M/T: Manual transmission LHD: Left-Hand Drive
A/T: Automatic Transmission RHD: Right-Hand Drive
CVT: Continuously Variable
Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
Fuel
Capacity 2WD models 63 litres
4WD models 60 litres
Recommended fuel
Unleaded petrol octane number (EN228)
[Except for vehicles for Russia, Kazakhstan, Belarus, Ukraine and Moldova]
95 RON or higher
[Vehicles for Russia, Kazakhstan, Belarus, Ukraine and Moldova]
90 RON or higher
Refer to the “General information” section for the fuel selection.
Engine oil Refer to the “Maintenance” section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2019 Mitsubishi Motors Corporation 20
OGKE20E1
BLO-19-000298

Table of contents
Overview/Quick guide 1
General information 2
Locking and unlocking 3
Seats and seat belts 4
Instruments and controls 5
Starting and driving 6
For pleasant driving 7
For emergencies 8
Vehicle care 9
Maintenance 10
Specifications 11
Alphabetical index 12
Declaration of Conformity 13
OGKE20E1

Instruments and controls
234
5
6
7
8
9
10
11
12
13
15
14
16
17 18
20
19
21
22 1
LHD

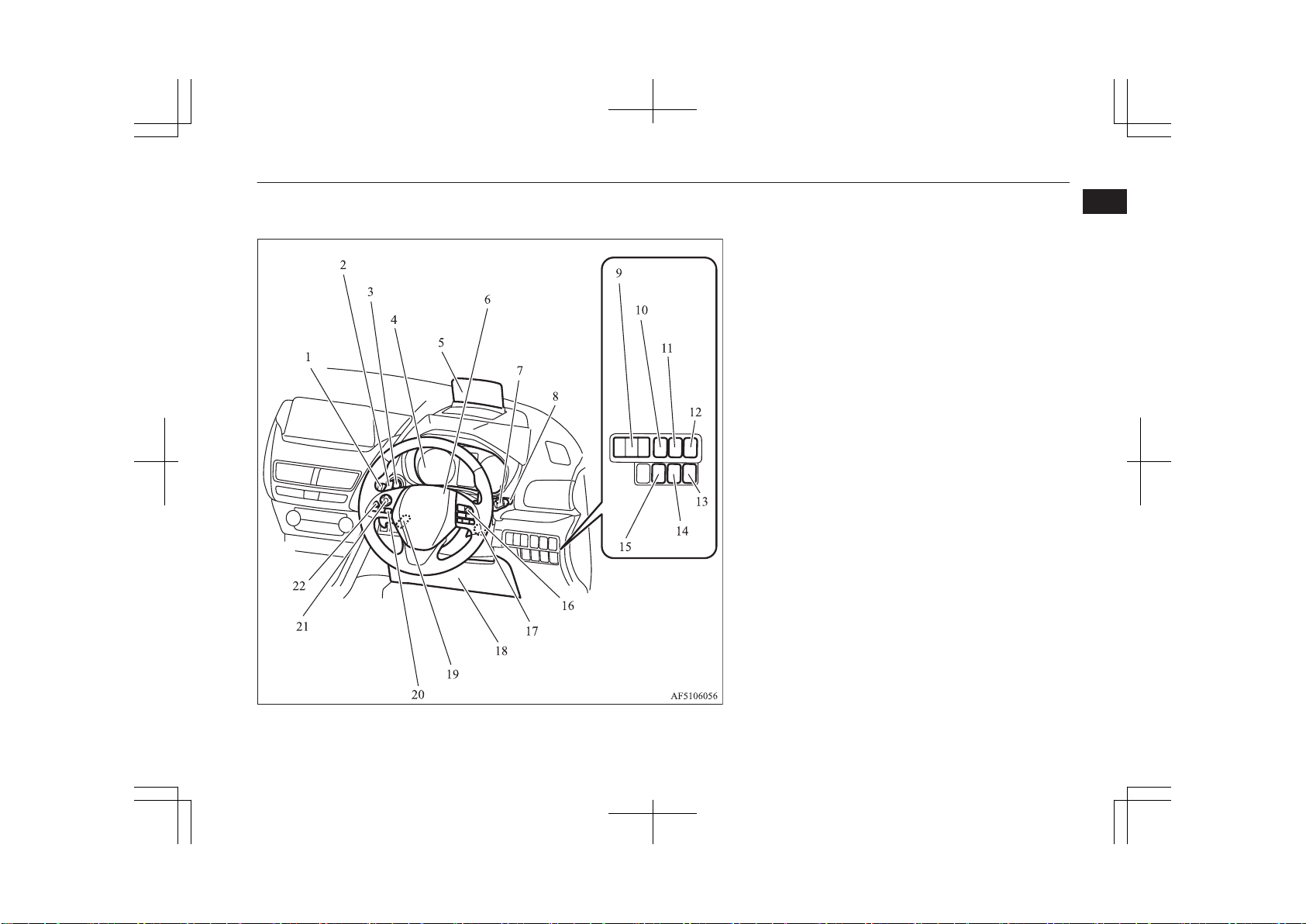

1. Combination headlamps and dipper switch p. 5-56
Automatic High-Beam (AHB) switch* p. 5-59
Turn-signal lever p. 5-65
Front fog lamp switch* p. 5-67
Rear fog lamp switch p. 5-67
2. Shift paddles* p. 6-46
3. Multi-information display switches p. 5-04
4. Head Up Display (HUD)* p. 5-51
5. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 4-26, 4-31
Horn switch p. 5-74
6. Instruments p. 5-02
7. Engine switch* p. 6-15
8. Windscreen wiper and washer switch p. 5-68
Rear window wiper and washer switch p. 5-71
Headlamp washer switch* p. 5-72
9. Ignition switch* p. 6-14
10. Supplemental restraint system (SRS) - front knee airbag (for driv-
er’s seat)* p. 4-26, 4-31
11. Cruise control switches* p. 6-69, 6-78
Speed Limiter* p. 6-73
12. Steering wheel height and reach adjustment lever p. 6-09
13. Bluetooth® 2.0 interface* p. 7-56
14. Camera switch* p. 6-134
15. Steering wheel audio remote control switches* p. 7-34
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi-Communication System (MMCS), refer to
the separate owner’s manual.]
16. Headlamp levelling switch* p. 5-63
17. Auto Stop & Go (AS&G) OFF switch* p. 6-30
18. Sonar switch* p. 6-126
19. Head Up Display (HUD) switches* p. 5-51
20. Active stability control (ASC) OFF switch p. 6-67
21. Lane Departure Warning (LDW) switch* p. 6-113
22. Forward Collision Mitigation system (FCM) and Ultrasonic mis-
acceleration Mitigation System (UMS) ON/OFF switch* p. 6-96
Instruments and controls
1-02 OGKE20E1 Overview/Quick guide
1

RHD
1. Combination headlamps and dipper switch p. 5-56
Automatic High-Beam (AHB) switch p. 5-59
Turn-signal lever p. 5-65
Front fog lamp switch* p. 5-67
Rear fog lamp switch p. 5-67
2. Shift paddles* p. 6-46
3. Engine switch* p. 6-15
4. Instruments p. 5-02
5. Head Up Display (HUD)* p. 5-51
6. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 4-26, 4-31
Horn switch p. 5-74
7. Windscreen wiper and washer switch p. 5-68
Rear window wiper and washer switch p. 5-71
Headlamp washer switch* p. 5-72
8. Multi-information display switches p. 5-04
9. Head Up Display (HUD) switches* p. 5-51
10. Active stability control (ASC) OFF switch p. 6-67
11. Lane Departure Warning (LDW) switch* p. 6-113
12. Forward Collision Mitigation system (FCM) ON/OFF switch
p. 6-96
13. Headlamp levelling switch* p. 5-63
14. Auto Stop & Go (AS&G) OFF switch p. 6-30
15. Sonar switch* p. 6-126,
16. Cruise control switches p. 6-69, 6-78
Speed Limiter* p. 6-73
17. Ignition switch p. 6-14
18. Supplemental restraint system (SRS) - front knee airbag (for driv-
er’s seat) p. 4-26, 4-31
19. Steering wheel height and reach adjustment lever p. 6-09
20. Bluetooth® 2.0 interface p. 7-56
21. Steering wheel audio remote control switches p. 7-34
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi-Communication System (MMCS), refer to
the separate owner’s manual.]
22. Camera switch* p. 6-134
Instruments and controls
1-03
OGKE20E1 Overview/Quick guide
1

1
2
3
4
5
6
7
9
10
8
11
12
13
14
15
16
17
18
19
20
21
LHD

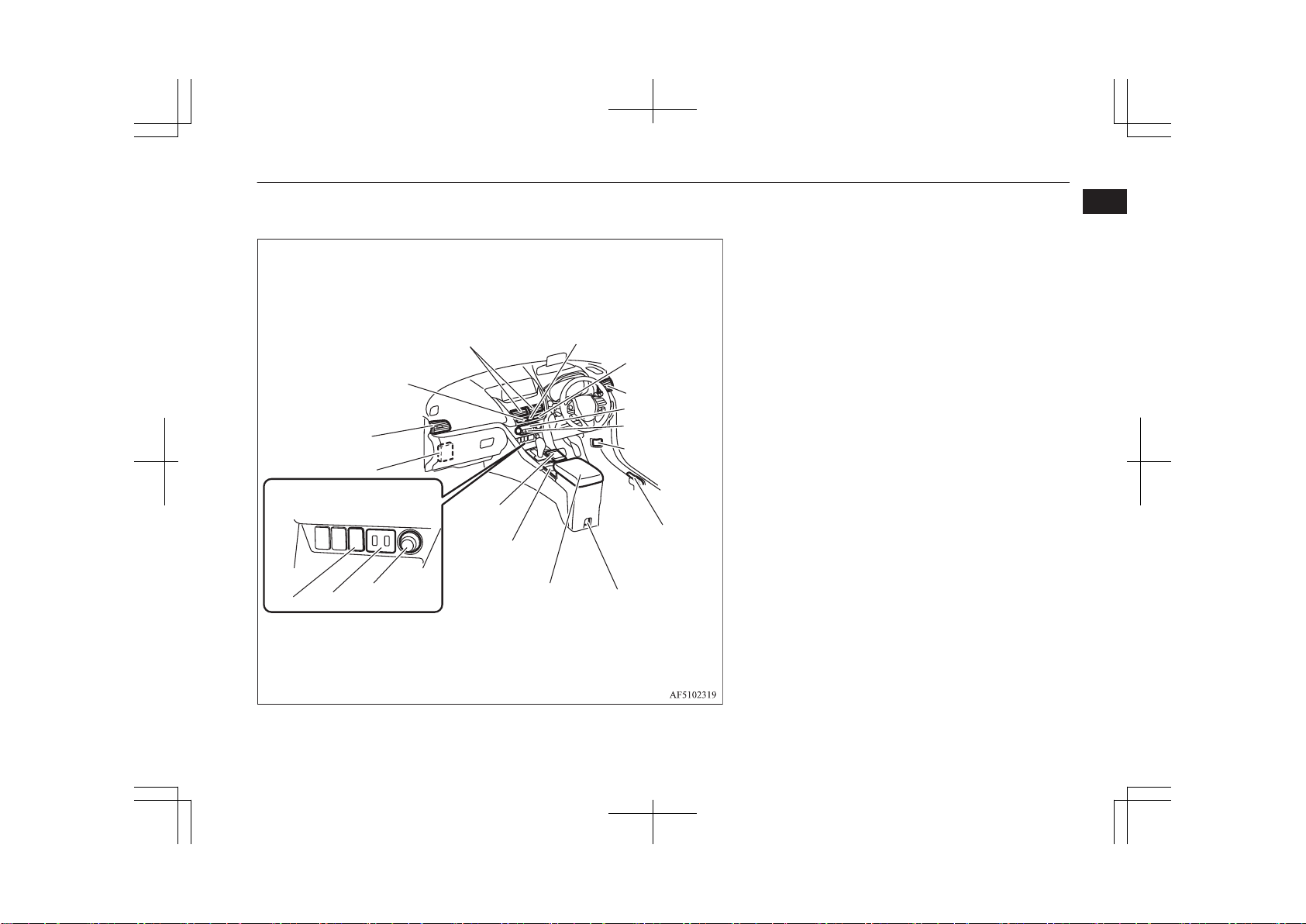

1. Rear window demister switch p. 5-72
2. Side ventilators p. 7-02
3. Seat belt reminder p. 4-10
4. Hazard warning flasher switch p. 5-65
5. Centre ventilators p. 7-02
6. Front passenger’s airbag indicator p. 4-30
Security indicator* p. 3-23
7. Side ventilators p. 7-02
8. Air conditioning p. 7-05, 7-10
9. Heated steering wheel switch* p. 5-74
10. Heated windscreen switch* p. 5-73
11. Accessory socket p. 7-80
12. USB input terminal* p. 7-76
13. ECO mode switch* p. 5-66
14. Touchpad controller* [refer to the separate owner’s manual.]
15. Front drink holder p. 7-85
Ashtray* p. 7-79
16. Accessory socket p. 7-80
17. Heated seat switches (rear seats)* p. 4-04
18. Fuel tank filler door release lever p. 2-03
19. Floor console box p. 7-84
Armrest p. 4-03
20. Bonnet release lever p. 10-03
21. Fuses p. 10-20
Instruments and controls
1-04 OGKE20E1 Overview/Quick guide
1

RHD
12
3
5
4
6
7
8
9
10
11
12
13
16
17
18
14
15
1. Centre ventilators p. 7-02
2. Hazard warning flasher switch p. 5-65
3. Front passenger’s airbag indicator p. 4-30
Security indicator* p. 3-23
4. Side ventilators p. 7-02
5. Air conditioning p. 7-05, 7-10
6. Rear window demister switch p. 5-72
7. Bonnet release lever p. 10-03
8. Fuel tank filler door release lever p. 2-03
9. Accessory socket p. 7-80
10. Floor console box p. 7-84
Armrest p. 4-03
11. Front drink holder p. 7-85
12. Touchpad controller* [refer to the separate owner’s manual.]
13. Accessory socket p. 7-80
14. USB input terminal p. 7-76
15. ECO mode switch p. 5-66
16. Fuses p. 10-20
17. Side ventilators p. 7-02
18. Seat belt reminder p. 4-10
Instruments and controls
1-05
OGKE20E1 Overview/Quick guide
1

LHD
1
2
3
456
10
9
11
12
7
8
Parking brake lever type Electric parking brake type
1. Audio* p. 7-22
DISPLAY AUDIO*
Smartphone Link Display Audio*
MITSUBISHI Multi-Communication System (MMCS)*
Multi Around Monitor* p. 6-131
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi-Communication System (MMCS), refer to
the separate owner’s manual.]
2. Supplemental restraint system (SRS) - airbag (for front passeng-
er’s seat) p. 4-26, 4-31
3. Glove box p. 7-84
Card holder p. 7-84
4. Brake auto hold switch p. 6-57
5. Electric parking brake switch p. 6-05
6. Selector lever p. 6-43
7. Heated seat switches (front seats)* p. 4-04
8. S-AWC drive mode-selector* p. 6-51
9. S-AWC drive mode-selector* p. 6-51
10. Heated seat switches (front seats)* p. 4-04
11. Gearshift lever* p. 6-35
Selector lever* p. 6-43
12. Parking brake lever p. 6-04
Instruments and controls
1-06 OGKE20E1 Overview/Quick guide
1

Electric parking brake typeParking brake lever type
RHD
1
2
3
45
6
7
8
9
10
11 12
1. Audio* p. 7-22
DISPLAY AUDIO*
Smartphone Link Display Audio*
MITSUBISHI Multi-Communication System (MMCS)*
Multi Around Monitor* p. 6-131
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi-Communication System (MMCS), refer to
the separate owner’s manual.]
2. Supplemental restraint system (SRS) - airbag (for front passeng-
er’s seat) p. 4-26, 4-31
3. Glove box p. 7-84
Card holder p. 7-84
4. Selector lever p. 6-43
5. Heated seat switches (front seats)* p. 4-04
6. S-AWC drive mode-selector* p. 6-51
7. Brake auto hold switch p. 6-57
8. Electric parking brake switch p. 6-05
9. S-AWC drive mode-selector* p. 6-51
10. Heated seat switches (front seats)* p. 4-04
11. Gearshift lever* p. 6-35
Selector lever* p. 6-43
12. Parking brake lever p. 6-04
Instruments and controls
1-07
OGKE20E1 Overview/Quick guide
1

Interior
2
1
3
4
5
6
7
8
9
10
11
LHD

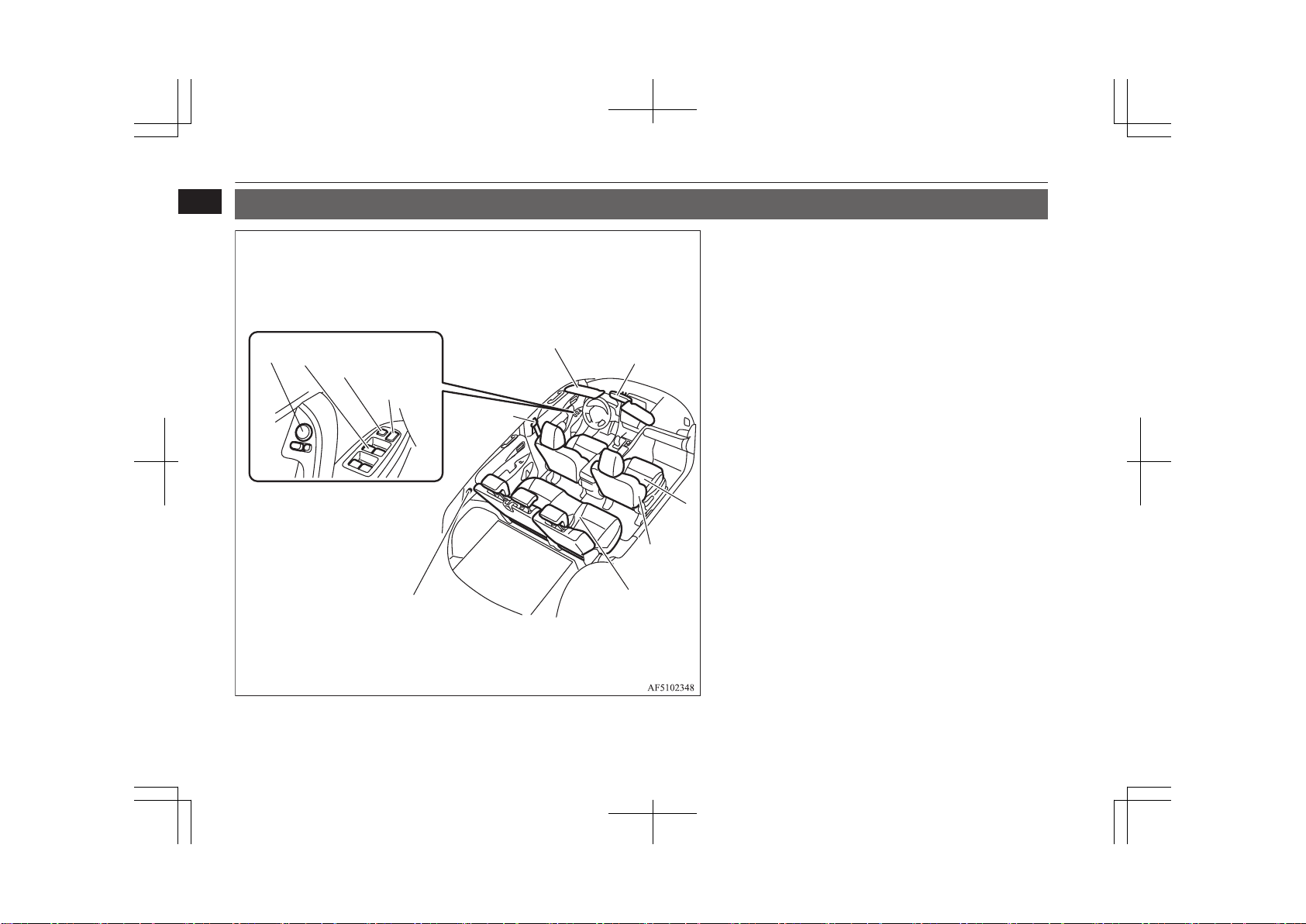

1. Electric remote-controlled outside rear-view mirrors switch
p. 6-11
2. Electric window control switch p. 3-30
3. Lock switch p. 3-32
4. Central door lock switch p. 3-18
5. Adjustable seat belt anchor p. 4-11
Seat belts p. 4-08
6. Sun visors p. 7-78
Vanity mirror p. 7-78
Ticket holder p. 7-78
7. Inside rear-view mirror p. 6-10
8. Front seat p. 4-02
9. Supplemental restraint system (SRS) -side airbag (for front seat)*
p. 4-26, 4-34
10. Rear seat p. 4-03
11. Seat belt plate storage p. 4-13
Interior
1-08 OGKE20E1 Overview/Quick guide
1

RHD
2
3
4
56
7
8
9
10
11
1
1. Inside rear-view mirror p. 6-10
2. Sun visors p. 7-78
Vanity mirror p. 7-78
Ticket holder p. 7-78
3. Adjustable seat belt anchor p. 4-11
Seat belts p. 4-08
4. Seat belt plate storage p. 4-13
5. Lock switch p. 3-32
6. Central door lock switch p. 3-18
7. Electric window control switch p. 3-30
8. Electric remote-controlled outside rear-view mirrors switch
p. 6-11
9. Rear seat p. 4-03
10. Supplemental restraint system (SRS) -side airbag (for front seat)
p. 4-26, 4-34
11. Front seat p. 4-02
Interior
1-09
OGKE20E1 Overview/Quick guide
1

LHD
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1. Supplemental restraint system (SRS) -curtain airbag* p. 4-26,
4-34
2. Assist grips p. 7-87
Coat hook p. 7-88
3. Bottle holder p. 7-85
4. Front sunroof switch* p. 3-33
5. Room lamp switch p. 7-81
6. Hands-free microphone* p. 7-57
7. Front shade switch* p. 3-33
8. Map & room lamps (front) p. 7-81, 7-82
9. Telematics Control Unit (TCU)* p. 2-05
ERA-GLONASS* p. 8-02
10. Map & room lamps (front) p. 7-81, 7-82
11. Head restraints p. 4-05
12. Rear shade switch* p. 3-33
13. Room lamp (rear) p. 7-81
14. Armrest* p. 4-03
Rear drink holder* p. 7-85
15. Cargo area cover* p. 7-86
Interior
1-10 OGKE20E1 Overview/Quick guide
1

RHD
1. Supplemental restraint system (SRS) -curtain airbag p. 4-26,
4-34
2. Bottle holder p. 7-85
3. Rear shade switch* p. 3-33
4. Assist grips p. 7-87
Coat hook p. 7-88
5. Bottle holder p. 7-85
6. Room lamp (rear) p. 7-81
7. Cargo area cover* p. 7-86
8. Armrest* p. 4-03
Rear drink holder* p. 7-85
9. Head restraints p. 4-05
10. Map & room lamps (front) p. 7-81, 7-82
11. Telematics Control Unit (TCU)* p. 2-05
12. Map & room lamps (front) p. 7-81, 7-82
13. Front shade switch* p. 3-33
14. Hands-free microphone* p. 7-57
15. Room lamp switch p. 7-81
16. Front sunroof switch* p. 3-33
Interior
1-11
OGKE20E1 Overview/Quick guide
1

Luggage area
AF5104661
1
5
2
4 3
1. Luggage room lamp p. 7-82
2. Tether anchorages for child restraint system p. 4-23
3. Luggage floor board p. 7-89
Jack* p. 8-11
Tools* p. 8-11
Tyre repair kit* p. 8-13
4. Luggage hooks p. 7-88
5. Convenient hook p. 7-88
Luggage area
1-12 OGKE20E1 Overview/Quick guide
1

Outside (Front)
1
2
3
4
56
7
8
9
10
12
1415
16 13
11
17
Halogen headlamps type LED headlamps type
1. Front view camera* p. 6-131
2. Headlamp washer* p. 5-72
3. Windscreen wipers p. 5-68, 10-17
4. Sensor* [for Automatic High-Beam (AHB), Forward Collision
Mitigation System (FCM) and Lane Departure Warning (LDW)]
p. 5-59, 6-91, 6-113
Rain sensor p. 5-68
5. Power panoramic sunroof* p. 3-33
6. Electric window control p. 3-30
7. Fuel tank filler cap p. 2-03
8. AdBlue™ tank filler cap* p. 10-11
9. Outside rear-view mirrors p. 6-11
Side turn-signal lamps p. 5-65, 10-25
Side-view camera* p. 6-131
10. Bonnet p. 10-03
11. Front turn-signal lamps p. 5-65, 10-25, 10-28
12. Front fog lamps* p. 5-67, 10-25, 10-29
13. Headlamps, high/low beam p. 5-56, 10-25
14. Position lamps/Daytime running lamps p. 5-56, 5-58, 10-25
15. Position lamps/Daytime running lamps p. 5-56, 5-58, 10-25
16. Headlamps, high/low beam p. 5-56, 10-25, 10-27
17. Sensors* [for Ultrasonic misacceleration Mitigation System
(UMS)] p. 6-106
Parking sensors* p. 6-124
Outside (Front)
1-13
OGKE20E1 Overview/Quick guide
1

Outside (Rear)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1. Antenna
2. Keyless entry system p. 3-04
Keyless operation system* p. 3-08
Locking and unlocking the doors p. 3-10
3. Tyre pressure monitoring system (TPMS)* p. 6-119
Changing tyres p. 8-19
Tyre p. 10-13
Tyre inflation pressures p. 10-13
Tyre rotation p. 10-15
Snow traction device (tyre chains) p. 10-16
Size of tyres and wheels p. 11-11
4. Tail lamps p. 5-56, 10-25
5. Stop lamps p. 10-25, 10-32
6. Rear turn-signal lamps p. 5-65, 10-25, 10-32
7. Rear fog lamp (RHD vehicles) p. 5-67, 10-25, 10-30
Reversing lamp (LHD vehicles) p. 10-25, 10-30
8. Sensors* [for Ultrasonic misacceleration Mitigation System
(UMS)] p. 6-106
Parking sensors* p. 6-124
9. Reversing lamp (RHD vehicles) p. 10-25, 10-30
Rear fog lamp (LHD vehicles) p. 5-67, 10-25, 10-30
10. Spare wheel* p. 8-20
11. Rear-view camera* p. 6-128, 6-131
12. Licence plate lamps p. 10-25, 10-33
13. Rear spoiler
14. High-mounted stop lamp p. 10-25
15. Tailgate p. 3-21
16. Roof spoiler
17. Tail lamps* p. 10-25
18. Rear window wiper p. 5-71, 10-17
Outside (Rear)
1-14 OGKE20E1 Overview/Quick guide
1

Quick guide
Locking and unlocking the
doors and tailgate
Keyless entry system
Press the key switch, and all doors and the
tailgate will be locked or unlocked as desired.
The key switch will operate within approxi-
mately 4 m from the vehicle.
Keyless entry key Keyless operation key
1- LOCK switch
2- UNLOCK switch
3- Indication lamp
Refer to “Keyless entry system” on page
3-04.
Keyless operation system*
When you are carrying the keyless operation
key and within the operating range, if you
press the driver’s or front passenger’s door
lock/unlock switch (A), or the tailgate lock
switch (B) (when locking) and the tailgate
open switch (C) (when unlocking), the doors
and the tailgate are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s door lock/unlock switch,
front passenger’s door lock/unlock switch,
tailgate switches. Refer to “Keyless operation system*” on
page 3-08.
Quick guide
1-15
OGKE20E1 Overview/Quick guide
1

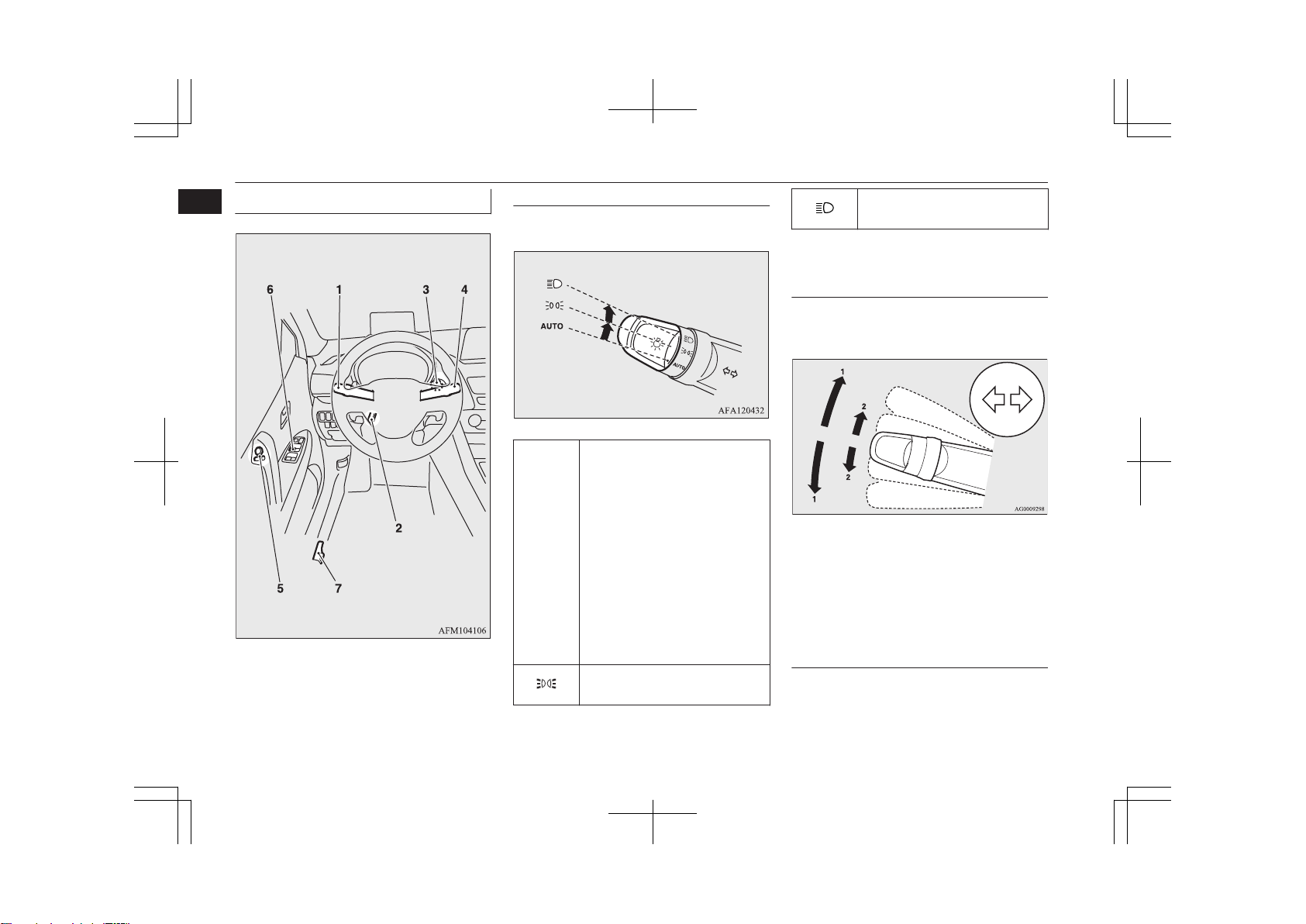

Around the driver’s seat 1-Combination headlamps
Rotate the switch to turn on the lamps.
AUTO
With the ignition switch or the
operation mode is in ON, head-
lamps, position, tail, licence
plate and instrument panel
lamps turn on and off automati-
cally in accordance with outside
light level. (Daytime running
lamps will be turned on while
the tail lamps are off.) All lamps
turn off automatically when the
ignition switch is turned to the
“LOCK” position or the opera-
tion mode is put in OFF.
Position, tail, licence plate and
instrument panel lamps on
Headlamps and other lamps go
on
Refer to “Combination headlamps and
dipper switch” on page 5-56.
1-Turn-signal lever
The turn-signal lamps flash when the lever is
operated
1- Turn-signals
2- Lane-change signals
Refer to “Turn-signal lever” on page
5-65.
2-Steering wheel height and
reach adjustment
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
Quick guide
1-16 OGKE20E1 Overview/Quick guide
1

3. Securely lock the steering wheel by pull-
ing the lever fully upward.
A- Locked
B- Release
Refer to “Steering wheel height and reach
adjustment” on page 6-09.

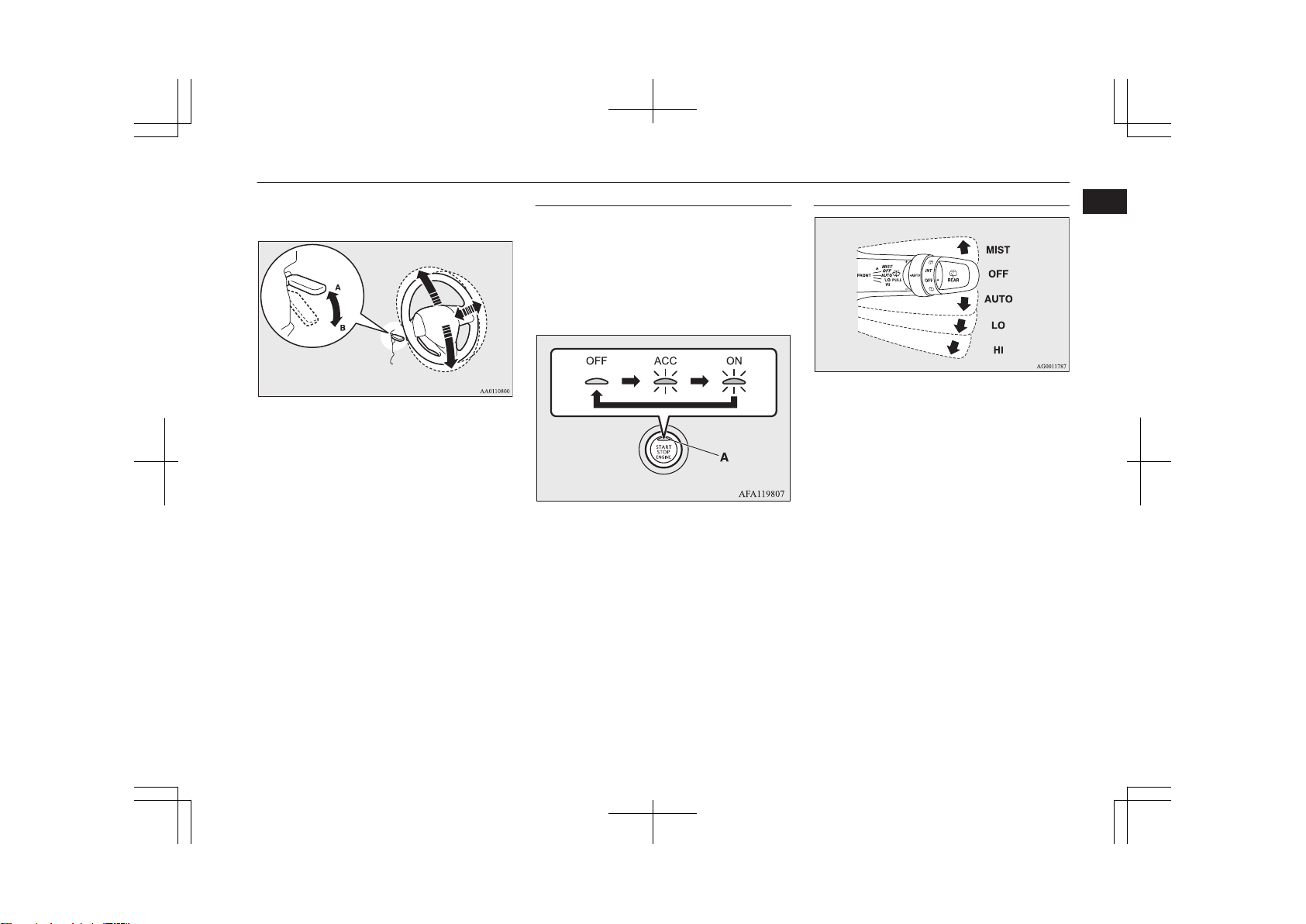

3-Engine switch*
If you are carrying the keyless operation key,
you can start the engine. If you press the en-
gine switch without depressing the brake
pedal (A/T or CVT) or the clutch pedal
(M/T), you can change the operation mode in
the order of OFF, ACC, ON, OFF.
OFF- The indication lamp (A) on the
engine switch turns off.
ACC- The indication lamp on the en-
gine switch illuminates orange.
ON- The indication lamp on the en-
gine switch illuminates green.
Refer to “Engine switch” on page 6-15.
4-Wiper and washer switch
MIST- Misting function
The wipers will operate
once.
OFF- Off
AUTO- Auto-wiper control
Rain sensor
The wipers will automati-
cally operate depending on
the degree of wetness on
the windscreen.
LO- Slow
HI- Fast
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
Refer to “Wiper and washer switch” on
page 5-68.
Quick guide
1-17
OGKE20E1 Overview/Quick guide
1

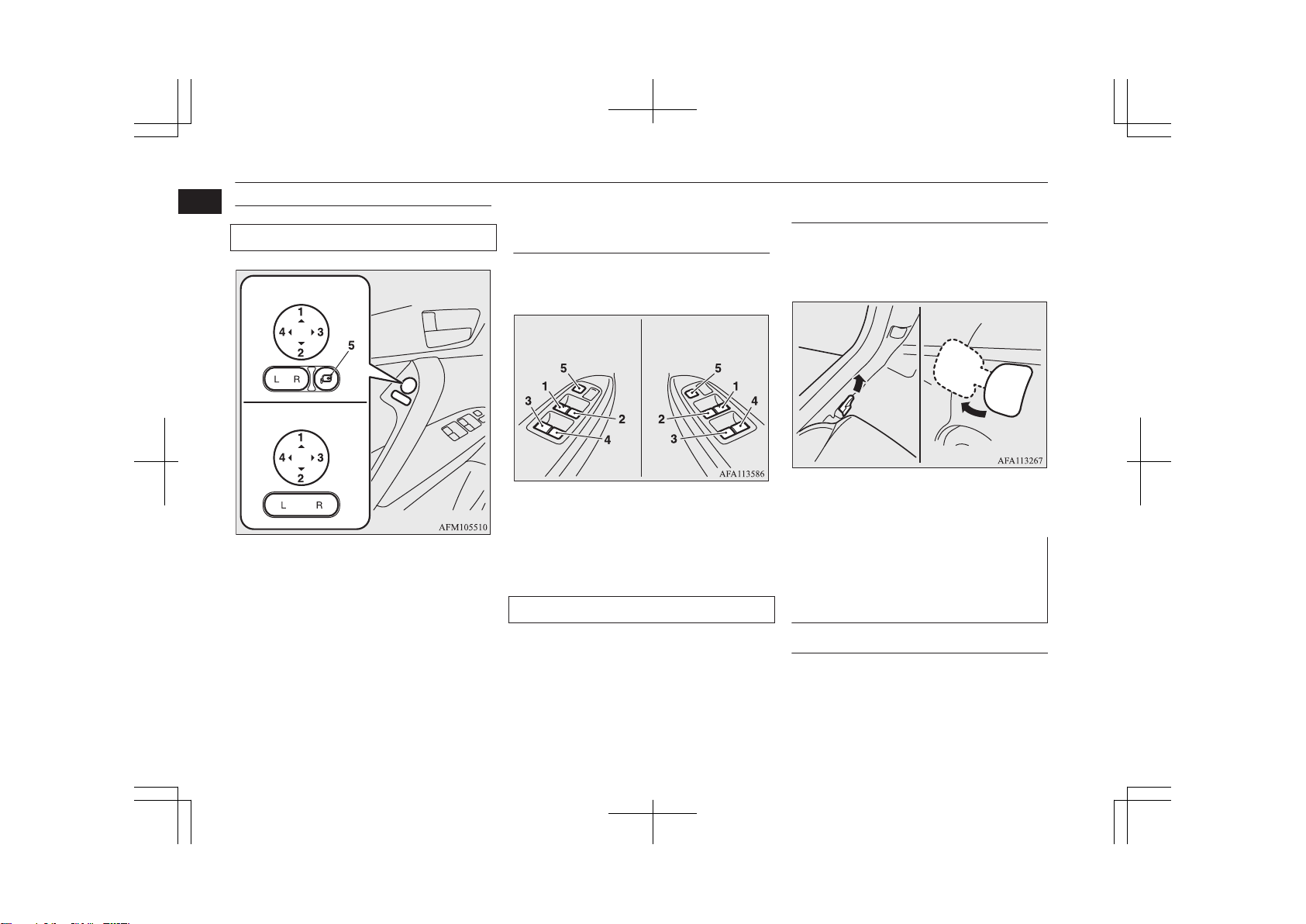

5-Outside rear-view mirrors
To adjust the mirror position
Type 1
Type 2
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
5- Mirror retractor switch
Refer to “Outside rear-view mirrors” on
page 6-11.
6-Electric window control
Press the switch down for opening the win-
dow, and pull the switch for closing.
Driver’s switches
(LHD)
Driver’s switches
(RHD)
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
Lock switch
If you press the switch (5), the passenger’s
switches cannot be operated. To unlock, press
it once again.
Refer to “Electric window control” on
page 3-30.
7-Fuel tank filler door release
lever
Open the fuel tank filler door.
The fuel tank filler is located on the rear left
side of your vehicle.
Refer to “Filling the fuel tank” on page
2-03.
8-speed Automatic transmis-
sion with Sports Mode* and
INVECS-III CVT with 8-step
Sports Mode*
Selector lever operation
The automatic transmission selects the opti-
mum gear automatically and the CVT selects
the optimum gear ratio automatically, de-
pending on the speed of the vehicle and the
position of the accelerator pedal.
Quick guide
1-18 OGKE20E1 Overview/Quick guide
1
