Thank you for buying a MITSUBISHI MIRAGE G4.
We are confident you will enjoy your vehicle. It has been engineered
for optimum performance, durability and comfort. By thoroughly
reading this Owner’s Manual, you will gain an understanding of the
many features that are included in the MIRAGE G4. The Owner’s
Manual contains descriptions and illustrations that will assist in the
operation and maintenance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to assist you
with any further questions you may have regarding the operation of
your vehicle.
Please note that this manual applies to all MIRAGE G4 models and
explains all features including options. Some features explained in this
manual may not be installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of resale.
The next owner will appreciate having access to the information con-
tained here.
This manual includes instructions for standard and optional equipment
available at the time of printing. Mitsubishi Motors Corporation
reserves the right to make changes in design and specifications and to
make additions or improvements in its product without assuming any
obligation to install these on previously manufactured products.
Introduction
This vehicle is manufactured by Mitsubishi Motors (Thailand) Co.,Ltd. in Thailand under
license from Mitsubishi Motors Corporation.
Throughout this manual the words WARNING and CAUTION
appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your vehi-
cle.
Indicates a strong possibility of severe personal injury or death if
instructions are not followed.
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
©2018 Mitsubishi Motors Corporation Printed in Thailand
BK0267800US.book 1 ページ ２０１８年５月３０日 水曜日 午後４時２４分

N09349100044
BK0267800US.book 1 ページ ２０１８年５月３０日 水曜日 午後４時２４分

Table of contents
1
2
3
4
5
6
7
8
9
10
11
12
Overview
Quick index
General information
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/Reporting Safety Defects
Specifications
Alphabetical index
BK0267800US.book 1 ページ ２０１８年５月３０日 水曜日 午後４時２４分

Instruments and controls
1-1
1
Overview
N00100202876
Instruments and controls
Instrument cluster P.5-64
Hazard warning flasher switch P.5-82
Combination headlights and dimmer switch P.5-79
Turn-signal lever P.5-81
Front fog light switch (if so equipped) P.5-82
Wiper and washer switch P.5-82
Cruise control switches
(if so equipped) P.5-55
Engine switch (if so equipped) P.5-13 Ignition switch (if so equipped)
P.5-37
Active stability control (ASC) OFF switch
P.5-53
Electric remote-controlled outside rearview
mirror switch P.5-36
Supplemental restraint system (SRS)-air-
bag (for driver) P.4-22, 4-28
Horn switch P.5-85
Steering wheel height adjustment lever
P.5-34
Steering wheel remote control switches
[Refer to the separate owner’s manual.]
Supplemental restraint system (SRS)-driver’s knee airbag
P.4-22, 4-29
Fuses P.9-22
BK0267800US.book 1 ページ ２０１８年５月３０日 水曜日 午後４時２４分

Instruments and controls
Overview 1-2
1
Center vents P.7-2 Supplemental restraint system (SRS)-air-
bag (for front passenger) P.4-22, 4-28
Heater (if so equipped) P.7-4
Manual air conditioning (if so
equipped) P.7-7
Electric rear window defogger switch
P.5-84
Automatic air conditioning (if so
equipped) P.7-12
Side vents P.7-2
Glove compartment
P.5-94
Engine hood release lever
P.9-4
Cup holder (for the front seat)
P.5-94
12 V power outlets
P.5-87 Electric rear window defogger switch
P.5-84
Key slot (if so equipped)
P.5-21
Gearshift lever (if so equipped) P.5-40
Selector lever (if so equipped) P.5-42
Fuel tank filler door release lever
P.3-3
Parking brake lever P.5-33
Cup holder (for the rear seat)
P.5-94
DISPLAY AUDIO (if so equipped),
Smartphone Link Display Audio (if so equipped),
Clock (if so equipped)
[Refer to the separate owner’s manual.]
USB input terminal P.5-85
Heated seats switches (if so equipped) P.4-4
Trunk lid release lever P.5-28
BK0267800US.book 2 ページ ２０１８年５月３０日 水曜日 午後４時２４分

Interior
1-3 Overview
1
N00100302561
Interior
Bottle holders P.5-95
Power window lock switch
P.5-30
Sun visors P.5-86
Vanity mirror P.5-86
Card holder P.5-86
Power door lock switch (if so
equipped) P.5-26
Dome light P.5-93, 9-28
Inside rearview mirror P.5-34
Head restraints P.4-5
Power window switch P.5-30
Seat belts P.4-7
Supplemental restraint system (SRS)-
curtain airbags P.4-22, 4-33
Manual window control
(if so equipped) P.5-30
Tether anchorages for child restraint
system P.4-17
Front seats P.4-2
Supplemental restraint system
(SRS)-side airbags (for front
seat) P.4-22, 4-33
Arm rest P.4-5
Jack P.8-5
Rear seat P.4-5
Cup holder (for the rear seat)
P.5-94
Assist grips
P.5-96
Arm rest (Driver’s seat only, if so
equipped) P. 4-4
Microphone
[Refer to the separate owner’s manual.]
Trunk-through lid P.4-5
Convenience hook
P.5-95
BK0267800US.book 3 ページ ２０１８年５月３０日 水曜日 午後４時２４分

Luggage area
Overview 1-4
1
N00100501553
Luggage area
Tools P.8-5
Spare tire P.8-7
Trunk room light P.9-28
BK0267800US.book 4 ページ ２０１８年５月３０日 水曜日 午後４時２４分

Outside
1-5 Overview
1
N00100602867
Outside
Power window P.5-30
Windshield wipers P.5-82
Outside rearview mirrors P.5-36
Fuel tank filler P.3-3
Engine hood P.9-4
F.A.S.T.-key (Free-hand Advanced
Security Transmitter) (if so equipped)
P.5-9
Keyless entry system (if so equipped)
P.5-6
Locking and unlocking P.5-25
Side turn signal lights
(if so equipped)
P.5-81, 9-27
Front side- marker lights
P.5-79, 9-27, 9-29
Front fog lights (if so equipped)
P.5-82, 9-27, 9-30
Front turn signal lights/Parking lights
P.5-81, 9-27, 9-29
Headlights/Daytime running lights (if so equipped)
P.5-79, 9-27, 9-29
BK0267800US.book 5 ページ ２０１８年５月３０日 水曜日 午後４時２４分

Outside
Overview 1-6
1

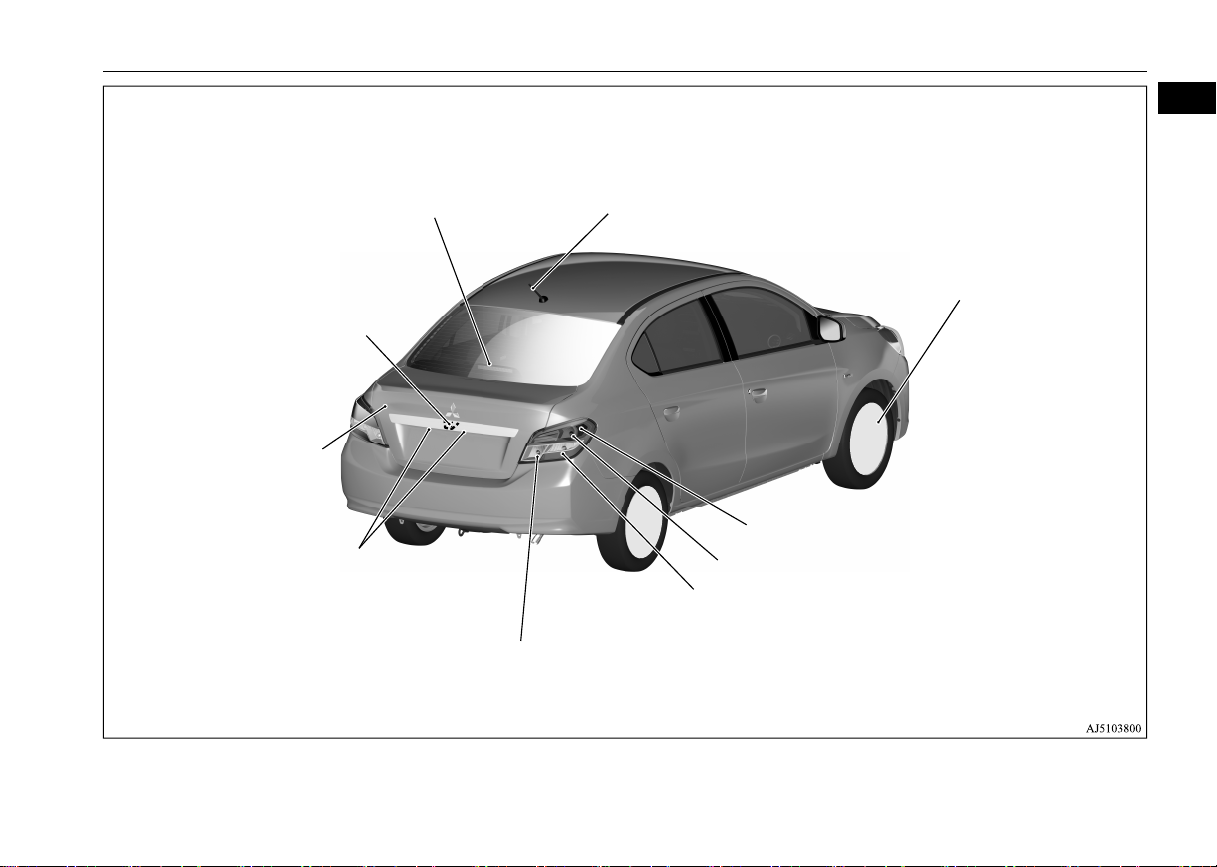

High-mounted stop light
P.9-27
Tire pressure monitoring system
(if so equipped) P.5-59
Changing tires P.8-6
Size of tires and wheels P.11-5
Tire inflation pressure P.9-15
Tire rotation P.9-17
Tire chains P.9-18
Trunk lid P.5-28
Tail and stop lights P.5-79, 9-27, 9-31
Rear-view camera P.5-62
Rear turn signal lights
P.5-81, 9-27, 9-31
License plate lights
P.5-79, 9-27, 9-32
Back-up light P.9-27, 9-31
Antenna P.7-19
Rear side- marker lights P.5-79, 9-27, 9-31
BK0267800US.book 6 ページ ２０１８年５月３０日 水曜日 午後４時２４分

BK0267800US.book 7 ページ ２０１８年５月３０日 水曜日 午後４時２４分

2-1
2
If this warning light comes on or flashes while you’re driving...
Quick index
N00200702292
If this warning light comes on or flashes while you’re driving...
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the operation mode is put in ON.
Warning lights Do this Ref. Page

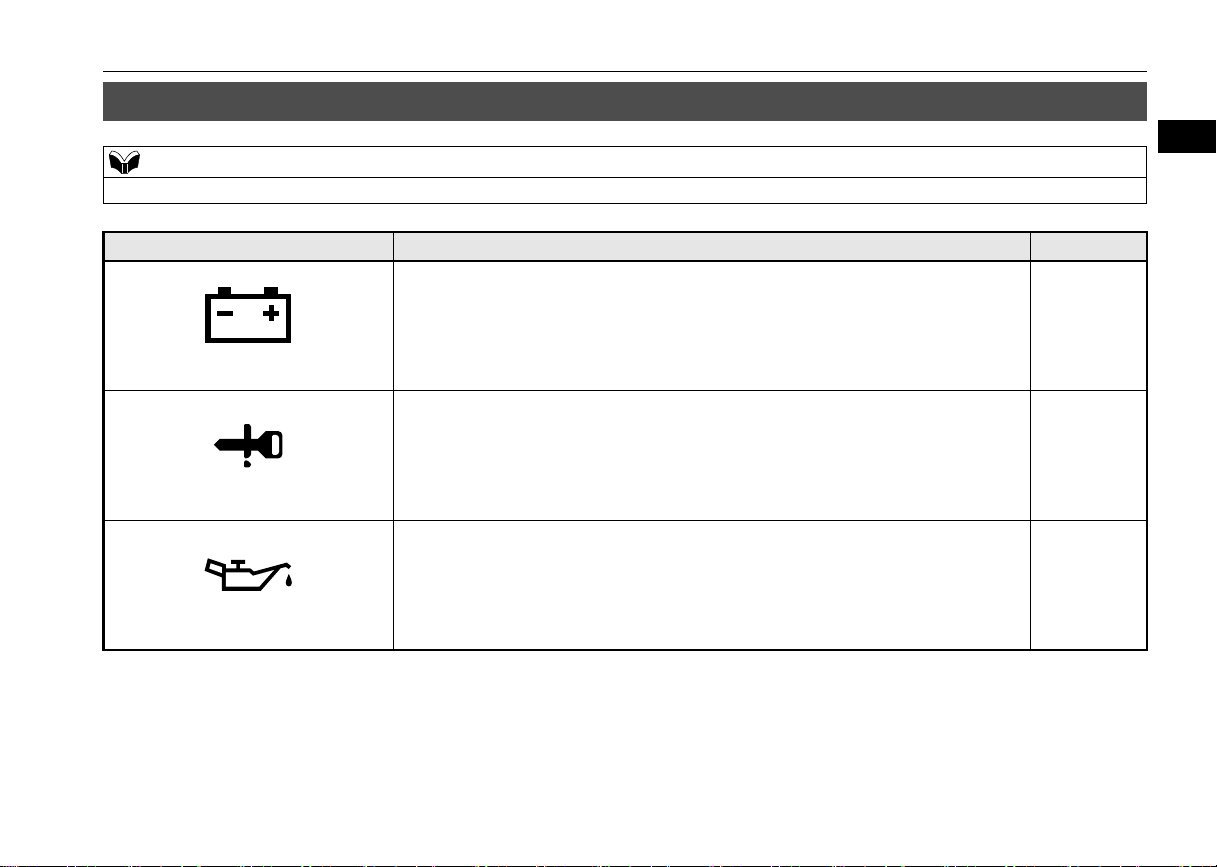

Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for assis-
tance.
P. 5-78
(Illuminates and intermittent sounds)
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for assis-
tance.
P. 5-15
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the engine oil
level.
If the light comes on while the engine oil level is normal, have the system checked
at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon
as possible.
P. 5-78
BK0267800US.book 1 ページ ２０１８年５月３０日 水曜日 午後４時２４分

If this warning light comes on or flashes while you’re driving...
2-2 Quick index
2
or

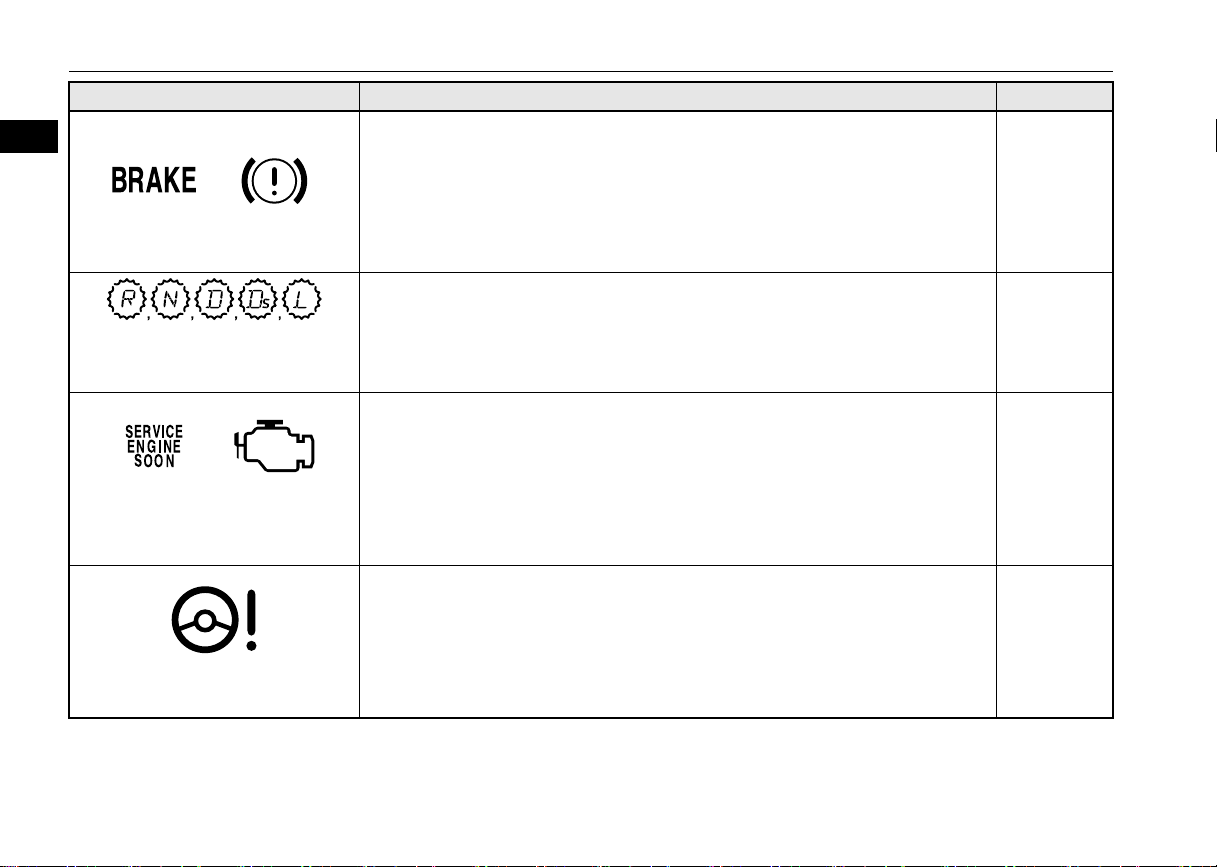

Brake warning light
If this light comes on while driving, check to see that the parking brake is fully
released.
If this light stays on after releasing the parking brake, immediately stop and check
the brake fluid level.
If the brake fluid level is correct, there may be a system malfunction. Avoid hard
braking and high speed, and contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice for assistance.
P. 5-76
Selector lever position indicator in the
instrument cluster flashes rapidly
(once per second)
Park your vehicle in a safe place.
Idle the engine until the selector lever position indicator stops flashing.
If the indicator does not go off, contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice immediately.
P. 5-45
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair facility
of your choice as soon as possible. If the vehicle is not drivable, contact emergency
roadside assistance at 1-888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or local
towing company for assistance.
P. 5-77
Electric power steering system (EPS)
warning light
If this light comes on while the engine is running, it may become harder to turn the
steering wheel. Have your vehicle inspected at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
P. 5-51
Warning lights Do this Ref. Page
BK0267800US.book 2 ページ ２０１８年５月３０日 水曜日 午後４時２４分

If this warning light comes on or flashes while you’re driving...
Quick index 2-3
2

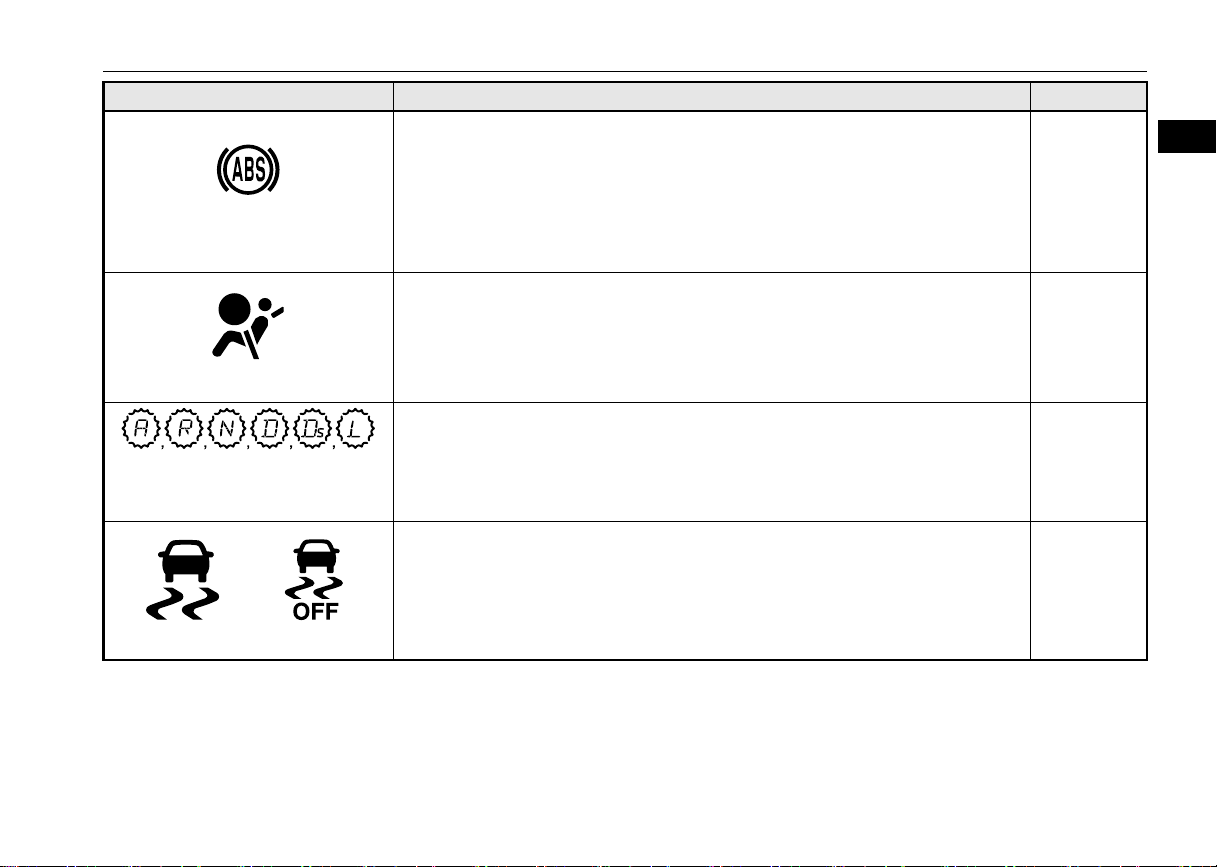

Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and only
the ordinary braking system is functioning.
Park your vehicle in a safe place and stop the engine.
Test the system as described on page 5-51.
If the light does not go out after the test, or if it comes on again, we recommend that
you have the system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
P. 5-50
SRS warning light
Immediately have the airbag and the pre-tensioner seat belt system checked at an
authorized Mitsubishi Motors dealer. P. 4-28
Selector lever position indicator in the
instrument cluster flashes slowly
(every 2 seconds)
Have your continuously variable transmission (CVT) checked at an authorized
Mitsubishi Motors dealer or a repair facility of your choice immediately. P. 5-45
and
ASC indicator and ASC OFF indicator
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.
If the indicator does not go out, or if it comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon
as possible.
When this indicator comes on, the active stability control is not functioning.
P. 5-54
Warning lights Do this Ref. Page
BK0267800US.book 3 ページ ２０１８年５月３０日 水曜日 午後４時２４分

If this warning light comes on or flashes while you’re driving...
2-4 Quick index
2
ASC indicator
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.
If the indicator does not go out, or if it comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon
as possible.
When this indicator comes on, the hill start assist is not functioning.
Start off carefully on a steep uphill slope.
P. 5-49
Tire pressure monitoring system warn-
ing light (if so equipped)
If the warning light comes on, you should stop and adjust the tires to the proper
inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 9-15.)
Once adjustments have been made, the warning light will go off after a few minutes
of driving.
If the warning light blinks for approximately 1 minute and then remains continu-
ously illuminated, the system is not operating properly. If the system returns to nor-
mal, the warning light will go off. If the warning light does not go off, have the
vehicle inspected at an authorized Mitsubishi Motors dealer.
P. 5-59
Warning lights Do this Ref. Page
BK0267800US.book 4 ページ ２０１８年５月３０日 水曜日 午後４時２４分

If this problem occurs...
Quick index 2-5
2
N00200902092
If this problem occurs...
Problem Do this Ref. Page
Unable to turn the key.
(except for vehicles equipped
with the F.A.S.T.-key)
From “ACC” to “OFF”
Vehicles with continuously variable transmission (CVT):
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.
P. 5-38
The engine does not start when
the engine switch is pressed.
(for vehicles equipped with the
F.A.S.T.-key)
Make sure the F.A.S.T.-key is in the vehicle.
Vehicles with manual transaxle:
Press and hold the clutch pedal all the way down, and then press the engine switch while
depressing the brake pedal.
Vehicles with continuously variable transmission (CVT):
Make sure the selector lever is in the “P” (PARK) position, and then press the engine switch
while depressing the brake pedal.
P. 5-13
BK0267800US.book 5 ページ ２０１８年５月３０日 水曜日 午後４時２４分

If this problem occurs...
2-6 Quick index
2
The engine does not start and the
operation mode cannot be
changed to OFF. (for vehicles
equipped with the F.A.S.T.-key)
1. Move the selector lever to the “P” (PARK) position, and then change the operation mode
to OFF. (For vehicles with CVT)
2. One of the other causes could be low battery voltage.
If this occurs, the keyless entry system and the F.A.S.T.-key operation will also not oper-
ate.
Contact an authorized Mitsubishi Motors dealer.
P. 5-14
The F.A.S.T.-key does not oper-
ate.
(for vehicles equipped with the
F.A.S.T.-key)
Use the emergency key to lock and unlock the door.
Insert the F.A.S.T.-key into the key slot of the floor console, and then start the engine or
change the operation mode.
P. 5-19, 5-20
Cannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with continuously
variable transmission (CVT))
Shift the selector lever while pressing the brake pedal.
Check that the ignition switch or the operation mode is in ON. P. 5-42
The windows are fogged up. Vehicles equipped with the heater without air conditioning function or the manual air
conditioning:
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.
Vehicles equipped with the automatic air conditioning:
Push the defogger switch to change the “ ” mode.
P. 7-6, 7-10,
7-14
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.
Have the battery checked. Recharge or replace as needed. P. 8-2,
9-11
Problem Do this Ref. Page
BK0267800US.book 6 ページ ２０１８年５月３０日 水曜日 午後４時２４分

If this problem occurs...
Quick index 2-7
2
The high coolant temperature
warning light is illuminated.
Steam comes out of the engine
compartment.
The engine is overheated.
Carefully stop the vehicle in a safe place. P. 8-4
The vehicle is stuck in sand,
mud or snow Rock your vehicle back and forth to free it. P. 8-13
WARNING
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking motion may cause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
Problem Do this Ref. Page
The brakes are not functioning
properly after crossing a puddle
or stream.
Dry out the brakes by driving slowly while lightly pressing the brake pedal. P. 6-5
Problem Do this Ref. Page
BK0267800US.book 7 ページ ２０１８年５月３０日 水曜日 午後４時２４分

If this problem occurs...
2-8 Quick index
2
The continuously variable trans-
mission (CVT) makes no shift
change when accelerating. The
initial movement of the vehicle
is slow when the vehicle starts
moving.
(for vehicles with CVT)
There may be a problem in the CVT.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of
your choice immediately.
P. 5-45
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the compact spare tire. P. 8-6
Problem Do this Ref. Page
BK0267800US.book 8 ページ ２０１８年５月３０日 水曜日 午後４時２４分

3
General information
Fuel selection ...................................................................................3-2
Filling the fuel tank ..........................................................................3-3
Modifications to and racing of your vehicle ....................................3-5
Genuine Mitsubishi Motors parts ....................................................3-6
California Perchlorate Materials Requirements ...............................3-7
BK0267800US.book 1 ページ ２０１８年５月３０日 水曜日 午後４時２４分
