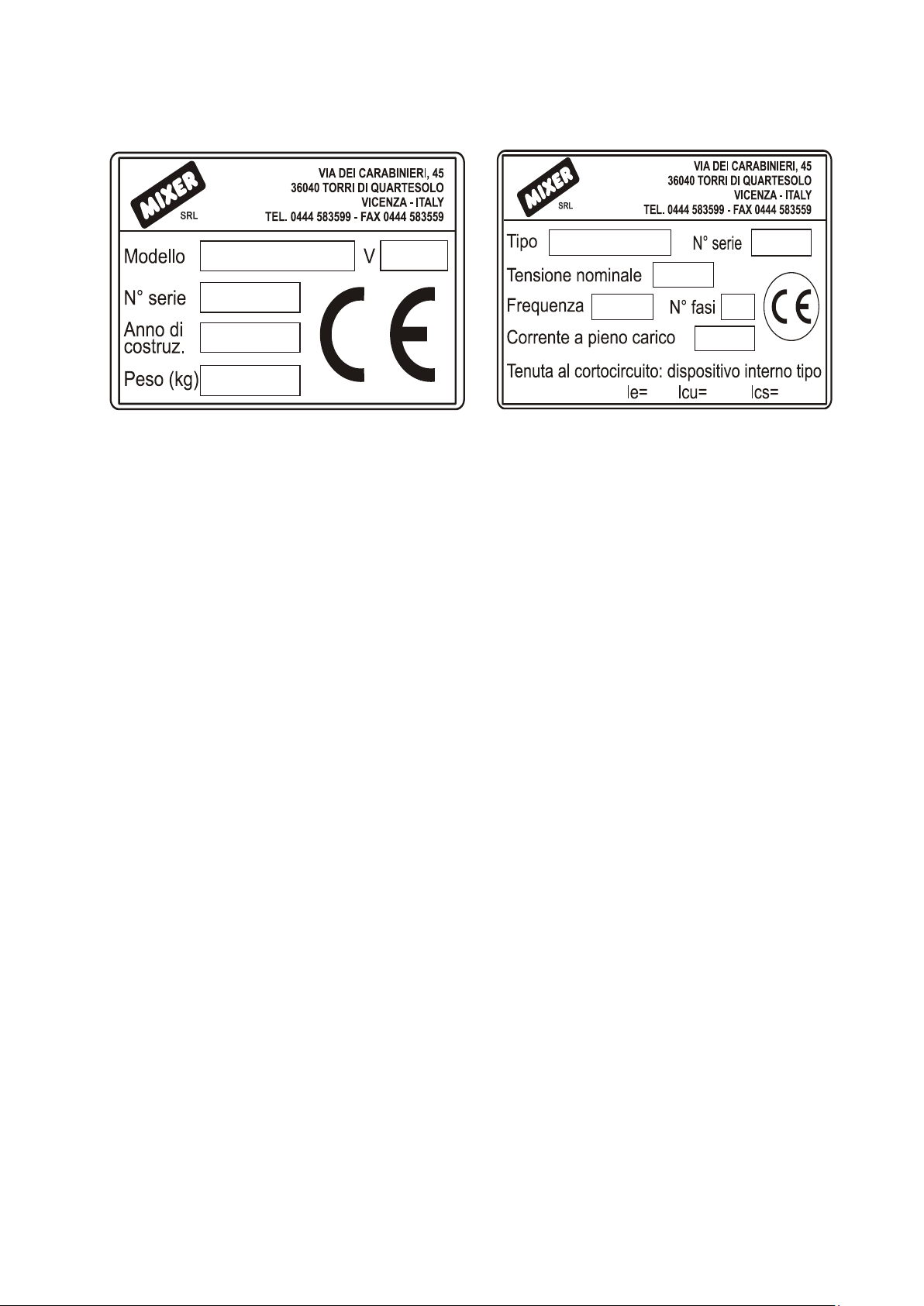

CE MARKING
FINAL TESTING AND COMMISSIONING
(by the Manufacturer or the authorized Dealer)
The machine is already tested at the Manufacturer's premises.
The commissioning of the machine at the client is carried out by Manufacturer
or the Authorized Dealer.
At the end of the testing, the Manufacturer or Authorized Dealer fills in the
testing and commissioning certificate, which is signed by the testing
technician, the operator in charge (or any other authorized operator), and by
the safety manager, who shall certify the positive result of the same.
RESERVED RIGHTS
The contents on this manual can’t be reproduced and disclosed (totally or
partially) without written authorization of the Manufacturer.

MIXER 35 manual instructions Mixer Technology srl pag.4
TECHNICAL DATA
The models available of the machine: MIXER 35
MODELS POWER SUPPLY POWER
MIXER 35 BASIC 230 Volt / 50 Hz 1,1 kw
MIXER 35 TOP 230 Volt / 50 Hz 1,1 kw
Degree of protection IP electrical panel
IP 44
Power supply Volt / Hz
230 / 50
Motor power kW 1,1
Mixing capacity l /min 6 o 12
Hopper capacity l (liters) 35
Mixing chamber weight kg 13
Hopper weight kg 24
Total weight of the machine kg 60
Noise level dB 78

MIXER 35 manual instructions Mixer Technology srl pag.5
DIMENSIONS OF THE MACHINE

MIXER 35 manual instructions Mixer Technology srl pag.6
1
2
3
4
5
6
13
11
10
9
7
12
8
15
16
14
17

MIXER 35 manual instructions Mixer Technology srl pag.7

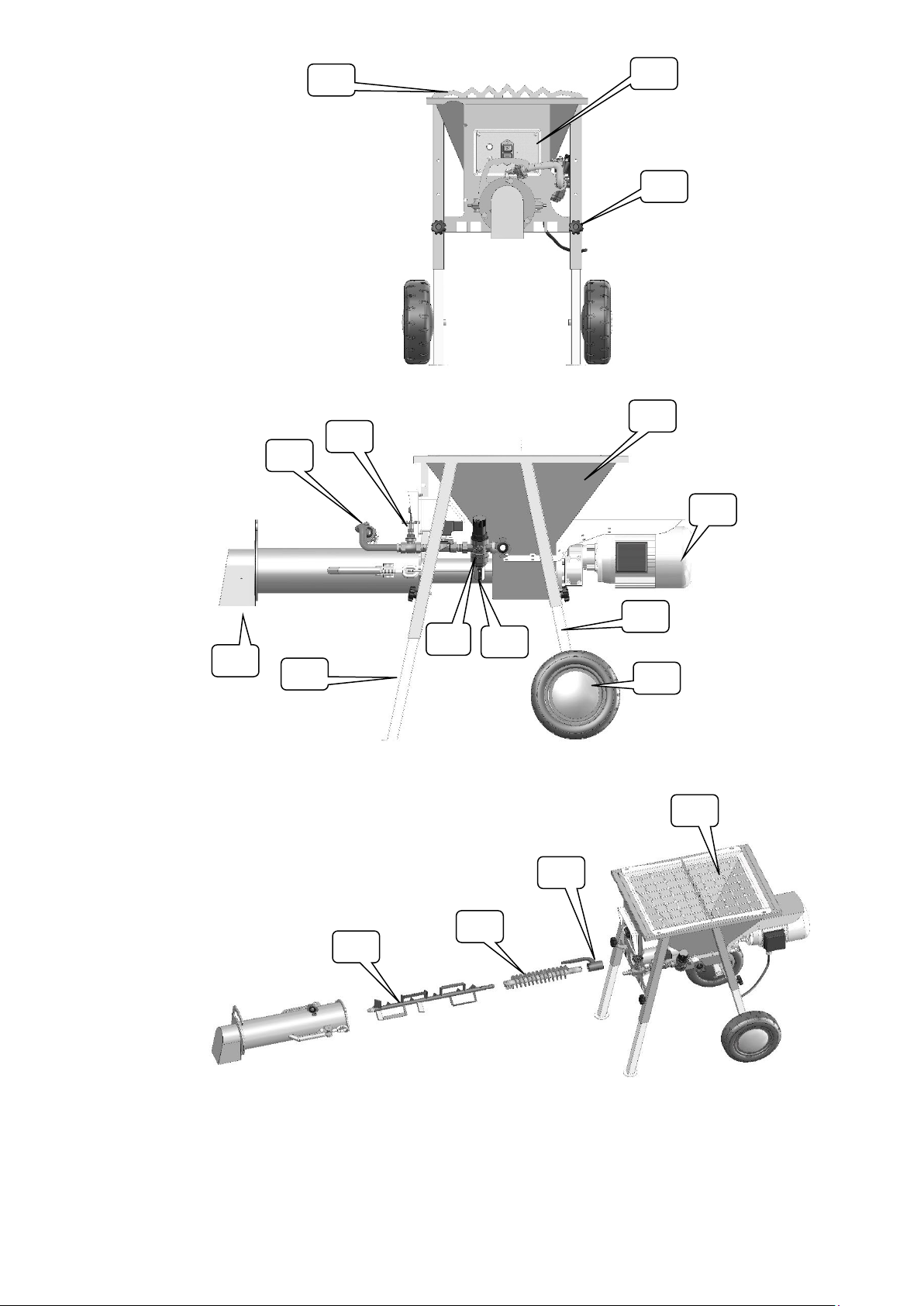

PARTS LIST
1. Fixed knob
2. Electrical panel
3. Bag cutter blade
4. Material outlet flange
5. Front frame support
6. Pressure reducer
7. Wheel
8. Gear motor
9. Hopper frame
10. Water adjustment tap
11. Water inlet in the mixing chamber
12. Back frame support
13. Water drain
14. Joint moteur
15. Powder dosing screw
16. Pastrous products mixing axis
17. Protection grid

MIXER 35 manual instructions Mixer Technology srl pag.8
PACKAGING
Usually the machine is packaged by the Manufacturer on wooden pallet, fastened with
straps and wrapped with a film.
UNPACKING
1) Remove the protective film;
2) With a proper tool, cut the straps paying attention not to be hit by the same due to
their elasticity;
3) With the help of a second operator, let the machine carefully get off the pallet
lifting it using the proper handles positioned on the machine sides;
USE DESTINATION
The machine was created and built for the following intended use:
WORKPLACE
Construction sites, internally or externally to buildings sufficiently illuminated and suitable
for the laws in force in the country of use regarding safety and health in the workplace. The
machine must be placed on a plane that ensures its stability.
INTENDED USE Mix of mortars, pre-mixed products and / or glues and finishing products, with max.
granulometry size. 3 mm suitable for plastering and mechanical processing.
PRODUCTS USED FOR PROCESSING
The type of product used for processing varies according to the 2 models of the
dosing screw:
• 6 l (liters) dosing screw: for glues, smoothers and low thickness products (water-
repellent with difficulty in mixing);
• 12 l (liters) dosing screw: for premixed mortars and gypsum, lime / gypsum, lime /
cement-based plasters;

MIXER 35 manual instructions Mixer Technology srl pag.9
SAFETY INSTRUCTIONS
1. The machine use is only reserved to qualified and trained staff in according to
the safety provision law.
2. Always remove the voltage, turning off master switch, before to do any
operation on the machine.
3. The master switch has also the stop emergency function in case of necessity.
4. Conform to use destination of the machine described in the in the specific
chapter.
5. Consult the instructions of pre-mixed products, before to use the machine
6. The machine is not suitable to use in environments with potentially explosive
atmospheres (Atex)
7. Only one operator at time on the machine
8. The machine has not been conceived for to transport and/or lift persons and
things.
9. Pay attention to transport the machine on slopes, danger to be run over
10. It is absolutely forbidden to tamper, disconnect and/or remove any safety
device existing in the machine.
11. For the safe use of the machine are recommended the following personal
protective equipment: safety footwear, protective gloves from chemicals,
goggles or face shield, earmuff.
12. Don’t introduce objects thought the hopper protection grating. Don’t use the
machine with the open grating.
13. Don’t step or pull tubes and the electrical connections.

MIXER 35 manual instructions Mixer Technology srl pag.10
RESIDUAL RISKS
The machine was designed and produced to compliance with current legislation at
state of art.
However, the machine presents residual risks, risks that can’t be eliminated at the
source and involving a training and the operator’s attention.
ZONE RESIDUAL
RISKS DANGER PREVENTIVE MEASURES
Hopper
protection
grating
Cutting hazard in
case of contact
with the bag
cutting blade
Education, training.
