Mixx StreamBuds Lynk 2 Administrator Guide

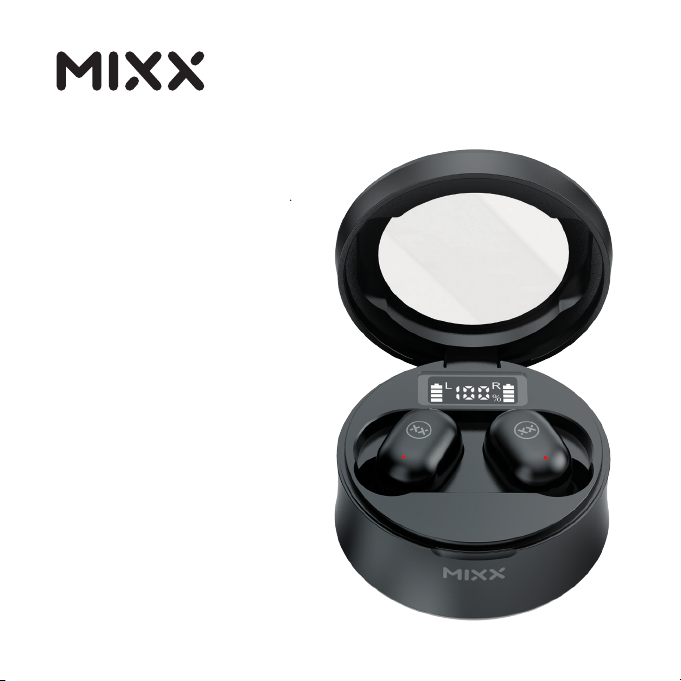

StreamBuds™ Lynk 2
True Wireless Earbuds
HOW TO GUIDE
TRUE WIRELESS

THANKS!
Thank you for choosing to buy our
MIXX StreamBuds Lynk 2 earbuds.
All of our products come with a
2 year warranty for peace of mind.
Feedback is welcome, email us
on [email protected] for any
comments or queries.
We hope you enjoy using your
new earbuds.

1
3
4
5
7
9
9
10
11
12
13
CONTENTS
LET’S START
LET’S CONNECT
LET’S ASK GOOGLE OR SIRI
LET’S STAY CHARGED
LET’S PLAY
LET’S VIEW TECHNICAL SPECS
CONTACT MIXX
NEED EXTRA HELP?
LET’S BE SAFE
LET’S RECYCLE
SAFE USAGE INFO
HOW TO GUIDE EN

1
LET’S START
What’s in the box?
A pair of earbuds
LR
1 3
4
2
6
5
7
8

2
Left Touch Sensor
Earbud LED Lights
Right Touch Sensor
Microphones
Portable Charging Case
USB C Charging Port (Back)
Battery Digital Display
Case Finger Tip Slots
USB C Charging Cable
3 Pairs of Ear Cushions (S, M and L)
1
2
3
4
5
6
7
8
9
10
HOW TO GUIDE EN
10
9

LET’S CONNECT
Remove both earbuds from the Portable Charging Case by placing the tip of your
finger in the Case Finger Tip Grooves and gently lift the earbuds from the case.
They will automatically dual pair together and a ‘Beep’ will sound.
One of the Earbud LED lights will flash RED and BLUE to indicate pairing mode.
Go to the Bluetooth settings on your audio device to select ‘MIXX StreamBuds Lynk 2’
from the list. Once paired successfully you will hear ‘Connected’ and the Earbud
LED Light will turn off.
You can now enjoy your music, watch a video or take a call hands free.
The earbuds will automatically reconnect to the last device they were paired with,
confirming ‘Connected’.
Placing both earbuds back in the Portable Charging Case will power them off.
5
8
5
3
First time
pairing
“Power on, pairing”
Automatic
dual pairing
1
2
2
3
2 2

LET’S ASK GOOGLE OR SIRI
Pair your Bluetooth device with your earbuds.
Double tap either Touch Sensor or to activate Siri or Google Assistant.
Your Voice Assist familiar ‘beep’ will sound to confirm connection.
You can now ask Siri or Google Assistant a question or state a command.
1 3
4
HOW TO GUIDE EN

LET’S STAY CHARGED
The Earbuds
A voice prompt ‘Battery low’ allows for 2 minutes play time before the earbud
powers down stating ‘Battery low, power off’. The Earbuds LED Light will
flash RED once and will then switch off.
Charge the earbuds by placing them in the Portable Charging case .
Important! See the back of each earbud to view the left (L) and right (R) letters. Then place
them in their respective slots in the charging case and close the lid to charge.
While charging, the Earbud LED Lights will be RED and once fully charged
the LED Lights will turn off.
Each LEFT and RIGHT earbud has 4-line LED charge indicators and
on the case .
The 4 LED indicators and will flash to show that the earbuds are charging
and will turn off once the earbuds are fully charged.
5
7
2
2
L
L
R
R
TIP: 15 MINUTE QUICK CHARGE
If you’re running low on power, charge your earbuds for 15 minutes and get
2 hours extra play time while on the go
5
LBR

The Portable Charging Case
To check the battery status of the case,
place the earbud(s) inside to light up the
Battery Digital Display . The number
shows the percentage of the battery
power remaining on the case for
30 seconds. This makes it easy to view
when your low on power and when next
to recharge the case.
Connect the case to a suitable USB wall
charger, computer USB port or a power
bank using the USB C charging cable
supplied.
When the LED Digital Display number
reaches 100% the case is fully charged,
and the display will switch off.
This can take up to 2 hours.
9
B
B
6
HOW TO GUIDE EN
7

LET’S PLAY
Remove both earbuds from the case.
Go to the Bluetooth settings on
your audio device to select
‘MIXX StreamBuds Lynk 2’ from the list.
Once paired successfully you will
hear ‘Connected’.
Play / Pause
Long press for 2 seconds
either Touch Sensor or .
Decrease Volume
Single tap LEFT Touch Sensor
Increase Volume
Single tap RIGHT Touch Sensor
NOTE: Check the back of the earbuds for (L)
and (R) letters to ensure you place them in the
correct ears.
First Time Pairing
1 3
1
3
TOP TIP: For better noise isolation,
comfort and sound quality ensure
the correct sized (S, M or L)
ear cushions (supplied) are fitted
on the earbuds.
L R
1 3
7

Answer / End call
Long press for 2 seconds either Touch Sensor or .
Decline an incoming call
Double tap either Touch Sensor or .
Activate Siri or Google Assistant
Double tap either Touch Sensor or to activate Siri or Google Assistant.
Listen for the familiar Voice Assist ‘beep’ then ask a question or state a command.
Power On
Remove both earbuds from the case and they will automatically dual pair together.
To manually turn on, long press for 3 seconds each Touch Sensor.
Power Off
Place both earbuds in the case and close the lid. This will automatically turn
off the earbuds and the Bluetooth.
1
1
1
3
3
3
8
HOW TO GUIDE EN

Play time on a single charge: Up to 6 hours
Play time with charging case: Up to 24 hours
Bluetooth: Version 5.1
Resistance: IPX4, water and dust resistant
Supported profiles: HSP, HFP, A2DP, AVRCP
Wireless range: 10m
Earbud capacity: 40mAh each side
Charge case capacity: 300mAh
Impedance: 16 Ohm
Sensitivity: 95dB at 1KHz
Dynamic driver: 10mm
Frequency response: 20Hz – 20KHz
Weight including case: Total 36g (earbuds 4g each)
Portable case dims: 57mm Ø x 30mm (H)
LET’S VIEW TECHNICAL SPECS
Compatibility
Suitable for most Bluetooth audio supported smartphones, tablets,
notebooks, laptops and computers.
CONTACT MIXX
Feedback is welcome simply email us on [email protected]om
or visit mixxaudio.com for more information.
9

NEED EXTRA HELP?
Question & Answers
Common solutions
If you are experiencing problems with your earbuds:
• Power on the earbuds (see page 8).
• Check the status on the LED Lights (see page 3).
• Charge the earbuds (see page 5).
• Move your device closer to the earbuds and away from any
obstructions or interference.
• Try connecting to another device.
Q. While pairing with my phone, I see
two ‘MIXX StreamBuds Lynk 2’ in my
Bluetooth menu listing?
A. One of the Earbud LED Lights will flash
RED and BLUE, wait approximately 4
seconds for the earbuds to connect to
each other before pairing with your device.
If there is still no connection simply ‘forget’
or ‘unpair’ both earbuds in your Bluetooth
settings, place them back in the case and
start again.
Q. How do I know the earbuds are
charging correctly in the charging case?
A. See the back of each earbud to view the left
(L) and right (R) letters. Then place them in
their respective slots in the charging case
and close the lid to charge. The L and R
LED lights will come on in the battery display
to confirm they are in the correct slot.
Q. How do I turn on my earbuds without
using the charging case?
A. Long press for 3 seconds both Touch
Sensors to manually turn them on.
Q. What smartphone voice assist systems do
these earbuds work with?
A. Connects with Siri, Google Assistant
or Bixby (depending on your device).
10
HOW TO GUIDE EN

11
LET’S BE SAFE
It’s important that you read this section
completely, especially the ‘Warning,
Caution and Safe Usage’ instructions.
For your protection
Ensure the product is correctly
connected using the manufacturer’s
original accessories included with the
product.
Please keep the product out of reach
from children and animals.
Do NOT listen to loud music for a long
duration of time.
We recommend turning down the
volume before placing the device in
or on your ears.
Adjust the volume to a comfortable
level before listening to avoid hearing
damage.
Do NOT use the product while operating
machinery, including cars, trucks or
other vehicles.
Do NOT use noise cancelling mode
or use your device in areas where
the use of hearing is required for
safety. e.g., while riding a bicycle,
at a construction site or railroad etc.
Do NOT drop, short circuit, disassemble
or continue to use this product and its
portable charging case if damaged.
CAUTION!
Please remove your device from your
ears immediately if:
* They emit any loud unusual noise
* You experience a warming sensation
* There is loss of audio
Turn off your device and contact MIXX
Limited on [email protected].

12
HOW TO GUIDE EN
IMPORTANT!
Do NOT use a non-certified PD or QC3
wall charger as this may damage the
product. Only use the cable supplied to
charge your device.
May contains small parts which may
be a choking hazard. NOT suitable for
children under age 6.
We recommend
To refer all servicing to qualified
persons. Servicing may be required
when the product has been damaged
in any way, does not operate normally
or has been dropped.
WARNING: The operating temperature
range for this product is 5º - 40º celsius.
Please avoid exposing the product,
charging case and cable connectors
to prolonged rain, moisture, any
splashing or liquid spills.
This may cause excessive heat or
melting and may lead to fire damage
or personal injury.
CAUTION: This product contains a
Lithium battery. Incorrect disposal
of this battery may result in an
explosion.
LET’S RECYCLE
This product can be recycled.
Products bearing this symbol
must NOT be thrown away with
normal household waste.
Take the product to a collection point
designated for recycling of electronic
devices.
Find out more about return and
collection points through your local
authority.

[email protected]
mixxaudio.com
@
MIXX Limited
5 The Pavilions, Brighton Road, Pease Pottage,
West Sussex, RH11 9BJ. United Kingdom
SAFE USAGE INFO
Do not crush, puncture or incinerate the charging case or the earbuds.
Only use certified or device manufacturer’s charging cable.
SLY2HTG02
