MKT V-2Esc User manual

MANUFACTURING, INC.
1198 PERSHALL RD.
ST. LOUIS, MO 63137, USA
Telephone: [phone]
Fax: [phone]
Website: www.mktpileman.com
SERVICE, OPERATING, MAINTENANCE
AND PARTS MANUAL FOR V-2Esc
HYDRAULIC VIBRATORY PILE
DRIVER/EXTRACTOR SYSTEM
WARNING
THIS PRODUCT MAY CONTAIN OR EMIT
CHEMICALS SUCH AS DIESEL ENGINE
EXHAUST AND SOME OF ITS CONSTITUENTS
THAT ARE KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH
DEFECTS, AND OTHER REPRODUCTIVE HARM.
OCCUPATIONAL HEALTH WARNINGS:
1. Construction equipment frequently operates at very high sound
levels. Such sound levels can be harmful to the human hear-
ing system. Sustained exposure to such high sound levels can
permanently impair one’s hearing. Hearing protection should
be worn by anyone and everyone within close proximity to
a Vibratory Pile Driver/Extractor System.
2. Do not install, operate, or service the V-2Esc until having thor-
oughly read this manual and having received instructions from
an MKT factory authorized service representative or properly
trained, experienced operator. Make this manual available to
all persons responsible for the operation, installation, ser-
vicing and maintenance of this product. Also wear proper
clothing and personal protection equipment such as, safety
shoes, safety goggles, hearing protection and hard hat.
MANUAL NUMBER 080804E
Proposition
65

{00330832- 3 25540-006}
MKT MANUFACTURING, INC.
STANDARD NEW PRODUCT WARRANTY
EXPRESS LIMITED PARTS WARRANTY FOR NEW PRODUCTS
MKT MANUFACTURING, INC. (“MKT”) warrants to the first user (“User”) of any new product (whether such new
product is sold directly to the customer by MKT or through a distributor) that such new product will be free from
defects in material or workmanship for a period of ninety (90) days beginning on the date that such new product is
delivered to the User. This Express Limited Parts Warranty (“Warranty”) applies only to the first User of the new
product, and not any subsequent users, regardless of whether such subsequent user becomes the owner of the
new product or uses the product within such ninety (90) day warranty period. In no event shall this Warranty
extend for more than twelve (12) months from the date that MKT ships the product, whether to a User or to a
distributor which may or may not use the product. This Warranty applies to new products only. This Warranty is
subject to the following terms and conditions.
If User believes that the product has a defect in the materials or workmanship, User shall send notice of such
defect in writing to MKT within the ninety (90) day warranty period. MKT shall have the right to inspect the
product for defects, and any parts which appear to MKT upon inspection to have been defective in material or
workmanship shall be repaired or replaced at MKT’s option. MKT shall have no other liability to User except for
such repair or replacement of those parts determined to be defective. Such repair or replacement parts shall be
provided at no cost to the User at such location and during such hours as determined by MKT. This Warranty
shall not apply to component parts or accessories of products not manufactured by MKT, or to normal
maintenance of the product or to normal maintenance parts required therefor. Replacement or repair parts
installed in the products covered by this Warranty are warranted only for the remainder of the Warranty as if such
parts were original components of said product. EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY,
MKT MAKES NO OTHER WARRANTIES, AND FURTHER DISCLAIMS ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, AND MAKES NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE.
THIS WARRANTY IS NOT APPLICABLE TO ANY ITEM WHICH MKT SELLS THAT IS WARRANTED
DIRECTLY TO THE USER BY THE MANUFACTURER OF SUCH ITEM (IF SUCH MANUFACTURER OF SUCH
ITEM IS NOT MKT).
MKT EXCLUDES ALL LIABILITY FOR OR ARISING FROM ANY NEGLIGENCE ON ITS PART OR ON THE
PART OF ANY OF ITS EMPLOYEES, AGENTS OR REPRESENTATIVES WITH RESPECT TO THE
MANUFACTURE OR SUPPLY OF THE PRODUCT.
MKT shall not be liable to User or any third party for any loss of profits, loss of use, interruption of business, or
any indirect, incidental, special, punitive or consequential damages of any kind whatsoever related to the product
or the use or operation of the product. In particular, MKT assumes no liability for the results of User and its
affiliates based on User’s use of the products furnished by MKT. The maximum total liability of MKT shall be
limited to the cost of those parts which MKT has agreed to repair or replace. This limitation applies to all causes
of action in the aggregate, including without limitation, breach of contract, breach of warranty, negligence, strict
liability, misrepresentations, and other torts. In any jurisdiction in which the above limitations of liability are
restricted, MKT’s liability is limited to the greatest extent permitted by law.
Notwithstanding anything in this Agreement to the contrary, MKT shall not be responsible for any costs or charges
of User and/or any third party, including but not limited to transportation charges, shipping costs, cost of
installation, duty, taxes or any other charges whatsoever including but not limited to any charges or damages due
to any delays. If requested by MKT, products or parts for which a warranty claim is made are to be returned
transportation prepaid to MKT at MKT’s home office. Any improper use, including operation after discovery of
defective or worn parts, operation beyond rated capacity, substitution of parts not approved by MKT, or any
alteration or repair by others in such manner as in MKT’s judgment affects the Product materially and adversely,
shall void this Warranty.
NO EMPLOYEE OR REPRESENTATIVE IS AUTHORIZED TO CHANGE THIS WARRANTY IN ANY WAY OR
GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN WRITING AND SIGNED BY AN
OFFICER OF MKT AT ITS HOME OFFICE.

TABLE OF CONTENTS
I. INTRODUCTION .......................................................2
II. SAFETY INSTRUCTIONS............................................. 3 - 9
III. SPECIFICATIONS.....................................................10
IV. EXCAVATOR REQUIREMENTS ..........................................11
V. OPERATING INSTRUCTIONS ....................................... 12 - 15
VI. MAINTENANCE AND SERVICE INSTRUCTIONS........................ 16 - 17
VII. SERVICE TROUBLE SHOOTING .................................... 18 - 19
VII. DRAWINGS AND PARTS LISTS ..................................... 20 - 37
A. V-2Esc GENERAL ASSEMBLY AND PARTS LIST ..................... 21 - 23
B. V-2Esc HYDRAULIC CLAMP ASSEMBLY AND PARTS LIST ............. 24 - 25
C. SIDE CLAMP ASSEMBLY AND PARTS LIST ......................... 26 - 29
D. V-2Esc EXCAVATOR MOUNT SCHEMATIC (CONSULT FACTORY)
E. HP-85T3 HYDRAULIC POWER UNIT GENERAL ASSEMBLY AND PARTS LIST .. 30 - 33
F. HP-85T3 HYDRAULIC SCHEMATIC AND PARTS LIST ................. 34 - 35
G. HP-85T3 HYDRAULIC HOSE BUNDLE AND PARTS LIST............... 36 - 37
H. ROTOTILT MANUAL

2 | INTRODUCTION
I. INTRODUCTION
This manual is exclusively for the MKT V-2Esc Hydraulic Vibratory Pile Driver/Extractor
System. The manual for the Rototilt mounting system that attaches the V-2Esc to the
excavator is included with this manual. It is your responsibility to read and understand
this manual, the Rototilt/Indexator manual, and the excavator manufacturer’s manuals
before operating this hydraulic construction tool. Make the following points part of your
regular workday.
- Know the limitations and operating characteristics of the Vibratory Pile Driver/
Extractor System.
- InspecttheV-2Escbeforeeachuseasspeciedinthismanualandyouremployer.
- NEVER use attachments that are not approved by the manufacturer.
- NEVER remove or modify any parts of the equipment.
- Know the location of other personnel and equipment and make sure they are at a
safe distance before operating.
- All visitors or other personnel in the immediate area of operating equipment must
wear all necessary personal protective equipment.
The MKT V-2Esc Hydraulic Vibratory Pile Driver/Extractor System is used for installing or
removingpiling.ThevemajorcomponentsofanMKTVibratoryPileDriver/Extractorinclude
rotating eccentric weights housed in a gear box that generate the vibratory forces to the pile,
an elastomer suspension system to isolate the vibratory forces from the excavator, a bottom
hydraulic clamp and side clamp system to grip the pile and Rototilt system to position the
hammer.
There are two rotating eccentric weights in the V-2Esc mounted in special heavy duty spherical
rollerbearings.Axeddisplacementgear-typehydraulicmotorisusedtodriveoneofthe
eccentricweights.Thesecondeccentricweightis,inturn,geardrivenandtimedofftherst
weight.
When operating within its load capabilities, the V-2Esc vibratory is designed to deliver a driving
force of about 25 tons to a pile at a rate of 1,700 vibrations per minute.

SAFETY INSTRUCTIONS | 3
II. SAFETY INSTRUCTIONS
FAILURE TO COMPLY WITH THE FOLLOWING SAFETY
INSTRUCTION AND LOCAL REGULATIONS WILL RESULT IN
PROPERTY DAMAGE, SEVERE INJURY OR DEATH.
The following safety instructions are contained in the text of this manual. Read the entire
manual before operating the hammer. Remember SAFETY IS UP TO YOU! Good safety
practices not only protect you but also protect the people around you.
The following signal words will be found in this manual and may also be found in other
manufacturer’s manuals. These words are intended to alert the operator to a hazard and the
degree of severity of the hazard.
indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
indicates a hazardous situation which, if not avoided, could result in
minor injury or moderate injury.
indicates a property damage message.
1. For each lift the operator must review the excavator lifting
capacity to determine that the weight of the hammer/ Rototilt assembly plus
the load being lifted is within the rated capacity of the excavator.
2. Check that all personnel are clear of the V-2Esc unit prior to
start up.
3. Keep hands clear of all three clamps at all times.
4. Always use pile handling/ safety line to attach the pile to the
hammer.
5. Leave the pile handling/ safety line attached to the pile at all
times if the pile is not stuck securely in the ground.

4 | SAFETY INSTRUCTIONS
6. The V-2Esc side clamp attachment is designed to handle
a single pile with a MAXIMUM weight of 2 tons. Appropriate pile handling
rigging should be supplied by the end user to handle the pile in a safe manner.

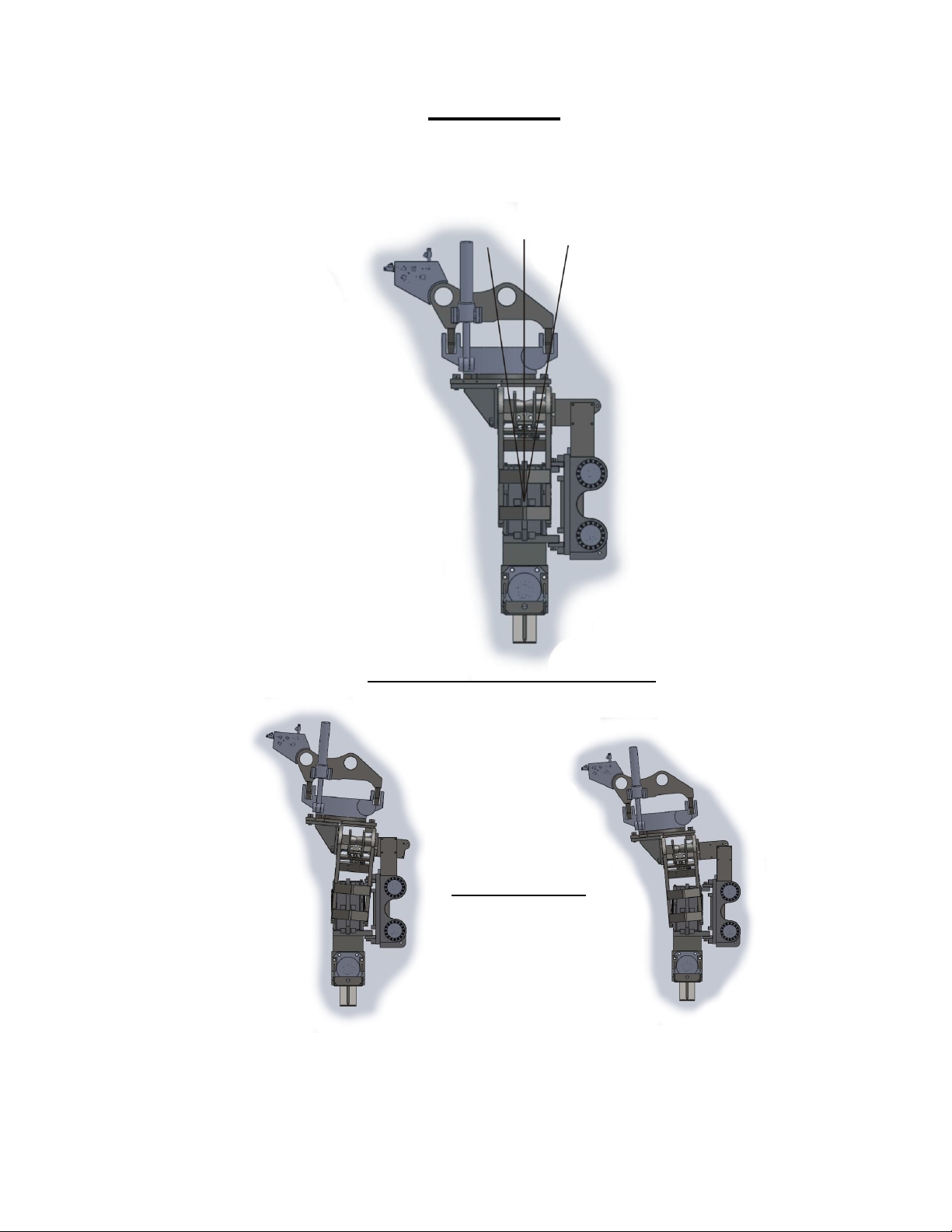

Attach safe handling cable(s) to lifting eye(s) on the hammer to allow for pile
placement in the jaws as shown in gure 1.
7. Before closing the jaws of the bottom clamp, assure that the
pile head is rmly against the clamp housing. Gripping the pile with merely
the lower end of the jaws will damage the jaws, the clamp slide and/ or other
clamp assembly components.
8. Stand a safe distance away from the pile and from below the
V-2Esc hammer during vibrating operations. Any unobserved or unconnected,
loose nut or other fastener may fall.
9. Do not unclamp the jaws from the pile while the hammer is
vibrating.
10. Do not pull in excess of the rating of the V-2Esc hammer’s
suspension assembly or excess stresses will be put on the suspension
assembly damaging one or more parts.
11. Whenever the V-2Esc hammer is observed “dancing or
chattering” in place, it should be hoisted until the action stops. Failure to
move a pile with the hammer “dancing or chattering” should be cause to
promptly abandon the effort before serious damage is done to the hammer.
To continue operations the obstruction must be removed or penetrated by
switching to another driving system such as a larger vibro or a MKT diesel or
air pile hammer.

SAFETY INSTRUCTIONS | 5
IMPORTANT SAFETY INFORMATION
Virtually all accidents that involve product operation, maintenance and repair are
caused by failure to keep fundamental safety rules or precautions. An accident
can often be avoided by identifying potentially unsafe situations before an accident
occurs. A person must be alert to potential hazards. This person should also have the
necessary training, skills and tools to perform these functions properly. Do not operate
or perform any lubrication, maintenance or repair on this equipment until you have read
and understand the applicable information in the Operation and Maintenance Manual.
MKT cannot anticipate every possible circumstance that might involve a potential
hazard. The warnings in the manuals and on the equipment are therefore not all
inclusive. If a tool, procedure, work method or operating technique not specically
recommended by MKT is used, you must satisfy yourself that it is safe for you and
others. You should also ensure that the equipment will not be damaged or made unsafe
by the operation, lubrication, maintenance or repair procedures you choose.
The information, specications, and illustrations in the manuals are based on
information available at the time it was written. The specications, torques, pressures,
measurements, adjustments, illustrations, and other items can change at any time.
These changes can affect the service given to the product. Obtain the complete and
most current information before starting any job. MKT and MKT distributors have the
most current information available.
GENERAL HAZARD INFORMATION
Use caution when removing ller caps, grease ttings, pressure taps, breathers or drain
plugs. Hold a rag over the cap or plug to prevent being sprayed or splashed by liquids
under pressure.
Wear a hard hat, protective glasses, hearing protection and other protective equipment
as required by job conditions.
Do not wear loose clothing or jewelry that can catch on controls or other parts of the
equipment.
Make certain all protective guards and covers are secured in place.
Use all cleaning solutions with care.
Never put maintenance uids into glass containers since glass containers can break.
Report all needed repairs.

6 | SAFETY INSTRUCTIONS
UNLESS INSTRUCTED DIFFERENTLY,
PERFORM ALL MAINTENANCE AS FOLLOWS
Stop the hammer or drill. Stop the engine.
Disconnect the battery whenever performing any maintenance or before servicing the
electrical system. If the engine has electric starters, disconnect and tape the battery
ground leads to prevent accidental starting.
Do not attempt any repairs or adjustments to the engine or hammer or drill while it is
running.
Do not attempt repairs you do not understand. Use proper tools; replace or repair
broken or damaged equipment.
Block or restrain the equipment, if applicable before operating or performing
maintenance.
Do not adjust, or set, hydraulic pressures higher or lower than those specied in the
manual.
PRESSURIZED AIR AND WATER
Pressurized air can cause personal injury. When using pressurized air for cleaning,
wear a protective face shield, protective clothing and protective shoes.
The maximum air pressure must be below 30 psi (205 kPa) and maximum water
pressure must be below 40 psi (275 kPa) for cleaning purposes.
FLUID PENETRATION
Wear eye protection at all times when cleaning the cooling system. Pressurized water
could cause debris and/or hot water to be blown and result in personal injury.
Always use a board or cardboard when checking for a leak. Escaping uid under
pressure, even a pin-hole size leak, can penetrate body tissue, causing serious injury or
possible death.
If uid is injected into your skin, it must be treated by a doctor familiar with this type of
injury immediately.

SAFETY INSTRUCTIONS | 7
HOSES, LINES, AND TUBES
Do not pull on, or attempt to move equipment, with hydraulic hoses. Move power unit
closer to work if hoses do not reach.
Do not operate this equipment with hydraulic hoses that are damaged or kinked.
Replace damaged hoses immediately.
Do not lift, or support, hydraulic hoses with wire rope slings.
Do not pull kinks in the hoses. Kinks will reduce the hose safety factor by 50 percent.
Do not bend or strike high pressure lines. Do not install bent or damaged lines, tubes
or hoses.
Repair any loose or damaged fuel and oil lines, tubes and hoses. Leaks can cause res.
Inspect all lines, tubes and hoses carefully. Do not use your bare hands to check for
leaks. Tighten all connections to the recommended torque.
Check for the following:
- End ttings damaged, leaking or displaced.
- Outer covering chafed or cut and wire reinforcing exposed.
- Outer covering ballooning locally.
- Evidence of kinking or crushing.
Make sure that all clamps, guards and heat shields are installed correctly to prevent
vibration, rubbing against other parts, and excessive heat during operation.
OILS
Hot oil and components can cause personal injury. Do not allow hot oil or components
to contact the skin.

8 | SAFETY INSTRUCTIONS
FIRE OR EXPLOSION PREVENTION
All fuels, most lubricants, hydraulic oil, and some coolant mixtures are ammable.
Diesel fuel is ammable. Gasoline is ammable. The mixture of diesel and gasoline
fumes are extremely explosive.
Do not weld or ame cut on pipes or tubes that contain ammable uids. Clean them
thoroughly with nonammable solvent before welding or ame cutting on them.
Clean and tighten all electrical connections. Check regularly for loose or frayed
electrical wires. Refer to maintenance schedules for interval. Have all loose or frayed
electrical wires tightened, repaired or replaced before operating the equipment.
Wiring must be kept in good condition, properly routed and rmly attached. Routinely
inspect wiring for wear or deterioration. Loose, unattached, or unnecessary wiring
must be eliminated. All wires and cables must be of the recommended gauge and
fused if necessary. Do not use smaller gauge wire or bypass fuses. Tight connections,
recommended wiring and cables properly cared for will help prevent arcing or sparking
which could cause a re.
FIRE EXTINGUISHER
Have a re extinguisher available and know how to use it. Inspect and have it serviced
as recommended on its instruction plate.
CRUSHING OR CUTTING PREVENTION
Support equipment and attachments properly when working beneath them.
Never attempt adjustments while the engine is running unless otherwise specied in
this manual.
Stay clear of all rotating and moving parts. Guards should be in place whenever
maintenance is not being performed.
Keep objects away from moving fan blades. They will throw or cut any object or tool
that falls or is pushed into them.
Wear protective glasses when striking objects to avoid injury to your eyes.
Chips or other debris can y off objects when struck. Make sure no one can be injured
by ying debris before striking any object.

SAFETY INSTRUCTIONS | 9
MOUNTING AND DISMOUNTING
Do not climb on, or jump off the equipment or stand on components which cannot
support your weight. Use an adequate ladder. Always use steps and handholds when
mounting and dismounting.
Clean steps, handholds and areas of the equipment you will be working on or around.
BEFORE STARTING HAMMER OR DRILL
Make sure that all lifting equipment, including cranes, wire rope, slings, hooks,
shackles, etc., are properly sized for the worst case loads anticipated during operations.
Check wire rope clips for tightness, and check wire ropes for wear daily.
If there are any questions about the weights, specications, or performance of the
hammer or drill, contact MKT before handling or operating the equipment.
Do not attempt to connect the quick-disconnect couplers when the power unit is
running.
Make sure that ground vibrations will not damage adjacent structures or excavations.
Make sure no one is working on or close to the equipment before starting.
HAMMER OR DRILL OPERATION
Only well trained and experienced personnel should attempt to operate or maintain this
equipment.
Do not stand any closer to this equipment than necessary when it is in operation.
Parts may loosen and fall. Piling may shatter or break.
Do not operate the hammer, crane boom, piles, leads, wire rope and other equipment
within 15’ (5m) of electrical power lines, transformers and other electrical equipment, or
within such distance as required by applicable safety codes.
Do not side-load crane boom or hammer. Dangerous crane boom or hammer damage
may result. Always be sure that the crane line is aligned with the centerline of the pile.

10 | SPECIFICATIONS
III. SPECIFICATIONS
SPECIFICATIONS FOR THE V-2Esc VIBRATORY
PILE DRIVER/EXTRACTOR SYSTEM
A. OPERATING DATA - V-2Esc DRIVER/EXTRACTOR
Free Hanging Frequency......................................... 1700 CPM
Rated Drive Pressure .............................................2500 PSI
Rated Flow...................................................... 30 GPM
Free Hanging Amplitude ..............................................75 IN.
Driving Force @ 1800 CPM.........................................25 TONS
Clamp Circuit Pressure ............................................2500 PSI
Clamping Force @ 2500 PSI........................................16 TONS
Maximum Pull Force (bottom clamp only) ..............................16 TONS
Maximum Crowd Force (bottom clamp only).............................8 TONS
Maximum Pull Force when attached to pile with side clamp .................8 TONS
Maximum Crowd Force when attached to pile with side clamp...............8 TONS
Standard Clamp Jaw Opening........................................2.12 IN.
Clamp Cylinder Travel ..............................................2.50 IN.
Net Weight with side clamp & Rototilt ................................5300 LBS.
Maximum Pile Weight ............................................4000 LBS.

EXCAVATOR REQUIREMENTS | 11
IV. EXCAVATOR REQUIREMENTS
A. The excavator size, stick width and pin dimensions must be compatible with the
Rototilt width, pin dimensions and size restrictions.
B. The excavator must be equipped with a uni-directional auxiliary circuit that can
supply40gpmtotheV-2Escat2,500psi.Theauxiliarycircuitowmusthavepriority
overtheboomandstickfunctions,orgreaterowandadditionalmodicationsmay
be required to maintain hammer speed when operating boom or stick functions.
C. Theauxiliaryhydrauliccircuitmustsupplyatleast40gpmandmustowoilinone
directiononly(uni-direction),itcannothavereverseow,ordamagetotheV-2Esc
hydraulic manifold may result. The circuit should be controlled by an electric on/off
switch, not a bi-directional foot pedal

12 | OPERATING INSTRUCTIONS
V. OPERATING INSTRUCTIONS
DRIVING MODE
A. OPERATING THE V-2Esc SYSTEM - DRIVING MODE
1. First, check that the lifting capacity of the excavator, at the working radius, exceeds
the combined weight of the V-2Esc assembly and the pile. Then, lift the pile using
an appropriately sized cable between the pad eye on the suspension assembly and
theliftingholeinthepile.(Refertogures1and2).Oncethepileishangingnearly
vertical,guideitintothehammerjawsorthreadthepileintoanalreadydrivenpile.
Positionthejawsonthepile(seegure2)andclosethejawsandstartthehammer.
The vibration, coupled with the down crowd force of the excavator drives the pile. Do
not exceed the down crowd force rating.
Always use the pile handling/ safety line to attach the pile to the
hammer.

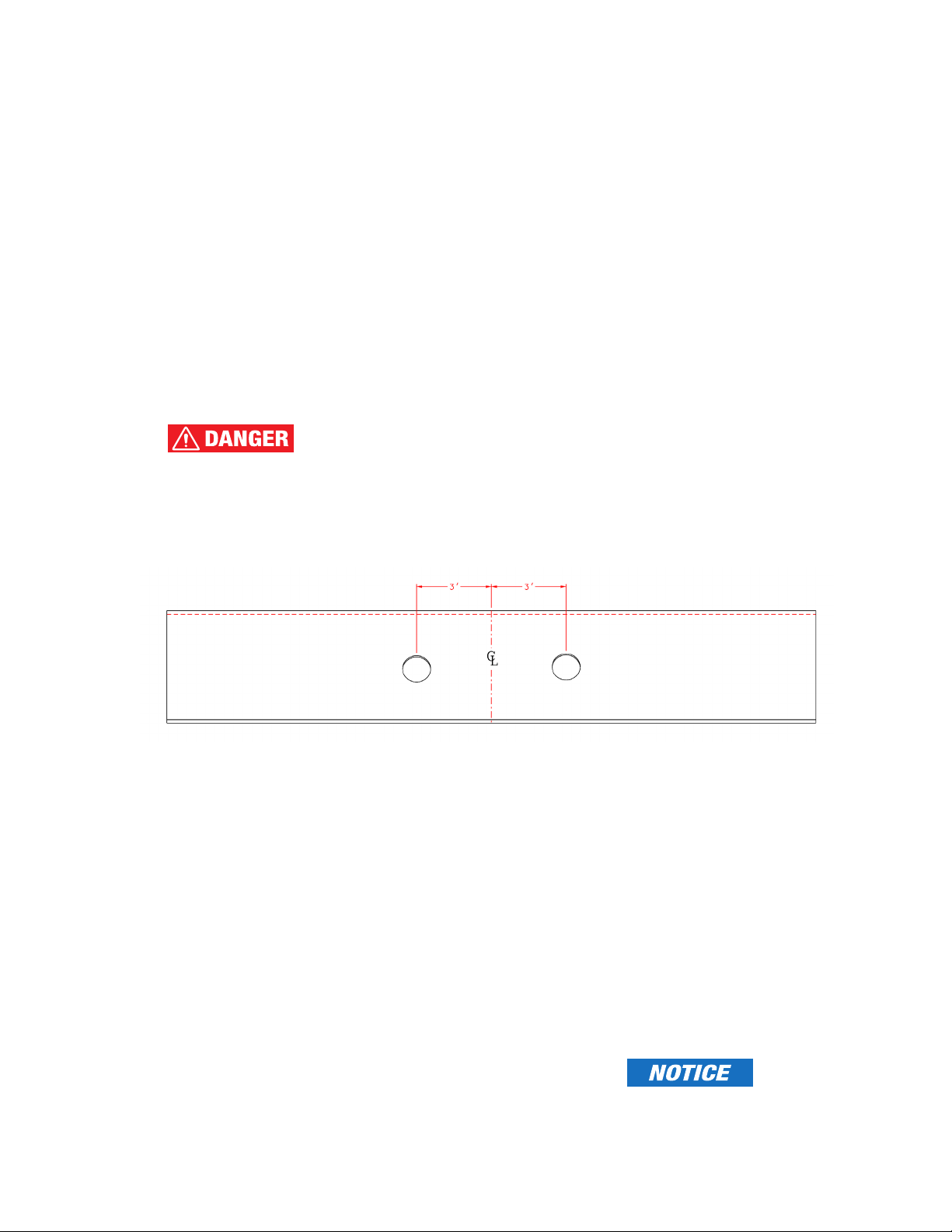

2. Cut pile handling holes 2ft. or more above center of the pile on either side of center
asrequiredtopositionpileinjawsasshowningure1.
Figure 1
3. The worksite needs to be level to maximize the speed of handling and driving the
pile.
4. As soon as headroom allows, move the pile to the bottom clamp to maximize driving
speed.
5. Thesideclampjawsareintendedtobeusedtostartanddrivethepileinsoftdriving
conditions. For best results and longer hammer life, the bottom clamp should be
used whenever possible. When using the side clamps, line pull should be limited to 4
tonsandcrowdforcelimitedto4tons.Ifthesideclampjawssliponthepilestopthe
hammer and move to the bottom clamp.
6. TheV-2Escwillvibratewiththejawsopenedorclosed. Do not start
hammer with jaws open.

OPERATING INSTRUCTIONS | 13
7. Always maintain proper vertical alignment between the
suspension and pile when driving or pulling the pile.
8. Occasionally the inability of the V-2Esc hammer to continue to move a pile will
be the result of the pile striking an impenetrable soil material or an obstruction.
The observable action of the V-2Esc hammer and clamped pile will be to note a
considerable fall-off of drive pressure and the exciter will “dance” in place often
causing erratic interaction of the V-2Esc exciter and its suspension assembly. If the
V-2Esc is mounted to an excavator or backhoe do not apply more crowd force than
the maximum recommended.
Whenever the V-2Esc hammer is observed “dancing or
chattering” in place, it should be hoisted until the action stops. Failure to
move a pile with the hammer “dancing or chattering” should be cause to
promptly abandon the effort before serious damage is done to the hammer.
To continue operations the obstruction must be removed or penetrated by
switching to another driving system such as a larger vibro or a MKT diesel or
air pile hammer.
For each lift, the operator must review the excavator lifting
capacity to determine that the weight of the V-2Esc/Rototilt assembly plus the
load being lifted is within the rated capacity of the excavator.
Keep hands clear of all three clamps at all times.
Leave the pile line attached to the pile at all times that the pile is
not stuck securely in the ground.
The V-2Esc side clamp attachment is designed to handle a single
pile with a MAXIMUM weight of 2 TONS. Appropriate pile lifting rigging should be
supplied by the end user to handle the pile in a safe manner. Attach cable(s) to
lifting eye(s) on the hammer to allow safe handling of the pile and placing it in the
jaws as shown in gure 2.
Figure 2

14 | OPERATING INSTRUCTIONS
EXCAVATOR MOUNT
B. OPERATING THE V-2Esc SYSTEM - EXTRACTING MODE
1. Forpileextractingoperations,theV-2Eschammershouldbettedwithashackle
and an auxiliary line attached to the pad eye on the suspension assembly. The
V-2Esc hammer is clamped to a steel sheet pile to be pulled and the auxiliary line is
fastened into a lifting hole in the pile. The V-2Esc hammer is operated to extract the
pile until the pile can be easily lifted out of place exclusively by the extraction force
of the excavator. The V-2Esc hammer is then stopped by pushing the vibrate lever
to neutral. The pile is pulled out of the ground and the hammer and pile are swung
to where the pile will be stacked. The lower end of the pile is set on the ground
andtheV-2Eschammerjawsareopenedallowingthepiletohangbythelineand
shackle. The V-2Esc hammer and pile are then lowered to the ground where the line
is disconnected from the pile.
2. Thesideclampjawsareintendedtobeusedtopullthepileinsoftextracting
conditions. For best results and longer hammer life, the bottom clamp should be
used whenever possible. When using the side clamps line pull should be limited to 4
tonsandcrowdforcelimitedto4tons.Ifthesideclampjawssliponthepilestopthe
hammer and move to the bottom clamp.
Do not unclamp the jaws from the pile while the hammer is
vibrating.
3. The amount of pull which can be exerted on the V-2Esc hammer is limited by the
rating of the suspension assembly and the strength of the pile.
Do not pull in excess of the rating of the V-2Esc hammer
suspension assembly or excess stresses will be put on the suspension
assembly damaging one or more parts.
4. Always maintain proper vertical alignment between the
suspension and the pile when driving and pulling the pile.

OPERATING INSTRUCTIONS | 15
WARNING!
The hammer and suspension must be kept in alignment with each other, and with the pile,
when driving or extracting. Failing to do so will result in damage to the jaws and clamp
cylinders.
4” 2” 2” 4”
NO OK OK NO
Hammer, suspension and pile inline
Out of alignment
If the jaws slip on the pile STOP DRIVING AND IDENTIFY THE PROBLEM.

16 | MAINTENANCE AND SERVICE INSTRUCTIONS
VI MAINTENANCE AND SERVICE INSTRUCTIONS
A. The V-2Esc hammer should be inspected regularly to help keep it in good operating
condition.Thetimeintervalbetweennecessaryadjustmentsandrepairsdepends
primarily on how much and how hard the machine has been used. Repair or replace
broken or damaged parts as soon as they are discovered. Periodic cleaning and
repainting will help keep all parts in better working order and prolong the machine’s life.
B. Inspect the V-2Esc hammer daily for loose fasteners.
Stand a safe distance away from the pile and from below the
V-2Esc hammer during vibrating operations. Any unobserved or unconnected,
loose nut or other fastener may fall.
C. Assure that the proper lube oil level is maintained in the V-2Esc exciter case. If the level
of oil is above the sight gauge or the lube oil volume is increasing, this will indicate that
thehydraulicmotorisleakinghydraulicuidthroughthemotordriveshaftseal.Theseal
leakage must be corrected immediately.
D. Daily Maintenance Check Lists - Check the entire unit prior to and during start-up each
shift.
a) Visually check all hoses for signs of damage or cuts that might cause hose failure
during operation. Be sure all connections are tight, especially the quick disconnects.
b) Look for any damage to the unit, in general that might cause it to fail when put into
operation.
c) Check the V-2Esc exciter case lube oil level.
d) ChecktheV-2Escclampingjawsforexcessivewear,cracksorloosefasteners.If
itisnecessary,theremovalofthemovablejawisdonebypushingoutthe3/4”roll
pineitherupordown.Thesingleverticalrollpincaptivatesthemovablejaw.The
xedjawisheldtightagainstthehousingwithtwoone-inchbolts.Also,operatingthe
V-2EsconpilingwithouttheJawShieldscouldresultinjawdamageifthehammeris
dropped onto the pile.

MAINTENANCE AND SERVICE INSTRUCTIONS | 17
E. After start up and the V-2Esc is vibrating, check as follows:
a) Visually, from a safe distance, inspect the hydraulic lines for leaks.
b) Beforeattachingtopile,openandcloseclampjawstoverifyfastandpositiveaction.
c) Be sure that there are no kinks in the lines and that they hang uniformly.
d) Always maintain a close check on the lifting cable to assure no fraying has occurred.
e) Check for overheated bearing housings.
F. Clamp Pressure - 2,500 PSI
G. Hydraulic Oil Temperature - 115 degrees Fahrenheit to 165 degrees Fahrenheit

18 | SERVICE TROUBLE SHOOTING
VII. SERVICE TROUBLE SHOOTING
1. Hydraulic Fluid Overheating
Running the V-2Esc overloaded for long periods of time (drive pressure at 2500 PSI)
dumps oil over the relief valve generating heat. Simply keep the V-2Esc operating but
relax the load below the 2500 PSI level and the temperature should drop.
2. Clamp Will Not Open or Close
Clamp line quick disconnects may not be engaged completely or their check valves
may be locked closed. There also may be too much air in the line to overcome clamp
cylinder friction.
3. Increase in Lube Oil Level
This is a sure sign that the hydraulic motor has a shaft seal failure. If submerged under
water, water may have seeped into the exciter case.
4. Exciter Overheating in Specic Local Areas
Checking the temperature of the bearing side covers will give an indication of an
overheating bearing. This bearing should be checked for excessive binding or wear.
Make sure the oil level is correct. It is not unusual for the temperature of the exciter
housing to go up to 200 degrees Fahrenheit if the V-2Esc is run at full frequency over an
extended period of time. Check the lower magnetic plug for metal which might indicate
excessive wear of gears or bearings.
5. Internal Noise in Exciter
Unusual noise in exciter generally means something is wrong - either a bearing gear, or
a hydraulic motor problem. Lube oil level should be checked.
6. V-2Esc Frequency Fluctuation
Frequencyisafunctionofpumpowandmotorspeed.Ifthepumpowisnotevenor
a hydraulic motor is failing, it is possible the frequency will not be constant especially as
the load goes a little higher (before going over relief). Check for exciter hotspots which
may indicate a bearing is failing.
7. Erratic Suspension Movement
Unusual soil conditions or underground boulders may cause a rebound and effect the
suspension isolation. If the V-2Esc when started comes up to speed too slowly, it is
possible the suspension will bounce out of sync with the frequency.
8. Slow Clamp Movement
Generally, slow clamping is caused by air in the hydraulic hoses. Bleed both directions
of the clamp cylinder.
9. Jaws Slipping on Pile
Ifjawsareworntoomuchtheremaybealackofclampingjawtravel.Theclampjaw
travel is two and one eighth inches. Check clamping pressure. Air may be in the clamp
line requiring cylinder bleeding.
