MMD Equipment IGR2000P User manual

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 4 Page 5
Failure to properly follow these precautions
can result in property damage, serious injury or
DEATH !
Read all labels and the owner's manual before
operating this generator.
Generators produce carbon monoxide, a
poisonous, colorless, odorless gas that can cause
death or serious injury.
Indoor use of a generator CAN KILL QUICKLY.
Generators should be used outdoors only.
Generators should be used outdoors only and
away from garages and open windows and
protected from rain and snow.
Check for spilled fuel or leaks. Clean and/or repair
before use.
Always stop engine before refueling. Wait 5
minutes before restarting.
Keep any source of ignition away from fuel tank at
all times.
The portable generator is not meant to be used as
a permanent back-up power system for the home.
Indicates a strong possibility of severe personal
injury or death if instructions are not followed.
Indicates a possibility of personal injury or
equipment damage if instructions are not followed.
Provides helpful information.
1. Safety Instructions
This generator is designed to provide safe and
dependable service if operated according to
instructions.
n Read and understand the Owner’s Manual before
operating the generator. Failure to do so could result in
personal injury or equipment damage.
Exhaust gas contains poisonous carbon monoxide.
Never run the generator in an enclosed area.
n Be sure to provide adequate ventilation.
Gasoline is extremely flammable and explosive under
certain conditions.
n Always refuel in a well ventilated area with the engine
stopped.
n Keep away from smoking materials, sparks, and other
sources of combustion when refueling the generator.
n Clean up spilled gasoline immediately.
n Restrict operation of generator in high-risk re causing
areas.
Do not touch muffler while it is hot.
n The mufer becomes very hot during operation and remains
hot for several minutes after stopping the engine.
Let the engine cool before storing the generator
indoors.
n The engine exhaust system will be heated during operation
and remain hot immediately after stopping the engine.
n Pay attention to the warning marks attached to the
generator to prevent burns or serious injury.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 6 Page 7
n Always perform a pre-operation inspection before
starting the engine to prevent equipment damage or
accident.
n Place the generator at least three feet (one meter) away
from buildings, or other equipment during operation.
n Operate the generator on a level surface to prevent fuel
spillage and/or oil starvation.
n Know how to stop the generator quickly and understand
operation of all controls. Never permit anyone to operate
the generator without proper instructions.
n Keep children and pets away from the generator while in
operation.
n Keep away from rotating parts while the generator is
running.
n The generator is a potential source of electrical shock
when misused; do not operate with wet hands.
n Do not operate the generator in rain, snow, or anywhere
it is exposed to moisture.
n Never operate the generator with the door open or any
panels removed. Do not operate in any enclosure such
as an RV compartment.
2. Safety Label Locations
CHOKE LEVER
OIL LOCATION
ENGINE SWITCH
HOT
CAUTION
SAFETY CAUTION
MODEL
These labels warn you of potential hazards that can cause serious injury. Read the
labels and safety notes and precautions described in manual carefully.
If a label comes off or becomes hard to read, contact your sales representative for a
replacement.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 8 Page 9
3. Component Identification
Control Panel — IGR1000P
FUEL CAP VENT LEVER
(Non CARB)
FUEL FILLER
CAP
TYPICAL
CONTROL
PANEL
CHOKE
LEVER
MAINTENANCE
COVER
STARTER GRIP
ENGINE SWITCH
SPARK PLUG
MAINTENANCE
COVER
AIR INTAKE
MUFFLER
AIR EXHAUST
OUTPUT
INDICATOR
LIGHT
OVERLOAD
INDICATOR
LIGHT
LOW OIL
ALARM
INDICATOR
LIGHT
GROUND
TERMINAL
OVERLOAD
RESTART
SMART THROTTLE
SWITCH
OVERLOAD
PROTECTOR
HOUR
METER
PARALLEL
OUTPUT
AC RECEPTACLE

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 10 Page 11
Control Panel — IGR2000P Control Panel — IGR2600HP
OUTPUT INDICATOR LIGHT OUTPUT INDICATOR LIGHT
OVERLOAD INDICATOR LIGHT OVERLOAD INDICATOR LIGHT
LOW OIL ALARM
INDICATOR LIGHT
LOW OIL ALARM
INDICATOR LIGHT
GROUND TERMINAL GROUND TERMINAL
OVERLOAD RESTART
OVERLOAD RESTART
SMART
THROTTLE
SWITCH
SMART THROTTLE SWITCH
OVERLOAD
PROTECTOR OVERLOAD
PROTECTOR
HOUR
METER
HOUR METER
PARALLEL
OUTPUT
PARALLEL OUTPUT
AC RECEPTACLE AC RECEPTACLE

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 12 Page 13
Serial Number Identification and Location
The generator serial number identies your
particular unit and is important when ordering
parts and accessories. There is a sticker located
on the top of the unit that displays the serial
number. It is also stamped on the engine block
visible when the service door is removed.
IGR1000P — located to the right of the
engine oil cap.
IGR2000P — located above and to the
right of the engine oil cap.
IGR2600HP — located to the left of the
engine oil cap.
4. Pre-Operation Check
Be sure to check the generator on a level surface with the engine stopped.
Running the engine with insufficient oil can cause serious engine damage.
1. Check the engine oil level.
a. Loosen the cover screw and remove the left side maintenance cover.
b. Remove the oil ller cap, and wipe the oil level indicator with a clean rag.
c. Tighten oil cap and remove again, and check oil level.
d. If the oil level is below the end of the indicator, rell the recommended oil up to
the top of the oil ller neck.
The Low Oil Alarm System will automatically stop the engine before the oil level
falls below the safe limit. However, to avoid the an unexpected shutdown, it is
recommended to inspect the oil level and rell regularly.
UPPER LEVEL
UPPER
LEVEL
UPPER
LEVEL
OIL LEVEL
INDICATOR
OIL FILLER
HOLE
OIL
CAP
MODEL NUMBER
SERIAL NUMBER

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 14 Page 15
2. Check the fuel level.
a. Use automotive unleaded 87-octane gasoline only. Do not use premium or high
octane fuels. Engine is designed to run on regular gasoline. Engine damage and/
or poor performance may result. If the fuel level is low, rell the fuel tank until the
level reaches the specied mark.
b. After refueling, tighten the fuel ller cap
securely.
c. Never use an oil/gasoline mixture or dirty
gasoline. Avoid getting dirt, dust or water in
the fuel tank.
d. A fuel preservative and stabilizer should be added to any container of stored fuel.
Using non detergent oil or 2 cycle engine oil could
shorten the engine’s service life.
n Use a high-detergent,
premium quality 4-stroke
engine oil, certied to
meet or exceed U.S.
automobile manufacturer's
requirements for API
Service Classication SG/
SF.
n Select the appropriate
viscosity for the average
temperature in your area.
SAE Viscosity Grades
Ambient Temperature
RUN
FUEL
FILTER CAP
UPPER LIMIT MARK
Model Fuel Capacity gl. (L)
IGR1000P 0.7 (2.6)
IGR2000P 1.0 (3.78)
IGR2600HP 1.32 (4.9)
n Gasoline is extremely ammable and is explosive under certain conditions.
n Refuel in a well-ventilated area with the engine stopped. Keep all possible
ignition materials, sparks, and any other source of combustion away from the
generator during refueling.
n Do not overll the fuel tank (there should be no fuel above the upper limit mark).
After refueling, make sure the tank cap is closed properly and securely.
n Be careful not to spill fuel when refueling. Make sure the area is dry before
starting the engine. Spilled fuel or fuel vapor may ignite.
n Avoid repeated or prolonged contact with skin or breathing of vapor. KEEP OUT
OF REACH OF CHILDREN.
Gasoline containing alternate fuels
If you decide to use a gasoline containing ethanol, be sure its octane rating is
no lower than the specication. Do not use a blend that contains more than 10%
ethanol. Do not use gasoline containing methanol.
n Fuel system damage or engine performance problems resulting from the use of
fuels that contain an improper alcohol blend are not covered under warranty.
n Before buying fuel from an unfamiliar station, determine if the fuel contains
ethanol and if it does, conrm the type and percentage of ethanol used.
n Replace fuel with proper blend if you experience any undesirable operating
symptoms while using a gasoline that contains ethanol, or one that you think
contains ethanol.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 16 Page 17
2. Check the air cleaner.
a. Check the air cleaner element to be sure it is clean and in good condition.
b. Loosen the cover screw and remove the left side maintenance cover.
c. Press the latch tab on the top of the air cleaner body, remove the air cleaner
cover, and check the air cleaner condition.
d. Clean or replace if necessary.
n Never run the engine without the air cleaner. Rapid engine wear will result from
contaminants, such as dust and dirt, being drawn through the carburetor, into
the engine.
n When starting the generator after adding fuel for the rst time, after long term
storage, or after running out of fuel, turn the fuel valve lever to the “ON” position,
then wait for 10 to 20 seconds before starting the engine.
MAINTENANCE COVER
MAINTENANCE
COVER SCREW
AIR CLEANER BODY
AIR CLEANER
COVER
AIR CLEANER
COVER SCREW
AIR CLEANER ELEMENTS
CARBON CANISTER
5. Starting The Engine
Disconnect any load from the AC receptacle before starting the engine
1. Turn the engine switch to the ON position.
ENGINE SWITCH
START
START
CHOKE LEVER
2. Move the choke lever to the START position.
NOTE: Do not use the choke when the engine is warm or the ambient air
temperature is high.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 18 Page 19
STARTER GRIP
4. Move the choke lever to the RUN position after the engine warms up.
CHOKE LEVER
RUN
RUN
n If the engine stops and will not restart, check the engine oil level before further
troubleshooting.
STOPPING THE ENGINE
1. Switch off the connected equipment and disconnect from the generator.
2. Turn off the engine switch.
EMERGENCY STOP
Turn the start switch to the OFF position.
Continually stopping the generator with a load applied can lead to damage of the
control module.

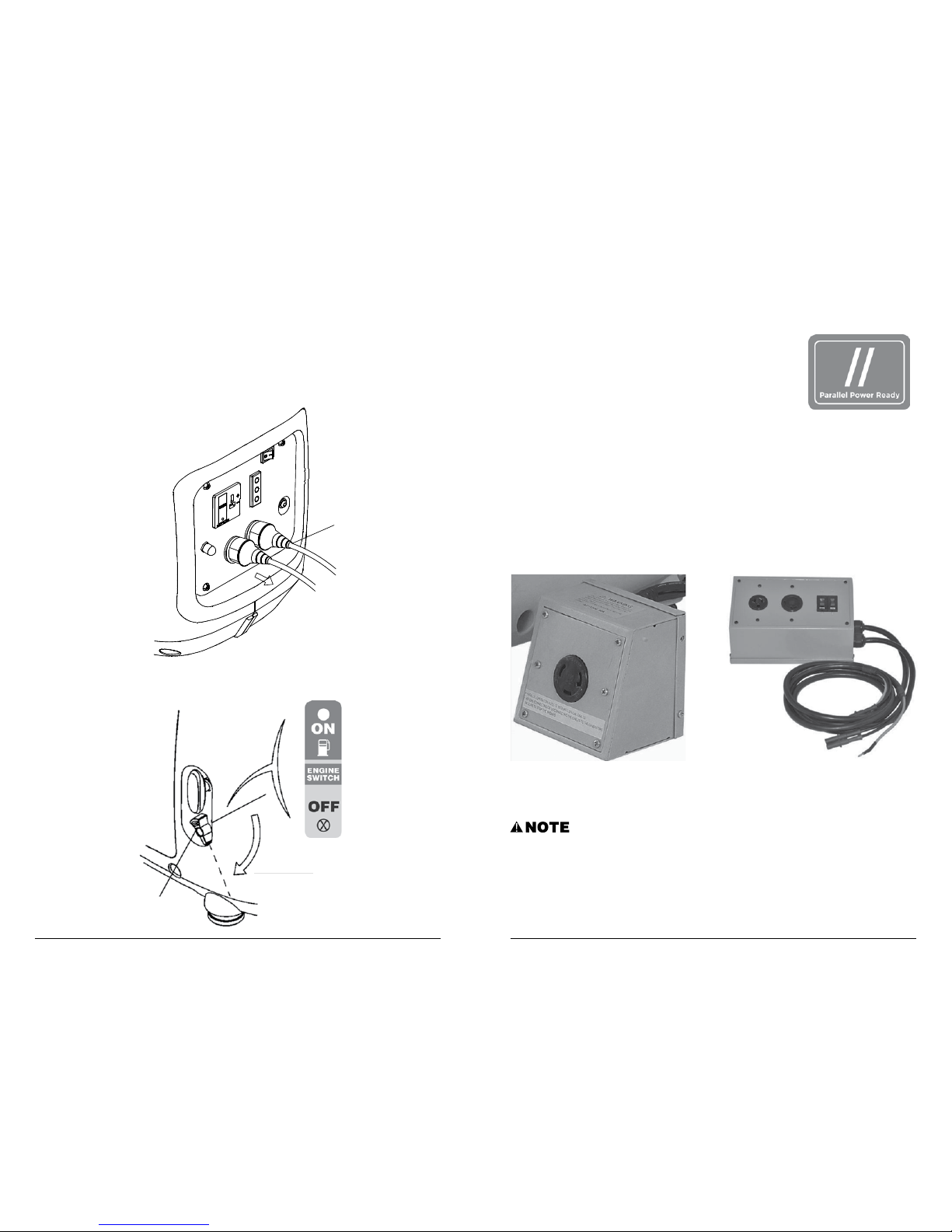

GROUND TERMINAL
GROUND
MARK
6. Generator Use
Be sure to ground the generator when loads are connected.
n To prevent electrical shock from faulty appliances, the generator should be
grounded. Connect a length of heavy cable between the generator's ground
terminal and an external ground source.
n Connections for standby power to a building's electrical system must be made
by a qualied electrician and must comply with all applicable laws and electrical
codes. Improper connections can allow electrical current from the generator to
back feed into the utility lines. Such back feed may electrocute utility company
workers or others who contact the lines during a power outage. When utility
power is restored the generator may explode, burn, or cause res in the
building's electrical system.
n Do not connect the generator to an automatic transfer device. Severe damage to
the inverter module may result.
3. Pull the starter grip until resistance is felt then pull the starter grip briskly
toward the arrow as shown below.
n Do not allow the starter grip to
snap back. Return it slowly by hand.
n Do not let the starter rope rub
against the generator body or the
rope will wear out prematurely.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 20 Page 21
n The total wattage of all appliances connected must be considered.
n Do not exceed the current limit specied for any one receptacle.
n Do not connect the generator to a household circuit. This could cause the
damage to the generator or to electrical appliances in the house.
n Do not modify or use the generator for other purpose than it is intended for.
n Do not connect an extension to exhaust pipe.
n When an extension cable is required, be sure to use a rubber sheathed exible
cable (IEC 245 or equivalent).
n Limit length of extension cables to 195 feet (60 meters) for cables of 1.5mm² and
325 feet (100 meters) for cables of 2.5mm². Long extension cables will reduce
useable power due to resistance in the extension cable.
n Keep the generator away from other electric cables or wires such as commercial
power supply lines.
n The DC receptacle can be used while the AC power is in use. If both are being
used at the same time, be sure not to exceed the total power for AC and DC.
n Most appliance motors require more than their rated wattage for start-up.
AC application
1. Start the engine and make sure only the output indicator light (green) comes on.
2. Conrm that the appliance to be used is switched off, and plug in the appliance.
OUTPUT INDICATOR LIGHT
PLUG
OVERLOAD
INDICATOR
LIGHT
OUTPUT
INDICATOR LIGHT
(GREEN)
OVERLOAD
INDICATOR LIGHT
(RED)
n Substantial overloading that continuously lights the overload indicator light (red)
may damage the generator. Marginal overloading that temporarily lights the
overload indicator light (red) may shorten the service life of the generator.
n Be sure that all appliances are in good working order before connecting them to
the generator. If an appliance begins to operate abnormally, becomes sluggish,
or stops suddenly, turn off the generator engine switch immediately. Disconnect
the appliance and examine it for signs of malfunction.
Output and Overload Indicators
The output indicator light (green) will remain on during normal operating conditions.
If the generator is overloaded or if there is a short in the connected appliance,
the output indicator light (green) will go out, the overload indicator light (red) will
illuminate and current to the connected appliance will be shut off.
Stop the engine if the overload indicator light (red) comes on and investigate the
overload source
n Before connecting an appliance to the generator, check that it is in good order
and that its electrical rating does not exceed that of the generator. Connect the
power cord of the appliance and start the engine. See page 22 for restoring
electrical power.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 22 Page 23
n When an electric motor is started, both the overload indicator light (red) and the
output indicator light (green) may go on simultaneously. This is normal if the
overload indicator light (red) goes off after about four (4) seconds. If the overload
indicator light (red) stays on, consult your generator sales representative.
Overload Reset Switch
Should the generator overload, AC power will be cut off but the engine will stay
running. Correct the overload condition and then press the overload reset switch on
the front panel. AC power will be restored immediately.
DC Operation
The DC receptacle may be used for charging 12 volt automotive style batteries only,
the no load voltage is 15V-30V.
n In DC operation, turn the Smart-throttle switch to the OFF position.
OUTPUT
INDICATOR LIGHT
(GREEN)
OVERLOAD
INDICATOR LIGHT
(RED)
OVERLOAD
RESET SWITCH
APPLIANCE
LOAD
CHARGING CABLE
1. Connect the charging cables to the DC receptacle of the generator and then to
the battery terminals.
n Batteries give off explosive gases; keep spark, ames, cigarettes, and other
sources of ignition away.
n Provide adequate ventilation when charging.
n Batteries contains sulfuric acid (electrolyte). Contact with skin or eyes may cause
severe burns. Wear protective clothing and a face shield.
n Do not start an automobile engine with the generator still connected to the
battery. The generator can be damaged.
n Connect the positive battery terminal to the positive charging cord. Do not
reverse the charging cables, or serious damage to the generator and/or battery
may occur.
n To prevent the possibility of creating a spark near the battery, connect the
charging cable rst to the generator then to the battery. After charging,
disconnect the cable rst at the battery.
n Before connecting charging cables to a battery that is installed in a vehicle,
disconnect the vehicle’s ground battery cable. Reconnect the vehicle's ground
battery cable after the charging cables are removed. This procedure will prevent
the possibility of a short circuit and sparks if accidental contact is made between
a battery terminal and the vehicle's frame or body.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 24 Page 25
n If contact is made with skin, ush with water immediately.
n If contact is made in eyes, ush with water immediately for at least 15 minutes
and contact a physician.
n Battery contents are poisonous — If swallowed, drink large quantities of water or
milk and follow with milk of magnesia or vegetable oil and call a physician.
n KEEP OUT OF REACH OF CHILDREN.
2. Start the engine
n The DC receptacle may be used while the AC power is in use.
n The DC receptacle is protected from an overload with a fuse. If the DC circuit is
overloaded, the 5 amp fuse will blow and power to the DC receptacle will cease.
The red light on the DC panel will illuminate. The fuse is located to the left of the
receptacle and is accessed by snapping open the access door. Replace the fuse
with one of the same capacity. Using a higher rated fuse may cause damage to
the generator alternator.
FUSE
DC RECEPTACLE
LOW OIL ALARM
INDICATOR LIGHT
(RED)
Air Conditioning Operation
n When running in parallel (see Section 8) the combination of an IGR1000P and
either an IGR2000P or IGR2600HP model can start and run most 13,500 BTU
air conditioners. An IGR2000P and an IGR2600HP or two IGR2600HP models
will start and run most 15,000 BTU units.
n For best results, the SMART throttle switches should be in the off position.
n Bring the generators to normal operating temperatures before applying the air
conditioning load. Always allow a 2 minute wait period when manually cycling an
air conditioner off and on.
n A longer wait period may be required under unusually hot weather conditions.
n Additionally, all other loads should be turned off until the air conditioner has
started and is performing normally. It is also important to follow the air conditioner
manufacturer's instructions for starting and restarting for proper operation.
n Some air conditioner manufacturers offer a start capacitor or rapid start kit. The
lack of a start capacitor can cause the air conditioner to draw too high a starting
current and overload the generators. Contact your air conditioner manufacturer if
you consistently have problems starting your air conditioner with the generators
in parallel.
Low oil alarm system
The low oil alarm system is designed to prevent engine damage caused by an
insufcient amount of oil in the crankcase. Before the oil level in the crankcase falls
below a safe limit, the low oil alarm system will automatically shut down the engine
(the engine switch will still remain in the ON position).
If the low oil alarm system shuts down the engine, the low oil alarm indicator light
(red) will come on when you operate the starter and the engine will not run. If this
occurs, search for any oil leaks, and add oil to engine to resume normal operation.

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 26 Page 27

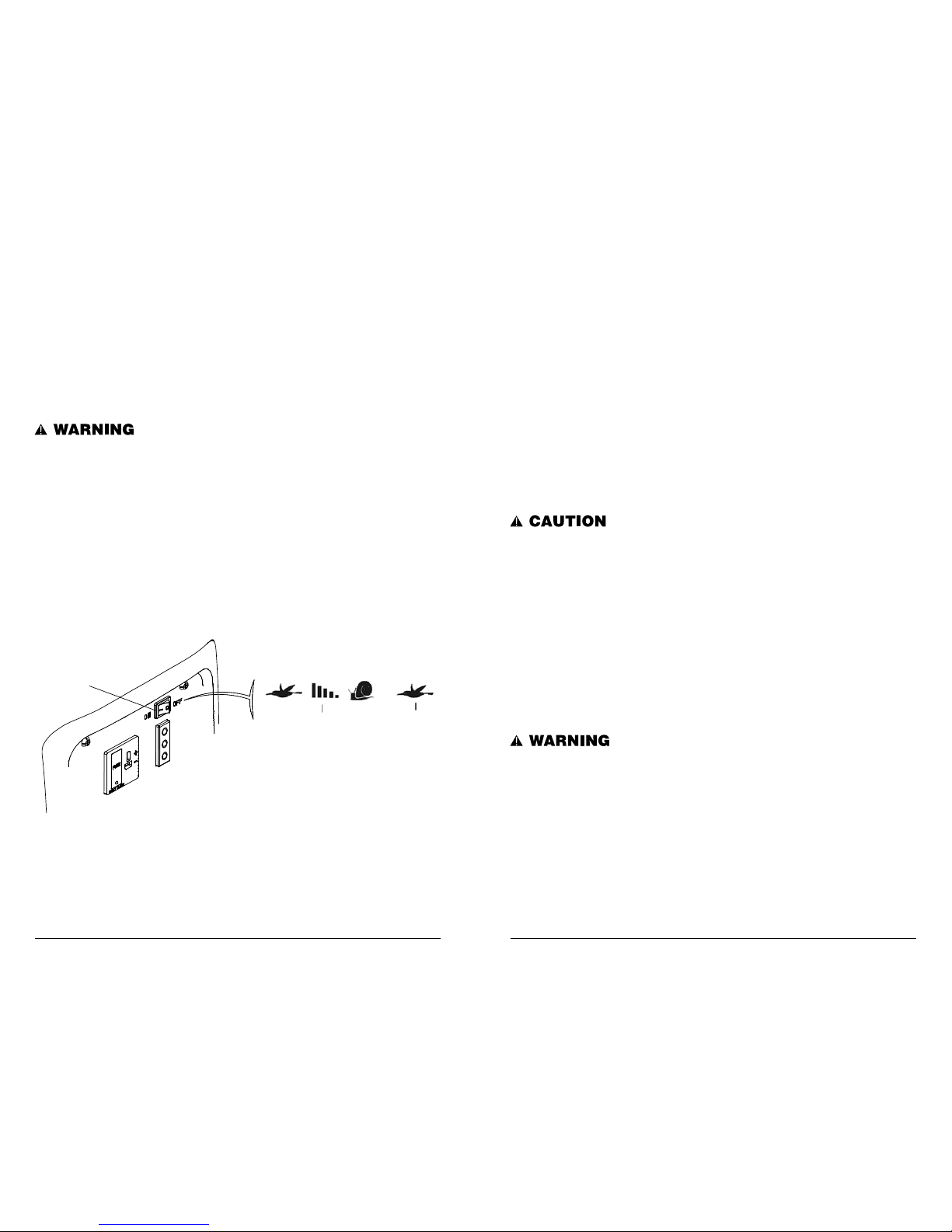

Smart-Throttle System
When the Smart-throttle switch is placed in the ON position, engine speed is kept at
idle automatically when the electrical load is disconnected. It returns to the proper
speed to match the power of the electrical load when the load is reconnected. This
position is recommended to minimize fuel consumption while in operation.
n The Smart-throttle system does not operate efciently if the electrical appliance
will be used in a rapid on-off or low-to-high rpm mode.
n When high electrical loads are connected simultaneously, turn the Smart-throttle
switch to the OFF position to reduce voltage uctuation or shutdown.
n In DC operation, turn the Smart throttle switch to the OFF position. When the
Smart-throttle is in the off position, the engine runs at rated load RPM.
SMART-
THROTTLE
SWITCH
ON
OFF
High altitude operation
At high altitude, the standard carburetor air-fuel mixture will be excessively rich.
Performance will decrease, and fuel consumption will increase.
High altitude performance can be improved by installing a smaller diameter main
fuel jet in the carburetor. If you always operate the generator at altitudes higher than
5000 feet (1500 meters) above sea level, have your authorized sales representative
install a high altitude main jet.
Even with suitable carburetor jetting, engine horsepower will decrease approximately
3.5% for each 1000 feet or 305 meter increase in altitude. The effect of altitude on
the horsepower will be greater than this if no carburetor modication is made.
n Operation of the generator at an altitude lower than the carburetor is jetted for
may result in reduced performance, overheating, and serious engine damage
caused by an excessively lean air/fuel mixture. Be sure to have any modication
reversed at lower altitudes.
Temperature
High temperature adversely affects generator operation. Generator performance will
decrease 1% for each 10°F (5.5°C) increase in temperature above 85°F (29°C).
The normal operating range of this generator is -20° to 113° F (-29° to 45°C)
n Do not operate the generator when the ambient temperature is below -20°F
(-29°C).
n Do not operate the generator when the ambient temperature exceeds 113°F
(45°C).

MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015) MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)Page 28 Page 29
7. Stopping The Engine
2. Turn the engine switch to the OFF position.
To stop the engine in an emergency, turn the engine switch to the OFF position.
IN NORMAL USE:
1. Switch off the connected equipment and pull the inserted plug out.
PLUG FROM
APPLIANCE
ENGINE SWITCH
OFF
8. Parallel Generator Operation
Parallel operation features:
Two MMD PowerPro parallel power ready generators can be
connected together to increase the total output power. The
system seamlessly matches frequency and automatically
evenly distributes the load to each generator so one is not
overloaded.
Any combination of two MMD PowerPro parallel power ready generators can be
connected (IGR1000P, IGR2000P, and IGR2600HP). Look for the “Parallel Power
Ready” decal.
There are two different parallel connection kits. One kit has a 30A receptacle ideal
for connecting two IGR2000P models or an IGR2000P and an IGR1000P. The other
kit has a larger capacity with one 30A and one 20A receptacle. This is designed
for connecting one IGR2000P and one IGR2600HP or two IGR2600HP models.
Contact your sales representative for the proper kit for your particular application.
Parallel operation procedure:
n Turn off both generators and disconnect all the electrical devices from the
generators
1. Place two parallel power ready generators on a hard and level surface.
2. Connect the parallel kit to each generator by inserting one pair of leads from the
parallel box to the parallel receptacles on the panel.
