Mobile MB-TVB3255 Assembly instructions

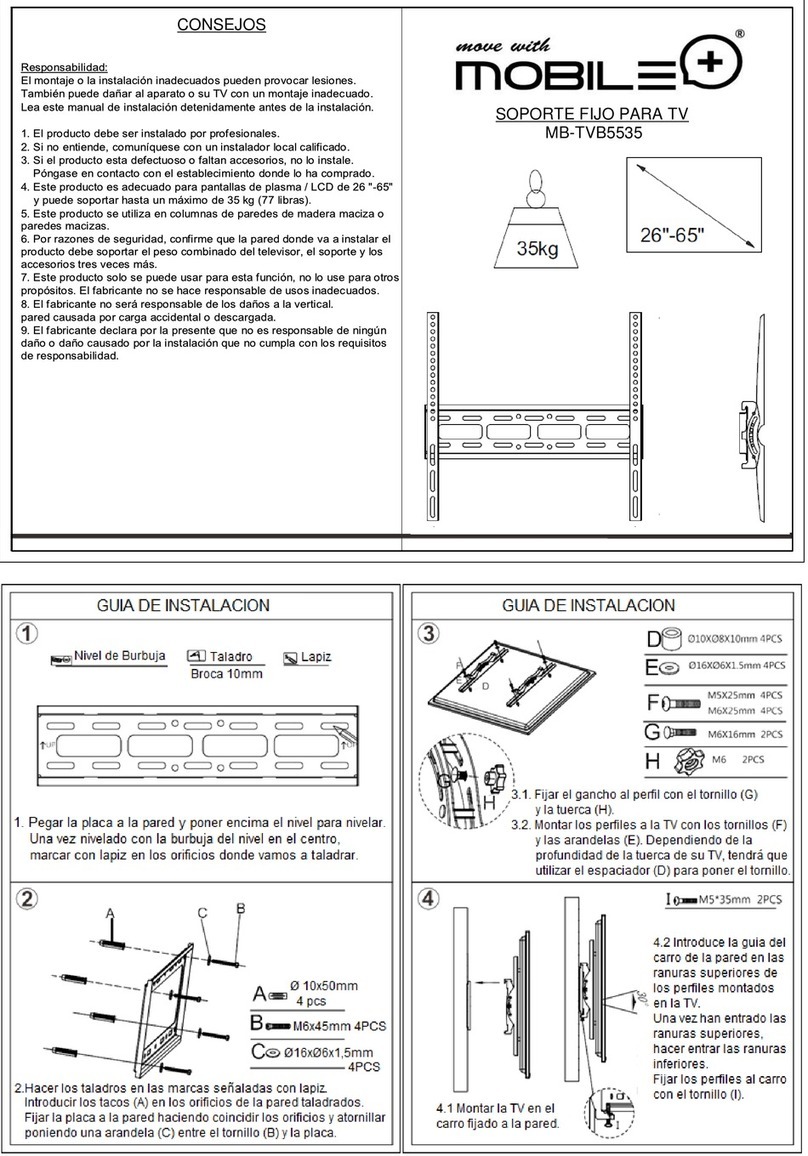

35kg
INSTRUCTIONS
CONSEJOS
26"-65"
MB-TVB5535
SOPORTE PARA TV
MB-TVB3255

TIPS!
25kg
32"-55"
INSTRUCTIONS

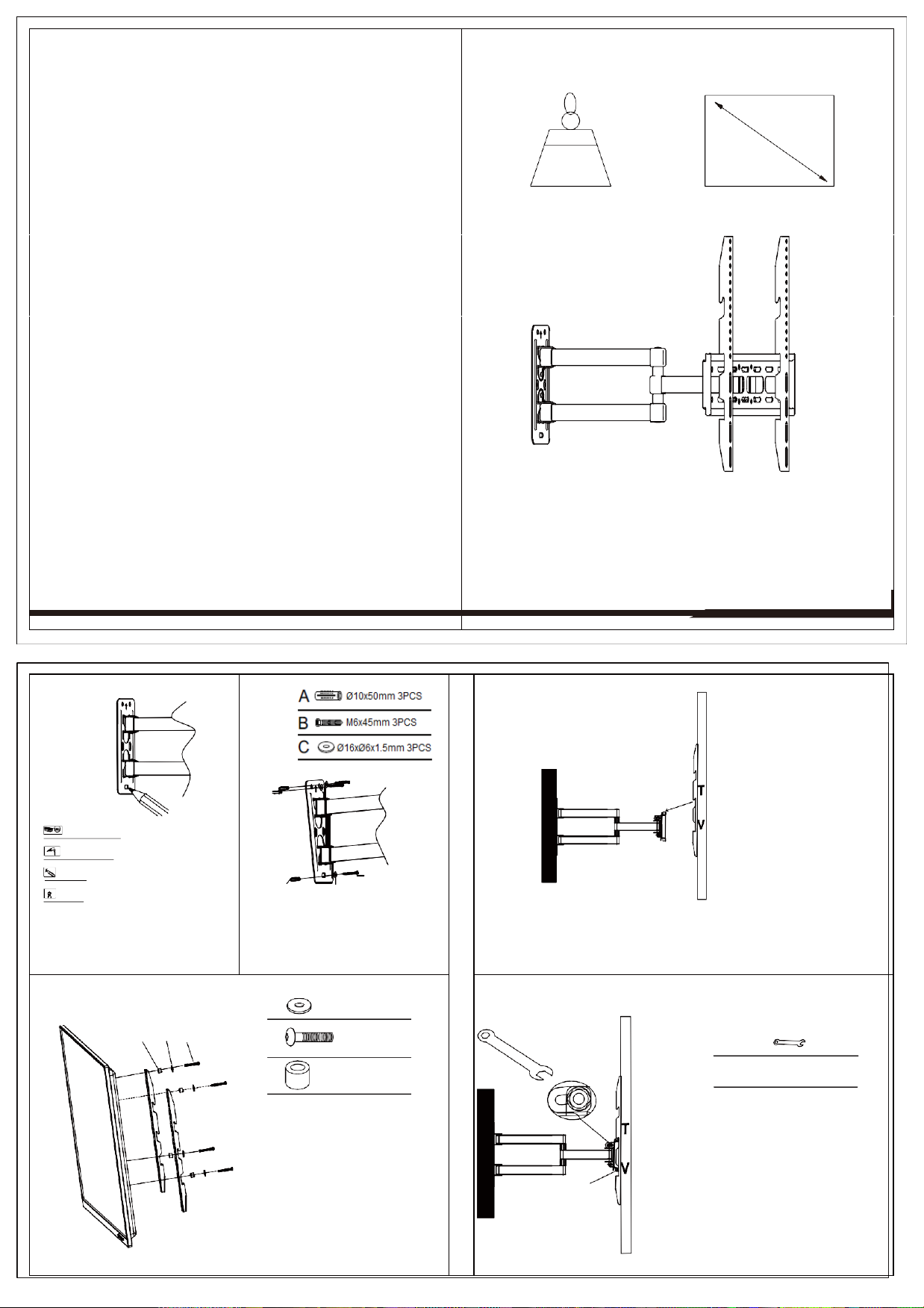

Disclaimer:improper assembly or installation may result in injury or death,
destruction of property.Please read this installation manual carefully before
installation Information.
1. The product must be installed by professionals.
2. If you do not understand, please contact a qualified local installer.
3. If the product is abnormal or missing, please do not assemble or install it.
Please contact the local dealer get help.
4. This product is suitable for 26"-55" LCD/plasma screen, and can bear
25kg/55lbs.
5. This product is used on solid wood wall column or solid wall.
6. For safety reasons, please confirm that the wall of the installation product
should bear the combined weight of the TV set, bracket and accessories
three times as much.If the expansion tube on the wall is found to be loose
during installation, please stop the installation.
7. This product can only be used for display in this range, please do not use for
other purposes.
8. The manufacturer shall not be responsible for the damage to the vertical wall
caused by unloaded or accidental load.
9. The manufacturer hereby declares that it is not liable for any damage or
damage caused by the installation not in accordance with the requirements
responsibility.
1
Bubble Level
Electrc Drill
Pencil
Φ10m m Drill
2.Stick a pencil in the wall
According to the product
installation Draw points on the
holes and drill them into place Hole
2 A Ø10X50mm 3PCS
B M6X45mm 3PCS
C Ø16XØ6X1.5mm3PCS
A B C
2.Put the expansion pipe (A) into the
installation hole of thewall. Self-
tapping screws (B) Fix the product
mounting plate to the wall through the
gasket (C)
4
4.1 Install the TV set with the fixed
movable hook on the wall Loading
on board
3 C Ø10XØ8X10mm 4PCS
E C D D M5X25mm 4PCS
M6X25mm 4PCS
E Ø16XØ6X1.5mm 4PCS
3.Use screw (D)and gasket (C)and booster
pad(E)fix thetelevision to the mounting plate Add
extension plate accordingto TV mounting hole size
5
G G Spanner PCS
FSafety crew M5X35mm 2PCS
F5. Lock the safety screw (F) ,adjust the viewing Angle,
and lock the adjusting nut(G)completion of installation.
2
