1.Overview
This document defines and specifies the usage of M1505_EVB. You can know how to use
M1505_EVB and tools from this document.
2.M1505_EVB and Interface
Introduction
M1505_EVB is designed for valuation and test of M1505 module to help developers to debug and test
M1505 module. The following figure shows the label of the main functions of M1505_EVB. This article
will describe the various parts of its functions in later chapters.

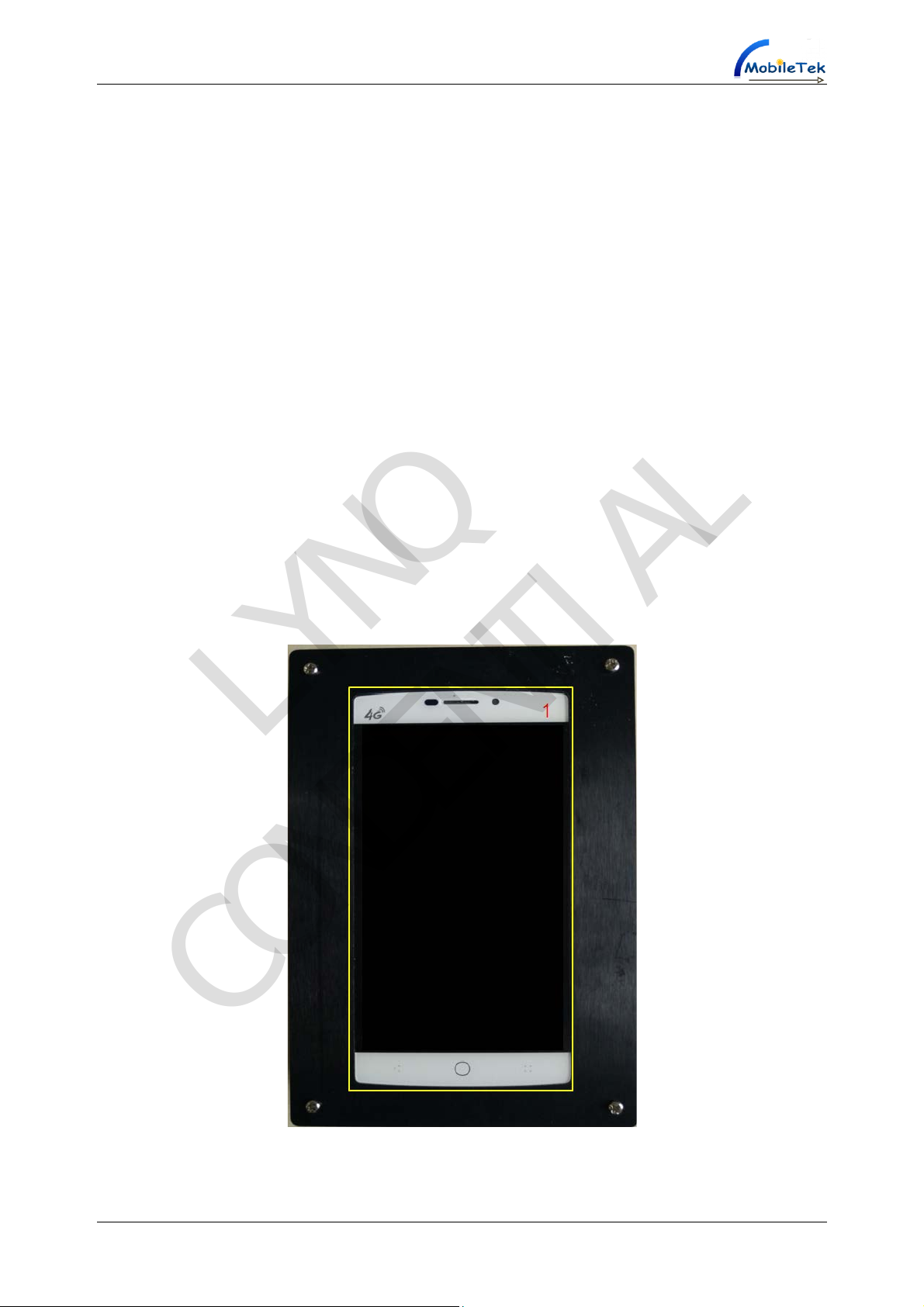

Figure 1 M1505 _EVB Front view
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 5
Figure 2M1505_EVB Rear view

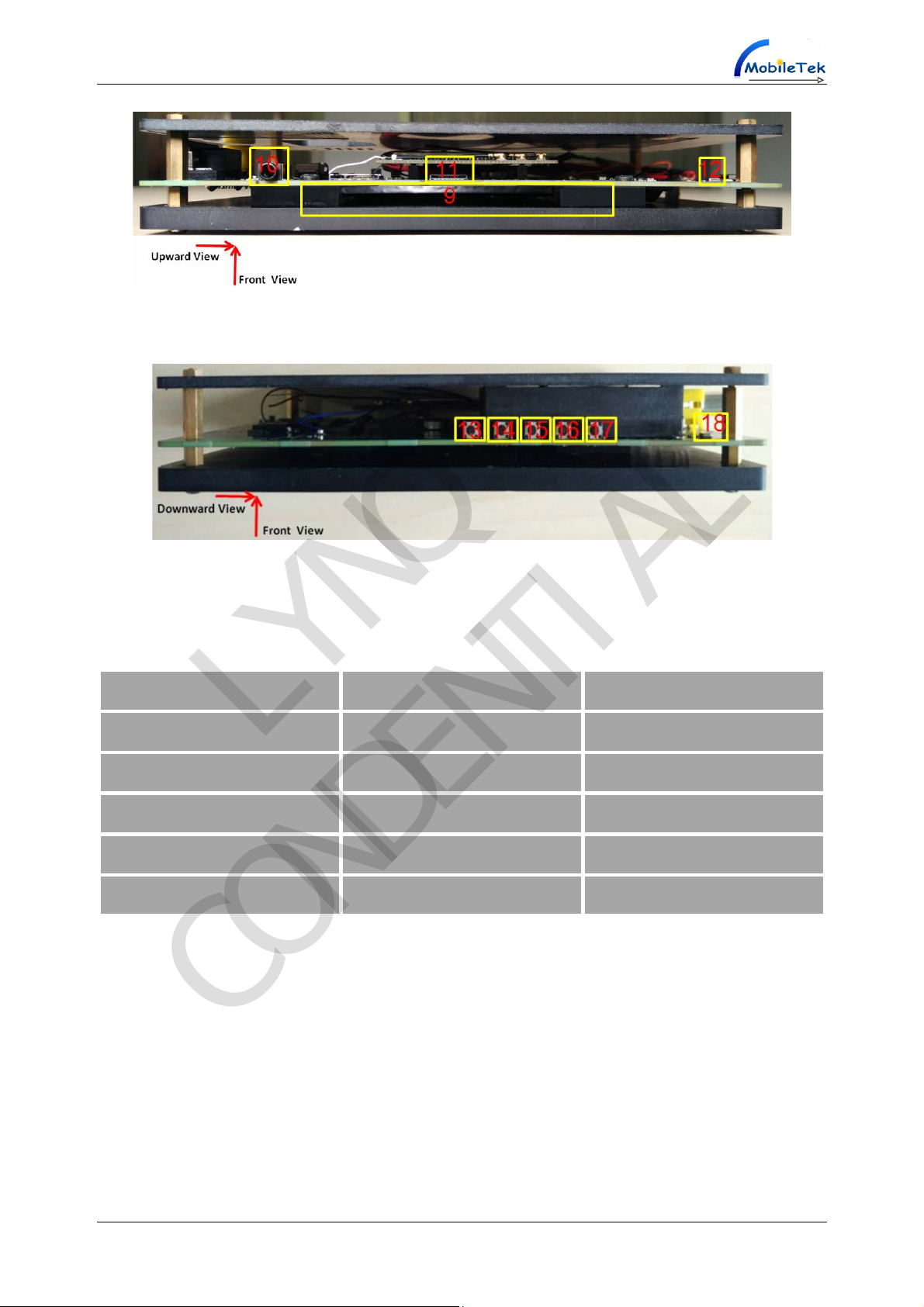

Figure 3M1505_EVB Downward view
Figure 4M1505_EVB Upward view
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 6
Figure 5M1505_EVB Left view
Figure 6 M1505_EVB Right view
Table 1 Label illustrate
1.LCD(HD1280*720) 2.Speaker 3.Flashlight
4.Sub Camera(2MP) 5.Flashlight 6.Mian Camera（5MP）
7.USB Interface 8.UART Interface 9.Battery
10. Headset Interface 11.TF Card 12.Main MIC
13.Powerkey 14.SYSRSTB 15.Volume+
16.Volume+ 17.Volume- 18.Sub MIC
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 7
3.M1505_EVB External Device and
Functional Test
3.1 Power Supply

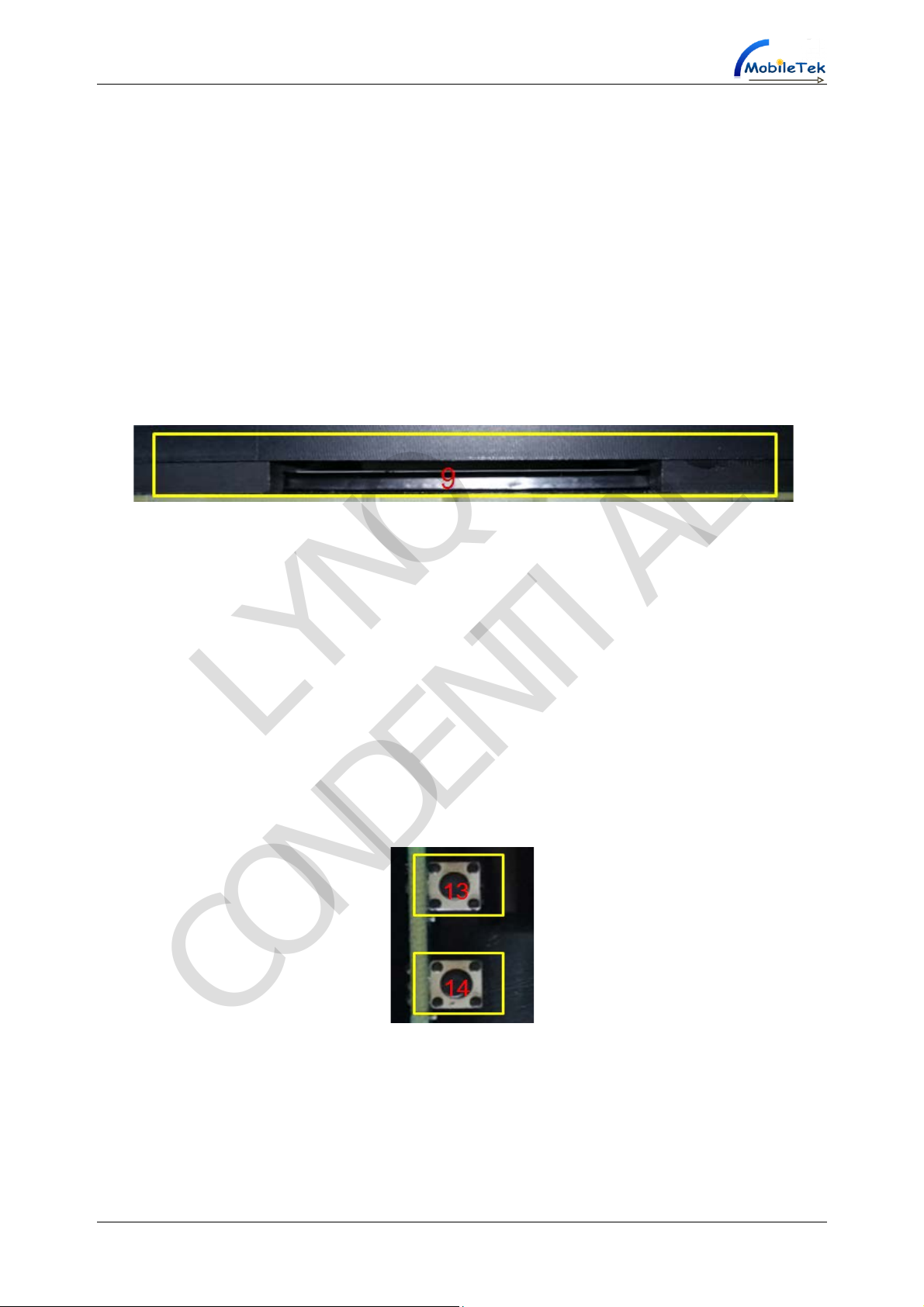

Such as figure 7, “9, Battery”, 3.50-4.35V battery power supply.
Figure 7 M1505_EVB Battery
3.2 Power Key and Hardware Reset
Such as figure 8, pressing the “13, Powerkey” key of the SOM with 3 to 5 seconds, it can open the
SOM. In the boot state, pressing "13, Powerkey" can enter standby mode. In the boot state, pressing
"13, Powerkey" 2 to 3 seconds can choose to Shutdown SOM. If you press the “14, SYSRSTB” key,
you can make the SOM power off.
Figure 8 Powerkey and SYSRSTB
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 8
3.3 UART Interface
Such as figure 9, the M1505_EVB has a set of "8, UART interface ". M1505_EVB can be connected
via a serial port line with PC or other devices for a serial port communication. The Demo board default
support 115200 baud rate.
Figure 9 M1505 UART interface
3.4 TF Card
Such as figure 10, the M1505_EVB provides a TF interface. The "11, TF card" can support maximum
capacity of 128 GB TF card.
Figure 10 TF card
Note: In the boot state, pressing the SYSRSTB is power off, not restart.
Pressing Powerkey 11 to 13 seconds can restart the SOM.
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 9
3.5 Audio Interface
The audio interfaces include one headset interface, one Speaker and two MIC interfaces.

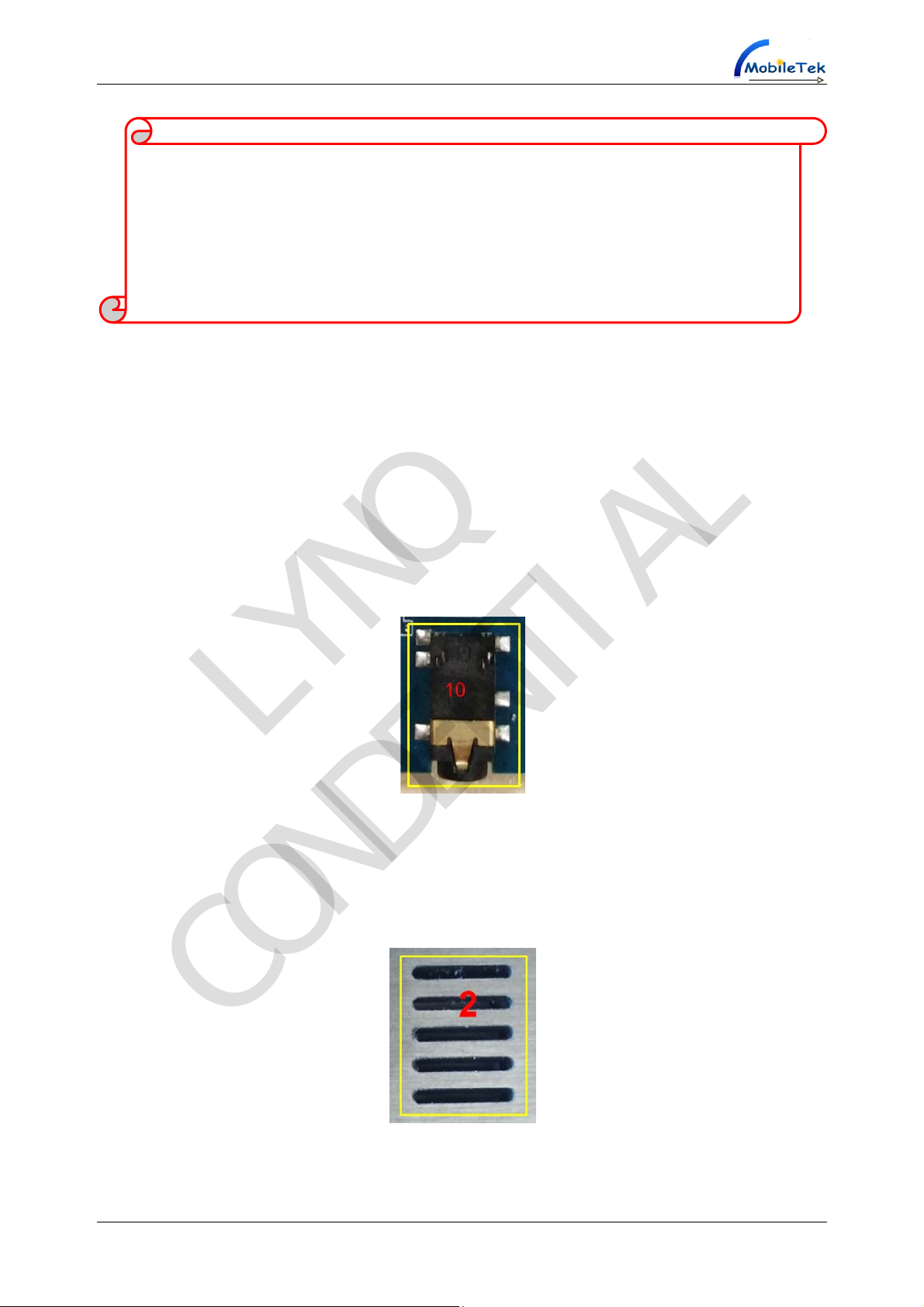

Such as figure 11“10, Headset interface”, it can support the 3.5mm earphone interface.
Figure 11 3.5mm Headset interface
When pull out earphone, the M1505_EVB default use figure 12 "2, Speaker".
Figure 12 Speaker
Note: When use less than 32 GB TF card, there is no compatibility problems. If TF cards
more than 32GB have been formatted by Windows system, they should be formatted again
by Android system before used. Under the Android system format of TF card, have no this
problem.
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 10
The M1505_EVB supports two MIC. It is only stereo recording in recording mode.
Figure 13 MIC interface
3.6 USB Interface
Such as figure 14, the M1505_EVB has a "7, Micro USB interface" used for USB download, gripping
module logs, recharging the battery and supporting OTG function.
Figure 14 USB interface
3.7 Functional Test
Such as figure 15, enter the test mode: Click Settings →Choose about tablet →Consecutive click 6
times on model number.
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 11
Figure 15 Enter test mode
3.7.1 Machine Test
Such as figure 16, click item at the top of the machine test, then began to test.
Figure 16 Test mode interface
Such as figure 17, if the test item is success, the test items displayed as blue. If the test item is failed,
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 12
the test items displayed as red.
Figure 17

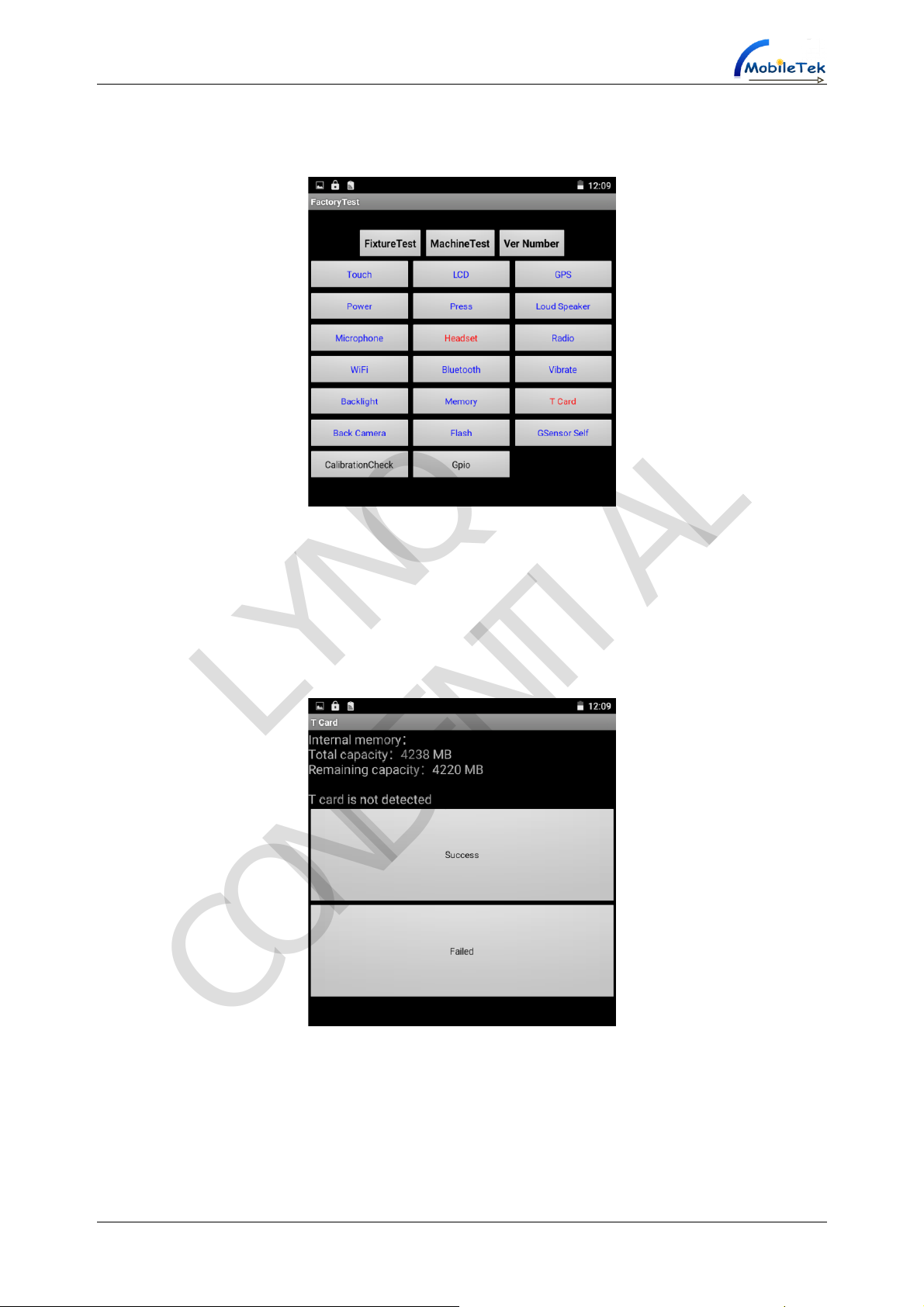

Such as figure 18, in the process of test, touch the prompt dialog box to choose "success" or "failed",
and then enter the next test.
Figure 18
LYNQ
CONDENTIAL

M1505_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 13
3.7.2 A Single Test

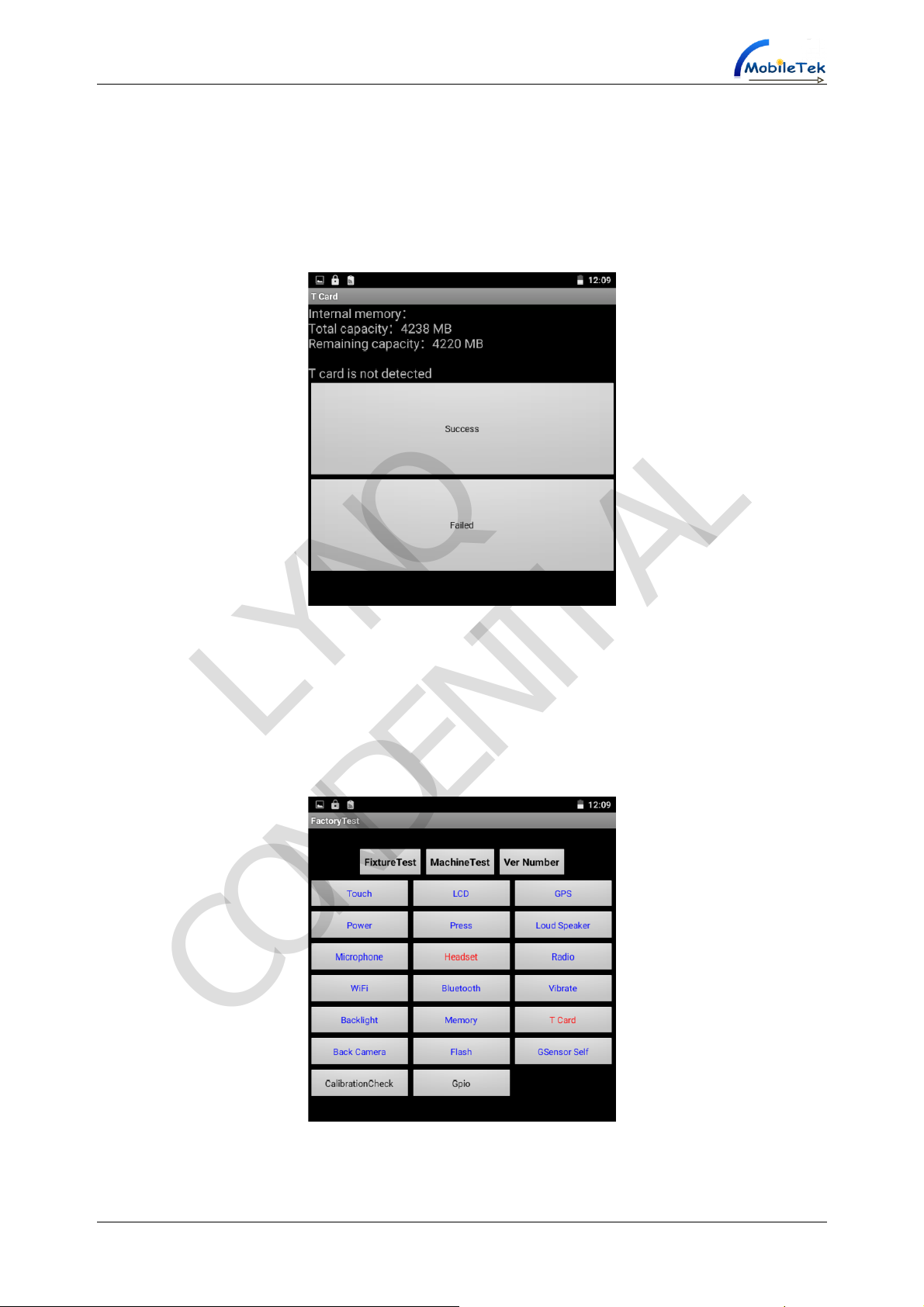

Choose one option in individual test. Such as figure 19, click the Success interface if TF card is
normal.
Figure 19
Such as figure 20, if the test is success, the test items displayed as blue. If the test is failed, the test
items displayed as red.
Figure 20
