1. Overview
This document defines and specifies the usage of M1506_EVB. You can know how to use
M1506_EVB and tools from this document.
2. M1506_EVB and Interface
Introduction
M1506_EVB is designed for the development of M1506 module to help developers to debug and test
M1506 module. The following figure shows the label of the main functions of M1506_EVB. This article
will describe the various parts of its functions in later chapters.
Figure 1 M1506 _EVB FRONT VIEW
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 5
Figure 2 M1506_EVB REAR VIEW
Figure 3 M1506_EVB DOWNWARD VIEW
Figure 4 M1506_EVB UPWARD VIEW
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 6
Figure 5 M1506_EVB LEFT VIEW
Figure 6 M1506_EVB RIGHT VIEW
Table 1 Label Illustrate
1.LCD(HD1280*720)
2.Speaker
3.Flashlight
4.Sub Camera(2MP)
5.Flashlight
6.Mian Camera（5MP）
7.USB Interface
8.UART Interface
9.Battery
10. Headset Interface
11.SIM1
12.TF Card
13.SIM2
14.Main MIC
15.POWKEY
16.SYSRSTB
17.Volume+
18.Volume+
19. Volume-
20.Sub MIC
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 7
3. M1506_EVB External Device and
Functional Test
3.1 Power Supply
Such as figure 7，“9，Battery”，3.5-4.35V battery power supply.
Figure 7 M1506_EVB Battery
3.2 Power Key and Hardware Reset
Such as figure 8，Pressing the “15，POWKEY” key of the SOM with 3 to 5 seconds，it can open the
SOM. In the boot state, pressing "15, POWKEY" can enter standby mode. In the boot state, pressing
"15, POWKEY" 2 to 3 seconds can choose to Shutdown/Restart SOM. If you press the “16，
SYSRSTB”key, you can make the SOM power off.
Figure 8 POWKEY and SYSRSTB
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 8
3.3 UART Interface
Such as figure 9, The M1506_EVB has a set of "8, UART Interface ". M1506_EVB can be connected
via a serial port line with PC or other devices for a serial port communication. The Demo board default
support 115200 baud rate.
Figure 9 M1506 UART interface
3.4 SIM Card and TF Card
The M1506_EVB provide two SIM interfaces and a TF interface, such as figure 10.
The "11, SIM1" supports 3G WCDMA network and GSM 2G network.
The "13, SIM2" supports 3G WCDMA network and GSM 2G network.
The "12, TF Card" can support maximum capacity of 128 GB TF card.
Note: In the boot state, press the SYSRSTB is power off, not restart.
In the boot state, long press POWKEY can select shutdown or restart the SOM.
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 9

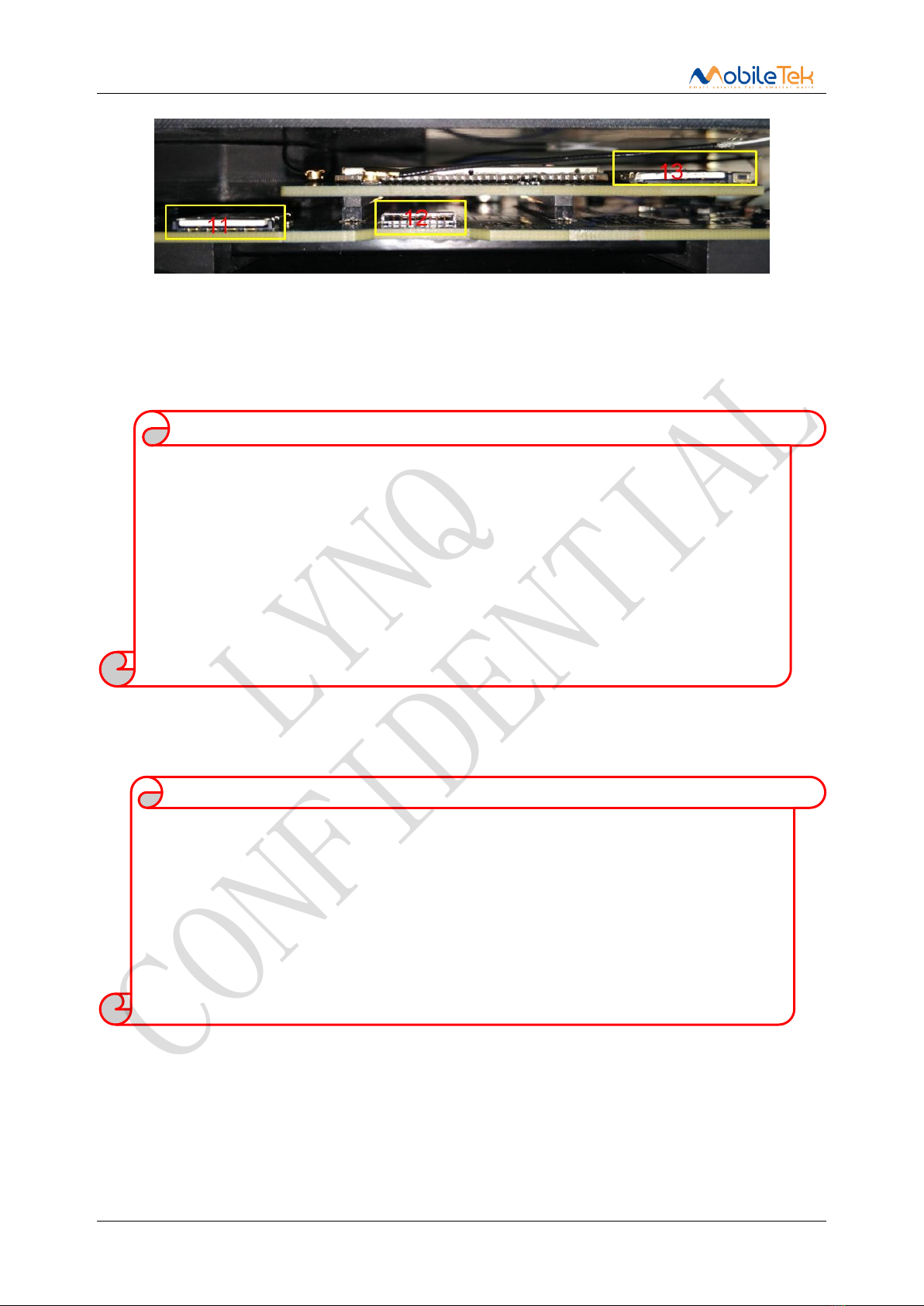

Figure 10 SIM card and TF card
Note: When use less than 32 GB TF card, there is no compatibility problems. If TF cards
more than 32GB have been formatted by Windows system, they should be formatted
again by Android system before used. Under the Android system format of TF card, have
no this problem.
Note: SIM1 and SIM2 does not support hot plug SIM card.
SIM1 and SIM2 can’t support using 3G network at the same time. When set the SIM1 to
use 3G network, the SIM2 can automatically switch to 2G network. When set the SIM2 to
use 3G network, the SIM1 can automatically switch to 2G network. SIM1 and SIM2 can
support both 2G network.
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 10
3.5 Audio interface
The audio interfaces include one headset interface and one SPK interface, two MIC interfaces：
Such as figure 11“10，Headset Interface”, it can support the 3.5 mm earphone interface.
Figure 11 3.5mm Headset interface
When pull out headphones, the M1506_EVB default use figure 12 "2, speaker".
Figure 12 Speaker
The M1506_EVB supports two MIC. There is noise reduction in handset mode, not in hands-free
mode. It is only stereo recording in recording mode.
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 11
Figure 13 MIC interface
3.6 USB
Such as figure 14, the 1506_EVB has a "7, micro USB interface", used for USB download, gripping
module logs, recharging the battery and supporting OTG function.
Figure 14 USB interface
3.7 Functional Test
In dial-up panel, input "* #*# 88 #* # *" and enter the test mode.
3.7.1 Machine test
Such as figure 15, click item at the top of the machine test, then began to test.
Figure 15 Test mode interface
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 12
Such as figure 16, if the test item is success, the test items displayed as blue. If the test item is failed,
the test items displayed as red.
Figure 16
Such as figure 17, in the process of test, touch the prompt dialog box to choose "success" or "failed",
and then enter the next test.
Figure 17
LYNQ
CONFIDENTIAL

M1506_EVB User Manual
Copyright © Shanghai Mobiletek Communication Ltd 13
3.7.2 A single test
Choose one option in individual test. Such as figure 18, click the Success interface if TF card is
normal.
Figure 18
Such as figure 19, if the test is success, the test items displayed as blue. If the test is failed, the test
items displayed as red.
Figure 19
