Mobitronic PowerStarter PS-200-12 User manual

Bedienungsanleitung
Operating Instructions · Instrucciones de servicio · Instructions de service · Istruzioni di d’uso ·
Bedieningshandleiding · Betjeningsvejledning · Bruksanvisning · Bruksanvisning · Käyttöohje
PS-200-12
✎Symbole 3
DPowerStarter 7
GB PowerStarter 15
EPowerStarter 23
FPowerStarter 31
IPowerStarter 39
NL PowerStarter 47
DK PowerStarter 55
SPowerStarter 63
NPowerStarter 71
FIN PowerStarter 79
PS-200-12 02/07/03 9:50 Page 1

2
PS-200-12 02/07/03 9:50 Page 2

3
A
1
2
B
1
2
34
3
PS-200-12 02/07/03 9:50 Page 3

4
C
2
1
34
Schritt 1
Step 1
Schritt 2
Step 2
rote Klemme
red clamp
schwarze Klemme
black clamp
korrekt angeklemmt
correct connection
falsch angeklemmt (verpolt)
wrong polarity
PS-200-12 02/07/03 9:50 Page 4

5
D
E
2
1
PS-200-12 02/07/03 9:50 Page 5

Read these operating instructions before using the PowerStarter and keep them in
a safe place. When you resell the PowerStarter, then it is absolutely necessary to
pass these instructions on to the new owner.
List of contents
Title Page
Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
List of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Information for using the installation instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
General information for the user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Charging the PowerStarter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Use of the PowerStarter as starting aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Use of the PowerStarter as 12V power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Checking the battery condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Maintenance and servicing of the PowerStarter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Information for using the installation instructions
Warning! Safety note:
Failure in observing these warnings may result in injuries to persons or damage
to materials.
Caution! Safety note:
Failure in observing this warning may result in damage to materials and impair
the functioning of the product.
If you have any further questions to your PowerStarter, which these instructions
do not cover, please contact our technical customer service.
WAECO UK Ltd.
UK-Broadmayne · Dorset DT2 8LY
Unit G1 · Roman Hill · Business Park
phone: [phone]
fax: [phone]
www.waeco.com
15
PS-200-12 02/07/03 9:50 Page 15

General safety information
About the unit itself
– The PowerStarter may be used only for the purposes specified by the
manufacturer!
– Never use the PowerStarter if housing or cables are damaged!
– Always ensure that the PowerStarter is securely positioned so that it cannot fall over or
falldown!
– Ensure that the PowerStarter is kept out of the reach of children! Dangers may arise
which children are not able to recognise!
– Never operate the PowerStarter in a damp or wet environment!
– Service and repair may only be carried out by skilled persons who are familiar with the
risks involved and the relevant regulations.
– Never place the PowerStarter on a hot surface!
The starter-cable
– Do not lay the cable over sharp-edged objects!
– Do not lay the cable with kinks!
– Do not pull on the cable!
– Lay cables in such a way that no tripping is possible!
– Lay cables in such a way that no exposure or risk of damage is possible!
Protect your environment!
Recycle the packing material!
A damaged or defective PowerStarter (battery) should not be disposed of in the normal
domestic waste! Please return the used battery to the dealer or dispose of it at an autho-
rised waste collection point.
Scope of delivery
Quantity Designation Article No.
see A 1 1 PowerStarter
see A 2 1 Mains charger PS-200-12-NT
see A 3 1 12 V charging cord PS-200-12-LK
16
PS-200-12 02/07/03 9:50 Page 16

Applications
The PowerStarter is designed to jumpstart the battery of any vehicle with 12 V starter
battery e.g. cars, mobile homes, boats. The peak current consumption can reach up to
200 A.
Throughout the 12 V socket different appliances like 12 V tools, etc. can be operated up
to current consumption of 5 A.
Caution! Pay attention to the voltage and current consumption of the
equipment being operated in order not to overcharge the PowerStarter.
Overcharging may cause the failure of the PowerStarter or of the equipment
being operated.
The voltage and current consumption can be found on the nameplate or in the operating
instructions of the equipment being used.
General information for the user
– The PowerStarter is supplied partially charged.
– Fully charge the PowerStarter before using it for the first time
(see section “Charging the PowerStarter”).
– For charging, use the mains charger.
– If not in use for a longer period, the battery of the PowerStarter will discharge by itself.
– To avoid destruction of the battery by excessive discharging, the battery must be
recharged every 3 months when not in use.
– The battery of the PowerStarter is maintenance-free.
Charging the PowerStarter
The PowerStarter can be charged by means of the 230V mains charger or the 12 V
charging cord.
The charging time is about 18-36 hours with the mains charger.
Caution! Do not leave the mains charger permanently plugged in as this will
overcharge the battery or may damage it.
Charging with the 230 V mains charger (see B 1)
– Connect the cable of the mains charger to the charging socket on the front side of the
PowerStarter.
– Plug the mains charger into a 230 V – 50 Hz mains socket.
– The yellow LED (charging) lights up during charging.
17
PS-200-12 02/07/03 9:50 Page 17

Charging the PowerStarter
Caution! PowerStarter will not switch off automatically. Disconnect the mains
charger after 48h to avoid overcharging or damage.
Charging with the 12 V mains charger (see B 3)
Do not use the 12V charging cord for charging when the PowerStarter is totally flat.
The plugs of the cord are equipped with LEDs to indicate charging operation.
– Charge the PowerStarter only when engine is running.
– Plug the charging cord into the 12 V socket of the PowerStarter first.
– Then plug the other plugs into the cigarette lighter socket.
To check the charging level
Caution! Correct charging level will be indicated with plugged-in adapter only.
– To check the charging level during charging the PowerStarter, press push button “Test
battery“ (see B 4). According to the battery’s charging level one of the 3 LED’s (low,
mid, high) lights up (see B 2).
Safety features
The PowerStarter is equipped with a test sensor technology, which switches
only on when connected correctly to the vehicle battery.
If one terminal is disconnected, the PowerStarter switches off automatically.
To avoid short-circuits between parts of the vehicle and clamp of the PowerStarter, the
clamps are insulated against the cables.
In any case, ensure that there are no short-circuits between body of the vehicle and
clamps.
In case of wrong polarity, the PowerStarter gives an acoustic signal and the large control
lamp flashes red (see C 4).
Use of the PowerStarter as starting aid
When using the PowerStarter as starting aid, observe the following safety
instructions:
– Switch off all consumers.
– Switch the ignition off.
– Protect your eyes by wearing glasses
– Avoid contact to acid residue of the battery (destruction of clothes and skin).
– Keep the area well-ventilated (formation of oxyhydrogen gas-danger of explosion).
– Provide for a suitable location so that the PowerStarter has also a firm position after the
start of the motor (vibrations).
18
PS-200-12 02/07/03 9:50 Page 18

Use of the PowerStarter as starting aid
– To switch the safety relay (in the PowerStarter) the car-battery has to show a min.
voltage of about 2 volt.
– Ensure when connecting the terminals that no moveable motor parts (fans, cone belts,
generators, etc.) are in the proximity.
Connection of the PowerStarter
– First connect the red (+, positive) clamp to the plus terminal of the battery (see C 1).
– Then connect the black (-, negative) clamp to the minus terminal of the battery (see C 2).
If the clamps are connected correctly, the LED “jumping” will light up green (see C 3). In
case of wrong polarity, the LED “jumping” will start flashing red and a signal tone is
emitted (see C 4).
– Wait about 5 min. for the flat battery to be charged.
– Start the engine.
– If the engine works, first disconnect the black clamp from the battery terminals, then
the red one.
Caution! Pay attention to any moving parts. Risk of injury.
Use of the PowerStarter as 12V power source
When using the PowerStarter as 12 V power source, observe the following
safety instructions:
– Max. current consumption of connected appliances is 5A.
– Use the 12 V cable which is delivered with the item you want to connect to
the PowerStarter. One side of the connecting cable must have a plug, which
fits into the cigarette lighter socket of the PowerStarter.
In the case of overcharging the automatic fuse, installed in the PowerStarter,
will be activated.
– Switch off the appliance that is to be supplied with 12 V.
– Pull the plug from the cigarette lighter socket and wait approx. 2 minutes.
– The overcharging fuse restarts automatically again.

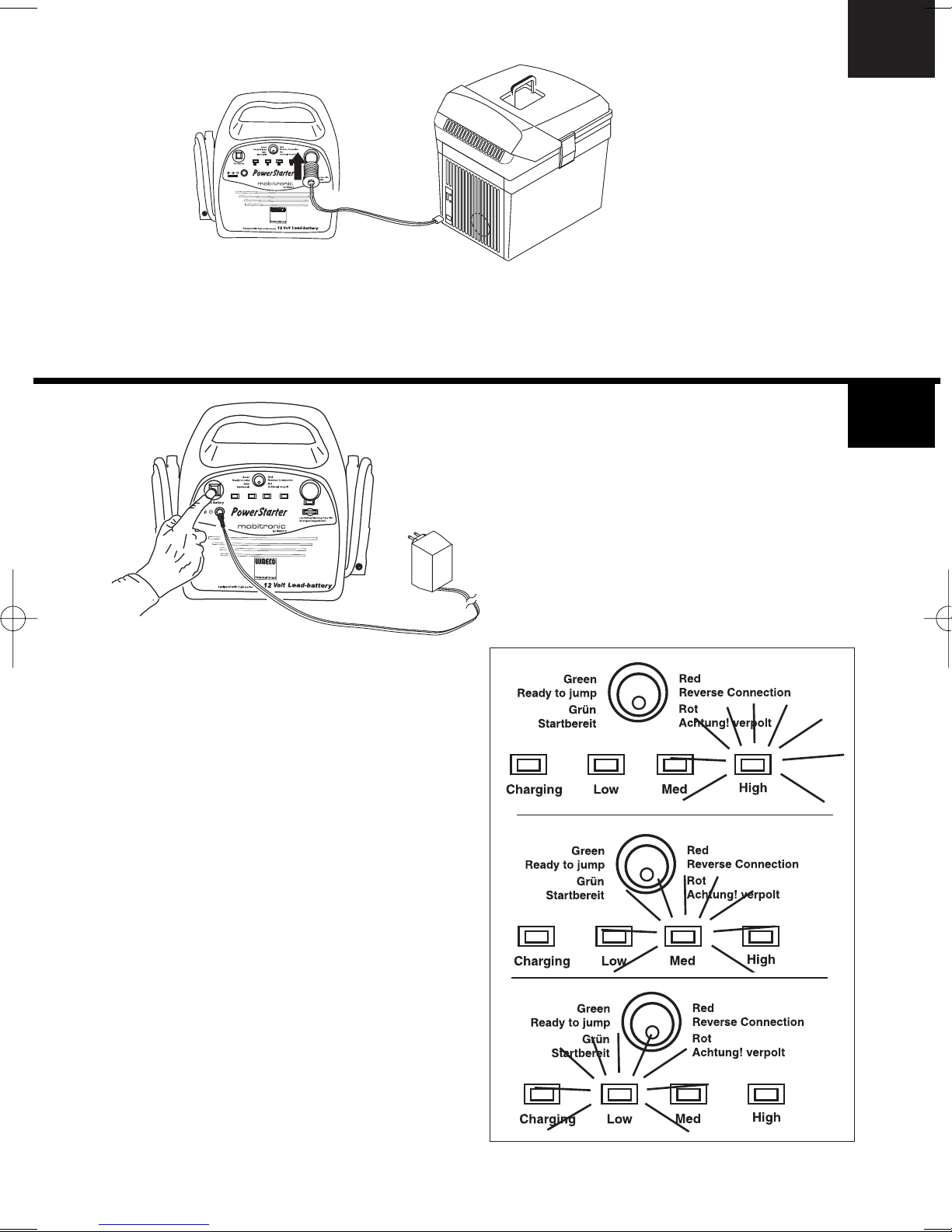

Operation of the PowerStarter (see D)
– Switch off the appliance that is to be supplied with 12 V.
– Put the plug of the connecting cable into the cigarette lighter socket of the
PowerStarter.
– Switch on the appliance again.
19
PS-200-12 02/07/03 9:50 Page 19

Checking the battery condition
The charging level of the battery is indicated properly only with plugged-in charger
unit.
– Push the button “Test Battery“ (see E 1).
According to the battery’s charging level one of the 3 LED’s lights up (see E 2):
High = the battery is charged. No charging required.
Middle = the battery is sufficiently charged for actual operation. But needs
charging after use.
Low = the battery is flat. Charge the battery.
The PowerStarter is equipped with an undervoltage protection. With low discharging an
acoustic signal is emitted. Please charge the PowerStarter immediately to avoid damage.
Maintenance and servicing of the PowerStarter
The PowerStarter is equipped with a maintenance-free 12 V, 7 Ah battery.
Caution! Prevent the PowerStarter from exposure to direct sunlight or other
heat sources.
The battery may explode due to overheating!
– Charge the PowerStarter every 3 months when not in use.
– To clean the PowerStarter, use a soft dry cloth.
To remove stubborn dirt, use a cloth which is only slightly dampened with water.
– Do not use solvents.
20
PS-200-12 02/07/03 9:50 Page 20

Technical data
PowerStarter
Maintenance-free sealed lead battery 7 Ah, 12 V DC
Peak current up to 200 A temporary
Optical and acoustic warning when there is wrong polarity
Switch-off function in the case of short-circuit of clamps
Acoustic warning against low level discharge
Outputs: 12 V with 5 A max.
Weight: 3.8 kg
Dimensions: 260 x 170 x 90 mm (H x W x D)
Mains charger
Input: 230 V ~ 50 Hz AC
Outputs: 12 V, 500 mA DC
12 V charging cord
Fuse: 16 A
We reserve the right to make changes serving technical progress.
Protect your environment! PowerStarter consists of sealed lead battery. Please return the
used battery to the dealer or dispose of it at an authorised waste collection point.
Please keep these operating instructions in a safe place and in the event of a sale pass
them on to the buyer together with the unit.
If you still have any questions regarding the PowerStarter, please contact:
WAECO UK Ltd.
UK-Broadmayne · Dorset DT2 8LY
Unit G1 · Roman Hill · Business Park
phone: [phone]
fax: [phone]
www.waeco.com
21
PS-200-12 02/07/03 9:50 Page 21

22
PS-200-12 02/07/03 9:50 Page 22
