Mobridge M1000-M-DA1 User manual

Digital & Analog Pre-Amplifier | M1000-M-DA1 & M1000-M-DA2
User Manual
WWW.MOBRIDGE.US
CONTACT US
PHONE [phone]
/
INQUIRIES [email protected]

Contents
mObridge Features 03
Audio Specification 06
Bypass Switch 06
Channel Mapping 07
Updating the Unit 08
WWW.MOBRIDGE.US
2016 Fiberdyne Systems Pty Ltd
Warranty
Your mObridge audio interface is warranted against any manufacturing defects for a period of 24 months from
purchase. Any part of the mObridge audio interface may be replaced or repaired at the discretion of the
manufacturer after such part is deemed to have a manufacturing fault. If you have any questions about your
mObridge product, contact your local service agent, as listed on the www.mobridge.us/distributors web page.

The DA Series allows full control of aftermarket amplifiers from the factory MOST Bus
head unit, making a convenient and error-free connection with no cutting-and-splicing
of the fibre optic cable. Vehicle owners can then add aftermarket components from a
multi-channel high power amplifier and audio system. The unit also supplies an output
to turn-on aftermarket audio components with a delay. The DA Series purpose is to ensure
the integrity of each system while making the resources available on one side (OEM system)
to the devices on the others side (Aftermarket system).
The DA Series extracts 20 Hz to 20 kHz of audio output via either 2 channel TOSLINK
Digital output (DA1) or 8 channels of analogue audio output at 4V RMS (DA2), and allows
full control from the factory radio of the aftermarket car audio system including volume,
fader,balance, bass, treble and graphic equalizer where supported (e.g. BMW).
The preamp stage of the DA2 is driven by Burr Brown DAC converter that give to the
customer an audiophile quality without any compromize. Moreover the Blackfin Processor
gives to DA Series capability to introduce powerfull Audio processing features.)
to mObridge Pre-amp Technology

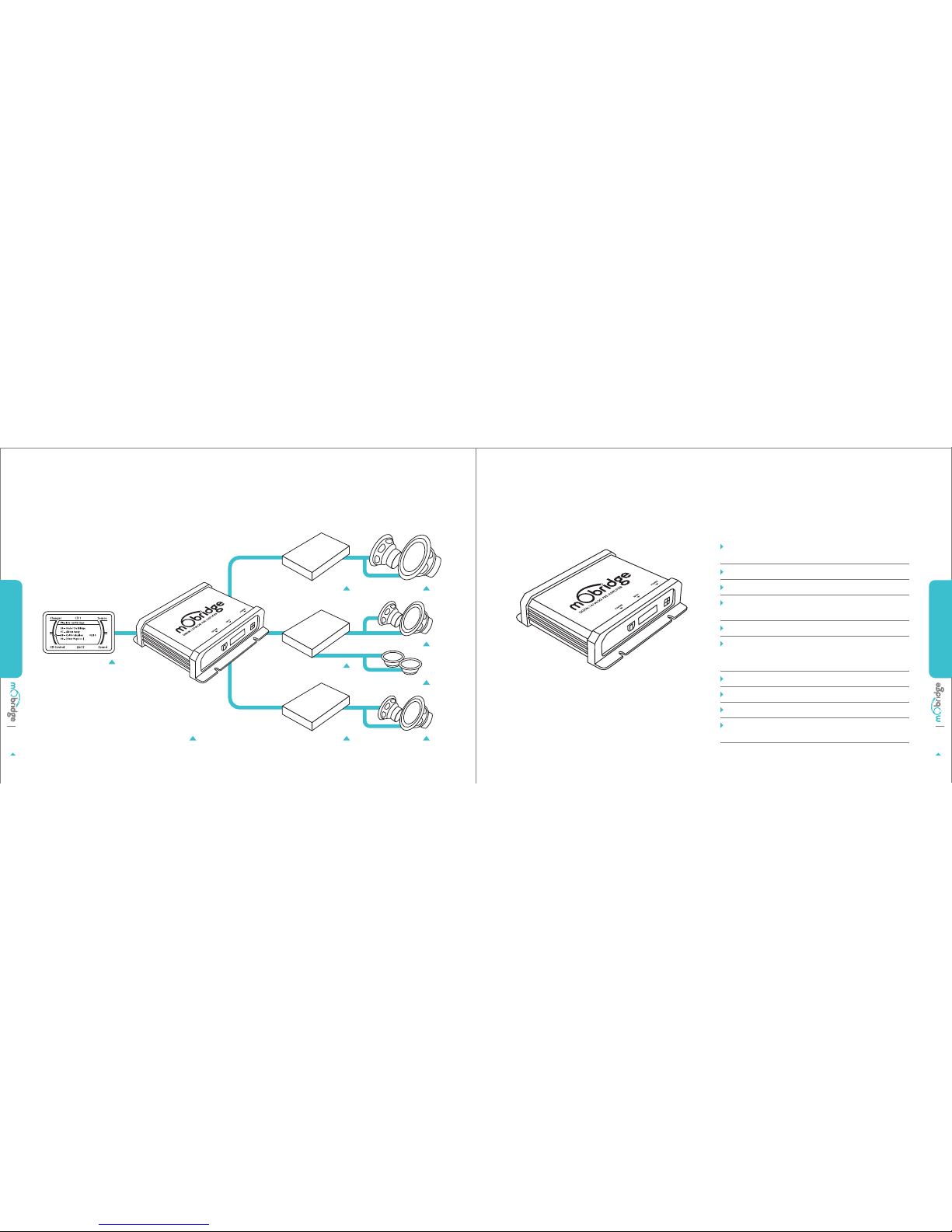

Welcome Features of Your DA1 mObridge Unit
EXTERNAL DSP /
AMPLFIER COMBINATION
The picture above is a graphical representation of
the product. Individual configuration may differ
VEHICLE HEAD-UNIT
BASS SPEAKERS
FRONT SPEAKERS
FRONT SPEAKERS
REAR SPEAKERS
MOBRIDGE FEATURES
MOBRIDGE DA1 FEATURESPAGE 03

SUBWOOFER AMPILFIER
FRONT AMPILFIER
REAR AMPILFIER
The picture above is a graphical representation of
the product. Individual configuration may differ
VEHICLE HEAD-UNIT
BASS SPEAKERS
FRONT SPEAKERS
FRONT SPEAKERS
REAR SPEAKERS
MOBRIDGE FEATURES
mObridge Pre-Amplifier Features
DA Series connection to aftermarket amplifier via either TOSLINK Digital (DA1), or 8 channel RCA analogue (DA2) connection.
8-channel 192-kHz Sampling 24-Bit audio
digital-to-analog converter (DAC) for the DA2
DA1 has Audio output via digital TOSLINK.
All output channels are full range 20Hz to 20KHz
Audio output is via digital Toslink or 8 channels of RCA
analog signal
8 output channels full range
Allows for the full retention of factory controls including:
Volume, Balance, Fader, and factory multiband
Equalizer (where applicable)
No need for external mounted controller or volume knob
Eliminates the need to cut factory amplifier wiring
Creates a 12 volt amplifier turn on and turn off signal
Replaces the factory amplifier eliminating all
unwanted digital signal processing
Features of Your DA2 mObridge Unit
MOBRIDGE DA FEATURES
MOBRIDGE DA2 FEATURES
PAGE 05
PAGE 04

Bypass Switch
The bypass switch is provided to allow for the mObridge
unit to become ‘invisible’ on the MOST vehicle bus system.
The main use of this function is to facilitate dealer
services when the diagnostic computer is in use and to
ensure the mObridge unit does not interfere with the
vehicle diagnostics.
The function can be enabled by toggling this switch 5 times.
Once the bypass feature has been activated, the MOST
bus will be broken for 2 seconds and the feature cannot
be activated again for a further 10 seconds.
Once the bypass switch has been activated, it will
remain activated across power cycles until the bypass is
de-activated by toggling the switch again 5 times within
a 5 sec time frame.
DA2 Channel Mapping
The Graphical User Interface can be downloaded from
our website. In order to ‘Map the Channels’ you will need
to be connected to the DA2 with power connected too.
Once downloaded, we recommend you open the application
and connect to your DA unit via a USB cable (not provided).
If power is connected to the DA and turned on, you will
see the screen shown in FIG 01 on the following page.
The first thing you will need to do is to select the vehicle
the DA is being installed to from the drop down menu in
the middle of the screen. Then configure the channels
for the correct mapping of your particular system. First
select a speaker from the image of the vehicle then from
the drop down menu in the middle of the screen, select
the channel output you have connected for that particular
speaker. Repeat this for each speaker and its corresponding
output channel. When running a component speaker
system with a passive crossover, only select one of the
speakers in the cluster. When connecting a Mono
Subwoofer or centre channel speaker, simply select
the speaker image and click the ‘Left’ & ‘Right’ buttons
FIG 01
DA2 Channel Mapping
CHANNEL EQ CONNECTED
0.00Hz
Default Preset 01
CONFIGURATION
1 2
3 4
5
Input Mapping Left
Right
FRONT LEFT TWEETER
CONFIGURE OUTPUT
Source Select MOST
Vechicle Select Volvo
Configure Outputs Output Channel 1
for the input mapping in order for the DA2 to know that
this is a ‘summed’ channel output, providing information
from both the left and right hand sides.”
Fade & Balance
The DA Series balance is accessed through the factory
controls.
Due to the stereo nature of the TOSLINK (DA1) connection,
fade is not possible to the rear although the user will
observe that the front is faded out.
DA2 utilises fade more to those channels that the user
designates as rear audio channels. The same is also true
for the balance for those channels that a user designates
as right and left channels.
Equalization
Some vehicle allow for a basic graphical equalization
interface on the factory radio. The DA2 takes advantage
of this and allows the user to adjust the DA2 graphical
equalization. The DA1 does not have this ability due
to the fact that the DA1 requires an external processor.
The external processor has it’s own equalization and
therefore the DA1 does not contain the ability for the
user to adjust the eq via the factory controls.
Audio Specification
Bass & Treble
The DA Series utilises the factory controls, giving the user
the ability to adjust +/- 12dB on Bass & Treble.
MOBRIDGE FEATURES
CHANNEL MAPPING | BYPASS
AUDIO SPECIFICATION
PAGE 07
PAGE 06

Updating via the DSP Graphical Interface
The mObridge DA product can be software updated via
its USB connection and use of the mObridge DSP software
interface that runs on Windows and Mac PC’s.
Once the GUI has been opened, the latest DA software
can be applied. The latest software can be found on the
mObridge website. www.mobridge.us/support
The mObridge DA unit will need to be connected in the
car and powered up for the unit to be updated. Once it is
connected to the DSP GUI the user will be presented
with the following screen, FIG 02.
Click on the ‘Manual Update’ button and select the new
DA firmware file (downloaded from the website and
saved to your computer) and the update procedure will
begin automatically.
DA1 mobridge.us/products/most-digital-toslink-pre-amp | DA2 mobridge.us/products/most-analog-pre-amp
FIND THE LATEST SOFTWARE HERE
DA1 DA2
Updating the DA Unit
FIG 02
Manually updating your DA unit
CHANNEL EQ CONNECTED
0.00Hz
Default Preset 01
CONFIGURATION
mObridge DA3 DSP Processor
8 Channel Professional DSP
MANUAL UPDATE
Serial Number 0000000000000000
Firmware Version 01.07.05
FCC information (for US customers only)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interface by
one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment
and receiver
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV
technician for help
Warning: Any changes or modifications not expressly
approved by mObridge, Inc. could void the user’s authority
to operate this equipment.
MOBRIDGE FEATURES
WARRANTY
UPDATING THE DA UNIT
PAGE 09
PAGE 08
Disclaimers
1) Dolby Digital, DTS and other proprietary digital formats
are not supported by the DA series of products. These
features require licensing from Dolby, DTS and other
manufacturers to support these features
2) Vehicle Coding Some vehicles may require coding.
Fiberdyne Systems Pty Ltd endeavors to be aware of which
vehicles and procedures are required for this by producing
vehicle manufacturer installation notes. However we
will not be responsible should third party diagnostics
tools be required and nor will we be responsible for the
costs involved in this coding or any monetary costs incurred
either from third party diagnostics specialists/dealers
or directly from consumers or installation specialists.
3) Vehicle features Whilst Fiberdyne Systems Pty Ltd
endeavors to develop products that seamlessly integrate
to the existing vehicle infrastructure we will not be held
legally responsible should some OEM vehicle features
not operate as intended. Please be aware that Fiberdyne
Systems Pty Ltd does not have access to OEM vehicle
data bases. When fitting a DA product to the vehicle some
features such as Bluetooth echo, volumes on specific
sources such as Nav, Voice and Reverse Park distance may
differ from the factory amplifier and this is due to end of
line vehicle configuration at the manufacturers factory.
