Moda Light SUPER NEON X User manual

INSTALLATION
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE. 955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
VDC20182706 1 / 7
This product must be installed in accordance with the applicable installation code, by a person familiar
with the construction and operation of the product and the hazards involved. Ensure power is off before
installation, verify electrical plan first, read all installation instructions before beginning installation. With the
constant development of our products please check our website (www.modalight.com) for any possible changes
to the installation of this product.
Este producto debe ser instalado de acuerdo con el código de instalación por una persona familiarizada con la construcción y operación del
producto y los riesgos que entraña. Asegúrese que la electricidad este apagada antes de la instalación, verifique plan electrico, lea todas las
instrucciones de instalación antes de comenzar instalación. Con el desarrollo constante de nuestros productos, visite nuestro website (www.
modalight.com) para todos posibles cambios en la instalación de este producto.
Ce produit doit être installé en conformité avec le code d’installation applicable, par une personne familière avec la construction et
l’exploitation du produit et les risques encourus. Assurer que l’alimentation est coupée avant l’installation, vérifiez le plan électrique d’abord,
lire toutes les instructions d’installation avant de commencer installation. Avec le développement constant de nos produits s’il vous plaît
consulter notre site web (www.modalight.com) pour toutes les modifications possibles à l’installation de ce produit.
1
Verify electrical plan and ensure all hardware is present.
Verificar plan electrico y verifique que todo el equipo esté presente.
Vérifier le plan électrique et assurer que tout le matériel est présent.
2
WET LOCATION INSTALL
INSTALACIÓN DE LUGARES HÚMEDOS
EMPLACEMENT HUMIDE INSTALLER
Max Continuous Run: 30ft
Continuidad Máxima: 30ft
Run Continue Max: 30ft
!
30ft Length Product Has No Output; Does Not Connect Continuously!
El producto de la longitud 30ft no tiene salida; ¡No se conecta continuamente!
30ft Longueur du produit n’a pas de sortie; Ne se connecte pas en continu!
!
Install 24V Driver in a wet location enclosure.
Instale 24V Driver en un recinto de ubicación mojada.
Installez le pilote 24V dans un boîtier d’emplacement humide.
3
Enclosure must be 1.5 times the volume of the Driver to allow for proper air circulation.
El recinto debe ser 1.5 veces el volumen del Driver para permitir una circulación de aire adecuada.
L’enceinte doit être 1,5 fois plus volumineuse Driver pour permettre une bonne circulation de l’air.
!
Jumper Cable TerminatorFixture to Fixture Connection5’ / 10’ / 20’
Leader Cable
SUPER NEON X®FLAT COLOR

INSTALLATION
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE. 955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
VDC20182706 2 / 7

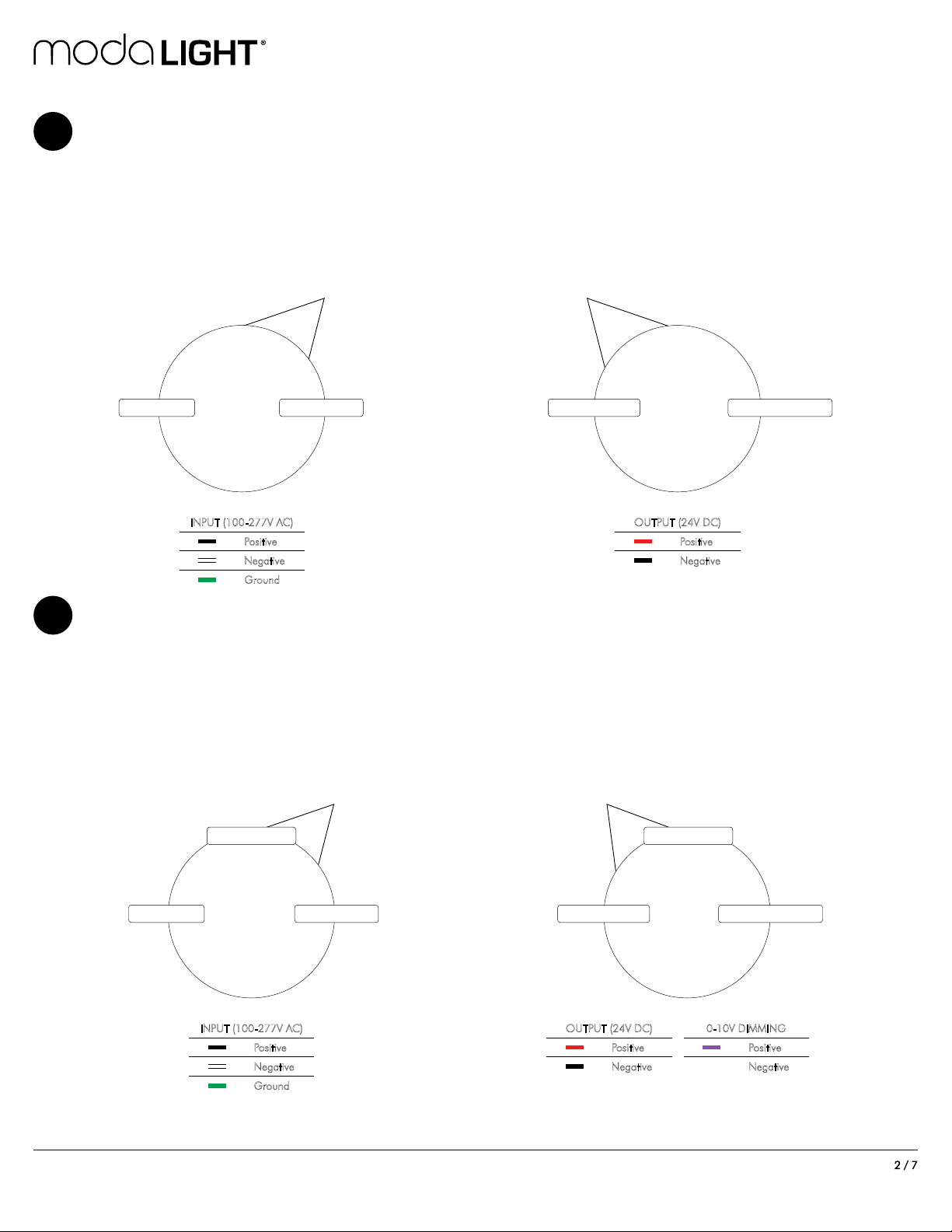

0-10V Dimming Wiring
Cablería de 0-10V Atenuador
Câblage de gradation 0-10V
4B
Non-Dimming Wiring
Cablería sin atenuación
Câblage sans gradation
4A
100-277V AC SUPER NEON X FLAT COLOR DRIVER INPUT DRIVER OUTPUT
INPUT (100-277V AC)
Positive
Negative
Ground
OUTPUT (24V DC)
Positive
Negative
UL / cUL
100-277V AC
0-10V DIMMER0-10V DIMMER
DRIVER INPUT DRIVER OUTPUT
INPUT (100-277V AC)
Positive
Negative
Ground
OUTPUT (24V DC)
Positive
Negative
0-10V DIMMING
Positive
Negative
SUPER NEON X FLAT COLOR
SUPER NEON X®FLAT COLOR

INSTALLATION
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE. 955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
VDC20182706 3 / 7
6Mount 2” clips or Xtrusion®to surface, apply tension clip and push product into place.
Instale 2” clips o Xtrusion®a superficie, applique clip de tensión y luego empuje producto en su lugar.
Monter 2 “ clips ou Xtrusion®à surface, appliquer clip tension et produit de poussée en place.
Do not twist, hang, or suspend.
No torcer, colgar o suspender.
No pas tordre, accrocher ou suspendre.
!
SNX-CLP-S2
SNX-XTR
Available in
1’ and 4’ lengths
Drill 7/8” (20mm)
holes to pass
barrel connectors
through.
Super Neon X Flat Color
Bottom Feed
Super Neon X Flat Color
Side Feed
Tension
Clips
Compatible driver list
Lista de controladores compatibles
Liste des pilotes compatibles
5
Non Dimming
MP17
MP06
MP19N
MP87
MP89
0-10v Dimming
Voltage Range
100-277V AC
346V AC
100-277V AC
100-277V AC
100-277V AC
Voltage Range
Wattage
150w
60W
60W
100W
150W
Wattage
IP Rating
IP67
IP66
IP66
IP66
IP66
IP Rating
Max Load
30ft
12ft
12ft
19ft
30ft
Max Load
SUPER NEON X®FLAT COLOR

INSTALLATION
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE. 955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
VDC20182706 4 / 7
Connect terminator
Conectar terminador
Connectez terminateur
8
Connect terminator
Conecte terminador
Connectez terminateur Appliquer du silicone
Apply silicone
Aplique silicona
Push and twist all sections of the Barrel Connectors.
Push connection together. Twist until fully tightened to seal.
Align the male and female connector.
Empujar y girar todas las secciones de los conectores.
Empuje para juntar la conexión. Gire para sellar completamente.
Alinear el connector macho con hembra.
Pousser et tourner toutes les sections des connecteurs.
Poussez la connexion ensemble. Twist pour sceller jusqu’à complètement serrée.
Alignez le connecteur mâle et femelle.
67 Connect leader cable
Conectar el cable líder
Connectez chef de fil
SUPER NEON X®FLAT COLOR

INSTALLATION
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE. 955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
VDC20182706 5 / 7
10 WARNINGS!
ADVERTENCIAS!
AVERTISSEMENTS!
9Available connections
Conexiones disponibles
Connexions disponibles
Fixture to Fixture Connection Jumper Cable Connection
30FT LENGTH PRODUCT HAS NO OUTPUT;
DOES NOT CONNECT CONTINUOUSLY.
Do not twist product.
No torcer producto. No colgar o suspender mediante connectores.
Ne pas tordre le produit. Ne pas accrocher ou suspendre par des connecteurs.
Do not hang or suspend by connectors.
No doble producto contra la fuente de luz interna.
Ne pliez pas produit contre la source de lumière interne.
Do not bend product against internal light source.
Internal Light Source
No exceda radio de curvatura mínimo de 5 “.
Ne pas dépasser minimum rayon de courbure de 5 “.
Do not exceed minimum bend radius of 5”.
5” (125mm)
No exceda radio de curvatura mínimo de 5 “.
Ne pas dépasser minimum rayon de courbure de 5 “.
Do not exceed minimum bend radius of 5”.
5” (125mm)
SUPER NEON X®FLAT COLOR

INSTALLATION
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE. 955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
VDC20182706 6 / 7
11 Accessories
Accesorios
Accessoires
PRODUCT DESCRIPTION
10’ Leader Cable
5’ Leader Cable
10FT Leader cable
for SUPER NEON
X FLAT COLOR
5FT Leader cable
for SUPER NEON
X FLAT COLOR
20FT Leader cable
for SUPER NEON
X FLAT COLOR
1FT Jumper cable
for SUPER NEON
X FLAT COLOR
Terminator for SUPER
NEON X FLAT COLOR
Aluminum mounting clip
for SUPER NEON
X FLAT COLOR
1’ Aluminum extrusion
for SUPER NEON
X FLAT COLOR
4’ Aluminum extrusion
for SUPER NEON
X FLAT COLOR
20’ Leader Cable
1’ Jumper Cable
Terminator
Mounting Clip
1’ Extrusion
4’ Extrusion
SIZE ITEM NO.
Connector Dim:
L: 1 3/16” (30mm)
W: 11/16” (17mm)
H: 1/2” (14mm)
Connector Dim:
L: 1 3/16” (30mm)
W: 11/16” (17mm)
H: 1/2” (14mm)
Connector Dim:
L: 1 3/16” (30mm)
W: 11/16” (17mm)
H: 1/2” (14mm)
Connector Dim:
L: 1 3/16” (30mm)
W: 11/16” (17mm)
H: 1/2” (14mm)
L: 1” (25mm)
W: 11/16” (18mm)
H: 1/4” (7mm)
L: 2” (50mm)
W: 11/16” (17mm)
H: 15/16” (24mm)
L: 1’ (305mm)
W: 11/16” (17mm)
H: 15/16” (24mm)
L: 4’ (1.22m)
W: 11/16” (17mm)
H: 15/16” (24mm)
SN-LDR-CBL-10FT
SN-LDR-CBL-5FT
SN-LDR-CBL-20FT
SN-JMP-CBL-1FT
SN-T
SNX-CLP-S2
SNX-XTR-1FT
SNX-XTR-4FT
SUPER NEON X®FLAT COLOR

INSTALLATION
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE. 955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
VDC20182706 7 / 7
SUPER NEON X®FLAT COLOR
Do not attempt to install or use the product
until installation is fully read and understood!
No intente instalar o utilizar el producto sin antes leer y comprender las
instruccio nes!
Ne tentez pas d’installer ou d’utiliser le produit jusqu’à ce que
l’installation est entièrement lu et compris!
Please make sure all connections are completely
pushed in before powering on to avoid electrical
arching!
Por favor asegúrese de que todas las conexiones estén completamente
empujadas antes de encender para evitar arco electrico!
Font S’il vous plaît que toutes les connexions sont complètement enfoncés
avant d’allumer pour éviter arquées électrique!
Do not coat the product in paint! This will ruin
the product and void warranty!
No cubra el producto en pintura! Esto va a arruinar el producto y anular la
garantía!
Ne pas enduire le produit dans la peinture! Cela va ruiner le produit et
annuler la garantie!
Please make sure to install in accordance with
the local code!
Por favor asegúrese de instalar de acuerdo con el código local!
Faire s’il vous plaît veillez à installer en conformité avec le code local!
Please do not cut the product.
Por favor, no cortar el producto.
S’il vous plaît ne pas couper le produit.
Do not stare into beam.
No mire fijamente la luz.
Ne pas regarder le faisceau.
Do not use the product if jacket or power
cables are damaged!
No utilize el producto si la cobertura exterior o cables de energia están
defectuosus!
Ne pas utiliser le produit si la veste ou les câbles d’alimentation sont
endommagés!
Do not use currents or voltages of any kind
that do not fit under the product’s requirements!
Por favor no utilice corrientes o voltajes que no sean los que se especifican
para los productos!
Ne pas utiliser des courants ou des tensions de toute nature qui ne rentrent
pas dans les exigences du produit!
Make sure that power or cable is completely off
or disconnected before connecting or
disconnecting the product!
Por favor asegurese que el suministro de electricidad este apagado y cables
estén desconectados antes de conectar or desconectar los productos!
Faire S’il vous plaît assurer que l’alimentation et les câbles d’électricité sont
hors tension et débranché avant de brancher ou de débrancher lampes!
Only use Moda Drivers which are listed as
compatible drivers.
Solo utilize Moda Drivers que están enlistados como drivers compatibles.
Utilisez uniquement Moda Drivers qui sont répertoriés comme pilotes
compatibles.
! !
!
!
!
Do not bend product beyond the minimum
bend radius listed on the installation guide!
No doble producto más allá del radio de curvatura mínima que aparece
en la guía de instalación!
Ne pas plier le produit au-delà du rayon de lit minimum indiqué sur le
guide d’installation!
The maximum recommended distance from
driver to the product is 20’. Any distance beyond
that is not recommended by Moda, and any
damage caused by overextending leads will void
warranty!
La distancia maxima recomendada desde driver a producto es de 20’.
Cualquier distancia más ayá no es recomendada por Moda, cualquier
daño causado por sobre extender cables anulará la garantía!
La distance maximale recommandée du pilote du produit est de 20‘. Toute
distance au-delà est pas recommandé par Moda , et tout dommage causé
par plus de l’extension des pistes annulera la garantie!
!
!
!
!
!
!
!
!
!
Be careful not to stand on product during
installation.
Tenga cuidado de no pisar el producto durante instalación.
Veillez à ne pas se tenir sur le produit lors de l’installation.
30ft length product has no output; Does not
connect continuously!
El producto de la longitud 30ft no tiene salida; ¡No se conecta continuamente!
30ft Longueur du produit n’a pas de sortie; Ne se connecte pas en continu!
