Modena Liguria Series Owner's manual

User Manual Book
(Vacuum Blender)
Liguria Series
VB 1530 V

2
Thank you for your trust in choosing MODENA products for your household
needs. With your satisfaction as our priority, we constantly aim to deliver
stylishly designed products equipped with state-of-the-art technology to
assist you in your daily activities.
This is your guidebook containing everything you need to know about our
product. Please reach us if you need further assistance or other information
via our Customer Care or our official website www.MODENA.com.

3
CONTENTS PAGE.
Introduction 2
Part 1 : Name of Parts 4
Part 2 : Preventive Action 5
Part 3 : Assembly 6
Part 4 : How to Use 8
Part 5 : Maintenance 12
Part 6 : Disposal of Used Product 13
Part 7 : Specification 13

4
NAMES OF VACUUM BLENDER PARTS
LCD DISPLAY
TOUCH CONTROL PANEL
1. “START/STOP”: Press this button to turn the blender on according to the user’s setting, Press
again to pauses the blender.
2. “MENU”: Press this button once to choose one auto program, including CRUSH, CLEAN,
SAUCE, and V+JUICE. After 4 times of pressings, the setting will be back to begin from the
CRUSH program again. The selected program will flash, and the “Speed” and “Time” of this
program will be displayed, while other indicator lights of the programs will go dark.
3. “VACUUM”: When this button is touched, the LCD display will show the “VACUUM” text and
flash. Then, touch the “START/STOP” button to vacuum, the blender will stop automatically
after 45 seconds.
4. “＋”: Press this button to add Speed or Time.
5. “－”: Press this button to decrease Speed or Time.
6. “SPEED”: Touch this button once to set up the speed, then press "+” increase or “－” to
decrease speed.
7. “TIME”：Touch this button once to set time, then press "+" to increase or “－” to decrease
time.
8. “PULSE”: Long pressing this button to make the blender works at its fastest speed. Release
Part 1: Name of Parts
Blending jug
Blending jug lid

5
the button to stop the blender working.
BLENDING JUG SET VACUUM STORAGE JUG SET
IMPORTANT SAFEGUARDS
When using the electrical appliances, basic safety precautions should always be followed, including
the following matters:
Read all the instructions carefully and recall them or store this manual book for the future
reference.
Remove all the packaging and any labels away from this vacuum blender.
Be careful to the blades that are very sharp.
Do not use this vacuum blender more than 3 minutes.
Plastic bags can be dangerous if being played by the children. To avoid danger of suffocation,
keep the plastic bag away from babies and children.
SAFETY INSTRUCTIONS
The blades of this blender are very sharp, so please handle them with
care. When handling and cleaning the blades, always hold the plastic
parts rather than the cutting edge of the blade.
Keep hands and the kitchenware away from the blade while blending
to reduce the risk of severe injury to persons or the damage to the
vacuum blender.
This blender will be damaged and may cause injury if the interlock mechanism is subjected to the
excessive force.
Before removing the blending jug: switch the blender off first and then wait until the blades have
completely stopped rotating.
Part 2: Preventive Action
Blending jug
Blending jug seal
Blending jug lid pad
Blending jug lid
Storage jug lid
Storage jug seal
Vacuum storage jug

6
Do not operate this blender with a damaged power cord or power plug, or after the blender
malfunctions or is dropped or damaged in any manner. Please contact or return the appliance to
MODENA Service Center for examination, repair, or electrical or mechanical adjustment.
Never let the machine, power cord or power plug of this blender get wet.
Do not let the excess cord of this blender hanging over the edge of a table/worktop and nudging
the hot surfaces.
Never leave this blender working unattended.
Misuse of this blender could cause injury.
Never use an unauthorized attachment.
This blender is not intended to be used by persons (including children) with special needs for their
physical, sensory or mental capabilities, or by those who are lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of this blender by a
person who responsible for their safety.
Children should be supervised to ensure that they do not play with this blender.
Do not use this blender outdoor –household use only. MODENA will not accept any liability if this
blender is subjected to the improper use, or there is failure to comply with these instructions.
To protect against the risk of the electrical shock, do not put this blender in the water or other
liquid. The close supervision is necessary when this blender is used by or near children.
Unplug the power supply of the blender when it is not in use, before putting on or taking off its
parts, and before it is cleaned.
Avoid contacting the moving or rotating parts.
The use of the blender accessories that are not recommended or sold by MODENA may cause
fire, electric shock or injury.
Do not attempt to defeat the interlock mechanism of this blender.
The blade of the blender is sharp. Handle carefully.
Make sure that the blender is installed properly before operating it.
Do not modify the power plug of the blender in any way.
Do not move the blender during operation.
Do not use the blender at a place that is unstable.
Do not put the ingredients with temperature higher than 40°C into
the blender jug. It may cause injury.
Do not perform the blender in no-load running condition. Please do not use the blender with
ingredients less than 250ml or exceed the maximum (Max) line.
CAUTION! : Before plugging in, make sure your power supply is in accordance to the
information in the rating label that is under the blender.
Save these instructions well!
A. ASSEMBLE THE VACUUM BLENDER
a. Assemble the Blending Jug
1. Assemble the Lid
Install the vacuum valve and the blending jug lid pad to the blending jug lid first.
Part 3: Assembly

7
Then, install the blending jug seal to the blending jug lid.
.
After that, install the lid filter by rotating it clockwise.
Press the blending jug lid down to the blending jug by aligning the broaded tip of the lid with
the jug spout.
.
2. Assemble the Blade Set
Rotate the blade set counter clockwise and install it to the blending jug.
.
b. Assemble the vacuum storage jug
Install the vacuum valve & the storage jug seal to the vacuum storage jug.
.
Then, install the lid filter by rotating it clockwise.

8
.

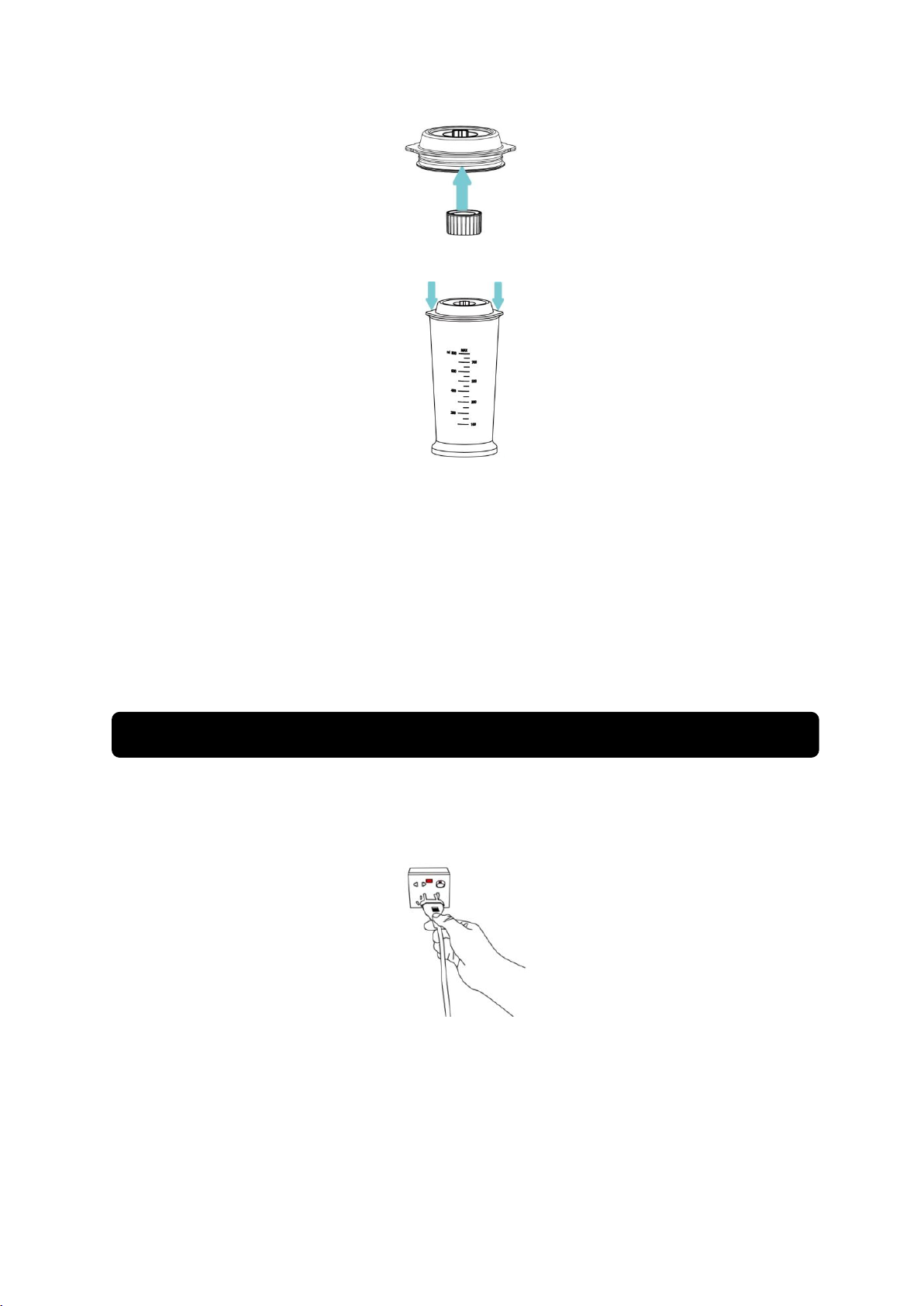

Press the storage jug lid down to the vacuum storage jug.
B. BENEFITS USING VACUUM BLENDER
Traditional blenders allow a lot of air to mix in with the ingredients during blending, so that food
can become oxidized. On the other hand, the vacuum blenders can retard the oxidization by
controlling the incipient oxidization through vacuuming before blending. In addition, this blender
can maintain the freshness of previously processed/blended food that has been vacuum stored
and retarded its oxidization by using its vacuum storage function. However, such foods stored in a
refrigerator should be consumed at the earliest possible opportunity because vacuum storage
itself does not inhibit the growth of bacteria.
A. VACUUM BLENDER USE
Connect the power plug of this blender to the power supply, and the machine will beep once. After
that, this vacuum blender could be used.
a. For Vacuum
Install the vacuum storage jug in its place.
Part 4: How to Use

9
This vacuum blender has separate vacuum functions that are programmed to vacuum
ingredients in the blending jug/vacuum storage jug/vacuum bags. Press the VACUUM
button, and the blender “TIME” setting will count for 45 seconds. Then, the blender will stop
automatically. The text of "VACUUM" appears on LCD display and will flash 9 times with
beeps.
NOTE: When the VACUUM program is running, the only button that could work is
"START/STOP" button.
b. For Blending
Install the blending jug as the following pictures:

10
1. “MENU” Auto Programs
Press the “Menu” button once to choose a single auto program, including CRUSH,
CLEAN, SAUCE, V+JUICE. After 4 times of pressings, the setting will begin from the
CRUSH program again. The selected program will flash, and the “Speed” and “Time” of
this program will be displayed. Meanwhile, other indicator lights of other programs will go
dark. After finish the program, machine will stop automatically, and the chosen menu will
flash with beeps for 9 times.
NOTE: When a “MENU” program is running, the only button that could work is
"START/STOP" button.. “MENU” function can be stopped by touching “START/STOP”.
2. DIY (Do It Yourself) Function
When you want to blend or grind at your preferred timescale, you can operate this
vacuum blender in a manual way.
a. If you need vacuum first, press “VACUUM” button and wait for 45 seconds until the
machine stops.
b. Press the “SPEED”button to select the preferred speed, and press “TIME”to select
preferred time.
c. Press “START/STOP”to start the blender to work in your way.
NOTE: When the blender is running at the selected speed and time, pressing the”MENU”
button will not perform any function. The blender will stop working automatically after 2
minutes 30 seconds to ensure the user’s safety. Please re-select the speed and time to
be used continuously. However, it is suggested to not operate the blender over 3 minutes
continuously, and please cool the blender down for 30 minutes before the next use.

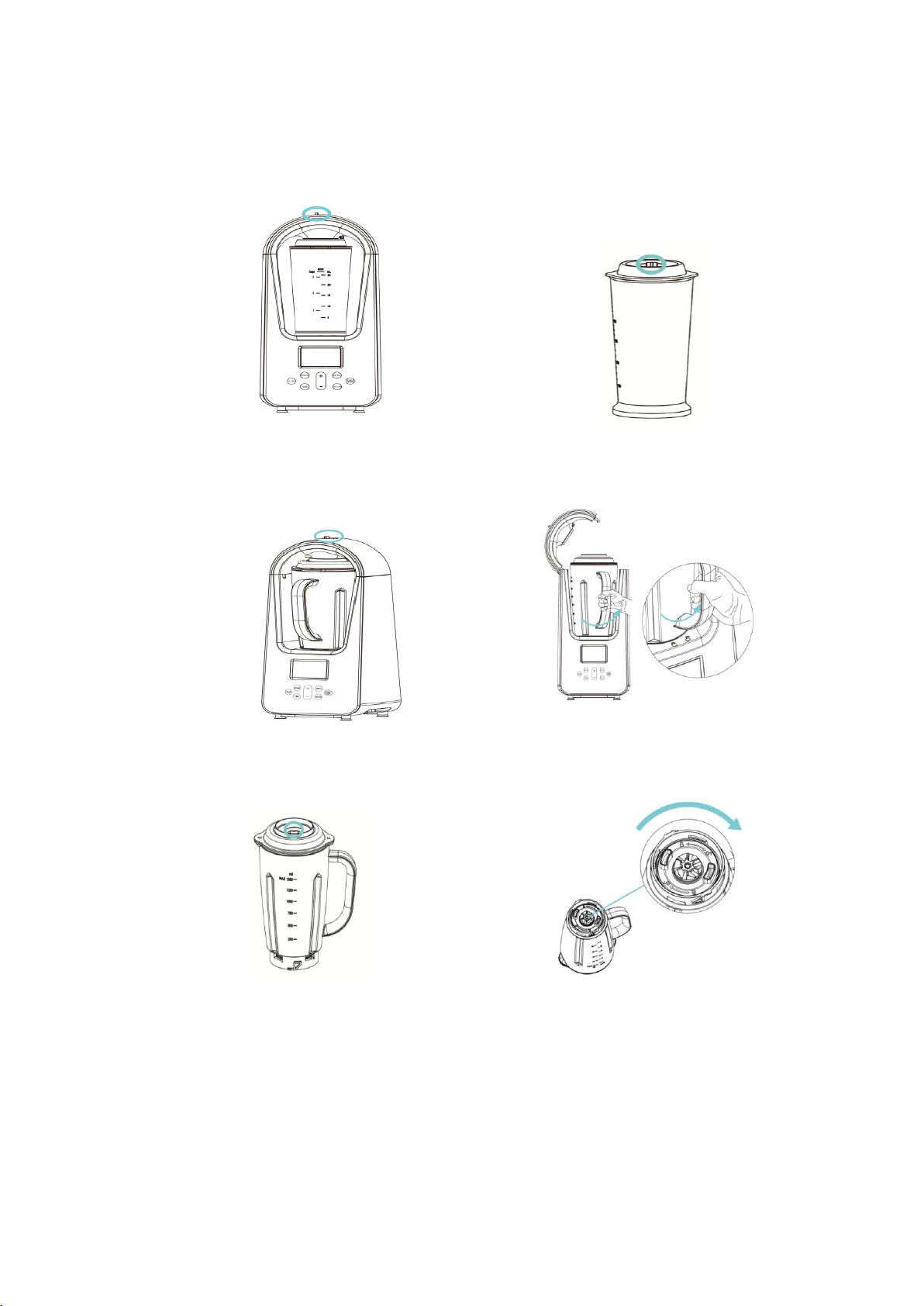

B. DISASSEMBLE VACUUM BLENDER
Always release the vacuum valve completely before opening the upper cover, blending jug lid and
storage jug lid; otherwise they cannot be opened easily.

11
a. Disassemble the Vacuum Storage Jug:
1. If the vacuum function has been used,
release the vacuum to open the upper
cover.
2. Release the vacuum storage jug out to
be stored in the refrigerator or to be
carried around. If the vacuum function
has been used, release the vacuum first
when the lid wants to be opened.
b. Disassemble the Blending Jug :
1. If the vacuum function has been used,
relase the vacuum to open the upper
cover.
2. Rotate the blending jug counter
clockwise to take it out.
3. If the vacuum function has been used
previously, relase the vacuum first to
open the blending jug lid.
4. Empty the blending jug first, and then
you can disassemble the blade set.
C. USEFUL TIPS
Tips: It is easier to open the blending jug lid or vacuum storage jug lid if you use one hand to
release the vacuum seal. Use the other hand to open the lid, although the vacuum function has
not been used
Important
When preparing the food for babies or children, always check that the ingredients are
thoroughly blended before feeding them.

12
Do not operate the vacuum blender continuously for longer than 3 minutes. Leave the blender
to cool down for 30 minutes between each operation.
Do not operate the vacuum blender if the blending jug is empty.
Always let the hot food to cool down first before blending.
Do not place any part(s) of the vacuum blender into a microwave.
Hints
If the blender is overload, remove some of the mixture (ingredients) and continue the blending
process in several batches. Otherwise, you may strain the motor to work out of reach.
Remember that blending the hard foods such as coffee beans, spices, chocolate or ice cube
will wear the blades faster.
Beware of over blending some ingredients excessively. Stop and check the consistency
frequently.
Optional Accessory

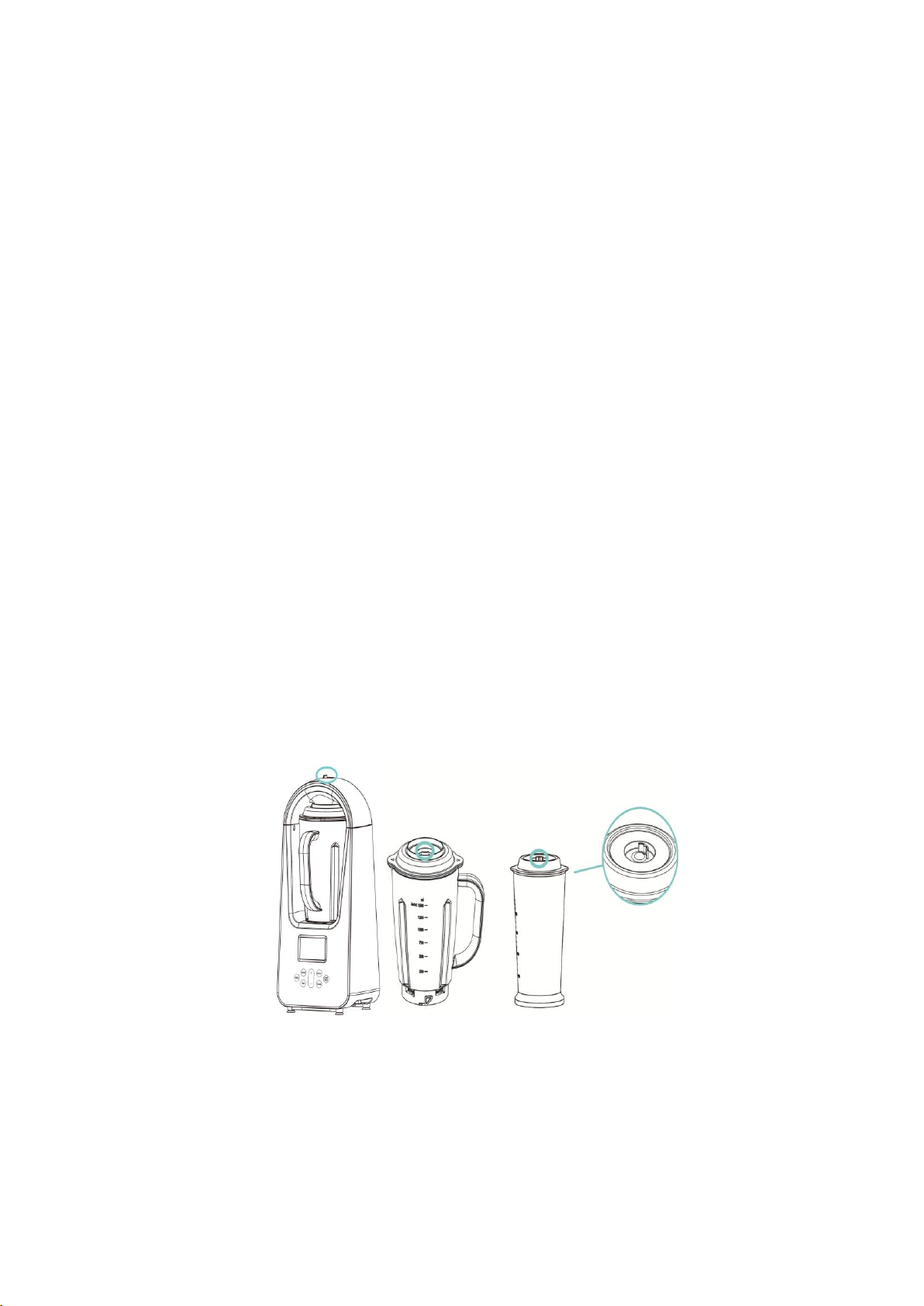

There is a vacuum pipe as optional accessory. If ia vacuum pipe comes with your vacuum
blender, please use it the following instructions:
Insert the smaller end of the vacuum pipe into the vacuum hole of upper cover, then connect
the bigger end to the vacuum box or the vacuum bag and hold it by one hand. Use another
hand to press the “VACUUM”button and hold the bigger end until it is adsorbed to the
vacuum box/bag.
After the “VACUUM”program has finished (if it is done to be used, stop the “VACUUM”
manually at a proper time), release the vacuum valve first, and then the bigger end of the pipe
will detach from the vacuum box/bag. Unplug the smaller end of the pipe to store the vacuum
pipe accessory away.
Caution! Danger of injury! The blades are very sharp! Do not touch the blades of blender while it is
operating and being cleaned in order to avoid injury! For the safety reason, the blades are not
designed to be removed apart from the blender.
Caution! Danger of electric shock! Before cleaning or removing parts of the blender, switch off the
blender and always remove the power plug from the power socket. Never soak the blender into the
water. The electrical connector parts must not get wet. The contact of the electrical parts with
moisture can cause electric shock or short circuit and damage.
Do not use strong detergent or metallic and abrasive objects to clean the blender because its
surface and accessories of the blender might get damaged.
If necessary, just wipe the main body of the blender with a dry or damp cloth.
Store the blender in a dry safe place and not reachable by children.
Part 5: Maintenance

13
Customer Care
If the cord of the blender is damaged, it must be replaced only by MODENA for safety reasons.
If you need help with the using method of this blender or repairs, please contact MODENA Call
Center.
At the end of its operating period, the blender must not be disposed as
urban or common waste.
It must be taken to a local authority differentiated waste collection centre
or to a dealer that provides the correct disposal service.
Disposing a household appliance separately, could avoid the possible
negative consequences for the environment and health deriving from the
inappropriate disposal. Disposing this product appropriately also
enables the constituent materials of this appliance to be recycled to
obtain the significant savings in energy and resources. As a reminder of
the need to dispose the household appliances separately, the product is
marked with a crossed-out wheeled dustbin.
Model
VB 1530 V
VB 1530 W
Color
Black + Silver
Black + White
Control Panel
Touch Control
Touch Control
Control Display
LCD Display
LCD Display
Automatic Menu
4 Menus
4 Menus
Vacuum Function
Yes
Yes
Time Controller
Yes
Yes
Speed Controller
Yes
Yes
Pulse Function
Yes
Yes
Blade Quantity
6 Blades
6 Blades
Blade Material
Stainless Steel
Stainless Steel
Power
800 W
800 W
Voltage / Frequency
220-240 V / 50 Hz
220-240 V / 50 Hz
Blending Jug Capacity
1.5L (50oz)
1.5L (50oz)
Vacuum Storage Jug
Capacity
0.8L
0.8L
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this manual are
schematic and may not match your product exactly. Values stated on the machine labels or in the documentation
accompanying it are obtained in laboratory in accordance with the relevant standards. Depending on operational and
environmental conditions of the appliance, values may vary.
Part 7: Specification
Part 6: Disposal of Used Product

11/20
