Modena Adattare Series User manual

User
Manual Book
Dishwasher
Adattare Series
WP 2060 S

2
Thank you for your trust in choosing MODENA products for your household
needs. With your satisfaction as our priority, we constantly aim to deliver
stylishly designed products equipped with state-of-the-art technology to
assist you in your daily activities.
This is your guidebook containing everything you need to know about our
product. Please reach out to us if you need further assistance or other
information via our Customer Care or our official website www.modena.com.

3
TABLE OF CONTENTS PAGE
INTRODUCTION 2
⚫Part 1 : Safety Information 4
⚫Part 2 : Name of Parts 6
⚫Part 3 : Installation 6
⚫Part 4 : How to Use 11
⚫Part 5 : Maintenance 26
⚫Part 6 : Points of Attention 28
⚫Part 7 : Troubleshooting 29
⚫Part 8 : Specification 33

4
READ THIS MANUAL CAREFULLY!
⚫This appliance is intended to be used in household and similar applications such as:
–staff kitchen areas in shops, offices and other working environments;
–farm houses;
–by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments.
⚫This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
⚫This appliance is for indoor use only, for household use only.
⚫To prevent the risk of electrical shock, do not immerse the unit, cord or plug in water or
other liquid.
⚫Please unplug the power plug before cleaning and maintaining the appliance.
⚫Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
GROUNDING INSTRUCTION
⚫This appliance must be grounded. When malfunction or breakdown occurs, grounding
will reduce the risk of an electric shock by conducting the electric current to the ground.
This appliance is equipped with a cord with a grounding-equipped conductor and a
grounding plug.
⚫The plug must be plugged into an appropriate outlet that has been grounded in
accordance with all of your place’s safety standards.
⚫Do not modify the plug provided with the appliance if it does not fit with the outlet. Have
a proper outlet installed by a qualified electrician.
⚫Improper connection of the grounding-equipment conductor can result in the risk of
electric shock. Check it with qualified electrician or service representative if you are in
doubt whether the appliance is properly grounded.
PART 1: SAFETY INFORMATION

5
GENERAL USE
⚫Do not harm, sit on, or stand on the door or the dish rack of the dishwasher.
⚫Do not operate your dishwasher unless all panels are properly in place.
⚫Open the door carefully if the dishwasher is operating, there is a risk of water sprays
out.
⚫Do not place any heavy objects on or stand on the door when it is open. The appliance
could fall forward.
⚫When loading items to be washed: 1) Check and place sharp items to ensure they won’t
damage the door seal; 2) Warning: Knives and other utensils with sharp points must be
loaded in the basket with their points down or placed in a horizontal position.
⚫Check if the detergent powder is empty after the completion of the wash cycle.
⚫Do not wash plastic items unless they are marked as dishwasher safe or the equivalent.
For plastic items without mark, check the manufacturer's recommendations.
⚫Only use detergent that exclusively designed for an automatic dishwasher.
⚫Never use soap, laundry detergent, or hand-washing detergent for this appliance.
⚫Supervise the children to ensure that they do not play with the appliance.
⚫The door should not be left open since this could increase the risk of appliance to fall
forward.
⚫If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid hazard.
⚫During the installation, the power supply and the cord should not be bent or crushed.
⚫Do not tamper the controls.
⚫The appliance has to be connected to the water sources using new hose sets, and the
old hose-sets should not be reused.
⚫The maximum number of place settings to be washed is 6.
⚫The maximum permissible inlet water pressure is 1 MPa.
⚫The minimum permissible inlet water pressure is 0.04 MPa.

6
Installation Preparation
⚫The installation of dishwasher should be placed near the existing water inlet tap,
the drain outlet and power socket.
⚫One side of the sink cabinet should be chosen to facilitate the connection of
drain hoses of the dishwasher.
Dispenser
Salt container
Filter assembly
Spray arm
Cup rack
Cutlery basket
Basket
PART 2: NAME OF PARTS
PART 3: INSTALLATION

7
Power Connection
Electrical requirements:
Please look at the rating label to know the rating voltageand connect the dishwasher
to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or
recommended circuit breaker and provide separate circuit for this appliance only.
Electrical connection:
Ensure the voltage and frequency of the power source match with the rating plate.
Only insert the plug to an electrical socket that properly grounded. If the electrical
socket is not suitable with the appliance’s plug, replace the socket rather than using
an adapters as it could cause overheating and risk of fire.
Ensure that the grounding connection is proper before using the dishwasher!

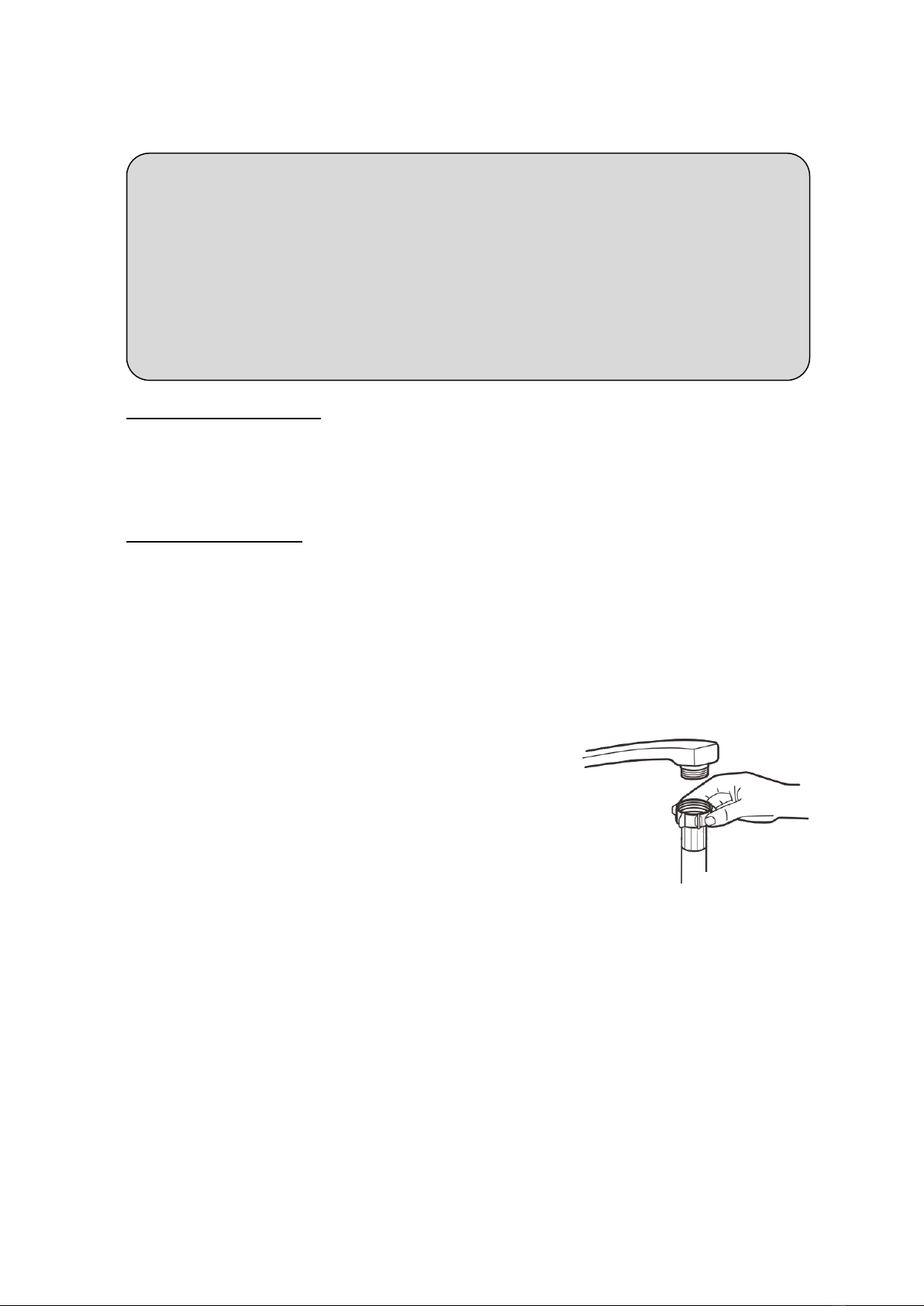

Water Connection
Connect the cold water supply hose to a threaded 3/4
inch connector and make sure that it is fastened tightly
in place. If the water pipes are new or have not been
used for an extended period of time, let the water run
first to make sure that the water is clean and free of
dirt. If this precaution is not taken, there is a risk that
the water inlet get blocked and damage the appliance.
Please Note: If the supplied hose does not fit your tap, please contact your local
plumbing supply center where adapters are available for purchase.
WARNING!
For personal safety:
⚫DO NOT use an extension cord or an adapter plug for this appliance
⚫DO NOT under any circumstances, cut or remove the grounding
connection from the power cord

8

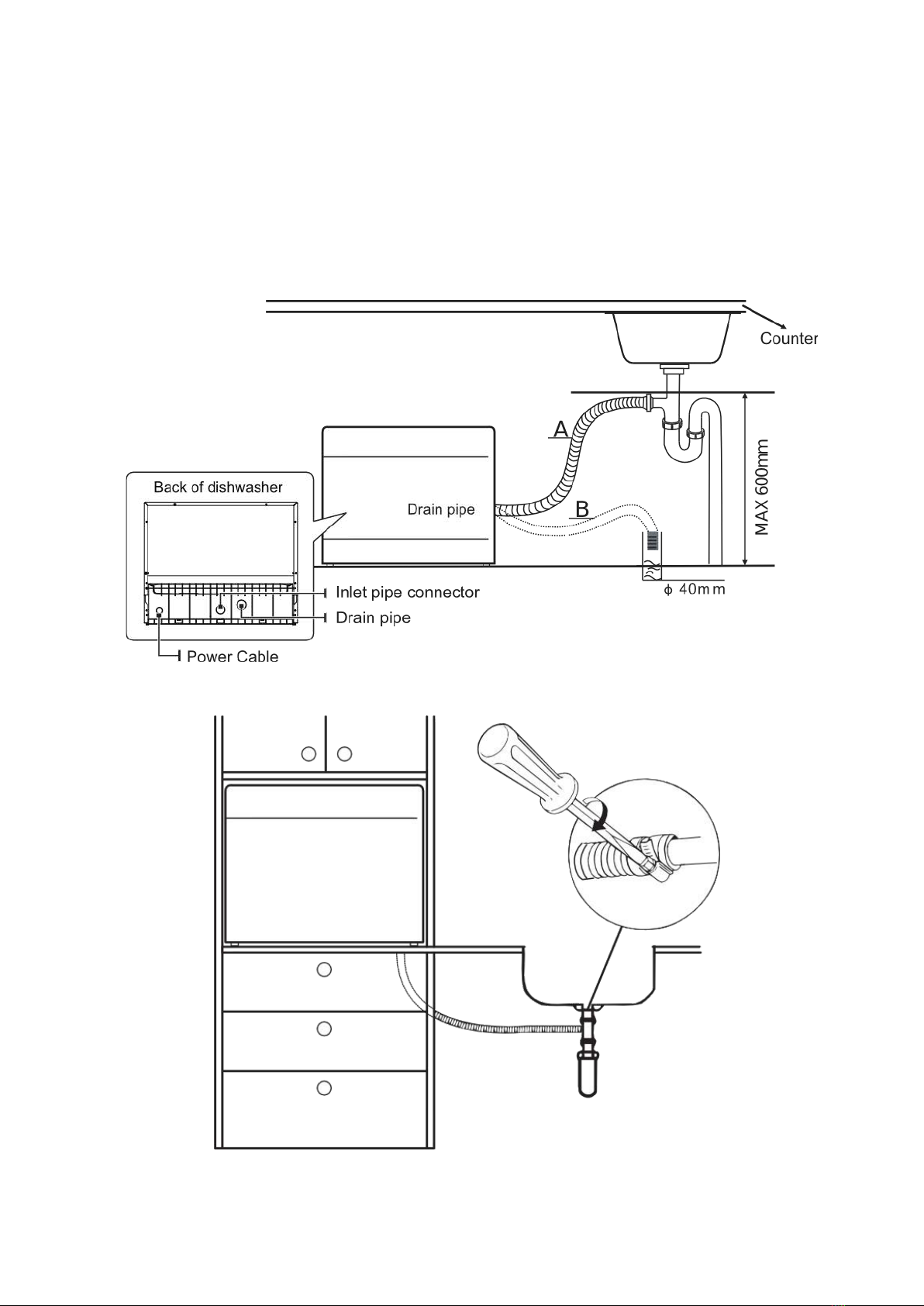

Drain Hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of 40 mm, or let it
run into the sink, make sure to avoid bending or crimping the hose. The height of
drain pipe must be less than 600mm. The free end of the hose must not be
submerged in water to avoid the back flow.
Ensure the drain hose is locked properly in either position A or position B!

9
How to Drain Excess Water
If the sink is 1000 mm higher or more than the floor, the excess water in hoses
cannot be drained directly to the sink. It will be necessary to drain the excess water
from hoses to a bowl or bucket or suitable container that is held outside and is lower
than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be installed properly to avoid
water leaks. Ensure that the water drain hose is not kinked or crushed.
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose. It must
be no longer than 4 meters, otherwise the cleaning effect of the dishwasher could
be reduced.
Syphon Connection
The waste connection must be at a height less than 100 cm (maximum) from the
bottom of the dish. The water drain hose should be in a fixed condition.
Positioning the Appliance
Position the appliance in the desired location. The back should stick to the wall
behind it, and the sides to the adjacent cabinets or wall. The dishwasher is equipped
with water inlet hose and drain hose that can be positioned to the right or the left to
facilitate proper installation.
This appliance can be installed as a countertop, under counter, or built-in
configuration.

10
Built-in Installation:

11
Power
Press this button to turn on the dishwasher. When turned on
the screen lights will light up.
Extra Drying
For better drying result (can only be used with Intensive, ECO,
Glass, 90 min program)
Child lock
This option allows you to lock the buttons on the control panel,
so the children cannot accidentally start the dishwasher by
pressing the buttons on the panel. Only the Power button
remains active. To lock or unlock the buttons on the control
panel, press and hold the button for 3 seconds.
Delay +/-
Press the “+” button to add the delay time or press the “-” button
to decrease the delay time. The delay time can be adjusted up
to 24 hours.
PART 4: HOW TO USE

12
Start/Pause
To start the selected washing program or pause it when the
dishwasher is working.
Program
Selection of the washing program. Select the appropriate
washing program and the program’s indicator light will turns
on.
Screen
Rinse Aid
If this indicator light turns on, it means the dishwasher is
low on rinse aid and requires a refill.
Salt
If this indicator light turns on, it means the dishwasher is
low on dishwasher salt and needs to be refilled.
Water Faucet
If the indicator is lit, it means the water faucet is closed
To show the selected program temperature, remaining
time and delay time, error codes etc.
Program
indicators
Auto
Light to heavily soiled items, automatically detect the
amount of soils.
Intensive
For heavily soiled dishes and normally soiled pots, pans,
dishes etc. with dried-on food.
ECO
This is the standard program, it is suitable to clean
normally soiled tableware and it is the most efficient
program in terms of its energy and water consumption.
Glass
For lightly soiled crockery and glass.
90 min
For normally soiled plates that need a quick wash.
Rapid
A shorter wash for lightly soiled tableware that do not
need drying.

13
Self Cleaning
This program provides an effective cleaning of the
dishwasher itself.
Before using your dishwasher
1. Set the water softener
2. Load the salt into the salt container
3. Load the basket
4. Fill the rinse aid and detergent dispenser
Filling the Salt into the Salt Container
If your model does not have salt container, you may skip this section. The salt
container is located beneath the basket and should be filled as follows:
WARNING!
⚫Only use salt specifically designed for dishwashers use! Every other type
of salt not specifically designed for dishwasher use, especially table salt,
will damage the water softener. In case of damages caused by the use of
unsuitable salt the manufacturer does not give any warranty nor is liable
for any damages caused.
⚫Only fill the salt before running a cycle. This will prevent any grains of salt
or salty water, which may have been spilled and remain on the bottom of
the machine for any period of time, which may cause corrosion.

14
A. Remove the basket and then remove the cap from the salt container by rotating
it counter-clockwise.
B. Before the first cycle of washing, add 1 liter of water to the salt container.
C. Place the end of the funnel (supplied) into the hole and add about 0.13 kg of
salt. It is normal for a small amount of water to come out of the salt container.
D. After filling the container, put the cap on tightly by rotating it in a clockwise
direction.
E. Usually, the salt indicator light will turns off in 2-6 days after the salt container
has been filled.
F. Immediately start a washing program (Rapid program suggested) after filling the
salt into the salt container. Otherwise, the filter system, pump or other important
parts of the machine may be damaged by the salt water. This will cancel the
product’s warranty.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed
based on the hardness of the water used. This is intended to optimize and adjust
the level of salt consumption.
Please follow these steps below for adjustment in salt consumption.
1. Turn on the appliance;
2. Press the Start/Pause button for more than 5 seconds to start the salt settings
mode within 60 seconds after the appliance is turned on;
3. Press the Start/Pause button to select the proper setting according to your local
environment, the setting will change in the following sequence:
H1->H2->H3->H4->H5->H6;
NOTE:
⚫The salt container must only be refilled when the salt warning light in the
control panel turns on. Depending on how much the salt dissolves, the
salt warning light may still turns on even though the salt container has
been filled. If there is no salt warning light in the control panel (For some
Models), you can judge when to refill the salt by the cycles that the
dishwasher had run.
⚫If there are spills of the salt, a rapid program should be run to remove the
remains of the salt.

15
4. If there is no operation within five seconds, the machine will exit from the setting
mode and the machine goes into the standby status.
There are 6 levels of salt consumption in all. It is recommended to select the level
according to below table:
WATER HARDNESS
Setting on the
water softener
Digital display
°dH1)
Mmol/l2)
0 - 5
0.0 - 0.9
1
H1
6 - 11
1.0 - 2.0
2
H2
12 - 17
2.1 - 3.0
3
H3
18 - 22
3.1 - 4.0
43)
H4
23 - 34
4.1 - 6.1
5
H5
35 - 45
6.2 - 8.0
6
H6
1) German unit of measurement for water hardness
2) Millimole, international unit of measurement for water hardness
3) Default factory setting
Contact your local water institution for information on the water hardness
Filling the Basket
Recommendation:
⚫Consider buying tableware which identified as dishwasher safe.
⚫Use a mild detergent that is safe for dishes. If necessary, seek further
information from detergent manufacturers.
⚫For particular items, select a program with the lowest possible temperature.
⚫To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program just ended.
Suitability of use
Not suitable:
Limited Suitability:
⚫Cutlery with wooden, horn, or mother-of-
pearls handles
⚫Plastic items that are not heat resistant
⚫Older cutlery with glued parts that are not
heat resistant
⚫Some glasses may look dull after a large
number of washes.
⚫Silver and aluminum have a tendency to
discolor during the washing process.
⚫Glazed patterns may fade if washed
frequently.

16
⚫Bonded cutlery items or dishes
⚫Pewter or copper items
⚫Crystal glass
⚫Steel items subject to rusting
⚫Wooden items
⚫Items made from synthetic fibers
Attention before and after filling the baskets
(For the best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your
model.)
Scrape off any large food particles. Soften burnt food particles in pans. It is not
necessary to rinse the dishes under running water. Place objects in the dishwasher
in following way:
⚫Items such as cups, glasses, pots/pans, etc. should face downwards.
⚫Curved items or those with niche, should be placed on a tilted position so the
water can run off.
⚫All tableware are neatly arranged and not fall easily.
⚫All tableware are placed in the way that the spray arms can rotate freely during
washing.
⚫Insert hollow items such as cups, glasses, pans etc. facing downwards so the
water does not get collected in the cavity.
⚫Plates and cutleries must not lie on or cover each other.
⚫To avoid damage to glasses, they must not touch each other.
⚫Long bladed knives stored vertically are dangerous!
⚫Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
⚫Please do not overload your dishwasher. This is important for good results and
for reasonable energy consumption.
NOTE:
Very small items should not be washed inthe dishwasher as they could easily
fall from the basket

17

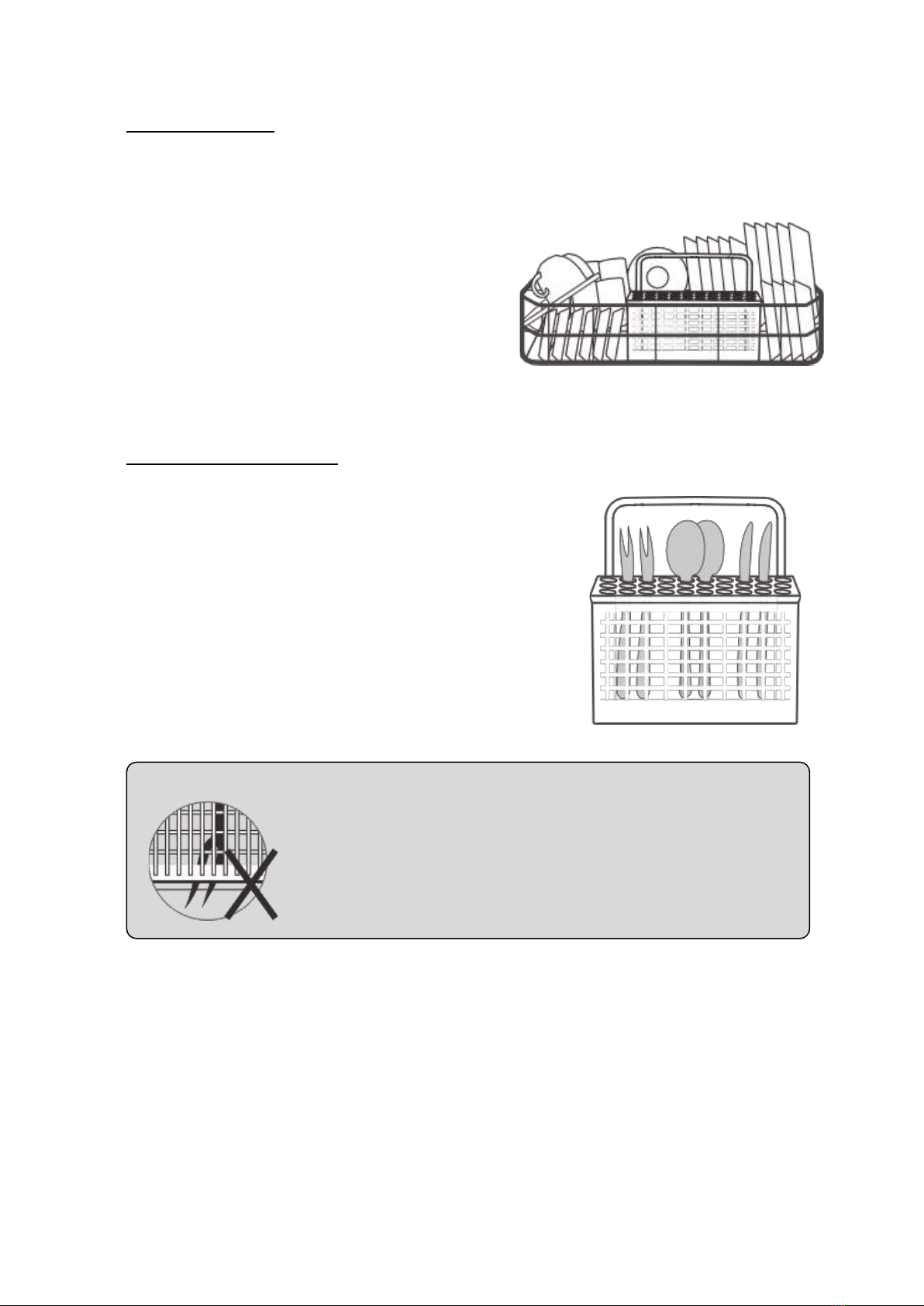

Filling The Basket
All tableware can't be placed face up to
improve the cleaning area and the washing
performance, it is recommended to place the
dirty side towards the spray arm. Please don't
let the tableware out of the bottom basket to
make sure they don’t block the movement of
the spray arm. The maximum diameter of
plates that can be placed in front of the
dispenser is 19 cm, this is to ensure that the
door can be closed tightly.
Filling The Cutlery Basket
For personal safety and a top quality cleaning, place
the cutlery in the basket making sure that:
⚫They do not stacked together.
⚫Cutlery is placed with the handles on the bottom.
⚫But place knives and other potentially dangerous
utensils with the handles on top.
WARNING:
Do not let any item extend through the
bottom. Always place the sharp utensils with
the sharp tip facing down!

18
LOADING THE BASKETS ACCORDING TO EN50242
1. Basket
No.
Item
1
Cups
2
Medium serving bowl
3
Glasses
4
Saucers
5
Dish
6
Oval platter
7
Dinner plates
8
Soup plates
9
Dessert dishes
10
Cutlery basket
11
Serving spoons

19
2. Cutlery Basket
Information on comparability tests in accordance with EN 50242
⚫Capacity: 6 place settings
⚫Program: ECO
⚫Rinse aid setting: 6
⚫Softener setting: H4
No.
Item
1
Forks
2
Soup spoons
3
Dessert spoons
4
Teaspoons
5
Knives
6
Serving spoons
7
Gravy ladle
8
Serving forks

20
Function of Rinse Aid and Detergent
The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by
allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse
aids.
When to refill the Rinse Aid dispenser
Unless the rinse-aid warning light ( ) on the control panel is on, you can always
estimate the amount from the color of the optical level indicator located next to the
cap. When the rinse-aid container is full, the indicator will be fully dark. The size of
the dark dot decreases as the rinse-aid diminishes. You should never let the rinse
aid level be less than 1/4 full. As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Function of the Detergent
The chemical ingredients that compose the detergent are necessary to remove,
crush, and dispense all dirt out of the dishes. Many commercial detergents are
suitable for this purpose.
WARNING!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid
detergent). This would damage the appliance.
WARNING!
⚫Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your
detergent fresh and dry. Don't put powdered detergent into the
dispenser until you are ready to wash dishes. Do not use other type of
detergent as it may damage the appliance.
⚫Dishwasher detergent is corrosive! Keep dishwasher detergent out
of the reach from the children.
Full
1/2 Full
Empty
3/4 Full
1/4 Full
