Modena WP 7121 S Owner's manual

1
User
Manual Book
Dishwasher
Series
WP 7121 S

TABLE OF CONTENTS
SAFETRY AND WARNING 4
Earthing insreuction 4
General use 5
FEATURES 7
Basket part according to EN 50242 8
Control panel 10
INSTALLATION 13
Installation preparation 13
Power connection 13
Water connection 14
Drain hose connection 14
Positioning the appliance 15
HOW TO USE 17
Before using your dishwasher 17
Loading salt into salt container 17
Adjusting salt consumption 19
Basket usage tips 22
Folding the cup shelves 23
Folding the rack shelves 24
Cutlery rack usage tips 24
Filling the rinse aid reservoir 27
Adjusting the rinse aid reservoir 27
Filling the detergent 28
Dishwasher programs 29

3
Turning on the appliance 31
Changing the program 31
Adding dish 32
MAINTENANCEE 34
External care 33
Internal care 34
Spy arms 36
How to keep your product in shape 37
TROUBLESHOOTING 39
Error codes 43
SPECIFICATION 44
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com.

4
Read this manual carefully!
•This appliance is intended to be used in household and somilar
applications such as:
-Staff kitchen areas in shops, offices and other working
environments;
-Farm houses;
-By clients in hotels, motels and other residential type
environments;
-Bed and breakfast type environments.
•This appliance is not intended for people (including children) with
reduced physical, sensory or mental capabilities, or lack of
experience and knowledge. Unless they have been given
supervision or instruction concering use of the appliance by a
person responsible for their safety.
•This appliance is for indoor use only, for household use only.
•To protect againts the risk of electrical shock, do not immerse
the unit, cord or plug in water or other liquid.
•Please unplug before cleaning and maintaining the appliance.
•Use a soft cloth moisten with mild soap, and then use a dry cloth
to wipe it again.
Earthing instruction
•This appliance must be eartherd. In the event of a makfunction
or breakdown, earthing will reduce the risk of an electric shock
by providing a path of lleast resistance of electric current. This
appliance is equipped with a cord having an eqipment-earthing
conductor and a earthing plug.
•The plug must be plugged into an appropriate outlet that is
installed and earthed in accordance with all local codes and
ordinances.
•Do not modify the plug provided with appliance; if it does not fit
the outlet. Have a proper outlet installed by aqualified electrician.
SAFETY AND WARNING

5
•Improper connection of the equipment-earthing conductor can
result in the risk of an electric shock. Check with a qualified
electrician or service or service representative if you are in dpubt
whether the appliance is properly earthed.
General use
•Do not abuse, sit on, or stand on the door or dish rack of the
diswasher.
•Do not operate your dishwasher unless all enclosure panels are
properly in place.
•Open the door very carefully if the dishwasher is operating, there
is a risk water squirting out.
•Do not place any havy objects on or stand on the door when it is
open. The appliance could tip forward.
•When loading items to be washed:
- Loacte sharp items so that they are likely to damage the door
seal
- Warning: Knives and other utensils with sharp points must
be loaded in the basket with their points down or placed in a
horizontal position.
•Check that the detergent powder is empty after completion of
the wash cycle.
•Do not wash plastic items without mark, check the
manufacturer’s recommendations.
•Use only detergent additives designed for an automatic
dishwasher.
•Never use soap, laundry detergent, or hand washing detergent
in your dishwasher.
•Children should be supervised to ensure that they do not play
with the appliance.
•The door should not be left open, since this could increase the
risk of tripping.
•If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
•During installation, the power supplu must not be excessively or
dangerously bent or flattened.

6
•Do not tamper with controls.
•The appliance is to be connected to the water mains using new
hose sets and that old hose-sets should not be reused.
•The maximum number of place settings to be washed is 14.
•The maximum permissible inlet water pressure is 1 MPa.
•The minimum permissible inlet water pressure is 0.04 MPa.

7
FEATURES

8
Basket part according to EN 50242
1. Upper basket
2. lower basket
No.
Item
1.
Cups
2.
Saucers
3.
Glasses
4.
Small serving bowl
5.
Medium serving bowl
6.
Large serving bowl
No.
Item
7.
Dessert dishes
8.
Dinner dishes
9.
Soup plates
10.
Oval platter

9
3. Cutlery basket
Information on comparability tess in accordance with EN50242
•Capacity: 14 place settings
•Perogram: ECO
•Rinse aid setting: 6
•Softener setting: H3
No.
Item
1.
Soup spoons
2.
Forks
3.
Knives
4.
Teaspoons
5.
Dessert spoons
6.
Serving spoons
7.
Gravy ladles
8.
Gravy ladles

10
Control panel
1.
Power
Press this button to turn on the dishwasher,
the screen lights up.
2.
Alt
For small loads, you may use just the upper
or lower rak to save energy. Each press of
the Half Load button cycles between upper
rack only and lower rack only.
3.
Delay
Press this button to set the delayed hours
for washing. You can delat the start of
washing up to 24 hours. One press on this
button delays the start of washing by one
hour.
4.
Child Lock
This option allows you to lock the buttons
on the control panel-except the Power
button –so children canoot accidentally
start the dishwasher by pressing the
buttons on the panel. To lock or unlock the
buttons on the control panel, press and hold
the Delay button + Alt button for 3 second
simultaneously. When pressing this button,
correspon-ding indicator will be it.
5.
Program
Select the appropriate washing program,
the selected program indicator will be lit.
6.
Extra Drying
To wash grimy; dirty item which hard to
clean. (it can only be used with Intensive,
Normal, ECO, Glass, 90 min)

11
7.
Start/Pause
To start the selected washing program or
pause it when the dishwasher is working.
8.
Program indicator
Auto
Auto sensing wash, lighly, normally or
heavily soiled crockery, with or without
dried-on food.
Intensive
Heavily soiled items include pots and pans.
With dried on food.
Normal
For normally soiled loads, such as pots,
plates, glasses and lightly soiled pans.
ECO
This is the standar program suitable for
nomally soiled loads, such as pots, plates,
glasses and lightly soiled pans.
Glass
For lightly soiled crockery and glass.
90 Mins
For normally soiled loads that need quick
wash.
Rapid
A shorter wash for lightly soiled loads that
do not need drying.
Soak
To rinse dishes that you plan to wash later
that day.
9.
Screen
To show the program, delay time,
error code etc.
10
Alt indicator
Upper
When you selec Upper, only the upper rack
nozzle is activated. The lower nozzle will not
operate.

12
Lower
When you select Lower, only the lower rock
nozzle is activated. The upper nozzle will
not operated.
11.
Warning indicator
Rinse Aid
If the symbol indicator is lit, it means the
dishwasher is low on dishwasher rinse aid
and requires a refill.
Salt
If the symbol indicator is lit, it means the
dishwsher is low on dishwasher salt and
needs to be refilled.

13
Installation preparation
•The installation position of dishwasher should be near the
existing water inlet tap and drain outlet and power socket.
•One side of the cabinet sink should be chosen to facilitate the
connection of drain hoses of the dishwasher.
Power connection
Electrical requirements:
Please look at the rating label to now the rating voltage and connect the
dishwasher to the appropriate power supply. Use the required fuse 10
amp, time delay fuse or circuit breaker recommended and provide
separate circuit serving only this appliance.
Electrical connection:
Ensure the voltage and requency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket
which is earther properly. If the electrical socket to which the appliance
must be connected is not appropriate for the plug. Replace the socket,
rather than using a adapters or the like as they could cause overheating
and burns. Ensure that proper earthing exists before use!
INSTALLATION
WARNING!
For personal safety:
•Do not use an extension cord or an adapter plug with this
appliance.
•Do not under any circumstance, cut or remove the earthing
connection from the power cord.

14
Water connection
Connect the cold water supply hose to a threaded
¾ inch connector and make sure that it is
fastened tightly in place. If the water pipes are
new or have not been used for an extended
period of time, let the water run to make sure that
the water is clear and free of impurities. If this precaution is not taken,
there is a risk that the water inlet can get blocked and damage the
appliance.
Drain hose connection
Insert the drain hose into a drain pipe with a minimum diameter of 4cm.
Or let it run into the sink, making sure to avoid bending or crimping it.
The height of drain pipe must be less thatn 1000mm. The free end of the
hose must not be imersed in water to avoid the back flow of it.
Please securely fix the drain hose in either position A or position B!
NOTE:
If the supplied hose does not fit your tap, please ocntact your local
plumbing supply center where adapters are available for purchase.

15
How to drain excess water
If the sink is more than 1000mm higher than the floor, the excess water
in hoses cannot be draines directly into the sink. It will be necessary to
drain excess water from hoses into a bowl or suitable container that is
held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to
avoid water leaks. Ensure that the water drain hose is not kinked or
squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer thatn 4 meters. Otherwise the cleaning effect on
the dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 100cm (maximum)
from the bottom of the dish. The water drain hose should be fixed.
Positioning the appliance
Position the appliance in the desired location. The back should rest
againts the wall behind it, and the sides, along the adjacent cabinets or
wall. The dishwasher is equipped with water supply and drain hoses that
can be positioned to the right or the left to facilitate proper installation.

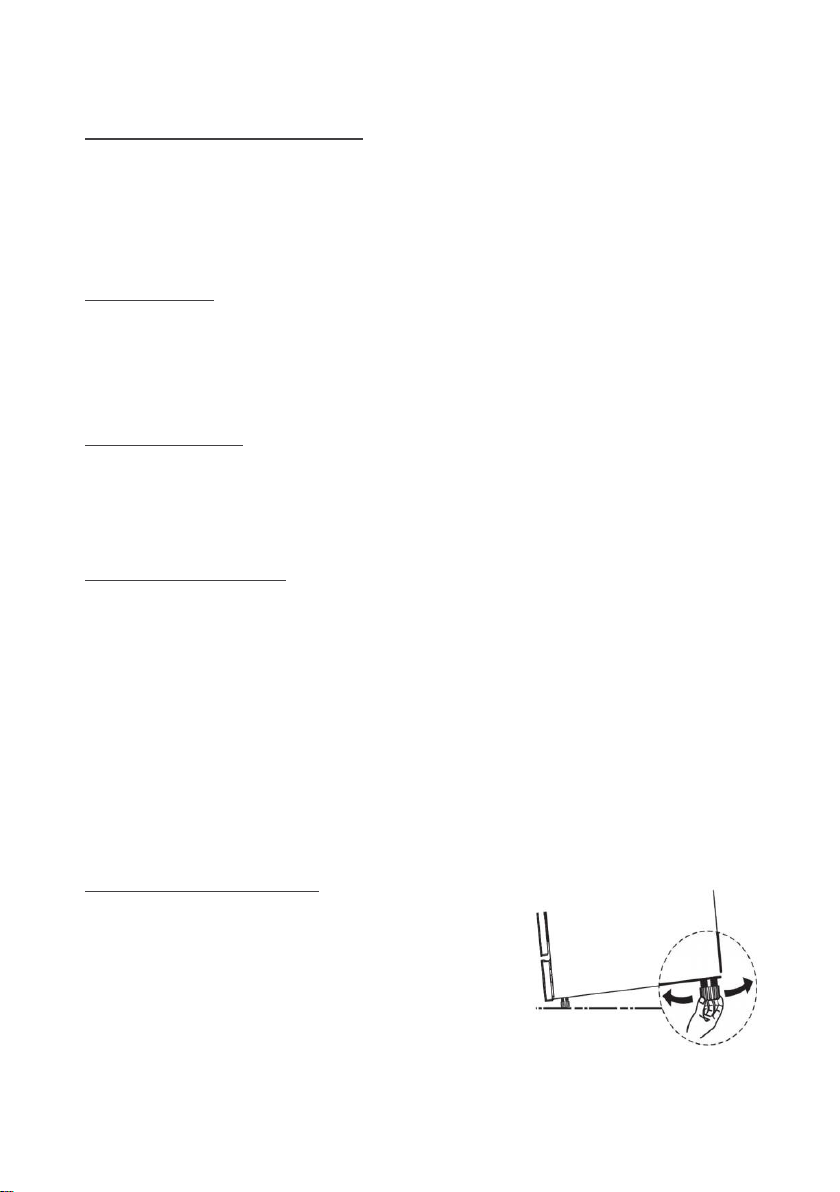

Leveling the appliance
Once the appliance is positioned for leveling,
the height of the dishwasher may be altered via
adjusment of the screwing level of the feet. In
any case, the appliance should not be inclined
more than 2.

16
Freestanding installation
The height of the diswasher, 845mm, has been
designed in order to allow the machine to be
fitted between existing cabinets of the same
height in modern fitted kitchens. The feet can
be adjusted so that correct height is reached.
The laminated top of the machine does not
require any particular care since it is heatproof,
scratch proof and stain proof.
Underneath existing work top
(when fitting beneath a work top) in most
modern fitted kitchens there only one single
work top under which cabinets and electrical
appliances are fitter. In this case remove the
work top of the dishwasher by unscrewing the
screws udner rear edge of the top (a).
ATTENTION!
After removing the work top, the screws must be screwed again
under the rear edge of the top (b).
The height will the be reduced to 825mm, as scheduled by the
International Regulations (ISO) and the dishwasher will fit perfectly
under kitchen working top.

17
Before using your dishwasher
1. Set the water softener
2. Load the salt into the salt container
3. Load the basket
4. Fill the rinse aid and detergent dispenser
Loading salt into salt container
If your model does not have salt container, you may skip this section.
The salt container is lovated beneath the basket and should be filled as
follows:
HOW TO USE
WARNING!
•Only use salt specifically designed for sihwasher use! Every
other type of salt not specifically designed for dishwasher
use, especially table salt, will damage the water softener. In
case of damages caused by the use of unsuitable salt the
manufacturer does not give any warracnty nor is liable for
any damages cause.
•Onyl fill with salt before running a cycle. This will prevent any
grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of
time, which may cause corrosion.

18
1. Remove the lower basket and then unscrew the cap from the salt
container.
2. Place the end of the funnel (supplied) into the hole and pour in
about 1.5kg of dishwasher salt.
3. Fill the salt container to its maximum limit with water, it is normal
for a small amount of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will stop being after the salt container has
been filled with salt.
6. Immediately after filling the salt into the salt container, a washing
program should be started (we suggest to use a short program).
Otherwise the filter system, pump or other important parts of the
machine may be damaged by salty water. This is out of warranty.
NOTE:
•The salt container must only be refilled when the salt
warning light in the control panel comes on. Depending on
how fully salt dissolves, the salt warning light may still be on
even though the salt container is filled. If there is no salt
warning light in the control panel (For some Models), you
can judge when to load the salt into the softener by the
cycles that the dishwasher had run.
•If there are spills of the salt, a soak or a rapid program should
be run to remove the excess salt.

19
Adjusting salt consumption
The dishwasher is designed to allow for adjusment in the amount of salt
consumed based on the hardness of the water used. This is intended to
optimize and customize the level of salt consumption.
Please follow the steps below for adjusment in salt consuption.
1. Switch on the appliance;
2. Press the Start/Pause button for more than 5 seconds to start
the water softener set model within 60 seconds after the
appliance was switched on.
3. Press the Start/Pause button to select the proper set according
to your loval environment, the sets will change in the following
sequence:
H1->H2->H3->H4->H5->H6;
4. Presss the Power button to end the set up model.
There are 6 levels of salt consumption in all. It is recommended to select
the level according to below table:
WATER HARDNESS
Water
Softener
Level
Salt Consumption
(g/cyde)
German
dH
French
fH
British
Clark
Mmol/l1)
0 –5
0 –9
0 –6
0.0-0.94
H1
0
6 –11
1.0 –2.0
7 –14
1.0 –2.0
H2
9
12 –17
2.1 –3.0
15 –21
2.1 –3.0
H32)
12
18 –22
3.1 –4.0
22 –28
3.1 –4.0
H4
20
23 –34
4.1 –6.0
29 –42
4.1 –6.0
H5
30
35 –55
6.1 –9.8
43 –69
6.1 –9.8
H6
60
1) Milimol, international unit of measurement for water hardness
2) Default factory setting
Contact your local water institution for information on the water
hardness.
Loading the basket
Recommendation:
•Consider buying utensils which are identified as dishwasher-
proof.
•For particular items, select a program with as low temperature
as possible.
•To prvent damage, do not take glass and cutlery out of the
dishwasher immediately after the program has ended.

20
Suitable of use
Not suitable:
Limited suitability:
•Cutlery with wooden, horn, china or
mother-of-pearl handles
•Plastic items that are not heat
resistant
•Older cutlery with glued parts that
are not temperature resistant
•Bonded cutlery items or dishes
•Pewter or copper items
•Crystal glass
•Steels items subject to rusting
•Wooden items
•Items made from synthetic fibers
•Some glasses can become dull after
a large number of washes.
•Silver and aluminium have a
tendency to discolour during
washing.
•Glazed patterns may fade if washed
frequently.
Attention before and after loading the baskets
(for the best perfomance of the dishwasher, follow these loading
guidelines. Features and appearance of baskets and cutlery may vary
from your model.)
Scrape off any large food particles. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water. Place
objects in the dishwasher in following way:
•Items such as cups, glasses, pots/pans, etc. Should face
downwards.
•Curved items or those with recesses, should be loaded aslant so
that water can run off.
•All utensil are stacked securely and can not tip over
•All utensils are placed in the way that the spray arms can rotated
freely during washing.
•Load hollow items such as cups, glasses, pans etc. With the
opening facing downwards so that water cannot collect in the
contianer or a deep base.
•Dishes and items of cutlery must not lie inside one another, or
cover each other.
NOTE:
Very small items should not be washed in the dishwasher as they
could easily fall out of the basket.
