Modern Forms Neo Series User manual

1
modernforms.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Modern Forms retains the right to modify the design of our products at any time as part of the company’s continuous improvement program.
INSTALLATION INSTRUCTION
Neo
WS-3718, WS-3724, WS-3736, WS-3712, FM-3712
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the“OFF”position and unscrew the fuse(s) or
switch ”OFF”the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the“OFF”position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts
that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en
position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en
laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression
à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta
lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional
y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali
mentación principal en la posición“OFF”(APAGADO).
- Coloque el interruptor de la pared en la posición “OFF”(APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la
instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la
base sólo.
HARDWARE
A1 B1 C1 D1
Wire Connector
Qty: 3pcs
7EAC140902
Junction Box Screw
Qty: 2pcs
7MPF0825F1
#8-32X1”
Nickel Plating
Mounting Anchor
Qty: 2pcs
7MPF2204J2
Φ4X22mm
Nickel Plating
Mounting Screw
Qty: 2pcs
7TCH421301
2
modernforms.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Modern Forms retains the right to modify the design of our products at any time as part of the company’s continuous improvement program.
FIG.1
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the xture side screws (L1) from the xture backplate (K1), and keep them for re-tighten the xture.
4. Unplug the male end connector (N1) from female end connector (M1).
5. Connect the transformer input wires (G1) to junction box wires as shown in Fig. 2, making sure that all wire connectors (A1)
are secured. If your outlet box has a ground wire (green or bare copper), connect the xture’s ground wire to it. After wires are connected,
tuck them carefully inside the junction box.
CONNECTING THE WIRES (Fig. 2)
6. Secure mounting backplate (K1) to the junction Box (E1)
using junction box screws (B1).
7. Secure the mounting backplate (K1) to wall using the screws (D1)
and the plastic anchors (C1).
8. Reverse the step 4, connect the xture’s wires to the transformer’s
output wires with the male end connector (N1)
and female end connector (M1).
COMPLETING THE INSTALLATION (Fig. 1)
9. Place the xture’s front plate (J1) over the mounting back plate (K1)
and secure with screws (L1).
A1 G1
F1
C1
K1
D1 B1
L1
B1
D1
L1
M1
J1
N1
C1
INSTALLATION INSTRUCTION
Neo
WS-3718, WS-3724, WS-3736, WS-3712, FM-3712
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig.2 Wiring
Back Plate Dimensions WS-3718 - 17 3/8”
WS-3724 - 23 1/4”
WS-3736 - 35”
Back Plate
Ground Wire
Junction Box
Wire Connector
Transformer
input wire
Anchor
Mounting
Screw
Junction Box
Screw
Fixture Screw
Female end
connector
Fixture front plate
Male end connector
Fixture Side Screw
WS-3718 - 14 1/4”
WS-3724 - 20 1/4”
WS-3736 - 31 3/4”
4 3/8”
R1 3/4”
R1 5/8”
R1 3/8”

This manual suits for next models

5

Other Modern Forms Lighting Equipment manuals

Modern Forms WS-W81619 User manual

Modern Forms

Modern Forms WS-W81619 User manual

Modern Forms Polar Series User manual

Modern Forms

Modern Forms Polar Series User manual

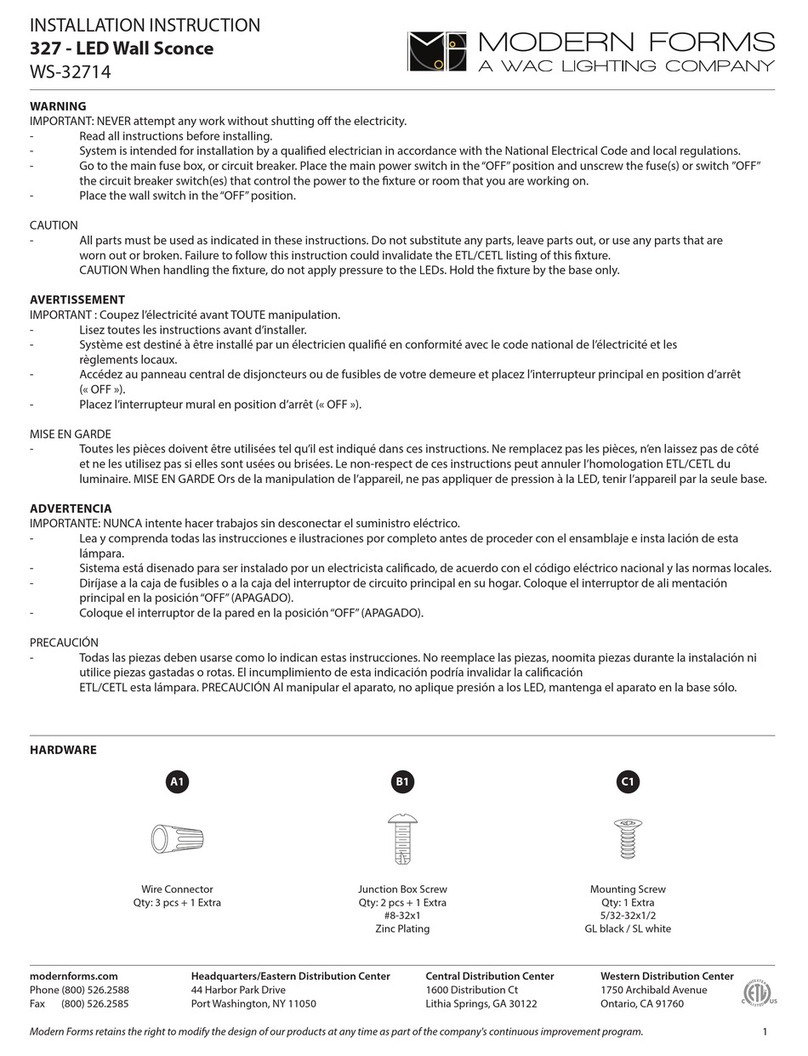

Modern Forms 327 User manual
