INSTALLATION INSTRUCTIONS
Polar
WS-3218 / WS-3226 / WS-3240
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER BEFORE
BEGIN-NING.
- Read all instructions before installing.
- System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
- When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
- Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or ac-
cessories designated for use by Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms
could result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are
damaged or missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the xture. We recommend that customers in coastal
areas clean all external surfaces of the xture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
- Lisez toutes les instructions avant l’installation.
- Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux règle-
ments locaux.
- Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement avec
les pièces et/ou accessoires fournis pour être utilisés avec les produits Modern Forms. Remplacer des pièces ou accessoires non conçus pour ce
produit Modern Forms pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un
chion humide.

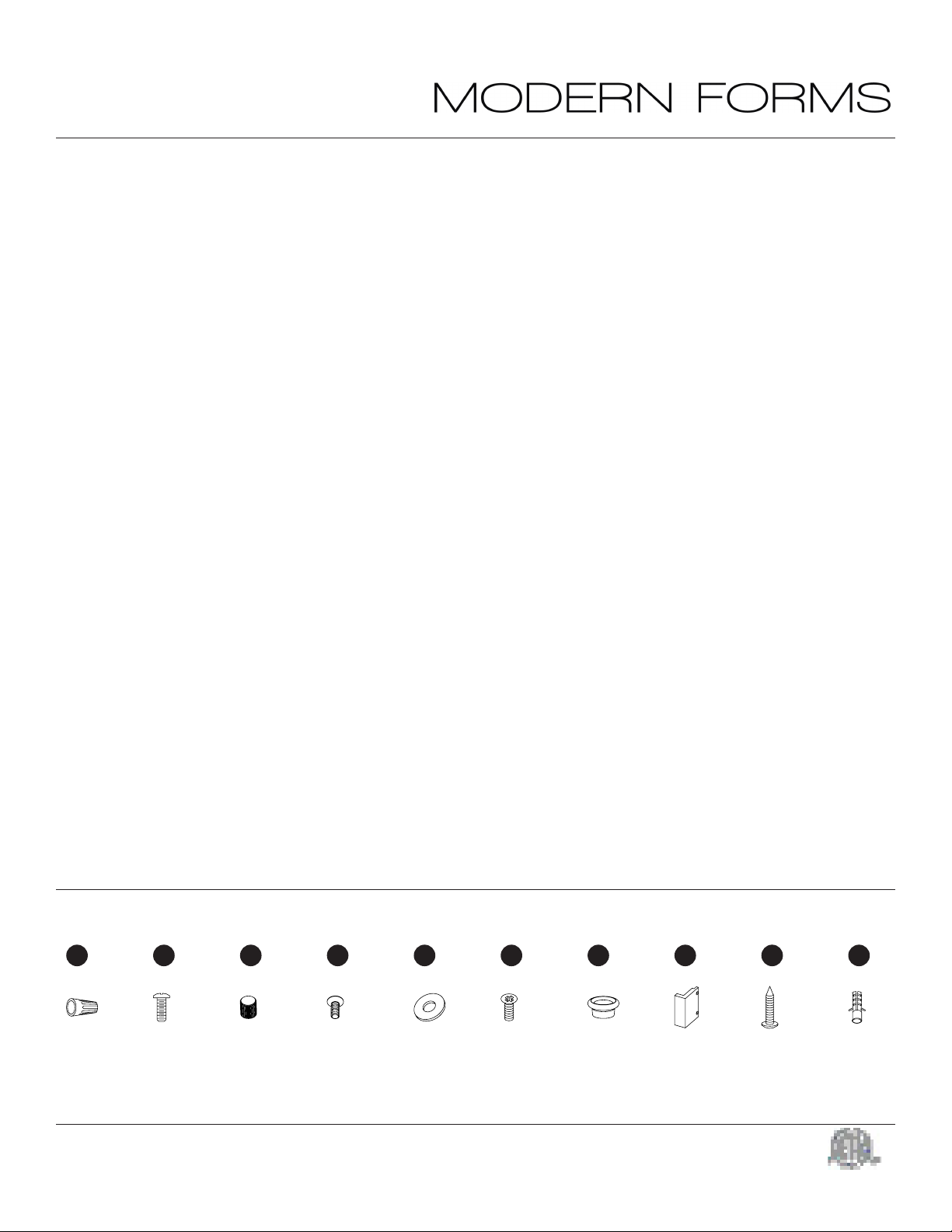

HARDWARE
A1 B1 C1 D1 E1 F1 G1 E1 I1 H1
Wire Connector
Qty: 3
7EAC112201
Junction Box
Screw
Qty: 2pcs +
1 Extra
7MPF0820C1
Knurled Nut
Qty: 1 Extra
7MPM031001NI
Mounting
Screw
Qty: 4pcs +
1 Extra
7MPF0412S1
Plastic Washer
Qty: 4pcs +
1 Extra
7TCK100401
Mounting
Screw
Qty: 4pcs +
1 Extra
Gasket
Qty: 4pcs +
1 Extra
Glass Holder
Qty: 2pcs
4MBA893201BN1
Mounting
Screw
Qty: 2pcs +
1 Extra
Mounting
Anchor
Qty: 2pcs +
1 Extra
7TDD082401
7TGD060301CL
7MPF2204J2

Modern Forms
www.modernforms.com
Phone [phone] • Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]
Modern Forms retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2019
2
INSTALLATION INSTRUCTIONS
Polar
WS-3218 / WS-3226 / WS-3240
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
3. Remove the knurling nut (C1).
4. Remove the mounting screw (F1) and gasket (G1).
CONNECTING THE WIRES (Fig. 2)
5. Connect the transformer’s input/output wires to the xture wires as shown (Fig. 2). Make sure that all wire connectors (A1) are secure.
If your outlet box has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground
wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
NOTE: This xture requires transformer to be recessed within the junction box.
MOUNTING THE FIXTURE (Fig. 1)
6. Secure mounting back plate to the junction box using junction box screws (B1).
NOTE: The side of the mounting back plate marked“GND” must face out
7. Secure the mounting back plate to wall using the screws (I1)
and the plastic anchors (J1).
8. Place the xture back plate over the mounting back plate
and secure with knurling nut (C1).
COMPLETING THE INSTALLATION (Fig. 1)
9. Install the glass on the glass holder (H1) with
mounting screws (D1) and gasket (E1).
10. Secure the glass holder into the xture back plate and
secure with mounting screw (F1) and gasket (G1).
I1
J1
A1
B1
C1
E1
D1
F1
G1
H1
FIG.1
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig.2 Wiring
Glass
Glass
Holder
Mounting
Screw
Mounting
Screw
Knurled Nut
Diuser
Connectors
Junction Box
Screw
Plastic
Washer
Gasket
Fixture Backplate
Mounting Screw
Mounting Backplate
Wire Connector
Junction Box
Ground Wire
Ground Wire
Screw Transformer
Transformer
Output Wires -Red
Mounting
Anchor
13
8"
1 3/4”
25 1/4”
20 1/2”
5 1/8”
Back Plate Dimensions

Modern Forms
www.modernforms.com
Phone [phone] • Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]
Modern Forms retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2019
3
INSTALLATION INSTRUCTIONS
Polar
WS-3218 / WS-3226 / WS-3240
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER BEFORE BEGIN-
NING.
- Read all instructions before installing.
- System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
- When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
- Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or ac-
cessories designated for use by Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms
could result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are
damaged or missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the xture. We recommend that customers in coastal
areas clean all external surfaces of the xture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
- Lisez toutes les instructions avant l’installation.
- Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux règle-
ments locaux.
- Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement avec
les pièces et/ou accessoires fournis pour être utilisés avec les produits Modern Forms. Remplacer des pièces ou accessoires non conçus pour ce
produit Modern Forms pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un
chion humide.
HARDWARE
A1 B1 C1 D1 E1 F1 G1 H1 I1 J1
Wire Connector
Qty: 3
Junction Box
Screw
Qty: 2pcs +
1 Extra
Knurled Nut
Qty: 1 Extra
Mounting
Screw
Qty: 4pcs +
1 Extra
Plastic Washer
Qty: 4pcs +
1 Extra
Mounting
Screw
Qty: 4pcs +
1 Extra
Gasket
Qty: 4pcs +
1 Extra
Glass Holder
Qty: 2pcs
Mounting
Screw
Qty: 2pcs +
1 Extra
Mounting
Anchor
Qty: 2pcs +
1 Extra
7TGD060301CL
7MPF2204J2

Modern Forms
www.modernforms.com
Phone [phone] • Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]
Modern Forms retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2019
4
INSTALLATION INSTRUCTIONS
Polar
WS-3218 / WS-3226 / WS-3240
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
3. Remove the knurling nut (C1).
4. Remove the mounting screw (F1) and gasket (G1).
CONNECTING THE WIRES (Fig. 2)
5. Connect the transformer’s input/output wires to the xture wires as shown (Fig. 2). Make sure that all wire connectors (A1) are secure.
If your outlet box has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground
wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
NOTE: This xture requires transformer to be recessed within the junction box.
MOUNTING THE FIXTURE (Fig. 1)
6. Secure mounting back plate to the junction box using junction box screws (B1).
NOTE: The side of the mounting back plate marked“GND” must face out
7. Secure the mounting back plate to wall using the screws (I1)
and the plastic anchors (J1).
8. Place the xture back plate over the mounting back plate
and secure with knurling nut (C1).
COMPLETING THE INSTALLATION (Fig. 1)
9. Install the glass on the glass holder (H1) with
mounting screws (D1) and gasket (E1).
10. Secure the glass holder into the xture back plate and
secure with mounting screw (F1) and gasket (G1).
I1
J1
A1
B1
C1
E1
D1
F1
G1
H1
FIG.1
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig.2 Wiring
Glass
Glass Holder
Mounting Screw
Mounting Screw
Knurled Nut
Diuser
Connectors
Junction Box
Screw
Plastic Washer
Gasket
Fixture Backplate
Mounting Screw
Mounting Backplate
Wire Connector
Junction Box
Ground Wire
Ground Wire
Screw
Transformer
Transformer
Mounting
Anchor
Back Plate Dimensions
38 5/8”
5 1/8”
1 3/4”
1 3/8”
