mods4cars smartTOP User manual

INSTALLATION
STLFPT2
Comfort Roof Control Module for
!"
Peugeot 307cc (CAN Bus)
v1.0
Further information and manuals for all products can be found on our web site
w w w . m o d s 4 c a r s . c o m
!
We explicitly point out that all functions of this control unit should be
used only while exercising caution and responsibility. We can NOT be
held liable for any damage or injury caused by installing or using this
product.
PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING
THIS PRODUCT.
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
1 di 9
26/06/22, 19:44

Important Information. READ BEFORE INSTALLING!
PRINTING THIS MANUAL
This manual is designed to produce completely filled
pages. In order to get best print results, simply set the
borders to minimum settings in the browser's page setup
menu and disable headers and footers.
Activate the print preview and if necessary decrease the
zoom level until all pages are shown correctly.
ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the
browser.
TROUBLE SHOOTING - NEED TO CONTACT US?
If you run into any problems after installing the module,
please go over the manual again in great detail, clicking
every photo for full size!
We now have a full
Knowledge Base with Support
Ticket system
available online at
www.mods4cars.com/support
If you need to contact us, the best and fastest way to do
so is by
opening a support ticket there
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
2 di 9
26/06/22, 19:44

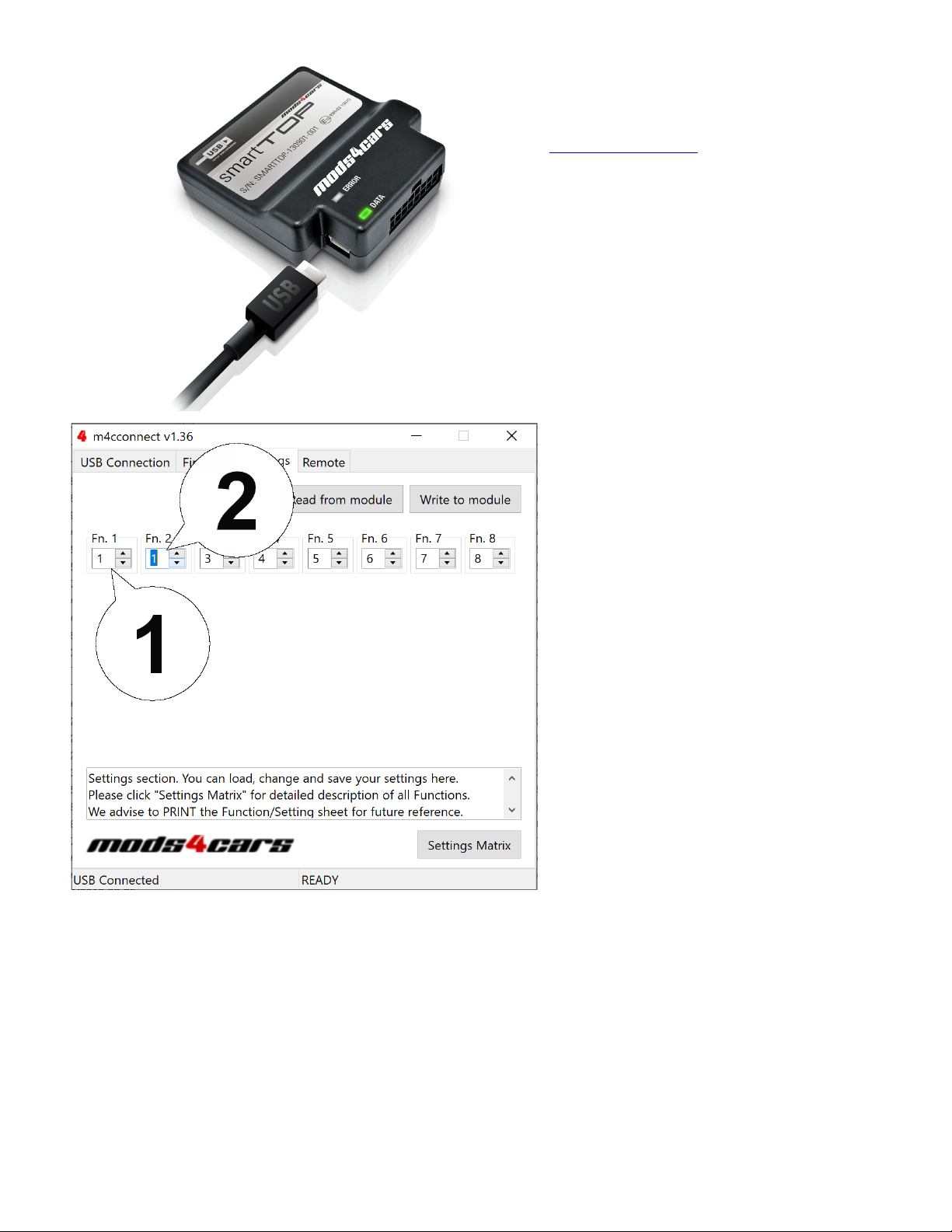

This module comes with our USB Field Upgrade and
Configuration Port!
We recommend connecting it to a
computer BEFORE YOU INSTALL and using our support
app "m4cconnect" to do a quick firmware update check.
M4cconnect as well as all other information regarding
USB update and configuration can be found at
www.mods4cars.com/usb.
You can even configure and
activate your favorite module functions and settings on
screen before the module is installed in the car! It is a
good idea to permanently install the USB cable with the
module in the car, leaving the computer plug in an easily
accessible spot for later use with a Wifi/3G/4G connected
laptop.
IMPORTANT
TROUBLESHOOTING TIPS
If the top does not work properly or at all after installing
the module, these tips can be very helpful:
• 1) Turn Function 1 (Main Switch) off (Setting 0).
The
module will be completely passive. If the problem still
persists and the top won't work, check all connections.
Please also check the green DATA LED on the module!
• 2) Function 2 now has a valet mode (Setting 2) on
many modules.
Valet mode completely disables opening
of the top. Check the setting for function 2 and make sure
the module is NOT in valet mode!
IMPORTANT: Not all modules have the valet mode!
Please check the Operation and Programming
Manual!
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
3 di 9
26/06/22, 19:44

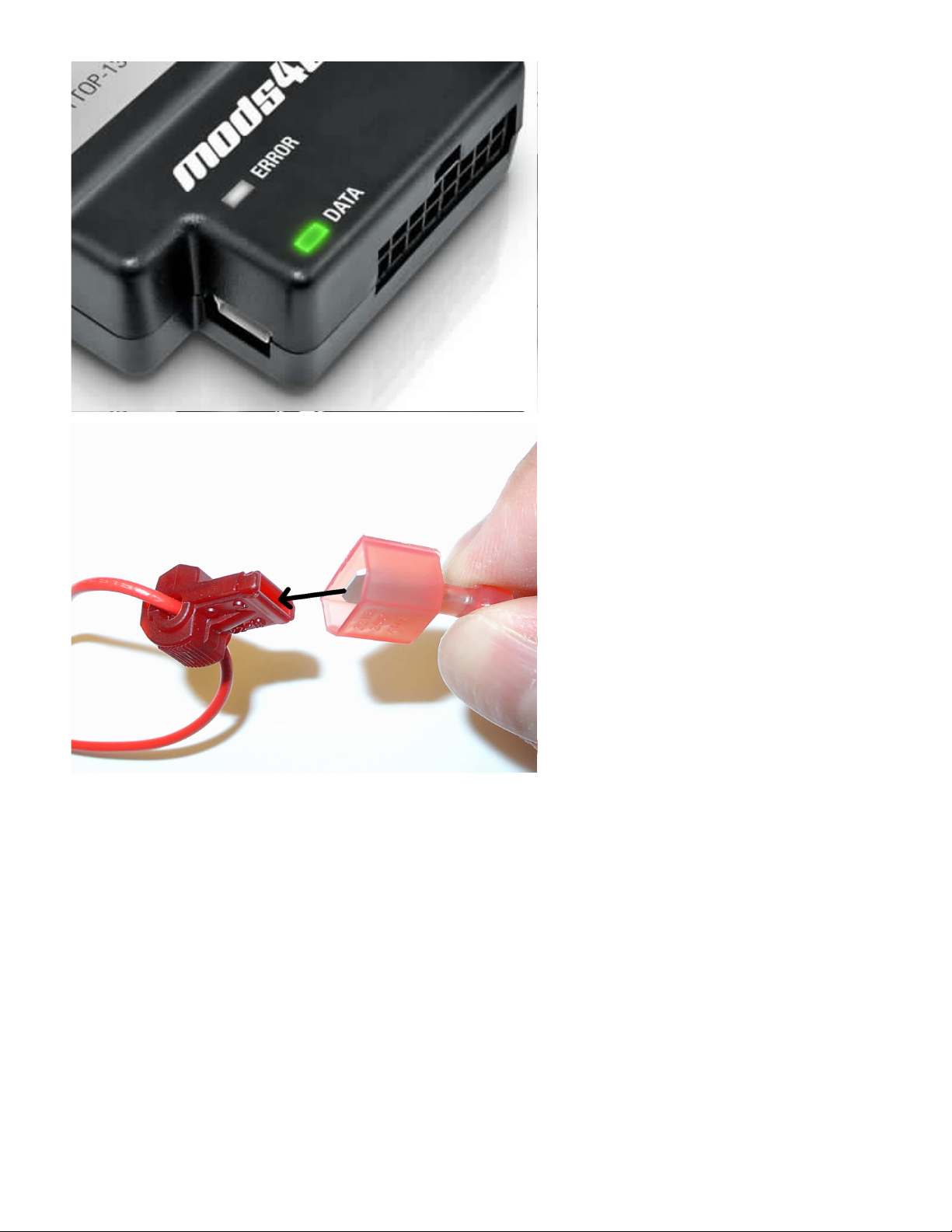

FUNCTION OF THE DATA
LED
The DATA LED shows the module status and helps
troubleshooting issues during installation:
• When the ignition is ON:
The LED should BLINK
(flash) in a regular pattern (about 1x per second). This
indicates that the module is receiving data and should
work OK.
• When the ignition is OFF:
The LED should BLINK
(flash) as long as the data bus is still active and turn off
after a while (max 5 min) indicating that the car has
entered stand-by (sleep) mode.
• If the LED is permanently lit with the ignition ON
, the
module is NOT receiving data from the top controller and
all connectors should be checked.
• If the LED does NOT light up at all when turning the
ignition ON
, the module is either not getting power or not
receiving ANY data. All connectors should be checked.
USE OF THE 3M WIRE TAPS
This module is installed using the 3M wire taps very
popular with 12V aftermarket industry for their reliability
and durability.
The most common problem during
installation is a bad contact between the plugs from
the supply wires and the wire taps. Please make
absolutely sure that the metal blades of the plugs
slide into the slots of the t-taps. It happens that the
blade "misses" the slot and the connection looks
correct, but doesn't make electrical contact!
The T-taps come in RED (for thin wires), BLUE (for
medium wires) and YELLOW (for thick wires).
To test if you installed the module correctly after all
wires are connected, turn the ignition fully on and
watch the green LED on the module. It should blink
(flash) to signal a correct installation. If the LED either
does not turn on or stays on permanently, there is a
bad contact or a missing connection! See detailed
explanation of the DATA LED.
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
4 di 9
26/06/22, 19:44

Installation - Steps 1-3
1.
IMPORTANT: Turn off ignition and pull key out
before continuing!
Open trunk and remove bottom
cover. Remove the styrofoam carrier or (or spare wheel).
Remove the two screws (1) and (2) on each side of the
back panel. Lift the roll-out cover box up and out.
2. Remove screw (1).
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
5 di 9
26/06/22, 19:44

3. Remove screw (1).
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
6 di 9
26/06/22, 19:44

Installation - Steps 4-6

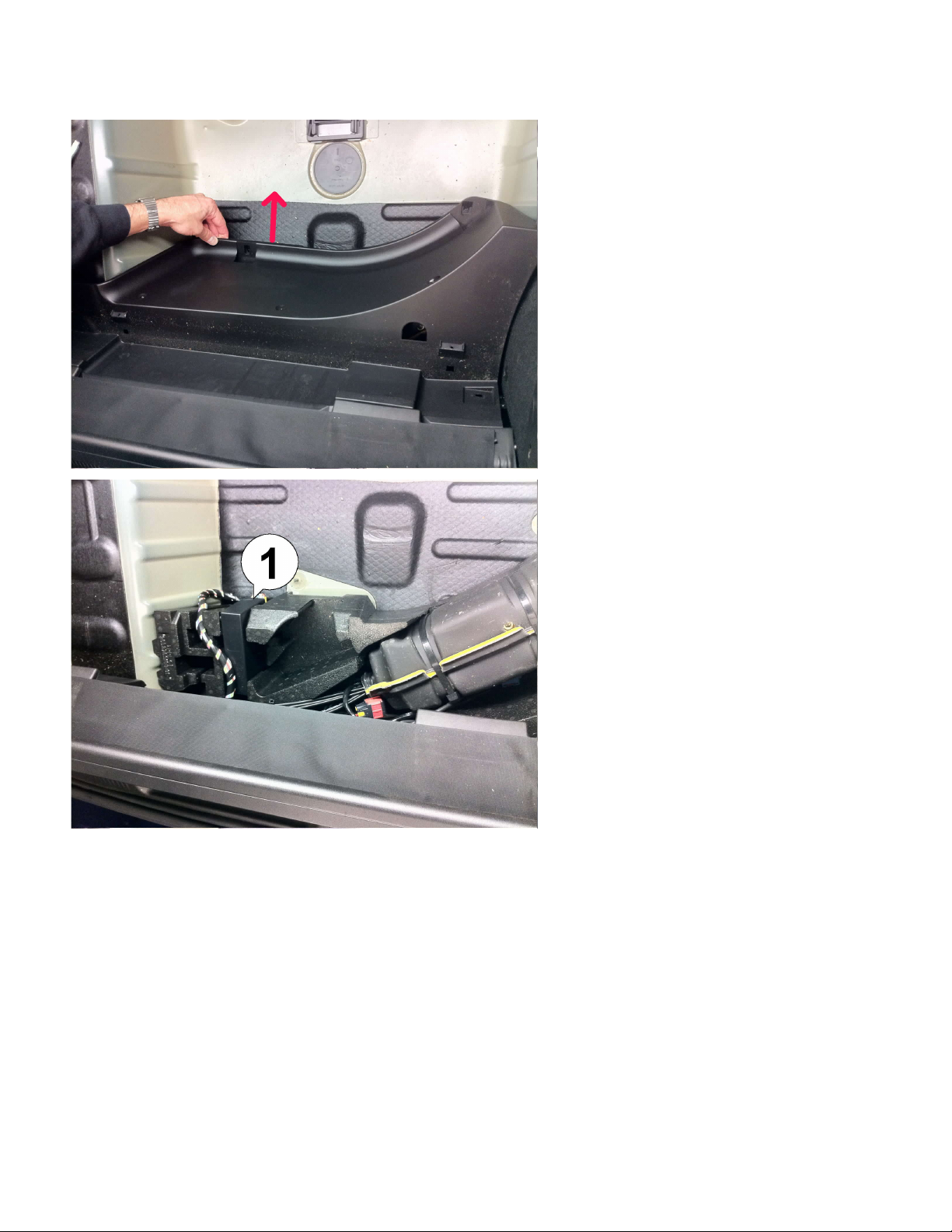

4. Lift the plastic cover up and over the bolts on the
botton, then pull it out in the direction of the arrow.
5. Underneath is the top control unit (1), which simply sits
in a gap in the styrofoam carrier. Pull it upward and out.
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
7 di 9
26/06/22, 19:44

6. Using combination pliers, attach the supplied red wire
tap to the light beige wire no. 10 on the black/red plug as
shown.
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/peugeo...
8 di 9
26/06/22, 19:44

Installation - Steps 7-8
7. Connect the plug from the smartTOP wiring harness to
the tap, then remove the yellow plug from the control unit
and plug the wiring harness in between as shown. Attach
the smartTOP module to the harness.
8. Attach the smartTOP module to the styrofoam carrier
with the supplied velcro sticker, put the top controller back
where is was before, then tap the unlock button on the
remote once. If the green LED (1) on the module blinks
slowly, the module is installed correctly and ready for use.
Put everything back together in reverse order, then
configure the module according to our Operation and
Programming manual, done.
