Modular 65/40 BME User manual

MOD. 65/40 BME 65/70 BME
70/40 BME 70/70 BME
70/40 BME-T 70/70 BME-T
90/40 BME 90/80 BME
90/40 BMET 90/80 BMET
110/50 BME 110/90 BME
ELECTRIC BAIN-MARIE
Code 252.108.11
~
~ ¸

INDEX
Paragraph Installation instructions
1Compliance with EEC directives
1.1 Installation drawings
1.2 Wiring diagrams
1.3 Electrical specifications
1.4 Technical data
2Preliminary installation instructions
2.1 Regulations, technical rules and general specifications
2.2 Installation
2.2.1 Electrical connection
2.2.1.1 Equipotential
2.2.2 Water connection for Model 90/80 BME and 110/90 BME
Paragraph User instructions
3Start-up
3.1 Operating Instructions - Switching on and switching-off
3.2 Emptying the tanks
4Maintenance, cleaning and care

INSTALLATION INSTRUCTIONS
1. CONFORMITY WITH EEC DIRECTIVES
REMARK: The electric bains-marie are made in compliance with the basic requirements
envisaged by EEC directives, in accordance with “EEC Directive 73/23 on low voltage”, “EEC
Directive 89/336 on electromagnetic compatibility” and are marked “CE” according to the EEC
Directive 93/68.

1.3 ELECTRICAL SPECIFICATIONS:
Model 65/40 BME 65/70 BME 70/40 BME 70/70 BME
Rated voltage 230V -1~ 400V-3N~ 230V -1~ 400V-3N~
Total power kW 1,5 3 1,5 3
Power cable H05RN-F H05RN-F H05RN-F H05RN-F
Power cable
Cross section 3 x 1 mm25 x 1 mm23 x 1 mm25 x 1 mm2
Dimensions mm
Width
Depth
Height
400
650
280 (410)
700
650
280 (410)
400
700
850 (950)
700
700
850 (950)
The data plate shows all necessary data for installation and can be found on the terminal block
cover, inside the compartment, in the models 70/40 BME and 70/70 BME, on the rear of the left-
hand side panel in the models 65/40 BME and 65/70.
Model 70/40 BME-T 70/70 BME-T
Rated voltage 230V -1~ 400V-3N~
Total power kW 1,5 3
Power cable H05RN-F H05RN-F
Power cable
Cross section 3 x 1 mm25 x 1 mm2
Dimensions mm
Width
Depth
Height
400
700
280 (430)
700
700
280 (430)
The data plate contains all necessary information with installation and it is located on the left side
of the unit,near the terminal block .

Model 90/40 BME 90/80 BME 90/40 BMET 90/80 BMET
Rated voltage 230V -1~ 400V-3N~ 230V -1~ 400V-3N~
Total power kW 2,2 4,4 2,2 4,4
Power cable H05RN-F H05RN-F H05RN-F H05RN-F
Power cable
Cross section 3 x 1 mm25 x 1 mm23 x 1 mm25 x 1 mm2
Dimensions mm
Width
Depth
Height
400
900
850 (1000)
800
900
850 (1000)
400
900
300 (450)
800
900
300 (450)
The data plate shows all necessary data for installation and can be found on the terminal block
cover, inside the compartment, in the models 90/40 BME and 90/80 BME, on the rear of the left-
hand side panel in the models 90/40 BMET and 90/80 BMET.
Model 110/50 BME 110/90 BME
Rated voltage 230V -1~ 400V-3N~
Total power kW 2,2 4,4
Power cable H05RN-F H05RN-F
Power cable
Cross section 3 x 1 mm25 x 1 mm2
Dimensions mm
Width
Depth
Height
500
1100
850 (1000)
900
1100
850 (1000)
The data plate shows all necessary data for installation and can be found on the terminal block
cover, inside the compartment.

2. PRELIMINARY INSTALLATION INSTRUCTIONS
The bain-marie must be positioned in a well-aired room, if possible under a hood to remove
cooking steam thoroughly.
Before starting the appliance, remove all protective film; thoroughly clean the surfaces with a soft
cloth, lukewarm water and detergent, so as to remove all anti-rust products applied during the
manufacturing stage, then dry with a clean cloth.
If the appliance is installed near walls, partition walls, kitchen furniture, decorative panelling, etc.,
these should be constructed with fireproof materials or a space of at least 100 mm should be left
free.
Make sure that fire prevention rules are strictly respected.
The appliances can be positioned - according to the models - as top or ground appliances, or
linked together with others of the series.
The main switch and the socket must be near the appliance and easily accessible.
Using the levelling feet lay the appliance flat, adjust the height and ensure its stability.
2.1 Regulations, technical rules and general specifications
Comply with the following rules during assembly:
1) accident prevention rules;
2) rules in force in the country where the appliance is installed;
3) carefully read this booklet as it contains important instructions about installation safety, use and
maintenance;
4) keep this booklet for further reference.
2.2 Installation
Installation, setting up and maintenance must be carried out by qualified personnel only.
Installation must be carried out in accordance with the rules in force in the country where the
appliance is installed.
The manufacturer declines all responsibility for incorrect functioning resulting from defective
installation, tampering, improper use, bad maintenance, non-observance of the local rules and use
by unskilled persons.
INSTALLATION INSTRUCTIONS
APPLIANCE WITH WEIGHT GREATER THAN 40 Kg
BEFORE POSITIONING THE APPLIANCE CONNECT THE POWER CABLE TO THE TERMINAL
BLOCK.

Terminali cavetti di terra apparecchiatura
2.2.1 Electrical connection
1) The electric bains-marie are designed to operate off 400 VAC+3N voltage.
2) The connection to the mains must be carried out through a suitably rated trip switch which has
at least 3 mm between the contacts. Moreover, the mains voltage - when the appliance is
working - must not exceed ± 10% of the voltage value.
3) The power cable to connect the appliance to the mains must be at least equal to the H05RN-F
rubber insulated type, with cross section suitable to the max. power consumption; therefore, its
lowest cross section must comply to the data stated in the electrical specifications table for each
type of appliance.
4) On top appliances the cable inlet and the terminal block are on the rear side. To carry out the
connection, unscrew and remove the protective cover.
To gain access to the terminal block on ground appliances with a cabinet underneath the
protective cover of the terminal block on the inner left-hand side of the cabinet has to be
removed; to carry out the connection, insert the cable through the inlet gland and the cable-
clamp and connect the wires to the relative binding posts.
5) The appliance must be provided with an efficient earth connection.
For this purpose, near the terminal block there is a binding post marked with the symbol
to which the earth wire (yellow-green) must to be connected.
The above-mentioned cable must be long enough so that – if the cable clamp loosens - it can
be stressed only after the feed wires have been disconnected .
NB: Earthing must be carried out according to the local standards and regulations in force.
2.2.1.1 Equipotential connection
When interconnecting multiple appliances together, the electric bain-marie must be included in an
equipotential system, whose efficiency has to be checked according to the rules in force. The
connection is on the rear panel in top appliances, and on the left-hand side of the bottom frame in
ground appliances, marked with “EQUIPOTENTIAL”.
Earth wires for appliances
NB: The manufacturer declines all responsibility for damage resulting from non-compliance
with accident prevention rules as described above.

2.2.2 WATER CONNECTION FOR MODELS 90/80 BME AND 110/90 BME
To carry out a correct installation the following must be respected:
1) The water feed pipes must be connected to the mains using cut off cocks which should always
be closed when the bain-marie is not being used or during maintenance interventions.
2) A mechanical filter must be installed between the cut off cock and the pipes feeding the bain-
marie in order to avoid the build up of ferrous materials that when rusting could damage the
stainless steel and lead to the presence of rust spots on the tank . You are therefore advised to
drain off a small amount of water before attaching the last length of piping to the bain-marie so
washing away any eventual ferrous materials.
3) If rust points do form on the tank this will be due to the build up of ferrous materials or the
stagnant of iron filings. The stainless steel is not the cause.
4) The 1/2” water inlet can be found on the lower right-hand side of the banin-marie. The water load
pipe is marked with the symbol
H2O
Note: the manufacturer takes no responsibility and has no guarantee obligations for
damage caused by not respecting the laws and standards in force or for a non
professional installation.

USER OPERATING INSTRUCTIONS
1) Bains-marie are appliances designed for heating food containers and should be exclusively
used by trained personnel following these operating instructions. Any other use of the appliance
is to be considered improper and therefore dangerous.
2) Before inserting containers or bowls make sure that the tank and false bottom have been
carefully cleaned using hot water and detergent and then rinse well.
3START-UP
Attention! The appliance must only be used under the operator’s surveillance !!!
The appliance must never be made to work when the water level has dropped below the tank’s
minimum level.
3.1 SWITCHING ON AND SWITCHING OFF
Fill the tank with water up to the maximum level and switch on the main switch. Turn the knob to
the desired position between 30°C and 90°C and both indicator lights will light up. The green light
indicates that the appliance is receiving power and the yellow light indicates that the heating
elements are working, until they reach the set temperature. To switch off the bain-marie, turn the
knob anti-clockwise until the switch clicks at the “0” position.

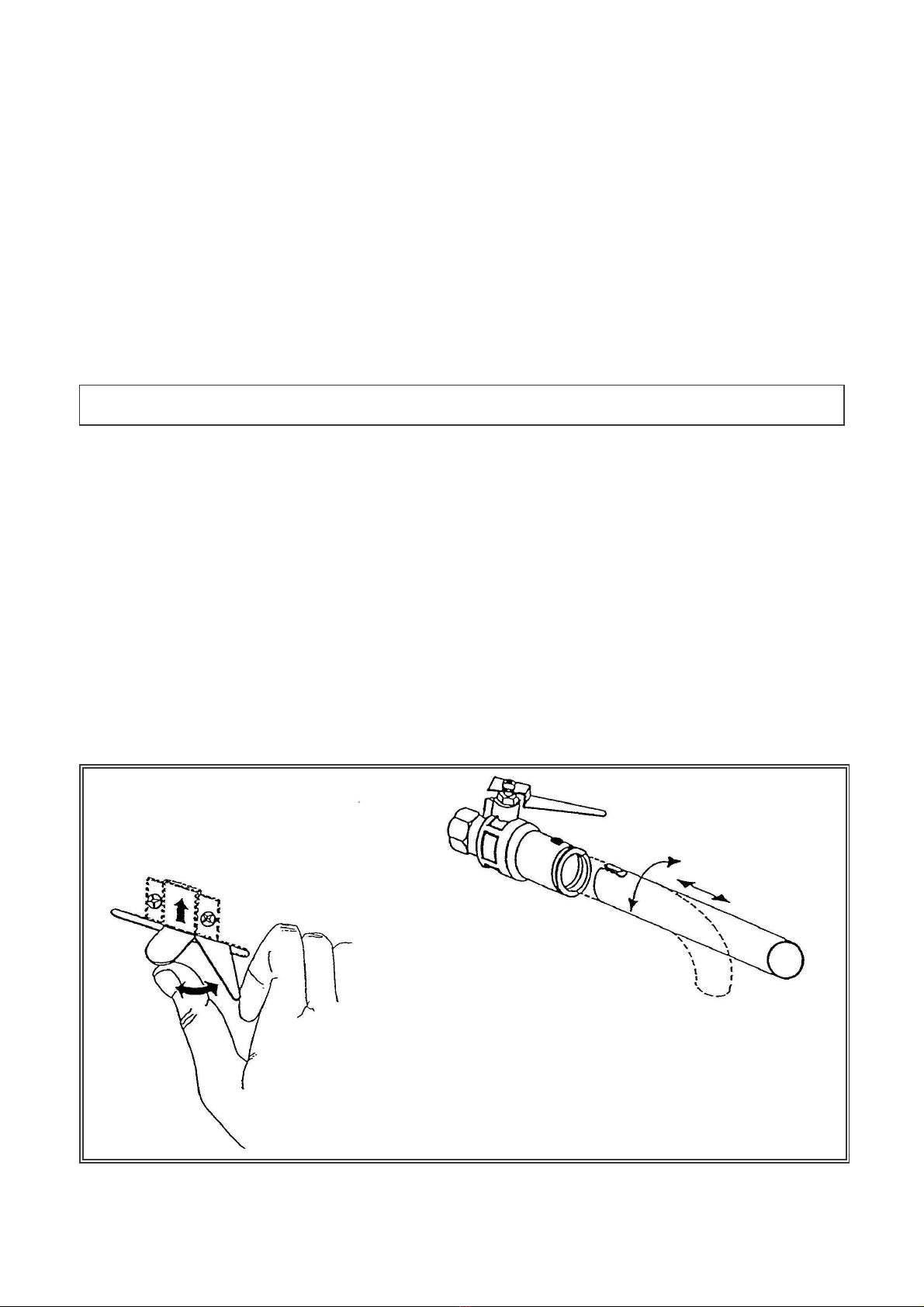

3.2 EMPTYING THE TANKS
The operator must make sure that there is a suitable container available to collect the drained off
water. Insert the drainage tube with bayonet joint as shown in the drawing. To drain off the water
turn the lever as shown in the drawing.
