Moen BANBURY 82910 series User manual

Specifications
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
• Metal construction with various finishes identified by suffix
• Pressure balancing cycle valve design with an adjustable
temperature limit stop
• 1/2" IPS connections
• Includes valve, tub spout, showerhead, arm and flange
OPERATION
• Lever style handle
• Handle operates counterclockwise through a 270˚ arc with off
at 6 o’clock and maximum hot at the 9 o’clock position. Shut off
in clockwise direction
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 2°
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to: CSA B-125.1, ASME A112.18.1 ,ICC A117.1
and all applicable requirements referenced therein
• ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
• 5 year warranty if used in commercial installations
BANBURY®
Single-Handle Tub/Shower Valve
Models: 82910 series
FINISHED WALL LINE
FACE OF STUD
DIRECTION
OF HANDLE
ROTATION
7.165" (182mm)
ESC. DIAM.
4-1/2"
(114mm)
2"CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
2-1/2" MAX. (63mm)
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
1-3/8" (35mm) 1-3/8"
(35mm)
3/16"(typ) (5mm)
L
C
L
C
1-1/2" MAX.
(38mm)
PLASTER GROUND
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
PLASTIC
TUB/SHOWER
SURROUND
FLOOR LINE
SHOWER
45" (1143mm)/
48" (1219mm)
32" (813mm)
TUB/SHOWER
AND TUB ONLY
6'-6"
(1981mm)
NOMINAL
2-3/4" C.C.
(70mm)
FLOOR LINE

Other Moen Plumbing Product manuals

Moen INS1261A - 3/06 Operational manual

Moen

Moen INS1261A - 3/06 Operational manual

Moen SHOW HOUSE S214 Series User manual

Moen

Moen SHOW HOUSE S214 Series User manual

Moen 2326PF User manual

Moen

Moen 2326PF User manual

Moen Solace S470 Series User manual

Moen

Moen Solace S470 Series User manual

Moen 82244 Series User manual

Moen

Moen 82244 Series User manual

Moen 3-Function Showerhead 3233 User manual

Moen

Moen 3-Function Showerhead 3233 User manual

Moen CA84440 Series User manual

Moen

Moen CA84440 Series User manual

Moen 2300 Series User manual

Moen

Moen 2300 Series User manual

Moen Bathroom Faucet User manual

Moen

Moen Bathroom Faucet User manual

Moen 57902A User manual

Moen

Moen 57902A User manual

Moen Monticello 4572 User manual

Moen

Moen Monticello 4572 User manual

Moen 7800 Operational manual

Moen

Moen 7800 Operational manual

Moen Fina TS51704 Series User manual

Moen

Moen Fina TS51704 Series User manual

Moen S612 User manual

Moen

Moen S612 User manual

Moen ROTHBURY T923 User manual

Moen

Moen ROTHBURY T923 User manual

Moen Drop Ell User manual

Moen

Moen Drop Ell User manual

Moen io KINGSLEY T9211 series User manual

Moen

Moen io KINGSLEY T9211 series User manual

Moen ICON MOENTROL T2154BB User manual

Moen

Moen ICON MOENTROL T2154BB User manual

Moen TWOHANDLE LAVATORY FAUCET 4560 Operational manual

Moen

Moen TWOHANDLE LAVATORY FAUCET 4560 Operational manual

Moen 84424SLPC User manual

Moen

Moen 84424SLPC User manual

Moen BGCW10RV1618 User manual

Moen

Moen BGCW10RV1618 User manual

Moen PureTouch 7850 User manual

Moen

Moen PureTouch 7850 User manual

Moen T3191 User manual

Moen

Moen T3191 User manual

Moen TS340 Series User manual

Moen

Moen TS340 Series User manual

Popular Plumbing Product manuals by other brands

American Standard 4453 Specification sheet

American Standard

American Standard 4453 Specification sheet

Axor Terrano Widespread Lavatory Faucet 37134XX1 Specification sheet

Axor

Axor Terrano Widespread Lavatory Faucet 37134XX1 Specification sheet

noken TONO 100184751 N109390063 manual

noken

noken TONO 100184751 N109390063 manual

PEERLESS P248LF-M quick start guide

PEERLESS

PEERLESS P248LF-M quick start guide

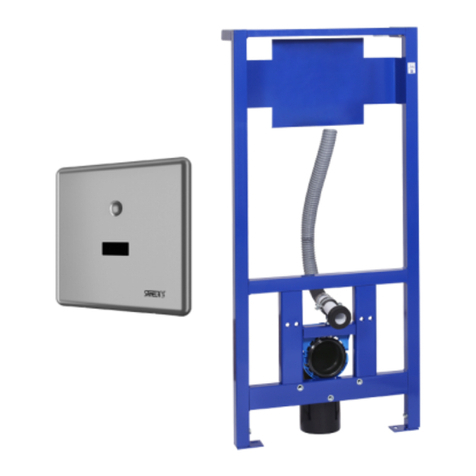

Sanela SLW 01NK Mounting instructions
