Moffat Washing machine User manual

Instructions for Use
Washing machine

162971
Thank you for your con dence in purchasing our
washing machine, and congratulations on the
excellent choice.
Your new washing machine meets the requirements
of modern clothes care. It consumes less energy,
water and washing agents.
Our appliances are friendly to the environment.
Some of the materials may be recycled, others
deposited or decomposed. To avoid pollution of
environment, once your appliance is no longer
useful, take it to your local authorized waste
appliance dealer.
Description of washing machine
.....................
3
Cautions
.............................................................
4
Important safety instructions
..........................
6
Installation and connection
..............................
8
Operation
.........................................................
12
Tips for washing and energy saving
.............
19
Cleaning and maintenance
.............................
21
Troubleshooting
..............................................
24
Tables
...............................................................
27
Ownership Registration
..................................
29
Warranty
...........................................................
31
Consumer Support
..........................................
32
2

162971
Dimensions (w x d x h):
600 mm x 600 mm x 850 mm
Dimensions (w x d x h):
600 mm x 440 mm x 850 mm
Depth with door open:
106 cm / 88 cm (depending on model)
Weight (net):
79 kg
Nominal voltage:
120 V, 60 Hz
Power:
1500 W
Max. load:
15 lbs (7kg)
Power socket:
120 V, 15 A, 60 Hz
Water pressure:
min. 7 psi (0,05 MPa, max. 116 psi (0,8 MPa)
Fuse:
15 A
1. Front panel
2. Detergent dispenser
3. Door
4. Filter lid
5. Adjustable legs
6. Water outlet hose
7. Water inlet hose
8. Main power cable
3
Description of washing machine
Technical information

162971
•
Be sure to remove transport brackets prior
 rst use of the appliance. Attempted operation
of the blocked machine may result in
irreparable damage which is not covered by the
manufacturer’s warranty!
•
When connecting your washing machine to
the water supply, be sure to use the brand new
water inlet hose and appropriate sealing gaskets
(included).
•
Do not locate the machine in a room with
temperature below 0°C. Parts of the machine may
be damaged if frozen.
•
Install the washing machine in a perfectly
horizontal position, on solid  at concrete  oor.
•
Follow the instructions for correct installation and
water and main connections.
•
Never immerse the end of the drain hose into the
draining water.
•
Prior to starting the washing cycle lock the door
by pressing them at the designed spot.
•
Door may not be open during the washing cycle.
•
Use only detergents and softeners for
machine wash. Manufacturer may not assume
responsibility for any damage and eventual
discoloring of gaskets and plastic components as
a consequence of incorrect use of bleach and/or
coloring agents.
•
For removal of lime residues use such agents
with added anti-corrosion agents. Follow the
manufacturer’s instructions. Finish the lime
removal by multiple rinsing to completely remove
eventual acid residues.
•
Never use detergents containing solvents, since
there is a danger of creating toxic gasses which
may damage the machine and result in ignition or
explosion.
•
Upon completion of washing operation close the
water faucet.
4
Cautions

162971
•
Before any transport insert at least one transport
blocking rod. Prior to this operation disconnect the
appliance from the main power!
•
Rating plate with basic information is located
above the opening of the machine.
Before connecting the appliance read
these instructions carefully. Repairing
any failure arising from inappropriate
connections or use of the appliance is not
covered by the guarantee.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city of ce, your
household waste disposal service or the
shop where you purchased the product.
5

162971
To reduce the risk of  re, electric shock,
or injury to persons when using your
appliance follows basic precautions,
including the following:
1.
Read all instructions before using the appliance.
2.
Do not wash articles that have been previously
cleaned in, washed in, soaked in or spotted
with gasoline, dry-cleaning solvents, and other
 ammable or explosive substances as they give
off vapors that could ignite or explode.
3.
Do not add gasoline, dry-cleaning solvents, or
other  ammable or explosive substances to the
wash water. These substances give off vapors
that could ignite or explode.
4.
Under certain conditions, hydrogen gas may
be produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN
GAS IS EXPLOSIVE, if the hot water system
has not been used for such a period, before
using a washing machine, turn on all hot
water faucets and let the water  ow from
each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
 ammable do not smoke or use an open  ame
during this time.
5.
Do not allow children to play on or in the
appliance. Close supervision of children is
necessary when the appliance is used near
children.
6.
Before the appliance is removed from service or
discarded, remove the door.
7.
Do not reach into the appliance if the tub or
agitator is moving.
8.
Do not install or store this appliance where it will
be exposed to the weather.
9.
Do not tamper with controls.
10. Do not repair or replace any part of the
appliance or attempt any servicing unless
speci cally recommended in the user-
6
Important safety instructions

162971
maintenance instructions or in published user-
repair instructions that you understand and have
the skills to carry out.
11.
To reduce the risk of electric shock, disconnect
the appliance from the power supply before
attempting any user maintenance. Turning
the control to the »OFF« position does not
disconnect the appliance from the power supply.
Grounding instructions
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a quali ed
electrician or serviceman if you are in
doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the appliance-
if it will not  t the outlet; have a proper outlet
installed by a quali ed electrician.
7
Save these instructions

162971
In removing the wrapping be careful not to
damage the appliance with a sharp object.
•
Our appliances are packed in environmentally
friendly materials which may be recycled,
deposited or decomposed without any threat to
the environment.
•
To this end all wrappings are marked accordingly.
•

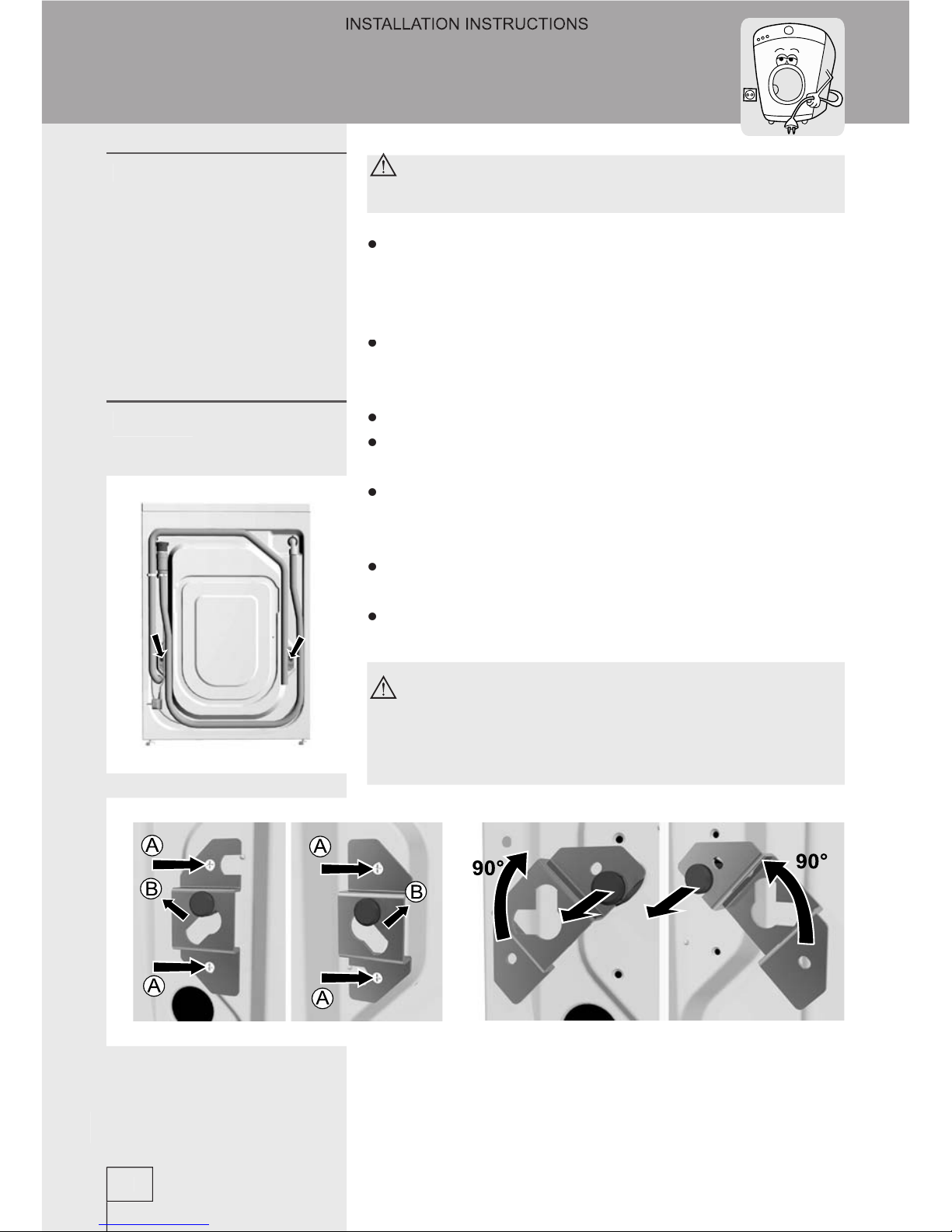

Move the pipes.
•
Loosen screws A at the rear of the machine
(Fig. 1).
•
Remove the brackets B (Fig. 1) and slide them
into the groove on the blocking rod (Fig. 2) - the
right one should be turned around.
•
Use the brackets to rotate blocking rods for 90°
and pull them out.
•
Close the openings with attached plastic pegs.
Save transport brackets for eventual later use.
Be sure to remove the transport brackets
prior to use, otherwise the appliance may
be permanently damaged. In such cases
the warranty conditions are void.
Fig. 1
Fig. 2
Fig. 2
8
Installation and connection
Package removal
Removal of transport
brackets

162971
•
Put the appliance in horizontal position by turning
the adjustable legs.
The legs are adjustable up to +/- 0,39 inch (1 cm).
The  oor must be a hard surface with a
maximum slope of ˝ per foot (1,27 cm per 30
cm). To make sure the washer does not vibrate
or move, you may have to reinforce the  oor.
•
If you have a tumble dryer of the same
dimensions, you can place it on top of the
washing machine.
To ensure correct operation of the appliance,
water pressure inlet must be between 7 psi to
116 psi (0,05 MPa and 0,8 MPa).
Minimum water pressure can be established by
measuring the quantity of poured out water.
0,8 gal (3 litres) of water must be poured out
from completely opened tap in 15 seconds.
•
Insert the gasket with screen into the water inlet
hose thread. Screw the hose thread to the water
faucet
•
In case of hot and cold water connection, connect
one hose to cold and other to hot water faucet as
marked at the rear of the appliance (letters C and
H) (C - cold; H - hot)
9
Water inlet connection
Leveling the appliance

162971
•

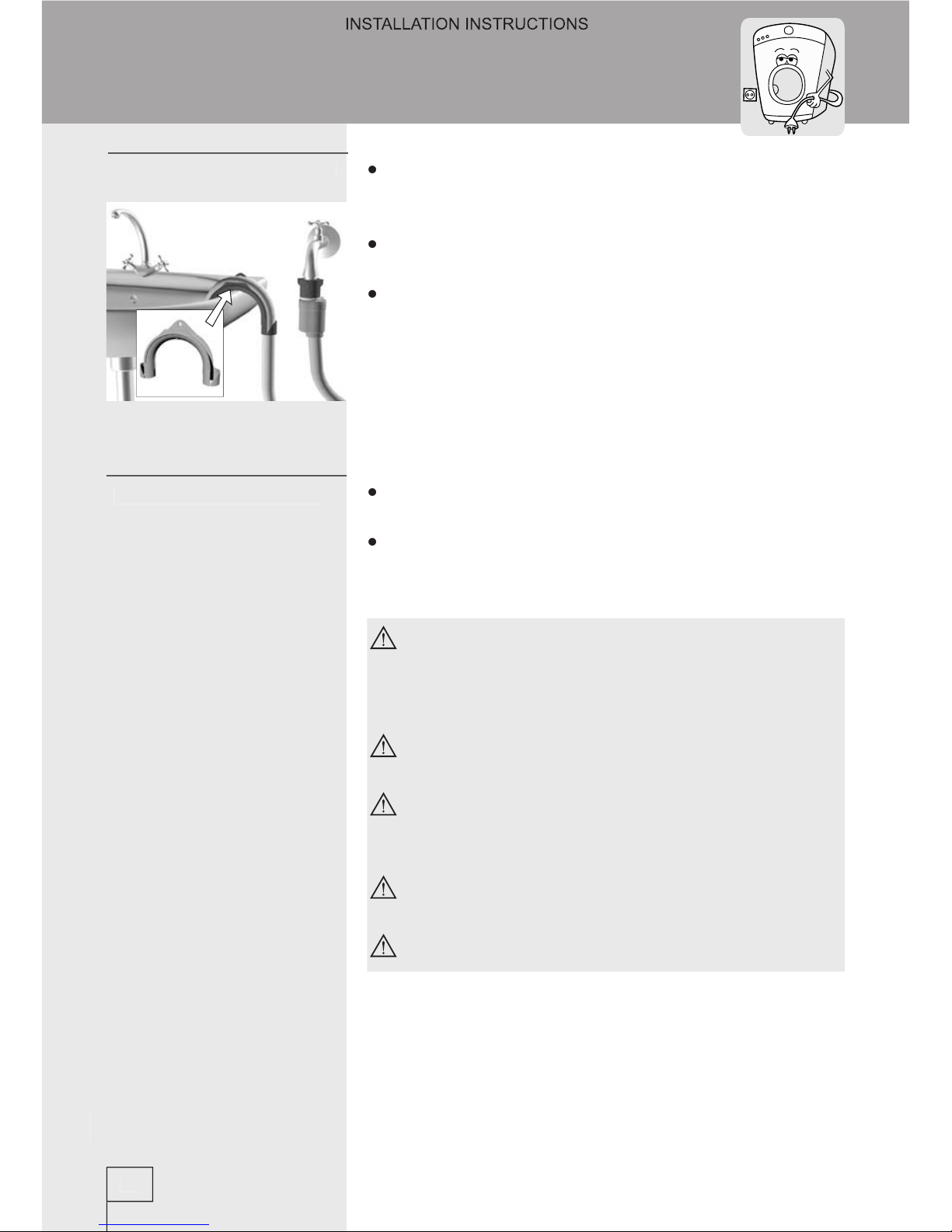

Fix the outlet hose to run into the sink or the
bathtub, or connect it directly to the wall drain
outlet (diameter min. 1,6 inch - 4 cm).
•
Wall drain must be installed properly and must
enable occasional cleaning.
•
Fasten the outlet hose support with a piece of
rope led through the hose elbow, to prevent the
hose from slipping to the  oor.
The end of outlet hose should be placed between
minimum 24 inch (60 cm) and maximum 40 inch
(100 cm) above the  oor level.
•
Plug the main power cable to the wall main
socket.
•
Required voltage and other information are written
on the rating plate above the door opening of the
machine.
The wall socket must be accessible at all
times and must be equipped with a ground
lead (in accordance with the local safety
regulations).
The permanent connection must be  tted
by an authorized personnel only.
Damaged main power cable may be
replaced only by the manufacturer or
authorized servicer.
Never plug the appliance into the electric
shaver socket or hair dryer socket.
Connect to individual branch circuit.
10
Connect the appliance
to the mains supply
Water outlet connection

162971
11

162971
•
Open the door of the machine
•
Load the laundry into the drum
•
Close the door
•
Open the water inlet faucet
•
Push the ON/OFF button and select the program
•

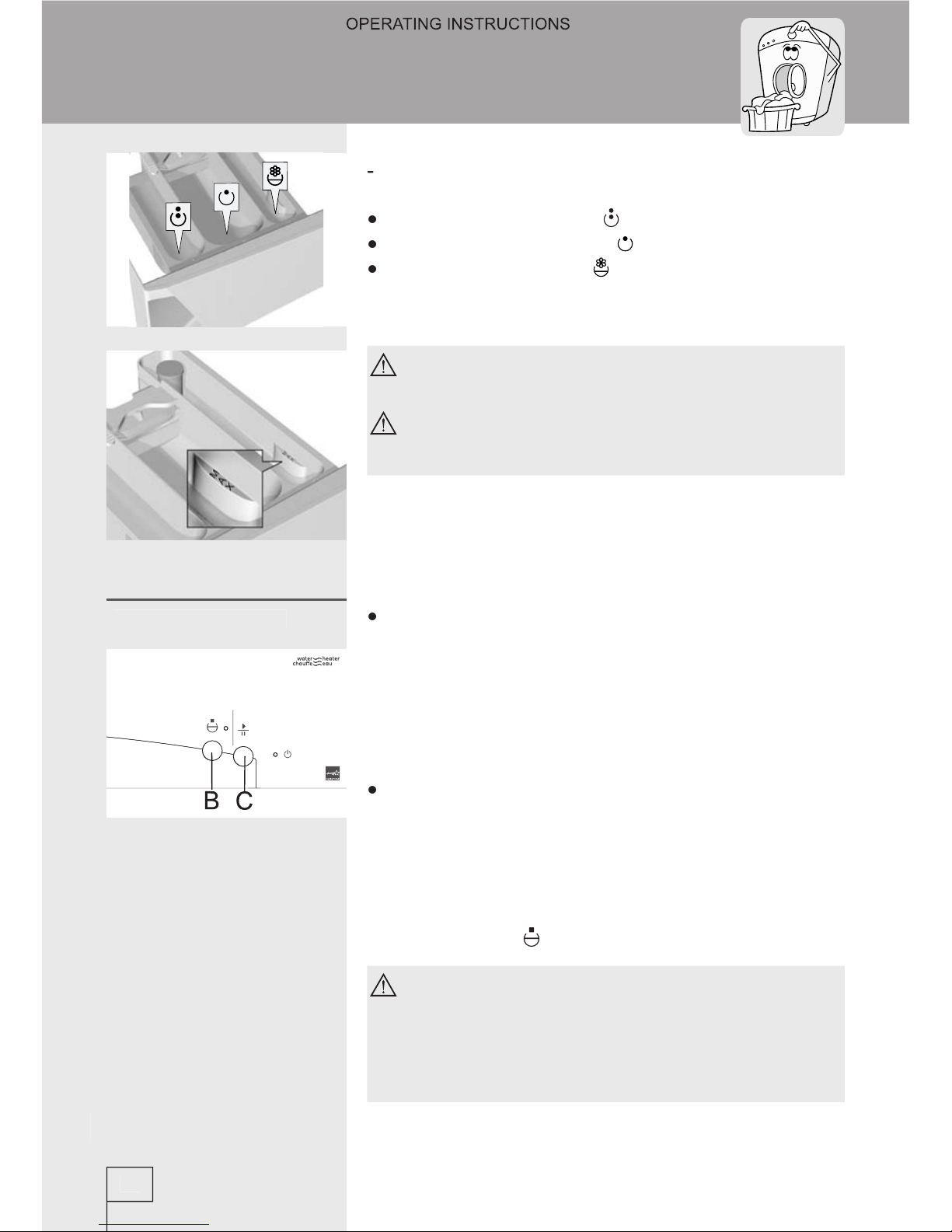

Add washing and treatment agents (detergent and
softener)
•

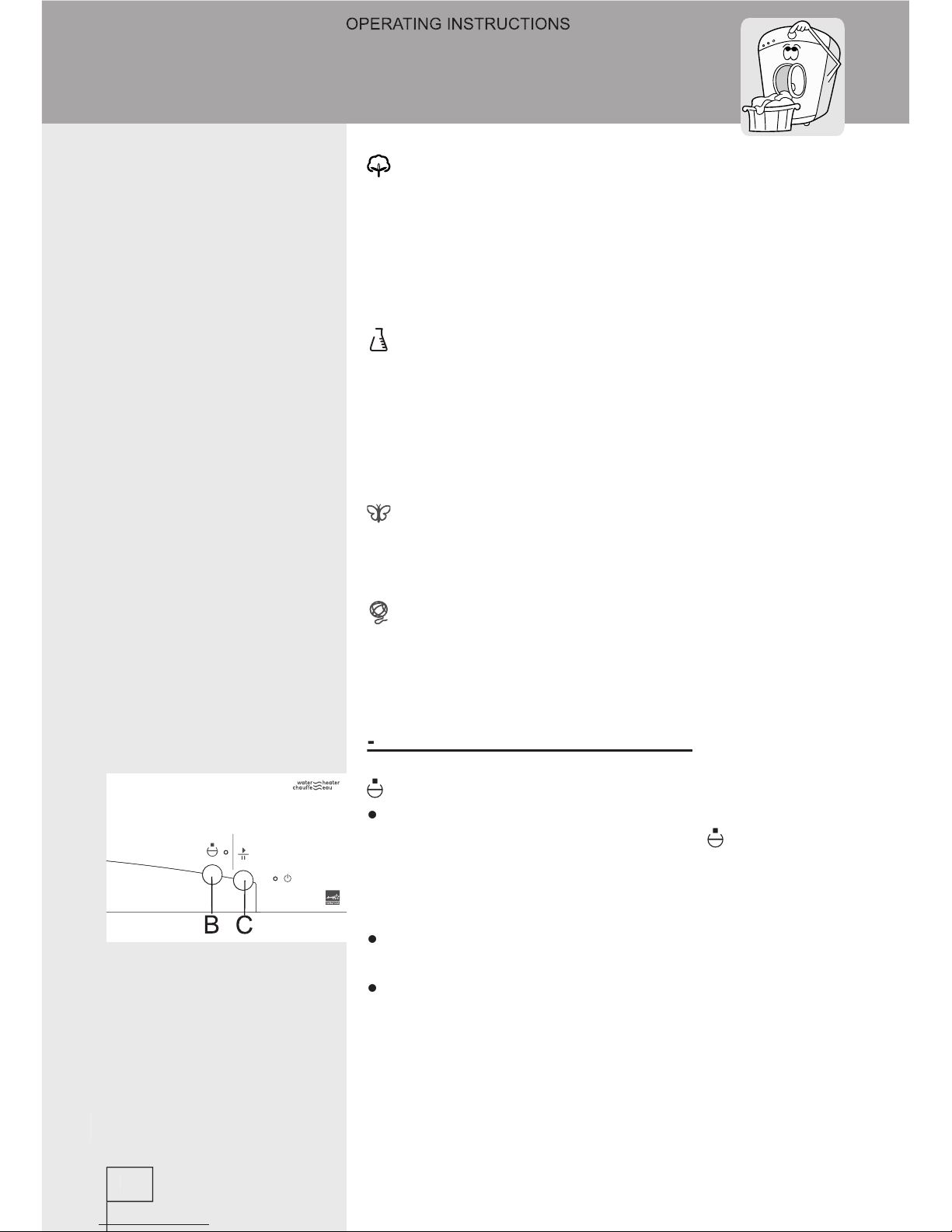

Start the operation by pushing the START knob (C)

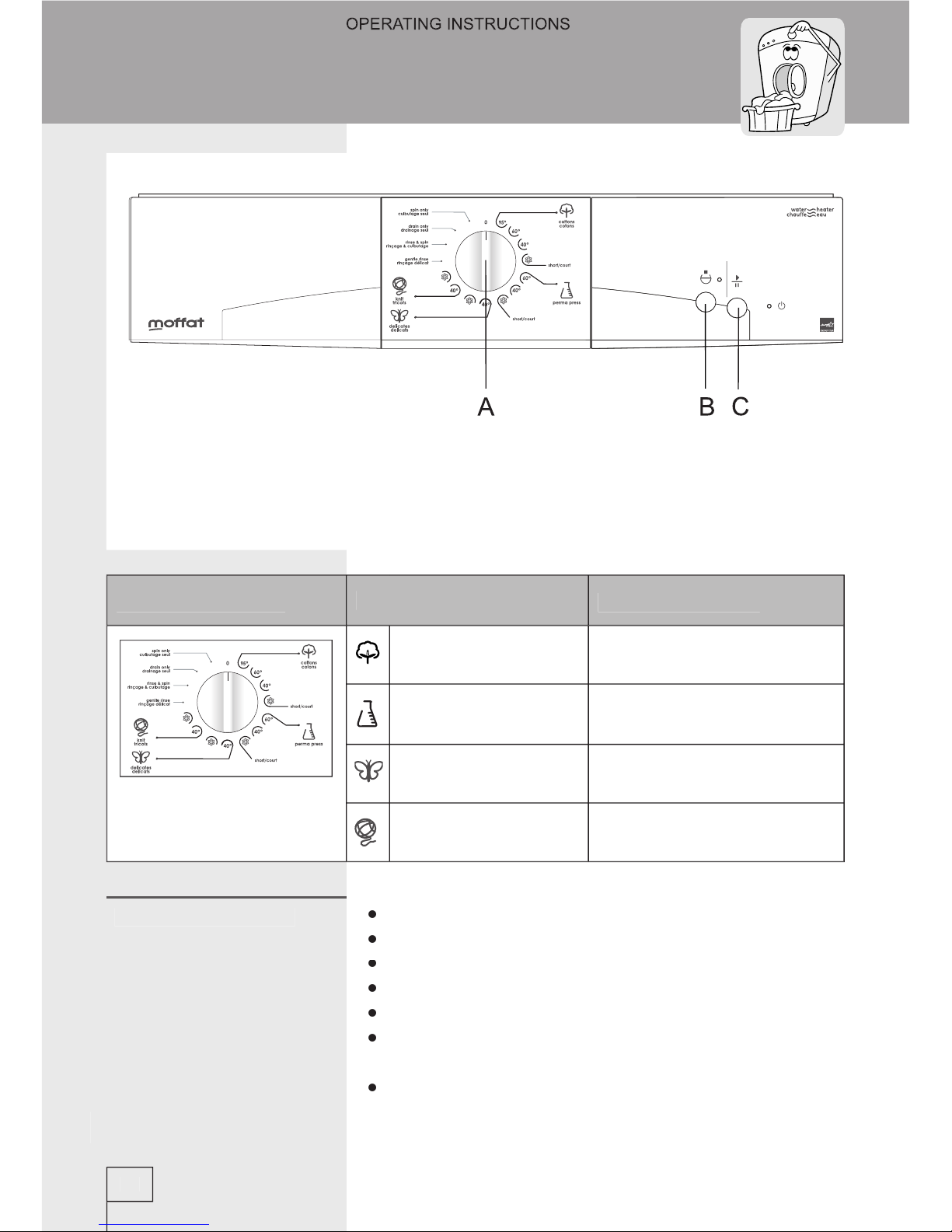

A - program selector
B - rinse hold knob
C - START/PAUSE knob
Signal LED’s:
- ON/OFF (orange)
- rinse hold/failure
(green)
12
Program selector
Basic programs
Partial programs
Cottons
Gentle rinse
Perma press
Rinse & spin
Delicates
Drain only
Knit
Spin only
Operation
Washing procedure

162971
-
Open the door of the machine
.
Door is opened by pulling the handle (lever) on
the right hand side of the door towards you.
-
Sort the laundry by the type of fabrics
.
Do the buttons and zippers, tie the strings
and pull out the pockets.
Very delicate laundry should be put in a
special protective sack.
It is suggested to load the drum with items
of different sizes.
Pay attention to the labels on the clothes,
indicating the recommending washing mode
(see table of textile treatment symbols on the
last page of these instructions).
-
Load the laundry into the drum
.
Check that the drum is empty.
-
Close the door of the appliance
.
-
Open the water inlet faucet
.
-
Push the ON/OFF button
and select washing
program.
Program is selected by turning the program selector (A)
from the “0” position to the desired washing program.
The ON/OFF signal LED starts  ashing. The program
selector (A) may be turned in both directions, and the
appropriate program selected according to the type of
laundry washed and the required washing temperature
(see Program Chart for help). You may select basic or
partial programs.
Selected program may be changed at random prior
pushing the START button (C).
-
Selection of basic programs
Selection of basic programs
(
,
,
,
)
Basic programs represent integral programs containing
all washing stages, including softening and spinning
(see Program Chart). They are selected by turning the
program selector to the appropriate position.
13
Washing machine
operation

162971
Cottons: whites/colored
Normally stained cotton and  ax bed linen and
underwear, table cloth, bathroom towels, top
garments, etc.
For less stained laundry of this type, use short
program. It saves energy and washing time.
Perma press
Normally stained shirts, blouses and other polyester
and polyamide garments, or a mixture of these
fabrics with cotton.
For less stained laundry of this type, use short
program. It saves energy and washing time.
Delicates
This is a program for delicate fabrics (dresses,
skirts, blouses) and curtains.
Knit
Especially gentle program for washing wool and
garments made from mixture of other fabrics with
wool, appropriately marked for machine washing.
-
Selection of additional function
Rinse hold
•
This function is switched on after the selection
of a basic program by pressing the
knob (B).
It may also be switched on during the operation,
prior last rinse. Indicator LED above the washing
cycle symbol is lit.
•
The function is switched off by pressing the same
knob again - signal LED is off.
•
The program stops at the end of last rinse, prior
spinning: laundry remains soaked in water and
prevents crease, if you are unable to remove
it from the drum immediately after the end of
washing cycle. Indicator LED above the knob is
 ashing.
14

162971
•
The selected program is completed by pushing
the START button (C), but you may also apply
partial programs (drain or spin only), but you must
 rst return the program selector to the “0” position
for at least one second, prior selecting any of the
additional programs.
When program continues, indicator LED above
the knob goes off.
-
Selection of partial programs
Selection of partial programs
These are independent programs and may be used
when you do not need the entire washing program.
In case you would like to use more additional
programs in a sequence, you must turn off the
appliance prior to any new program selection (turn
the program selector (A) to “0” for at least one
second).
Gentle
Independent program for rinsing delicate laundry,
without intermediate spinning and with short  nal
spin. You may use it for rinsing manually washed
delicate laundry or for extra rinsing for people with
skin sensitive to detergents.
Rinse & spin
This program is intended for softening, bleaching
or impregnating of washed laundry. It is completed
with spinning at 1000 RPM.
Drain only
Use it when the washing program was interrupted
or if rinse hold function was engaged, and you only
wish to pump the water out of the drum, without
spinning.
Spin only
Aggressive spinning for non-delicate laundry at high
spin RPM.
15

162971
-
Adding washing and softening agents
(see Tips for washing and energy saving)
•
pre-wash compartment
•
main wash compartment
•
softener compartment
Washing detergent may be added directly into the
drum, using the measuring vessel.
When adding softener, be careful to  ll the
dispenser only up to the marked level.
Be sure to close the detergent dispenser
when opening/closing the appliance door.
•
Push the START button (C). The ON/OFF LED
stops  ashing, the machine starts operating after
a few seconds. If the door is not properly closed
after starting the operation, the ON/OFF LED
starts  ashing again after a few seconds. When
you close the door, the machine initiates the
selected program.
•
In case you would like to alter the washing
program after the initiated washing operation,
turn the program selector for one second to the
position “0”, followed by the selection of a new
program. Switching the machine off deletes any
previously selected additional functions (i.e.
RINSE HOLD)
, so they have to be reactivated.
If a power failure occurs during the
washing program, when the power is
restored the machine will resume the
execution of a program where it had been
interrupted.
16
Start the operation

162971
-
End of operation
Flashing START/STOP LED indicates that the
program was completed.
•
Extract the laundry from the drum and remove
any foreign objects from the door gasket.
•
Leave the door ajar to allow the interior to dry.
•
Close the water inlet faucet.
•
Switch the machine off by turning the program
selector to position “0”.
17

162971
•
By the user
Selecting Pump stop function
Program is stopped when it comes to the ‘PUMP
STOP’
stage (if this function had been previously
selected). Drum door remains closed all the time.
Indicator LED above the ‘Pump stop’ function
starts  ashing. Washing procedure is continued by
pressing the START knob (C).
Own (physical) interruption
You may also stop the program by turning the
program selector to the position “0”. If there is
water in the drum select one of additional programs
(pumping, spinning) to empty the water and
terminate the program.
Pause knob
By pressing the PAUSE knob (C) program may
be suspended at any time. After certain time you
may open the door if there is no water in the drum,
otherwise this is not possible. Program is continued
by pressing the START knob (C).
•
Failures
Program is suspended in case a failure occurs.
Signal LED’s are  ashing (see Troubleshooting).
•
Power failure
If a power failure occurs the washing program is
interrupted, and when the power is restored the
program is automatically resumed where it had
been interrupted.
If a power failure occurs when the drum is
still full of water, be careful not to open the
door before you pump the water out.
18
Interruptions

162971
•
Before washing sort out the laundry according to
the type, degree of dirtiness and color fastness.
•
Prior to selecting the washing program consult the
sewn tab with information on a particular piece
of laundry (see
Maintenance chart
on the last
page).
•
Wash separately new colored textile products for
the  rst time.
•
Wash heavily soiled laundry in small quantities
and add more detergent.
•
Treat stubborn stains with special stain remover, it
will save energy.
•
With lightly stained laundry use short program and
select lower washing temperature. This way you
may save up to 50% of energy.
•
Avoid washing too little quantities of laundry
because of energy saving and for better
performances of the appliance.
•
The largest allowed quantity of dry laundry is
indicated in the
Program chart
.
•
Before washing, empty the pockets, close zip
fasteners, and remove any metal fasteners or
badges that might clog the drain or damage the
laundry or drum interior.
•
Loosen stacked laundry prior to inserting it into
the drum.
•
Use only detergents for machine wash.
•
Add powder or liquid detergents according to the
manufacturer’s instructions.
•
In case of hard water it is recommended to use
water softeners.
19
Tips for washing and energy saving

162971
•
You may add washing detergent directly into the
drum.
•
If you use thick liquid softener it is recommended
to dilute it with water, to prevent clogging of
dispenser compartment ducts.
•

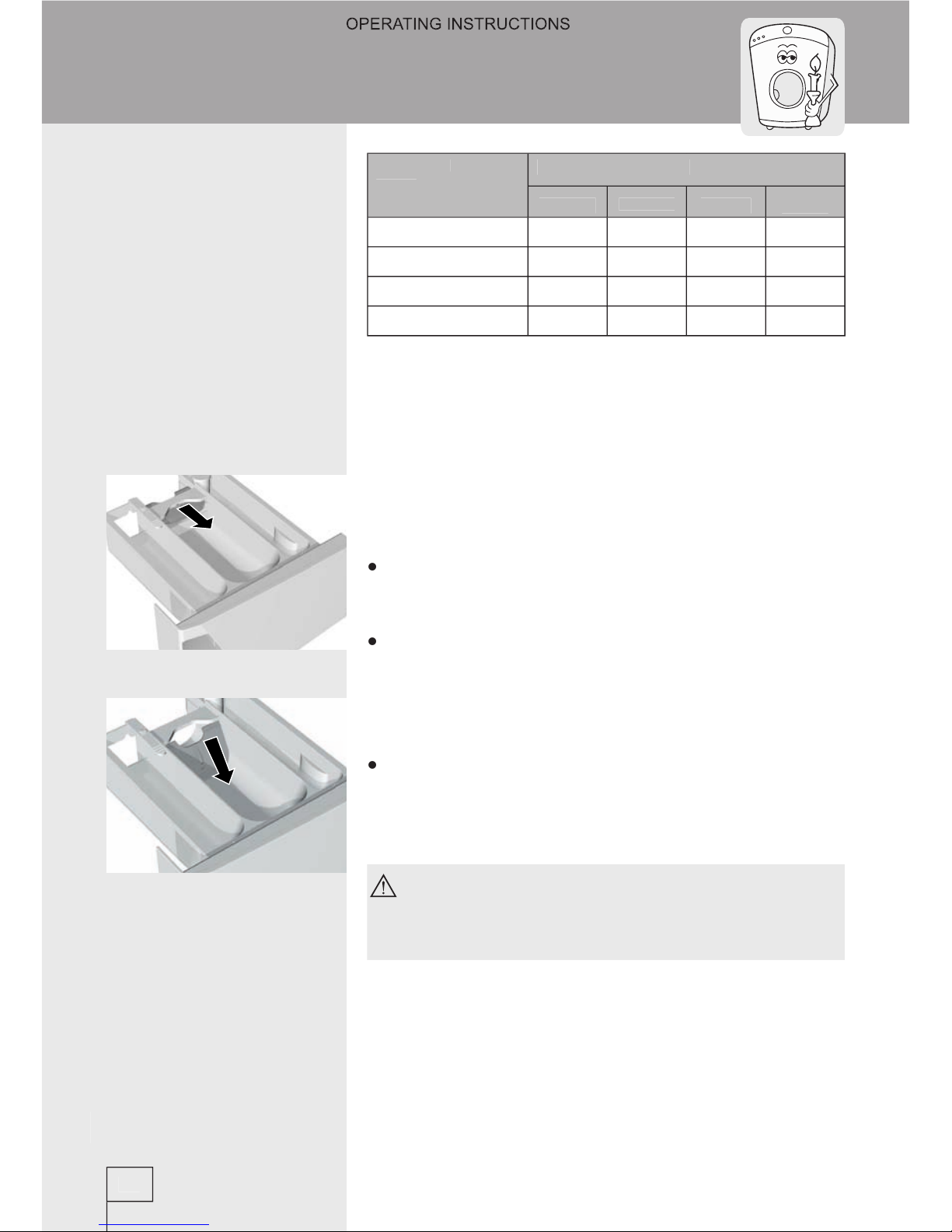

Washing machine is equipped with the dispenser
partition gate, so you may pour liquid detergent
also into the central compartment. If you use
powder detergent the gate is lifted up, and in case
of liquid detergent it is slid down.
•
Insert particularly delicate linen (stockings,
delicate female underwear, etc.) into the special
bag.
Do not put clods of detergent into the
soap dispenser as the tube in the washing
machine may clog.
20
Hardness
scale
Degree of hardness
°dH(°N)
m mol/l
°fH(°F)
p.p.m.
1 - Soft
0-7
0-1,3
0-12
0-120
2 - Medium
7-14
1,3-2,5
12-25
120-250
3 - Hard
14-21
2,5-3,8
25-37
250-370
4 - Extra hard
>21
>3,8
>37
>370
In case of hard water add detergent according to the Chart for
degree 1 and add appropriate quantity of water softener (see
manufacturer’s instructions).
