monogr 4293 User manual
Silver
Aluminum
Ford Engine Blue
Semi Gloss Black
Gloss Red
Wood
Steel
Turn Signal Amber
Transparent Red
White
This paint guide is provided to complete this kit
as shown on the box.
Ce guide de peintures est fourni pour reproduire le modèle
réduit qui apparaît sur la boîte.
Argent
Aluminu
Bleu
Noir brilliant
Rouge brillant
Bois
Acier
Ambre
Rouge transparent
Blanc
* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be
marked by a star (★) to indicate chrome
plated plastic.
* For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
* Check the fit of each piece before
cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas
to be cemented.
* Allow paint to dry thoroughly before
handling parts.
* Any unused parts may be discarded.
DECAL APPLICATION INSTRUCTIONS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
4. Wait until decal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubbles with a soft damp cloth.
7. Milkiness that may appear is for better decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coat.
NOTE: Decals are compatible with
setting solutions or solvents.
READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER
* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont
marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.
* Pour une meilleure prise de la peinture et des autocollants,
laver les pièces en plastique avec une solution détergente peu
concentrée. Les rincer et les laisser sécher à l'air.
* Vérifier que chaque pièce s'ajuste bien avant
de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.
DIRECTIVES D'APPLICATION DES AUTOCOLLANTS
1. Découper l'autocollant désiré de la feuille.
2. Tremper l'autocollant dans de l'eau pendant quelques secondes.
3. Placer l'autocollant mouillé sur une serviette en papier.
4. Attendez que l'autocollant puisse être déplacé sur son
support en papier.
5. Mettre l'autocollant en position sur le modèle face sur
le dessus et faire glisser le support pour l'enlever.
6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.
7. La substance laiteuse qui peut apparaître est destinée à
améliorer l'adhésion de l'autocollant et devient incolore au
séchage. Essuyer pour enlever tout excédent d'adhésif.
8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.
9. Laisser l'autocollant sécher pendant 48 heures avant
d'appliquer une couche transparente.
REMARQUE: Les autocollants sont compatibles avec
les solutions de fixage ou les solvants.
'66 SHELBY GT350
KIT 4293 85429300200
If you have any questions or comments, call our hotline at: (800) 833-3570
or, please write to:
Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007
Be sure to include the plan number (85429300200), part number, description, your return address and phone number.
Visit our website: www.revell.com
Revell Inc Elk Grove Village, IL. Copyright © 2010. All rights reserved.
* REPEAT SEVERAL TIMES
* A REPETER PLUSIEURS FOIS
* CEMENT TOGETHER
* A COLLER
* REMOVE AND THROW AWAY
* A RETIRER ET JETER
* DO NOT CEMENT
* NE PAS COLLER
* DECAL
* DECAL COMANIE
* ASSEMBLY CAUTION
*ATTENTION D ASSEMBLEE
* OPTIONAL PARTS
* PIECES EN OPTION
* REPEAT PROCEDURE
* R E P E T E Z L E P R O C E D E
``` ```
The 1966 Shelby GT350 is a modi-
fied high performance version of
the 1966 Ford Mustang. The Shelby
Mustangs had funtional brakes
scoops, special quarter panel win-
dowsandahighperformanceengine
that produced 306 horsepower.
Your Monogram Mustang model
features an opening hood with a
highly detailed 289 high-perfor-
mance engine, side body brake
scoops and front bucket seats.
A waterslide decal with authentic
factory markings and optional col-
ored body stripes is also included.

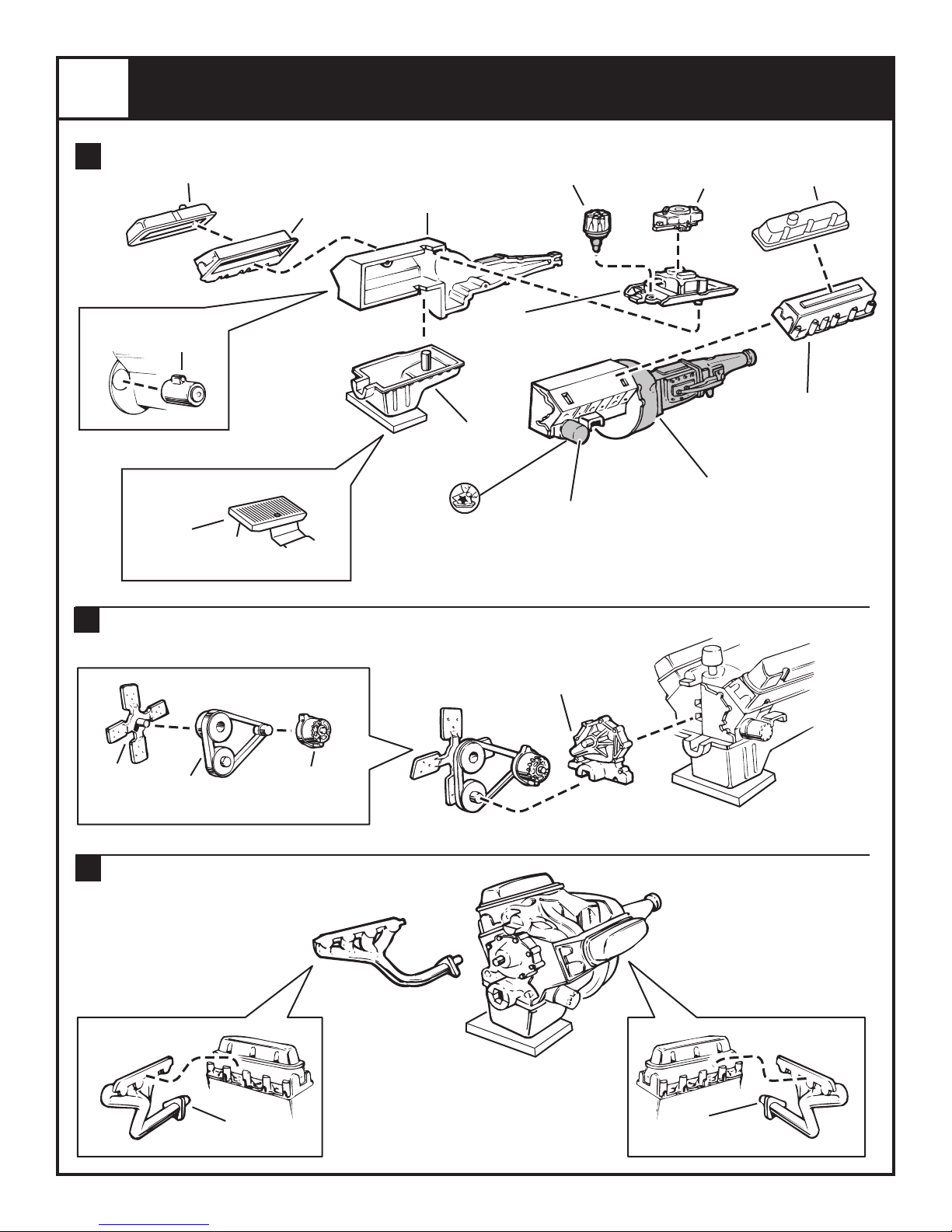

ENGINE ASSEMBLY
1
C
B
A★82
ROCKER COVER
CHROME
★81
ROCKER COVER
CHROME
35
FAN
SEMI GLOSS
BLACK
34
FAN BELT
SEMI GLOSS BLACK
★37
ALTERNATOR
CHROME
36
WATER PUMP
FORD ENGINE BLUE
43
EXHAUST HEADER
STEEL
42
EXHAUST HEADER
STEEL
29
CYLINDER HEAD
FORD ENGINE BLUE
★84
OIL PAN BOTTOM
CHROME
★83
OIL PAN
CHROME
DECAL
32
29
CYLINDER HEAD
FORD ENGINE BLUE
26
RT. ENGINE HALF
FORD ENGINE BLUE
(PAINT SHADED AREA ALUMINUM)
33
DISTRIBUTOR
SEMI GLOSS BLACK
(PAINT SHADED AREA ALUMINUM)
★31
CARBURETOR
CHROME
25
LT. ENGINE HALF
FORD ENGINE BLUE
(PAINT SHADED AREA ALUMINUM)
WHITE
30
INTAKE MANIFOLD
ALUMINUM
Kit 4293 - Page 2
23
STARTER
SEMI GLOSS BLACK
Kit 4293 - Page 3

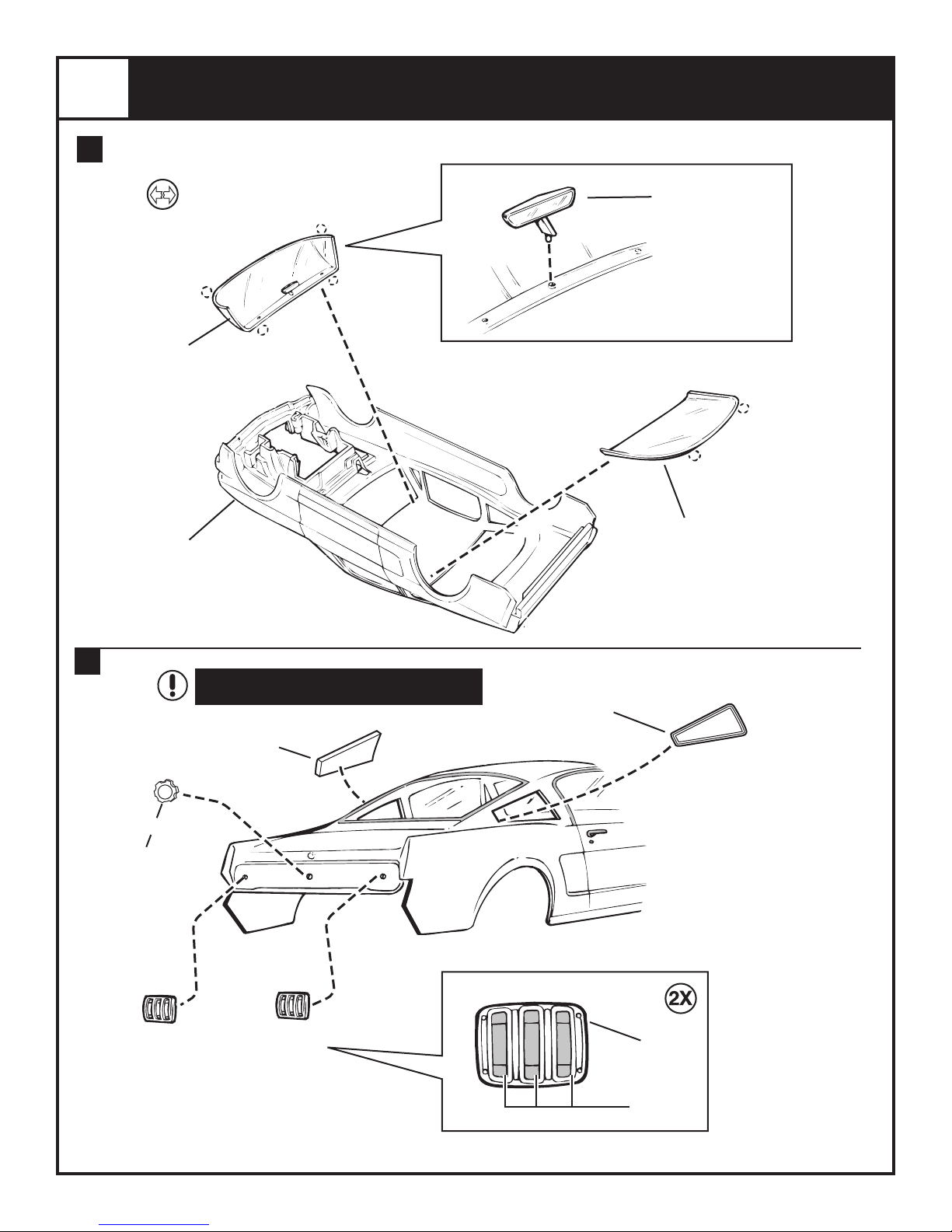

BODY ASSEMBLY
2
A
B
★40
REAR VIEW
MIRROR
CHROME
60
WINDSHIELD
CLEAR
61
REAR WINDOW
CLEAR
1
BODY
BODY COLOR
66
SIDE WINDOW
CLEAR
67
SIDE WINDOW
CLEAR
★91
GAS CAP
CHROME
(PAINT DETAILS WHITE)
★52
TAILLIGHT BEzEL
CHROME
TRANSPARENT
RED
*
*
*
*
*
*
*
*
*
NOTE: SEE DECAL PLACEMENT GUIDE FOR
DECAL LOCATION BEFORE ASSEMBLY
Kit 4293 - Page 4

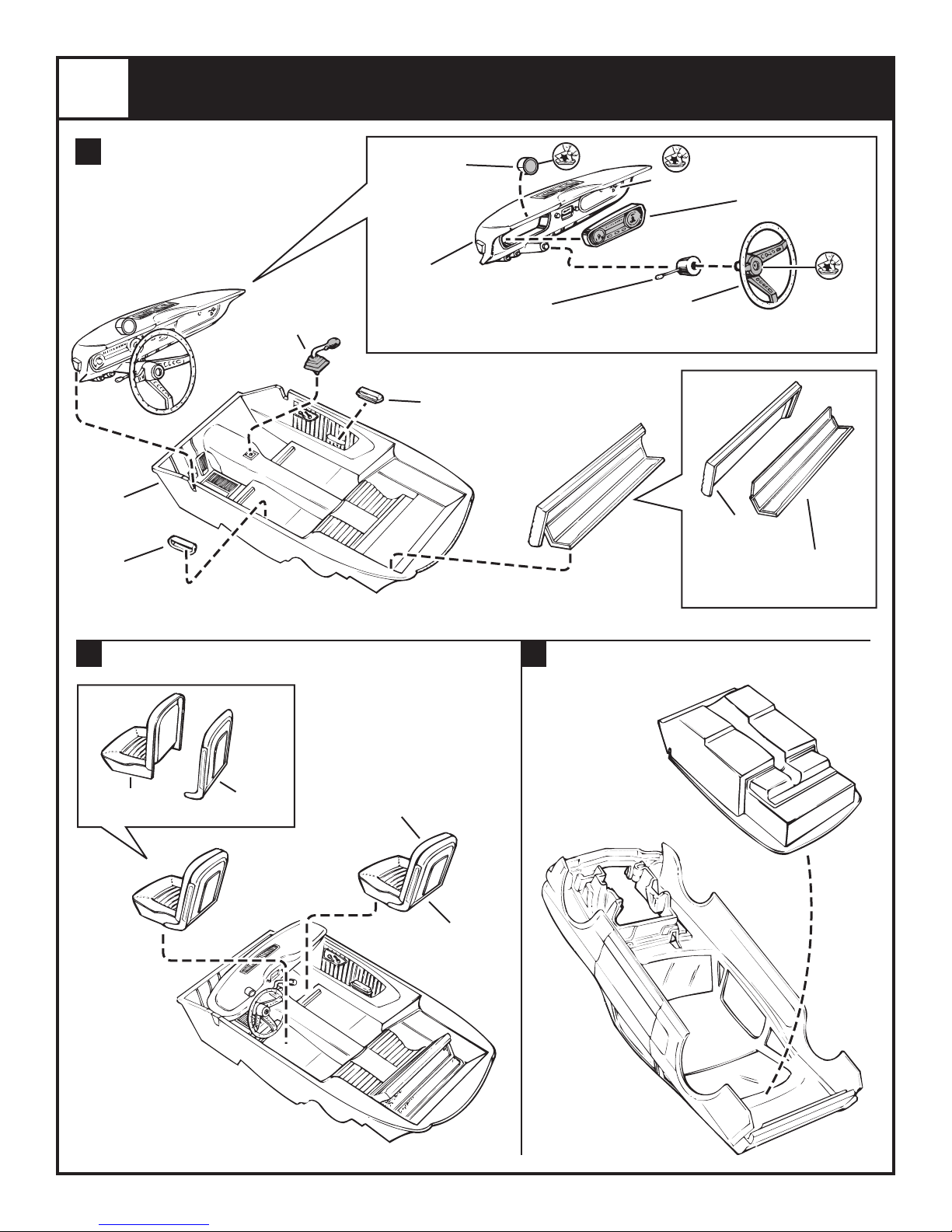

INTERIOR ASSEMBLY
3
4
DASH
SEMI GLOSS BLACK
(PAINT TRIM SILVER)
94
TACHOMETER
SEMI GLOSS BLACK
12
STEERING COLUMN
SEMI GLOSS BLACK
★8
SHIFTER
CHROME
(PAINT SHADED AREA
SEMI GLOSS BLACK)
18
ARM REST
SEMI GLOSS BLACK
DECAL 26
DECAL
27
DECAL
28
18
ARM REST
SEMI GLOSS BLACK
65
LT. SEAT BACK
SEMI GLOSS BLACK
11
RT. SEAT BACK
SEMI GLOSS BLACK
(SHOWN IN PLACE)
6
SEAT FRONT
SEMI GLOSS BLACK
6
SEAT FRONT
SEMI GLOSS BLACK
3
INTERIOR
SEMI GLOSS BLACK
7
STEERING WHEEL
WOOD
PAINT SHADED ALUMINUM)
★93
INSTRUMENT POD
CHROME
(PAINT SHADED SEMI
GLOSS BLACK)
A
CB
9
REAR SEAT
FRONT
SEMI GLOSS BLACK 10
REAR SEAT
BACK
SEMI GLOSS BLACK

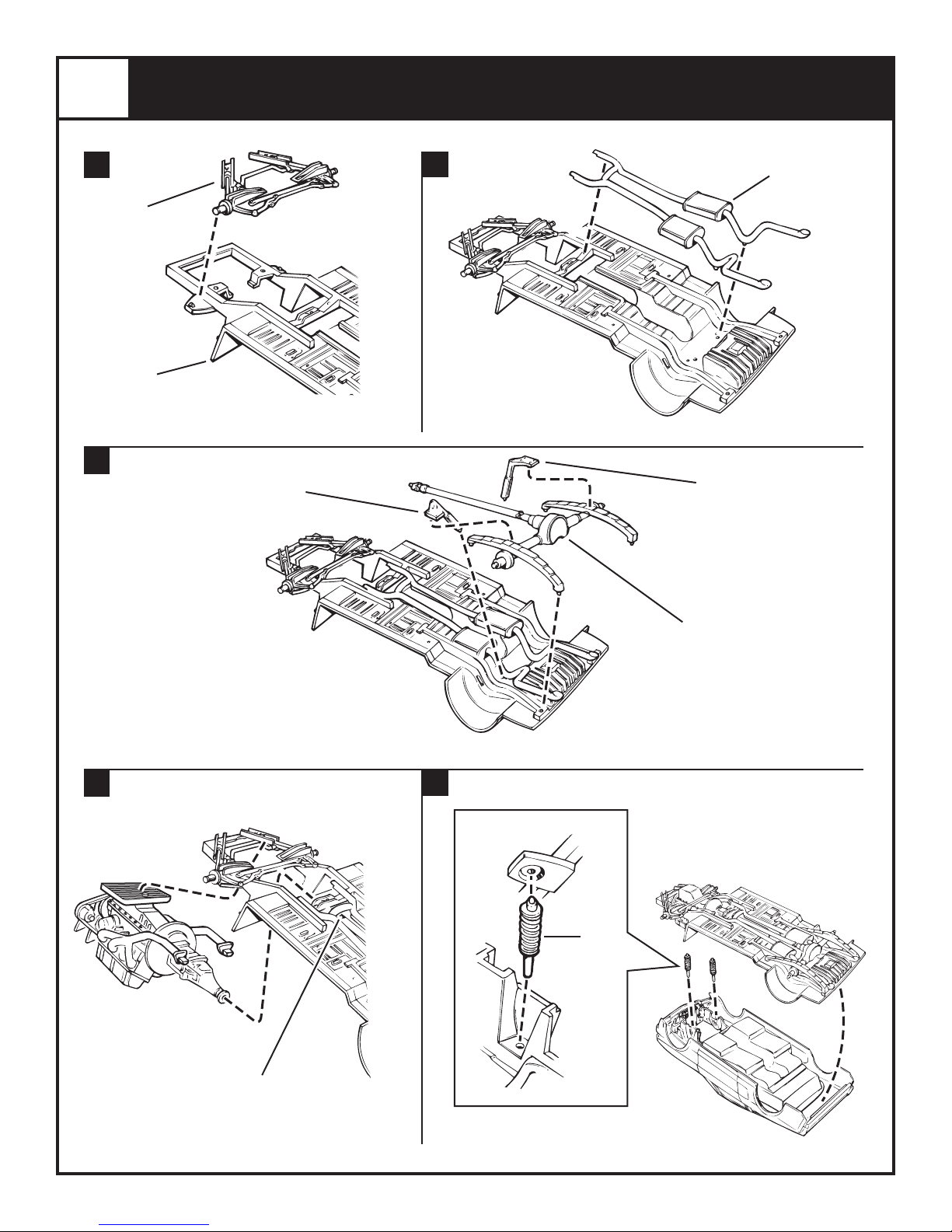

SUSPENSION ASSEMBLY
4
Kit 4293 - Page 5
AB
E
C
D
13
CHASSIS
SEMI GLOSS BLACK
16
RT. SHOCK
ABSORBER
SEMI GLOSS BLACK
15
LT. SHOCK
ABSORBER
SEMI GLOSS BLACK
14
REAR AXLE
SEMI GLOSS BLACK
41
EXHAUST
ALUMINUM
17
FRONT SUSPENSION
SEMI GLOSS BLACK
20
FRONT
SPRING
SEMI GLOSS
BLACK
DRIVESHAFT INTO
ENGINE ASSEMBLY
WHEEL / TIRE ASSEMBLY
5
FINAL ASSEMBLY
6
Kit 4293 - Page 6
58
INNER WHEEL
FLAT BLACK
★92
OUTER WHEEL
CHROME
200
TIRE
49
REAR PAN
BODY COLOR
86
LT. SCOOP
BODY COLOR
87
RT. SCOOP
BODY COLOR
56
BRACE
SEMI GLOSS BLACK
SEMI GLOSS BLACK
64
WASHER
FLUID BAG
SEMI GLOSS BLACK
(PAINT CAP
ALUMINUM)
★51
BACKUP LIGHT
CHROME
(PAINT SHADED AREA WHITE)
★51
BACKUP LIGHT
CHROME
(PAINT SHADED AREA
WHITE)
★24
MASTER CYLINDER
CHROME
(PAINT BODY SEMI
GLOSS BLACK)
21
RADIATOR WALL
SEMI GLOSS BLACK
22
RADIATOR
SEMI GLOSS BLACK
★50
REAR BUMPER
CHROME
21
DECAL
29
DECAL
A B
*
*
NOTE: SEE DECAL PLACEMENT GUIDE FOR
DECAL LOCATION BEFORE ASSEMBLY
C
E F
D
FINAL ASSEMBLY CONTINUED
7
76
HOOD
BODY COLOR
(PAINT SHADED AREA ALUMINUM) 39
SIDE VIEW
MIRROR
CHROME
59
RADIATOR HOSE
SEMI GLOSS BLACK
★80
AIR CLEANER
CHROME
(PAINT SHADED AREA WHITE)
★48
HEADLIGHT
BEzEL
CHROME
★48
HEADLIGHT
BEzEL
CHROME
★46
FRONT BUMPER
CHROME
★47
TURN SIGNAL
CHROME
★47
TURN SIGNAL
CHROME
44
FRONT PAN
BODY COLOR
62
HEADLIGHT LENS
CLEAR
62
HEADLIGHT
LENS
CLEAR ★90
GRILLE
CHROME
★57
MONTE CARLO
BAR
CHROME
33
DECAL 35
DECAL
Kit 4293 - Page 7
*
*
*
*NOTE: SEE DECAL PLACEMENT GUIDE FOR
DECAL LOCATION BEFORE ASSEMBLY
20
DECAL
31
DECAL
30
DECAL
34
DECAL
3
(See step 8
for details)
5
(See step 8 for details)
16
(See step 7A for details)
14
(See step 7A for details)
13
(See step 7A for details)
15
(See step 7A for details)
6
(See step 8 for details)
4
(See step 8
for details)
1
(Other side decal 2)
17,18 or 22
(Do not dip in water, carefully cut decal out
and use white glue to attach)
8
13
7
129
10
11
17,19 or 22
(Do not dip in water, carefully cut decal out
and use white glue to attach)
23
23
25

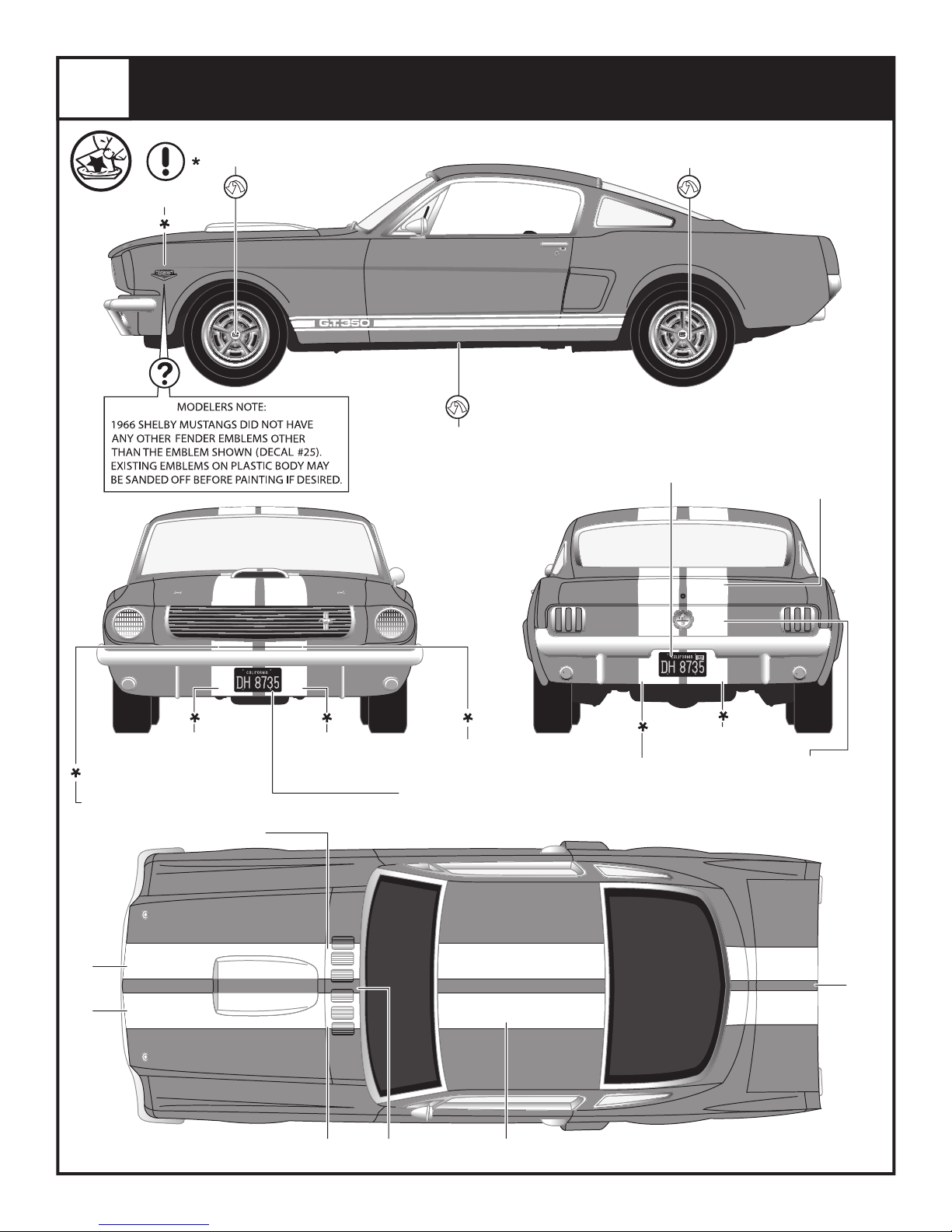

DECAL PLACEMENT
8
Kit 4293 - Page 8
