Safety Information
READ AND SAVE THESE INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
° | M PO RTANT — Save these instructions for
local inspector’s use.
° IM PO RTANT — Observe all governing codes
and ordinances.
« Note to Installer — Be sure to leave these
instructions with the Consumer.
« Note to Consumer — Keep these instructions
with your Owner’s Manual for future reference.
¢ Skill Level — Installation of this appliance requires
basic mechanical and electrical skills.
« Completion Time — 1 to 3 Hours.
* Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the warranty.
For Monogram local service in your area, call 1.800.444.1845.
For Monogram service in Canada, call 1.800.561.3344.
For Monogram Parts and Accessories, call 1.800.626.2002.
CAUTION:
Due to the weight and size of these vent hoods and
to reduce the risk of personal injury or darnage to the
product, TWO PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION.
WARNING:
To reduce the risk of fire or electrical shock, do not
use this range hood with any external solid-state speed
control device. Any such alteration from original factory
wiring could result in damage to the unit and/or create
an electrical safety hazard.
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING: to reouce THE risk OF FIRE,
ELECTRICAL SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
A. Use this unit only in the manner intended
by the manufacturer. If you have any questions,
contact the manufacturer.
B. Before servicing or cleaning the unit, switch
the power off at the service panel and lock the
service disconnecting means to prevent the power
from being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
CAUTI O N: FOR GENERAL VENTILATING
USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS
MATERIALS, EXPLOSIVE MATERIALS OR VAPORS.
WARNING: to reouce THE risk OF FIRE,
ELECTRICAL SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
« Installation work and electrical wiring must be done
by qualified person(s} in accordance with all applicable
codes and standards, including fire-rated construction.
« Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney}
of fuel burning equipment to prevent back-drafting.
Follow the heating equipment manufacturer’s
guidelines and safety standards, such as those
published by the National Fire Protection Association
(NFPA), the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE} and the local
code authorities.
« When cutting or drilling into walls or ceilings, do not
damage electrical wiring and other hidden utilities.
« Ducted systems must always be vented
to the outdoors.
« Local codes vary. Installation of electrical connections
and grounding must comply with applicable codes.
In the absence of local codes, the vent should be
installed in accordance with National Electrical Code
ANSI/NFPA 70-1990 or latest edition.
CAUTION: To reduce risk of fire and to
properly exhaust air, be sure to duct air outside—do not
vent exhaust air into spaces within walls or ceilings or
into attics, crawl spaces or garages.

Design Information
CONTENTS
Design Information
Product Dimensions dnd CIEGrONCES ......essessessssssserseesssssnssseeessee 3
Installation Options . 3
Installation Preparation
Advance Planning, Ductwork, Framing wees 4
Power Supply
DUCT FITEINGS oo ees ceeseeeeescceesrssmunneccescssnmaseccessnunnuseeceesnuunmecseceesnunnneceesseea
Tools and Materials Required
Remove the Packaging ............
Determine Installation Height ccc ccsscssseseeseseeemmensnnesnseseeee
Wall Mount Installation Heights
Check Installation HOrdware nw ccceccccccceessssssssnsnsnnsnsosnsasasssnsssnsnsnsnseenee
Installation—Vented to the Outside
Ductwork, Wiring LOCALIONS woe ccccecesscscessesssessesesenseniuansnesnseniees
Step 1, Install Framing for Hood Support
Step 2, Install Hood Mounting Screws....... ve
Step 3, Install Duct Bracket cc cscccsessesessssssnnsennanesssssesesne
Step 4, Mount the Hood .
Step 5, Connect Ductwork
Step 6, CONNEC ELSCtriCA) oo eeececescsssssssccsessesssnsnnsnnnnsnneresssnesesetee
Step 7, Install DUCT COVETS ec eseesessssssesceseesessessnsssnsnunnanerenrenssesseee
Step 8, Install Filters ............
Step 9, Finalize Installation
Installation—Recirculating
Ductwork, Wiring LOCATIONS oe ecsssssssssseeseceeceseseennnanueninnines 14
Step 1, Install Framing for Hood Support. ve
Step 2, Install Hood Mounting Screws........ 15
Step 3, Install Duct Bracket... 15
Step 4, Mount the Hood ...
Step 5, Size and Cut Duct Piece .
Step 6, Connect Electrical ............. 17
Step 7, Install DUCT COVETS ec eseesessssssesceseesessessnsssnsnunnanerenrenssesseee 17
Step 8, Install Filters ............ 18
Step 9, Finalize Installation 18

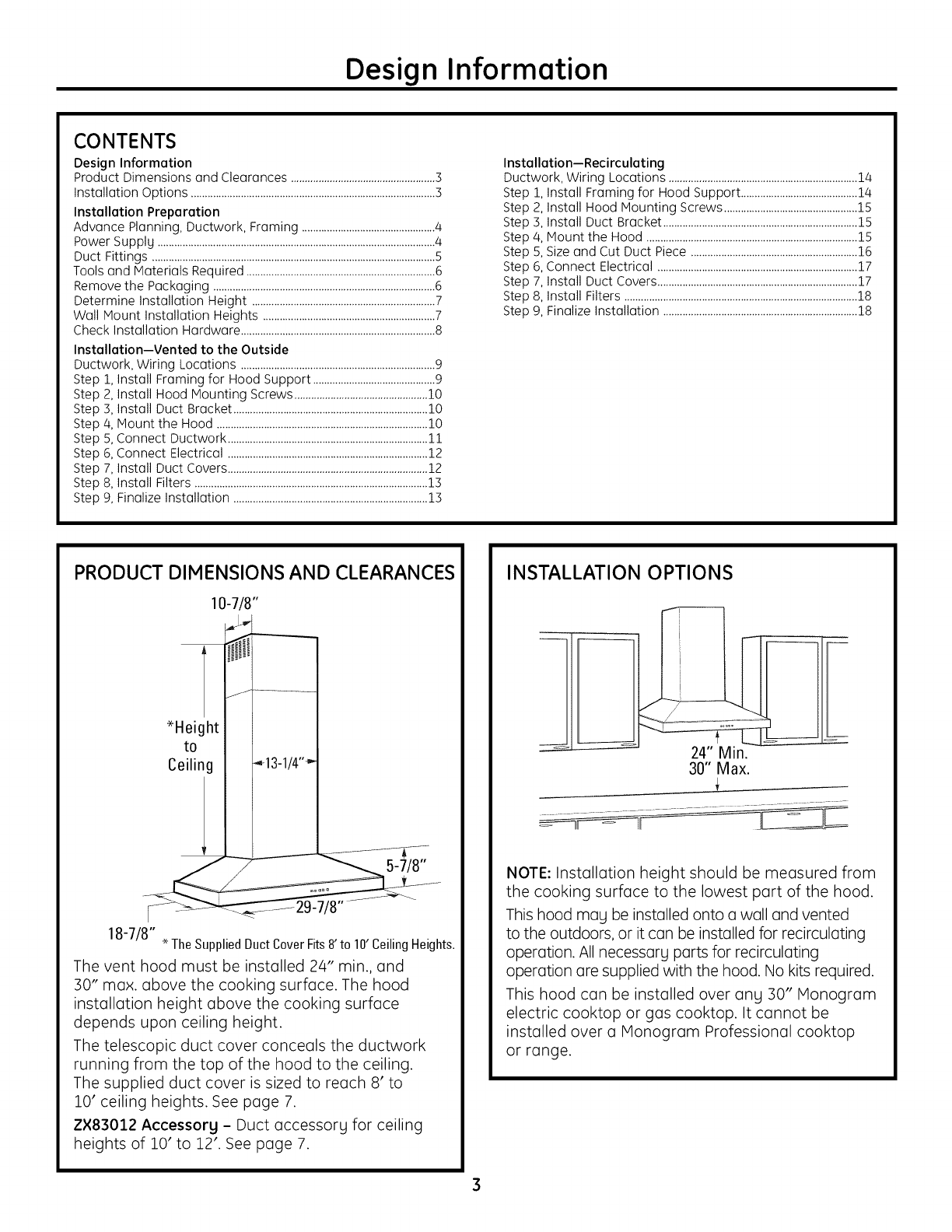

PRODUCT DIMENSIONS AND CLEARANCES
10-7/8"
|
*Height
to
Ceiling = 13-1/4" >)
18-7/8 * The Supplied Duct Cover Fits 8’ to 10’ Ceiling Heights.
The vent hood must be installed 24” min., and
30” max. above the cooking surface. The hood
installation height above the cooking surface
depends upon ceiling height.
The telescopic duct cover conceals the ductwork
running from the top of the hood to the ceiling.
The supplied duct cover is sized to reach 8’ to
10’ ceiling heights. See page 7.
2X83012 Accessory - Duct accessory for ceiling
heights of 10’ to 12’. See page 7.
INSTALLATION OPTIONS
NOTE: Installation height should be measured from
the cooking surface to the lowest part of the hood.
This hood may be installed onto a wall and vented
to the outdoors, or it can be installed for recirculating
operation. All necessary parts for recirculating
operation are supplied with the hood. No kits required.
This hood can be installed over any 30” Monogram
electric cooktop or gas cooktop. It cannot be
installed over a Monogram Professional cooktop
or range.

Installation Preparation
ADVANCE PLANNING
* Determine the exact location of the vent hood.
* Plan the route for venting exhaust to the outdoors.
« Use the shortest and straightest duct route possible. For
satisfactory performance, duct run should not exceed 100 ft.
equivalent length for any duct configurations.
* Refer to “Duct Fittings” chart on page 5 to compute the
maximum permissible length for duct runs to the outdoors.
CAUTION: To reduce risk of fire and to properly
exhaust air, be sure to duct air outside—do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl
spaces or garages.
WARNINGS to rebuce THE risk OF FIRE,
USE ONLY METAL DUCTWORK.
¢ Install a wall cap with damper or roof cap at the exterior
opening. Order the wall or roof cap and any transition
needed in advance.
Wall Framing for Adequate Support
¢ This vent hood is heavy. Adequate structural support must
be provided in all types of installations. The hood must be
secured to vertical studs in the wall, or to a horizontal
support.
* The vent hood should be on site before final framing and
wall finishing. This will help to accurately locate the duct
work and electrical service.
* Installation will be easier if the vent hood is installed before
the cooktop and countertop are installed.
ACCESSORY DUCT COVER
This hood is shipped with a decorative duct cover for ceiling
heights of 711” to 10”. The ZX83012 duct cover accessory
is available to reach ceiling heights between 101” and 12”.
The accessory should be ordered with the hood and be
on site before installation begins.
POWER SUPPLY
IMPORTANT - (Please read carefully)
WARNING: ror personal sArery,
THIS APPLIANCE MUST BE PROPERLY GROUNDED.
Remove house fuse or open circuit breaker before beginning
installation.
Do not use an extension cord or adapter plug with this
appliance. Follow National electrical codes or prevailing local
codes and ordinances.
Electrical supply
These vent hoods must be supplied with 120V, 60Hz, and
connected to an individual, properly grounded branch circuit,
and protected by a 15 or 20 amp circuit breaker or time
delay fuse.
¢ Wiring must be 2 wire with ground.
« If the electrical supply does not meet the above
requirements, call a licensed electrician before proceeding.
* Route house wiring as close to the installation location as
possible, in the ceiling or back wall. Refer to Wiring Locations
on page 9.
* Connect the hood wiring to the house wiring in accordance
with local codes.
Grounding instructions
The grounding conductor must be connected to a grounded
metal, permanent wiring system, or an equipment-grounding
terminal or lead on the hood.
WARN | N G: The improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is
properly grounded.
CAUTION: Automatically Operated Device -
To reduce the risk of injury disconnect from power supply
before servicing. This unit is equipped with an integral
disconnecting switch located inside the blower housing.

Installation Preparation
DUCT FITTINGS
This Hood Must Use an
8” Round Duct. It Can
Transition to a
3-1/4” x 12” Duct.
Use this chart to compute
maximum permissible lengths for
duct runs to outdoors.
NOTE: Do not exceed maximum
permissible equivalent lengths!
Maximum duct length:
100 feet for range hoods.
Flexible ducting:
If flexible metal ducting is used,
all the equivalent feet values in
the table should be doubled.
The flexible metal duct should
be straight and smooth and
extended as much as possible.
DO NOT use flexible plastic
ducting.
NOTE: Any home ventilation
system, such as a ventilation hood,
may interrupt the proper flow of
combustion air and exhaust
required by fireplaces, gas
furnaces, gas water heaters and
other naturally vented systems.
To minimize the chance of
interruption of such naturally
vented systems, follow the
heating equipment manufacturer's
guidelines and safety standards
such as those published by NFPA
and ASHRAE.
Total
Equivalent Quantity Equivalent
Duct Piece Dimensions Length* Used Length
Round, 1 ft.
straight (per foot
length}
3-1/4” x 12” 1 ft.
straight (per foot
length}
90° elbow
17 ft.
45° elbow
10 ft.
3-1/4” x 12”
90° elbow 43 ft.
3-1/4" x 12”
45° elbow 26 ft.
3-1/4” x 12”
90° flat elbow 102 ft.
8” round to
3-1/4” x 12” transition 2 tt.
3-1/4” x 12” to 8”
round transition 5 ft.
8” round
to 3-1/4” x 12”
transition 90° elbow 6 ft.
3-1/4” x 12” to 8”
round transition 90° elbow $13 ft.
Round
wall cap
with damper 32 ft.
3-1/4” x 12” wall cap
with damper 75 ft.
Round
roof cap 44 ft.
*Actual length of straight duct plus duct fitting
equivalent. Equivalent length of duct pieces are
based on actual tests conducted by GE Evaluation
Total Duct Run
Engineering and reflect requirements for good
venting performance with any ventilation hood.

Installation Preparation
TOOLS AND MATERIALS REQUIRED Ee
(NOT
SUPPLIED)
ee
Oo Tape measure —<2 ee Gloves
Oo Knife ..
CO Spirit level Spirit level
O Wire cutter/strioper Measuring tape
HO Wire nuts
O Electric drill with 1/8” and 3/8” bits ——
0 Phillips and flat blade screwdrivers \ YS aN
CO
Hammer
,
(i
Ga
iN
A Phers Pliers Electric drill YY
t) with 1/8” and Wire
0 Safety glasses
DO Aluminized duct tape
FH Tape to mount template
3/8”
Bits
cutter/stripper
FO Gloves to protect against sharp edges Aluminized —,)
FH 120V 60Hz. 15 or 20 Amp, 2 wire with duct tape ey
ground Properly grounded branch circuit
OD Strain relief for junction cover S Hammer
0 8” round metal duct, length to suit O5 =
installation ; ” ar
0 Saw, jig saw or reciprocating saw Strain relief Prilh —
HO Tin snips __ = head” Flat blade
a2
()=0
;
screwdriver
screwdriver
Wire nuts
eh
Saw, jig saw or
Masking tape reciprocating 8” round metal duct,
oo
saw
length
to
suit
Tin
snips
installation
REMOVE THE PACKAGING
CAUTION: wear gloves to protect against
sharp edges.
¢ Remove duct covers.
« Remove the parts box and other pieces. Locate
the literature package.
« Remove and properly discard the protective plastic
wrapping and other packaging materials.

Installation Preparation
DETERMINE INSTALLATION HEIGHT
* Telescopic duct covers are provided to conceal
the ductwork running to the ceiling.
¢ This hood can be installed for recirculating
operation. No kits required.
24” Min.
30” Max.
NOTE: Installation height should be measured from
the cooking surface to the lowest part of the hood.
36” Min.
The vent hood must be installed 24” min. and
30” max. above the cooking surface. The hood
installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height.
ACCESSORIES:
2X83012 Accessory duct cover is available for 10 ft.
to 12 ft. ceilings. This accessory consists of one
487%” long duct cover.
Actual
Ceiling
Height
711”
8’ 0”
8’ 1”
8’ 2”
8’ 3”
8’ 4”
8’ 5” to 9’ 6”
9 7”
9’ 8”
9° 9”
9’ 10”
9 11”
10’ 0”
10’ 1”
10’ 2”
10’ 3”
10’ 4”
9 7”
9’ 8”
9° 9”
9’ 10”
9 11”
10’ 0”
10’ 1”
10’ 2”
10’ 3”
10’ 4”
10’ 5”
10’ 6” to
11’ 6”
11’ 7”
11’ 8”
11’ 9”
11’ 10”
11’ 11”
12’ 0”
*Based on 36” countertop height.
*Possible VENTED
Installation Height | installation Height
24”
24” to 25”
24” to 26”
24” to 27”
24” to 28”
24” to 29”
24” to 30”
25” to 30”
26” to 30”
27” to 30”
28” to 30”
29” to 30”
30”
24”
24” to 25”
24” to 26”
24” to 27”
24” to 28”
24” to 29”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
25” to 30”
26” to 30”
27” to 30”
28” to 30”
29” to 30”
30”
*Possible
RECIRCULATING
24”
24” to 25”
24” to 26”
24” to 27”
24” to 28”
24” to 29”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
25” to 30”
26” to 30”
27” to 30”
28” to 30”
29” to 30”
30”
24”
24” to 25”
24” to 26”
24” to 27”
24” to 28”
24” to 29”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
24” to 30”
25” to 30”
26” to 30”
SUPPLIED

Installation Preparation
CHECK INSTALLATION HARDWARE
Locate the hardware package packed with the hood and check contents.
HARDWARE PACKAGE
Locate and count
screws _
ed
Air deflector for
"WV recirculating
installation only
8
duct
cover
Duct
bracket
and air deflector
screws .
(#8 thread 13-1/4" —
forming screw a
6 wood 4 wall 3/8” long)
screws fasteners
(#10 1-3/4” long) (5/167)
2-piece decorative duct
25-1/8” cover (dimension shown
| for reference only)
REAR WALL —_
MOUNTING TEMPLATE
Installation Height Installation Height
Align Bottom Edge With Align Bottom Edge With
Pencil Line Indicating Pencil Line Indicating
Bottom of Hood Bottom of Hood
Wall mount template
Stainless steel filter 1 charcoal filter for
recirculating installation

Installation Instructions
INSTALLATION—VENTED TO THE OUTSIDE
DUCTWORK, WIRING LOCATIONS
Determine the exact location of the vent hood.
* Locate the template packed with the literature.
- Measure 36” from the floor to the top of the cooking
surface. Add hood installation height determined on
page 7. Mark that location.
- Use a level to draw a straight pencil line on the wall.
5-1/2” centerline to wall-moa«- FOR CEILING VENT DUCTING
a -1/2”" a Wall vent
House Wiring Pale Ne Ceiling 27-3/4” min.
Location—__
>
8-1/2"
dia.
hole.
above
x.
*
ly
ee
installation
height
REAR WALL
MOUNTING TEMPLATE
18”
Installation Height Installation Height
Align Bottom Edge With Align Bottom edge With
Pencil Line indicating Pencil Line Indicating
Bottom of Hood Bottom of Hoad
- Tape the template in position along the penciled
line. CHECK TO BE SURE THE TEMPLATE IS LEVEL.
Ceiling ducting:
If ductwork will vent straight up to the ceiling:
¢ Use a level to draw a line straight up, from
the centerline on the template to the ceiling.
* Measure 5-1/2” from the back wall to the centerline
of an 8-1/2” hole on the ceiling.
NOTE: If drywall is not present, add drywall thickness
to the 5-1/2” dimension.
Wall Ducting:
If ductwork will vent to the rear:
¢ Use a level to draw a line straight up from
the centerline on the template.
* Measure at least 27-3/4” above the pencil line
that indicates the bottom installation height, to the
centerline of an 8-1/2” dia. duct hole. (Hole may
be elongated for duct elbow)
HOUSE WIRING LOCATION:
* The junction box is located on the top left side
of the hood.
¢ Wiring should enter the back wall at least 18” above
the bottom of the hood, and within 5-1/2” of the left
side of the centerline.
INSTALL FRAMING
FOR HOOD SUPPORT
IMPORTANT — Framing must be capable
of supporting 100 Ibs.
SS 8-1/2" min. opening for ductwork
| View from rear
: cleats
pawn ed
mounting
support
Centerline of
installation
space
If drywall is present, mark the screw hole locations for
the top mounting brackets. Remove the template.
* Cut away enough drywall to expose 2 vertical studs
at the bracket location indicated on the template.
* Install a horizontal support at least 1” x 6”
between two wall studs at the mounting screw
location. The horizontal support must be flush with
the room side of the studs. Use cleats behind both
sides of the support to secure to wall studs.
IMPORTANT: Reinstall drywall for an even mounting
surface.

Installation Instructions
INSTALLATION—VENTED TO THE OUTSIDE
INSTALL HOOD MOUNTING SCREWS
The two upper mounting screws must enter the horizontal
support or wall studs.
With the template taped in place, use a punch to mark
mounting bracket screw locations.
* Drill 1/8” pilot holes in 2 of the punched locations
in the lower bracket.
« Remove the template.
* Install the mounting screws, leave 1/4” gap between
the screw head and the wall. This will allow the keyhole slot
on the hood frame to engage the screw head.
IMPORTANT: Use the mounting screws provided. DO NOT USE
DRYWALL SCREWS.
¢ Check to be sure the mounting screws are
horizontally level.
INSTALL DUCT BRACKET
The duct bracket should be installed against the back wall
and flush with the ceiling. This bracket will hold the duct cover
in place at the top.
Secure the bracket to the wall:
¢ Align the diamond centerline cutout on the bracket
with the penciled centerline on the wall.
* Mark 2 screw hole locations in the wall.
* Drill 1/8” pilot holes in the marked locations.
* If pilot holes do not enter wood studs, enlarge the holes
to 3/8” and install metal wall fastener anchors (provided).
« If mounting directly to a masonry wall, obtain appropriate
#10 masonry screw anchors. Drill and install per the
fastener supplier's instructions.
* Drive screws, by hand, into the fasteners to allow anchors
to expand. Remove the screws.
* Secure the bracket to the wall with wood screws and/or fasteners.
\ G
Centerline cutout
10
MOUNT THE HOOD
WARN | NG: 2 people are required to lift and position
the hood onto the mounting screws.
* Lift the hood onto the mounting screws.
Check level and mark bottom screw locations.
* Remove the hood.
* Drill 1/8” pilot holes in the marked location.
* If pilot holes do not enter studs, enlarge the holes to 3/8”
and install metal wall fastener anchors (provided.
* Lift the hood onto the mounting screws.
¢ Install lower screws to pull the hood tight against the wall.
* Tighten the top mounting screws.
Tighten
screws
7 O02 OOO
Install
screws

Installation Instructions
INSTALLATION—VENTED TO THE OUTSIDE
CONNECT DUCTWORK
* Remove shipping tape from the damper.
¢ Install ductwork, making connections in the
direction of airflow as illustrated.
¢ Push duct over the exhaust outlet and damper.
¢ Secure joints in ductwork with sheet metal screws.
¢ Wrap all duct joints and the flange connections
with duct tape for an airtight seal.
Airflow
Duct tape ft |
over seam baa
and screw Screw
CAUTI O N: Do not use sheet metal screws
at the hood flange connection. Doing so will prevent
proper damper operation. Seal connection with
tape only.
11

Installation Instructions
INSTALLATION—VENTED TO THE OUTSIDE
[6 | CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARN | N G: If house wiring is not 2-wire
with a ground wire, a ground must be provided by
the installer. When house wiring is aluminum, be
sure to use U.L. approved anti-oxidant compound
and aluminum-to-copper connectors.
« Remove the 6 screws on the junction box cover
and the knockout on the top or left side.
Junction
box cover
¢ Secure the house wiring to the junction box with
a strain relief.
_P\
a
= 7 oN
* Connect the white lead to the branch circuit white lead.
* Connect the black lead to the branch circuit black lead.
* Connect the green/yellow lead to the branch
circuit green lead or bare ground lead.
¢ Secure all the connections with wire nuts on each
electrical connector.
¢ Push the wires into the junction box and replace
the cover. Be sure the wires are not pinched.
¢ Secure the junction box cover with the 6 original
Screws.
12
INSTALL DUCT COVERS
« Remove protective plastic
covering.
¢ Place the decorative duct
covers on top of the hood.
NOTE: The inside duct piece
has vent holes on one end.
The holes are intended for
use when the hood is
installed for recirculating purposes. Slide the inside
end into the outer piece; the vent holes should not
be visible in this installation.
Mounting
screws
The inside duct piece must slip into the folded ends
of the outer section.
Be
Duct cover
Upper
duct cover ~
Lower duct ©
cover
Duct attachment
tabs
Lower duct
cover seat
¢ Extend the inner duct upward to the ceiling
bracket.
* Press up on the front corners of the filter cover panel
to unlock. Lower the panel to access the filter.
e Locate the screw holes on the inside front edge
of the opening. Install 2 screws to secure the duct
cover to the hood.

Installation Instructions
INSTALLATION—VENTED TO THE OUTSIDE
INSTALL FILTERS
IMPORTANT: Check to be sure that the main ON/OFF
switch next to the motor is in the ON position.
/ — 00000 — \
Push-button
switch
(horizontal
view from
inside
opening)
* Remove protective films on the grease filters and
filter cover panel.
NOTE: The charcoal filter is not required for this
installation.
i L
[ = Ooo006 a \
* Tip the filter into the left or right side of
the opening. Lift the filter to the opposite
side and into the filter lock.
* To remove the filter, push the latch toward
the center and pull downward.
/[ Ooo O60 — \
* To close the filter cover panel, push up on both
sides at the front corners to engage the latch.
13
[9] FINALIZE INSTALLATION
¢ Check to be sure all tape and packaging materials
have been removed.
* Refer to the Owner’s Manual for operating
instructions.

Installation Instructions
INSTALLATION—RECIRCULATING
DUCTWORK, WIRING LOCATIONS
* Determine the exact location of the vent hood.
* Locate the template packed with the literature.
* Measure 36” from the floor to the top of the cooking
surface. Add hood installation height determined on
page 7. Mark that location.
House Wiring
Location —_.
REAR WALL
MOUNTING TEMPLATE
18”
Installation Height installation Height
Align Bottom Edge With Align Bottom Edge With
Pencil Line indicating Pencil Line Indicating i
Bottom of Hood Bottom of Hood a
* Tape the template in position along the penciled line.
CHECK TO BE SURE THE TEMPLATE IS LEVEL.
¢ Use a level to draw a line straight up, from
the centerline on the template to the ceiling.
HOUSE WIRING LOCATION:
* The junction box is located on the top left side
of the hood.
¢ Wiring should enter the back wall at least 18”
above the bottom of the hood, and within 5-1/2”
of the centerline.
14
INSTALL FRAMING
FOR HOOD SUPPORT
IMPORTANT: Framing must be capable
of supporting 100 Ibs.
| View from rear
: cleats
mounting
support
Centerline of
installation
space
If drywall is present, mark the screw hole locations for
the top mounting brackets. Remove the template.
* Cut away enough drywall to expose 2 vertical studs
at the bracket location indicated on the template.
* Install a horizontal support at least 1” x 6”
between two wall studs at the mounting screw
location. The horizontal support must be flush with
the room side of the studs. Use cleats behind both
sides of the support to secure to wall studs.
IMPORTANT: Reinstall drywall for an even mounting
surface.

Installation Instructions
INSTALLATION—RECIRCULATING
INSTALL HOOD MOUNTING SCREWS
The mounting screws must enter the horizontal support
or wall studs.
« With the template taped in place, use a punch
to mark mounting bracket screw locations.
* Drill 1/8” pilot holes in 2 of the punched locations
in the lower bracket.
« Remove the template.
* Install the mounting screws; leave 1/4” gap between
the screw head and the wall. This will allow the keyhole slot
on the hood frame to engage the screw head.
IMPORTANT: Use the mounting screws provided. DO NOT USE
DRYWALL SCREWS.
¢ Check to be sure the mounting screws are horizontally level.
INSTALL DUCT BRACKET
The duct bracket should be installed against the back wall
and flush with the ceiling. This bracket will hold the duct cover
in place at the top.
Secure the bracket to the wall:
¢ Align the diamond centerline cutout on the bracket
to the penciled centerline on the wall.
* Mark 2 screw hole locations in the wall.
* Drill 1/8” pilot holes in the marked locations.
* If pilot holes do not enter wood studs, enlarge the holes
to 3/8” and install metal wall fastener anchors (provided).
« If mounting directly to a masonry wall, obtain appropriate
#10 masonry screw anchors. Drill and install per the
fastener supplier's instructions.
* Drive screws, by hand, into the fasteners to allow anchors
to expand. Remove the screws.
* Secure the bracket to the wall with wood screws and/or fasteners.
\ ,
Centerline cutout
15
MOUNT THE HOOD
WARN | NG: 2 people are required to lift and position
the hood onto the mounting screws.
* Lift the hood onto the mounting screws.
* Check level and mark bottom screw locations.
* Remove the hood.
* Drill 1/8” pilot holes in the marked location.
* If pilot holes do not enter studs, enlarge the holes to 3/8”
and install metal wall fastener anchors (provided.
* Lift the hood onto the mounting screws.
¢ Install lower screws to pull the hood tight against the wall.
* Tighten the top mounting screws.
Tighten
screws i
= on ooo
Install
screws

Installation Instructions
INSTALLATION—RECIRCULATING
SIZE AND CUT DUCT PIECE
* Hold upper air deflector
with duct connector
against the ceiling.
* Measure from the bottom
of the air deflector to the
top of the hood as shown.
Reduce that dimension by
1” to facilitate installation. |
The duct will cover
and overlap the deflector
and the hood outlets.
Measure Duct
length length
Deflector ¢ Cut the duct piece to size
and slip onto the bottom
of the deflector.
* Place the assembled deflector
and duct over the exhaust
outlet.
¢ Hold the assembly against
the duct bracket.
* Drive 2 screws into each side
of the bottom of the deflector
and into the bracket.
¢ Use duct tape to seal
duct to the deflector
and at the exhaust outlet.
16

Installation Instructions
INSTALLATION—RECIRCULATING
[6 | CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARN | N G: If house wiring is not 2-wire
with a ground wire, a ground must be provided by
the installer. When house wiring is aluminum, be
sure to use U.L. approved anti-oxidant compound
and aluminum-to-copper connectors.
« Remove the 6 screws on the junction box cover
and the knockout on the top or left side.
Junction
box cover
¢ Secure the house wiring to the junction box with
a strain relief.
_ 4 a
* Connect the white lead to the branch circuit white lead.
* Connect the black lead to the branch circuit black lead.
* Connect the green/yellow lead to the branch
circuit green lead or bare ground lead.
¢ Secure all the connections with wire nuts on each
electrical connector.
¢ Push the wires into the junction box and replace
the cover. Be sure the wires are not pinched.
¢ Secure the junction box cover with the 6 original
Screws.
17
INSTALL DUCT COVERS
« Remove protective plastic
covering.
e Place the decorative duct
covers on top of the hood.
NOTE: The inside piece has vent
holes on one end intended for
use when the hood is installed
for recirculating purposes. Be
sure the vented end is at the top;
the vent holes will be visible in
this installation.
Mounting
screws
Vent holes
The inside duct piece must slip
into the folded ends on the outer section.
Be
Ba Duct cover
Upper
support bracket duct cover
Lower duct
cover
Duct attachment
tabs
—
Lower duct
cover seat
¢ Extend the inner duct upward to the ceiling
bracket.
* Press up on the front corners of the filter cover panel
to unlock. Lower the panel to access the filter.
e Locate the screw holes on the inside front edge
of the opening. Install 2 screws to secure the duct
cover to the hood.

Installation Instructions
INSTALLATION—RECIRCULATING
INSTALL FILTERS [9] FINALIZE INSTALLATION
IMPORTANT: Check to be sure that the main ON/OFF * Remove alll tape and packing material.
switch next to the motor is in the ON position. ° Refer e the Owner's Manual for operating
1 : INSTTUCTIONS.
Push-button
switch
(horizontal
view from
inside
| opening)
* Remove protective films on the grease filters and
filter cover panel.
Insert the black charcoal filter into the opening.
Push the latch on both sides toward the center
and engage the flange. Release latches to secure.
[ a oco06G a \
* To remove the filter, push the latches toward
the center and pull downward.
* Install the metal grease filter into the hood
support channels directly below the charcoal
filter.
[ - e090 000 —_ \
NOTE: The charcoal filter should not be used
without the metal filter secured below.
* To close the filter cover panel, push up on both
sides at the front corners to engage the latch.
18

Installation Instructions
NOTES
19

Installation Instructions
NOTES
20
