monolith M1000ANC User manual

M1000ANC Bluetooth® Headphones
with ANC and Dirac® HD Sound
P/N 43453
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this
device, paying extra attention to these safety
warnings and guidelines. Please keep this manual in a
safe place for future reference.
•This device is intended for indoor use only. Do
not expose this device to water or moisture of
any kind.
•Do not expose this device to excessive
vibration, extreme force, shock, or fluctuations
in temperature or humidity.
•Do not use this device while operating a motor
vehicle, heavy equipment, walking in traffic, or
any other situation in which situational
awareness is a key to safety.
•Avoid prolonged exposure to excessive volume
levels, which could cause hearing damage.
Reduce the volume to minimum before
wearing these headphones, then increase the
volume to a comfortable listening level.
•Do not expose this device to excessively high
temperatures. Do not place it in, on, or near a
heat source, such as a fireplace, stove, radiator,
etc. Do not leave it in direct sunlight.
•This device contains a Lithium battery. Dispose
of this device only in accordance with local,

3
state, or federal regulations for electronic
waste.
•Charge the battery before first use and at least
once every three months to keep it fresh and
capable of holding the full charge.
•Clean using a soft, dry cloth only. Do not use
chemical cleaners, solvents, or detergents. For
stubborn deposits, moisten the cloth with
warm water.
•This device has no user serviceable parts. Do
not attempt to open, service, or modify this
device.

4
CUSTOMER SERVICE
The Monoprice Customer Service department is
dedicated to ensuring that your ordering, purchasing,
and delivery experience is second to none. If you
have any problem with your order, please give us an
opportunity to make it right. You can contact a
Monoprice Customer Service representative through
the Live Chat link on our website
www.monoprice.com or via email at
[e-mail]. Check the website for
support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to
ensure you have all the items listed below. If anything
is missing or damaged, please contact Monoprice
Customer Service for a replacement.
1x Bluetooth® Headphones
1x Carry Bag
1x USB Charging Cable
1x 3.5mm Audio Cable
1x User's Manual

5

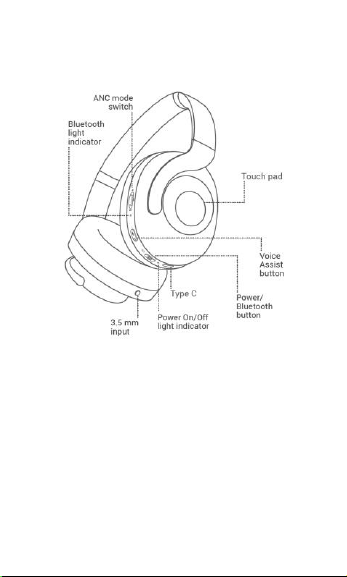

PRODUCT OVERVIEW

6
OPERATION

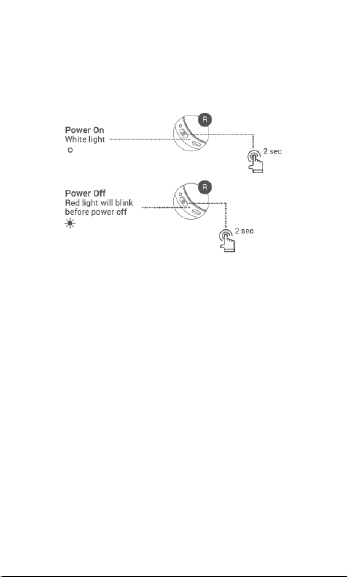

Power On/Off
•Press and hold the Power/Bluetooth Button for
2 seconds to turn the headphones on. The
Power On/Off Light Indicator will illuminate
solid white.
•If it is not already paired, the headphones will
enter Bluetooth® pairing mode when first
powered on.
•Press and hold the Power/Bluetooth Button for
2 seconds to turn the headphones off. The
Power On/Off Light Indicator will blink red
until power is off.

7

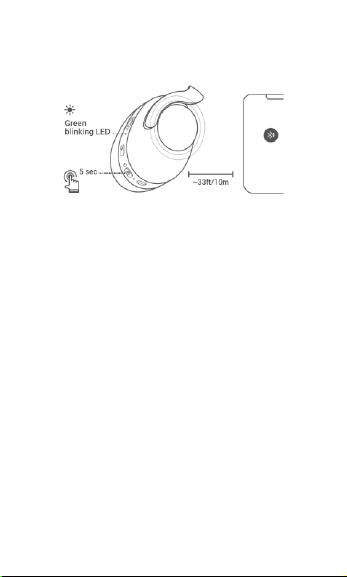

Bluetooth® Pairing
1. With the headphones powered off, press and
hold the Power/Bluetooth Button for 5
seconds to enter Bluetooth® pairing mode. The
Bluetooth Light Indicator will blink green,
indicating that it is in Bluetooth® pairing mode.
2. Open the Bluetooth settings on your phone
and search for nearby Bluetooth devices.
3. Locate and select the MP43453 entry. If
prompted for a passcode, enter 0000 (four
zeros).

8

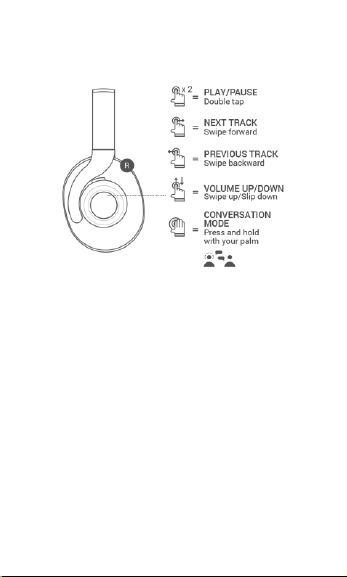

Audio Playback
•Double tap the right earcup to Play or Pause
audio playback.
•Swipe forward on the right earcup to skip
forward to the next track.
•Swipe backward on the right earcup to skip
back to the previous track.
•Swipe up on the right earcup to increase the
volume level.
•Swipe down on the right earcup to decrease
the volume level.
•Press and hold the right earcup to temporarily
reduce the volume level, so you can hear

9
someone talking or hear ambient
environmental sounds.
Conversation Mode
While audio is playing, you can press and hold the
right earcup to temporarily reduce the volume level,
so you can hear someone talking or hear ambient
environmental sounds.

10

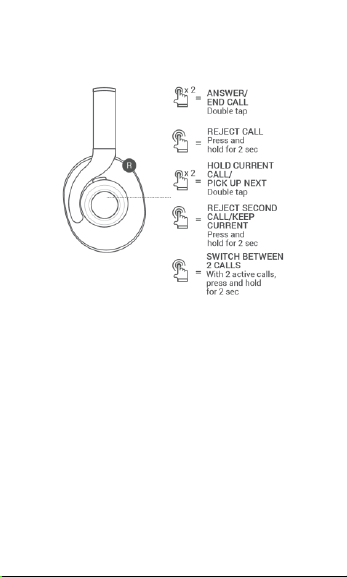

Phone Calls
•When an incoming call is received, double tap
the right earcup to answer the call.
•While a call is in progress, double tap the right
earcup to hang up.
•When an incoming call is received, press and
hold the right earcup for 2 seconds to reject
the call.
•If another call is received while a call is in
progress, double tap the right earcup to put
the current call on hold and answer the
incoming call.

11
•If another call is received while a call is in
progress, press and hold the right earcup for 2
seconds to reject the incoming call.
•With one call in progress and another on hold,
press and hold the right earcup for 2 seconds
to switch between calls.
Voice Assistant and ANC
•Press the Voice Assist Button to activate your
phone's voice assistant.
•Slide the ANC Mode Switch to the HI position
to activate maximum noise cancelling, up to
35dB.
•Slide the ANC Mode Switch to the LOW
position to activate moderate noise cancelling,
up to 20dB.
•Slide the ANC Mode Switch to the OFF
position in the middle to turn active noise
cancelling off.

12
Charging
1. The Power On/Off Light Indicator blinks red
when the battery is low, indicating that the
battery should be recharged.
2. Plug one end of the included USB Charging
Cable into the USB Type-C® port on the
headphones, then plug the other end into a
USB power source, such as a computer, wall
charger, power bank, etc. (available separately).
The Power On/Off Light Indicator will
illuminate red and white to indicate that
charging is in progress.
3. When charging is complete, the Power On/Off
Light Indicator will illuminate solid white.

13
Wired Connection
If your device does not have Bluetooth® or you don't
want to use Bluetooth, you can use a wired
connection. To do so, plug one end of the included
3.5mm Audio Cable into the 3.5mm Input jack on the
headphones, then plug the other end into the
headphone output of your audio device.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online
technical support to assist you with any questions
you may have about installation, setup,
troubleshooting, or product recommendations. If you
ever need assistance with your new product, please
come online to talk to one of our friendly and
knowledgeable Tech Support Associates. Technical
support is available through the online chat button
on our website www.monoprice.com or through
email by sending a message to [email protected].
Check the website for support times and links.
To download the latest drivers, firmware, manuals,
etc., go to www.monoprice.com and type the P/N

14
into the search bar. If available, support files are
linked at the bottom of the product page.
SPECIFICATIONS
P/N
43453
Driver Size
40mm
Frequency Response
20Hz ~ 20kHz
Bluetooth® Version
5
Bluetooth Frequency
2.402 ~ 2.480 GHz
Bluetooth Pairing Name
MP43453
Audio Codec
SBC
Noise Reduction
(ANC HI)
35dB
Noise Reduction
(ANC LOW)
20dB
Battery Type
Lithium-ion
Battery Capacity
720mAh
Playback Time (ANC off)
About 60 hours
Playback Time (ANC on)
About 40 hours
Charging Time
About 2.5 hours
Weight
9.3 oz. (263g)

15
REGULATORY COMPLIANCE
Notice for FCC
FCC ID: 2ADDH-43453
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Modifying the equipment without Monoprice's
authorization may result in the equipment no longer
complying with FCC requirements for Class B digital
devices. In that event, your right to use the
equipment may be limited by FCC regulations, and
you may be required to correct any interference to
radio or television communications at your own
expense.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful

16
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the
equipment and receiver.
•Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV
technician for help.
Radio Notice for FCC
Caution
This FCC Part 15 radio device operates on a non-
interference basis with other devices operating at
this frequency. Any changes or modification to said
product not expressly approved by Monoprice,
including the use of non-approved antennas, could
void the user's authority to operate this device.

17
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
RF Warning Statement
The device has been evaluated to meet general RF
exposure requirement. The device can be used in
portable exposure conditions without restriction.
EU Conformity with applicable directives
This equipment complies with the essential
requirements listed below:
•Radio Equipment Directive (RED) 2014/53/EU
•RoHS 2 Directive 2011/65/EU with Directive (EU)
2015/863

18
UK Conformity with the relevant Union
harmonization legislation
This equipment complies with the essential
requirements listed below:
•Radio Equipment Regulations 2017
•Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic
Equipment Regulations 2012

19
For Consumers in the European Union: The symbol
indicates that this product should be disposed of
separately from regular household waste streams. It is
your responsibility to dispose of this and other
electrical and electronics products via designated
collection facilities appointed by the government or
local authorities. Correct disposal and recycling will
help prevent potential negative consequences to the
environment and human health. For more detailed
information about the disposal of your unwanted
product, please contacts your local authorities, waste
disposal service, or the shop where you purchased
the product.

20
Monoprice™, Monolith™, the Monolith logo, and all
Monoprice logos are trademarks of Monoprice Inc.
The Bluetooth® word mark and logos are registered
trademarks of Bluetooth SIG, Inc.
Dirac® is a registered trademark of Dirac Research AB.
USB Type-C® and USB-C® are registered trademarks of
USB Implementers Forum.
