Monster smart illuminessence Digit mlb7-1035-rgb User manual

MLB7-1035-RGB

v3.0 0620

DIGIT

3D LED ART PANELS

Modular 3 Segment Starter Kit

QUICK START GUIDE

GETTING STARTED

WHAT’S IN THE BOX

• 3 x Digit LED segments

• 3 x Digit mounting brackets with 3M Command

damage-free adhesive strip (preinstalled on each segment)

• 2 x Digit connector cables

• 1 x Digit controller

• 1 x Adhesive strip for controller (optional)

• 1 x Power adapter (12V 3A, 6ft/1.8m cord)

• 1 x Quick Start Guide

• 1 x Design Guide

WHAT DO YOU NEED?

• Cellphone or tablet with

Android 6.0 or higher / iOS 10 or higher

• Wi-Fi router with an internet connection

• Wi-Fi 2.4GHz 802.11n

ANYTHING ELSE?

If you really want to be precise during installation, you can use

a level, but it’s not required.

Thank you for choosing the Digit 3D LED Art Panels by Monster

Smart Illuminessence. This Quick Start Guide will help you with

setup and installation of your device.

Before setup, make sure your phone or tablet is connected to the

2.4GHz Wi-Fi network that your Digit will be placed on.

You may also need to turn on location to ﬁnd nearby devices.

TIP: Do you know your Wi-Fi network name and password?

Write it down now if it’s hard to remember.

TIP: Save these instructions for future reference. 1

SETUP COMPLETE SETUP

BEFORE INSTALLATION

STEP 1

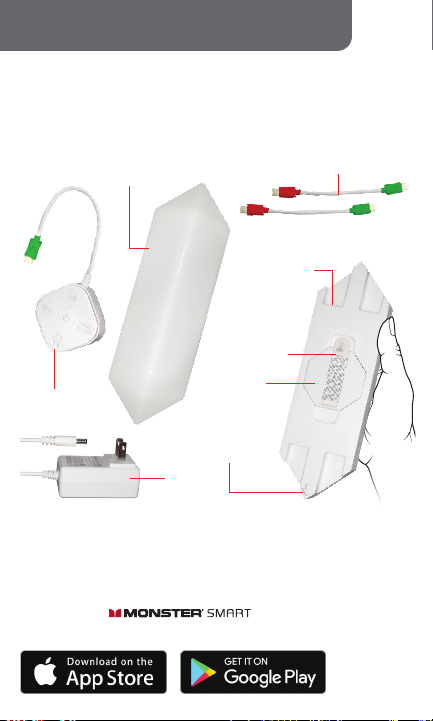

Remove your Digit segments and all components from the box.

Note that the mounting bracket and adhesive tape will be

preinstalled on each segment.

connector port

(4 per segment)

LED light pattern

directional

marker

mounting

bracket

damage-free

3M adhesive

Digit segment

(front)

controller

connector cables

Digit segment

(back)

power

adapter

STEP 2

Download the app from the App Store

(for iPhone) or Google Play Store (for Android phones).

free

download

DESIGN TIP: Pointing the LED pattern directional markers on the back of each

panel towards or away from each other will create dierent lighting eects

when panels are combined, but you can easily change this after installation!

STEP 3

Make sure your phone or tablet is successfully connected to the

2.4GHz Wi-Fi network that your Digit will be placed on.

STEP 4

It is recommended to pair Digit in a location close to your router

BEFORE installation. Segments do not need to be connected to

the controller to pair.

NOTE: At any point during pairing mode you can unplug and

reconnect the power to cancel pairing and operate the product

without Wi-Fi. Advanced features will not be available.

Plug the power adapter into the bottom of the controller and

connect the other end to a powered wall outlet. The LED indicator

will begin blinking rapidly when it has entered pairing mode and is

ready to pair. (Any connected segments will blink as well.)

Open the app and create an

account by following the on-screen instructions.

Press and hold the power button for

5-6 seconds to enter pairing mode or

change between pairing modes.

Pairing Modes:

power

button

LED

indicator

EZ MODE -

RAPIDLY BLINKING LED (default)

EZ Mode is the default mode for quick and

easy pairing setup.

AP MODE -

SLOWLY BLINKING LED

Access Point Mode is a secondary setup that

can help connect to mixed networks. Follow

the on-screen step by step instructions.

Monster Smart devices only work on a 2.4GHz Wi-Fi network.

Many newer home Wi-Fi networks are mixed networks that are set

to 5GHz by default (ex: AT&T, Verizon) and you may need to use

AP pairing mode to connect. If you still have diculty, contact your

Internet Service Provider for assistance with 2.4GHz network setup.

2 3

STEP 5

In the app, select the “+” in the upper

right corner of the home screen to add a new device and then

select “Lighting (Wi-Fi)” to add your device.

STEP 6

mode

   

mode

(default)

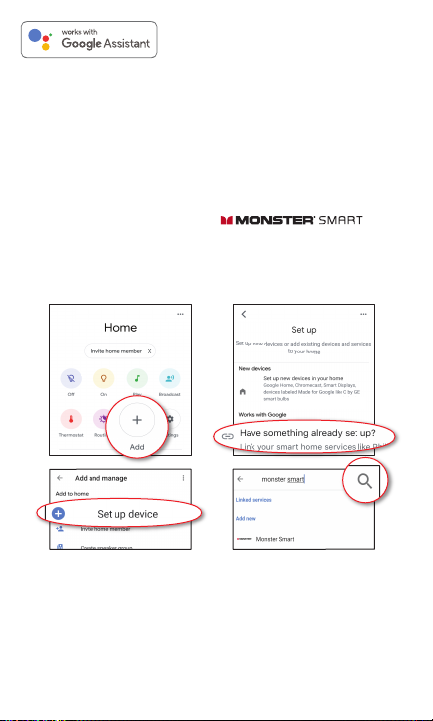

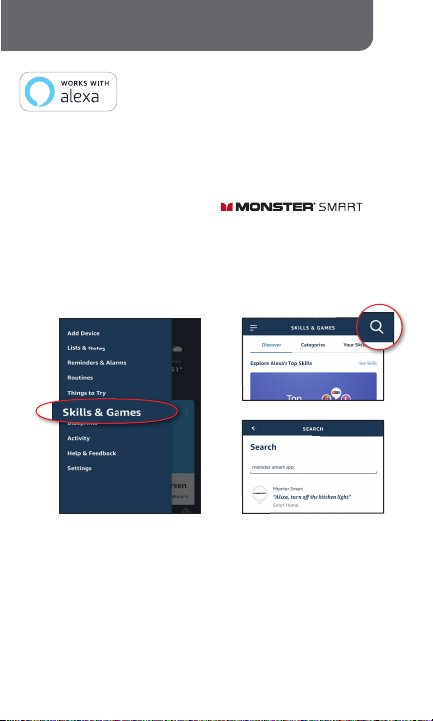

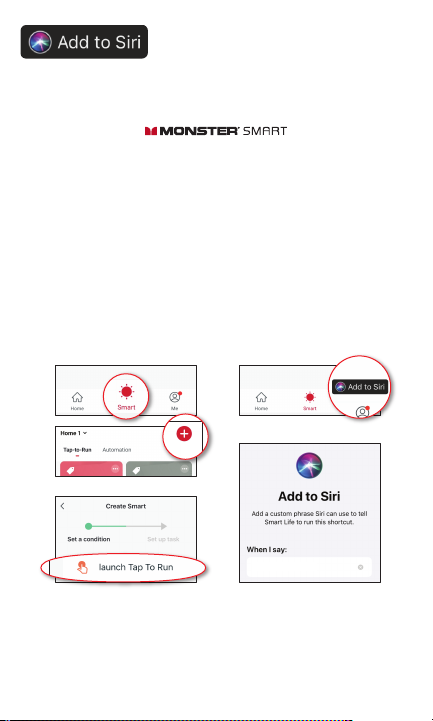

You can now use the app to add voice control (see pg 12), adjust

settings, create custom lighting eects, set schedules, and more!

Once complete, your device will be connected to the network.

Conﬁrm or change the settings for your device and then click “Done”.

Your Digit is now setup and you can proceed to installation.

Conﬁrm that the LED indicator is RAPIDLY blinking.

Conﬁrm that the network displayed is your 2.4GHz Wi-Fi

network, then enter your Wi-Fi password and click “Conﬁrm”.

Conﬁrm that the LED indicator is SLOWLY blinking.

Conﬁrm the network is your mixed Wi-Fi network, enter your

Wi-Fi password and click “Conﬁrm”. Follow the on-screen

instructions to set up your device via wireless access point.

If needed, click “Net Pairing Mode” in the upper right to switch the

default EZ pairing mode for 2.4GHz Wi-Fi networks to AP mode for

mixed Wi-Fi networks.

PRESS

GENTLY

INSTALLATION

STEP 1

Before installing anything, try out dierent shapes and patterns

with your segments on the ﬂoor or a large table to decide what

you would like to create! Consult the Design Guide for ideas.

STEP 2

IMPORTANT:

• Plan to install your Digit near enough to a power outlet.

• Place the controller somewhere on the bottom of your pattern.

•To ensure all segments light up, make sure all the connector

cables always point GREEN side AWAY from the controller.

• Only one GREEN plug should ever be connected a single segment.

DESIGN TIP: Pointing the directional markers on the back of each segment

towards or away from each other will create dierent lighting eects when

segments are combined, but you can easily change this after installation!

examples:

First, clean the mounting surface with rubbing alcohol and let dry.

When you’re ready to start, peel o the adhesive backing from

one Digit segment, position the segment on the wall where you

would like to begin your pattern, and press gently on the center.

NOTE: Do not attach this product to wallpaper, brick, the ceiling, or the ﬂoor.

If desired, you can use a level to help align and place this ﬁrst panel.

Once complete, your device will be connected to the network.

Conﬁrm or change the settings for your device and then click “Done”.

Your Digit is now setup and you can proceed to installation.

Conﬁrm that the LED indicator is RAPIDLY blinking.

Conﬁrm that the network displayed is your 2.4GHz Wi-Fi

network, then enter your Wi-Fi password and click “Conﬁrm”.

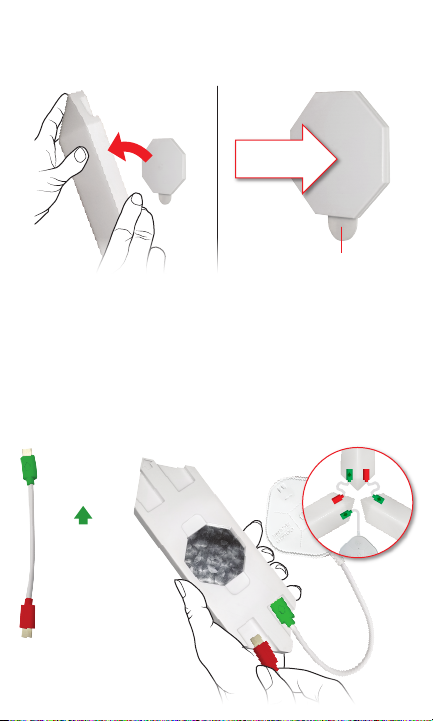

STEP 3

Remove the segment, leaving the bracket in place on the wall.

Press ﬁrmly on the bracket for 10 seconds to ensure a strong hold.

NOTE: If you ever want to uninstall your Digit segment in the future, simply hold

the bracket and SLOWLY stretch the damage-free removal tab down along the

wall to remove. It can be reinstalled with new 3M strips (rated at least 3lbs).

IMPORTANT:

• Plan to install your Digit near enough to a power outlet.

• Place the controller somewhere on the bottom of your pattern.

•To ensure all segments light up, make sure all the connector

cables always point GREEN side AWAY from the controller.

• Only one GREEN plug should ever be connected a single segment.

PRESS FIRMLY

for 10 sec

STEP 4

Attach the controller and connector cables to your ﬁrst segment as

desired to build your pattern. Plug the green controller cable in and

ensure all other cables are connected RED side in and GREEN ends

pointing out. Make sure to insert each connector fully into the port.

(damage-free

removal tab)

(example)

remember your

design idea

GREEN always

points AWAY

from controller

RED always

points TOWARDS

controller

HOW TO USE

the connector

cables:

TIP: Only one green plug

should ever be connected to

a single segment at a time.

5 6

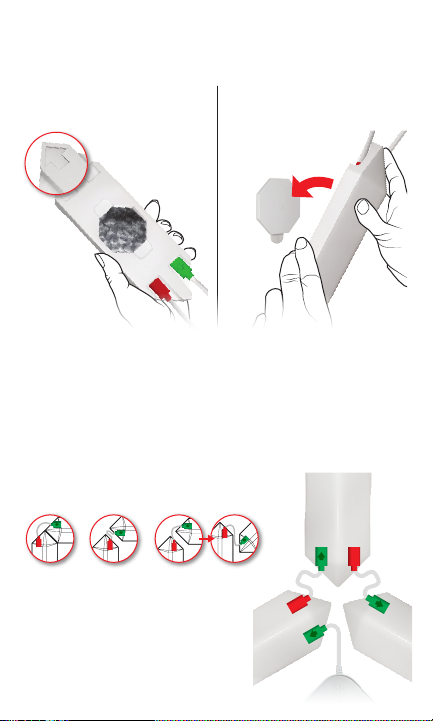

STEP 5

With everything installed, return your ﬁrst segment to the wall by

centering it over the mounting bracket so it snaps into place.

NOTE: Ensure the directional marker

is pointing in the desired direction for

your pattern.

NOTE: Ensure the GREEN

connectors are always pointing

AWAY from the controller.

STEP 6

Build out your Digit pattern by repeating these steps with more

segments and cables, moving away from the controller.

NOTE: For ﬂush corners in square designs, use the

outside ports. See the Design Guide for details.

STEPS:

A. Peel o the adhesive backing on a new segment.

B. Place the new segment on the wall less than

3 inches away from the last segment.

C. Remove the segment and press

ﬁrmly on the bracket for 10 seconds.

D. Attach more connectors using the

RED side, then attach the open

GREEN plug from the last segment.

E. Replace the segment over the

mounting bracket and make sure

all connections are secure.

6 7

STEP 7

Once your pattern is complete, plug the power adapter into the

controller and plug the adapter end into a powered wall outlet.

STEP 8

You’re done! Your Digit is now setup, installed, and ready to use.

Remember, you can always easily remove a segment to rotate the

directional marker or add more connectors and segments from

add-on kits to change or expand your design.

ENJOY!

NOTE: If desired, use the extra

adhesive strip to secure the

controller in place.

(OPTIONAL)

7 8

TROUBLESHOOTING

HAVING TROUBLE WITH SETUP?

Don’t return this product to the retailer, we’re here to help.

Please call for customer support: 866-246-2008

For other frequently asked questions please visit our

website at www.monsterilluminessence.com

Q: None of my segments are lighting up, what should I do?

Check that the power adapter is connected securely both to the

controller and to a powered outlet. The LED indicator should

illuminate if it is powered and paired to Wi-Fi.

Ensure that the GREEN controller plug is securely connected to

the ﬁrst segment and that it is the ONLY green plug connected.

Q: What if the LED colors don’t line up between segments?

Pointing the directional arrows on the back of each segment

towards or away from each other will create dierent lighting

eects when they are combined. Try rotating some segments.

NOTE: Take care to hold down neighboring segments when

removing one. Always ensure all connections are secure.

Q: I’ve added add-on kits, why are the LEDs ﬂickering?

1 Digit Power Kit can run up to 10 Digit Segments (1 x Starter Kit +

3 x Add-on Packs). Adding more than 10 x Segments will require

grouping in an additional Power Kit to maintain normal operation.

Q: Why are only some of my segments not lighting up?

To ensure all segments light up, make sure all the cables

always point the GREEN side AWAY from the controller.

If you’ve just added a segment, try turning Digit o and on again.

Q: Why is my device failing to connect to my Wi-Fi network?

Make sure your phone or tablet is successfully connected to

the 2.4GHz Wi-Fi network that your device will be placed on.

You may ﬁrst need to enable and allow location services on

your phone or tablet to ﬁnd nearby devices.

If your Wi-Fi network is a mixed 2.4GHz/5GHz network, try

using AP pairing mode for better results.

If you still have issues with your mixed network, you may need

to access your router settings and/or call your Internet Service

Provider to create a separate 2.4GHz network.

A1:

A2:

A1:

A2:

A1:

A2:

A3:

A4:

8 9

HOW TO USE

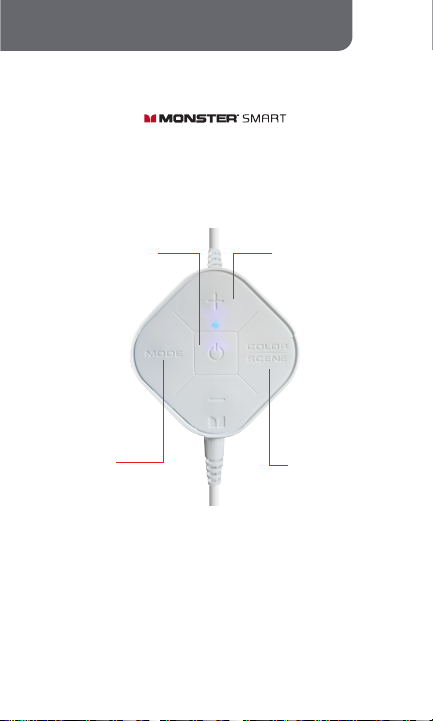

CONTROLS

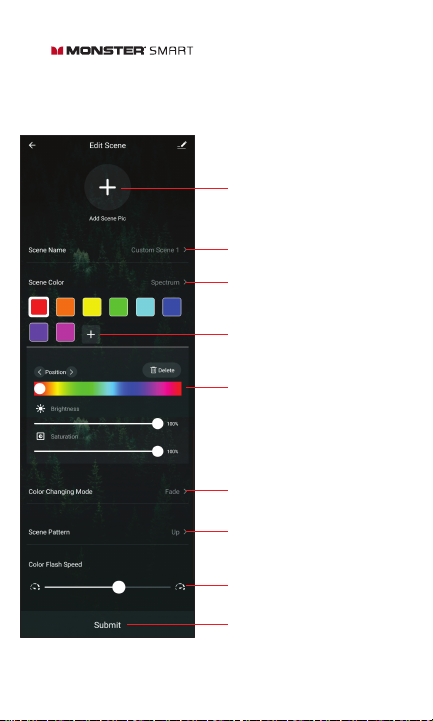

Your Digit 3D LED Art Segments can be easily controlled by the

controller, using the app to access

advanced and customizable lighting eects, or by using a

compatible voice assistant product for hands-free operation.

1 Digit Power Kit can run up to 10 Digit Segments (1 x Starter Kit +

3 x Add-on Packs). Adding more than 10 x Segments will require

grouping in an additional Power Kit to maintain normal operation.

To ensure all segments light up, make sure all the cables

always point the GREEN side AWAY from the controller.

If you’ve just added a segment, try turning Digit o and on again.

NOTE: One controller can run up to 10 x Digit segments. Adding

more than 10 x segments will require an additional controller and

power kit to maintain normal operation.

CHANGE BETWEEN

WHITE SHADES:

• cool white, warm white, soft white

CHANGE BETWEEN COLORS:

• red, orange, yellow, green, cyan, blue, purple, pink

CHANGE BETWEEN PRESET SCENES:

• 8 advanced scenes, 8 solid scenes,

up to 4 custom scenes (requires Wi-Fi pairing and app)

MODE SELECT

• white mode

• color mode

• scene mode

POWER AND PAIRING

• on/o (press)

• pair/reset

(press and hold)

SETTINGS ADJUST +/-

• white brightness

• color brightness

• scene speed

CONTROLLER FEATURES:

(see page 11)

910


add or edit your scene thumbnail

NAME

add or edit your scene name

COLOR SETS

choose from 8 preset color sets

or add your own colors and arrange

and adjust them as you wish

APP CONTROL: CUSTOM SCENES

The app gives you full control over all

the functions of the Digit, as well as the ability to edit preset scenes

and create your own custom scenes. Below are some of the

custom scene features for Digit:

individual color adjustments

MODE

choose between 3 color changing

modes, Fade, Flash, and Music

Reactive (activates built-in mic)

PATTERN

choose between 9 patterns that

determine what direction the LED

light eects will travel

SPEED

adjust the color transition speed

SAVE

submit and save your scene!

TIP: Brightness 0% = “o” color

TIP: Saturation 0% = white color

1110

OPTIONAL

VOICE CONTROL

At any time, go to the Alexa app to set nicknames and rooms for

your devices. You can also rename devices in the Monster Smart

app.

Using the name Digit, or the name you assigned your Digit, you can

ask Alexa to control your device, just say “Alexa,” and ask: “Turn on

my Digit”, “Set my Digit to blue”, “Set my Digit to 50%

brightness”, and more!

AMAZON VOICE CONTROL SETUP

STEP 1 :

STEP 2 :

STEP 3 :

NOTE :

1: 2:

Make sure your Amazon Alexa device is installed and setup

Open the Alexa app and go to Skills in the menu

Search for and choose

Enable the Skill and authorize your account using

your login information

Use the same login information that you used to

create your Monster Smart account

1211

GOOGLE VOICE CONTROL SETUP

STEP 1 :

STEP 2 :

STEP 3 :

STEP 4 :

NOTE :

At any time, go to the Google Home app to set nicknames and

rooms for your devices. You can also rename devices in the

Monster Smart app.

Using the name Digit, or the name you assigned your Digit, you can

ask your Google Assistant to control your device, just say “Hey

Google” and say: “Turn on my Digit”, “Set my Digit to blue”, “Set

my Digit to 50% brightness”,and more!

Make sure your Google Assistant device is installed and setup.

Open the Google Home app, go to the Home

menu, and tap the “+” button

Click “Set up device”

Click “Have something already set up?”

Search for and choose and

authorize your account using your login information

Use the same login information that you used to

create your Monster Smart account

12 13

Now Siri can use your voice and custom verbal command to turn

your device on or o, activate your favorite lighting pattern, adjust

Digit at the same time as your other smart devices, or whatever

you’ve set up as your Tap To Run Smart Scene.

SIRI VOICE CONTROL SETUP

1: 3:

Requires iPhone running iOS 12 or later.

Open the app and go to

the “Smart” menu, tap the “+” button to create a new

Tap To Run Smart Scene

Tap “launch Tap To Run” and ﬁll out the information

Once your Smart Scene is created and saved, click the

button that appears at the bottom of the screen that

says “Add to Siri” to open the list of options

Select your new Tap To Run Smart Scene from the list

and click “Add to Siri”

Create a custom phrase to say to Siri to run your Smart

Scene (this can be any verbal command)

STEP 1 :

STEP 2 :

STEP 3 :

STEP 4 :

STEP 5 :

13 14

NOTES

This device complies with Part 15 of the FCC. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a

residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Statement

To satisfy FCC’s RF exposure requirements, a separation distance of 20 cm or more should be maintained between

the antenna of this device and persons during device operation.To ensure compliance, operations at closer than this

distance is not recommended.

This device complies with Innovation, Science, and Economic Development Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables

aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareil nedoit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible

d'en compromettre le fonctionnement.

The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and

compliance.The minimum distance from body to use the device is 20cm.

Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF,

les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les

informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm.

Jem Accessories, Inc. LimitedWarranty Policy for Monster Smart Products Last Updated: March 27, 2020

This limited warranty contains important information about your rights and obligations, as well as limitations and

exclusions that may apply to you.

1. WHAT THIS LIMITEDWARRANTY COVERS; PERIOD OF COVERAGE Jem Accessories, Inc. (“Jem Accessories”), 32

Brunswick Ave, Edison, New Jersey, USA, warrants to the owner of the enclosed Monster Smart-branded product

contained in this box (“Product”) will be free from defects in materials and workmanship for a period of one year.

Notwithstanding the foregoing, theWarranty Period for a factory refurbished Product is one (1) year, even if installed

by a professional. If the Product fails to conform to this LimitedWarranty during the Warranty Period, Jem Accessories

will, at its sole discretion, either (a) repair or replace any defective Product or component; with proof of purchase using

original documentation. Repair or replacement may be made with a new or refurbished product or components, at

Jem Accessories’s sole discretion. If the Product or a component incorporated within it is no longer available, Jem

Accessories may, at Jem Accessories’s sole discretion, replace the Product with a similar product of similar function.

This is your sole and exclusive remedy for breach of this LimitedWarranty. Any Product that has either been repaired or

replaced under this LimitedWarranty will be covered by the terms of this LimitedWarranty for the longer of (a) ninety

(90) days from the date of delivery of the repaired Product or replacement Product, or (b) the remaining Warranty

Period.This Limited Warranty is not transferable from the original purchaser to subsequent owners.

2. TOTAL SATISFACTION RETURN POLICY If you are the original purchaser of the Product and you are not

1 YEAR LIMITED WARRANTY

FCC Compliance

ISEDC Warning

The illustrated products and speciﬁcations may dier slightly from those supplied.

The M Monster logo and IlluminEssence are trademarks or registered trademarks of Monster,

Inc. or its subsidiaries in the U.S. and other countries and are used under license. Apple and the

Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App store is

a service mark of Apple Inc. Google and Google Play are trademarks of Google LLC.

Pre-set-up required. Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc.

or its aliates. All other brand names are trademarks of their respective owners. Neither Jem

Accessories, Inc. nor Monster, Inc. is aliated with the respective owners of their trademarks.

Licensed and Manufactured by Jem Accessories, Inc. Edison, NJ 08817. Made in China.

WARRANTY

1 Year Limited Warranty - Please read and understand all

instructions before using this product. If damage is caused by

failure to follow the instructions, this warranty is null and void.

SAFETY

• Keep these instructions

• Do not drop, puncture, or disassemble this product

• Do not install this product in any way other than what is

outlined in this guide

• Do not attach this product to the ceiling or to the ﬂoor

• Do not install this product on unpainted brick, uneven/

bumpy surfaces, or wallpaper

• Do not use this product in wet or very humid environments

or expose to dripping or splashing liquids of any kind

• Do not immerse in water

• Avoid long exposure to direct sunlight, which may cause damage

• Do not use this product in small, enclosed locations that

could limit the ﬂow of air or trap excess heat

• Do not expose this product to open ﬂames

• Do not use the product in a strong magnetic ﬁeld

• Do not use this product for emergency lighting/exits

• Do not allow small children to operate, modify, or install

this device unsupervised

• Use a clean, soft cloth to clean - do not use any corrosive

cleaners/oils to clean

• For indoor use only

PATENT PENDING

DIGIT | Model: MLB7-1035-RGB | Input: 12VDC 3A

FCC ID: 2AHAS-MLB71035 | IC: 26069-MLB71035 | HVIN: MLB7-1035-RGB

14 15
