Monte Carlo Fan Company CT-100 User manual

CT-100-English
The wall control transmits the command signals via radio waves to the receiver
installed in the fan’s hanging bracket or on the fan. The receiver is required for
the wall control to function. Power for the wall control comes from the 12V bat-
tery located in the wall remote. Duracell MN21 / Eveready A23 / GP 23A all 12V.
CT-100

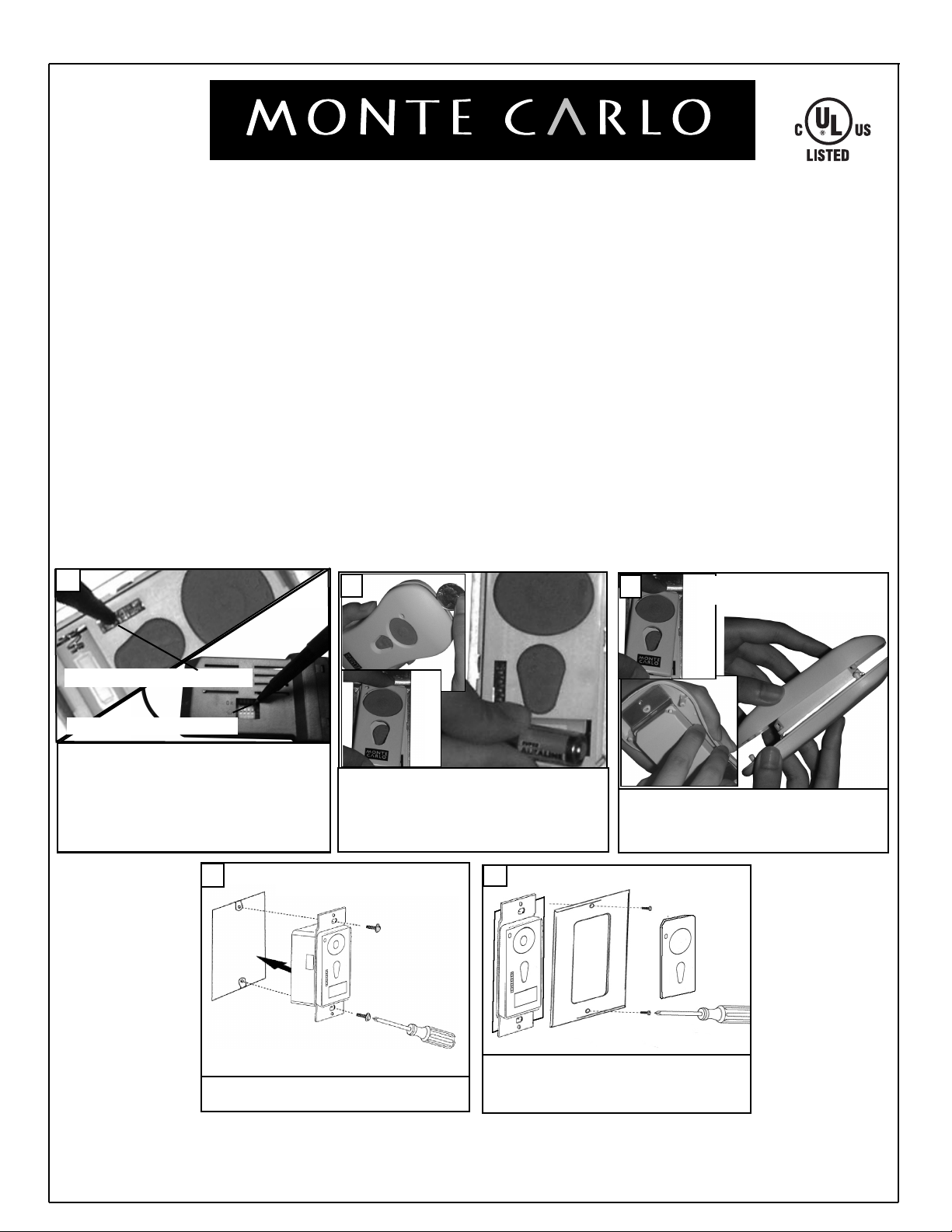

Remove cover by snaping off from top or bot-
tom. Remove battery cover. Install 12V battery
into wall remote. Duracell MN21 / Eveready A23
/ GP 23A all 12V
.Attach cover of remote byplac-
ing over buttons and snap the battery cover in
place.
Place face plate over battery compartment and
buttons. Place remote over 2 pins on front
cover. Attach cover of remote by placing over 4
pins and snaping into place.
REMOTE FAN WALL CONTROL
The frequency switches (dip switches) on the wall control and the receiver have
been preset at the factory. Please recheck to make sure the switches on the wall
control and receiver are set to the same position. Any combination of settings are
fine as long as the wall control and ceiling fan receiver are set to the same posi-
tion.
CAUTION: TURN OFF POWER AT FUSE BOX TO AVOID POSSIBLE ELECTRICAL SHOCK.
Install wall control unit to outlet box
using machine screws provided.
4
Attach front cover to wall control
with screws provided. Snap battery
cover in place.
5
Set dip switches on the Remote Transmitter and
Remote Receiver to the same settings. This must be
done so the units will communcate properly. If you
have other fans you can set to control from one
transmitter by setting both receivers the same as the
transmitter. If you have more than one fan with
remote. You can set the dip switches to different
positiosns to have seperate control.
Remote Transmitter Dip swtiches
Remote Receiver Dip switches
13
2HAND HELD INSTALL
WALL MOUNT INSTALL

Remote Control Transmitter Features:
FAN SPEED Depress “l dot” for low speed, “2 dots” for medium or “3 dots” for
high. To turn fan off press square”.
LIGHT DIMMER To turn light on, press light dimmer once quickly. To turn off
press once quickly while light is on. To dim light hold down button “light dimmer”.
The light will cycle from bright to dim to bright until button is released. Light will
maintain last setting if turned off.
FORWARD/REVERSE Depress rev button allow a few seconds for remote to
change rotation direction with fan running.
HIGH SPEED
MEDIUM SPEED
LOW SPEED
FAN OFF SETTING
(Turns fan off only)
FAN REVERSE
(Press once to
change direction of
the fan)with fan
running.
LIGHT ON/OFF SET-
TING AND DIMMER
(Press and hold to
dim light infinitively)
LED LIGHT

4/23/04 REV.0 CT-100-ENG Replaces
