MONTEAUX XL-19905 User manual

Questions, problems, missing parts? Before returning to the store,
call Monteaux™Lighting Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-446-9092
We appreciate the trust and confidence you have placed in Monteaux™Lighting through the purchase of this light. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Monteaux™Lighting!
THANK YOU
USE AND CARE GUIDE
Item # 1009594923
Model # XL-19905
EXTRA LARGE OUTDOOR WALL LANTERN

Table of Contents
Safety Information
Warranty
CAUTION:Inspect the wire insulation for any cuts,
abrasions, or exposed copper that may have resulted during
shipping. If there is a defect in the wire, do not attempt
installation. Please call our Customer Service Team at
1-800-446-9092.
WARNING: Before starting installation of this fixture or
removal of a previous fixture, disconnect the power by
turning off the circuit breaker or by removing the fuse at the
fuse box.
 Consult a qualified electrician if you have any electrical questions.
............................................................2Table of Contents
Package Contents.......................................................................4
...........................................................2Safety Information
...................................................................... 5 Installation
Hardware Included......................................................................3
...........................................................................2Warranty
......................................................................... 6Operation
..................................................................3 Pre-Installation
.......................................................... 6Care and Cleaning
Planning Installation...................................................................3
Tools Required............................................................................3 .............................................................. 6Troubleshooting
Table of Contents
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of one (1) year from
date of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If
this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the
product at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifica-
tions, alterations, neglect, or mishandling. This warranty shall not apply to any product that is found to have been improperly installed,
set-up, or used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of
the product as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty
material or workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as
this is considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty, whether express or
implied, of fitness for a particular purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability
and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor / expense costs involved
in the replacement or repair of said product.
Contact the Customer Service Team at 1-800-446-9092.
MONTEAUX LIGHTING™
Please contact 1-800-446-9092 for further assistance.
2

3
MONTEAUX LIGHTING™
Please contact 1-800-446-9092 for further assistance.

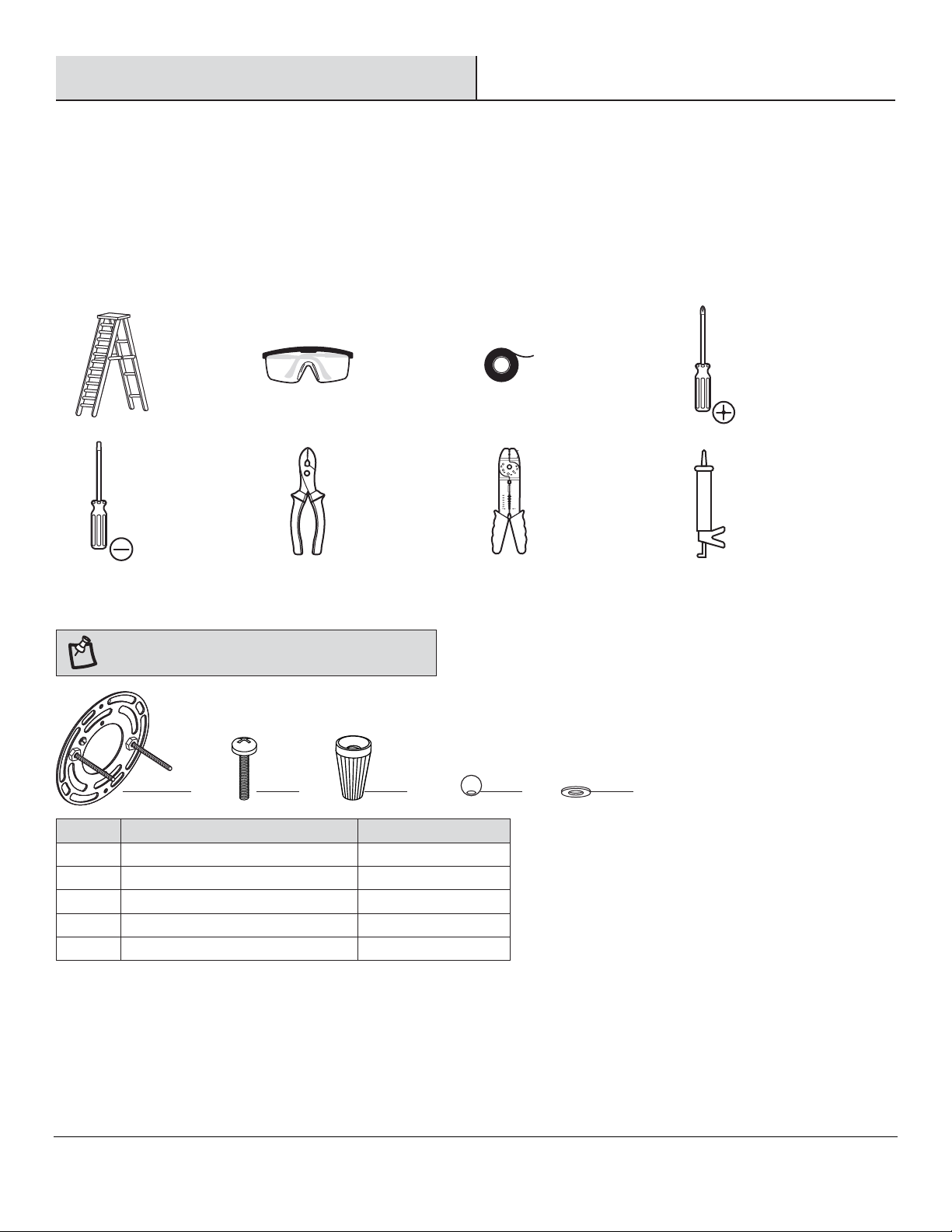

Pre-Installation
PLANNING INSTALLATION
TOOLS REQUIRED
Ladder Safety
goggles
Electrical
tape
Phillips
screwdriver
Flat blade
screwdriver Pliers Wire strippers
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC DD EE
Part Description Quantity
AA Mounting bracket 1
BB Mounting screw 2
CC Wire nut 3
DD Cap nut 2
EE Washer 2
□Read all instructions before installation.
□To avoid damaging this product, assemble it on a soft, non-abrasive surface, such as carpet or cardboard.
□Keep your receipt and these instructions for proof of purchase.
Silicone
sealant

4
Please contact 1-800-446-9092 for further assistance.
MONTEAUX LIGHTING™
Pre-Installation (continued)
PACKAGE CONTENTS
Pre-Installation (continued)
A
Part Description Quantity
A1

Please contact 1-800-446-9092 for further assistance.
MONTEAUX LIGHTING™
5
Installation
1 Attaching the mounting bracket to the
junction box
□Attach mounting unit (AA) to the junction box (not included)
with mounting screws (BB).
NOTE: The preinstalled support screws on the mounting
unit (AA) should protrude out away from the junction box
with approximately 1/8 in. of adjustability.
BB
AA
2 Making the electrical connections
□
mounting bracket (AA) by securing it with the preinstalled
ground screw.
□Connect the black to black (power), the white to white
(neutral) and copper wire to ground wire with the wire
NOTE:
attach the side with markings or letters to the black
(positive) wire and the other to the white (neutral) wire.
3
□
over the pre-installed screws on the mounting bracket (AA)
and securing it with the washers (EE) and cap nuts (DD).
AA
A
DD
EE
4
□Install three E12 candelabra 60-watt bulbs (not included).
A
CAUTION:To avoid any waterproofing problems, please
make sure the light fixture fits the mounting surface
perfectly during installation and use silicone sealant around
the canopy for better sealing after installation.
□Hook the cable from the light fixture (A) to the mounting unit
(AA).
CC
AA
A

6
Please contact 1-800-446-9092 for further assistance.
1Turning the light on
 Turn the light switch on to activate the fixture.
Operation
Care and Cleaning
 Clean the lamp with a soft, dry cloth.
 Do not use any cleaners with chemicals, solvents, or harsh abrasives.
Troubleshooting
Problem Possible Cause Solution
Replace the light bulb.The bulb is burned out.The bulb will not light.
The power is off. Ensure the power supply is On.
Check the wiring.There is a faulty wire connection.
Ensure the circuit breaker is in the On position.The circuit breaker is off.
Check the wire connections.The fuse blows or circuit
breaker trips when the
light is turned on.
There are crossed wires or the
power wire is grounding out. Contact a qualified electrician or call the Customer Service Team at
1-800-446-9092.
MONTEAUX LIGHTING™

Questions, problems, missing parts? Before returning to the store,
call Monteaux Lighting™Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
Retain this manual for future use.
1-800-446-9092
