Montigo 30FID Traditional Instruction Manual
XG0524 150909
30FID Traditional
I-Series
Indoor
Resi
dential
Fireplace Insert
Installation & Maintenance Manual
Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
NOTICE
Page 2
Instruction Manual Contents
Safety Alerts 3
Introduction 4
Section 1: Product Dimensions 7
Standard Trim 7
Standard Trim with Offset Kit 8
Oversized Trim 9
Four-sided Trim 10
Section 2: Installation 11
Install Dimensions: 11
Clearances: 11
Non Combustible Board Install 12
Section 3: Venting 13
Approved Vent Components 13
Vent Congurations 14
Section 4: Unpacking 16
Standard Faceplate Kit 17
Door Installation & Removal 18
LP Conversion 19
Gas line connection 24
Fuel Supply + Manifold Pressure Checking 25
Faceplate Installation 26
Standard Faceplate Offset Installation 26
Standard or Oversized Faceplate Installation 27
Four Sided Faceplate Installation 30
CPI [Continuous Pilot Ignition] / IPI [Intermittent Pilot Ignition] Jumper
Cable Installation 33
Leveling the Unit 34
Connecting Power 34
Battery Installation / Replacement 34
Brick Panel Installation 35
Porcelain Panel Installation 36
Log Installation 38
Operation 42
Initial Operation 42
Master Override Switch 43
AerationAdjustment 45
Remote Operation 46
Burner Installation / Removal 52
Burner Installation 53
Accent Light Replacement 54
Optional Fan / Blower Replacement 54
Window Cleaning / Screen Removal 57
Battery Replacement 58
Heat Exchanger Bypass 58
Pilot Maintenance / Replacement 60
Control Board Replacement 63
Control Board Fuse Replacement 64
Vent Maintenance / Inspection 65
SIT Proame 2 Troubleshooting: 66
AppendixA: Warranty 67
Appendix B: State of Massachusetts 68
Replacement Parts 69
XG00524-
150909
Table of Contents
I-Series Indoor Gas Fireplace
Page 3
XG00524-
150909
I-Series Indoor Gas Fireplace
Safety Alert Legend
Safety Alerts
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
WARNING
Safety Alerts
Page 4 XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Introduction
Congratulations on your purchase of a Montigo Fireplace.
With over 30 years of experience, Montigo is committed to providing
you with a gas replace that is not only a beautiful addition to your
space, but that is also designed and manufactured to the highest
safety, reliability and engineering standards.
We strongly encourage you to read and carefully follow the instructions
laid out in this Installation, Operation and Maintenance Manual
and retain it for your future reference. Pay special attention to all
cautions, warnings, and notices throughout this manual intended
to ensure your safety.
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. All installation and service work should be performed
by a qualied or licensed installer, plumber or gas tter as certied
by the state, province, region or governing body where the replace
is being installed.
This installation, operation and maintenance manual is applicable
to the models described below. Refer to your rating plate to verify
included options.
Warranty and Installation Information: (See Appendix B)
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
►
Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
ConsultyourlocalGasInspectionBranchoninstallationrequirements
for factory-built gas replaces. Installation & repairs should be done
by a qualied contractor.
This appliance is equipped for altitudes from 0 - 4500 feet [0
-1370 m]. For higher altitudes contact your Montigo dealer.
Model Number 30FIDN-S-F [NG] 30FIDL-S-F [LP]
Part Number 30FIDNIS-01 30FIDLIS-01
Input Rating 24,000 BTU 23,000 BTU
Gas Supply Pressure 7" WC 11" WC
Manifold Pressure
High 3.5" 10"
Low 2.2" 6.4"
Orice Size (DMS) 41 54
Pilot Orice Size (No.) 62 35
Air Shutter Min Settings 1/16" 3/16"
Electrical Requirement 115 VAC, 60Hz 115 VAC, 60Hz
Vent Size 3" 3" Aluminum / Stainless Flex
Minimum Vent Length 10' 10'
Maximum Vent Length 36' 36'
Efciency AFUE Method 71.30% 71.30%
Efciency P.4 Method 78.8% 80.1%
Clearances
Mantel 16" 16"
Hearth 0" 0"
Side Wall 7 7/8" 7 7/8"
Control Type SIT Proame 2 SIT Proame 2
Light Bulb Specication 20W, G6.35, Qty 2 20W, G6.35, Qty 2
Fuse Specication 3.15Amps 3.15Amps
Fan Amperage 1.6Amps 1.6Amps
Certication(s) Ansi Z21.88-2014 / CSA 2.33-2014 VENTED GAS FIREPLACE HEATERS
CGA 2.17-M91 [R2009] GAS FIRED APPLIANCES FOR HIGHALTITUDES
CSA P.4.1-09 [R2014] Fireplace Efciency
Introduction
Page 5
XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Before You Begin
Installation
Introduction
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
TheI-Series insert replace must be installed in accordance with
theseinstructions.Carefullyreadalltheinstructionsinthismanual
prior to installation or operation. Consult the Local Gas Branch to
determine the need for a permit prior to starting the installation.
It is the responsibility of the installer to ensure this replace is
installed in compliance with the manufacturers instructions and
all applicable codes.
Installations into a Factory Built Solid fuel Burning Fireplace
This gas appliance has been tested and approved for installation into
any approved masonry or factory built solid fuel replace, in which
this gas insert will t.
In the event that the vertical height of the factory built replace is less
than 20" you may remove some of the components such as the ue
bafe, ue damper or surround panels. These components can be
removed on the condition that:
1). The removal of such components in no way compromises the
structural integrity of the unit.
2). A label supplied with your insert is prominently afxed to the
existing replace. This label can be found included in the bag that
contains the back-up batteries for the insert.
The bottom of the existing replace may be removed as long as it
does not compromise the structural integrity of the existing rplace
andyoumaintainamandatoryminimum3/4"clearancebetweenthe
bottom of the insert and the bottom shell of the existing replace.
This can be achieved by using strips of noncombustible material or
by using the leveling bots on the insert.
REMOVE THIS
SECTION OF
METAL FLOOR
3
4
"
20
MIN.
LEVELING
BOLTS
Figure 1 Sec.1
REMOVE THIS
SECTION OF
METAL FLOOR
3
4
"
20
MIN.
LEVELING
BOLTS
Page 6 XG00524-
150909
I-Series Indoor Gas Fireplace
Introduction
Rating label sample: Natural Gas Sample Shown
Rating label:
Figure 2 Sec.1 Rating label location
lbl1224-v1.0-sit ipi with screen-for FID SEP.11.2015
Teklynx LabelView Demo
Page 7
XG005
24 - 150909
I-Series Indoor Gas Fireplace
Introduction
Introduction
Figure 3 Sec.1 30DFID-S standard trim dimensions (Tolerance ±⅛") [1.25 mm]
27 3/4"
705mm
26 1/4"
667mm
24 1/4"
616mm
26 7/8"
683mm
19 1/2"
497mm
16 5/8"
421mm
14 1/2"
370mm
42"
1067mm
25 3/8"
645mm
13 1/2"
343mm
19 7/8"
506mm
29 1/2"
750mm
13 1/2"
343mm
20"
508mm
5 3/8"
137mm
GAS LINE
ELECTRICAL
Standard Surround
Section 1: Product Dimensions
Standard Trim
Page 8 XG00524-
150909
I-Series Indoor Gas Fireplace
Introduction
Section 1: Product Dimensions
Standard Trim with Offset Kit
Figure 4 Sec.1 30DFID-S offset trim dimensions (Tolerance ±⅛") [1.25 mm]
26 1/4"
667mm
16 5/8"
421mm
14 1/2"
370mm
27 3/4"
705mm
24 3/8"
619mm
25 3/8"
645mm
26 7/8"
683mm
27 5/8"
702mm
39"
991mm
42"
1066mm
43 1/2"
1105mm
19 1/2"
497mm
19 7/8"
506mm
11 1/2"
291mm
4 1/4"
107mm
28"
712mm
20"
508mm
3 1/4"
83mm
GAS LINE
ELECTRICAL
Set Back Surround
Page 9
XG005
24 - 150909
I-Series Indoor Gas Fireplace
Introduction
Section 1: Product Dimensions
Oversized Trim
Figure 5 Sec.1 30DFID-S oversized trim dimensions (Tolerance ±⅛") [1.25 mm]
27 3/4"
705mm
26 1/4"
667mm
24 1/4"
616mm
19 1/2"
497mm
16 5/8"
421mm
14 1/2"
370mm
29 7/8"
759mm
27 3/8"
695mm
43"
1092mm
47 7/8"
1217mm
13 1/2"
343mm
19 7/8"
506mm
29 1/2"
750mm
20"
508mm
13 1/2"
343mm
5 3/8"
137mm
GAS LINE
ELECTRICAL
Oversize Surround
Page 10 XG00524-
150909
I-Series Indoor Gas Fireplace
Introduction
Section 1: Product Dimensions
Four-sided Trim
Figure 6 Sec.1 30DFID-S four-sided trim dimensions (Tolerance ±⅛") [1.25 mm]
26 1/4"
667mm
16 5/8"
421mm
14 1/2"
370mm
27 3/4"
705mm
19 1/2"
494mm
29 1/2"
749mm
32"
813mm
39"
991mm
42"
1066mm
24 3/8"
619mm
5 1/4"
133mm
7 3/8"
186mm
13 1/2"
343mm
19 7/8"
506mm
29 1/2"
750mm
20"
508mm
13 1/2"
343mm
5 3/8"
137mm
GAS LINE
ELECTRICAL
4-Sided Surround
Page 11
XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Section 2: Installation
Figure 1 Sec.2 30DFID-S installation dimensions
81
2
"
216
16"
406
10"
254
Hearth Protection
Not Required
Side Wall
Mantel
Faceplate
Min

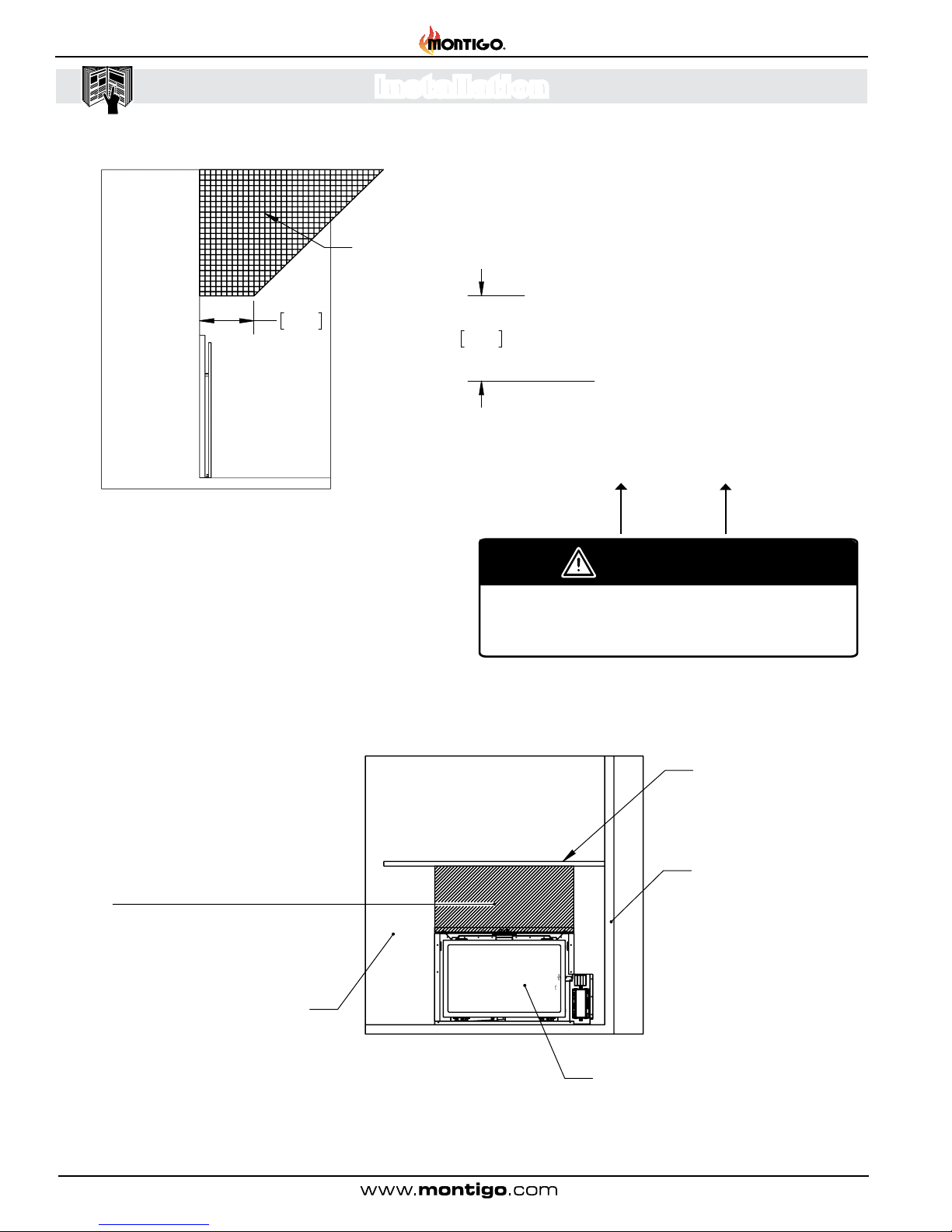

Figure 2 Sec.2 30FID-SClearances
Install Dimensions:
The install size requirements of your replace insert are dependent
on several factors. Gas line location, electrical connection and
gas line type can play into what the minimum installation size
can be. The diagram below illustrates the smallest possible size
requirement of this model. Please take into consideration these
other factors when determining if this appliance will t into your
masonry or manufactured replace.
A A
20"
508mm
14"
356mm
30"
762mm
Gas and Electrical
supply on right side
B
B
20"
508mm
5"
127mm
The 30DFID-S Insert is designed and built to be installed into masonry or manufactured replaces. There is no requirement to
have a non-combustible hearth in front of the unit. Clearances to the underside of the mantel or sidewall are measured from the
edge of the door/screen front. The Mantel is shown as 10” maximum at a distance of 16” minimum from the door edge top. The
mantel can be extended further providing that you increase the height proportionately. For instance, if you want a mantel that is
2” beyond the 10” minimum, you have to install it 2” above the 16” minimum.
Clearances:
Page 12 XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
10"
254
Max
Allowable
Mantel
Area
30"
32"
34"
36"
38"
16"
406
Min
16"
18"
20"
22"
24"
26"
28"
32"
28"
24"
20"
16"
12"
8"
4"
Mantle
Side Wall
Gas Insert
Wall Face
Non combustible facing
materials must be used above
the unit, up to the minimum
required mantel height clearance
and for the entire width of the
fireplace opening. This includes
all types of possible installations.
Figure 3 Sec.2 30FID-SMantel Clearances
Figure 4 Sec.2 NonCombustible Board Install
WARNING
Do not place any materials or objects in front of
door relief. Doing so could result in failure of door
relief system or heat dissipation.
Non Combustible Board Install
Page 13
XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Section 3: Venting
Approved Vent Components
Your Montigo 30FID is approved to be installed with the following
venting components:
Termination
46DVA-VCH, Duravent Vertical, High Wind Termination
Adaptor
46DVA-GK,Duravent3"x3"to4"x55/8"Co-lineartoCo--axialAdaptor
Connectors
3DFA-FC, Duravent 3" Flex Liner Coupling
Venting
3" Flex Liner Coupling
MONTIGO
Page 14 XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Figure 1 Sec.3
Vent Congurations
This appliance can only be vented vertically. The minimum vent
height measured from the oor under the unit to the bottom of the
termination is 10’. The maximum height that a vent can extend is
36’. This unit uses 3” x 3” Co-linear venting. This is a direct vent
unit and as such requires that both intake and exhaust vents are
connected and operational. Using existing chases as a partial vent
mechanism is not allowed. Due care is required to ensure that all
vent components are properly connected and sealed. Care must
also be taken when installing ashing or termination caps to make
sure that the structure of the building cannot be subject to water
penetration. Proper roong and chimney nishing techniques
must be used.
Steps for vent connection
** Before installing the venting system, make sure that any dampers
or bafe plates in the replace are removed or do not present any
hindrance to your installation **
1). Determine the length of ex venting that will be required. Cut
2 lengths a couple of feet longer than you anticipate needing. The
length of these needs to be determined after the vent is stretched
out. Flex venting generally comes compressed and needs to be
stretch out to meet the lengths as specied.
2). From the roof, attach the Vent Lengths to the Adaptor. Don`t
forget to have the Flashing placed between the Flex Vent and the
Adaptor before attaching the Flex Vent.
3). Using commercial grade sealant around the perimeter of the
CollarsoftheAdaptor,useaminimumof3TechscrewsineachVent.
4). Install the Termination to the top of Adaptor. Use a minimum of
4 tech screws to attach the Termination to the Adaptor.
5). Feed the Flex Venting down the chimney until the Adaptor is
situated near the top of the Chimney. Use a commercial grade of
sealant between the Flashing and the Chimney top. Fasten the
Flashing to the top of the Chimney using a fastening method that
will properly secure the ashing permanently.
6). Attach the Adaptor to the top of the Flashing using 4 tech
screws. Seal around the perimeter of theAdaptor where it meets
the Flashing.
7). From inside the house check how long the vents protrude into
the Fireplace. Read the section on installation where fuel supply
pressure checking needs to be done. This procedure can be
done at this point by installing the venting to the appliance prior
to pushing the appliance into the replace cavity.
8). Oncepre-installationstepshavebeencompleted,trimthevent
length to the correct length for installation. The Correct length will
leave the Flue Collar Slide Plate suspended around 18-19 inches
from the oor of the Fireplace.
9). RemovetheFlue CollarSlide Platefrom theappliance.Attach
both ex ends to the Flue Collar Slide plate. Use a commercial high
temp sealant around the Flue Collars on Flue Collar Slide Plate
before installing the Venting. Use a minimum of 3 tech screws to
properly secure the Venting to the Flue Collar Slide Plate.
**MakecertainthattheExhaustandIntakeVentsareconnected
to the correct collars on the Flue Connection Plate. If they
are connected in reverse, this unit will not operate and re-
installation will be necessary. **
Termination 46DVA-VCH
Adaptor 46DVA-GK
Flex Liner VT15FL3 BC
Hearth / Floor
Masonry Chimney
(Cut-away View)
Exhaust Flue
Intake Flue
Flashing
Fireplace Insert
Page 15
XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Figure 2 Sec.3
Figure 3 Sec.3
Figure 4 Sec.3
**Forclarity,thepicturesinthissectionshowtheFireplaceInsertin
an open room. You will be performing these tasks in the Fireplace
as you complete this installation **
10). Using the Door Opening Tool provided with the Fireplace Insert,
insert the tool through the Outer Shell of the Fireplace Insert. You
will be inserting this tool through a keyhole on front edge of the Flue
Collar Slide Plate.
11). The Flue Collar Slide Plate needs to be engaged into the Slide
Plate Retainers as you pull it forward.
12). You will slowly slide the Fireplace Insert back into the Fireplace
Cavity. At the same time, you will be pulling the Flue Slide Plate
forward onto the Fireplace Insert.
** Be extremely careful that the Gasket between the Fireplace
Insert and the Flue Collar Slide Plate isn`t damaged and remains
in the correct position. Failure of this gasket will greatly diminish the
operation of this appliance. **
14). Once the Flue Collar Slide Plate is within 1" of the front, Use
the 1/4" NC screw supplied and secure the Flue Collar Slide Plate
to the front of the Fireplace Insert
13). MakecertainthatwhentheFlueCollarSlidePlatecomesforward
that the tab at the back of the appliance engages into the Flue Collar
Slide Plate. Without this engagement, the Flue Collar Slide Plate will
not seal against the Gasket and the unit will not function.
Page 16 XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Section 4: Unpacking
Figure 1 Sec.4 Opening the replace carton
Figure 2 Sec.4 Top of the unit
Figure 3 Sec.4 Items included in replace carton.
Figure 4 Sec.4 Front of unit unpackaged.
While unpacking your new replace, take special care to ensure
thatallthecomponentsshownhereareincludedinyourshipment
and that all components are received in good condition. Please
notify your retailer directly if there are any discrepancies with
your shipment.
Instruction Guide
Remote Control
Batteries
Door Tool
Door Tool
Instruction Guide
Batteries
Remote Control
Additional Items Required To Be Ordered Separately
● Faceplate Kit
● Firebox Liners
● Venting
● Termination
See price list for ordering information
Note: Log set is included in rebox order, but is packaged separately.
Page 17
XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Figure 5 Sec.4 Faceplate Trim Box (standard trim)
Figure 6 Sec.4 Supplied Screws
Figure 7 Sec.4 Front and Rear Standard Faceplates
Standard Faceplate Kit
Figure 8 Sec.4 Back of Rear Faceplate
Figure 9 Sec.4 Suppled electrical strain relief and zap strap
Master Override Switch
Page 18 XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Figure 3 Sec.5 DoorRetainer released.
Figure 4 Sec.5 Swing the Door away from the unit, lift over the retaining
tabs on top of the rebox. Be careful to not roll the gasket up off the glass
whenreinstalling the door.Installation is thereverse of removal.
Door Installation & Removal
This appliance is supplied with a safety screen installed. The
Safety Screen is attached to the replace door using 4 screws,
and can be removed when necessary for outer glass cleaning.
The Fireplace Door is attached to the Firebox by 2 tabs mounted
to the top of the Firebox and by 2 spring loaded retainers at the
bottom, underneath the Door. The Retainers at the bottom of the
unit are manipulated using a Door Tool that is supplied with the
unit. The general operation of the Door Retainers is:
a). Engage the Door Tool into the Door Retainer
b). MovetheDoorTooltothelefttoreleasetheDoorRetainer
c). Move theretainerdownward andthenback underneath
the Door
d). Swing the Door outward from the unit and then lift the
Door up and over the top Tabs
Figure 1 Sec.5 DoorRetainer / Bottomof Door
Engage door tool into door retainer. Push door tool left, disengaging
the door retainer from the door.
WARNING
When reinstalling door(s), always make sure all door
buckles are properly hoooked and fully engaged.
Figure 2 Sec.5 InsertDoor Tool and slide left.
Page 19
XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
LP Conversion
The 30FID-S is available in Natural Gas or Liquid Propane
versions. If you have a Natural Gas unit and would like to burn
Propane you can purchase an optional LP conversion kit and
install it using the following steps. To convert the unit to LP, the
unit must be disconnected from any gas supply, disconnected
from any electrical supply and batteries and removed from any
installation cavity.
Figure 1 Sec.6 LP conversion kit showing pilot orice, main
burner orice, LP stepper motor, zap strap and gas tter
conversion label.
Tools required
1). Torx T20 Screw Driver Bit
2). 3/8" Socket Driver
3). 5/32" Allen Key
4). Needle Nose Pliers or Small Flat Head Screw Driver
The 6 major items that need modication to convert a unit to LP
1). Variable regulator on the gas valve
2). The main burner orice
3). The pilot burner orice
4). Set minimum primary air tab
5). Label on the valve showing the new specications
6). Gas tter conversion label
Figure 5 Sec. 5 Location of Door retainer tabs
Check that the door retainers are properly engaged.
If they are not the door relief system may not operate
properly. This can cause a risk of injury or improper
operation of the appliance.
WARNING
When installing the replace - gas lines, ttings, accesso-
ries or any other objects cannot impede the proper
movement of the door buckles.
Page 20 XG00524-
150909
I-Series Indoor Gas Fireplace
Installation
Converting the gas regulator on the valve
1). On the right side (control side) of the unit, remove 2 screws
that enable the valve to swing away from the unit.
2). Swing the valve away from the unit in order to get access to
the front of the valve and regulator. Be careful not to damage gas
lines or wires.
3). Using a T20 Torx screw driver, remove the 2 screws that attach
the stepper motor to the valve.
4). Remove the screws, stepper motor and rubber diaphragm.
5). Remove the top 2 screws that hold the control mounting
bracket in place.
Figure 2 Sec.6
Figure 3 Sec.6
Figure 4 Sec.6
Figure 5 Sec.6
Figure 6 Sec.6
Other manuals for 30FID Traditional
4
Table of contents
Other Montigo Indoor Fireplace manuals
Montigo
Montigo H38DF PRC Instruction manual
Montigo
Montigo Proflame 2 Manual
Montigo
Montigo H-Series DF User manual
Montigo
Montigo M38BV-PFC Installation and operating instructions
Montigo
Montigo ME34-DV User manual
Montigo
Montigo H38DF PFC Instruction Manual
Montigo
Montigo H38DF-CLCR Instruction Manual
Montigo
Montigo R520-ST Instruction manual
Montigo
Montigo MD38-BV User manual
Montigo
Montigo B34DV Instruction Manual
Montigo
Montigo HR38DF Instruction manual
Montigo
Montigo RP620 Series Manual
Montigo
Montigo 36ST Wiring diagram
Montigo
Montigo H34DF Instruction Manual
Montigo
Montigo L52-DF Instruction Manual
Montigo
Montigo R320-ST Instruction Manual
Montigo
Montigo Wildfire MW38-DV User manual
Montigo
Montigo BF36-SS Instruction manual
Montigo
Montigo M38DV-PFC Owner's manual
Montigo
Montigo M40DV-CR Owner's manual
Popular Indoor Fireplace manuals by other brands
Continental Fires
Continental Fires CF-E 40 Instructions for installation and use
Quadra-Fire
Quadra-Fire HUDBAY-FS owner's manual
Kemlan
Kemlan 700 Low Line installation instructions
Vermont Castings
Vermont Castings SB60 owner's manual
decorflame
decorflame M902L-42FDC manual
European Home
European Home J-60 Installation, operation and owner's manual
KENT
KENT KWF295-6824 User guide and warranty information
Duraflame
Duraflame DFI021ARU-05 manual
Napoleon
Napoleon Entice 36 Series Installation and operation manual
superior fires
superior fires F500384 Installation & user's instructions
Empire Comfort Systems
Empire Comfort Systems VFD32FB0L-2 Installation instructions and owner's manual
Frigidaire
Frigidaire Chicago instruction manual
Kemlan
Kemlan Super Nova Freestanding Series II Installation & operating instructions
STOVES
STOVES S7 - E700FIRE Handbook
Escea
Escea AF700 Information Sheet for Builders and Architects
Majestic fireplaces
Majestic fireplaces Cabinets Classic Series Brochure & specs
Empire
Empire LPR2430-1 Installation instructions and owner's manual
Greentouch
Greentouch 1409FM-23-248 Assembly / care & use instructions
