Montigo 34FIDN-S-F [NG] Manual

XG0508 150204
34FID Traditional
I-Series
Indoor
Resi dential
Fireplace Insert
Installation & Maintenance Manual
Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
NOTICE

Page 2
Instruction Manual Contents
Safety Alerts 3
Introduction 4
Section 1: Product Dimensions 6
Standard Trim 6
Four-sided Trim 7
Section 2: Installation 8
Install Dimensions: 8
Clearances: 8
Non Combustible Board Install 9
Section 3: Venting 10
Approved Vent Components 10
Vent Congurations 11
Section 4: Unpacking 13
Standard Faceplate Kit 14
Door Installation & Removal 15
LP Conversion 16
Gas line connection 21
Fuel Supply + Manifold Pressure Checking 22
Standard Faceplate Installation 23
Four Sided Faceplate Installation 26
CPI [Continuous Pilot Ignition] / IPI [Intermittent Pilot Ignition] Jumper
Cable Installation 29
Leveling the Unit 30
Connecting Power 31
Battery Installation / Replacement 31
Brick Panel Installation 32
Porcelain Panel Installation 33
Log Installation 35
Operation 39
Initial Operation 39
Master Override Switch 40
Aeration Adjustment 42
Remote Operation 43
Burner Installation / Removal 49
Burner Installation 50
Accent Light Replacement 51
Optional Fan / Blower Replacement 51
Window Cleaning / Screen Removal 54
Battery Replacement 55
Heat Exchanger Bypass 55
Pilot Maintenance / Replacement 57
Control Board Replacement 60
Control Board Fuse Replacement 61
Vent Maintenance / Inspection 62
SIT Proame 2 Troubleshooting: 63
Appendix A: Warranty 64
Appendix B: State of Massachusetts 65
Replacement Parts 66
XG0508- 150204
Table of Contents
I-Series Indoor Gas Fireplace

Page 3
XG0508- 150204
I-Series Indoor Gas Fireplace

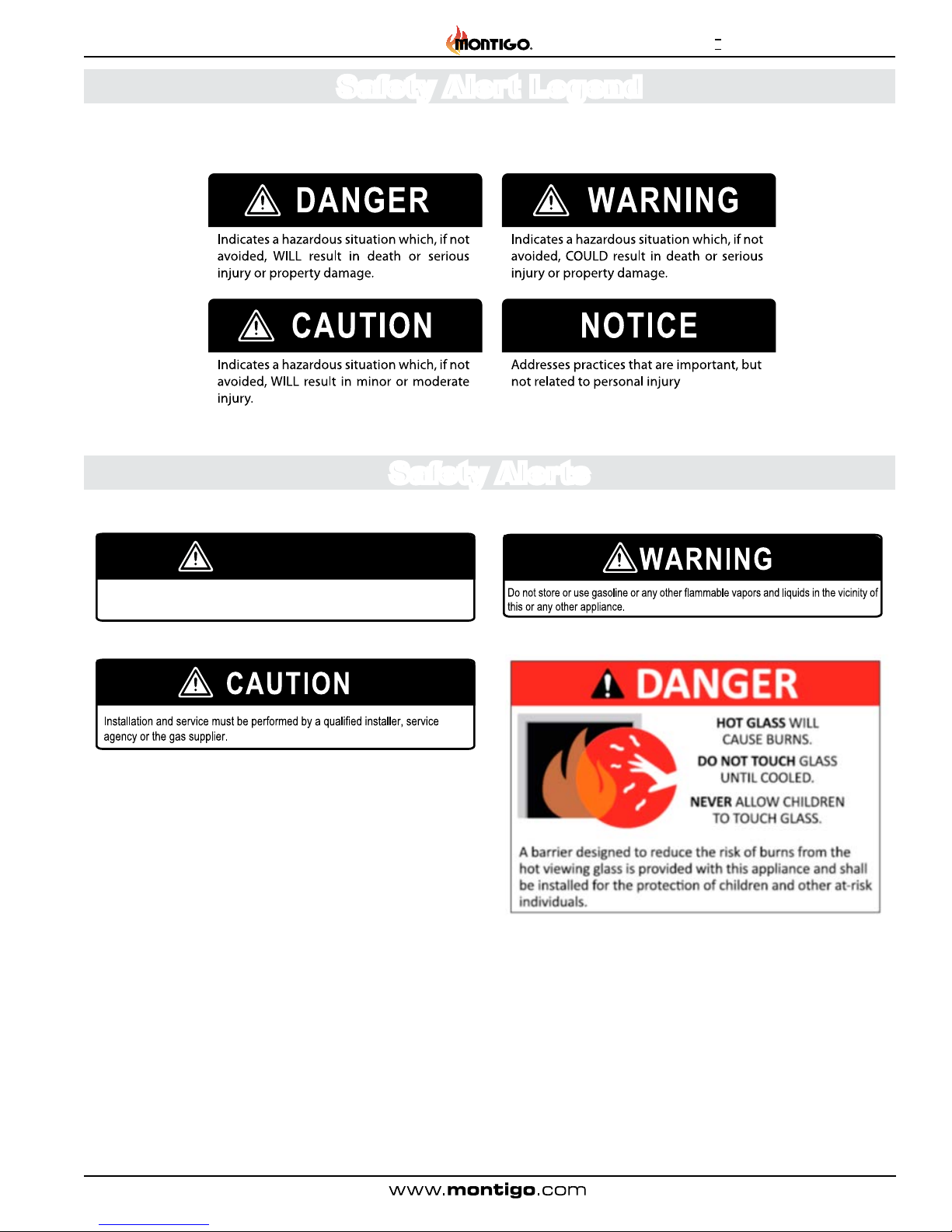

Safety Alert Legend
Safety Alerts
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
WARNING
Safety Alerts

Page 4 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
Introduction
Congratulations on your purchase of a Montigo Fireplace.
With over 30 years of experience, Montigo is committed to providing
you with a gas replace that is not only a beautiful addition to your
space, but that is also designed and manufactured to the highest
safety, reliability and engineering standards.
We strongly encourage you to read and carefully follow the instructions
laid out in this Installation, Operation and Maintenance Manual
and retain it for your future reference. Pay special attention to all
cautions, warnings, and notices throughout this manual intended
to ensure your safety.
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. All installation and service work should be performed
by a qualied or licensed installer, plumber or gas tter as certied
by the state, province, region or governing body where the replace
is being installed.
This installation, operation and maintenance manual is applicable
to the models described below. Refer to your rating plate to verify
included options.
Warranty and Installation Information: (See Appendix B)
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
Consult yourlocal GasInspectionBranchon installation requirements
for factory-built gas replaces. Installation & repairs should be done
by a qualied contractor.
This appliance is equipped for altitudes from 0 - 4500 feet [0
-1370 m]. For higher altitudes contact your Montigo dealer.
34FIDN-S-F [NG] 34FIDL-S-F [LP]
Input Rating 31,000 BTU 30,000 BTU
Gas Supply Pressure 7" WC 11" WC
Manifold Pressure
High 3.5" 10"
Low 2.2" 6.4"
Orice Size (DMS) 35 52
Pilot Orice Size (No.) 62 35
Air Shutter Min Settings 1/16" 3/16"
Electrical Requirement 115 VAC, 60Hz 115 VAC, 60Hz
Vent Size 4" Exhaust / 3" Intake 4" Exhaust / 3" Intake Aluminum / Stainless Flex
Minimum Vent Length 10' 10'
Maximum Vent Length 36' 36'
Efciency AFUE Method 70.98% 71.21%
Efciency P.4 Method 80.9% 82.0%
Clearances
Mantel 23" 23"
Hearth See Section See Section
Side Wall 8.5" 8.5"
Control Type SIT Proame 2 SIT Proame 2
Light Bulb Specication 20W, G6.35, Qty 2 20W, G6.35, Qty 2
Fuse Specication 3.15Amps 3.15Amps
Fan Amperage 1.6Amps 1.6Amps
Certication(s) Ansi Z21.88-2014 / CSA 2.33-2014 VENTED GAS FIREPLACE HEATERS
CGA 2.17-M91 [R2009] GAS FIRED APPLIANCES FOR HIGH ALTITUDES
CSA P.4.1-09 [R2014] Fireplace Efciency
Introduction

Page 5
XG0508- 150204
I-Series Indoor Gas Fireplace
Installation
Before You Begin
Installation
Introduction
Rating label sample: Natural Gas Sample Shown
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
The I-Series insert replaces must be installed in accordance
with these Instructions. Carefully read all the instructions in
this manual rst. Consult the Local Gas Branch to determine
the need for a permit prior to starting the installation. It is
the responsibility of the installer to ensure this replace is
installed in compliance with the manufacturers instructions
and all applicable codes.
Installations into a Solid Fuel Burner Fireplace or a Factory
Built Fireplace
This gas appliance has been tested and approved for installation
into any approved masonry or factory built solid fuel replace,
in which this gas insert will t. In the event that the vertical
height of the factory built replace is to low and that the removal
of some components such as the ue bafe, ue damper or
surround panels will facilitate the installation of the gas insert,
such components can be removed on the condition that:
1). The removal of such components in no way compromises
the structural integrity of the unit.
2). A Sticker, supplied by the installer, showing this information
is prominently afxed to the rebox.
Figure 1 Sec.1 Rating label location



 












LB1223-V5.0 SIT IPI MAY.10.2012
  










 


    




  

  








    






 
 
 


 


Teklynx LabelView Demo

Page 6 XG0508-
150204
I-Series Indoor Gas Fireplace
Introduction
Introduction

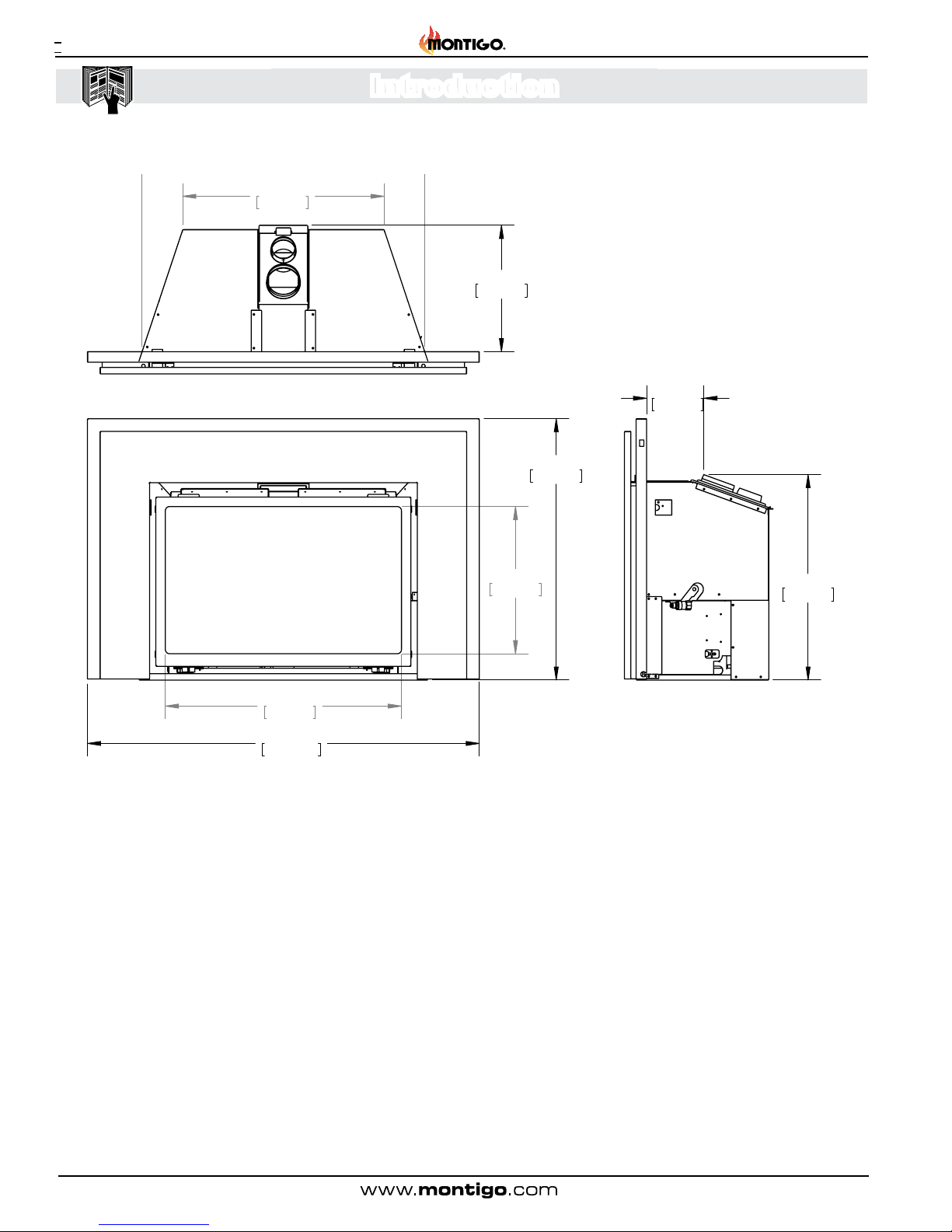

Figure 2 Sec.1 34DFID-S standard trim dimensions (Tolerance ±⅛") [1.25 mm]
28"
712mm
17 1/2"
444mm
46 1/2"
1181mm
31"
787mm
23 7/8"
607mm
15"
381mm
33 1/2"
852mm
I
E
24 3/8"
619mm
6 3/4"
172mm
Section 1: Product Dimensions
Standard Trim

Page 7
XG0508- 150204
I-Series Indoor Gas Fireplace
Introduction
Section 1: Product Dimensions
Four-sided Trim
Figure 3 Sec.1 34DFID-S four-sided trim dimensions (Tolerance ±⅛") [1.25 mm]
Not Yet Available

Page 8 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
Section 2: Installation

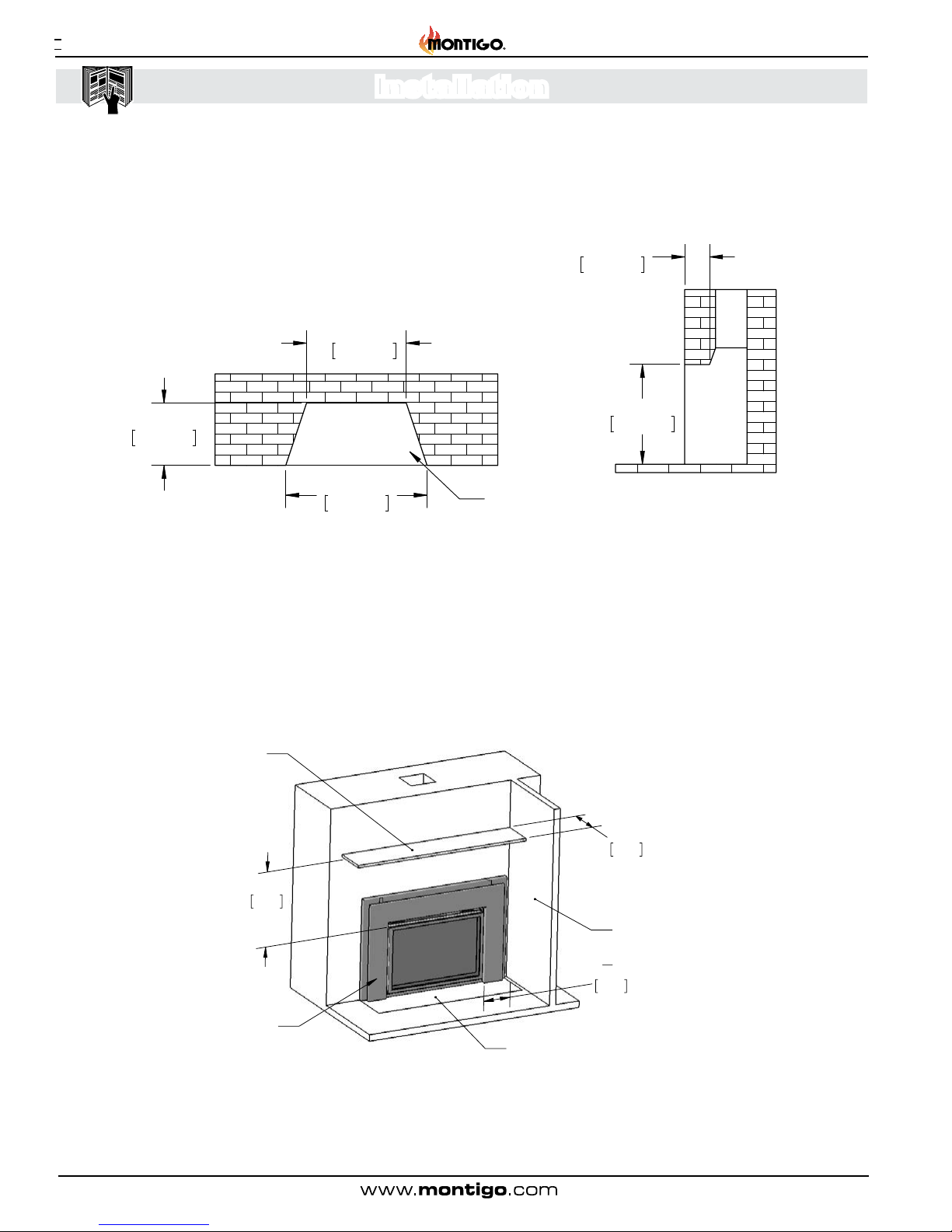

Figure 1 Sec.2 34DFID-S installation dimensions
10"
254
Max
23"
584
Min
81
2
"
216
Min
Mantel
Side Wall
Hearth Protection
**Hearth protection is not required if the unit
is installed with a 2" (50.8mm) elevation or
greater above the hearth surface** See the
section on 4 sided surround options.
Faceplate
23"
584
Minimum
10"
254
Max
Allowable
Mantel
Area
25"
27"
29"
31"
33"
35"
37"
39"
41"
43"
45"
10"14"18"24"26" 30"34"
38 42
23"
Install Dimensions:
The install size requirements of your replace insert are dependent on several factors. Gas line location, electrical connection and gas
line type can play into what the minimum installation size can be. The diagram below illustrates the smallest possible size requirement
of this model. Please take into consideration these other factors when determining if this appliance will t into your masonry or
manufactured replace.
24"
610mm
34"
864mm
15"
381mm
Gas and Electrical
Supply at Right Side
6"
152mm
24"
610mm
Clearances:
Figure 2 Sec.2 34DFID-S clearances
The 34DFID-S Insert is designed and built to be installed into masonry or manufactured replaces. There is no requirement to have
a non-combustible hearth in front of the unit. Clearances to the underside of the mantel or sidewall are measured from the edge of
the door/screen front. The Mantel is shown as 10” maximum at a distance of 23” minimum from the door edge top. The mantel can
be extended further providing that you increase the height proportionately. For instance, if you want a mantel that is 2” beyond the
10” minimum, you have to install it 2” above the 23” minimum.

Page 9
XG0508- 150204
I-Series Indoor Gas Fireplace
Installation
Figure 3 Sec.2 34DFID-S mantel clearances
10"
254
Max
8"
203
23"
584
Min
12"
305
Min
46 1
2
"
1181
Min
Mantel
Side Wall
Hearth Protection
Face Plate
23"
584
Minimum
10"
254
Max
Allowable
Mantel
Area
25"
27"
29"
31"
33"
35"
37"
39"
41"
43"
45"
10"14"18"24"26" 30"34"
38 42
23"
** Hearth protection is not required if the unit is installed with
a 2" (50.8mm) elevation or greater above the hearth surface **
See the section on 4 sided surround options.
Figure 4 Sec.2 Non Combustible Board Install
10"
254
Max
8"
203
23"
584
Min
12"
305
Min
46 1
2
"
1181
Min
Mantel
Side Wall
Hearth Protection
Face Plate
23"
584
Minimum
10"
254
Max
Allowable
Mantel
Area
25"
27"
29"
31"
33"
35"
37"
39"
41"
43"
45"
10"14"18"24"26" 30"34"
38 42
23"
** Hearth protection is not required if the unit is installed with
a 2" (50.8mm) elevation or greater above the hearth surface **
See the section on 4 sided surround options.
WARNING
Do not place any materials or objects in front of
door relief. Doing so could result in failure of door
relief system or heat dissipation.
Non Combustible Board Install
Mantle
Side Wall
Gas Insert
Wall Face
Non combustible facing
materials must be used above
the unit, up to the minimum
required mantel height clearance
and for the entire width of the
fireplace opening. This includes
all types of possible installations.

Page 10 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
Section 3: Venting

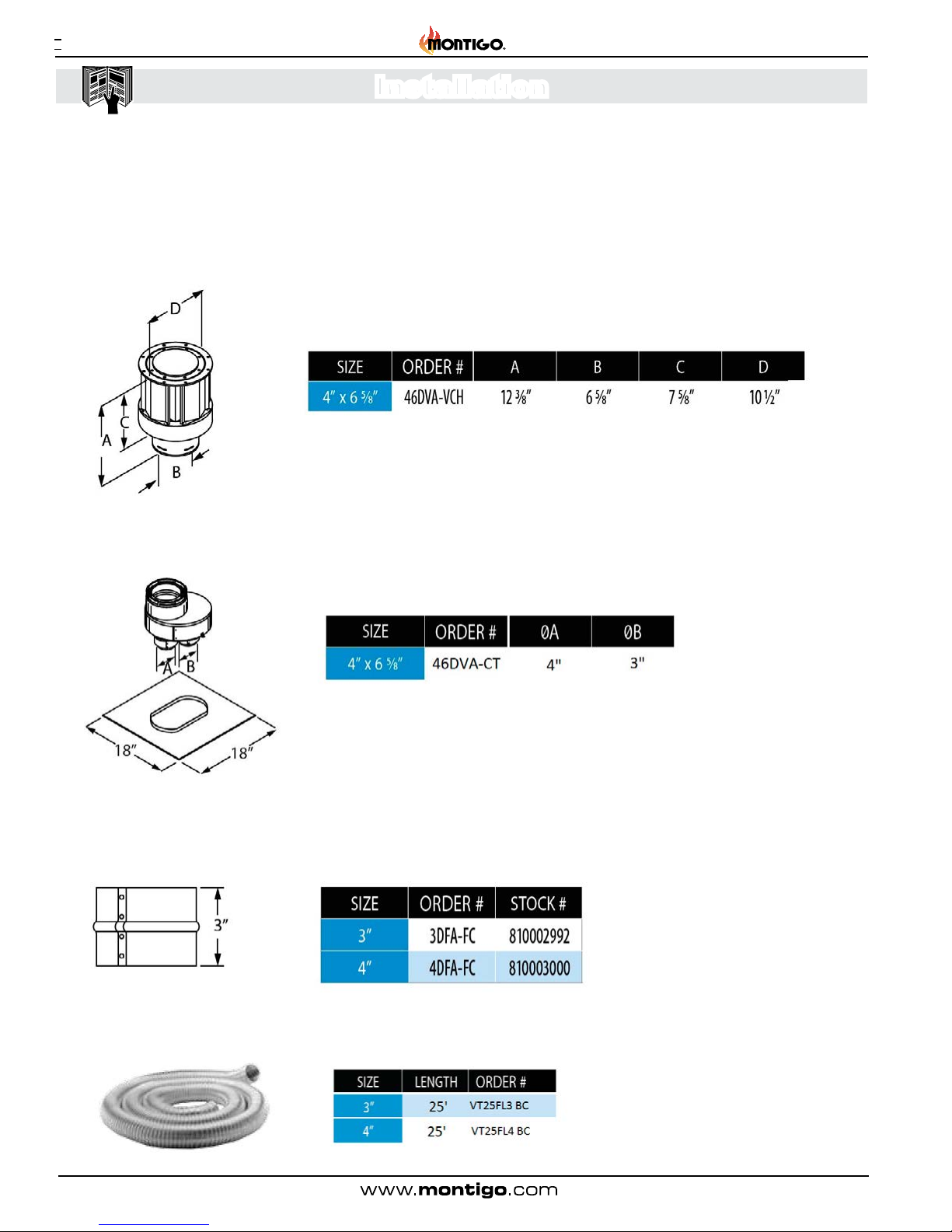

Approved Vent Components
Your Montigo 34FID is approved to be installed with the following
venting components:
Termination
46DVA-VCH, Duravent Vertical, High Wind Termination
Adaptor
46DVA-GK, Duravent 3" x 3" to 4" x 5 5/8" Co-linear to Co--axial Adaptor
Connectors
3DFA-FC, Duravent 3" Flex Liner Coupling
4DFA-FC, Duravent 4" Flex Liner Coupling
Venting
4" Flex Liner and 3" Flex Liner
MONTIGO

Page 11
XG0508- 150204
I-Series Indoor Gas Fireplace
Installation
Figure 1 Sec.3
Vent Congurations
This appliance can only be vented vertically. The minimum vent
height measured from the oor under the unit to the bottom of the
termination is 10’. The maximum height that a vent can extend is
36’. This unit uses 4” x 3” Co-linear venting. This is a direct vent
unit and as such requires that both intake and exhaust vents are
connected and operational. Using existing chases as a partial vent
mechanism is not allowed. Due care is required to ensure that all
vent components are properly connected and sealed. Care must
also be taken when installing ashing or termination caps to make
sure that the structure of the building cannot be subject to water
penetration. Proper roong and chimney nishing techniques
must be used.
Steps for vent connection
** Before installing the venting system, make sure that any dampers
or bafe plates in the replace are removed or do not present any
hindrance to your installation **
1). Determine the length of ex venting that will be required. Cut
2 lengths a couple of feet longer than you anticipate needing. The
length of these needs to be determined after the vent is stretched
out. Flex venting generally comes compressed and needs to be
stretch out to meet the lengths as specied.
2). From the roof, attach the Vent Lengths to the Adaptor. Don`t
forget to have the Flashing placed between the Flex Vent and the
Adaptor before attaching the Flex Vent.
3). Using commercial grade sealant around the perimeter of the
Collars of theAdaptor, use a minimum of 3 Tech screws in each Vent.
4). Install the Termination to the top of Adaptor. Use a minimum of
4 tech screws to attach the Termination to the Adaptor.
5). Feed the Flex Venting down the chimney until the Adaptor is
situated near the top of the Chimney. Use a commercial grade of
sealant between the Flashing and the Chimney top. Fasten the
Flashing to the top of the Chimney using a fastening method that
will properly secure the ashing permanently.
6). Attach the Adaptor to the top of the Flashing using 4 tech
screws. Seal around the perimeter of the Adaptor where it meets
the Flashing.
7). From inside the house check how long the vents protrude into
the Fireplace. Read the section on installation where fuel supply
pressure checking needs to be done. This procedure can be
done at this point by installing the venting to the appliance prior
to pushing the appliance into the replace cavity.
8). Once pre-installation steps have been completed, trim the vent
length to the correct length for installation. The Correct length will
leave the Flue Collar Slide Plate suspended around 18-19 inches
from the oor of the Fireplace.
9). Remove the Flue Collar Slide Plate from the appliance. Attach
both ex ends to the Flue Collar Slide plate. Use a commercial high
temp sealant around the Flue Collars on Flue Collar Slide Plate
before installing the Venting. Use a minimum of 3 tech screws to
properly secure the Venting to the Flue Collar Slide Plate.
** Make certain that the Exhaust and Intake Vents are connected
to the correct collars on the Flue Connection Plate. If they
are connected in reverse, this unit will not operate and re-
installation will be necessary. **
Termination 46DVA-VCH
Adaptor 46DVA-CT
Flex Liner VT15FL3
(Intake)
Hearth / Floor
Masonry Chimney
(Cut-away View)
Exhaust Flue
Intake Flue
Flashing
Fireplace Insert
Flex Liner VT15FL4
(Exhaust)

Page 12 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
Figure 2 Sec.3
Figure 3 Sec.3
Figure 4 Sec.3
** For clarity, the pictures in this section show the Fireplace Insert in
an open room. You will be performing these tasks in the Fireplace
as you complete this installation **
10). Using the Door Opening Tool provided with the Fireplace Insert,
insert the tool through the Outer Shell of the Fireplace Insert. You
will be inserting this tool through a keyhole on front edge of the Flue
Collar Slide Plate.
11). The Flue Collar Slide Plate needs to be engaged into the Slide
Plate Retainers as you pull it forward.
12). You will slowly slide the Fireplace Insert back into the Fireplace
Cavity. At the same time, you will be pulling the Flue Slide Plate
forward onto the Fireplace Insert.
** Be extremely careful that the Gasket between the Fireplace
Insert and the Flue Collar Slide Plate isn`t damaged and remains
in the correct position. Failure of this gasket will greatly diminish the
operation of this appliance. **
14). Once the Flue Collar Slide Plate is within 1" of the front, Use
the 1/4" NC screw supplied and secure the Flue Collar Slide Plate
to the front of the Fireplace Insert
13). Make certainthatwhen the FlueCollarSlidePlate comes forward
that the tab at the back of the appliance engages into the Flue Collar
Slide Plate. Without this engagement, the Flue Collar Slide Plate will
not seal against the Gasket and the unit will not function.

Page 13
XG0508- 150204
I-Series Indoor Gas Fireplace
Installation

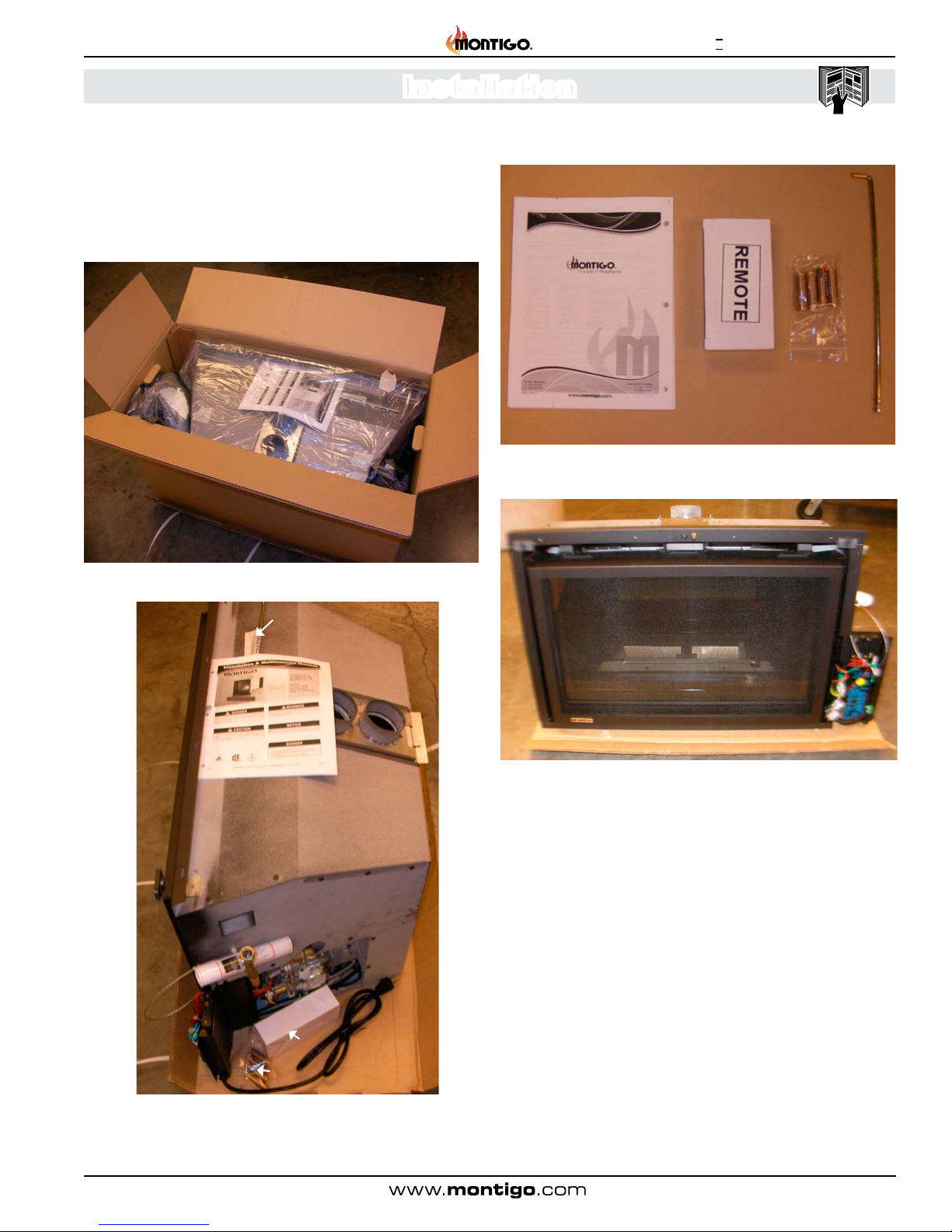

Section 4: Unpacking
Figure 1 Sec.4 Opening the replace carton (30FID Shown)
Figure 2 Sec.4 Top of the unit (30FID Shown)
Figure 3 Sec.4 Items included in replace carton.
Figure 4 Sec.4 Front of unit unpackaged (30FID Shown).
While unpacking your new replace, take special care to ensure
that all the components shown here are included in your shipment
and that all components are received in good condition. Please
notify your retailer directly if there are any discrepancies with
your shipment.
Instruction Guide
Remote Control
Batteries
Door Tool
Door Tool
Instruction Guide
Batteries
Remote Control
Additional Items Required To Be Ordered Separately
● Faceplate Kit
● Firebox Liners
● Venting
● Termination
See price list for ordering information
Note: Log set is included in rebox order, but is packaged separately.

Page 14 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
Figure 5 Sec.4 Faceplate Trim Box (standard trim)
Figure 6 Sec.4 Supplied Screws
Figure 7 Sec.4 Front and Rear Standard Faceplates
Standard Faceplate Kit
Figure 8 Sec.4 Back of Rear Faceplate
Figure 9 Sec.4 Suppled electrical strain relief and zap strap
Master Override Switch

Page 15
XG0508- 150204
I-Series Indoor Gas Fireplace
Installation
Door Installation & Removal

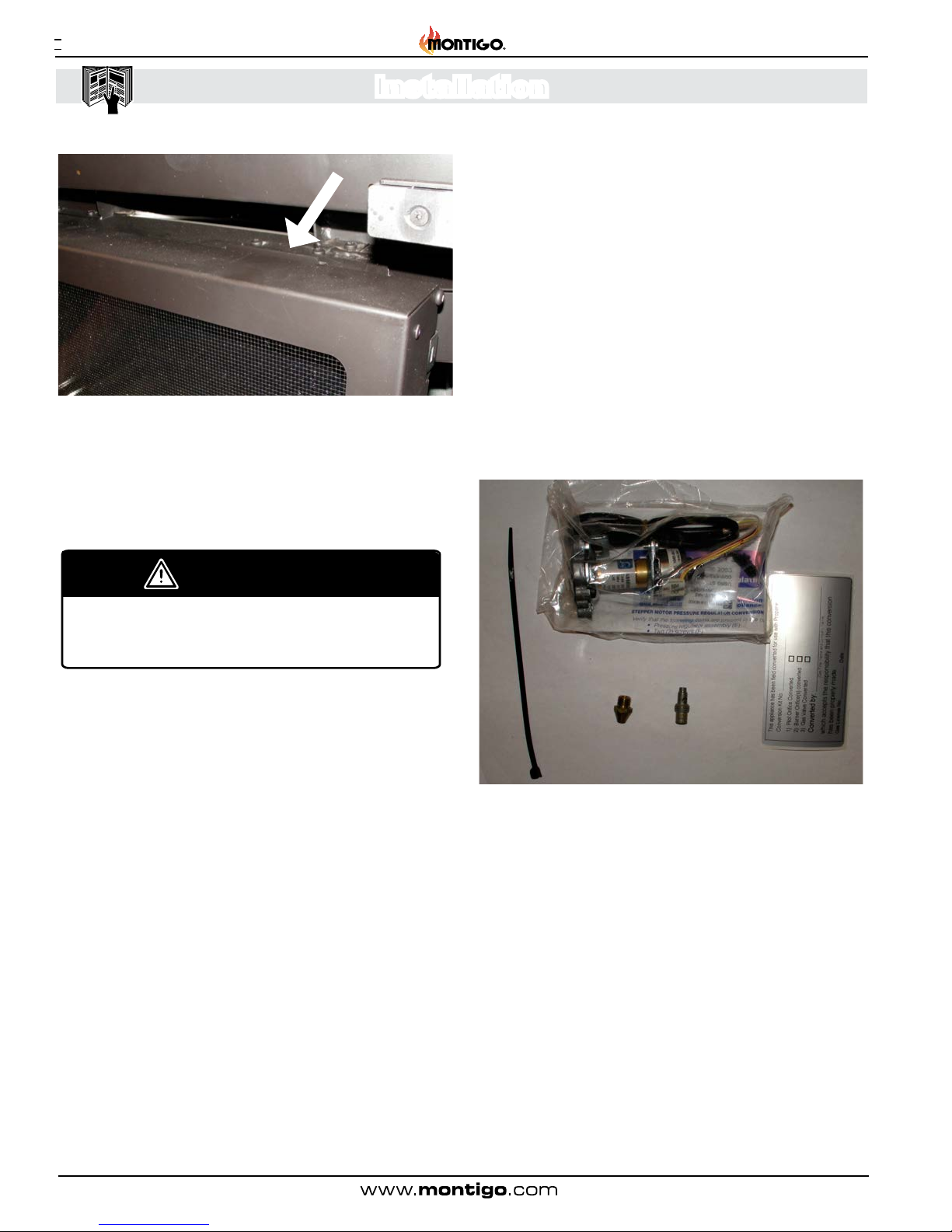

This appliance is supplied with a safety screen installed. The
Safety Screen is attached to the replace door using 4 screws,
and can be removed when necessary for outer glass cleaning.
The Fireplace Door is attached to the Firebox by way of 2 tabs
mounted to the top of the Firebox and by 2 spring loaded retainers
at the bottom underneath the Door. The Retainers at the bottom
of the unit are manipulated using a Door Tool that is supplied with
the unit. The general operation of the Door Retainers is:
Figure 1 Sec.5 Door Tool / Bottom of Door
Figure 2 Sec.5 Engaging the Door Tool Into the Door Retainer
Figure 3 Sec.5 The door latch released from the Door
Figure 4 Sec.5 Swing the Door away from the unit, lift over the retaining
tabs on top of the rebox. Be careful to not roll the gasket up off the
glass when reinstalling the door.
Engage door tool into door retainer. Pull door tool towards you and
push downwards, disengaging the door retainer from the door.
WARNING
When reinstalling door(s), always make sure all door
buckles are properly hooked and fully engaged.
a). Engage the Door Tool into the Door Retainer
b). Pull forward away from the tabs that engage it on the
bottom of the Door Frame
c). Move the retainer downward and then back underneath
the Door
d). Swing the Door outward from the unit and then lift the

Page 16 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
LP Conversion
The 34FID-S is available in Natural Gas or Liquid Propane versions.
Should you have a Natural Gas unit that you would like to burn
Propane with; you can purchase an optional LP conversion kit
and install it using the following steps. To convert the unit to LP,
the unit must be disconnected from any gas supply, disconnected
from any electrical supply and batteries and removed from any
installation cavity.
Figure 1 Sec.6 LP conversion kit showing pilot orice, main burner
orice, LP stepper motor, zap strap and gas tter conversion label.
The 6 major items that need modication to convert a unit to LP
1). Variable regulator on the gas valve
2). The main burner orice
3). The pilot burner orice
4). Set minimum primary air tab
5). Label on the valve showing the new specications
6). Gas tter conversion label
Figure 5 Sec.5 Location of Door retainer tabs
Check that the door retainers are properly engaged. If they are
not the door relief system may not operate properly. This can
cause a risk of injury or improper operation of the appliance.
WARNING
When installing the replace - gas lines, ttings,
accessories or any other objects cannot impede the
proper movement of the door buckles.

Page 17
XG0508- 150204
I-Series Indoor Gas Fireplace
Installation
Figure 4 Sec.6
Figure 5 Sec.6
Figure 6 Sec.6
Figure 2 Sec.6
Figure 3 Sec.6
Tools required
1). Torx T20 Screw Driver Bit
2). 3/8" Socket Driver
3). 5/32" Allen Key
4). Needle Nose Pliers or Small Flat Head Screw Driver
3). Using a T20 Torx screw driver, remove the 2 screws that attach
the stepper motor to the valve.
4). Remove the screws, stepper motor and rubber diaphragm.
5). Remove the top 2 screws that hold the control mounting
bracket in place.

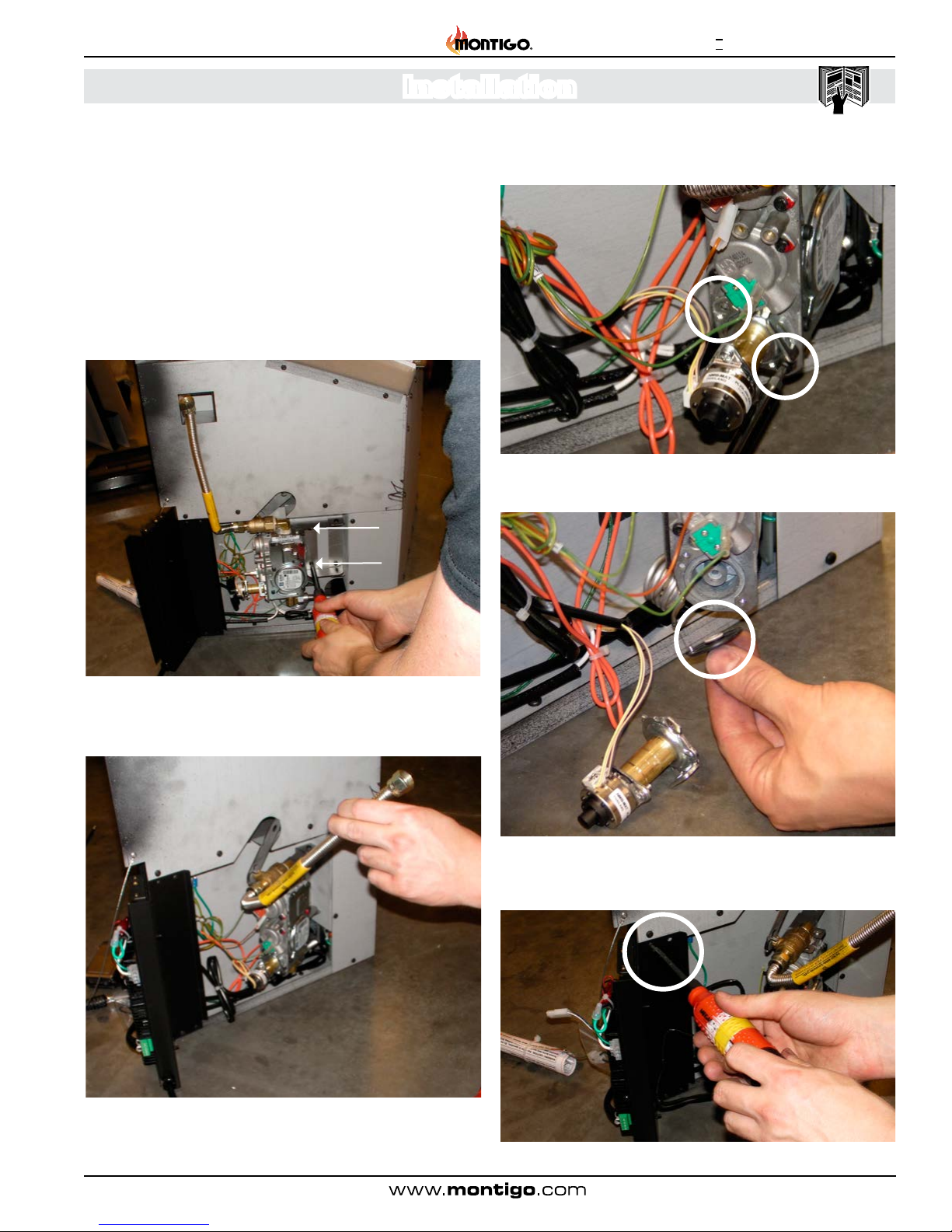

Converting the gas regulator on the valve
1). On the right side (control side) of the unit, remove 2 screws
that enable the valve to swing away from the unit.
2). Swing the valve away from the unit in order to get access to
the front of the valve and regulator. Be careful not to damage gas
lines or wires.

Page 18 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
Figure 11 Sec.6
Figure 7 Sec.6
6). Unplug the cable that runs from the stepper motor to the control
board and remove it from in between the control board mounting
bracket and the replace.
Figure 12 Sec.6
7). Place the LP stepper motor onto the valve being extremely
careful that the orientation of the regulator is correct.
8). Reinstall the 2 screws supplied with the conversion kit to fasten
the stepper motor to the valve body.
Figure 8 Sec.6
9). Attach the label provided to the side of the valve body. This
label shows that the valve has been converted using SIT approved
components.
Figure 9 Sec.6
10). Run the cable from the stepper motor in between the control
mounting bracket and replace.
Figure 10 Sec.6
12). Plug the cable into the control board.

Page 19
XG0508- 150204
I-Series Indoor Gas Fireplace
Installation

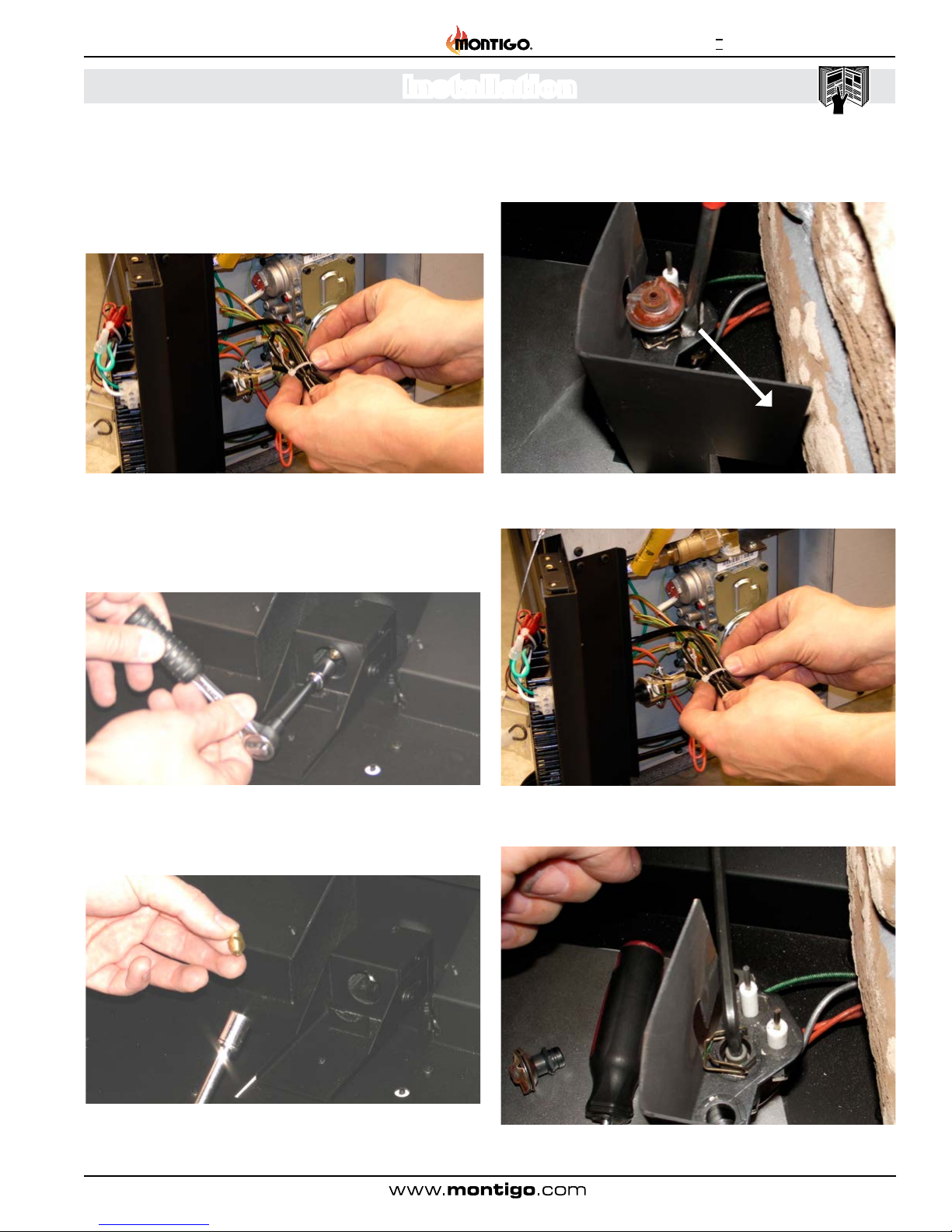

17). Remove the pilot hood from the pilot assembly
Figure 13 Sec.6
Converting the pilot burner orice to LP
16). Remove the spring clip that retains the Pilot Flame Hood.
Figure 14 Sec.6
18). Using an Allen key, remove the NG Pilot Orice
Figure 15 Sec.6
Figure 16 Sec.6
13). Reinstall the 2 screws to secure the top of the control board
mounting bracket. Using the zip strap supplied, secure the excess
of wires neatly within the control / valve area. Re-install the 2
screws that keep the valve body from swinging out from the unit.
When swinging valve back in use care to not pinch or kink
wires or pilot gas line. Inspect pilot gas line for leaks.
Converting the main burner orice to LP
15). Place the LP main orice into the end of the socket wrench.
Being sure not to cross thread the orice, install the orice into
the mounting within the air shutter box.
Figure 17 Sec.6
14). Remove burner, see burner removal section. Using a socket
wrench and driver, loosen and remove the main burner orice.
Figure 18 Sec.6

Page 20 XG0508-
150204
I-Series Indoor Gas Fireplace
Installation
19). Replace the NG Pilot orice with the LP Pilot orice. If you
get the orices mixed up, the LP orice has a grove machined
around the diameter near the end.
Figure 19 Sec.6
20). Reverse steps to install pilot hood.
21). The minimum primary air setting is different depending on fuel
and burner. The minimum primary air is set by hand-bent tabs on
the primary air adjustment. Bend the appropriate tab down for your
fuel and burner. See specications table or primary air adjustment
for proper tab. See image below for tab lengths. If your setting is
fully closed, bend both tabs up.
1/16 " 3/16 "
Figure 23 Sec.6
22). Connect the unit to the gas and electrical supply.
23). Before concluding the conversion, make sure you leak test
the entire system and check all operational functions to ensure
that the unit is performing safely and properly.
24). Fill out required information on LP conversion label.
Figure 20 Sec.6
25). Remove rating plate from under appliance and turn it over
to the blank side.
Figure 21 Sec.6
26). Apply sticker to blank side. Put rating plate back.
Figure 22 Sec.6
