Montigo H52-DFN User manual

Gas Fireplace
H52-DFN
Installation
Operation &
Maintenance
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the re department.
For Your Safety:
Donotstoreorusegasoline
or other flammable vapors
and liquids in the vicinity
of this or any other
appliance.
Safety Notice:
Glass doors on gas fireplaces are
extremely hot while the fireplace is on
and remain hot even after the fireplace
has been turned off. Safety screens
are available and can reduce the risks
of severe burns. Please keep children
away from the fireplace at all times.
®
CUS
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
Check local codes and read all
instructions prior to installation.
Warning:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualied installer,
service agency or the gas supplier.

Page 2
H52-DF Gas Fireplace
Part No. XG0650
Warranty ................................................................................. 17
Appendix
A. Termination Locations.............................................. 18
B. State of Massachusetts. .......................................... 19
Warning:
Read this manual before installing, operating or troubleshooting this
appliance. Please retain this owner's manual for future reference.
Congratulations
Congratulations on selecting a Montigo gas replace, an elagent and
well designed gas replace built to your specications. The Montigo
gas replace you have selected is designed to provide the utmost in
safety, reliability, and engineering standards.
As the owner of this new replace, you'll want to read and carefully
follow all the instructions contained in this Installation, Operations and
Maintenance manual. Pay special attention to all cautions, warnings,
and Important warnings.
This owner's manual should be retained for future reference. We
suggest that you keep it with all your other important documents and
product manuals.
The information contained in this owner's manual, unless noted other-
wise, applies to all models, and gas control systems.
Your new Montigo gas replace will give you years of durable, reliable
use. Welcome to the FireFeature family of gas replace products.
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
•Important: Used to address practices not related to personal injury.
Table Of Contents
Congratulations
Safety Alert Key
Introduction................................................................................. 3
Installation
Installing and Framing the Fireplace.............................. 3
Installing the Gasline...................................................... 4
Termination Installation .................................................. 4
Installing Standoffs......................................................... 5
The Remote Switch........................................................ 5

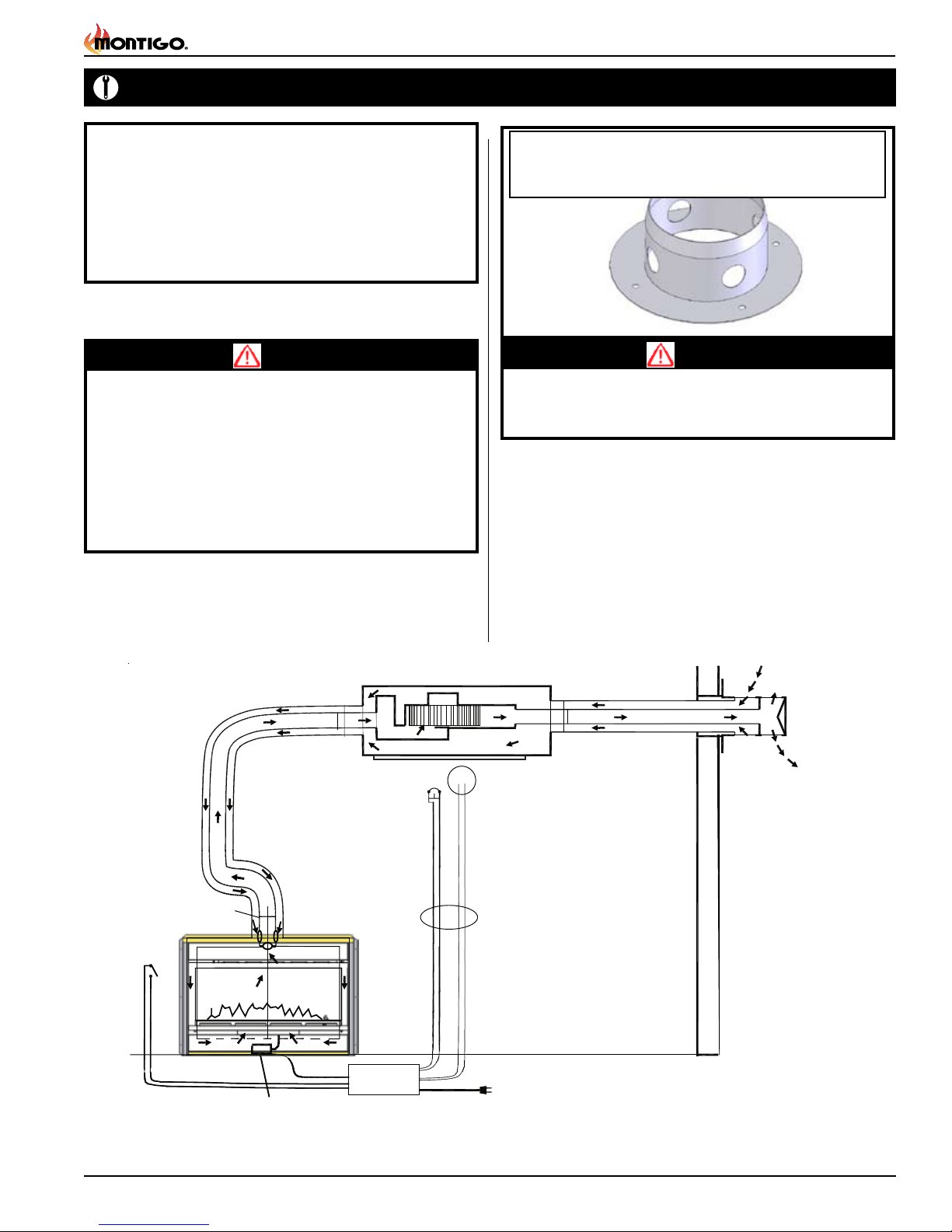

Power Vent Installation..............................................5 - 9

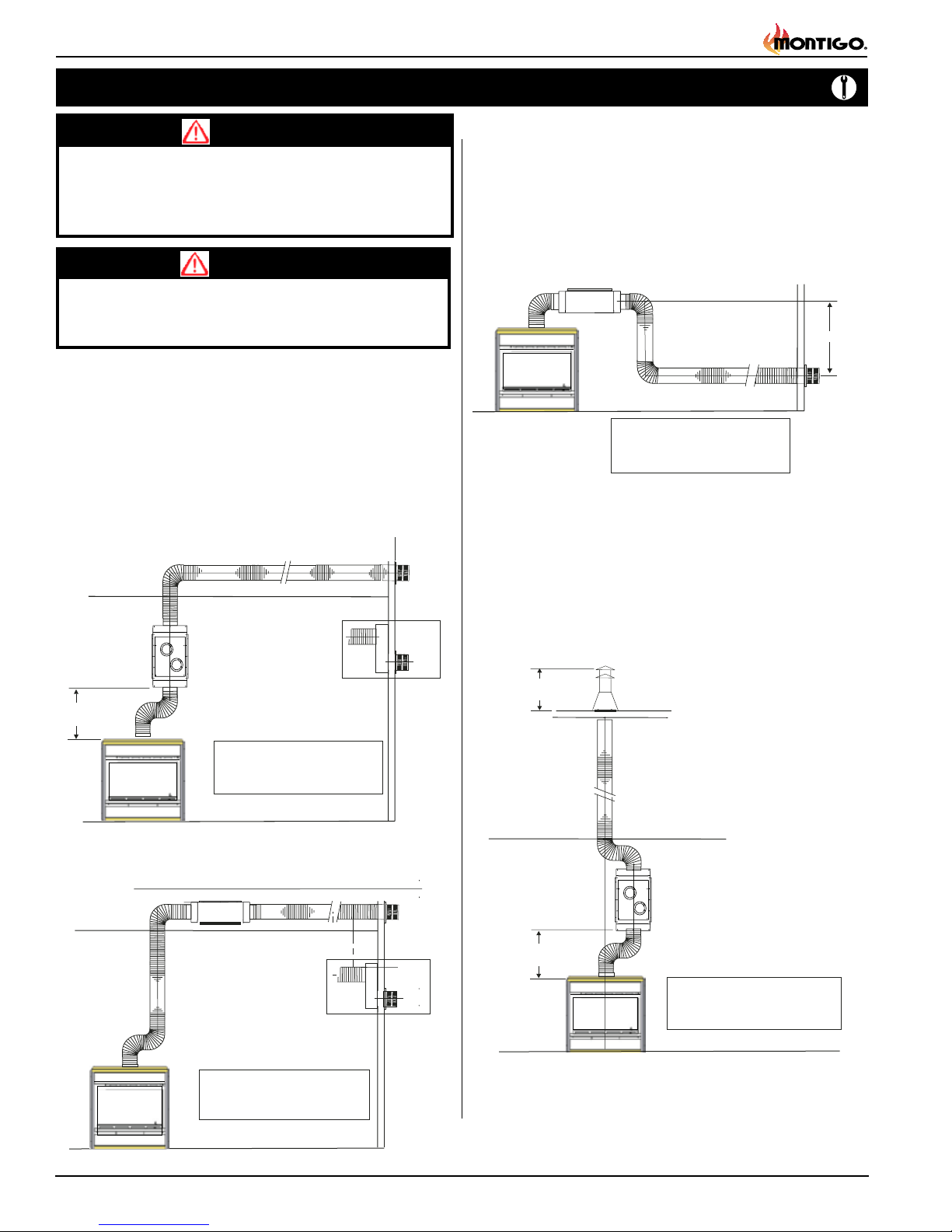

Installing The Horizontal & Vertical Power Vent........... 10
Construction around the fireplace
Facing.............................................................. 11
Mantels and Surrounds ............................ 11 - 12

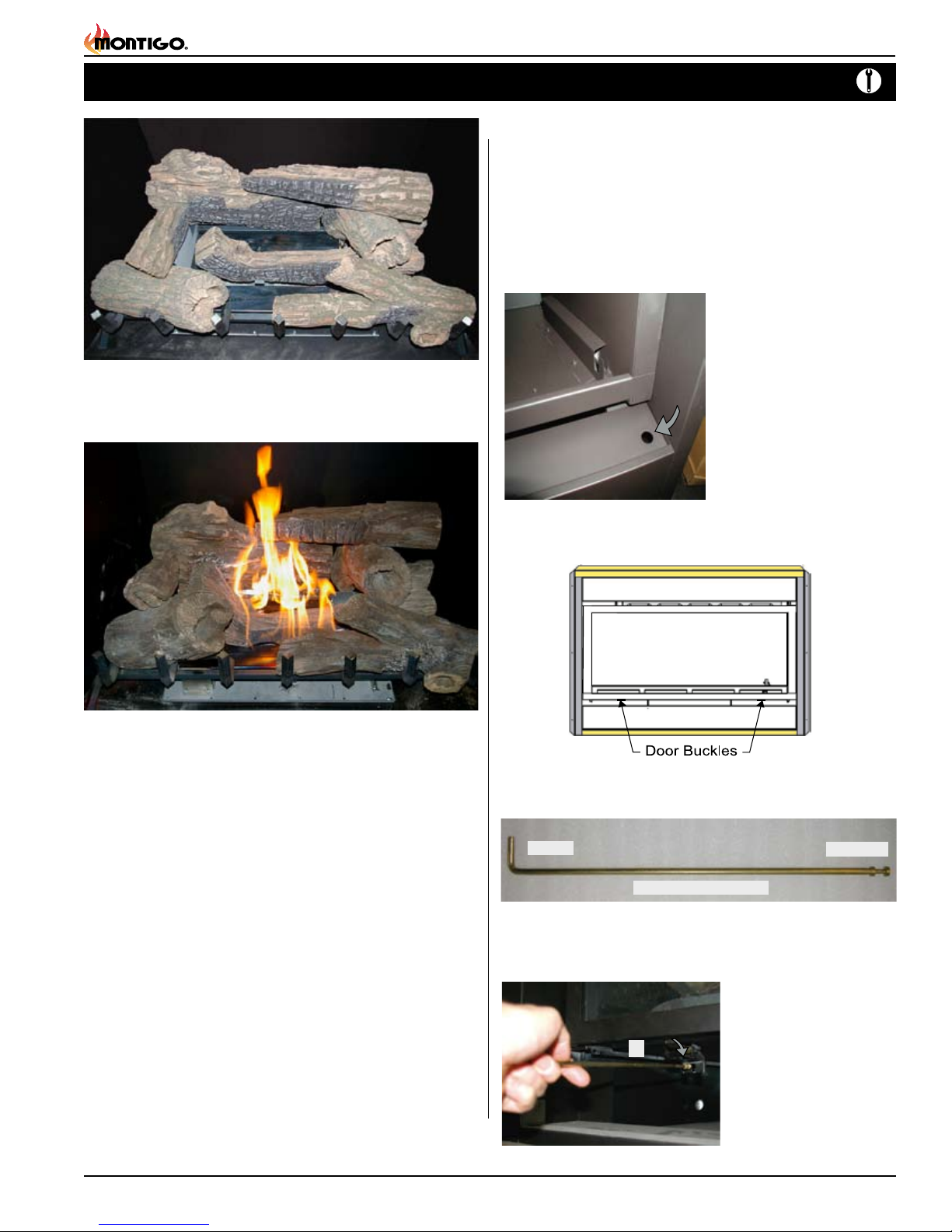

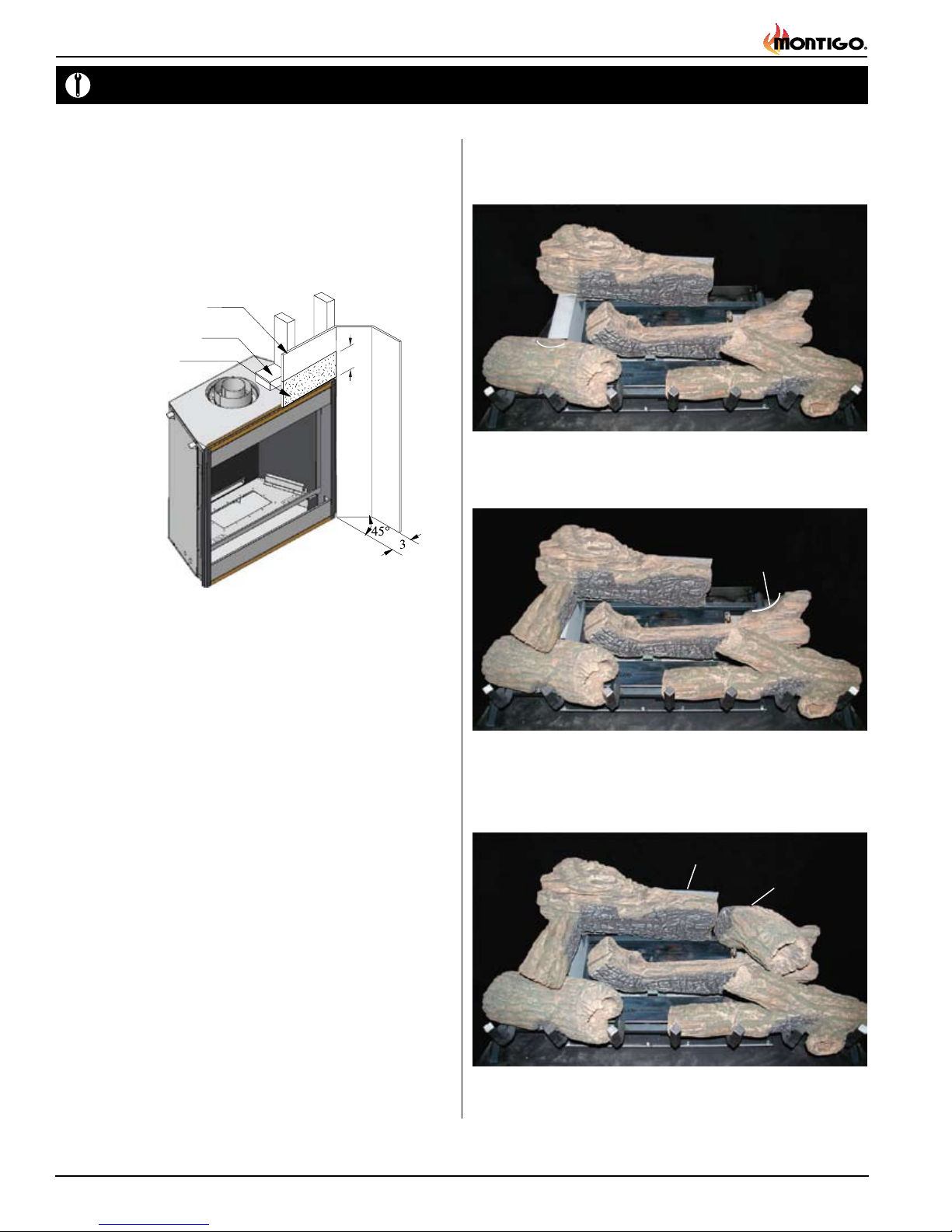

Installation of the Logset .......................................12 - 13

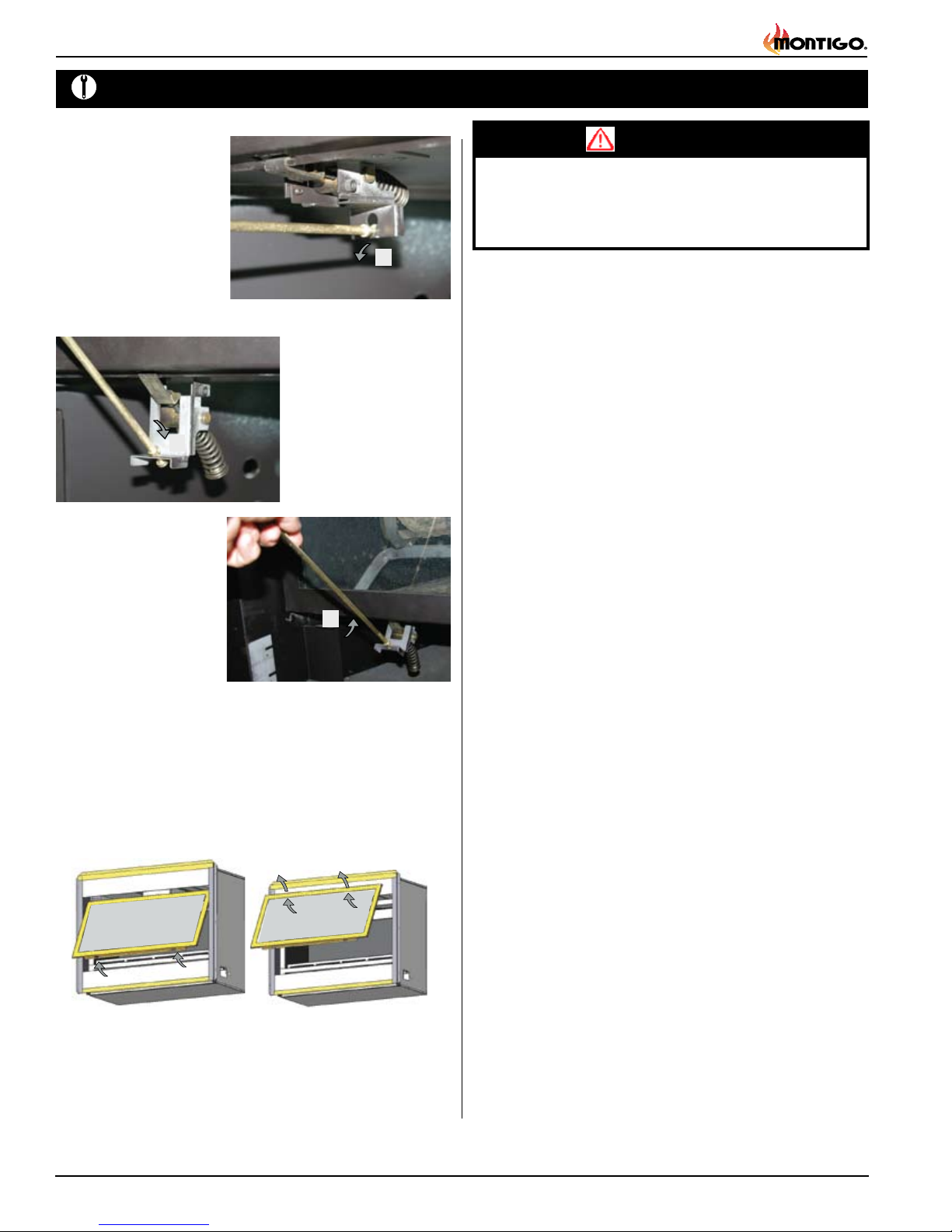

Removing and Installing the Door.........................13 - 14

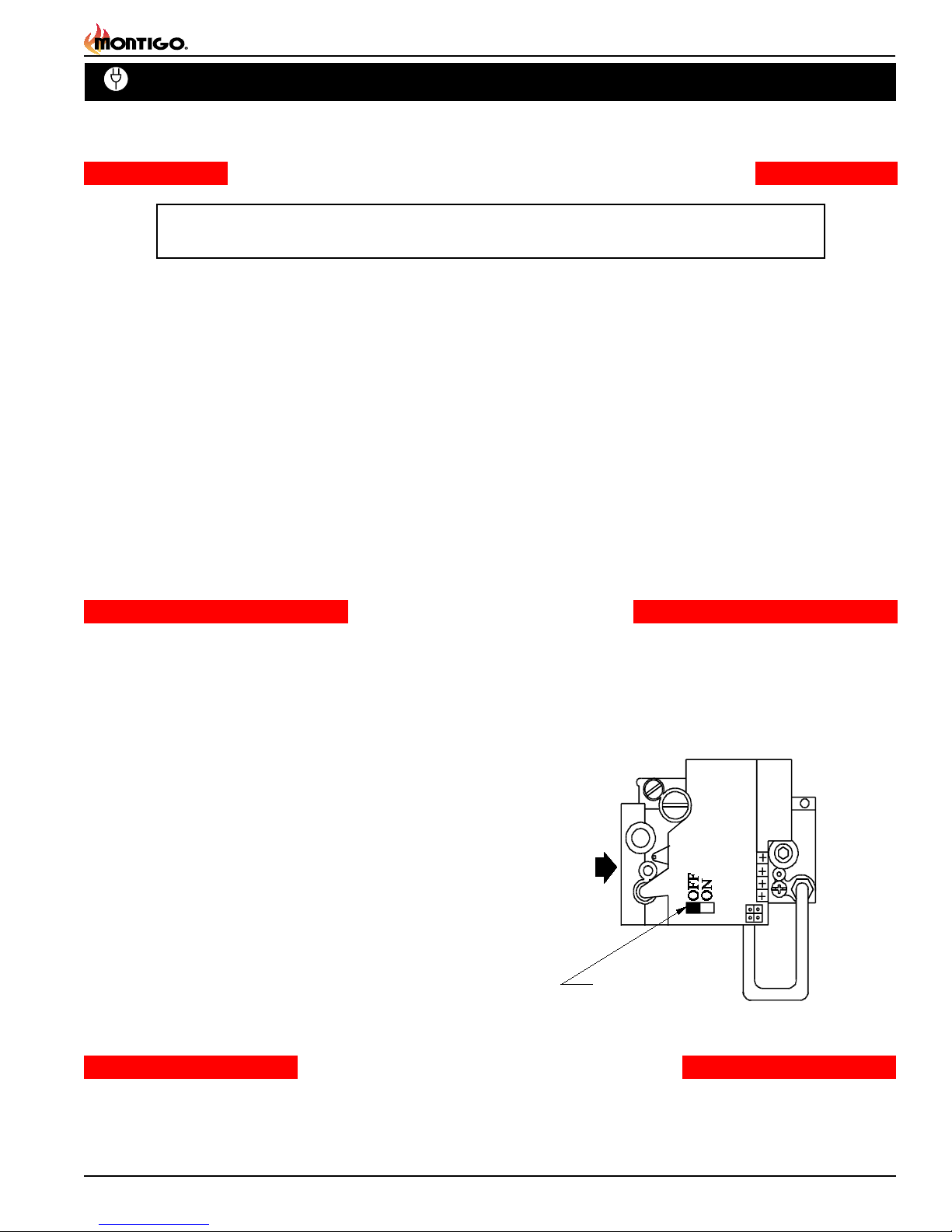

Operation ................................................................................. 15
Maintenance ........................................................................... 16

Page 3
H52-DF Gas Fireplace
Part No. XG0650
Introduction
Thank You for choosing a Montigo Gas Fireplace.
About this Fireplace:
The H52-DFN is a replace with a pan-style burner and glowing embers.
This replace is ONLY available as a Top Vent, natural gas replace.
The H52-DFN is rated for Natural Gas at 60,000 BTU/H (17.65 Kilowatts)
Input. Available in Intermittent Pilot (HSI), NG Models Top Vent Only.
How to use this manual:
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace, and can be easily performed by
the homeowner. However, all installation and service work should be
performed by a qualied or licensed installer, plumber, or gas tter who
is qualied or licensed by the state, province, region, or governing body
in which the appliance is being installed.
Warranty and Installation Information:
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
Modication of the replace and/or components including Direct-Vent ■
assembly or glass doors.
Use of any component part not manufactured or approved by Montigo in ■
combination with this Montigo replace system.
Installation other than as instructed in this manual.■
Consult your local Gas Inspection Branch on installation requirements
for factory-built gas replaces. Installation & repairs should be done by
a qualied contractor.
Installations in Canada must conform to the current CAN/CGA B-
149.1 and .2 Gas Installation Code and local regulations. If the optional
air-circulating fan kit is installed, it must be electrically grounded in
accordance with CSA C22.1 Canadian Electrical Code Part 1 and/or
Local Codes.
Installations in the USA must conform to local codes, or in the absence
of local codes to the National Fuel Gas Code, ANSI Z223.1-1988. If the
optional air-circulating fan is installed, it must be grounded in accordance
with local codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70-1987. See Appendix B for installation
within the State of Massachusetts.
Important:
Natural Gas equipped models may be installed using
Top Vent applications ONLY.
CAUTION!
Due to its high operating temperatures, the appliance
should be located out of traffic & away from furniture and
draperies.
Children and adults should be alerted to the hazards
of the high surface temperature, which could cause
burns or clothing ignition.
Young children should be carefully supervised when
they are in the same room as the appliance.
Clothing or other flammable materials should not be
placed on or near the appliance.

Page 4
H52-DF Gas Fireplace
Part No. XG0650
Installation
Installing The Fireplace Shell
The replace may be installed in any location that maintains proper clear-
ances to air conditioning ducts, electrical wiring and plumbing. Safety,
as well as efciency of operation, must be considered when selecting
the replace location. Try to select a location that does not interfere
with room trafc, has adequate ventilation, and offers an accessible
pathway for Direct Vent installation. Refer to page 4 - Vent Installation
for more information.
The replace dimensions are shown below:
Figure 2. Framing dimensions.
Framing
Top View
Front View Side View
Unprotected combustible walls which are perpendicular to the replace
opening, must not project beyond the shaded area shown in Figure 8.
For protection against freezing temperatures, it is recommended that
outer walls of the chase be insulated with a vapor barrier. This will reduce
the possibility of a cold-air convection current on the replace.
Figure 1. Fireplace dimensions.
Clearances
These clearances apply to all dimensions except the framed opening,
where the clearance to combustibles is 0". The H52DFN clearance to
unprotected combustible walls which are perpendicular to the replace
opening, must not project beyond the shaded area shown in Fig. 8.
For protection against freezing temperatures, it is recommended that
outer walls of the chase be insulated with a vapor barrier. This will reduce
the possibility of a cold-air convection current on the replace.
G
H
JK
C
L
I
C
L
K
J
H52 Fireplace Dimensions
A
52
B
56
C
47 2
1
/ 2
D
37
3
/ 4
EF
GH
28
7
/
8
38 51
I
8
J
N/A
KR
H52DF19 N/A
L
O
N
M
M O
H52DF 29
3
/
4
N
Framing Dimensions
52
1
/ 4
56
1
/ 4
B
A
C
DD
D
F
12”
6 1/2”
G
B
Installing The Gas Line
The gas line must be installed before nishing the H52-DFN Fireplace.
Natural Gas requires a minimum inlet gas supply pressure of 5.5" W.C.
& a manifold pressure of 3.5" W.C. Provision must also be made for a
1/8" N.P.T. plugged tapping and be accessible for test gauge connection
immediately upstream of the gas supply controls to the appliance. The
replace gas connection and the main operating gas valve is located
behind the removable trim at the bottom of the unit and need only be
attached to the gas line with an approved tting, as required by the
applicable installation codes.
To access the replace gas connection the main burner must be
removed as shown below in gure 3.
• Only use gas shut-off valves approved for use by the state, province,
region, or governing body, in which the appliance is being installed, or
as required by the applicable installation codes.
• Flexible gas connectors must not exceed 3 feet in length, unless it is
allowable within applicable installation codes.
Figure 3. Gas line access.
Gasline Acces
0.875 dia.
7
to center
2
Clearance to Combustibles
H52DFN
Top (Top Vent)
Sides
Floor
Back
36”
2”
0”
2”
Mantel See graph, Page 9
WARNING!
When this appliance is installed directly on carpeting, tile or any
combustible material other than wood ooring, it must be installed
on a metal or wood panel extending the full width and depth of
the appliance.

Page 5
H52-DF Gas Fireplace
Part No. XG0650
2.5”
Installation
Installing Terminations with Built-In Frames
Installing Terminations with MSR Frames
12
12
1. Frame the termination opening to 12" x 12".
2. Fasten the termination to the studs using a minimum of 4 screws.
11
11
1. Frame the termination opening to 11" x 11".
2. Fasten the termination to the studs using a minimum of 4
screws.
Installing Terminations with MOSR Frames
1212
12
MOSR
1. Frame the termination opening to 12" x 12".
2. Fasten the MOSR frame to the interior side of the studs using a
minimum of 4 screws.
3. Insert the termination into the MOSR frame as shown here, and
attach by screwing through the four pilot holes in the termination.
MSR
PTO-F (5"/8")
PTO-3F (5"/8")
PTO-F (5"/8")
Note: After gas line is connected, each appliance connection,
valve and valve train must be checked while under normal
operating pressure with either a liquid solution, or leak
detection device, to locate any source of leak. Tighten any
areas where bubbling appears or leak is detected until
bubbling stops completely or leak is no longer detected.
DO NOT use a flame of any kind to test for leaks.
Installing The Standoffs
To avoid elevated mantel temperatures, the H52-DFN gas
replace is required to have the supplied standoffs installed.
The replace is supplied with two standoffs. Bend and install these
standoffs on top of the replace ensuring that the height of the standoff
maintains a 2.5" clearance.
Figure 4. Installing the standoff's.
Installing The Remote Switch
The H52-DFN's gas valve, located behind the lower trim, may be
connected to a wall switch. The valve generates its own power on a
millivolt circuit. Use only low voltage wire, and DO NOT connect
any external power to it.
Refer to Figure 15 for wiring requirements.
Note: The switch location must not exceed 30' from the replace.
Termination Installation
This section covers the installation of the Various available terminations.
Installation Requirements
■ H52-DFN fireplace is certified for use with Montigo Standard Series (5"/ 8")
flexible venting components ONLY.
■Minimum clearance to combustible construction around the vent pipe
is 1" on all sides, except on horizontal venting where the top of the pipe
must have a clearance of at least 2".
■Useonlycertified Montigoflexiblevent components.(Useofotherpartswillvoid
the Montigo warranty, and may impede the operation of the fireplace.)
■All joints must be secured with a minimum of two screws per joint
■Horizontalrunsmustbesupported byaminimum oftwosupports perhorizontal
run. A minimum of one screw on each side of support is also required
■Flex vent sections may be stretched up to 50% of their total length (eg. a
24" section may be stretched to 36")
■Flexible Venting components can be used in any configuration, and in any
orientation (Male connectors can face in any direction)
Vent Terminations
Selecting A Termination Location
Choosing your vent termination location will help to determine how you
vent your replace. The following gures shows typical replace termina-
tion installations and the venting options they provide.
For Detailed diagram of allowed termination locations, see Appendix

Page 6
H52-DF Gas Fireplace
Part No. XG0650
Installation
PTKOG (5"/8")
1. Ensure that the two long mounting brackets are facing the bottom
of the termination. (See inset). This will provide more heat protection
at the top of the termination, where temperatures are highest.
2. Attach to the faceplate of the termination using four sheet metal
screws.
Installing Heat Guards over Terminations Installing The Power Vent
The LDVPV58 Linear Power Vent System must ONLY be used with
a Montigo H52-DFN Direct Vent Fireplace. When selecting Venting
components for use with this Linear Power Vent System, take into con-
sideration the various requirements and limitations in the vent installation
section of the Model's manual:
Models Must Be Equipped with Electronic Ignition (HSI/AF)
Only models equipped with an electronic ignition system may be installed
with the LDVPV58 Linear Power Vent System. The absence of a pilot in
this system, allows for greater exibility on venting requirements.
General Information
This installation section covers installation of the LDVPV58 Linear Power
Vent System ONLY. This system is designed to allow the installation of the
H52-DFN gas replace to function with many years of reliable service.
Specications and instructions pertaining SPECIFICALY to the H52-DFN
replace must be followed. Please read these Installation Operation
and Maintenance Instructions thouroughly and carefully before operat-
ing this equipment.
Standard Series (5"/8" dia.) Termination System:
LDVPV58 - Linear Power Vent System
Pre/Post Purge Control Box
RHSIT05 -Control module, provides pre/post purge.
Power Cord Harnesses:
LPVH10 -10 foot power cord and harness
LPVH20 -20 foot power cord and harness
LPVH30 -30 foot power cord and harness
LPVH40 -40 foot power cord and harness
LPVH50 -50 foot power cord and harness
LPVH60 -60 foot power cord and harness
LPVH70 -70 foot power cord and harness
LPVH80 -80 foot power cord and harness
Before You Begin
Minimum clearances of 1" from vent to all combustible materials
must be maintained.
The LDVPV58 must only be installed with Montigo venting
components as specified in these instructions.
In order to maintain the power vent system integrity all 5" and 8"
venting connections must also be sealed with high temperature
silicone.
Installation of the LDVPV58 must comply with this manual, and
be completed by a qualified professional.
The MAXIMUM total allowable length; Refer to Linear Power 
Vent Installation Section, 3-4.
Minimum length of straight pipe between the Fireplace and the 
Power Vent is: 2 feet
Access / Service Panel, must maintain 2" clearance. If 2" clearance 
is not possible Minimum 30% free air must be supplied.
Disconnect the power supply when installing and/or servicing 
the replace or the power vent system.
The DVPV58 termination is designed
to be Installed ush with the exterior of
the building. This recessed design uses
5"/8" vent and allows the installation to
be clean and ush so it does not interfere
or have an impact with your architectural
design.
Note: The Louvred grille is not supplied by
Montigo and must be sized accordingly.
We require a MIN 80in/sq free air
movement to adequately allow air to
enter, and exhaust the replace. Also note
the material of the louvre must be able to
withstand high operating temperatures.
IMPORTANT
The H52-DFN requires a specic volume of atmospheric
interchange to operate properly and efciently.
The replace requires a MIN 80in/sq. air movement ■
to function.
Due to high operating temperatures the louvered ■
grill must be manufactured from a material that will
be capable of withstanding high temperatures.
The grille must also be able to shed water, not ■
allowing any moisture to enter the unit.
Recessed Termination Installation (DVPV58)
Figure 5. Linear Power Vent recessed Termination.

Page 7
H52-DF Gas Fireplace
Part No. XG0650
Specications:
Dimensions: 34 7/8"L x 18 1/2"W. x 11 1/2"D.
Vent Size: (IN) 5"/8" (Out) 5"/8"
Motors: 1/10HP each, x 1.8A each (2) motors
Sound Level: dba
Weight: 60Lbs.
Installation
CAUTION:
When cold air enters the warmer building interior, primarily at the
air intake end, condensation may occur on the exterior of the ex
pipe. To limit this condensation, install insulation over the last
twenty feet of ex pipe. Also, by sloping the last 20'-0" feet of ex
pipe downward toward the exterior of the building, elimination of
most of the condensation problems should occur. Ensure the ter-
mination is securely fastened, and sealed to the ex pipe. Fasten
the termination to exterior of the building with water tight sealant
and the appropriate fasteners.
CAUTION:
Ensure the Perforated Air Holes in the Factory Installed
Pipe Adapter / Restrictor are not Covered when installing
New Pipe Connection.
Venting Installation
The LDVPV58's Power Vent must be installed with the H52-DFN gas
replace equipped with an electronic ignition system. When installing the
venting, the installation must adhere to the Venting Installation Section
in this Installation Operation and Maintenance Instructions, as well as
these few following guidelines:
Ensure that the planned termination location is acceptable as 
shown in Appendix A.
Minimum of 2 feet of straight pipe before the power vent.
Important: Ensurepriortoventinstallation,the4-hole5"/8"flue
adapter is installed on the exhaust vent of your Montigo
H52-DF gas fireplaces (Part No. H52C-A03B).
Figure 6. Illustration diagram for the LDVPV58 Linear Power Venter
M
LDVP58 Power Vent PTO3,
DPV58
Termination
Exhaust
Intake
Fireplace
110VAC
Not Switched
Post Purge
Wall
Switch
Hot Service Igniter
Electronic Ignition Gas Control
Exterior Wall
Remote wiring to
Power Vent from
Post Purge Control
H52C-A03B

Page 8
H52-DF Gas Fireplace
Part No. XG0650
Installation
WARNING:
All venting material must be sealed with high heat silicone sealant
RV230. All venting material to be Montigo ex pipe, with as few
joints as possible. All joints use MVA vent splice, sealed thoroughly
with silicone.
WARNING:
Montigo will not be held responsible for any water damage that
may occur from not installing the equipment as specied by
this document.
Linear Power Vent - Horizontal Vent
Multi-elbow installations are possible up to a maximum Seventy feet
(70'-0"), with three (3) 90° elbows. Minimum vent run from Fireplace
to Power Vent must be two feet, (2'-0"). Maximum allowable vent run
must be reduced by Ten feet (10'-0") for every 90° elbow added. With
a snorkel Termination, reduce the total vent run by an additional twenty
feet (20'-0"). Figure's 6a and 6b.
Example A. Vertical Mounting with horizontal Vent Run
Figure 6a. Vertical Mounting for the Linear Power Venter
Figure 6b. Horizontal Vent for the Linear Power Venter
Example B. Horizontal Mounting with horizontal Vent Run
Linear Power Vent - Horizontal / Downward Vent
Multi-elbow installations are possible up to a maximum seventy feet
(70'-0"), with three (3) 90° elbows. Minimum vent run from Fireplace to
Power Vent must be two feet, (2'-0"). Maximum allowable vent run must
be reduced by Ten feet (10'-0") for every 90° elbow added. Deduct ten
feet (10'-0") of vent length for every one foot (1'-0") of vent run traveling
in a downward direction.
Figure 7a. HorizontaI Linear Power Vent with Horizontal Vent Run
Linear Power Vent - Vertical Vent
Multi-elbow installations are possible up to a maximum seventy feet
(70'-0"), with three (3) 90° elbows. Minimum vent run from Fireplace to
Power Vent must be two feet, (2'-0"). Maximum allowable vent run must
be reduced by Ten feet (10'-0") for every 90° elbow added. Figure's 8a
and 8b.
Figure 8a. Vertical Vent for the Linear Power Venter
Example A. Vertical Mounting with Vertical Vent Run
2’-0”
MIN
Vertical Installed
Linear Power Vent
Horizontal Run Flex Pipe
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
Snorkel
Termination
Important:
Maximum Vent Run not to exceed
Seventy feet (70’-0”) feet .
LDVPV58
LDVPV58
Horizonta
l
Insta
ll
e
d
Linear Power Vent Horizontal Run Flex Pipe
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
Snorkel
Termination
Important:
Maximum Vent Run not to exceed
Seventy feet (70’-0”) feet.
Available
Option
Horizontal Installed
Linear Power Vent
Horizontal Run Flex Pipe
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
Termination
Important:
Maximum Vent Run not to exceed
Eighty feet (80’-0”) feet.
6’-0”
LDVPV58
2’-0 ”
MIN
Vertical Installed
Linear PowerVent
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
Important:
Maximum Vent Run not to exceed
Seventy (70’-0”) feet.
2’-0 ”
MIN
LDVPV58

Page 9
H52-DF Gas Fireplace
Part No. XG0650
Installation
Example B. Vertical Mounting with Vertical Vent Run
Figure 8b. VerticaI Linear Power Vent with Vertical Vent Run
Installing the Linear Power Vent
The linear power vent can be installed to existing stud construction 1.
or directly to cement wall or roof. The LDVPV58 must maintain the
clearance to combustibles as shown in Figure 10. The required
service access panel must be framed at 28" X 18". To enclose
the service access panel, (at less than 2") a minimum 30% free
air must be supplied at all times.
Plug the power chord into the available slot in the linear power 2.
vent.
Secure all venting joints with at least three screws and ensure 3.
that the joints are properly sealed by applying high temperature
silicone.
Figure 9. LDVPV58 Power Vent overall dimensions.
Access Cover
18 1/2
33 1/8
11
34 7/8
Top View Side View
Figure 10. LDVPV58 Power Vent framing dimensions.
2 MIN
5
MIN
5
MIN
1/2
MIN
Louvres
Vent
Framing Dimensions
Figure 11. Conduit and Wiring Clearances.
Wiring Installation
Connect the wiring to the linear power vent as outlined in the previ-
ous section, and connect the wiring to the fireplace as outlined in the
schematic below. Ensure that the proper clearances are maintained
for the wiring and conduit. When installing the wiring it must never run
above the vent run and it must be at least 1" clear of all venting.
1”Clearance
Vertical Installed
Linear Power Vent
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
90deg
Elbow
Important:
Maximum Vent Run not to exceed
Seventy (70’-0”) feet.
Termination
2’-0”
MIN
LDVPV58
Access Cover
181/2
28 clearance for Cover access
5MIN
5MIN
Must be left clear on both
ends of Power Vent for
adequate ventilation.

Page 10
H52-DF Gas Fireplace
Part No. XG0650
Installing The Horizontal & Verti-
cal Exterior Power Vent
Vertical,ExteriorStainlessSteel RooftopPowerVent,(seeInstruction
guide for), EDVRSPV47/58
Figure 11a. Vertical, Exterior Stainless Steel Roof top Power Vent,
Horizontal. Exteriot Stainless Steel Wall mounted Power Vent, (see
instruction guide for), EDVWSPV47/58.
Figure 11b. Horizontal, Exterior Stainless Steel Roof top Power Vent,
Installation
Restrictor Ring
Part No EPVR55.
Figure 14. EPVR55 for H52DF Only Restrictor Ring
Installation. (From inside firebox ONLY)
Restrictor Ring Installation
(H52DFN ONLY)

Page 11
H52-DF Gas Fireplace
Part No. XG0650
Installation
Finishing Around the Fireplace
Combustible mantels and mouldings may be safely installed over the
top and on the front of the replace provided that they do not project
beyond shaded area shown in Figure 13. Side wall clearances are 3".
Combustible surrounds may be installed with 3" clearance to the side
of the replace as shown in Figure 14.
Figure 13. Combustible mantles and facings.
Fireplace Facing
When selecting the nish material for your replace, it is important to
remember the following:
If the surround of the replace is to be painted to match the room decor,
heat-resistant paint must be provided . Also, decorative facing must not
extend past the replace opening at all, because it will interfere with the
access to retainers for removal of glass door and access to the lower
compartment.
Mantels & Surrounds
NOTE: National Canadian Gas Association mantel test requirements
are for re hazard prevention to combustible materials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
replaces which are hot, fuel and energy efcient.
Please be aware; temperatures over the mantel will rise above normal
room temperature and walls above replace may be hot to touch.
Warning:
When covering the upper metal portion of the replace, up to 6" (as
shown,Fig.13& Fig.14, with a non-combustible material Please Note: The
decorative facing materials may be subject to temperatures in excess of
250° F. This should be considered when selecting facing materials.
We recommend careful consideration be given to the effects of elevated
mantel temperatures which may be in excess of product design, for
example: candles, plastic or pictures. This can cause melting, deformation,
discoloration or premature failure of T.V. and radio components.
Horizontal Run (in)
Figure 12. Wiring schematic for the Post Purge Control Module ECB006.
Strain Relief
Wall Switch
Air Proving
Switch
Fuse
G
L2
L1 Bk
Bl
Bl
Bk
Bk
Bk
Bk
TDR
TDR Coil
R
R
R
W
W
W
WW
Transformer
Strain Relief
115V 24V
Gas Control Connector
M1
BX Conduit
Main Junction Box
Receptical
To 115V AC Supply
Legend
Denotes Line Voltage
Denotes Low Voltage
Denotes Wire Connector
Air Switch
M2
FF
W
Bk
Power Vent
Fireplace
Steel Stud construction
allowable within this area
Non-Combustible
Facing Material

Page 12
H52-DF Gas Fireplace
Part No. XG0650
Mantels & Surrounds
NOTE: National Canadian Gas Association mantel test requirements
are for re hazard prevention to combustible materials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
replaces which are hot, fuel and energy efcient.
Please be aware; temperatures over the mantel will rise above normal
room temperature and walls above replace may be hot to touch.
Figure 14. Combustible surrounds.
Non-Combustible
Facing Material
Header
Drywall/
Sheetrock
6”
Installing the Log Set
Installing the Logs:
The H52-DFN is supplied with seven ceramic bre logs. Unpack the logs
and handle them very carefully, install as described below.
Figure 16. Installation of four (4) Base Logs.
Step 1. Place the Base Logs, "A", "B", "C" & "D" as shown. Move them
left, or right to ensure they t between the grate stiles as shown.
Figure 16a. Installation of Log E.
Step 2. Place at portion (underside) of Log "E" on the formed steel Log
Rest as shown, lay front end of Log "E" approximately centre of
Log "B". See Figure 16 above.
Figure 16b. Installation of Log F.
Step 3. Place Log "F" in place as shown. Rest front end of Log "F" in
curved area (notch) see Figure 16a on Log "D", and rear of Log
"F" on log Grate, between back stiles.
Installation
Log Grate
Log C
Log A
Log D
Log Rest E
Log B
Log E
Log Grate
Notch
Log D
Log B
Log Grate
Log F
plateau
plateau

Page 13
H52-DF Gas Fireplace
Part No. XG0650
Installation
Figure 16c. Installation of Log G.
Step 4. Place Log "G" in place on the provided at areas (plateau's) as
shown. See Figure 16b.
Figure 16d. Completed Log set Assembly.
Log G
Log Grate
Log A Log F
Removing and Installing
the Doors
Removing the doors:
The doors are removed in a few simple steps. Follow the Steps shown to
remove the Horizontal access panel, unlatch the door buckles, remove
the door, then replace in reverse order.
Remove the Horizontal Access Panel:
Figure 28a. Loccate the door buckles. (Both Sides Typical)
Step 1:
Remove the Horizontal cover
by placing ngers in both nger
holes, then pushng away from
you and lifting out. Place it
aside during maintenance or
cleaning.
Install in reverse order.
Installed Gas
Valve Cover
Door Latch Hook
Door Latch Slot
Hand-hold
1
Step 3
Firmly grasp hand-hold end
of tool and place the ma-
chined end in the slot under
door frame. (as shown)
Release the Door Buckles
Finger Holes
Figure 28. Removing and installing the the Horizontal Acess Panel
Locate the Door Buckles:
Figure 28b. Door buckle Tool
Step 2
Locate the Door Buckle tool and unlatch all Door Buckles.
Figure 28c.

Page 14
H52-DF Gas Fireplace
Part No. XG0650
Figure 28g. Removing and installing the glass doors. (Both Sides
Typical)
2
Step 4
Ensure the tool is rmly in
the lower end of the slot, (as
shown), Then pull toward
you (Caution: hold the tool
securely).
Step 7
Grasp the Door on either side, usually midway and lift upward, lift the
door carefully up and away from the front of the replace. See gures
28g. Place the Door aside in a safe place while maintenance and / or
cleaning is being performed.
3
Step 5
Pull hard if necessary to
release the spring tension.
(Caution: The latch springs
back with force, hold the
tool securely).
4
Step 6
Remove the tool from the
latch slot. Ensure the latches
are hanging freely, the hook
end is released from the
bottom of the door. (Repeat
all 4-steps for the remaining
latches).
Removing the Door:
Figure 28d.
Figure 28e.
Figure 28f.
To install the door, hook the top edge of the door frame into place.
Lower the door into position and follow the previous steps shown in
reverse order.
Installing the Door:
L42DF-ST
WARNING!
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass etch-
ing may cause premature glass failure.
Installation

Page 15
H52-DF Gas Fireplace
Part No. XG0650
For Your Safety - READ BEFORE LIGHTING:
To Turn Off Gas To Appliance:
Lighting Instructions:
■If you cannot reach your gas supplier, call the Fire
Department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualified service technician.
Force or attempt to repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system,
and any gas control which has been under water.
A. This appliance is equipped with an ignition system that
lights the pilot burner automatically. Do not attempt to
light the pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
What To Do If You Smell Gas:
■Do not try to light any appliance.
■Do not touch any electrical switch; do not use any
phone in your building.
■Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
1. Turn off remote switch.
2. Flip down the lower trim.
3. Turn the switch on the gas control to "Off".
4. Flip up the trim.
1. STOP! Read the safety information above on this label.
2. Flip down the lower trims.
3. Turn switch on the gas control to OFF".
4. Wait 5 minutes to clear out any gas. If you smell gas,
STOP! Follow "B" in the safety information above on this
label. If you don't smell gas, go to the next step.
5. Turn switch on the gas control to "ON". NOTE: This unit is
equipped with an ignition system that lights the pilot burner
automatically. Do not attempt to light the pilot by hand.
6. Turn on wall switch.
7. Flip up the lower trim.
8. If the fireplace does not operate, follow the instructions "To
Turn Off Gas To Appliance" and call your service technician
or gas supplier.
with Honeywell Electronic Ignition
Operation - Model H52-DF-I
Gas
Inlet
Gas Control Switch
Shown in "On" Position
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.

Page 16
H52-DF Gas Fireplace
Part No. XG0650
Maintenance
WARNING:
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass
etching may cause premature glass failure.
General
■Have the replace and installation inspected yearly. The inspection
must include, but is not limited to, the following:
• A visual check of the entire vent system and termination.
• An inspection of the explosion relief appers and the door
gasketing to ensure a proper seal.
• An inspection of the burner, venturi, and primary air openings.
• An inspection of the gas valve, gas components, and pilot ame.
For your convenience a 1/8" manifold pressure tap is supplied
on the gas valve for a test gauge connection. See Figure 32.
• Ensure proper log placement as per this manual.
• Inspection of all optional equipment; fans, thermostats, etc.
■ For Natural Gas this appliance requires a minimum inlet pressure
of 5.5" W.C. and a manifold pressure of 3.5" W.C.
■ For Propane Gas this appliance requires a minimum inlet pressure
of 11" W.C. and a manifold pressure of 10" W.C.
■ Always keep the replace area clear and free of combustible materials,
as well as gasoline and other ammable vapors and liquids.
■ Do not use this appliance if anyparthas beenunderwater. Immediately
call a qualied service technician to inspect the appliance and to
replace any part of the control system and any gas control which
has been under water.
Cleaning
When the replace is rst activated, there may be some smoking and
a visible lm may be left on the glass. This is a normal condition, and is
the result of burning of protective coatings on new metal.
■ Glass must be cleaned periodically to remove any lm (which is
a normal by-product of combustion) which may be visible. Film
can easily be removed by removing the door, as shown on page
15. Handle the door carefully, and clean it with non-abrasive glass
cleaners. One of the most effective products is Kel Kem.
■ Silicone seals on inner door during initial ring will "off gas", leaving
a visual deposit of a white substance on combustion chamber walls.
This can easily be removed using normal household products.
■ Use a vacuum cleaner or whisk broom to keep the control
compartment, burner, and rebox free from dust and lint.
■ Logs may be cleaned periodically with a vacuum to remove soot or
other contaminates.
Troubleshooting
If your replace still does not operate correctly, consult your dealer or
the manufacturer.
All service and repairs should be performed by a qualied
agency.
All spare parts, optional fans, and optional trim nishes are available
from your local dealer or the manufacturer.
- Turn Gas Supply Off
- Set thermostat to
call for heat
SV9500 / SV9600
is powered
(24VAC nominal)
HSI
Terminals
NOTE: Before Troubleshooting, Familiarize Yourself With
The Startup And Checkout Procedure.
START
HONEYWELL SV9500 /9600
Troublshooting Sequence
INSET
NO
CHECK:
- Line voltage power
- Low voltage transformer
- Limit Controller
- Thermostat
- Wiring
- Air proving switch on
combustion air blower system
-Vent damper (if used) is open
and end switch made
NO
NO
YES
NO
YES
Unplug Pilot Burner Cable,
Measure Voltage at
SV9500/SV9600 HSI
Terminals (24VAC
Nominal, see INSET)
Replace
SV9500/
SV9600
Igniter warms up and
glows red.
YES
YES
NO
YES
NO
Pilot Valve opens.
Replace Igniter /
Flame Rod Assembly
Replace SV9500/SV9600
NO NO
YES
YES
Turn gas on.
Pilot Burner Lights?
Main Valve opens?
SYSTEM OK
Discard old Igniter /
Flame Rod Assembly
Measure Volume to
SV9500 / SV9600 Voltage
must be at least 19.5 VAC
Check
Transformer
Line Volt
Supply
Replace Igniter /
Flame Rod Assembly
Replace
SV9500 /
SV9600.
Save old
Igniter/ Flame
Rod Assembly
for service.
Replace Igniter / Flame
Rod Assembly and retain.
Restart troubleshooting
Sequence. Does main
valve open?

Page 17
H52-DF Gas Fireplace
Part No. XG0650
The Warranty
The Companies warrants the Montigo Gas Appliance to be free from defects in materials and workmanship at the time of manufacture. On the Montigo, there is a
ten-year warranty on the firebox and its components, a five-year warranty on the main burner and pilot burner, and a one-year warranty on the gas control valve
and fibre logs. Glass, plated/painted finishes, and refractory lining are exempt.
Remedy And Exclusions
The coverage of this Warranty is limited to all components of the Gas Appliance manufactured by The Companies.
This Warranty only covers Montigo Gas Appliances installed in the United States or Canada.
If the components of the Gas Appliance covered by this Warranty are found to be defective within the time frame stated (see The Companies right of investigation
outlined below). The Companies will, at its option, replace or repair defective components of the Gas Appliance manufactured by The Companies at no charge,
and will also pay for reasonable labour costs incurred in replacing or repairing components. If repair or replacement is not commercially practical, The Companies
will, at its option, refund the purchase price of the Montigo Gas Appliance.
This Warranty covers only parts and labour as provided above. In no case shall The Companies be responsible for materials, components, or construction which
are not manufactured or supplied by The Companies, or for the labour necessary to install, repair or remove such materials, components or construction. All
replacement or repair components will be shipped F.O.B. the nearest The Companies factory.
Qualifications To The Warranty
The Gas Appliance Warranty outlined above is further subject to the following qualifications:
(1) The Gas Appliance must be installed in accordance with The Companies installation instructions and local building codes. The Warranty on this Montigo
Gas Appliance covers only the component parts manufactured by The Companies. The use of components manufactured by others with this Montigo Gas
Appliance could create serious safety hazards, may result in the denial of certification by recognized national safety agencies, and could be in violation of local
building codes. This warranty does not cover any damages occurring from the use of any components not manufactured or supplied by The Companies
(2) The Montigo Gas Appliance must be subjected to normal use. The Gas Appliances are designed to burn gas only. Burning conventional fireplace fuels such
as wood, coal or any other solid fuel will cause damage to the Gas Appliance, will produce excessive temperatures and will result in a fire hazard.
Limitations On Liability
It is expressly agreed and understood that The Companies sole obligation, and purchaser's exclusive remedy under this Warranty, under any other warranty,
expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above.
In no event shall The Companies be responsible for any incidental or consequential damages caused by defects in its products, whether such damage occurs
or is discovered before or after replacement or repair, and whether or not such damage is caused by The Companies negligence. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The duration of any implied warranty
with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty
lasts, so the above may not apply to you.
Investigation Of Claims Against Warranty
The Companies reserves the right to investigate any and all claims against this Warranty and to decide upon method of settlement.
The Companies Are Not Responsible For Work Done Without Written Consent
The Companies shall in no event be responsible for any warranty work done without first obtaining The Companies written consent.
Dealers Have No Authority To Alter This Warranty
The Companies employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated
above.
How To Register A Claim Against Warranty
In order for any claim under this Warranty to be valid, The Companies must be notified of the claimed defect in writing or by telephone, as soon as reasonably
possible after the defect is discovered. Claims against this Warranty in writing should include the date of installation, and a description of the defect.
Other Rights
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
NOTE: The Companies as stated above refer to - Canadian Heating Products Inc. and/or Montigo Del Ray Corp.
Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, without
notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Warranty

Page 18
H52-DF Gas Fireplace
Part No. XG0650
Appendix A - Termination Locations
A= clearance to the termination frame above grade, veranda, porch, deck,
or balcony [16 inches (41 cm) minimum]
B= clearance to door, or sides and top of window, that may be opened [16
inches (41 cm) minimum for appliances ≤100 000 BTU/H (30kW)]
C= clearance to bottom of window that may be opened horizontally [36 inches
(92 cm) minimum for appliances ≤100 000 BTU/H (30kW)]
D= no clearance to permanently closed window when installed with approved
glass penetration termination
E= clearance to permanently closed window [16 inches 41 cm recommended
to prevent condensation on window]
F = vertical clearance to ventilated soft located above the termination within a
horizontal distance of 2 feet (61 cm) from the centreline of the termination
[22 inches (56 cm) minimum]
G= clearance to unventilated soffit [16 inches
(41 cm) minimum to non-combustibles]
[22 inches (56 cm) minimum to combustibles]
H= clearance to outside corner [9 inches (23 cm) minimum]
I= clearance to inside corner [12 inches (31 cm) minimum]
J= * not to be installed above a meter/regulator assembly within
40" (103 cm) horizontally from the centreline of the regulator
K= clearance to service regulator vent outlet [3 feet minimum in the United
States] [*6 feet (1.8 m) minimum in Canada]
L = clearance to non-mechanical air supply inlet to building or the combustion
air inlet to any other appliance [16 inches (41 cm) minimum for appliances
≤100 000 BTU/H (30kW)]
M= clearance to mechanical air supply inlet [*6 feet (1.8 m) minimum]
N= †clearance above paved sidewalk or a paved driveway located on public
property [*7 feet (2.1 m) minimum]
P= clearance under veranda, porch, deck, or balcony
[16 inches (41 cm) minimum‡to non-combustibles]
[22 inches (56 cm) minimum‡to combustibles]
Q= clearance above a roof [24 inches (61 cm) minimum]
R= clearance to adjacent walls and neighboring buildings
[18 inches (46 cm) minimum]
S= c l e a r a n c e f r o m c o r n e r i n r e c e s s e d l o c a t i o n
[12 inches (31 cm) minimum]
T= m a x i m u m d e p t h i n r e c e s s e d l o c a t i o n
[48 inches (122 cm) minimum]
U= minimum width for back wall of recessed location
[24 inches (61 cm) minimum]
V= no horizontal clearance between the frames of two terminations that
are level.
W= horizontal clearance between the frames of two terminations that are
not level. [36 inches (92 cm) minimum]
†a vent shall not terminate directly above a sidewalk or paved driveway
which is located between two single family dwellings and serves both
dwellings
‡only permitted if veranda, porch, deck, or balcony has an open side that
is equal to or greater than the depth of the enclosed area
* as specied in CGA B149 Installation Codes. Note: local Codes or
Regulations may require different clearance.

Page 19
H52-DF Gas Fireplace
Part No. XG0650
Amendment
(Gas Fireplace / Equipment sold in the State of Massachusetts)
5.08: Modications to NFPA-54, Chapter 10
(1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as follows:
Existing chimneys shall be permitted to have their use continued when a gas conversion burner is installed, and shall be equipped with a manually reset device
that will automatically shut off the gas to the burner in the event of a sustained back-draft.
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes,
including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above nished grade in
the area of the venting, including but not limited to decks and porches, the following requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equip-
ment, the installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed. In addition, the installing plumber or gas tter shall observe that a battery operated or hard wired carbon
monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of hard wired carbon
monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with
alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days
to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm
shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print
size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or struc-
ture used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions
provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Prod-
uct Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ue gases, but identies “special venting systems”,
the following requirements shall be satised by the manufacturer:
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for
venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
(3) After NFPA-54 section 10.10.4.2 add a new section 10.10.4.3 as follows:
When more than four gas appliances are to be vented through a common gas vent or common horizontal vent manifold, a plan of the proposed vent installation
shall be submitted to the Inspector and the serving gas supplier for review and approval.
Extraction from: Massachusets Rules and Regulations
5.00: Amendments To 2002 Edition Of ANSI Z223.1-NFPA-54
Appendix A - State of Massachusetts

Canadian Heating Products Inc.
Langley, BC V4W 4A1
Montigo Del Ray Corp.
Ferndale, WA 98248
XG0650 - 120108
