Montigo RXM1410A User manual

INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE.
INTRODUCTION
The transmitter operates on a 12V (A23) battery that is included. Install the 12V battery sup-
plied with the unit into the battery compartment. It is recommended that ALKALINE batteries
always be used for this product. Be sure the batteries are installed with the (+) and (-)
ends facing the correct direction.
The LED signal light should illuminate when either the on or off button is pressed. If the sig -
nal light does not illuminate, check the position of the transmitter’s battery, and if the battery is
fully charged.

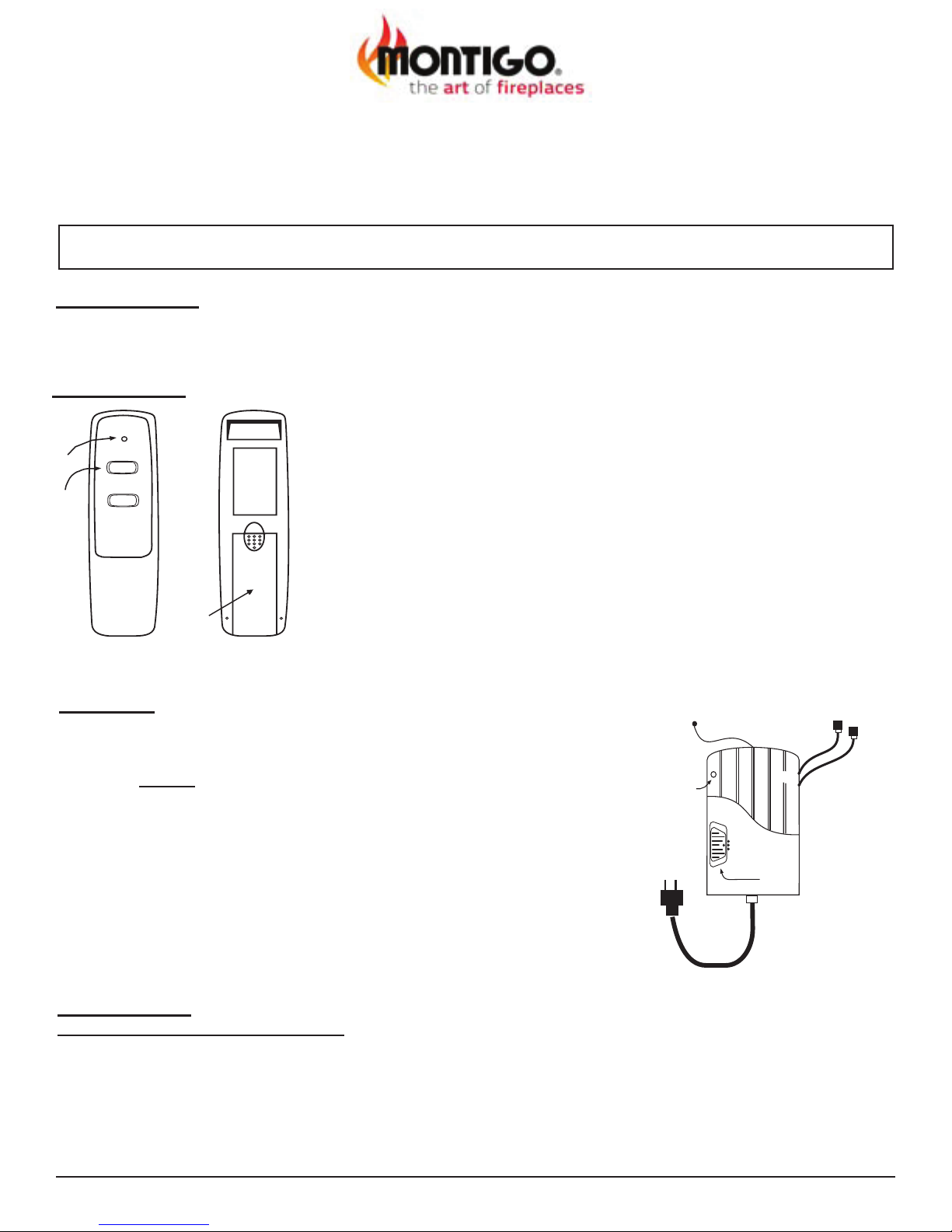

TRANSMITTER
This remote control system can be used for the Montigo R-Series fireplaces.
The system can be operated manually from the receiver using the slider switch.
ON
OF F
FRON T B AC K
SIGNAL
LIGH T
ON/OFF
BUTTONS
BATTERY
COMPARTMENT
MODEL: RXM1410A
When plugged into a standard 110-120 VAC receptacle, the remote receiver operates on
commands from the transmitter or from the slide switch on the face of the receiver
ON• : will manually turn on the fireplace.
REMOTE• : will allow use of handheld transmitter. If the system does not respond to the
transmitter on initial use, check the battery positions in the remote. If that does not work,
see the SECURITY CODE section.
OFF• : will disable the remote receiver.
It is suggested that the slide switch be placed in the OFF position if you will be•
away from your home for an extended period of time.
Slide
Switch
OFF
REMOTE
ON
LEARN
VALVE
ANTENNA
REMOTE RECEIVER
Connection to
Terminal 4 + 5
To 110VAC
input
RECEIVER
Before installation, make sure you turn the slide switch to• OFF. After installation, make sure you turn the slide switch to REMOTE.
The remote receiver can be placed close to the electrical control box.•
INSTALLATION
Protection from extreme heat is very important. The remote receiver should be kept away from temperatures exceeding 130ºF. Extreme
heat can cause damage, which is not covered under warranty.
Page 1
ON/OFF Remote with 110V receiver and battery for R-Series Fireplaces
XG0678 - 112113.1

WIRING INSTRUCTIONS
A qualified electrician should install the remote control system.
Page 2
WARNING
This remote control system must be installed exactly as outlined in these instructions. Read all instructions completely before at-
tempting installation. Follow instructions carefully during installation. Any modifications of this remote control or any of its compo-
nents will void the warranty and may pose a fire hazard.
1. Disconnect and remove the wall switch wire from terminals 3 and 4 of the control box. [Figure 1]
2. Feed the red wires from the remote receiver through the control box side. [Figure 2]
3. Connect the Red wires to Terminals 3 and 4 of the control box. [Figure 1]
5. Attach the receiver to the control box cover or to the wall using the velcro strips attached. [Figure 3]
4
3
Figure 1. Connection to Fireplace Control Box
Figure 2. Plug to receptacle
Figure 3. Installing Receiver
Connection
110 VAC
Red Wires
From Receiver
4. Plug the power cord from the reciever into the 110VA plug on the side of the control box. [Figure 2]
XG0678 - 112113.1

BATTERY LIFE
Life expectancy of the alkaline batteries in the transmitter should be at least 12 months.
Check and replace all batteries:
Annually.•
When operating range becomes reduced.•
When transmissions are not received by the remote receiver.•
If the hand held transmitter battery measures less than 9.0 volts.•
If you encounter problems with your fireplace system, the problem may be with the fireplace itself or it could be with the remote. Review
the fireplace manual to make sure all connections are made properly. Then check the operation of this remote in the following manner:
Make sure there is a 110-volt power source to the receiver.•
Check battery in transmitter to make sure contacts are touching (+) and (-) ends of battery. Bend metal contacts in for a tighter fit.•
Check if the transmitter battery is fully charged.•
Be sure that the transmitter and receiver are within 20’ - 25’ operating range.•
If the receiver is installed in a tight enclosed metal surrounding, the operating range will be shortened.•
Make sure the hand-held transmitter and remote receiver are communicating properly (see SECURITY CODES section).•
TROUBLE SHOOTING
FCC REQUIREMENTS
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODI-
FICATIONS TO THE EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT
XG0678 - 112113.1
SYSTEM CHECK
Slide the 3-position button on the remote receiver to the• ON position. The fireplace will go through the start cycle and hot surface
After the pilot flame is lit, the main gas valve should open and the main gas flame should ignite.
Slide the button to• OFF. The main gas flame and pilot flame should both extinguish.
Slide the button to• REMOTE, then press the ON button on the transmitter to change the system to on.
LEARNING TRANSMITTER TO RECEIVER
This transmitter has one of 65,536 unique security codes. It may be necessary to program the remote receiver to “learn” the security
code of the transmitter upon initial use, if batteries are replaced, or if using a replacement transmitter.
NOTE: This receiver can hold up to 3 transmitter codes. This is for the times when a second hand held transmitter or a wall transmitter
is required.
Make sure the receiver’s slide switch is in the• REMOTE position.
Press and release the• LEARN button on the receiver.
When you hear the “Beep”, press and hold the• ON or OFF button for about 2 seconds on the transmitter.
You will then hear a series of rapid beeps that indicate that your new transmitter has been accepted by the receiver.•
If you press the• LEARN button on the receiver and you hear no beeps, the receiver is unable to retain any more transmitter codes
(make sure the transmitter battery is properly installed and fully charged).
To delete all of the transmitter codes on your receiver, press and hold the• LEARN button for 10 seconds. Then you will hear a
series of three long beeps, indicating that the receiver’s memory has been cleared.

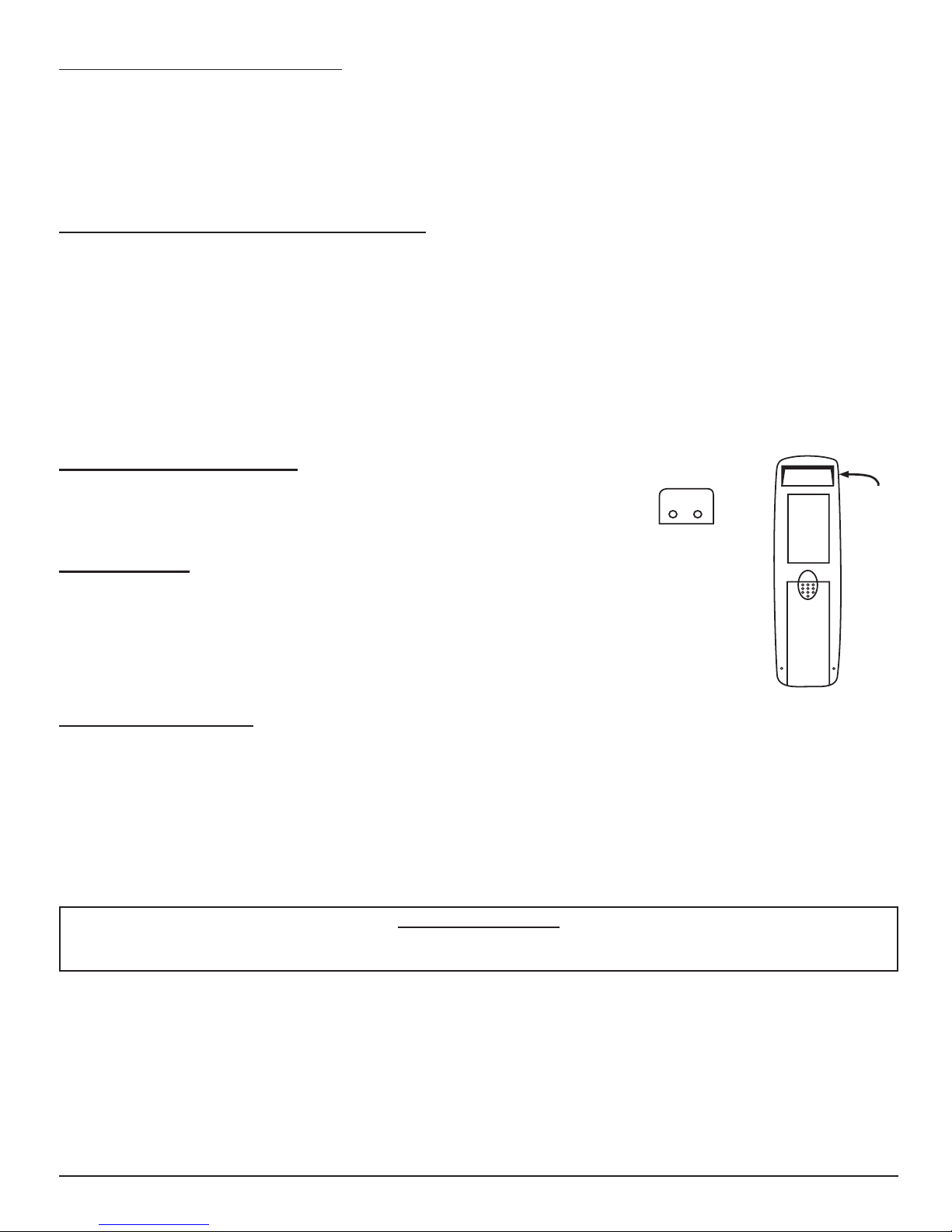

TRANSMITTER WALL CLIP
The transmitter can be hung on a wall using the clip provided.
Wood - Drill 1/8’’ pilot holes and install with screws provided.•
Plaster/Wallboard - Drill 1/4’’ holes, then install with the screws provided.•
WALL CLIP
SLOT
WA LL CLIP
BATTERY
COMPARTMENT
igniter will glow after pre purge time and ignite the pilot. NOTE: If the remote does not communicate with the reciever, go to the
section: Learning Transmitter to Receiver.
The power vent will turn off after 3 minutes post purge.
Page 3
