montpellier MIHP75 User manual

Integrated Heat Pump Dryer
MIHP75 - 7.0kg Load
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your appliance to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
NB: Please make sure that you keep a copy of your original sales invoice as this
will be needed if any service call is required.
There are three ways to register your Guarantee:
• Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
•By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don't forget to include your e-mail address so that we can send
confirmation through to you.
By Phone: Contact our warranty registration department on 0808 1961388
Welcome
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
•

EN
3
Thank you for choosing this product.
We are proud to offer the ideal product for
you and the best complete range of home
appliances for your daily routine.
Please read and follow these
instructions carefully and operate the
machine accordingly. This booklet provides
important guidelines for safe use,
installation, maintenance and some useful
advice for best results when using your
machine. Keep all documentation in a safe
place for future reference or for any future
owners.
Please check that the following items are
delivered with the appliance:
•Instruction manual
•Guarantee card
•Energy label
WEEE contains both polluting substances (which
can cause negative consequences for the
environment) and basic components (which can
be re-used). It is important to have WEEE
subjected to specific treatments, in order to
remove and dispose properly all pollutants, and
recover and recycle all materials. Individuals can
play an important role in ensuring that WEEE
does not become an environmental issue; it is
essential to follow some basic rules:
lWEEE should not be treated as household
waste;
lWEEE should be handed over to the relevant
collection points managed by the municipality or
by registered companies. In many countries, for
large WEEE, home collection could be present.
In many countries, when you buy a new
appliance, the old one may be returned to the
retailer who has to collect it free of charge on a
one-to-one basis, as long as the equipment is of
equivalent type and has the same functions as
the supplied equipment.
1. GENERAL SAFETY RULES
2. MOUNTING THE FURNITURE DOOR
3. WATER CONTAINER
4. DOOR AND FILTERS
5. PRACTICAL HINTS
6. QUICK USER GUIDE
7. CONTROLS AND PROGRAMMES
8.
TROUBLESHOOTING AND WARRANTY
This appliance is marked according to
the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
Contents
Check that no damage has occurred to
the machine during transit. If it has,
call for service by Customer Service
Centre. Failure to comply with the
above can compromise the safety of
the appliance. You may be charged for a
service call if aproblem with your
machine is caused by misuse or by
incorrect installation.
When contacting Service, ensure that
you have the unique 16-character
code available, also called the "serial
number". This code is a unique code
for your product, printed on the sticker
that can be found inside thedoor opening.
Environmental conditions

4
1. GENERAL SAFETY
RULES
lThis appliance is intended to
be used in household and
domestic applications only.
l Adifferentuse ofthis appliance
from household environment
or from typical housekeeping
functions, such ascommercial
use is excluded from any guarantee
l If the appliance isused in a
manner inconsistent with this it
may reduce the life of the
appliance and may void the
manufacturer’s guarantee.
l Any damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in adomestic or
household environment) shall not
be accepted by the manufacturer to
the fullest extent permitted bylaw.
lThis appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
lChildren should be supervised
to ensure that they do not play
with the appliance.
lChildren of less than 3 years
should be kept away unless
continuously supervised.
lThis machine is solely
for domestic use, i.e. to
dry household textiles and
garments.
lEnsure that the instructions
for installation and use are
fully understood before
operating the appliance.
lDo not touch the
appliance when hands or
feet are damp or wet.
lDo not lean on the door
when loading the machine or
use the door to lift or move
the machine.
lDo not continue to use
this machine if it appears to
be faulty.
lThe tumble dryer is not to be
used if industrial chemicals
have been used for cleaning.
WARNING
Misuse of a tumble dryer may
create a fire hazard.

EN
5
l Lint and fluff must not be allowed
to collect on the floor around the
outside of the machine.
lAlways remove the plug before
cleaning the appliance.
lThe drum inside may be very
hot. Always allow the dryer to
complete the cool down period
before removing the laundry.
lThe final part of a tumble dryer
cycle occurs without heat (cool
down cycle) to ensure that the
items are left at a temperature
that ensures that the items will
not be damaged.
WARNING
Do not use the product if the
fluff filter is not in position or
is damaged; fluff could be
ignited.
WARNING:
Where the hot surface
symbol is located the
temperature rise during
operation of the tumble
dryer may be in excess of 60
degrees C.
WARNING
Never stop a tumble dryer
before the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is
dissipated.
WARNING
During transport ensure that
the dryer is in an upright
position, if it's necessary
you can only tilt/lay on
the side shown below.
If the product has been
tilted or laid on its side, wait
at least 4 hours before
switching on so that the oil
can flow back into the
compressor. Failure to do
this could result in
damage to the compressor.

6
l The technical details (supply voltage
and power input) are indicated
on the product rating plate.
lMake sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
lDo not use adapters, multiple
connectors and/or extensions.
lThe plug should be accessible
for disconnection after the
appliance has been installed.
lDo not plug the machine in and
switch it on at the mains until
the installation is completed.
lIf the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
Installation
Electrical connections and
safety instructions
WARNING
The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a circuit
that is regularly switched on
and off by a utility.
lDo not install the product in a low
temperature room or in a room
where there is a risk of frost
occurring.
lAt temperatures around freezing
point the product may not be
able to operate properly: there is a
risk of damage if the water is
allowed to freeze in the
hydraulic circuit (valves, hoses,
pumps). For abetter product
performance the ambient room
temperature must be between
5-35°C. Please note that
operating in cold conditions
(between +2 and +5°C) may cause
some water condensation and water
drops on floor.
lNEVER install the dryer up
near curtains.
lThe appliance must not be
installed behind alockable door, a
sliding door or a door with a hinge
on the opposite side to that of
the tumble dryer, in such way
that a full opening of the tumble
dryer door is restricted.
lFor your safety, the appliance
must be correctly installed. If there
is any doubt about installation, call
Service for advice.
lOnce the machine is in place the
feet should be adjusted to ensure
that the machine is level.

EN
7
lAdequate ventilation must be
provided in the room where the
tumble dryer is located to
prevent gases from appliances
burning other fuels, including
open fires, being drawn into
the room during operation of
the tumble dryer.
lInstall the rear of the appliance
close to a wall or vertical surface.
lThere should be a gap of at
least 12 mm between the
machine and any obstrubtions.
The inlet and outlet air should
be kept clear of obstruction.
lMake sure carpets or rugs
do not obstruct the base or any
of the ventilation openings.
lPrevent items from falling or
collecting behind the dryer as
these may obstruct the air inlet
and outlet.
lExhaust air must not be
discharged into a flue which is
used for exhausting fumes
from appliances burning gas or
other fuels.
lCheck regularly that the air
flowing around the dryer is not
restricted, avoiding accumulation
of dust and lint.
lCheck frequently the fluff filter
after use, and clean, if necessary.
* Air outlet (depending on the
model).
lAlways refer to the laundry
care labels for directions on
suitability for drying.
lFabric softeners, or similar
products, should be used as
specified by the fabric softener
instructions.
lDo not dry unwashed items in
the tumble dryer.
lClothes should be spin dried or
thoroughly wrung before they
are put into the tumble dryer.
lClothes that are dripping wet
should not be put into the dryer.
Ventilation
The Laundry

8
lGlass fibre curtains should
NEVER be put in this machine.
Skin irritation may occur if other
garments are contaminated with
the glass fibres.
lItems that have been soiled
with substances such as cooking
oil, acetone, alcohol, petrol,
kerosene, spot removers,
turpentine, waxes and wax
removers should be washed in
hot water with an extra amount
of detergent before being dried
in the tumble dryer.
l Remove all objects from pockets
such as lighters and matches.
lLighters and matches must not
be left in pockets and NEVER
use flammable liquids near the
machine.
lMaximum load drying weight:
see energy label.
l To consult the product technical
specification please refer to the
manufacturer website.
WARNING
Foam rubber materials can ,
under certain circumstances,
when heated become ignited
by spontaneous combustion.
Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes
or pillows fitted with foam
rubber pads MUST NOT be
dried in the tumble dryer.
WARNING
Do not tumble dry fabrics
treated with dry cleaning fluids.

EN
9
WARNING
Fire hazard / Flammable
materials.
lThe appliance contains R290,
an eco-sustainable refrigerating
gas that is flammable. Keep
open flames and sources of
ignition away from the appliance.
lCheck there is no visible
damage on the appliance. Do
not use the appliance if it is
damaged.
lShould there be any kind of
problem, please contact your
specialised retailer or one of
our customer support centres.
WARNING
Ensure that the openings on
the appliance and the openings
of the compartment the appliance
is fitted in (for built-in models)
are clear of obstructions.
WARNING
Do not damage the refrigerating
circuit.
lAny repairs or interventions on
the appliance must be carried
out only by an authorised
assistance service.
lDisposing of the device
incorrectly could cause fires or
poisoning.
lDispose of the device correctly
and do not damage the pipes
used for the circulation of the
refrigerating fluid.

10
2. MOUNTING THE
FURNITURE DOOR

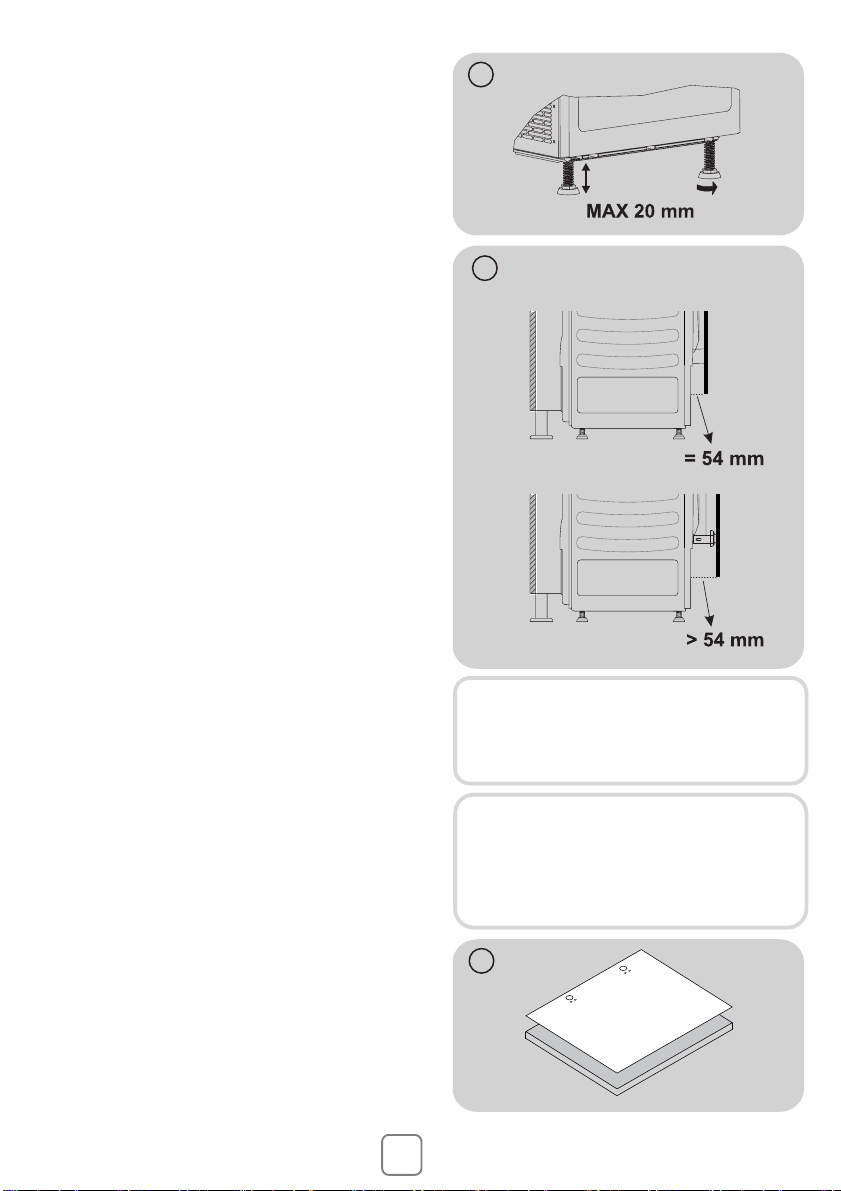

lRegulate the height of the
dryer The 4 adjustable feet
allow the height of the dryer to
be adjusted from 827 mm to a
maximum of 847 mm. To adjust
the height, you should rotate
the adjustable feet, ensuring that
the machine is level (figure 1).
Note: we suggest to put the
dryer at the maximum height
possible in order to avoid
tilting, leaving at least 5 mm
from the top of the furniture.
lBefore fixing the hinges it’s
necessary to determine the
depth of the dryer from the
front part of the kitchen
according to the depth of the
kick plate (check picture) and
chose the right installation
option (figure 2).
Option 1
The position of the plinth of
the dryer is set back less
than 54 mm from the front of
the furniture.
lPosition the template onto the
reverse of the furniture door. It
is possible to mount the hinges
and closure magnet on the right
or left-hand side depending on
your requirements. Mark the
screw hole positions, then drill
out these positions (figure 3).
1
Option 1:
Option 2:
2
3
Note: that distance does not
consider the thickness of the
kickplate of the kitchen.
We suggest mounting the
furniture door so that it opens
towards the left, same direction
as the porthole door.

EN
11
lFix the hinges in place (on the
door) with the 4 screws provided
(A) (figure 4).
lFix the magnet (B) in place
using screw (C) (figure 4).
lMount the plate (D) on the right
or left-hand side, depending on
your installation requirements
(figure 5).
lPlace the plastic support (E)
under the plate and fix it in
position with screw (F) (figure 5).
lSnap mount cap (G) in the
lower position (figure 5).
lMount the furniture door to the
front of the dryer using the
hinges. Place the spacers
under the hinges (I) (figure 6)
and then fix in position with
screw (H).
lSlide the dryer into an opening
of the size indicated in the
diagram (figure 7).
2
1
487
4
6
5
7

12
Option 2
The position of the plinth is
set back more than 55 mm from
the front of the furniture.
Note: components not supplied
-hinges
-supports
-door stop
lFirstly, slide the dryer into an
opening of the size indicated in
the diagram (figure 7).
Note: As soon as the hinges
are fixed on the furniture it is
not possible to slide the dryer
in and out.
l Fix the door to the furniture with
standard hinges and supports
(not supplied) and stop the door
with a std hook (not supplied)
(figure 8).
l Now it’s possible to fix the hinges
to the door of the furniture.
lUse the N° 4 mount caps (G)
to cover all the holes on the
front panel of the dryer.
GENERAL
lIf the distance between the top
of the dryer and the top of the
furniture is more than 10 mm,
fix the N° 2 L metal brackets
(K) to the furniture sides, to
avoid possible tilting (figure 10).
-
8
9
10
Pay attention to position
the bottom hinge 40 mm above
the kick plate in order to
facilitate its removal (figure 9).

EN
13
lA furniture plinth may be run
across the front of the dryer,
but its height will be dictated by
the front kickplate.
Plinth must have ventilation
slots (min. Side/diameter 127

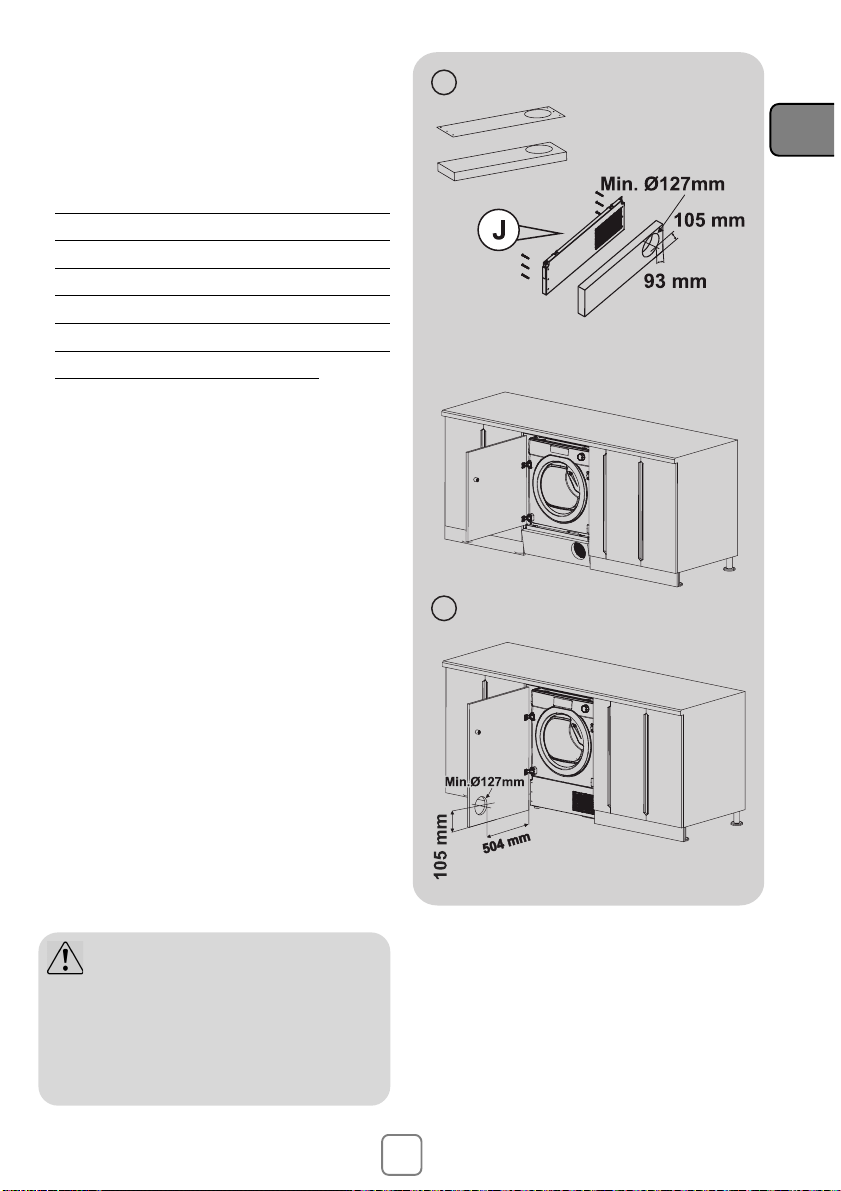

mm hole) according to the
dimensions on fixing template.
If the plinth is not high enough
to accommodate the whole
hole, cut only part of it.
lPlace the template onto the
reverse of plinth. Mark the
screw hole positions, then drill
out these positions (figure 11).
lFix the plinth to the kickplate
using 6 screws provided (J).
Note: it’s possible only some
types of kickplate (eg. wood or
plastic). We suggest to check
with the kitchen supplier.
lFix the kickplate to the dryer.
lIn case of using full door, door
must have min. Ø 127 mm hole
across the slots of kickplate
(figure 12).
11
12
WITHOUT the airflow
ventilation hole in the furniture
door/plinth we cannot guarantee
the correct functionality of
the appliance.

14
3. WATER CONTAINER
The water removed from the laundry during
the drying cycle is collected in a container.
When the container is full the relevant
indicator light on the control panel will light,
and the container MUST be emptied.
However, we recommend that the container is
emptied after each drying cycle.

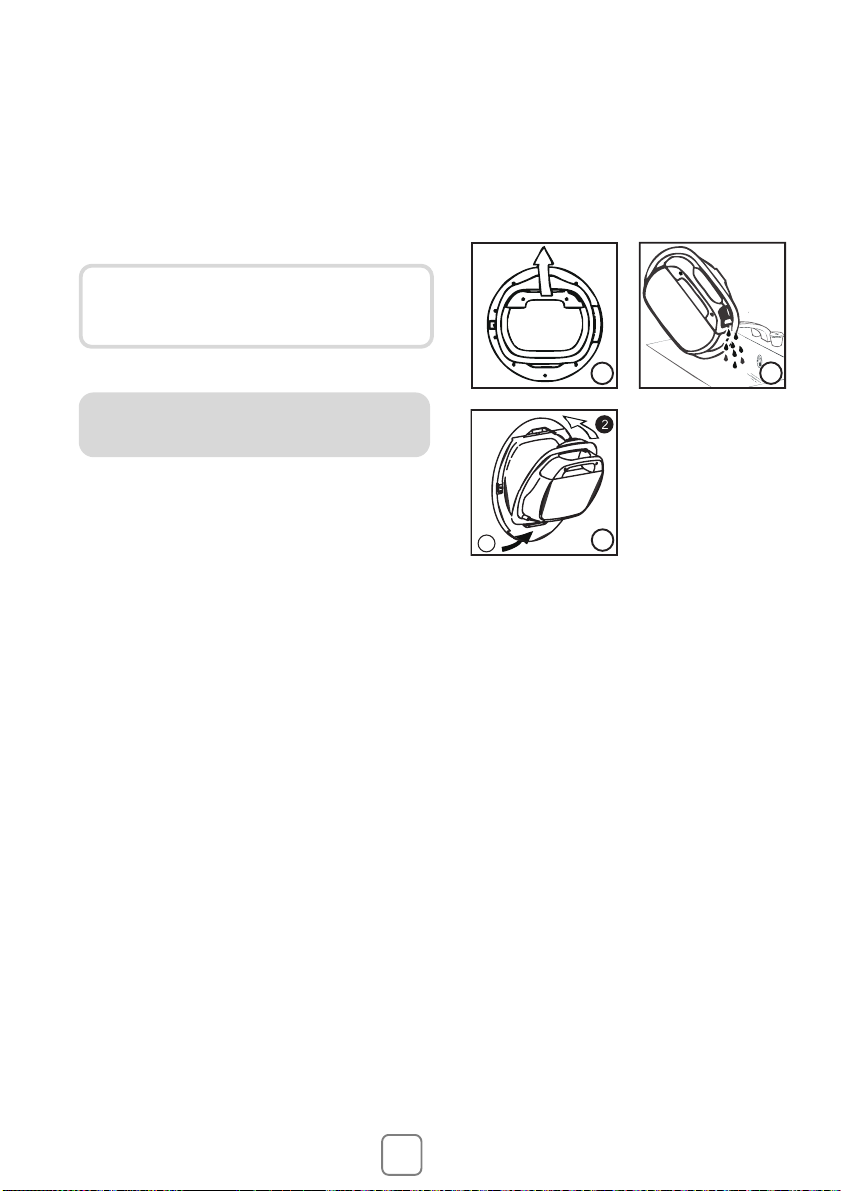

1. Gently pull out the water container
holding the handle (A).
When it is full the water container will
weigh about 6 kg.
2. Tilt the water container to empty the
water out through the spout (B).
When empty, replace the water container
back as shown; (C) first insert the base of
the container into position as shown (1)
then gentle push the top into position (2).
3. Press the programme start button to
restart the cycle.
AB
1C
Very little water will collect during the
first few cycles of a new machine as an
internal reservoir is filled first.
To remove the container tank in
door drawer

EN
15
4. DOOR AND FILTERS
lPull on handle to open the door.
lTo restart the appliance, close the door
and press the programme start button.
Filter cleaning indicator light
It lights up when the cleaning of the filters is
requested (the door and the lower filter).
Check and clean the main filter and the
lower one on the bottom of the
appliance.
If the laundry is not drying check that the
filters are not clogged.

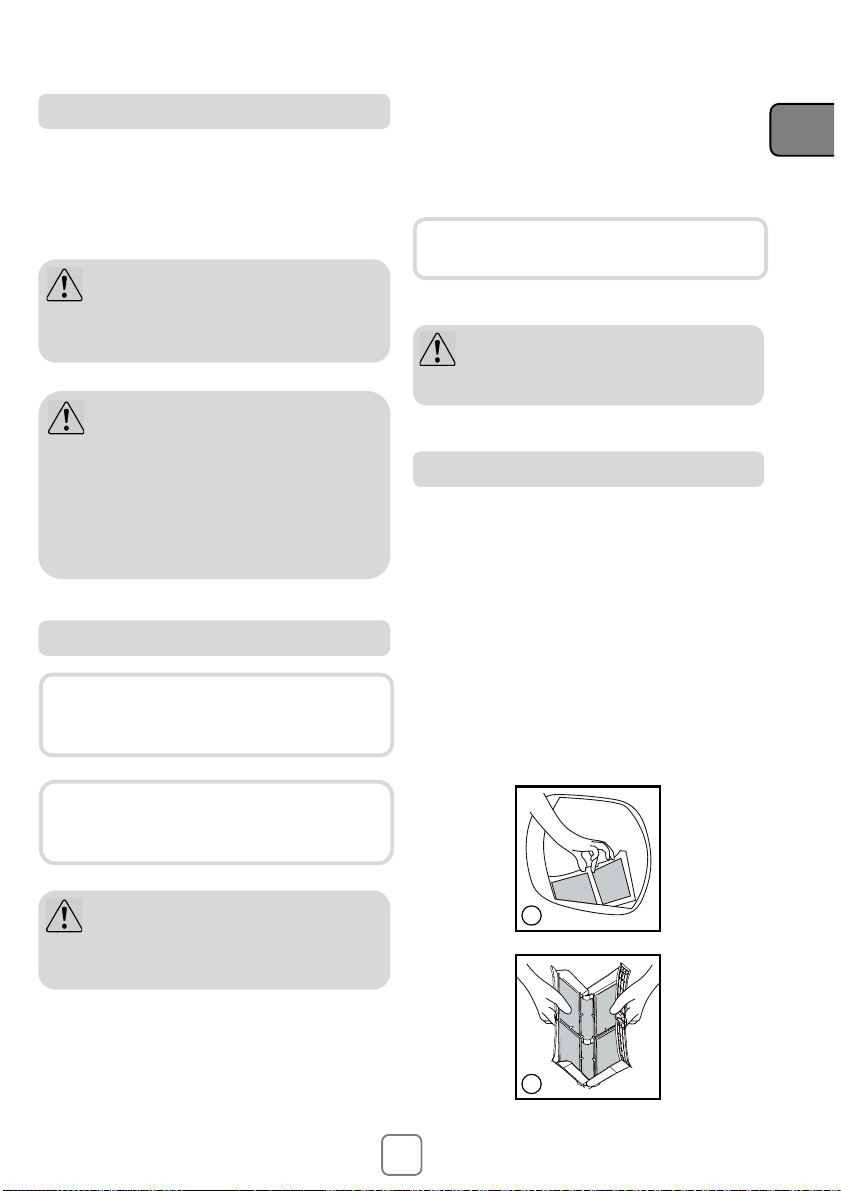

1. Pull the filter upwards.
2. Open filter as shown.
3. Gently remove lint using a soft brush or
your fingertips.
4. Snap the filter together and push back
into place.
1
2
Door
WARNING
When the tumble dryer is in use the
drum and door may be VERY HOT.
WARNING
If you open the door mid cycle, before
the cool-down cycle has completed,
the handle may be hot. Please use
extreme caution when attempting to
empty the water reservoir during the
cycle.
Filters
Clogged filters could increase the
drying time and cause damages and
expensive cleaning operation.
To maintain the efficiency of the dryer
check that all filters are clean before
each drying cycle.
WARNING
Do not use the tumble dryer without
the filters.
.
.
If you clean filters under water, remember
to dry them thoroughly before refitting.
WARNING
Clean the filters before every cycle.
To clean the lint filter

16
1. Remove the kickplate.
2. Turn the locking levers anti-clockwise
and pull out the front cover.
3. Gently remove the filter frame and clean
any dust or fluff with acloth from the
filter. Do not use water to clean thefilter.
4. Remove the sponge gently from its place
and then wash the sponge by holding it
under a running tap turning it so to remove
any dust or fluff. Make sure the sponge is
fully dry before refitting.
5. Refit the front cover ensuring it is in the
correct way (as indicated by the arrow)
and pushed firmly into place. Lock the
levers byturning them clockwise.
6. Refit the kickplate.
12
34
6
UP
5
To clean the condenser filter

EN
17
5. PRACTICAL HINTS
Before using the tumble dryer for the first
time:
lPlease read this instruction book
thoroughly.
lRemove all items packed inside drum.
lWipe the inside of the drum and door with
a damp cloth to remove any dust which
may have settled in transit.
Make sure that the laundry you are going to
dry is suitable for drying in a tumble dryer,
as shown by the care symbols on each
item. Check that all fastenings are closed
and that pockets are empty. Turn the
articles inside out. Place clothes loosely in
the drum to make sure that they don't get
tangled.
Silk, nylon stockings, delicate embroidery,
fabrics with metallic decorations, garments
with PVC or leather trimmings.
ALWAYS
lCheck that the filter is clean before every
drying cycle.
NEVER
lPut dripping wet items into the tumble
dryer, this may damage the appliance.
lBy care symbols
These can be found on the collar or inside
seam:
Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature
only.
Do not tumble dry.
If the item does not have a care label it
must be assumed that it is not suitable for
tumble drying.
lBy amount and thickness
Whenever the load is bigger than the dryer
capacity, separate clothes according to
thickness (e.g. towels from thin underwear).
lBy type of fabric
Cottons/linen: Towels, cotton jersey, bed
and table linen.
Synthetics: Blouses, shirts, overalls, etc.
made of polyester or polyamid, as well as
for cotton/synthetic mixes.
Clothes preparation
Do not tumble dry
WARNING
Do not dry articles which have been
treated with a dry cleaning fluid or
rubber clothes (danger of fire or
explosion).
During the last 15 minutes the load is
always tumbled in cool air.
Energy saving
Only put into the tumble dryer laundry which
has been thoroughly wrung or
spin-dried. The drier the laundry the
shorter the drying time thus saving
electricity.
Sort the load as follows
WARNING
Do not overload the drum, large items
when wet exceed the maximum
admissible clothes load (for example:
sleeping bags, duvets).

18
lClean the filter and empty the water
container after every drying cycle.
lRegularly clean the condenser.
lAfter each period of use, wipe the inside
of the drum and leave the door open for a
while to allow circulation of air to dry it.
lWipe the outside of the machine and the
door with a soft cloth.
lDO NOT use abrasive pads or cleaning
agents.
lTo prevent the door sticking or the
buildup of fluff clean the inner door and
gasket
with a damp cloth after every drying
cycle.
Cleaning the dryer
WARNING
The drum, door and load may be very
hot.
WARNING
Always switch off and remove the plug
from the electricity supply before
cleaning this appliance.
WARNING
For electrical data refer to the rating
label on the front of the dryer cabinet
(with the door open).

EN
19
6. QUICK USER GUIDE
1. Open the door and load the drum with
laundry. Ensure that garments do not
hinder closure of the door.
2. Gently close the door pushing it slowly
until you hear the door 'click' shut.
3. Turn the Programme Selector dial to
select the required drying programme
(see the table of programmes).
4. Press the programme start button. The
dryer will start automatically.
5. If the door is opened during the
programme to check the laundry, it is
necessary to press programme start
to recommence drying after the door
has been closed.
6. When the cycle is nearing completion
the machine will enter the cool down
phase, the clothes will be tumbled in
cool air allowing the load to cool down.
7. Following the completion of the cycle
the drum will rotate intermittently to
minimize creasing. This will continue
until the machine is switched Off or the
door is opened.
7. CONTROLS AND
PROGRAMMES
A
EC
DFGB
H
A
PROGRAMME SELECTOR with
Off position
B
START/PAUSE button
C
DELAY START button
D
TIME SELECTION button
E
MEMORY button
F
DRYING SELECTION button
G
ANTI CREASE button
H
DISPLAY
C+D
CHILD LOCK
Do not open the door during the
automatic programmes in order to
obtain a proper drying.
Technical data
Power input: 900W
Current fuse: 13Amp
Supply voltage: 220-240V 50Hz
Maximum load: 7Kg
Energy class: A+

20
lRotating the programme selector in both
directions it's possible to select the
desired drying programme.
lTo cancel the selections or switch off the
appliance rotate the programme selector
to Off (remember to unplug the appliance).
-Language setting
lAfter connecting the machine to the
network and turning it on, press the
button "F" or "G" to see on the display
the available languages. ENGLISH is
always the first language shown.
lSelect the desired language pressing the
START/PAUSE button.
lTo start the selected cycle with the preset
parameters, press START/PAUSE. When
the programme is running, the display will
show the time to elapse.
lMoreover, if you want to modify the
chosen programme, press the desired
options buttons, modify the default
parameters and then press START/
PAUSE button to start the cycle.
lAfter switching on the appliance, wait a few
seconds for the programme to start running.
PROGRAMME DURATION
lWhen a programme is selected the
display automatically shows the cycle
duration, which can vary, depending on
the options selected.
lOnce the programme has started you will
be kept informed constantly of the time
remaining to the end of the drying cycle.
lThe appliance calculates the time to the
end of the selected programme based
upon a standard loading, during the cycle,
the appliance corrects the time to the
humidity level of the load.
PROGRAMME END
l"END" ("End" on some models) will
appear in the display at the end of the
programme, it is now possible to open the
door.
lAt the end of the cycle, turn off the
appliance by turning the programme
selector to the Off position.
WARNING
PROGRAMME SELECTOR with
Off position
First starting
- Changing the language
If you want to change the language you will
have to press simultaneously "F" and
"G" buttons for about 5seconds.
ENGLISH will appear on the display, and
you will be able to choose a new language.
START/PAUSE button
Close the porthole BEFORE pressing
the START/PAUSE button.
Only the options compatible with the
set programme can be selected.
The programme selector must
ALWAYS be put in the Off position at
the end of the drying cycle before a
new one can be selected.
Don’t touch the buttons while
inserting the plug because the
machine calibrates the system during
the first few seconds.Touching the
buttons may cause a fault.In this
case, remove the plug and repeat the
operation.
