montpellier MVSD7W User manual

Freestanding Vented Tumble Dryer
MVSD7W - White - 7kg - Sensor Dry
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Tumble Dryer.
Our Dryers have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Dryer to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Vented Tumble Dryer is covered by a comprehensive two year parts &
labour guarantee. In the unlikely event that you experience a problem with
your Dryer, you can rest assured that you are fully protected against the cost
of repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send it
in the post. Don’t forget to include your e-mail address so that we can send
confirmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

1
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATIONS
Quick Start .............................................................
Before Each Drying ..................................................
Control Panel .........................................................
Drying Programmes Table .....................................
MAINTENANCE
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
Product Fiches ........................................................
2
7
7
9
10
11
13
14
15
16
17
CONTENTS

2
SAFETY INSTRUCTIONS
Safety Instructions
• The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
•In EN standard countries, this appliance can be used by
children from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance, cleaning and user
maintenance shall not be made by children without supervision.
• The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble
dryer.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substance such as
cooking oil,acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with a extra amount of detergent
before being dried in the tumble dryer.

3
SAFETY INSTRUCTIONS
• Items such as foam rubber (latex form), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried
in the tumble dryer.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
• The exhaust air must not be discharged into a flue which
is used for exhausting fumes from appliance burning gas
or other fuels.
• The appliance must not be install behind a lockable door
a sliding door or a door with a hinge on the opposite side ,
to that of the tumble dryer. In such a way that a full
opening of the tumble dryer door is restricted.
• Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil.Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat
from escaping and so create a fire hazard.
• The appliance should not be overturned during normal
use or maintenance.
• Remove all objects from pockets such as lighters and
matches.
Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
Warning!

4
SAFETY INSTRUCTIONS
Correct Disposal of this product:
This marking indicates that this product should not
be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
Model Rated capacity
7.0kg
MVSD7W
• For appliances with ventilation openings in the base, that
a carpet must not obstruct the openings.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Plug must be accessible after installation.
• Warning: The appliance must not be supplied through an
external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
• Remove all packages before using the appliance.
Otherwise,serious damage may result.

5
SAFETY INSTRUCTIONS

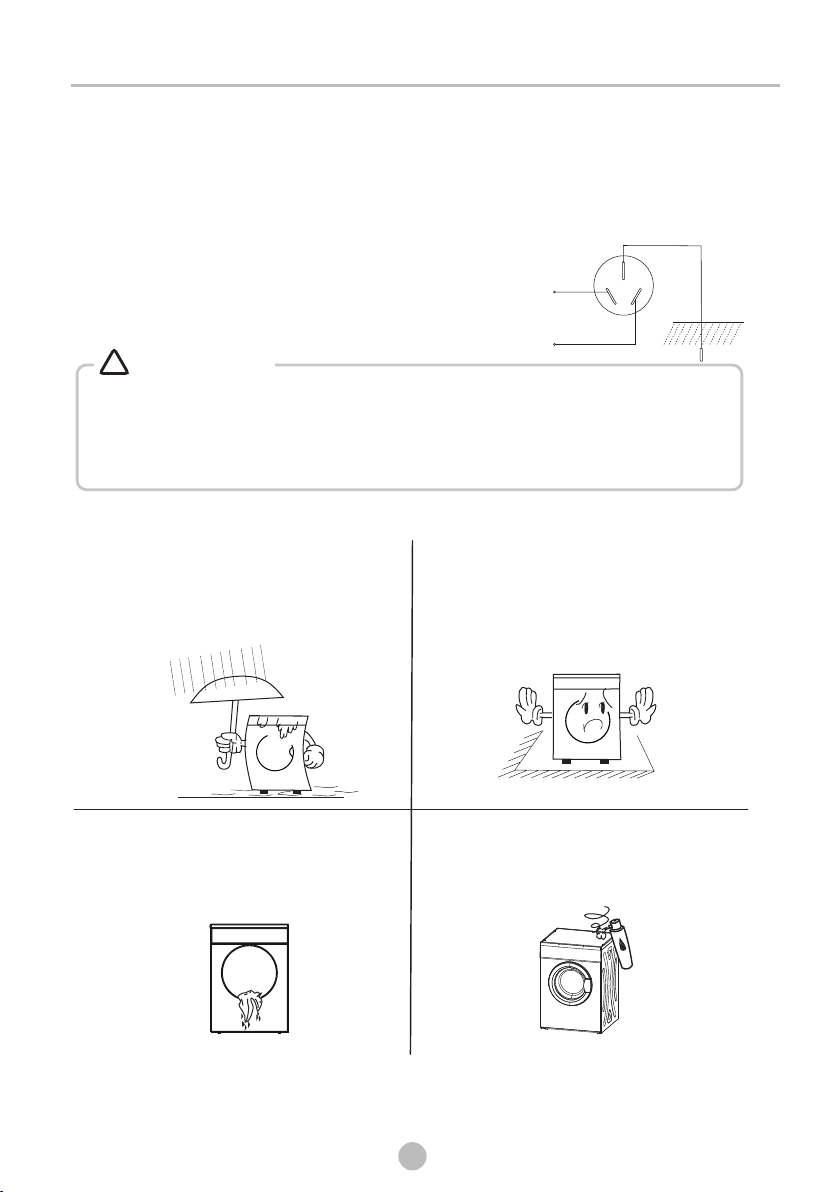

Power supply and grounding•
Grounding
The dryer employs alternative current with the rated voltage and frequency. When the
voltage fluctuates between 6% of rated voltage, the dryer can work normally.
A special power socket with a capacity 10A for the dryer had better be set beside the
dryer for convenience and safety. The method of connection of the
socket is as the figure below.
To be safe, please make improvements as soon as possible
according to the rules and suggestions mentioned above.
The socket and the grounding wire must be installed by an electrician to prevent
incorrect installation or use of the socket and to guarantee the safety of use of
electricity. No connection of the grounding wire and the neutral wire, otherwise the
cabinet will be charged, which is likely to cause the danger of electric shock.
• Precautions
Install or store where it will not be exposed
to temperatures below freezing or exposed
to water or weather, which could cause
permanent damage and invalidate the
warranty.
Keep area around the exhaust opening and
adjacent surrounding areas free from the
accumulation of lint, dust and dirt. An
obstructed port might reduce the airflow.
Thoroughly spin the laundry in washing
machine. High spin speed can reduce the
drying time and save energy consumption.
Make sure combustible sprayer will not be
close to dryer when it is working, and once
the gas leaks, do not touch plug or
start/pause on it.
≥
Warning!
！

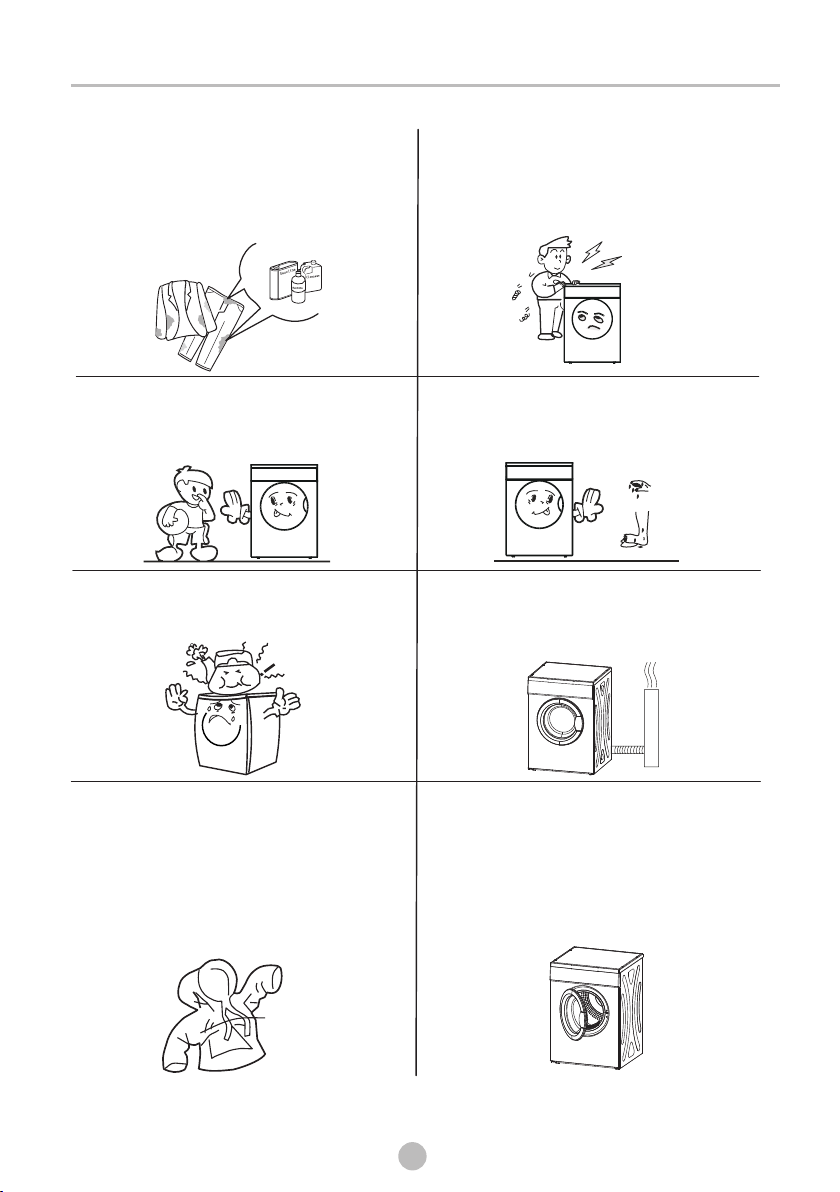

6
CONTENTS
Do not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances
( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.).
Never attempt to operate this appliance if it
is damaged, malfunctioning, partially
disassembled,or has missing or broken parts,
including a damaged cord or plug.
Do not allow children on or in the appliance.
Close supervision of children is necessary
when the appliance is used near children.
Please do not use the machine when your
foot or hand with water.
Do not store plastic, paper or clothing that
may burn or melt on top of the dryer during
operation.
The exhaust air must not be discharged into
a flue which is used for exhausting fumes
from appliance burning gas or other fuels.
Do not dry articles containing rubber, plastic
or similar materials such as padded bras,
tennis shoes, galoshes, bath mats, rugs, bibs,
baby pants, raincoat plastic bags or pillows
that may melt or burn. Some rubber
materials, when heated, can under certain
circumstances produce fire by spontaneous
combustion.
The door can be opened only after the
programme of the drying machine is
completed.Do not open the door before the
programme finished to avoid the human
skin from being scalded by hot steam or over
heated drying machine.

7

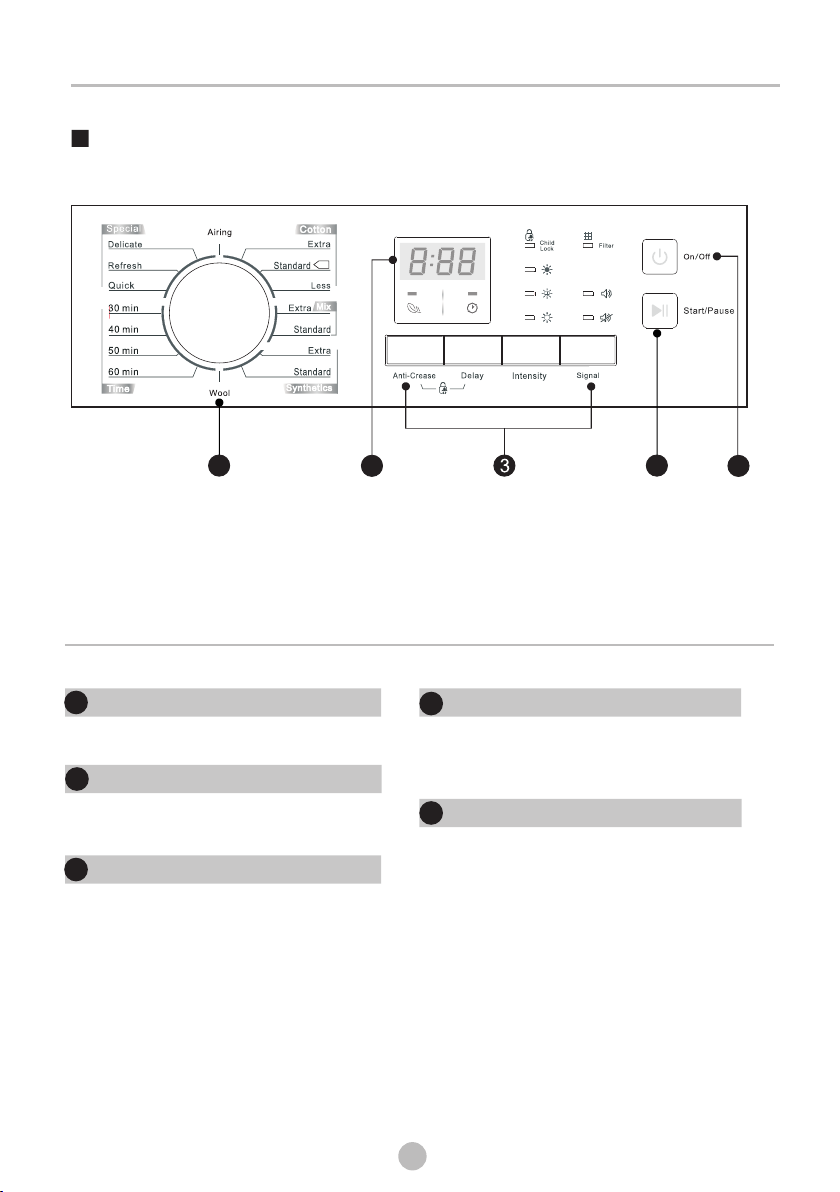

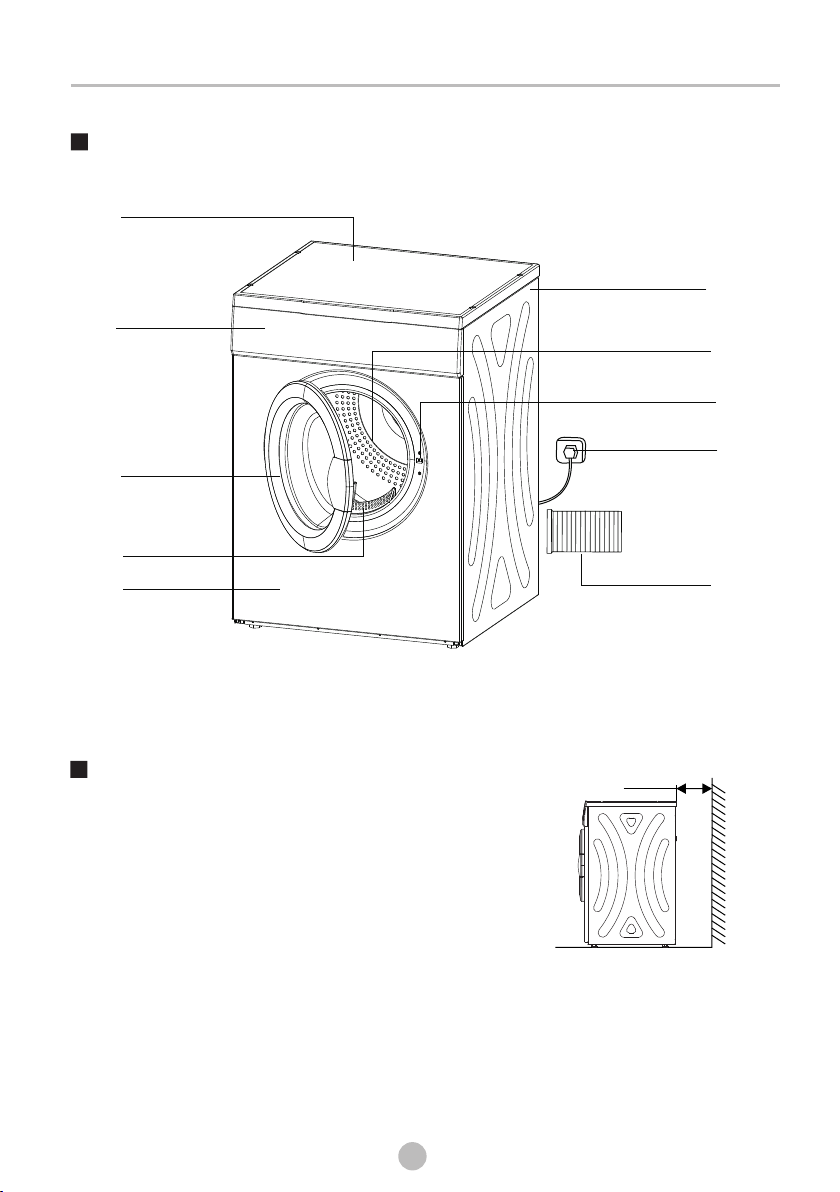

Top board
Control panel
Door
Front panel
Side panel
Filter
Flexible duct
Power plug
Switch
Tumble Door
>10cm
INSTALLATION
Product Description
Installation
Note: Please see the products you purchased in kind prevail.
Dryer should be placed in a ventilated area with
than 10cm distance from the wall. It is suggested there
are no obstacles within 1.5m in front of dryer and keep
ventilated.
not less
•Installation Position Selection

8
INSTALLATION
the dryer will work unbalanced or stop working sometimes.
if dryer could not be placed horizontally (the lean angle is no more than 2°,
Notice when installing:
• Do not install the dryer in the open air or place easily
damaged by rain;
• Do not place the back of dryer near curtain or something
in the wind;
• Do not place the dryer near gas or flammable area.
•

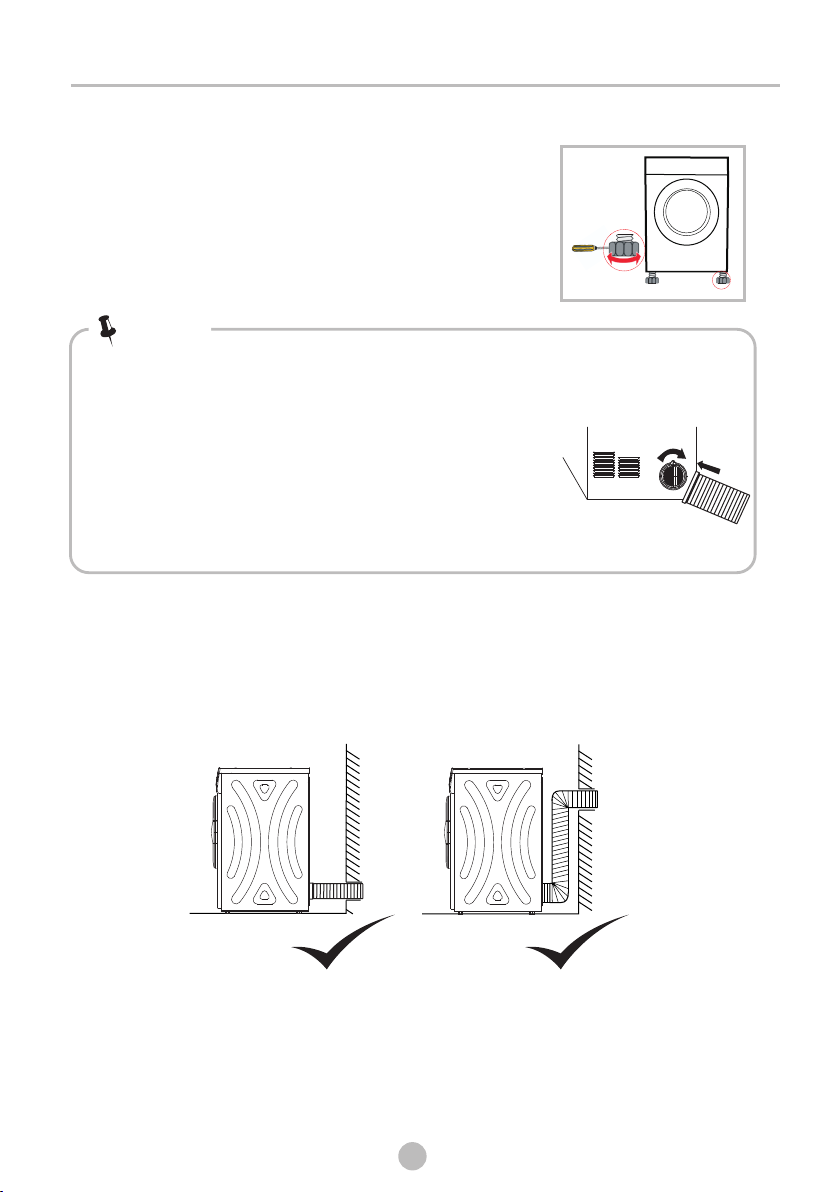

• Connect one end of flex tube with whorl to the back vent, then fix it deasilly till tight.
• The other end of flex tube will be extended to outdoor, please refer the right
assemble way to the below pictures.
Flex tube fixing:
Note!
•Level Adjusting
Once in its permanent operating position,
check that the dryer is absolutely level with the aid
of a spirit level. If it is not, adjust the feet with a tool.

9
OPERATIONS
After Drying
Drying
Before using, please make sure it's installed properly.
Buzzer beep or " :00"on display.0
start
on select function
or default
1
plug in
2
load
3
close door

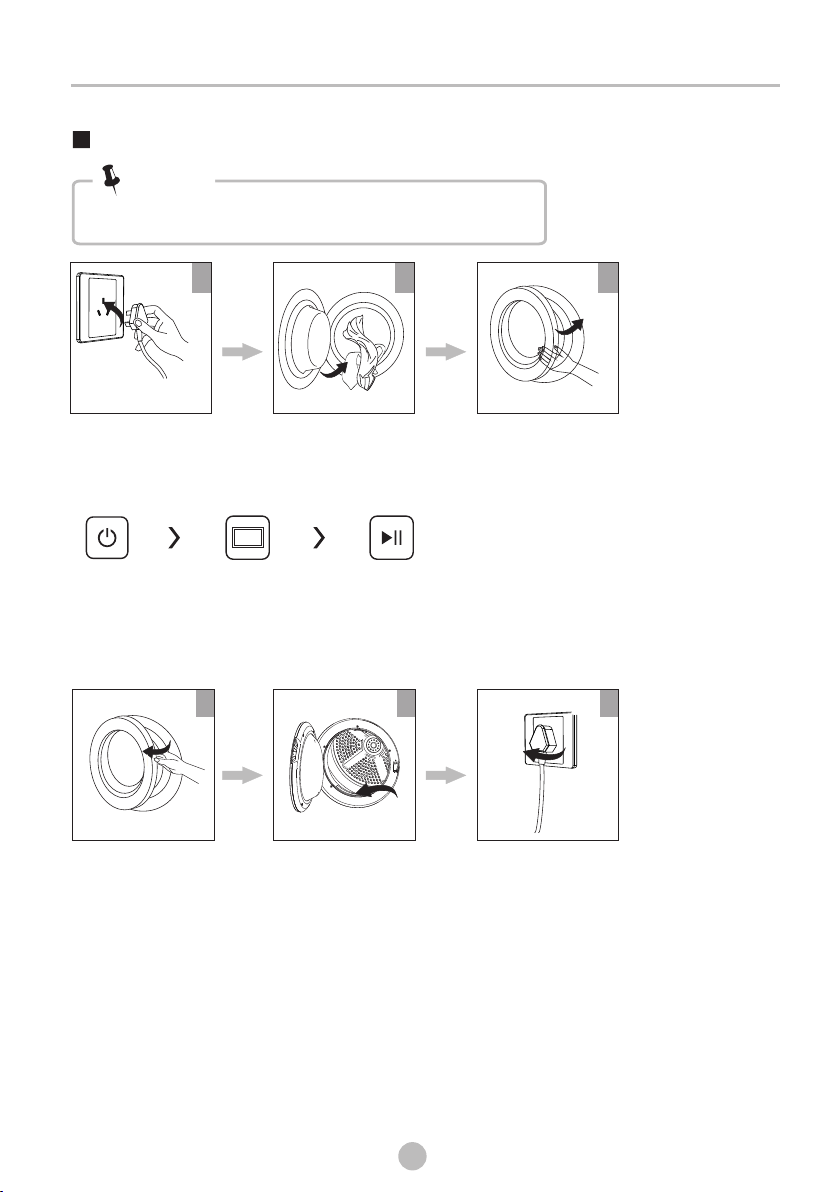

Quick Start
Note!
1
unload clean filter
3
unplug
2

10
OPERATIONS
Before Each Drying
Never overload.
• Not for textile with dropping water. The dryer could be damaged, even fire.
• Not suitable for silk or woolen textiles.
•
1.Before drying, thoroughly spin the laundry in washing machine. High spin speed can
the drying time and save energy consumption.
2.For uniform drying result, sort the laundry according to fabric type and drying programme.
3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4.Do not over dry the clothes, because over dried clothes can easily get creases.
5.Do not dry the articles containing rubber or similar elastic materials.
6.The door can be opened only after the programme of the drying machine is human skin
from being scalded by hot steam or over heated drying machine.
7.Clean the lint filter and empty container after each use to avoid extension of drying time
and energy consumption.
8.Do not dry these clothes after dry-clean process.
reduce
The reference weight of dry clothes (each)
Please pay attention to use the drying machine if the materials of your clothes can not be
dried by it or contain the symbols as follows:
Note!
Dry
Dry clean
Line dry / hang to dry Drip dry
Do not dry clean
Normal Do not dry
In the shade
Dry flat
Not tumble dry normal
Dry clean normal cycle
with any solvent
Dry clean normal cycle
petroleum solvent only
Mixed-fabric clothes
(about 800g)
Jacket
(about 800g cotton)
Jeans
(about 800g)
Towel quilt
(about 900g cotton)
Single bedsheet
(about 600g cotton)
Short sleeve shirt
(about 180g cotton)
Work clothes
(about 1120g)
Short pants
(about 70g cotton)
Sleepwear
(about 200g)
Socks
(about 50g
mixed-weave)
Long sleeve shirt
(about 300g cotton)

11
OPERATIONS
Control Panel
1
2
4
5
OPERATIONS
On/Off
Product is switched on or off.
1
Start/Pause
the button to start or pause the
drying cycle.
Press
2
Option
These buttons are used for setting
additional functions.
3
Display
This display shows the setting, estimated
remaining time and status messages of
your dryer.
4
Programmes
Different Dryer cycle can be selected
according to the user's needs to make the
clothes have more effective drying results.
5

12
OPERATIONS
Signal
Press the button to select the on or off signal function. The buzzer will prompt from the
dryer when finishing the cycle. Press the【On/Off】 button and pull out the power cable.
Intensity / INTENSVIE
Press the button to select adjust the dryness level of the laundry. The level has three
grades . The drying time increases 3 minutes in every grade.
1.The intensity function can be activated only before the programme start.
2.Press the 【Intensity / INTENSVIE】button repeatedly to select the drying time.
Delay
Press the button to select delay clothes drying within 24 hours. You can press this key
continuously; it can be selected within 1-24 hours .
Anti-Crease
Press the button to select the function, at the end of the drying cycle, the anti-crease
operation time is 30 minutes (default ) or 120 minutes (selected).The 【Anti-Crease】
light shall illuminate when the anti-crease function is selected. This function prevents the
laundry from creases.
Child Lock
pressing the 【Anti-Crease】 and 【Delay】buttons simultaneously for over 3 seconds to
start child lock function.
•Clean the filter, cabinet and inner tube.
• Clean the filter when the“Filter” light is flashing, after the dryer stop.
•This symbol means the energy efficiency test programme “standard cotton
programme”, which is most suitable to dry normal cotton load at rated load
capacity.
Note!
Option

13
OPERATIONS
Y
N
Y
Y
Y Y
Less
If you can not determine what the clothing’s material is, please choose Mix.
For cottons and coloureds made of cotton or linen.
Standard Standard
Mix
30 min 50 min
Extra 60 mim
7.0kg
Cotton
Extra
(max)
Weight
Programme
Delicate
Special
T. o dry delicate laundry that is suitable for drying or laundry which is advised to To dry cotton pieces of clothing. Drying level: less dry . To dry cotton pieces of clothing. Drying level: cupboard dry. To dry cotton pieces of clothing. Drying level: extra dry.
Application/Properties
Refresh Quick
Remove the smell for the long-laid clothes. Time 50 min. Time 60 min.
Delay
Intensity
7.0kg
7.0kg
40 min Time 40 min.
To dry mix pieces of clothing. Drying level: cupboard dry. To dry mix pieces of clothing. Drying level: extra dry.
Y
For non-iron washing made of .Synthetics and blended fabrics,cotton
Standard
Synthetics
Extra
3.0kg
To dry pieces of clothing. Drying level: cupboard dry.Synthetics To dry pieces of clothing. Drying level: extra dry.Synthetics
Time
Time 30 min.
be hand-washed at a lower temperature.
Rapid warm for the long-laid clothes.
Airing Wool
Airing Wool
Y Y
To air clothes without blowing hot air. For a fluffy and fresh wool clothing(can not be used for drying wool clothing), when the cycle is done, take out the clothes at once, let them dry in the air.
Y
N N N
Y Y Y
MVSD7W
Drying Programmes Table

14
Filter clean
•
•
•
Clean the lint filter after each use.
Remove by pulling straight up.
Cleaning filter
Use wiping cloth or your fingers.
Install filter
If the filter is cleaned by damp cloth
or water, please install after
the sun dry.
Cleaning cabinet and inner tube
•
•
•
•
•
Use soft damp cloth wipe when
cleaning cabinet and inner tube.
Not to rinse by water direct.
Not to use neutral scour wipe.
Not to use gasolene and alcohol wipe.
Make sure open the front door for aeration after
cleaning the inner tube.
Safety reset
1. These dryers have a safety cut out switch which is activated by temperature.
2. The safety reset button is on the backboard. If your dryer not heating this button must
be reset before the dryer can heat again. You may need to wait 10 minutes for cooling
down.
3. The most common reason for the dryer if overheat is a blocked filter.
4.Clean the line filter after each load to prevent overheating of the dryer
The cut out switch may operate for the following reasons:
1. Lint filter is blocked.
2. Exhaust outlets blocked at the back of the dryer.
3. Poor ventilation in the laundry or room-open a window or door
4. Lightweight garment eg. handkerchief, sucked over the filter.
MAINTENANCES
Cleaning And Care

15
Safety Reset Button
Use your finger or a pencil to press the button in until you feel it click.
Trouble Shooting
Trouble Cause Solution
Will not start
External hot or
can smell hot
Clothes too dry
Clothes shrink
Hairball on
clothes
Power cut.
The power plug is not
plugged tight.
Dry clothes exceed.
The temperature fuse is cut.
The lint filter is dirty.
The uptake or exhaust duct is
dirty.
The clothes in machine are
too full.
Not to take out the clothes
in time when finish.
The clothes don’t assort
properly.
The temperature is enacted
too high.
Too dry.
It is right for synthetic fibre
and permanent press fibre
causing hairballs.This is
because the right rub causing.
MAINTENANCES
Wait for switching on electricity.
Check the power socket,make sure plug tight.
The clothes in drier must be after spinning,
and drying clothes can not exceed 7kg.
Please career man restore the temperature fuse.
Make sure clean the lint filter in time.
Clean out the stem.
Make sure the clothes are not too full.
Take out the clothes immediately when finish.
Observe the maintenance label on clothes.
Observe the maintenance label on clothes.
if easy to shrink,should examine the clothes
when dry.Take out the clothes when tiny damp
for too dry.Then hang the clothes until full dry.
Use fabric softener lubricate fibre,please spray
settled gule on cuff and neckline when iron
clothes.Turn the sarcenet out for reducing
rub.

16
MAINTENANCES
Note!
220-240V~
Rated capacity
Rated frequency
Dimension
(L*W*H)
Rated input power
Rated voltage
555*595*840(mm)
2000W
Weight of product 33kg
7.0kg(Dry clothes)
50Hz
Model
MVSD7W
The sound of dryer when runs can cause
Due to heavy wet clothes’ turning and bumping, and
this will cause noise accordingly.
Air bumping: When drying, machine will generate steam which will come
out from pipe and this will cost bumping with the bottom of inner tub.
The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the
do not exceed the rated capacity each time.
appliance
E3
E4
Temperature
Sensor error
Temperature
Sensor error
Temperature Sensor
is open or PCB fault
Temperature Sensor
is short or PCB fault
Stop the program
and go to fault
state
Stop the program
and go to fault
state
Led 3H and
6H flashing
Led 3H and
6H flashing
Error
code description Criteria Action after fault
debounced
Failure
indication
Other functions description
Technical Specifications
E33/
E36
Temperature
Sensor error
Temperature Sensor
is open or short
Stop the program
and go to fault
state
Ambient temperature
+5°c~+35 c°
Parameter

17
MAINTENANCES
Product Fiche
MVSD7W
7kg
Air-Vented
C
519.7Wh / year
Automatic
N/A
4.44kWh
2.31kWh
0.46 W
0.48 W
10 min
105min
145min
75min
69dB
Model
Rated Capacity
Dryer Type
Energy efficiency class
Weighted annual energy consumption (AE )
Automatic or non-automatic
EU Ecolabel
Energy consumption of the standard cotton programme
Energy consumption of the standard cotton programme at full load
Energy consumption of the standard cotton programme at partial load
Power consumption of the off-mode (Po)
Power consumption of the left-on mode (Pl)
Duration of the left-on mode
Programme time of the ‘Standard Cotton programme'
Weighted programme time of the standard cotton programme at full and partial load
Programme time of the standard cotton programme at full load
Programme time of the standard cotton programme at partial load
Sound power level for the standard cotton programme at full load
*1
*1
Remarks:
Energy consumption per year, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes.
Actual energy consumption per cycle will depend on how the appliance is used.
c

Here For You
Here For You
After-sales assistance
If you continue to experience problems with your Tumble Dryer, please call the Montpellier customer service
helpline on: 01759 487839
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
rst 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
• Any defect caused by accident, misuse, unauthorised modification or inexpert repair.
•Cost of Call-out where a fault cannot be found with the appliance.
•C ost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of filters or
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures
carried out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by Montpellier service and/or carried out by a non-
approved Montpellier engineer.
•Montpellier Appliances do not accept claims for consequential loss, rusting, corroding, delivery damage
or scratches.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To register your appliance simply complete the card in your appliance pack and return it with a stamp axed or
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 01759 487839
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.
