montpellier MTDI7S User manual

Integrated Tumble Dryer
MTDI7S - 7kg Sensor Dryer
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Tumble Dryer.
Our Washer Dryer has been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing or
using your Washer Dryer to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Tumble Dryer is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your Washer
Dryer, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be accompanied
by the model reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This can be
found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

IMPORTANT: PLEASE READ THESE
INSTRUCTIONS THOROUGHLY BEFORE USING
THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR
FUTURE REFERENCE.
MTDI7S
IMPORTANT USER INFORMATION
These notes are provided in the interest of safety. You
must read them carefully before installing or using this
appliance
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be carried out by children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
•This tumble dryer is intended for domestic use only
•The room must be adequately ventilated to avoid back
flow of gases into the room from appliances burning gas
or any other fuels. This includes open fires.

•Exhaust air must not be discharged into a flue which is used
for exhausting fumes from appliances burning gas or any
other fuels.
•Any electrical work required to install the appliance
should be carried out by a qualified person.
•This tumble dryer should be serviced by an appointed
service organization and only genuine spare parts used.
•It is dangerous to alter or modify the product in any
way, other than fitting authorized accessories.
•It is important to clean the lint filter after each drying cycle.
•Under no circumstances should anything other than
the recommended articles be placed in the tumble
dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
•Do not place articles which have been in contact with
dry cleaning fluid or other flammable substances in the
tumble dryer.
•Do not attempt to dry dripping wet articles.
•Remove all objects from pockets such as lighters
and matches.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and
clothes or pillows fitted with foam rubber pads
should not be dried in the tumble dryer.

INSTALLATION:
The tumble dryer is fully compatible with any 600mm deep kitchen units and complies
with stringent EEC regulations.
Your dryer is provided with a vent hose which will extend to approx. 2.4m (8ft). We
strongly recommend that this is vented through the wall with the attachment provided.

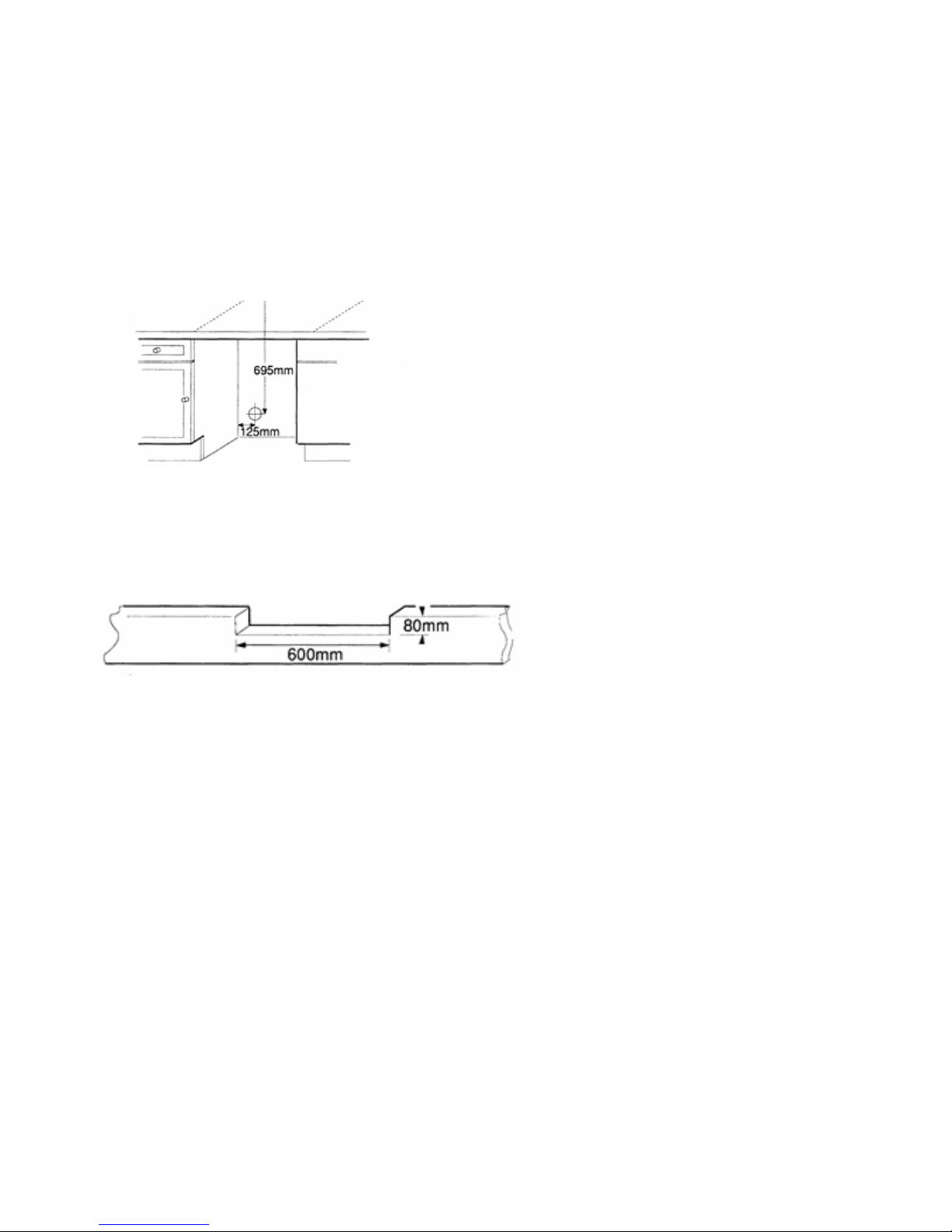

The position of the hole (100mm diameter) for the vent directly behind the tumble dryer
is shown in the diagram.
If the through the wall vent is to be positioned other than behind the dryer, the vent
hose should be positioned at floor level and through adjacent side panel to a relevant
position. The plinth must be cut-out to accommodate the air vent grill at the bottom
front of the tumble dryer.
IMPORTANT:
The air vent at the front of the appliance must never be covered or blocked in any way
as this will cause the dryer to overheat.
This appliance must not be installed behind a lockable door, a sliding door or a door
with hinges on the opposite side to that of the tumble dryer.
The dryer should not be installed behind a lockable door, a sliding door or a door
with hinges on the opposite side to that of the tumble dryer.
ELECTRICAL CONNECTIONS: We strongly recommend that any electrical work is
carried out by a qualified person complying with the IEE 17th addition of the
electrical regulations.
IMPORTANT:
Please remember that the tumble dryer must be capable of being switched off,
(disconnected from the supply), when fitted in position.

The actual machine height is 80.0cm, without the
fixing bracket/plinth attached.
The bracket/plinth supplied must be fitted to the
machine, it not already. It is a stability mounting
bracket and aids installation as you have
adjustable feet at the bottom of the plinth which
can be adjusted from the standard 12mm to
30mm if needed. You can remove the feet if the
machine is to be fitted via the bracket to a level
surface. This gives you 85.3cm total height.
The bracket/plinth supplied measures at 53mm with 12mm added for the feet. So please take
into account the feet measure 12mm at their lowest setting up to 30mm fully extended. This
now gives you a total height including bracket and feet of 86.5 (lowest) – 89.0cm (max)
depending on feet extension. Please allow 1-2mm difference if fitting to exact measurements.
The hinges can be fastened through the pre-drilled holes on either the left or right
hand with the door stops being fitted on the other side.
ADDITIONAL INSTALLATION INFORMATION:
Please see below for detailed fitting sizes with images to help explain the actual
product and dimensional proportions on the machine and its fitting bracket/plinth.
TECHINCAL DATA:
Overall Dimensions:
H: 86.5-89 W: 59.5 D: 53cm
Maximum dry weight of cotton, linen – 7.0kg
& synthetics – 7.0kg.
For electrical ratings see plate on rear of
machine.
Fuse rating: 13amp.
THE DÉCOR DOOR:

The door on the dryer can be positioned either with the left or right hand hinging.
Please follow illustration below to change the door position.
If the clothes are not dry after normal drying time:
•Check the filter is clean
•Check that you used the correct heat setting.
•Check that the venting hose is not blocked (sometimes a strong wind may
cause a back pressure.
•Check that you have not set the timer within a cool down period.
DOOR REVERSAL:
APPLIANCE DOOR
THE FILTER:
The filter is found, as seen from the diagram, by opening the door
and must always be in position when drying items in the
appliance. To allow the dryer to operate efficiently it should be
cleaned after each drying cycle. Do not be alarmed by the amount
of fluff deposited on the mesh. It is not due to excessive wear
caused by the dryer but more an indication of its efficient
operation. All fabric loses fluff when drying but it goes unnoticed
into the air. In a tumble dryer it simply collects in the filter.
DO NOT’S….
DO NOT - Overload the dryer.
DO NOT - Dry items singly as they tend to roll up and so increase drying time.
DO NOT - Dry woolen or wool mixture articles unless the article is labelled as suitable.
DO NOT - Allow venting hose (where applicable) or filter to become blocked.
DO NOT - Allow fluff to accumulate around the tumble dryer.
NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM –RISK OF FIRE!
ANY PROBLEMS:

When drying large items such as sheets, we suggest you periodically stop the dryer
to redistribute the load. To stop the machine during a programme, simply open the
door, the drum will stop rotating automatically and restart when you close the
door. Press the start button to restart the machine.
WARNING:
Never stop a tumble dryer before the end of a drying cycle unless all items are
quickly removed and spread out so the heat is dissipated.
•Failure to clean the filter will extend drying times and cause the safety cut-out to
operate.
•Pull the filter upwards and away from the appliance.
•Remove threads or fluff by hand or with a soft brush.
•Slide the filter back.
•Wash the filter occasionally in detergent solution and with a soft brush to remove
small particles.
If the clothes are not dry after normal drying time:
•Check that you have used the correct heater setting.
•Check the fuse in the moulded plug.
•Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.
•Check that your dryer is heating – The right side below the door should feel warm
after the first 10-15 minutes of its programme. Failure to heat may indicate the
safety cut-off has operated. To reset, simply press the red button at the rear of the
machine. If operated, a sharp click will be heard. This cut-off only operates if the air
flow is severely restricted so make sure the filter is clean, the air inlets and outlets at
the front and back are not blocked, and that all other restrictions are removed
before re-starting. If the cut-out continues to operate after checking the above
points, you should contact your service agent on 03333 234 473.
Your dryer is designed to operate in a room temperature range of 5°c to 30°c
NOTE: NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM –RISK OF FIRE!
AFTER REMOVING THE DRIED CLOTHES: ALWAYS CLEAN THE FILTER.
TO AVOID MINOR FAULTS:

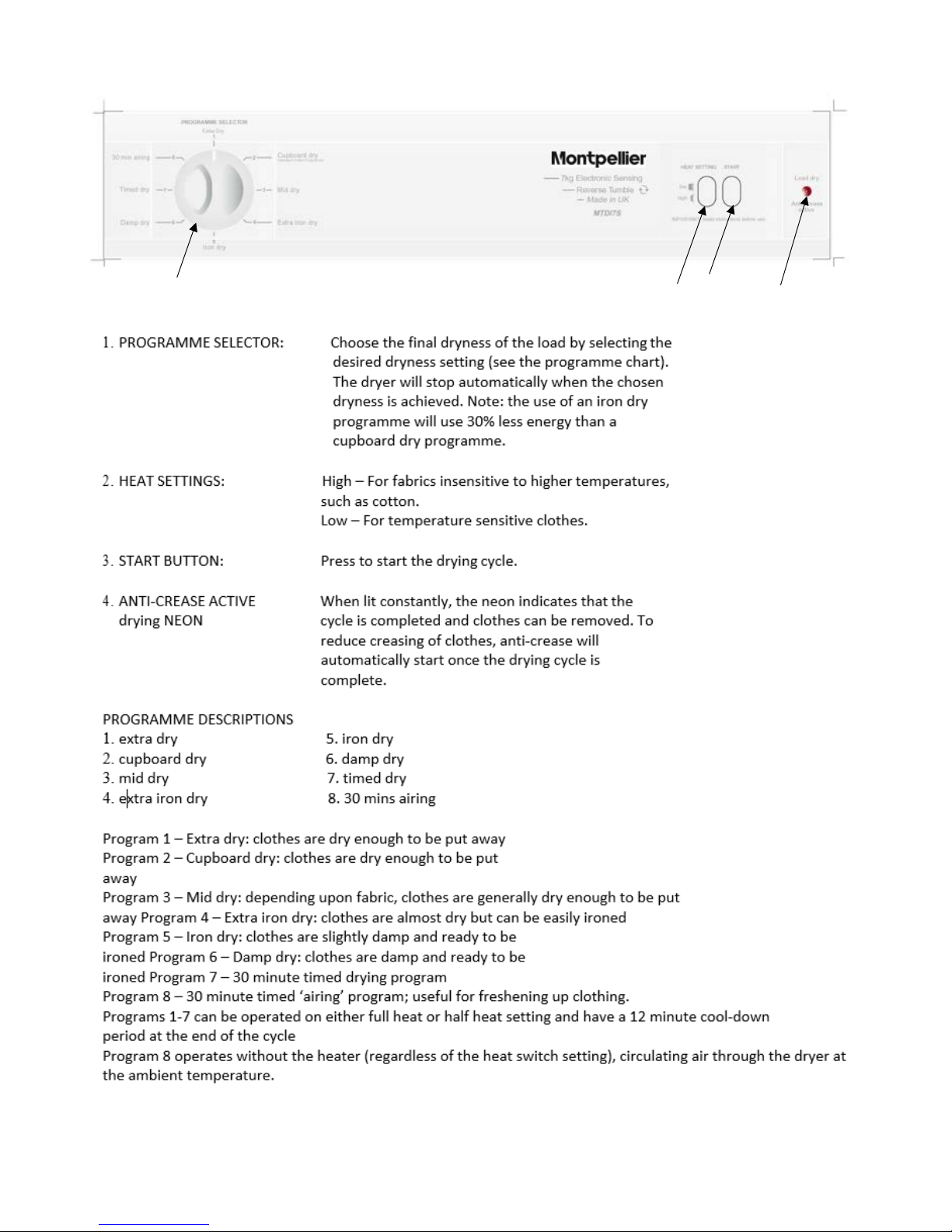

CONTROL PANEL GUIDE:
1
3
2
4
PLEASE NOTE: THE DRYER WILL CONTINUE TO RUN IN ANTI-CREASE MODE UNTIL THE
DOOR IS OPENED

Do not tumble dry woollen or wool mixture articles unless the article is labelled to be suitable due to
possibility of shrinkage.
The standard cotton programme is suitable to dry normal wet cotton laundry. It is the most efficient
programme in terms of energy consumption for drying wet cotton laundry.
Your appliance is a reversing, small door opening. A full load will typically take 135 minutes and will
use approximately 4,39kWh of electricity. A half load will typically take 76 minutes and will use
approximately 2, 38 kWh of electricity.
The power consumption of the off-mode and he left-on mode is zero
Open the door, Load the clothes loosely into the drum.
Load sheets first starting with one corner.
Close the door & dry your hands.
Switch on the machine at the socket/power supply.
Select correct heat position (See programme chart on fascia panel).
Set the programme to the required dryness setting (See programme chart on fascia panel).
Press the start button.
The drum will rotate in anticlockwise direction for a short period of time.
The drum will then begin to rotate clockwise and will stop automatically when your clothes are dry.
The drum will stop and rotate anti-clockwise every few seconds to reduce creasing.
There is an automatic 12 minute cool down period at the end of every cycle, during which the
heater is switched off. This is to help minimize creasing.
After each of the programmes, the machine goes into anti-crease. This feature rotates the drum for
briefly every 6 minutes until the dryer is stopped or the door is opened.
DRYING YOUR LAUNDRY:
BEFORE DRYING
Check care labels inside the garments

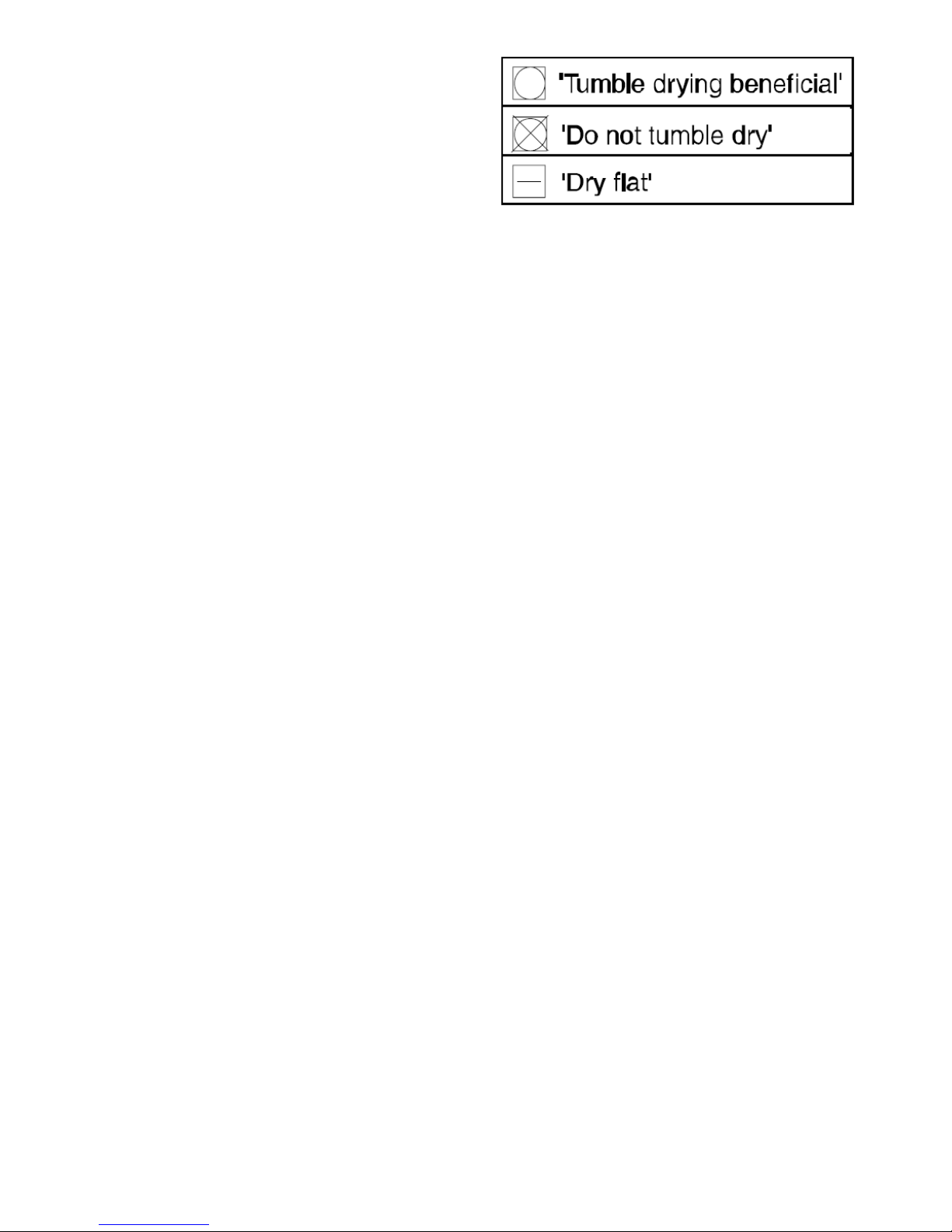

CARE LABELS YOU MAY
FIND ON YOUR FABRICS
Place delicate articles, e.g. tights and scarves, inside a pillowcase.
Sort out clothes into groups of similar fabrics and colours.
Check the care label inside the garment.
We suggest that a fabric conditioner be used to reduce static electricity.
To avoid the need to iron easy care polyester/cotton items, it is better to only dry small loads (i.e. half
fill the drum). It is better to dry small and large articles together.
Delicate articles e.g. tights should be placed inside a pillowcase.
It is better to dry small and large articles together.
Do not dry unwashed items in the tumble dryer
Remove all objects from pockets such as lighters and matches.
Do not overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important that
the air flow through the dryer is not obstructed.
RUNNING THE MACHINE:

Suppliers name or trade mark MONTPELLIER
Model identifier MTDI7S
Rated capacity at full load 7kg
Appliance type Air Vented
Energy efficiency class C
Energy consumption of the appliance* 519kWh
The figures above is based on 160 drying cycles of the standard cotton programme at full and
partial load and the consumption of the low-power modes. Actual energy consumption per cycle will
depend on how the appliance is used.
Automatic/non-automatic Automatic
EU Ecolabel N/A
Edry 4.39kWh
Edry½ 2.38kWh
Egdry N/A
Egdry½ N/A
Egdry,a N/A
Egdry½,a N/A
Off mode power (Po) 0W
Left on mode power (Pl) 0W
Duration of left-on mode N/A
The standard cotton programme used at full and partial load is the standard drying programme to
which the information in the label and the fiche relates. This programme is suitable for drying
normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for
cotton.
Tt101mins
Tdry 135mins
Tdry½ 76mins
Condensing efficiency class N/A
CtN/A
Cdry N/A
Cdry½ N/A
Sound power level 62dBA
Built in/not built in Model MTDI7S is intended on being built
in.

Here For You
Here For You
After-sales assistance
If you continue to experience problems with your Tumble Dryer, please call the Montpellier customer service
helpline on: 03333 234 473.
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
rst 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
• Any defect caused by accident, misuse, unauthorised modication or inexpert repair.
•Cost of Call-out where a fault cannot be found with the appliance.
• Cost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of lters or
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures carried
out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by Repairtech and/or carried out by a non-approved
Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To register your appliance simply complete the card in your appliance pack and return it with a stamp axed or
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 03333 234 473.
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city oce, your household waste disposal service or the shop where you purchased the product.
www.montpellier-appliances.com
Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway Lane,
Tewkesbury, Gloucestershire GL20 8JU
