montpellier WS181SDX User manual

Freestanding 181 Bottle Wine Cooler
WS181SDX - Stainless Steel
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Wine Cooler.
Our Wine Coolers have been designed to provide you with the best combination of style, reliability and
performance to give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Wine Cooler to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Wine Cooler is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your Wine
Cooler, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can be
found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
1

2
Description of the Appliance
1. Control Panel & LED Display
2. Shelves (x 14)
3. Tempered Glass Door
4. Door Handle
5. Levelling Feet
6. Ventilation Panel
2.
2.
3.
1.
4.
5.
6.

3
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

4
Section 1. Installation
This appliance is intended to be used exclusively for the storage of wine.
This appliance is designed for domestic use only and should be operated in
ambient temperatures (surrounding air temperature) between 16°C and 32°C
(61-90°F). If these temperatures are exceeded i.e. colder or warmer, the
appliance will not operate correctly.
1.1. Before Use
Remove all securing tapes. Wash the inside of the appliance with lukewarm
water with a little bicarbonate of soda added (5ml to 0.5 litre of water). Do not
use soap or detergent as the smell may linger. Dry the appliance thoroughly.

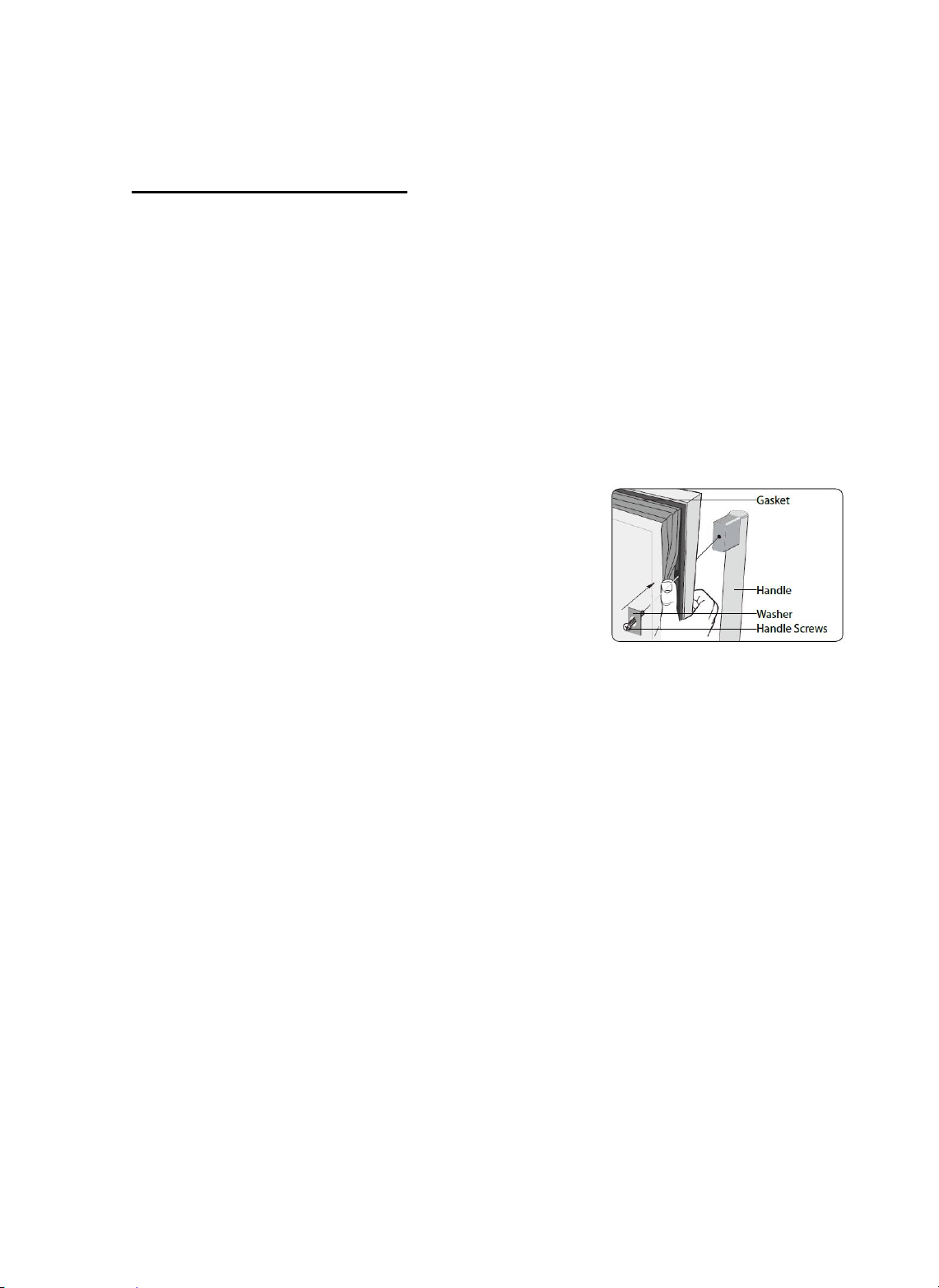

1.2. Installing the Door Handle
Carefully ease the door seal to one side
Attach the door handle using the two screws
Ease the door seal back into place
1.3. Installation & Ventilation Requirements
To ensure correct operation this appliance must not be located where the
temperatures may fall below 16°C or rise above 32°C.
Avoid the following locations: unheated kitchen, outhouse, conservatory,
garage.
For correct operation this appliance must be installed:
-In a dry atmosphere
-Out of direct sunlight.
-Away from extreme temperature (not next to a cooker or other sources of
heat)
Ensure the following points are observed during installation:
-The appliance must be placed on a strong floor
-The appliance must be level. Adjust the level by screwing the adjustable
foot up or down (use your fingers or a suitable spanner)
-The appliance must be upright and in firm contact with the floor so that
the cabinet is stable.
-You must ensure that the Front Ventilation Panel remains clear.

5
1.4. Shelves
The shelves can be pulled out by approximately 1/3 in order to facilitate
access to your wine.
Depending on the model supplied, your wine cooler will be fitted with
non-telescopic or telescopic shelves (see image below).
Always ensure that the door is fully open before pulling out the shelves.
Failure to do this may damage the door seal which may not be covered
under the guarantee.
Do not place any form of material across the shelves as this will prevent
air-circulation inside the unit and prevent your wine cooler from operating
correctly.

6
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect
installation and usage.
-If this appliance is to replace an old refrigerator with a lock; as a safety
measure break or remove the lock and/or door before disposal.
-Your old appliances contain insulation gases and refrigerant that must be
disposed of correctly. Please ensure that the refrigerant circuit is not
damaged before the appliance is taken away for correct disposal in line
with current legislation. If there is any doubt contact your Local Authority
for instructions.
-This appliance may contain the refrigerant isobutene (R600a). This is a
natural gas with a high level of environmental compatibility; however,
caution is required as isobutene is a flammable gas. It is essential to ensure
that refrigerant tubes are not damaged during transportation and the
installation of the appliance. In the event that the refrigerant circuit is
damaged, avoid naked flames or sources of ignition and ventilate the room
in which the appliance is situated.
-Do not damage the refrigerant circuit.
-The appliance shall not be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction on how to use the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children
without supervision.
-Do not allow children to play with the appliance. Children must never
play in or around the appliance.
-If using an adaptor, this must be used in accordance with the
manufacturer’s instructions and ensure that the electrical circuit is not
overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot surfaces.
-Do not plug ın or unplug this appliance with wet hands.
-Following installation make sure that the power cable is not trapped
underneath the appliance.
-If the power supply cord is damaged, it must be replaced by the
manufacturer, it’s service agent or similarly qualified persons in order to
avoid a hazard.

7
Section 3. Operating the Appliance
3.1. Switching on the Appliance
-Allow the appliance to stand for a minimum of 4 hours after installation.
-Plug in the appliance and switch on at the mains supply.
-Press and hold the Power button for 10 seconds (To turn the unit off,
simply press and hold the Power button for 10 seconds).
-Set the temperature control to the required setting as detailed in the
Temperature Control section.
-Leave the appliance for approximately 4 hours for the correct
temperature to be reached.
-To lock the control panel, press and hold the Power & Lighting buttons
for 3 seconds. (Press and hold for 3 seconds to de-activate).

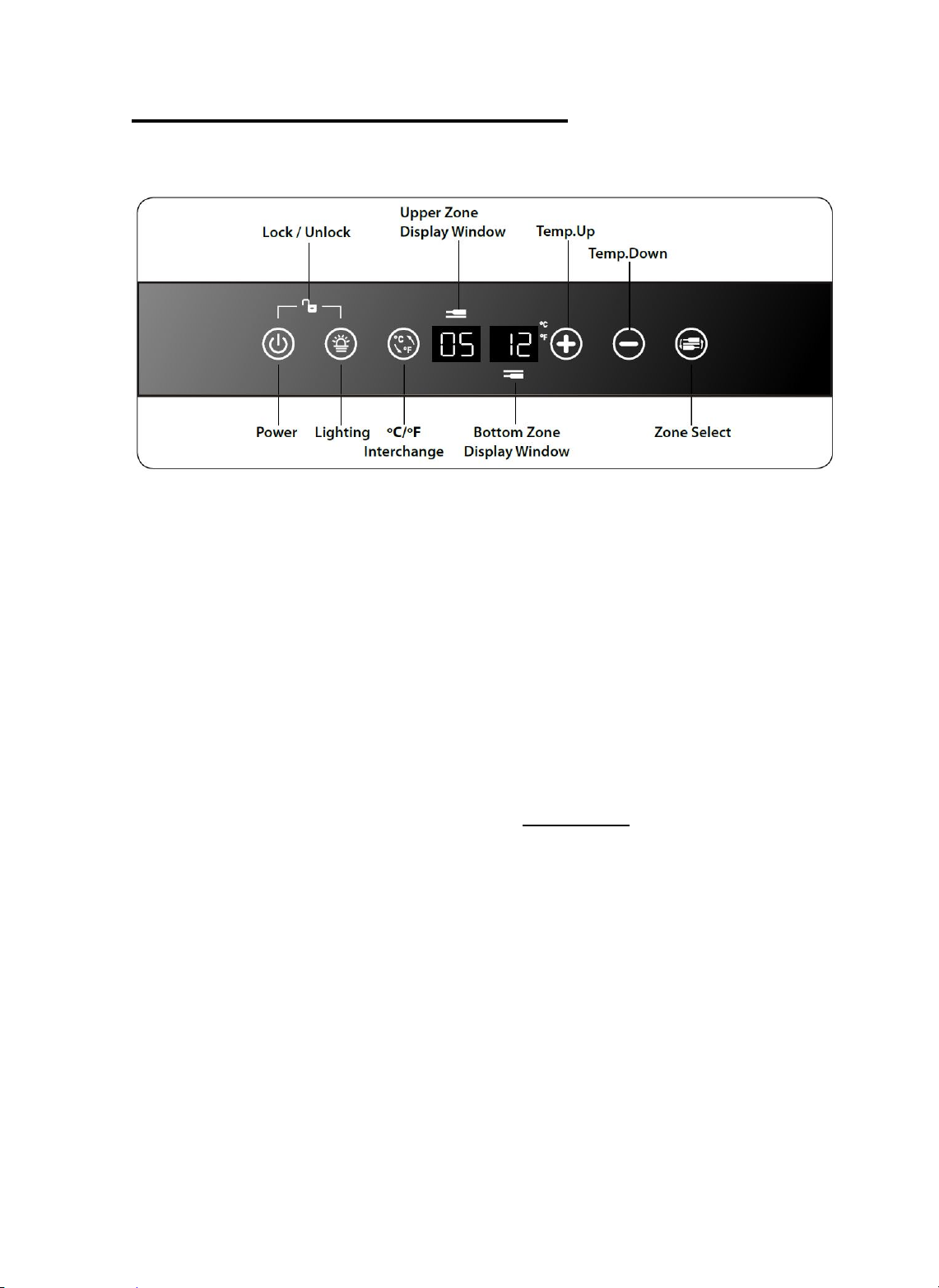

3.2. Temperature Control
Please note that this is a wine cooler and not a fridge. This appliance is
intended to be used exclusively for the storage of wine. The interior of this
appliance will not get as cold as a fridge – it is designed to maintain wines
at the correct temperature. The temperature range is 2°- 12°C (36-54°F) for
the Upper Zone and 12°- 20°C (54-68°F) for the Lower Zone.
-Press the °C/°F Interchange button to change between Fahrenheit (°F)
& Celsius (°C).
-Press the ‘Lighting’ button to turn on or turn off the interior light.
-Select the Zone by pressing the ‘Zone Select’ button
-Adjust the temperature by pressing ‘+’ or ‘-’
-After approximately 10 seconds, the display will revert to showing the
current temperature inside the cabinet. N.B. It will take a period of time
for the appliance to reach the actual required temperature following
the setting or adjustment of the temperature on the control panel.

8
3.3. Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out.
3.4. Energy Saving Advice
Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator. Locate the appliance in a cool well-ventilated room and
make sure that the air vents are clear.
Try to avoid keeping the door open for long time, warm air will enter the cabinet,
and may cause condensation as well as affecting the energy consumption.
Ensure there are no obstructions preventing the door from closing properly
3.5. In the Event of a Power Failure
If there is a power failure, keep the door closed. When the power has been
restored the appliance will start to operate but it may take some time to achieve
the pre-set operating temperature.

9
Section 4. Maintenance
Before any maintenance or cleaning work is carried out, DISCONNECT the
appliance from the ELECTRICITY supply.
4.1. Internal Cleaning
Clean the inside and accessories with warm water and bicarbonate of soda (5ml
to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents,
abrasive powders, highly perfumed cleaning products, wax polishes or cleaning
products containing bleach or alcohol.
4.2. External Cleaning
Wash the outer cabinet with warm soapy water. Do NOT use abrasive
products. There may be sharp edges on the underside of the product, so care
should be taken when cleaning. Once or twice a year dust the condenser (black
grille) and the compressor at the back of the appliance, with a brush or vacuum
cleaner, as an accumulation of dust will affect the performance of the appliance
and cause increased energy consumption.
4.3. When the appliance is not in use
When the appliance is not in use for long periods, i.e. nothing is being stored
in the appliance, disconnect from the electricity supply, clean the appliance,
leaving the door ajar until you wish to use the appliance again.
4.4. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
-Check the fuse in the plug (Must be 13 amp)
-Check that the Temperature Control has been set correctly (section 3.2.)
The compressor runs continuously:
-Is the door closed correctly?
-Have large quantities of bottles recently been added to the appliance? –
if yes, allow the interior temperature to recover
-Has the appliance door been opened frequently? – if yes, allow the
interior temperature to recover
-Check that the Temperature Control has not been set to maximum
