montpellier MSBFO65B User manual

65ltr Single Fan Oven
MSBFO65B - Black
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be accompanied
by the model reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
NB: Please make sure that you keep a copy of your original sales invoice as this
will be needed if any service call is required.
There are three ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don't forget to include your e-mail address so that we can send
confirmation through to you.
By Phone: Contact our warranty registration department on 0808 1961388
Welcome
Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing or
using your appliance to ensure you get the most from your purchase.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
•
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation and
maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this book for
future reference.
The design and specifications are subject to change without prior notice for product improvement.

IMPORTANT SAFETY INSTRUCTIONS
PRODUCT INSTALLATION
1
5
6
7

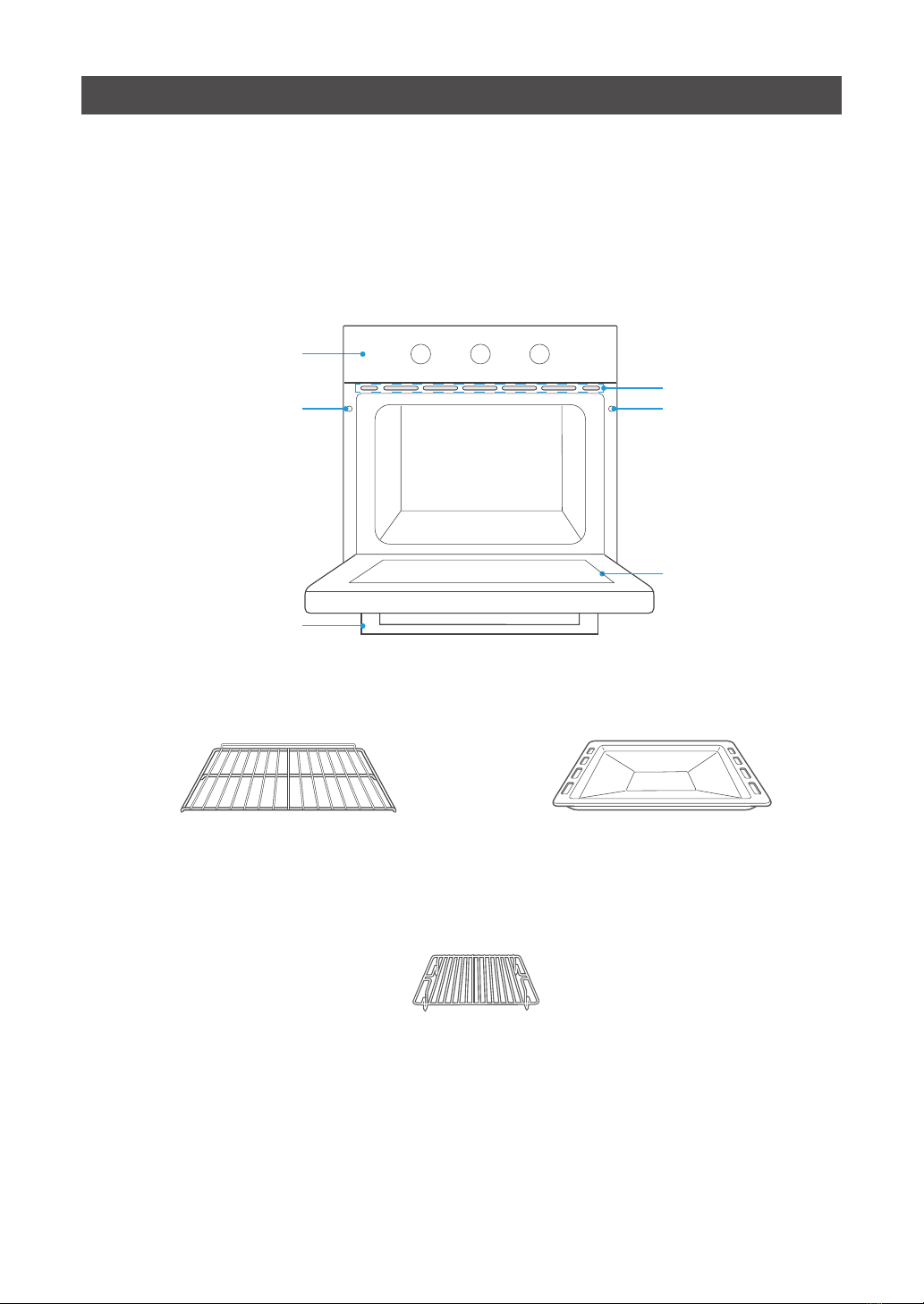

Oven
Accessories
Accessories use
Control panel
Before using for the first
time Regular operation
Mode setting
Manual mode
Minute minder
8
8
9
10
11
11
12
12
12
Cleaning
Lamp replacement
13
13
14
14
15
CONTENTS
Cupboard diagram (Standing Cupboard)
Cupboard diagram (Ground Cupboard)
Installation Important Instructions
Installation steps
16
PRODUCT INTRODUCTION
CLEANING AND MAINTENANCE
TROUBLESHOOTING
SPECIFICATIONS
PRODUCT RECYCLING
HERE FOR YOU
4

1
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF
SAFETY. PLEASE READ THEM CAREFULLY BEFORE
INSTALLING OR USING THE APPLIANCE.
To maintain the EFFICIENCY and SAFETY of this appliance, we
recommend:
Call only the Service Centers authorized by store where you buy the cooker
Always use original Spare Parts
•When the oven is first switched on, it may give off an unpleasant smell.
This is due to the bonding agent used for the insulating panels within the
oven. Please run the new empty product with the conventional cooking
function, 250°C, 90 minutes to clean oil impurities inside the cavity.
•During the first use, it is completely normal that there will be slight smoke
and door. If it does occur, you should wait for the smell to be cleared before
putting food into the oven.
•Please use the product under an open environment.
•The appliance and its accessible parts become hot during use. Care
should be taken to avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously supervised.
•If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock.
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appli-ance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
•During use, the appliance becomes very hot. Care should be taken to
avoid touching heating elements inside the oven.
•Do not allow children to go near the oven when it is operating, especially
when the grill is on.
IMPORTANT SAFETY INSTRUCTIONS

2
•Ensure that the appliance is switched off before replacing the oven lamp to
avoid the possibility of electric shock.
•The means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring specifications.
•Children should be supervised to ensure that they do not play with the
appliance.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by person responsible for their safety.
•Accessible parts may become hot during use. Young children should be
kept away.
•An all-pole disconnection means must be incorporated in the fixed wiring in
accordance with the wiring rules.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
•Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.
•A steam cleaner is not to be used.
•The appliance is not intended to be operated by means of an external timer
or a separate remote control system and should not be used with any kind
of extension lead.
•The instructions for ovens that have shelves shall include details indicating
the correct installations of the shelves.
•Do not use the oven unless you are wearing something on your feet. Do
not touch the oven with wet or damp hands or feet.
•For oven: Oven door should not be opened often during the cooking period.
•The appliance must be installed by an authorized technician and put into
use. The producer is not responsible for any damage that might be caused
by defective placement, and installation by unauthorized personnel.

•When the door or drawer of oven is open do not leave anything on it, or
you may unbalance your appliance or break the door.
•Some parts of appliance may keep its heat for a long time; it is required to
wait for it to cool down before touching onto the points that are exposed to
the heat directly.
•If you will not use the appliance for a long time, it is advised to plug it off.
3
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged in
any way. If you have any doubts at all, do not use it: contact a professionally
qualified person. Keep packing materials such as plastic bags, polystyrene, or
nails out of the reach of children because these are dangerous to children.

4
PRODUCT INSTALLATION

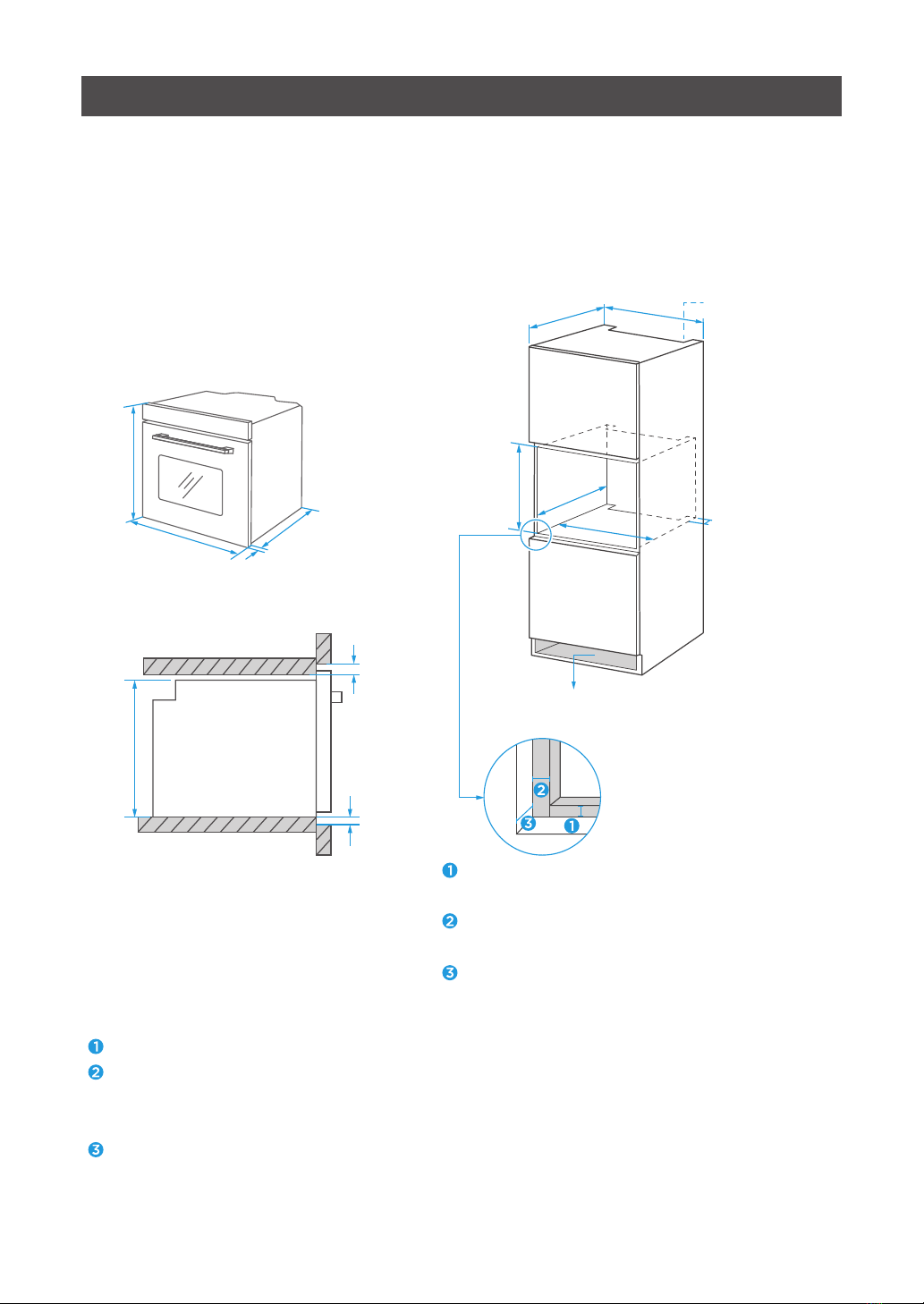

600
Min.590
Min.50
Air vents
+8
560
*
590
5
20
20
If there is any discrepancy between the illustration and the actual
product, please refer to the actual product.
Cupboard diagram (Standing Cupboard)
Min.570
Minimum bottom ventilation area: 250 mm2
Ｇ
10
583
Ｇ5
595
595 20
555
Native appliance
Reserve 5 mm for the door panel at the
top and bottom respectively.
Reserve 20 mm for the door panel on
the left and right respectively.
Reserve 20 mm for the door panel in
thickness.
The thickness of the cupboard board is 20 mm.
If the power socket is installed on the back of the appliance, the depth
of the cupboard opening shall be increased from a minimum of 590 mm
to 620 mm.
The dimensions in the figures are in mm.

5
Minimum bottom ventilation area: 250 mm2
*
Min.570
If the appliance is installed under the
hob, the minimum thickness of worktop A
is shown below:
Ｇ
5
Native appliance
Without hob
583
Ｇ
5
595
595 20
555

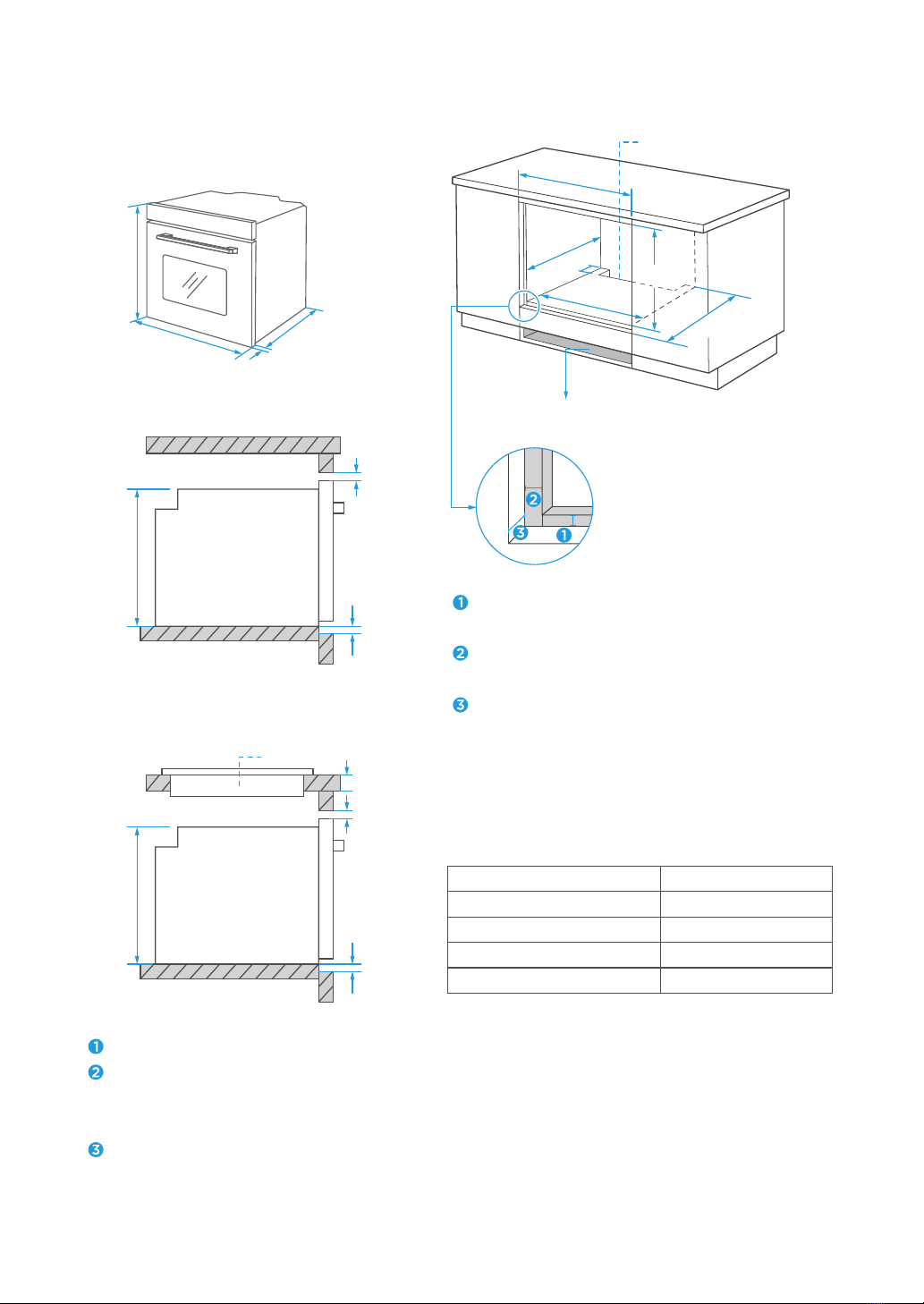

Cupboard diagram (Ground Cupboard)
600
Min.50
600+2
Min.590
+8
560
Air vents
Hob type
Induction hob 37 mm
worktop A
Full-surface induction hob 47 mm
Gas hob
Electric hob
30 mm
27 mm
5
20
20
Hob
Ｇ
5
A
With hob
Ｇ
5
Native appliance
583
The thickness of the cupboard board is 20 mm.
If the power socket is installed on the back of the appliance, the depth
of the cupboard opening shall be increased from a minimum of 590 mm
to 620 mm.
The dimensions in the figures are in mm.
Reserve 5 mm for the door panel at the
top and bottom respectively.
Reserve 20 mm for the door panel on
the left and right respectively.
Reserve 20 mm for the door panel in
thickness.

6
Installation Important Instructions
Content that means [mandatory]
•The safe operation of this appliance can only be guaranteed if it has
been installed to a professional standard in accordance with these
installation instructions. The installer shall be liable for any damage
resulting from incorrect installation.
•The entire installation process requires two professional installers. Wear
dry protective gloves during installation to avoid scratch or electric
shock.
•Fitted units must be heat-resistant up to 90°C, and adjacent unit fronts up
to 70°C.
•Please use a 13A plug and standard 13A switched socket.
Content that means [prohibit ]
•Do not install the appliance behind a decorative door or the door of a
kitchen unit, as this may cause the appliance to overheat.
•Check the appliance for damage after unpacking it. Do not connect the
appliance if it has been damaged in transit.
•Do not block the vent of the appliance and the gap between the
cupboard and the appliance.
•Use extreme caution when moving or installing the appliance. It is very
heavy, do not lift the appliance by the door handle.
•If the power cord or power plug is damaged, stop using the appliance
immediately, to avoid fire, electric shock or other injuries.
Content that means [note]
•Be very careful when moving or installing the appliance to avoid damage
to the appliance or damage to the cupboards.
•Before starting up the appliance, remove all packaging materials and
accessories from the cavity.
•The power socket shall be accessible to users (such as next to the
cupboard) for easy power-off.
•After installation is complete, make sure that the power plug is firmly
inserted into the socket.
•Please refer to the "Cupboard Diagram" for the requirements of net
depth of the cupboard. The clearance between the cupboard bottom
board and the rear board (or wall) shall not be less than 50 mm.

7
•Please customize the cupboard according to the "Cupboard Diagram".
•Before installation, please check for normal power socket and appropriate
grounding, and check whether the cupboard dimension meets the
installation requirements.
•Place the appliance in designated locations in the kitchen, install it in a
vertical cupboard, and connect the power supply.

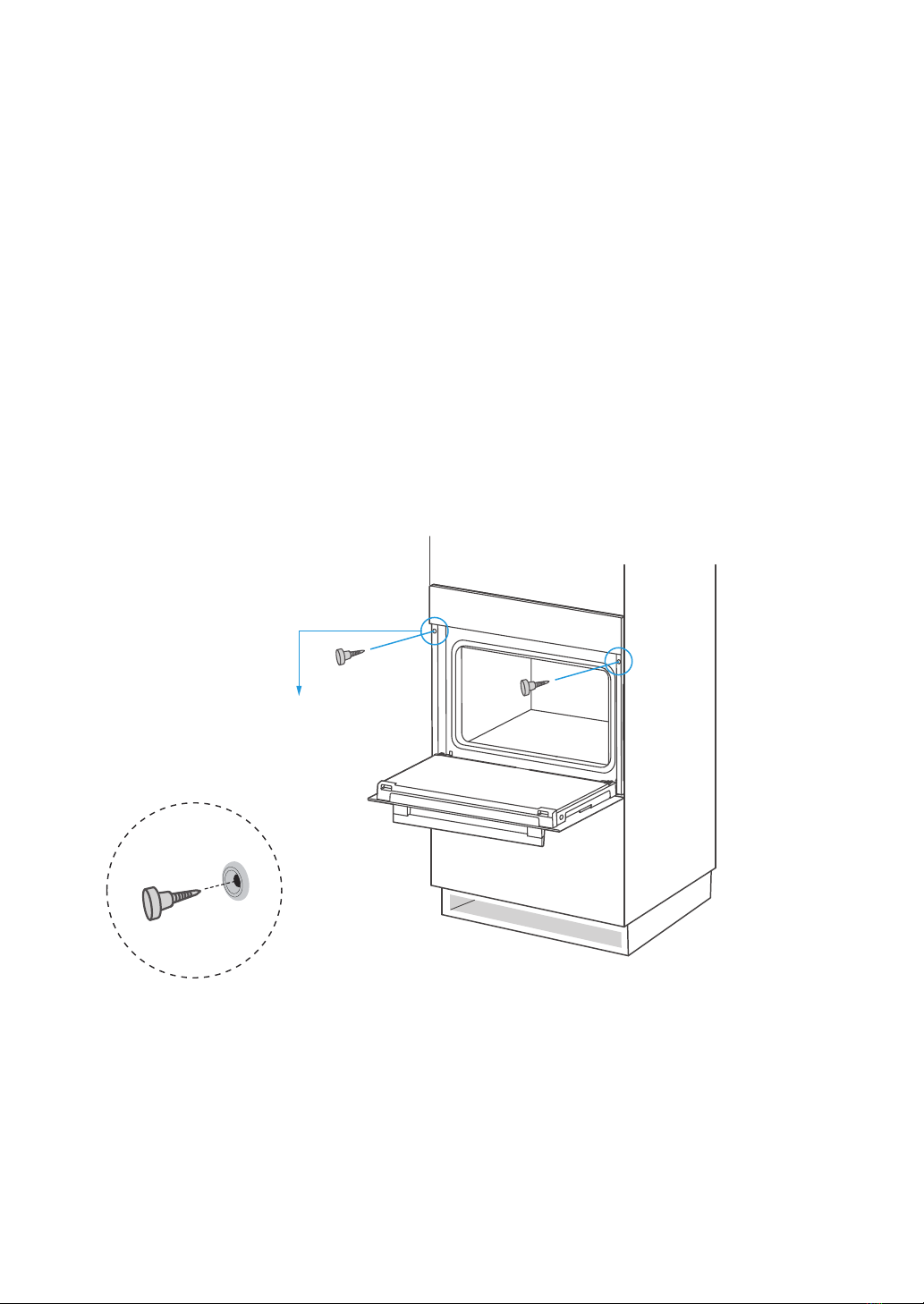

•To locate the mounting fixing holes, open the appliance door and look at
the side frame of the appliance (position shown below).
•Fix the appliance to the cupboard with two rubber plugs A and screws B
provided with the appliance.
Installation steps
Mounting fixing hole
B
A

8
PRODUCT INTRODUCTION
Oven
When removing food, please wear heat insulating gloves to prevent burns! At
the moment of opening the door of the oven, pay attention to the heat/steam.
Please open the door at a small angle to avoid the heat/steam burning your
face.
Control panel
Mounting fixing hole
Handle
Ventilating openings
Mounting fixing hole
Glass door
Accessories
Grill / Baking tray
Cook large portions of food or
catch food scraps
Shelf / Grill rack
Place heat-resistant cooking
containers or Grill food
Small grill rack
Cook smaller portions of
food

9
Accessories use
For the oven to work properly, the accessories should only be placed
between the first and fifth levels. Never cook with anything placed on the
base of the oven. When used together, place the Grill tray under the grill rack.
For regular grilling use the Grill tray and small grill rack together.
1
2
4
3
5

10
The cooking process can be observed under illuminated
conditions. Except ECO function.
The radiant heating element is working with the fan.
Function Function introduction
Lamp
Single grill
Single grill with fan
Defrost
The circulation of air at room temperature enables quicker
thawing of frozen food (without the use of any heat).
The inner grill element switches on and off to maintain
temperature. Can be used to grill a small amount of food.
For energy-saving cooking. Cooking the selected ingredients
in a gentle manner, and the heat comes from the top and the
bottom.
ECO
K1: For selecting oven functions.
K2: For setting cook/timer
K3: For setting the temperature.
Control panel
K1 K2
In convection mode, the fan turns on automatically to provide
even heat for single or multi-layer baking. This is particularly
suitable for baking foods that require even coloring.
Fan Oven
50
C
15
30
45
60
7590
105
ECO
F
*
120 100
150
200
250
K3
NOTE: ALL cooking functions are to be carried out with the door closed!
*
ECO

11
Function Temperature Time
Fan Oven 250°C 90mins
Regular operation
•Turn knob K1 to select the oven functions.
•Turn knob K2 for Mode setting - Manual / Minute Minder
•Turn knob K3 to adjust the temperature.
•The oven will automatically start cooking after function, mode and
temperature are set.
•When cooking is finished, turn all knobs to the "O" position.
Before using for the first time
•The oven must not be operated until it has been correctly installed.
•To avoid fire, remove all transport protection materials and ensure that the
oven is free of residual packaging items and accessories (e.g. foam,
cardboard, grill tray, grill rack, etc.).
•Clean the oven cavity and accessories with soapy water and a soft cloth.
•Open kitchen windows and operate cooker hoods to maintain high
ventilation.
•Do not let children or pets into the kitchen and close the doors of adjacent
rooms.
•After connecting the power, activate the oven mode, time, and
temperature in the table below to remove odors in the cavity.
•After the first use, please open the oven door at a small angle and wait for
the cooling to complete.
K1 K2
50
C
15
30
45
60
7590
105
ECO
F
*
120 100
150
200
250
K3

12
Mode setting
Manual mode - the cooking time is controlled by the user.
Minute minder - you can set an audible reminder for the time period of
completion.
Manual mode
If you don't need to set the cooking time, turn the timer knob counterclockwise
to " " the timer will not return to " 0 " automatically and the oven will remain in
power-on state.
Minute minder
If you need to set the cooking time, turn the timer knob clockwise to the time
you need. When the setting cooking time was reached, the timer will return to
" 0 " automatically with the sound of "Ding, Ding, Ding" and the oven will be in
power-off state.
NOTE: The oven will not function while in the " 0 " position even if the function
and temperature have been set.

13
CLEANING AND MAINTENANCE
•After cooking, wait for the oven to cool completely.
•Remove oven accessories, rinse with warm water and dry.
•Clean up food debris from the oven chamber.
•Wipe the oven with a soft cloth stained with detergent, then dry with a dry
soft cloth.
Lamp replacement
Warning
To avoid electric shocks-please ensure that the electricity supply to the
appliance is switched off and the appliance is fully cold. before
removing the lamp lens.
•Switch off and disconnect the power from the oven. Ensure that the
internal parts are cool before touching internal parts.
•Remove the lamp cover by turning it counter-clockwise (note, it may be
stiff), replace the bulb with a new one of the same type.
•Insert the new bulb, which should be resistant to 300°C. For
replacement bulbs contact your local service centre.
•If in any doubt, consult a qualified electrician for help.
Cleaning
Disconnect the power supply before cleaning and maintenance.
In order to ensure the life of the oven, it should be thoroughly cleaned
frequently.
Cleaning steps are as follows:
Notes
•Do not use sharp cleaning tools, hard brush and corrosive cleaning
products, so as not to damage the oven and its accessories.
•Do not use rough scrubbing agent or sharp metal spatula to clean the
door glass.
•Do not place foil or any objects on the base of the oven while in use as
this may damage the oven interior

TROUBLESHOOTING
If the problem cannot be solved or other problems occur, please contact the
after-sales service.
SPECIFICATIONS
Model MSBFO65B
Usable Volume 65L
Rated voltage 220-240V~
Rated frequency 50Hz-60Hz
Electric power 2.1 kW
Has a pungent odor
or smoke
first use No processing required
Unable to start
Power is not connected connect power supply
Problem Possible reason Solution
Cooking mode is not set Check settings
The main power switch
is not turned on
Turn on the power switch
Lamp does not
come on
It's broken Contact after-sales service
Food is not cooked
Burnt or uneven food
Temperature is too low
Food portion is too large
The temperature is set
too high or the heating
time is too long
Adjust the cooking
temperature or time
Fan delays blowing
for heat dissipation
No processing required
Use a higher temperature
The food is too close
to the heating tube
Adjust the placement
layers of accessories
The fan did not stop
working after
stopping the heating
14
Cook food in smaller
pieces or extend the
cooking time.

15
PRODUCT RECYCLING
When you have unpacked the oven, make sure that it has not been damaged in
any way. If you have any doubts at all, do not use it: contact a professionally
qualified person. Keep packing materials such as plastic bags, polystyren, or
nails out of the reach of children because these are dangerous to children.
This symbol on the product or instruction manual indicates that your device
should be disposed of separately from your household waste at the end of its
useful life. There is a separate recycling system locally for recycling. For more
information, please contact the local authority or retailer where you purchased
the product.

Here For You
After-sales assistance
If you continue to experience problems with your appliance, please call the Montpellier customer
service helpline on: 01759 487839
3OHDVH KDYH DOO \RXU SURGXFW GHWDLOV DYDLODEOH LQFOXGLQJ WKH PRGHO QXPEHU VHULDO
QXPEHURULJLQDOVDOHV LQYRLFH FOHDUO\ VKRZLQJ PRGHO QXPEHUGDWH RI SXUFKDVH DQG
\RXUUHWDLOHUVGHWDLOVEHIRUHUHJLVWHULQJDIDXOW
The service call cannot progress without this information.
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of
repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of
purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24
months prior to the date of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer's
instructions
•Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorised modification or inexpert repair.
•Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of
filters or defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal
procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which
require routine replacement.
Repair costs incurred that have not been authorised by Montpellier service and/or carried out by
a non-approved Montpellier engineer.
•Montpellier Appliances do not accept claims for consequential loss, rusting, corroding, delivery
damage or scratches.
YOUR GUARANTEE IS VALID ONLY IN THE UK & REPUBLIC OF IRELAND
To register your appliance simply complete the card in your appliance pack and return it with a
stamp affixedalternatively you can register on line at www,montpellier-appliances.com/
support RUE\SKRQHFDOOLQJRXUZDUUDQW\UHJLVWUDWLRQGHSDUWPHQWRQ
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on:
01759 487839
3OHDVHUHPHPEHUWRKDYHDOO\RXUSURGXFWGHWDLOVDYDLODEOHLQFOXGLQJWKHPRGHOQXPEHU
VHULDOQXPEHUGDWHRISXUFKDVHDQG\RXUUHWDLOHUVGHWDLOVEHIRUHUHJLVWHULQJDIDXOW

Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway Lane,
Tewkesbury, Gloucestershire GL20 8JU
www.montpellier-appliances.com
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal service or the shop where you purchased the
product.
