montpellier SFO74B User manual

Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Built in Single Fan Oven
SFO73B - Touch Control

Thank you for choosing this Montpellier Built in Single Oven.
Our Ovens have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Built in Oven to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Built in Oven is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your Oven
Pack, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

ACKNOWLEDGMENT
Thank you for purchasing our product. We hope you enjoy using the many features and benefits it
provides. Before using this product please study this entire Instruction Manual carefully. Keep this
manual in a safe place for future reference. Ensure that other people using the product are familiar
with these instructions as well.
WARNING
When the oven is first switched on, it may give off an
unpleasant smell. This is due to the bonding agent
used for the insulating panels within the oven. Please
run up the new empty product with the conventional
cooking function, 250 ℃, 90 minutes to clean oil
impurities inside the cavity.
During the first use, it is completely normal that
there will be a slight smoke and odors. If it does
occur, you merely have wait for the smell to clear
before putting food into the oven.
 Please use the product under the open environment.
The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age
shall be kept away unless continuously supervised.
If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock.
This appliance can be used by children aged from 8
years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
2

supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
During use, the appliance becomes very hot. Care
should be taken to avoid touching heating elements
inside the oven.
Do not allow children to go near the oven when it is
operating, especially when the grill is on.
Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of
electric shock.
The means for disconnection must be
incorporated in the fixed wiring in accordance
with the wiring specifications.
Children should be supervised to ensure that they
do not play with the appliance.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by person responsible for their safety.
Accessible parts may become hot during use.
Young children should be kept away.
An all-pole disconnection means must be
incorporated in the fixed wiring in accordance with
the wiring rules.
3

If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they
can scratch the surface, which may result in
shattering of the glass.
Only use the temperature probe recommended for
this oven.
A steam cleaner is not to be used.
The appliances are not intended to be operated by
means of an external timer or separate remote-
control system.
Appliance must not be installed behind a decorative
door in order to avoid overheating.
4

SAFETY HINTS
FITTING THE OVEN INTO THE KITCHEN UNIT
Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into
an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the
frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation,
the measurements and distances adhered to when fixing the oven.
IMPORTANT
If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit
that are next to the oven must be made of a heat resistant material. Ensure that the glues of units that
are made of veneered wood can withstand temperatures of at least 120 ºC. Plastics or glues that
cannot withstand such temperatures will melt and deform the unit, once the oven has been
lodged inside the units, electrical parts must be completely insulated. This is a legal safety
requirement. All guards must be firmly fixed into place so that it is impossible to remove them without
using special tools. Remove the back of the kitchen unit to ensure an adequate current of air
circulates around the oven. The hob must have a rear gap of at least 45 mm.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been
damaged in any way. If you have any doubts at all, do not use it:
contact a professionally qualified person. Keep packing materials
such as plastic bags, polystyrene, or nails out of the reach of
children because these are dangerous to children.
Do not use the oven unless you are wearing something on your feet. Do not touch the oven
with wet or damp hands or feet.
For oven: Oven door should not be opened often during the cooking period.
The appliance must be installed by an authorized technician and put into use. The producer is
not responsible for any damage that might be caused by defective placement, and installation
by unauthorized personnel.
When the door or drawer of oven is open do not leave anything on it, you may unbalance your
appliance or break the door.
Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool
down before touching onto the points that are exposed to the heat directly.
If you will not use the appliance for a long time, it is advised to plug it off.
5

PRODUCT DESCRIPTION
Double grilling: The inside radiant element and top element are working.
The temperature can be set within the range of 150-240 C. The default temperature is 210 C.
O O
Convention with fan: Combination of the fan and both heating element provides more even
heat penetration, saving up to 30-40% of energy. Dishes are lightly browned on the outside
and still moist on the inside. Note: This function is suitable for grilling or roasting big pieces
of meat at a higher temperature. The temperature can be set within the range of 50-250OC.
The default temperature is 220OC.
Symbol Function description
Oven Lamp: Which enables the user to observe the progress of cooking without opening
the door. Oven lamp will light for all cooking functions,
Radiant grilling: The inner grill element switches on and off to maintain temperature.
The temperature can be set within the range of 150-240 C. The default temperature is 210 C.
O O
Conventional cooking: The top and bottom work together to provide convectional cooking.
The temperature can be set within the range of 50-250OC. The default temperature is 220OC.
Defr st: The circulation of air at room
temperature enables quicker thawing
of
frozen food,
(without the use of any heat). It's a gentle but quick way to speed up the defrosting time
and thawing of ready-made dishes and cream filled produce etc.
Convection: An element around the convection fan provides an additional source of heat for
convection style cooking. In convenction mode the fan automatically comes on to improve
air circulation within the oven and creates an even heat for cooking.
The temperature can be set within the range of 50-240OC. The default temperature is 180OC.
Double grilling with fan: The inside radiant element and top element are working with fan.
The temperature can be set within the range of 150-240 C. The default temperature is 210 C.
O O
K1 K2
Remind button
Stop button
Start button
Time button
o
Bottom heater: A concealed element in the bottom of the oven provides heat. It is mainly
used for keeping food warm.
The temperature can be set within the range of 60-120OC. The default temperature is 60OC.
6
For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the
heat comes from the top and the bottom.
except ECO function.

2. Function Setting
1> Rotate " K1 " to choose the cooking function you require. The related symbol will illuminated .
2> Rotate " K2 " to adjust the temperature.
3> Press " " to confirm the start of cooking.
4> If step 2 is ignored, Press " " to confirm the start of cooking and the default time is 9 hours,
the default temperature will display on the LED.
NOTE:
1> The step quantities for the adjustment time of the knobs are as follow:
0--0:30min: step 1 minute 0:30--9:00hour: step 5 minutes
2> The step quantities for the adjustment of temperature is 5 C, and " " " " can not adjust the
temperature.
O
3> Rotate " K1 " to adjust the cooking time when cooking begins. Then press " " to confirm.
If " " not pressed within 3 seconds, the oven will revert back to the previous time
to continue cooking.
4> Rotate" K2 " to adjust the temperature when cooking begins. The related indicator will be illuminated.
Then press" " to start cooking. If " " not pressed in 3seconds, the oven will revert back to the
previous temperatrue to continue cooking.
3. Lamp Setting
OPERATION INSTRUCTIONS
1. Clock Setting
After connecting the unit to the power, the symbols " 0:00 " will be visible on the display.
1> Press " ", the hour figures will flash.
2> Rotate " K2 " to adjust the hour figures, (time should be within 0--23).
3> Press " ", the minutes will flash.
4> Rotate " K2 " to adjust the minutes setting, (time should be within 0--59).
5> Press " " to finish the clock settings. " : " will flash, and the time will be illuminated.
Note: The clock is 24 hours. After power on, if not set, the clock will show " 0:00 ".
1> Rotate " K1 " to select the relevant function, then the corresponding icon will be on.
2> Press " " button to start, " 0:00 " and lamp icon" " will light up, " : " will flash.
4. Inquiring Function
In the following states, you can use inquiring function, after 3 seconds return to the current state.
1> During working state, if the clock was set, press " " button to see the current time; if the reminder
function was set, press " " button to see the time of reminder.
2> In reminding state, if the clock was set, press " " button to see the current time.
3> In clock display state, if the reservation function was set, press " " button to see the time of
reservation.
7

1> Press reminder setting button " ";
2> Rotate " K2 " to set the hour time of reminder. (Time should be within 0--9).
3> Press reminder setting button " " again;
4> Rotate " K2 " to set minute time of reminder. (Time should be within 0--59).
5> Press " " to confirm setting. The time will count down.
Note: The oven buzzer will sound for 10 times after the time back to the zero hour.
You can cancel the reminder during setting by pressing the stop button; After the reminder has been
set, you can cancel it by pressing stop button twice.
7. Start/Pause/Cancel Function
1> If the cooking time has been set, press " " to start cooking. If the cooking is paused, press " "
to resume cooking.
2> During cooking process, press " " once to pause the cooking. Press " " twice to cancel the
cooking.
8. Energy-Saving Function
1> In waiting state and reminding state, press " " for three seconds, the LED display will go
off and set to energy-saving mode.
2> If no operation in 10 minutes under waiting state, the LED display will go off and go into energy-saving
mode.
3> Under the energy-saving mode, press any key or rotate any can quit the energy-saving mode.
knob
5. Child lock Function
To Lock : press " " and " " simultaneously for 3 seconds, there will be a long " beeping " sound
and the " " will be illuminated.
Lock quitting: press " " and " " simultaneously for 3 seconds, there will be a long " beeping "
sound indicating the child-lock is released.
Note: During working mode, if you want to stop cooking, press stop button quickly. Do not need to long
pressing on stop button, it is invalid.
6. Reminder Function
This function will help to remind you to start cooking in a certain time from 0:01 to 9:59.
Only when oven in standby mode, the reminder can be set. Follow below to set the reminder:
8

10. Note
1> The oven lamp will be on for all functions.
2> Once the cooking programme has been set and the" " button is not pressed within 5 minutes,
the current time will be displayed or turn back to waitting state. The setting program will be invalid.
3> The buzzer will sound once when effectively pressed, if not effectively pressed there will be no
response.
4> The buzzer will sound five times to remind you when cooking has finished.
Note:
Lamp, defrost, probe can't be reserved.
During the status of reservation, press cancel button once, time and temperature of reservation menu
will be shown with menu icon lighting constantly. Press again, screen returns to clock, or press start
button to return to reservation status.
Reminder function is invalid during reservation status.
2> Press " " button to set cooking time and temperature. Then turn knob " K1 " to adjust time, and
3> Press the " " button to finish cooking setting, and the clock will be on the screen with reservation
sign " " always lighting. But no other function signals are presented. Reservation time can be
checked by pressing " ", 3 seconds later the screen will show clock again.
4> At the time of reservation, cooking will start automatically after a buzzing sound. The reservation
symbol " "
will put out, and other indicating signs will work normally.
" K2 " to adjust temperature.
9.Reservation Function
1> To use reservation function, clock must be set in advance. Then, in the way of setting the clock,
reserved time that oven starts to cook must be set (a> Press reservation setting button " ";
b> Rotate " K2 " to set the hour time of reservation. Time should be within 0--23. c> Press
reservation setting button " " again; d> Rotate " K2 " to set minute time of reservation. Time
should be within 0--59.), but don't press clock
this time. Next, turn knob " K1 " to chosse
function.
1>
2>
3>
9

Wire shelf : For grill, dishes, cake pan with
items for roasting and grilling.
ACCESSORIES
Slider bracket : For cooking larger size
food, these shelf support rails on the right
and left sides of the oven can be removed,
dishes and tray can be put on the oven
floor, using functions as Radiant grilling,
Double grilling, Double grill with fan.
NOTE: When placing dishes on the
oven floor, please DO NOT use functions
with bottom heater to prevent heat
gathering at bottom.
(only for specific models)
Universal pan: For cooking large quantities of
food such as moist cakes, pastries, frozen
food etc, or for collecting fat/spillage and
meat juices.
10

BULB REPLACEMENT
For replacement, process as follows:
1> Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains
outlet.
2> Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace
the bulb with a new one of the same type.
3> Screw the glass lamp cover back in place.
NOTE: Only use 25-40W/220V-240V , T300°C halogen lamps.
SECURING THE OVEN TO THE CABINET
1. Fit oven into the cabinet recess.
2. Open the oven door.
3. Secure the oven to the kitchen cabinet with two
distance holders " A " which fit the holes in the oven
frame and fit the two screws " B ".
OR
SHELF PLACEMENT WARNING:
To ensure the oven shelves operate safely, correct placement of the shelves between the side rail
is imperative. Shelves and the pan only can be used between the first and fifth layers.
The shelves should use with the right direction, it will ensure that during careful removal of the
shelf or tray, hot food items should not slide out.
11

12
This appliance has a total Power Rating of 3kW and can be
fitted with a 13 Amp plug and plugged into a standard,
switchable 13 Amp socket.
Alternatively, the product can be ‘hard wired’ into a suitable
fused spur adjacent to the appliance housing. In this case the
product must be installed by a Qualified Electrician. Please
note that a switchable spur should be accessible above the
work surface in order that the power can be turned off.

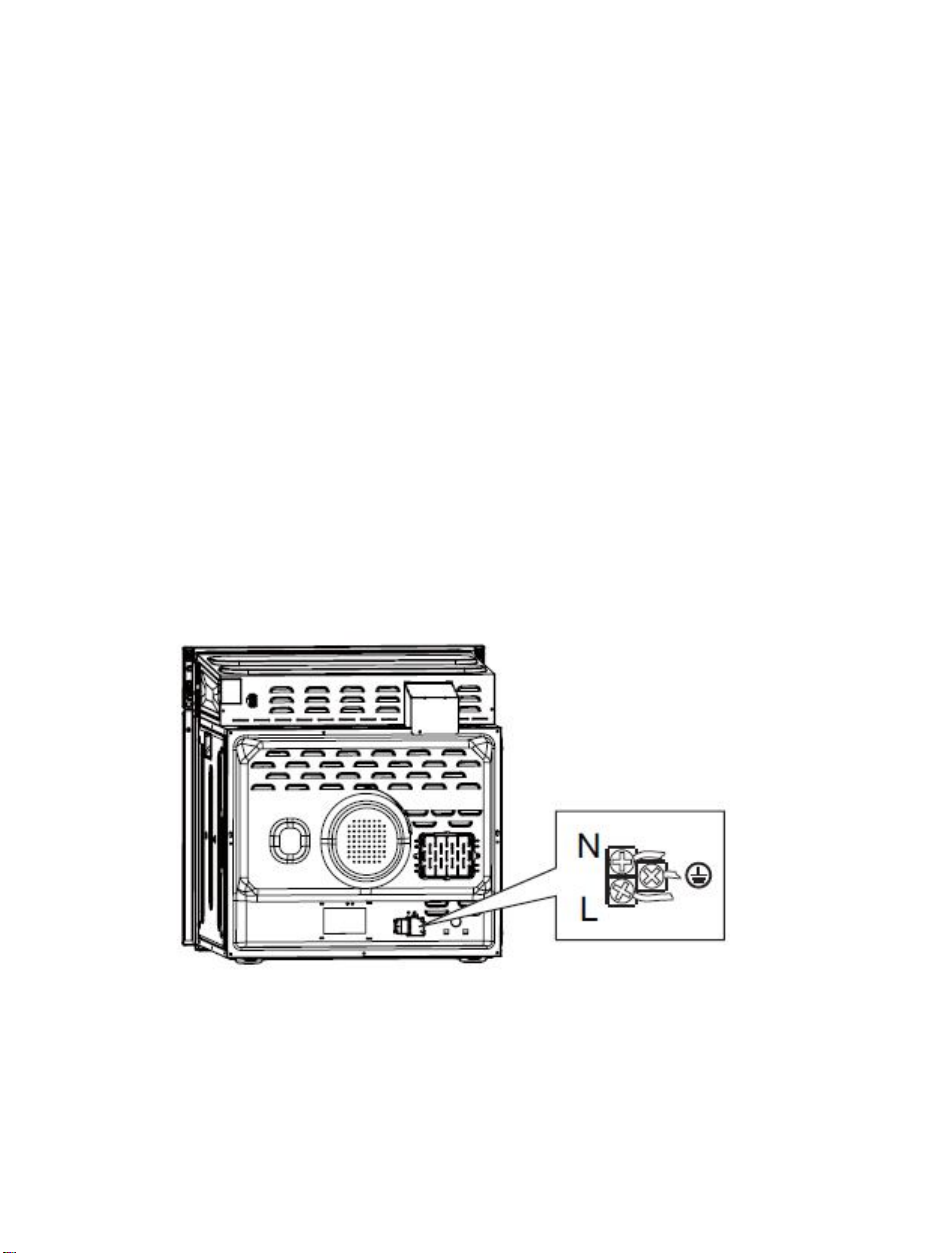

Electrical Connection Diagram:
CONNECTION OF THE OVEN

NOTE: The number of accessories included depends on the particular appliance purchased.
INSTALLATION
Remark:
1.Only plus deviations are admissible for all dimension.
2.The cabinet is not include the power switch or socket.
13
VENTILATING OPENINGS
When cooking is finished or in pause state or in waiting state, if the oven's center temperature is
over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center
temperature becomes lower than 75 degree, the cooling fan will stop in advance.
Ventilating openings
555
20
595
595
560
570
min.560
606
600
80
250
100

1.
2.
3.
4.

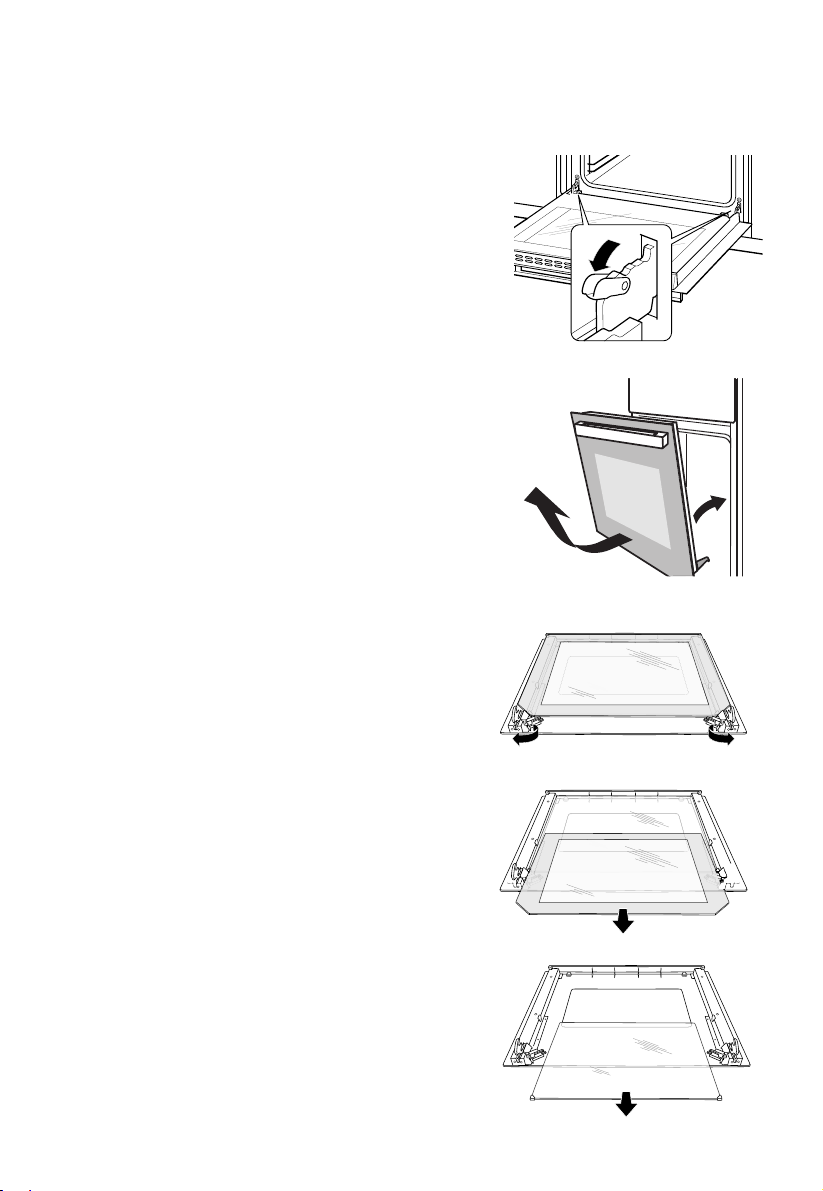

To remove the door, open the door to the
maximum angle. Then pull the buckle at
the door hinge backward.
Close the door to an angle approximately 30°.
Hold the door with one hand on each side.
Lift up and slowly pull the door out from the oven.
Open the door rotation bracket assembly, refer
the action in the following picture.
Lift up the door outer glass and pull it out, then
take the door middle glass out in the same way.
14
WARNING:
Don't forcibly pulled out the door and prevent the
glass breakage during the dismantling process.
WARNING:
The hinge springs could loose, causing personal injury.
WARNING:
Do not lift or carry the oven door by the door handle.
30˚
REMOVING THE DOOR FROM OVEN (OPTIONAL)
Disassembly of oven door components

Before any maintenance and cleaning, disconnect the power.
Set all controls in the OFF position.
Wait until the inside of the unit is not hot but only slightly warm-cleaning is easier than when warm.
Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry.
In case of heavy soiling, use hot water with non-abrasive cleaning product.
For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers,
these can scratch the surface or lead to the glass being damaged.
Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild
detergent.
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be
carried out in accordance with local environmental regulations for waste dispoasl. For more
detailed information about treatment, recovery and recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you purchased the
product.
CLEANING AND MAINTENANCE
For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit
facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to
be cleaned regularly.
15
Recipes Temperature (℃) Level Time (min) Pre-heat
Potato
Cheese
Gratin
180 1 90-100 No
Cheese
Cake 160 1 100-150 No
Meatloaf 190 1 110-130 No
Recipes for ECO mode

Here For You
Here For You
After-sales assistance
If you continue to experience problems with your Built in Oven, please call the Montpellier customer service
helpline on: 01759 487839
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
rst 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
• Any defect caused by accident, misuse, unauthorised modification or inexpert repair.
•Cost of Call-out where a fault cannot be found with the appliance.
•C ost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of filters or
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures
carried out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by Montpellier service and/or carried out by a non-
approved Montpellier engineer.
•Montpellier Appliances do not accept claims for consequential loss, rusting, corroding, delivery damage
or scratches.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To register your appliance simply complete the card in your appliance pack and return it with a stamp axed or
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 01759 487839
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city oce, your household waste disposal service or the shop where you purchased the product.
www.montpellier-appliances.com
Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway Lane,
Tewkesbury, Gloucestershire GL20 8JU
